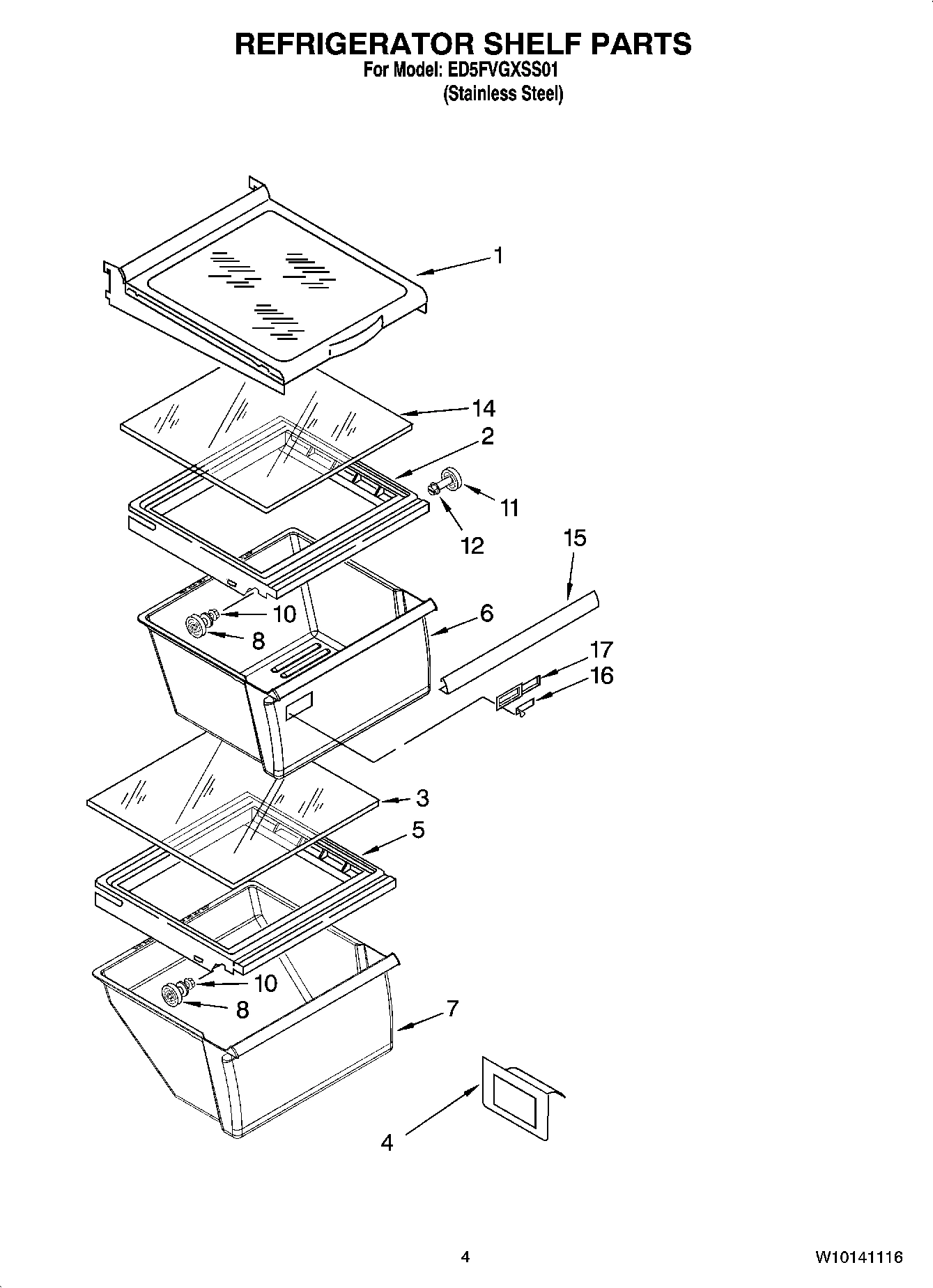

Model Whirlpool ED5FVGXSS01 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Liner (Not A Serviceable Part) WPL ARI34521A1 Contact Us For Availability

1

Housing Dispenser (Not Serviced) WPL ARI34523A1 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI34522A2 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2206825S Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Air Scoop WPL 2161231 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

4

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $54.30

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2257741 Contact Us For Availability

5

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $50.03

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

5

Shelf (2) WPL 2254616K Contact Us For Availability

5

Extension, Handle (Black) WPL 2193353B Contact Us For Availability

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $33.27

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

7

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Shelf Ladder WPL 2319866 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

9

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $71.88

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2261449 Whirlpool Refrigerator Track Backorder WPL WP2261449 $44.08

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Slide, Basket (Left Side) WPL 2261448 Contact Us For Availability

Thimble, Top WPL 2308050 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

15

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

15

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

15

Pivot Arm WPL 1110559 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Thimble, Top WPL 2301049 Contact Us For Availability

Cover, Evaporator (Includes 9) WPL 2203841 Contact Us For Availability

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

Light Lens WPL 2209769 Contact Us For Availability

Switch Assembly (Not Available Order 23) WPL ARI34524A9 Contact Us For Availability

Shelf, Top Compartment WPL 2171714K Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

Extension Tube WPL 2304937 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI34525A9 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

Screw (2) WPL 488280 Contact Us For Availability

Wire Assembly WPL 2187408 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Front Cover, Housing (Not Available Order 23 WPL ARI34526A5 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

Stud, Rear WPL 2196207 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2318424B Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

27

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

36

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

37

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

43

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

48

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

49

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
