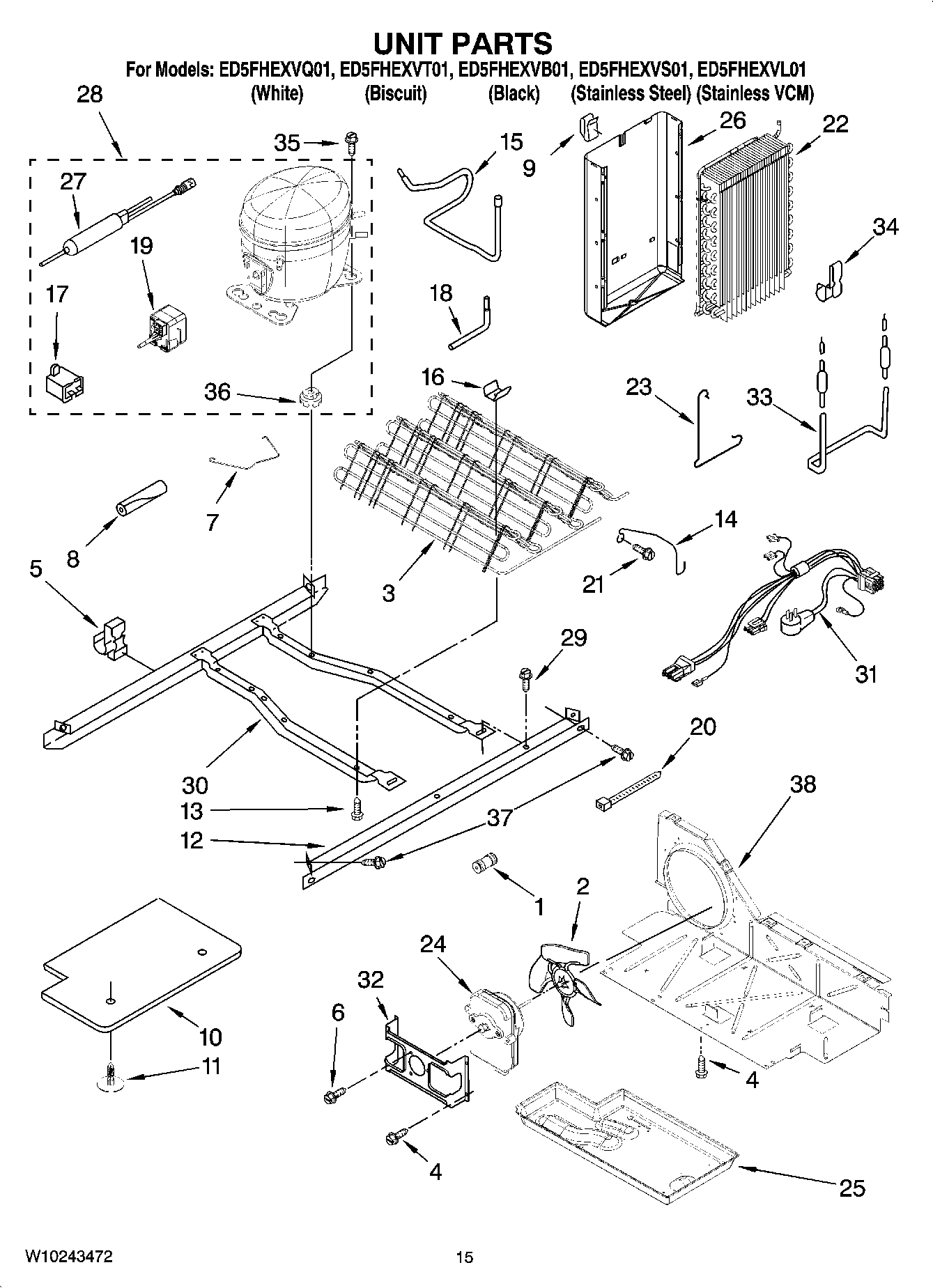

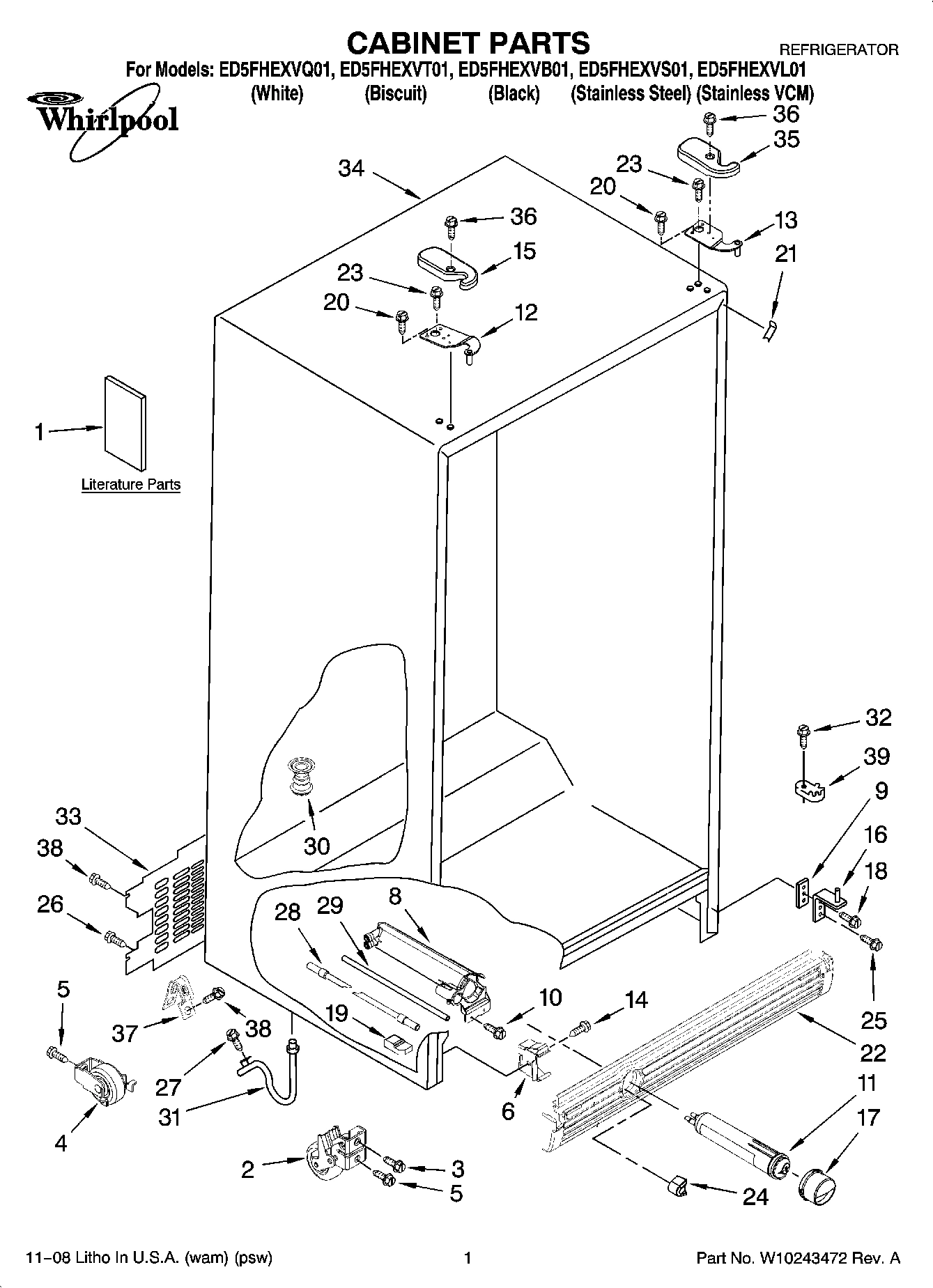

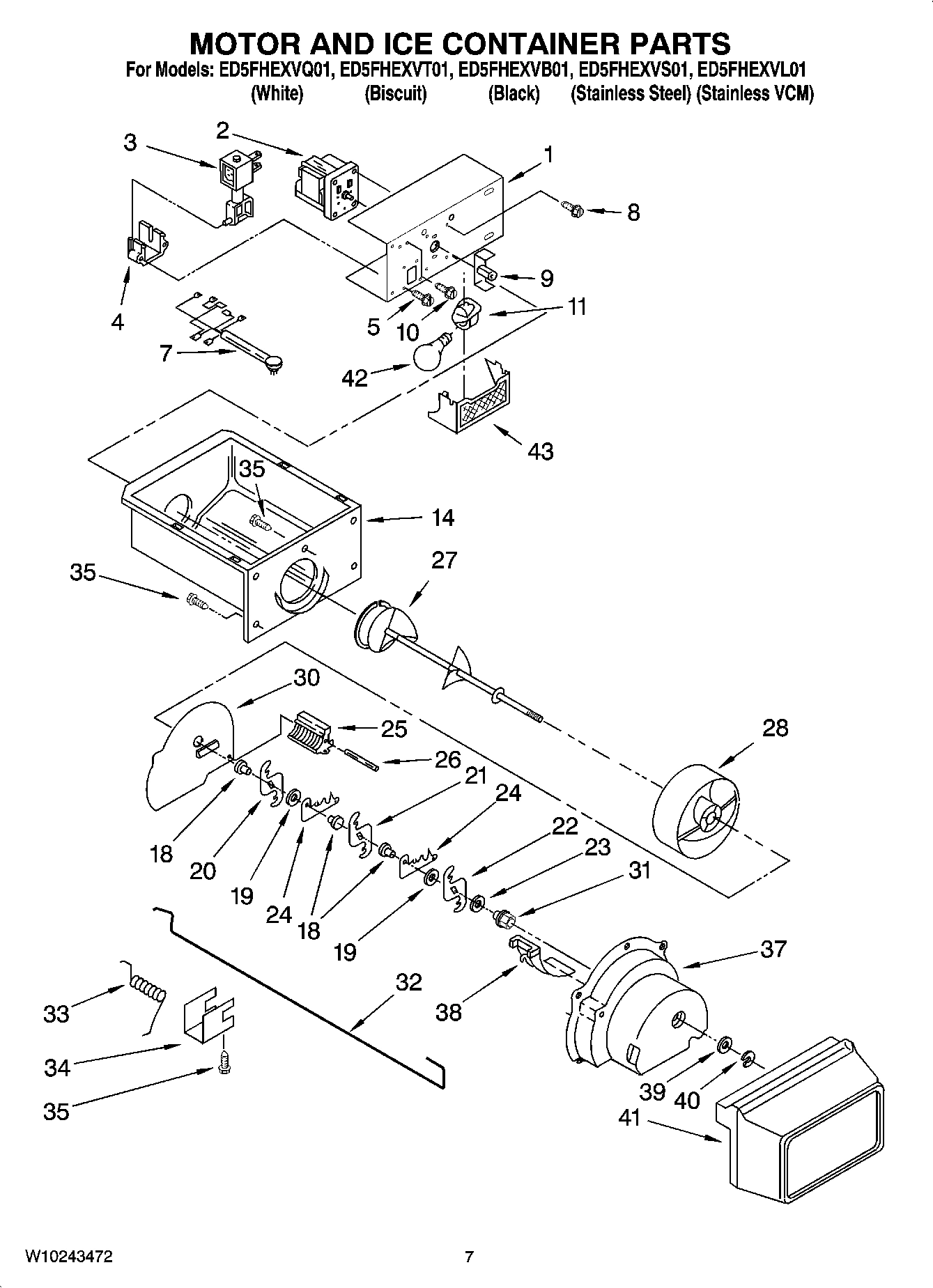

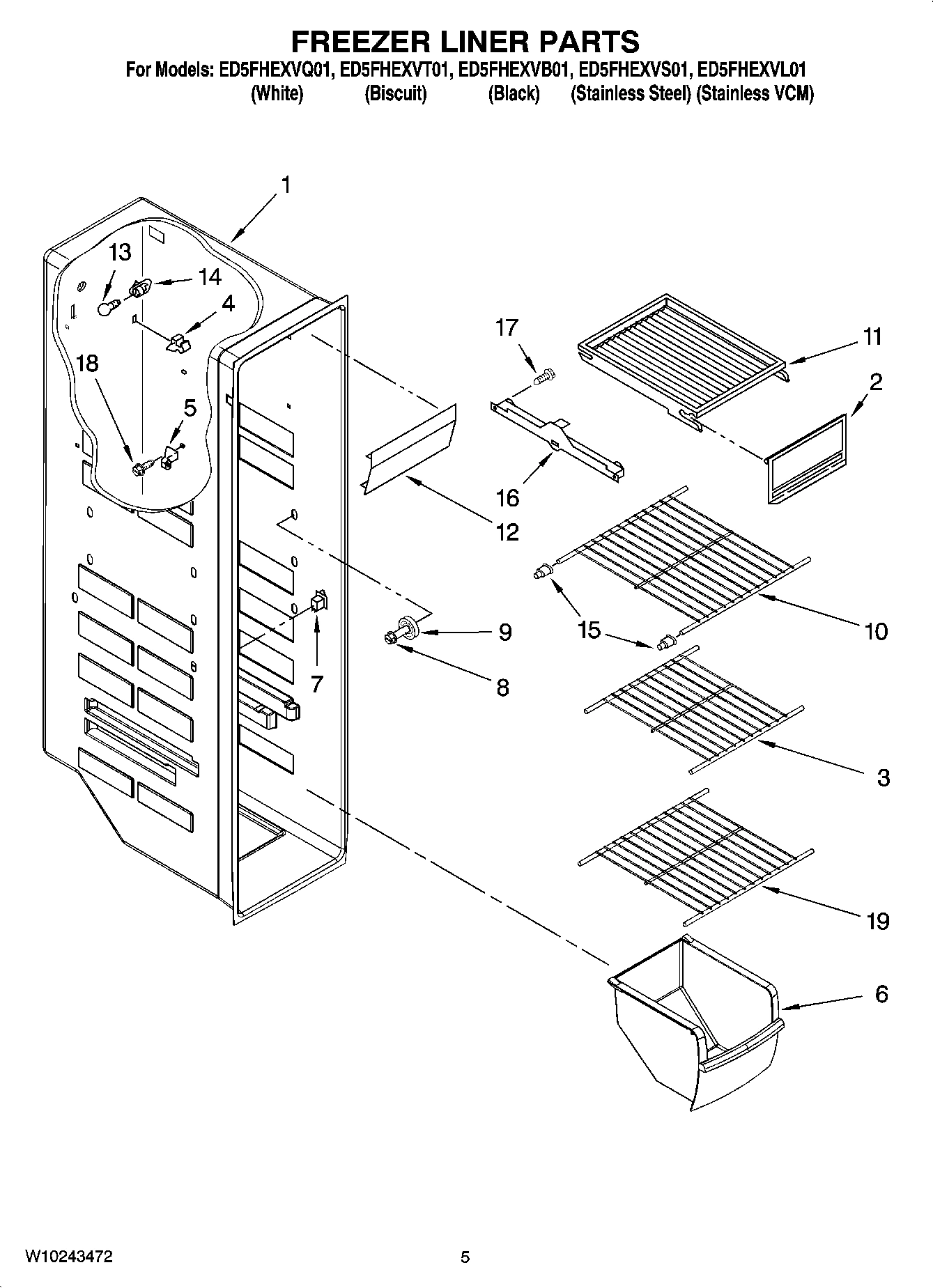

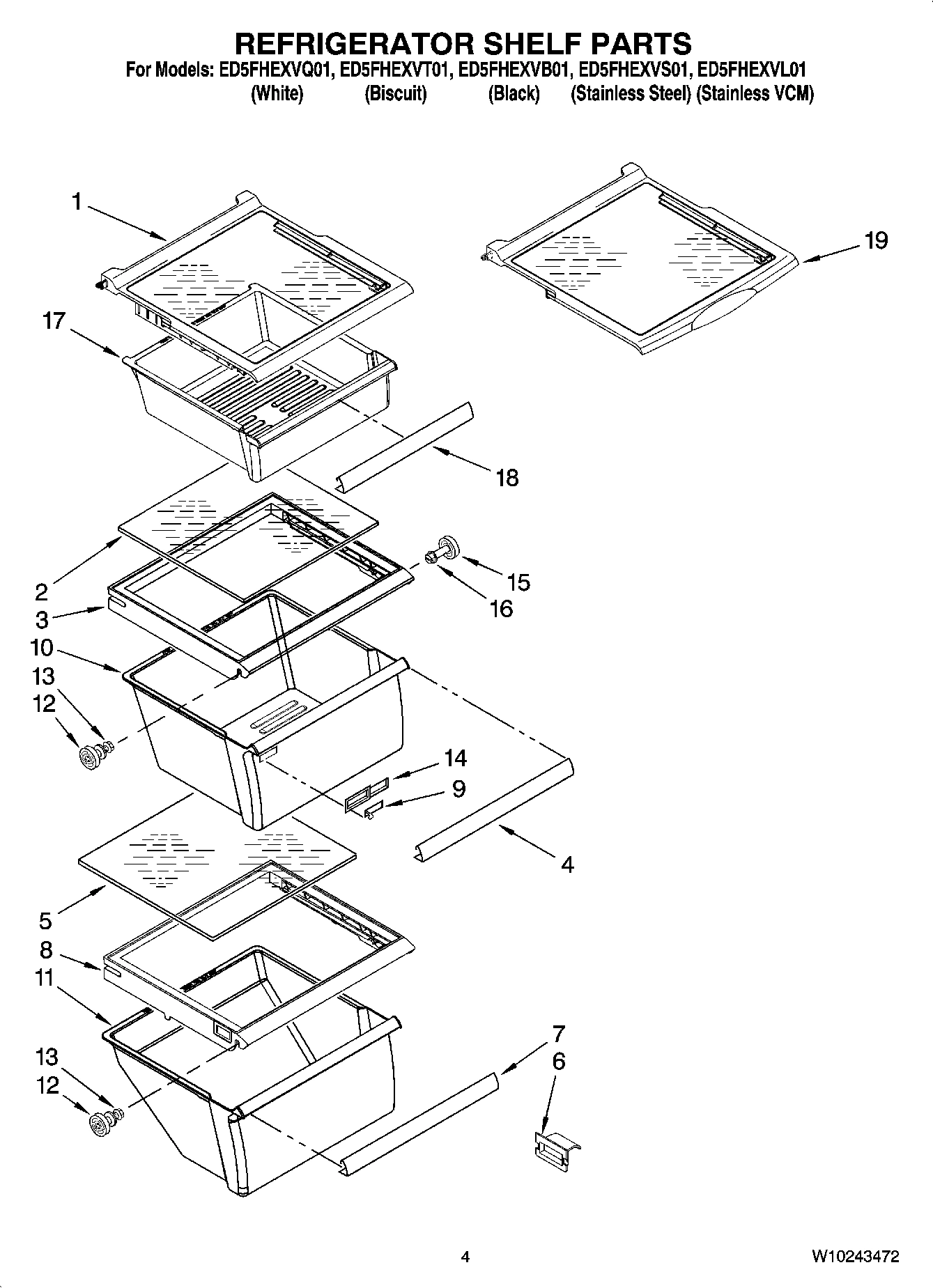

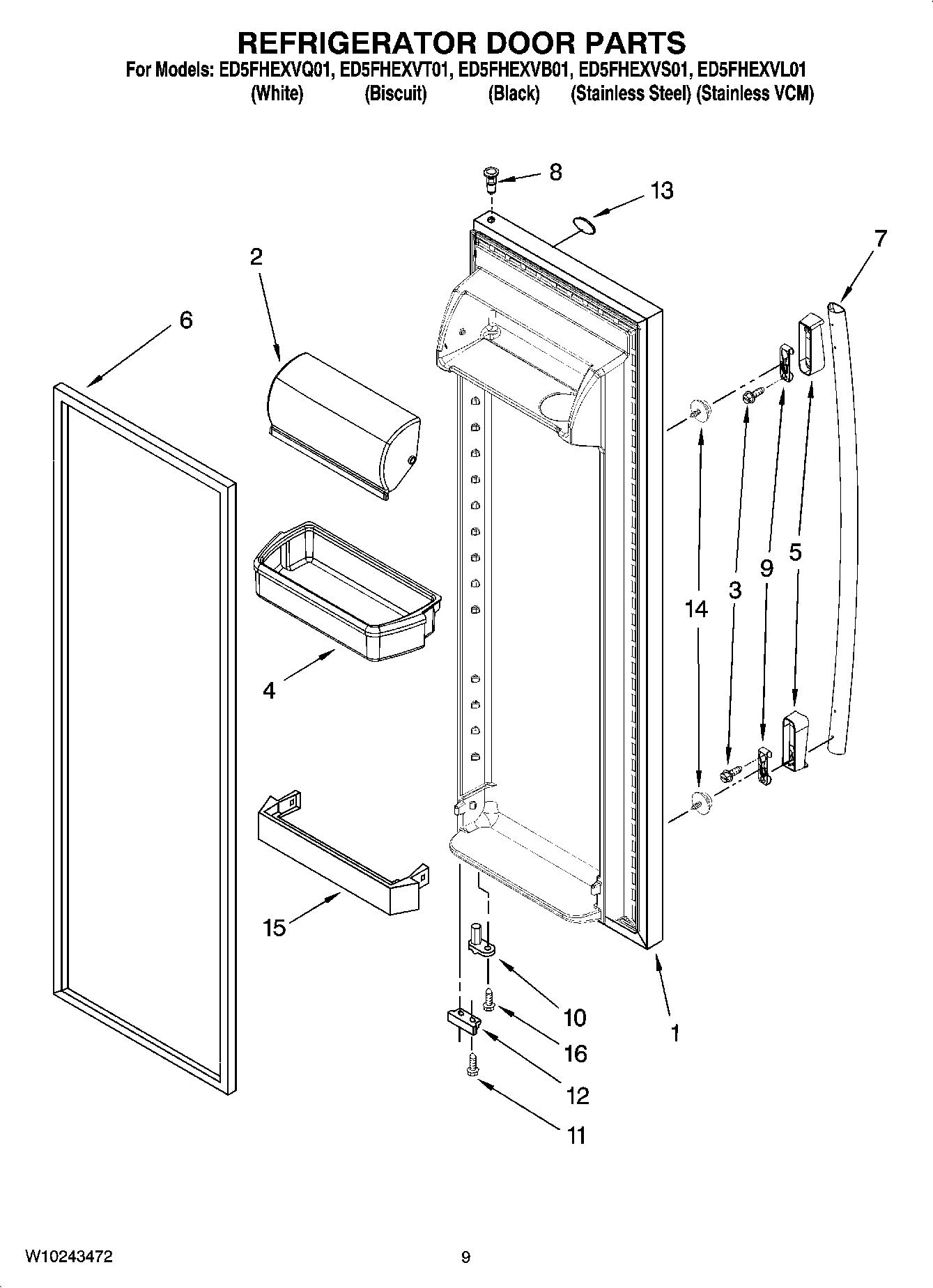

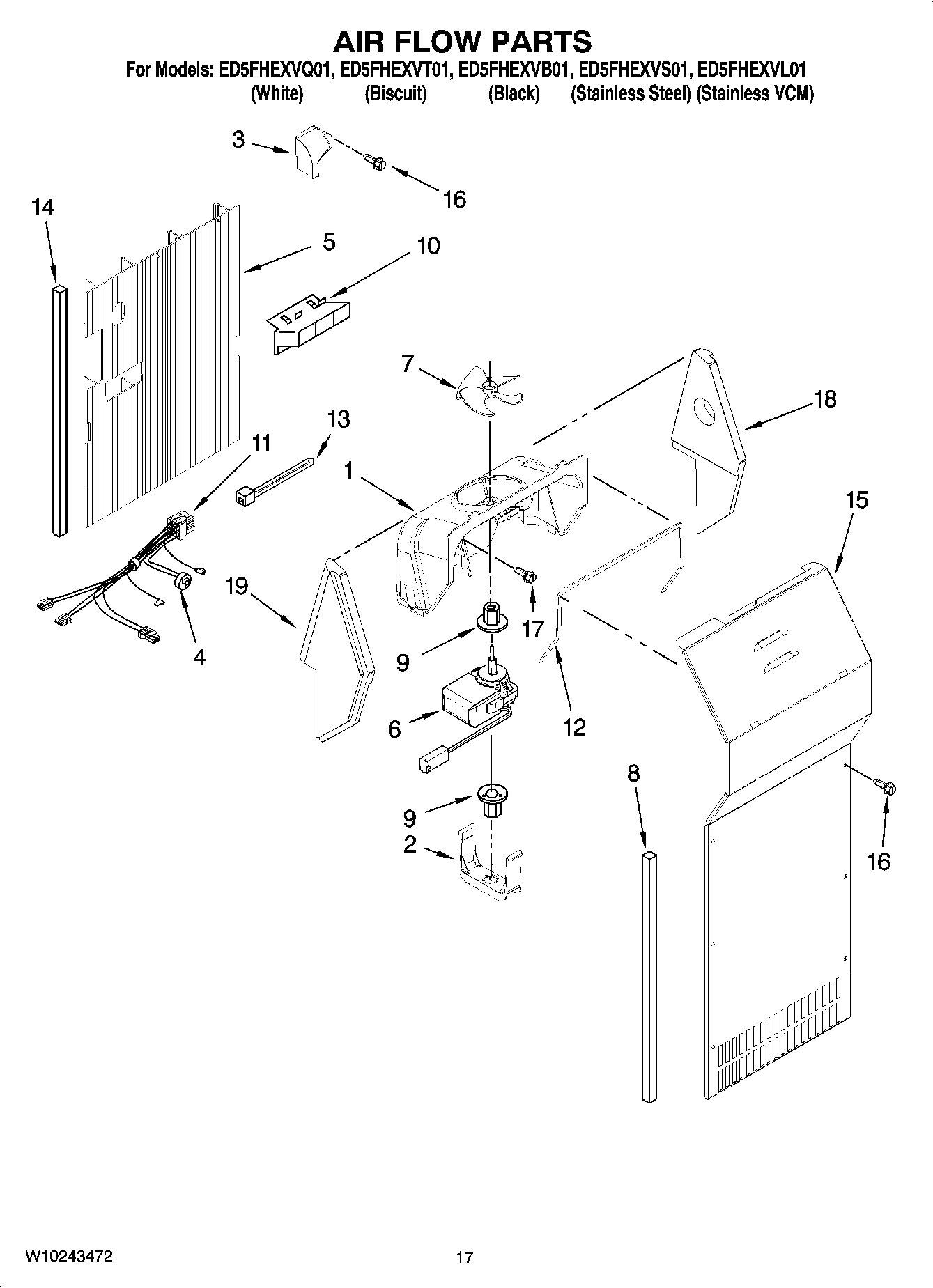

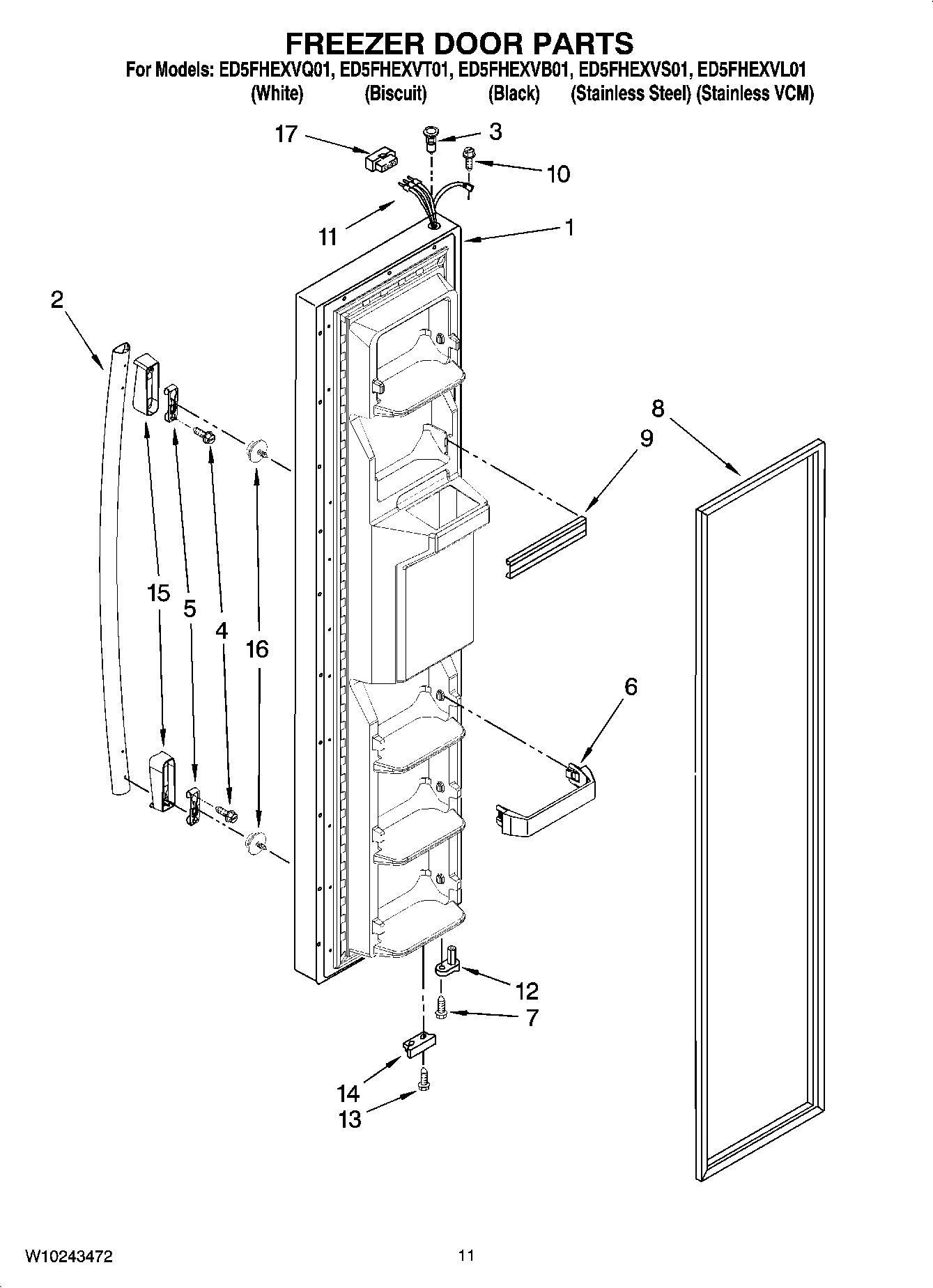

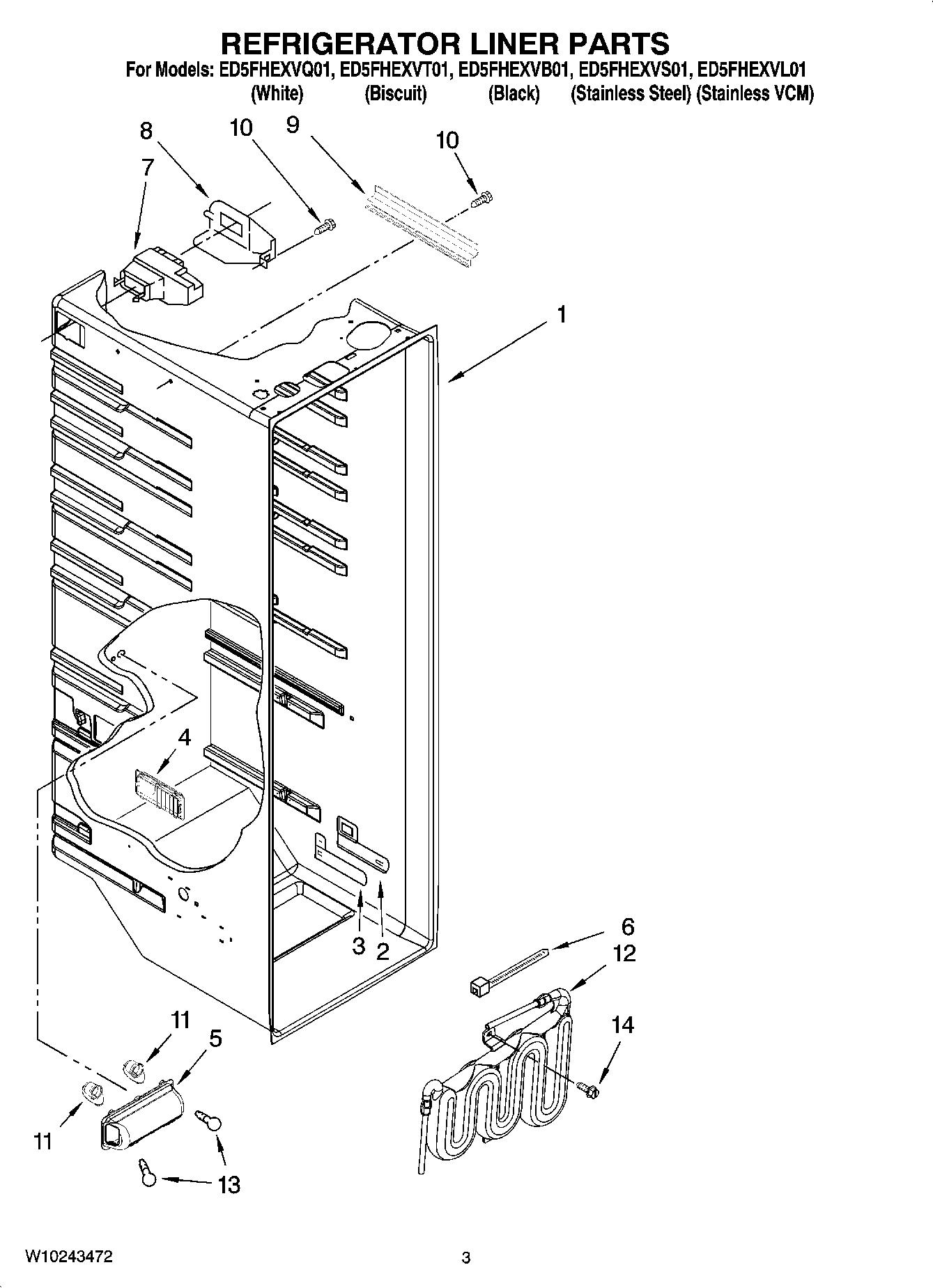

Model Whirlpool ED5FHEXVS01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI34143A4 Contact Us For Availability

REFRIGERANT CHARGE 5.0 oz. (R-134A) WPL ARI34144A8 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

1

Control Box WPL 2311721 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

2

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $49.85

5

Clip, Wire WPL 2208280 Contact Us For Availability

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2309718 Whirlpool Refrigerator Door Trim In Stock WPL WP2309718 $37.62

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

6

WP8533993 Whirlpool Refrigerator Screw Backorder WPL WP8533993 $4.56

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

7

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

8

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

9

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

9

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Cilp, Heat Shield WPL 2155547 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $72.87

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $86.75

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $33.86

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $34.13

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.38

Grommet, Light Bar WPL 2172906 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WPW10196323 Whirlpool Refrigerator Rail Assem Backorder WPL WPW10196323 $51.83

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $26.21

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $26.75

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

Endcap (Black) WPL W10127814 Contact Us For Availability

Endcap (Nickel Alloy) WPL W10152864 Contact Us For Availability

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.02

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $32.68

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $32.50

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $125.90

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $67.53

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $64.45

20

2311632 Whirlpool Refrigerator Wire Harness Backorder WPL 2311632 $83.66

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

20

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

22

CLIP, WIRING WPL 1115375 Contact Us For Availability

23

2161308 Whirlpool Refrigerator Rod Backorder WPL 2161308 $45.29

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

23

Front Cover Assembly (Includes Items 18, 19, WPL W10153726 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489391 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

Front Cover, Control Box WPL 2311803 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W10194475 Whirlpool Refrigerator Shield Backorder WPL W10194475 $53.71

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

27

Window WPL 2175513 Contact Us For Availability

28

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $353.02

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

W10196321 Whirlpool Refrigerator Frame Backorder WPL W10196321 $174.55

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

2311733 Whirlpool Refrigerator Wire Harness Backorder WPL 2311733 $93.96

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

Extension Tube WPL 2304937 Contact Us For Availability

32

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161324 Contact Us For Availability

35

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

35

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

36

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

36

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

36

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

37

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

38

Air Baffle WPL W10163483 Contact Us For Availability

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

43

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21
