Model Whirlpool ED2VHGXMT10 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
12 - ICEMAKER PARTS, PARTS NOT ILLUSTRATED

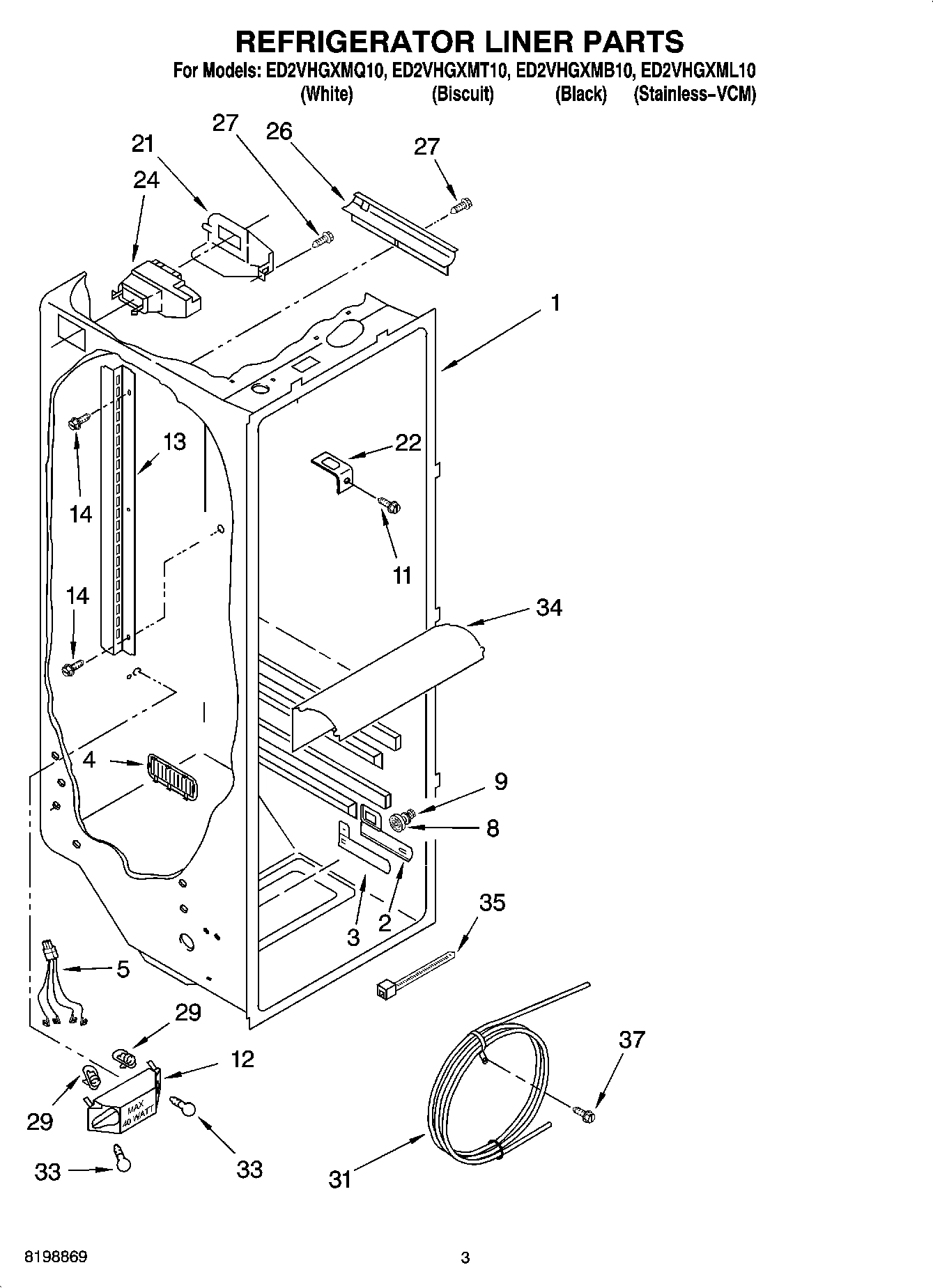

02 - REFRIGERATOR LINER PARTS

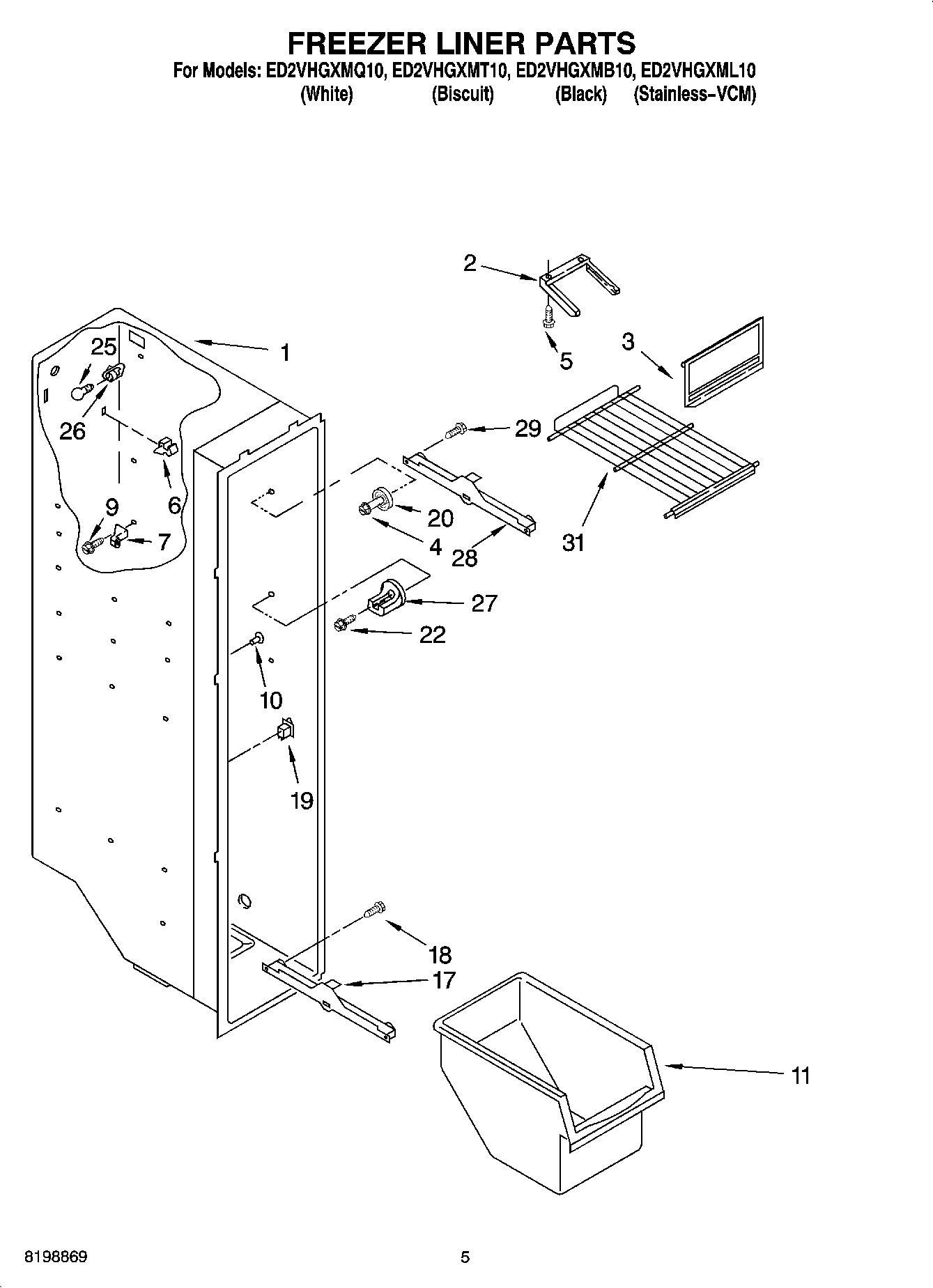

04 - FREEZER LINER PARTS

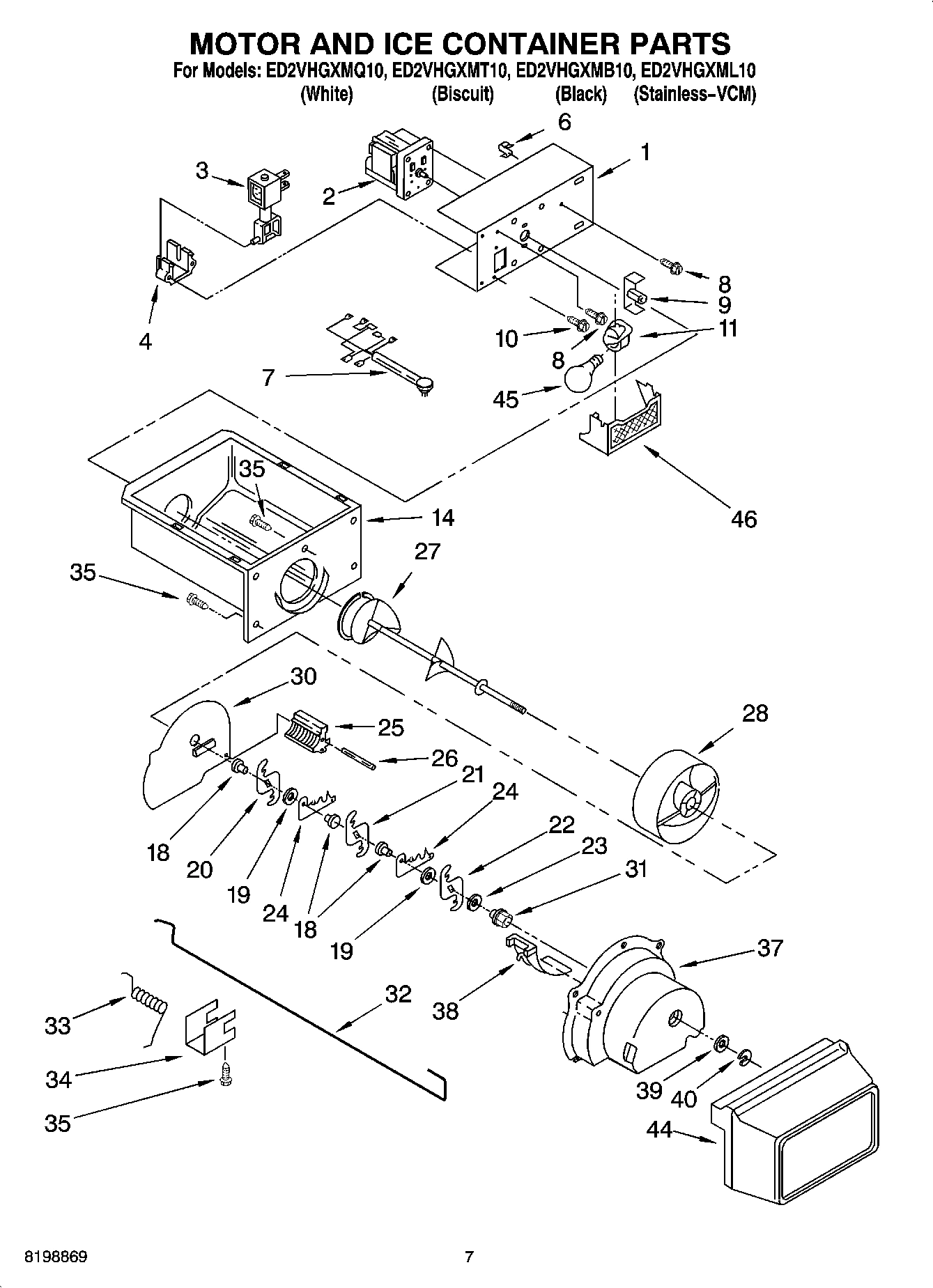

05 - MOTOR AND ICE CONTAINER PARTS

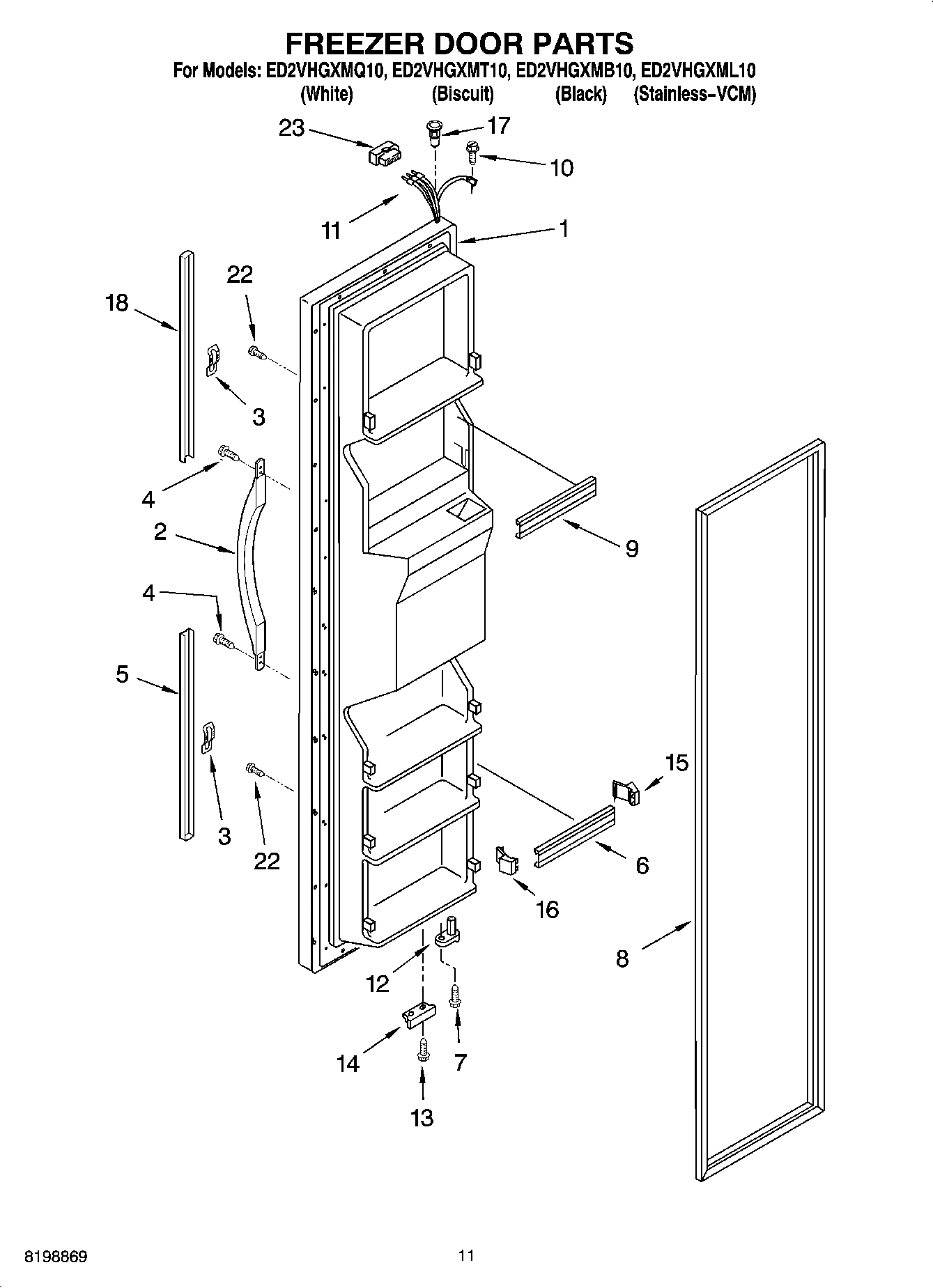

07 - FREEZER DOOR PARTS

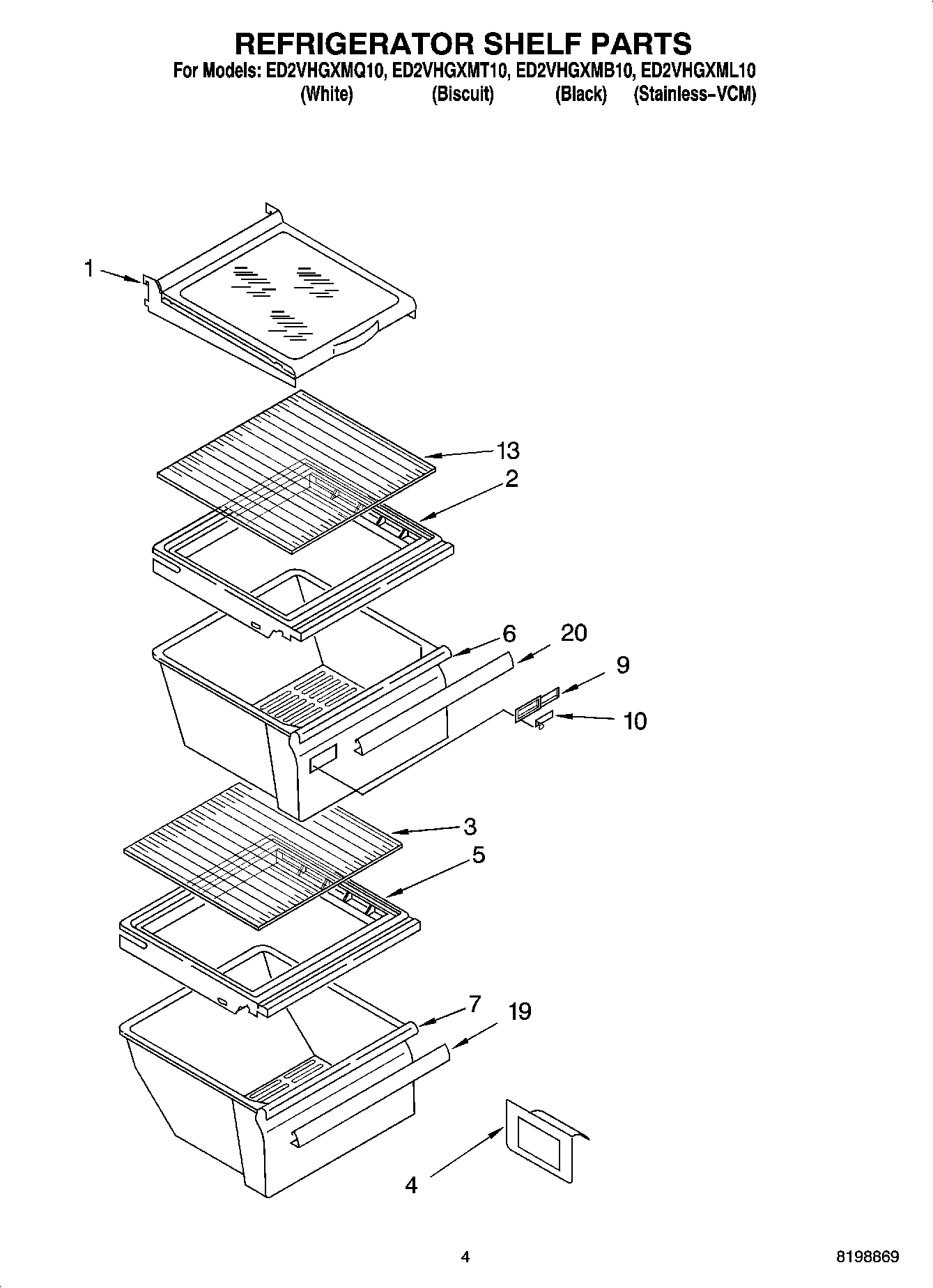

03 - REFRIGERATOR SHELF PARTS

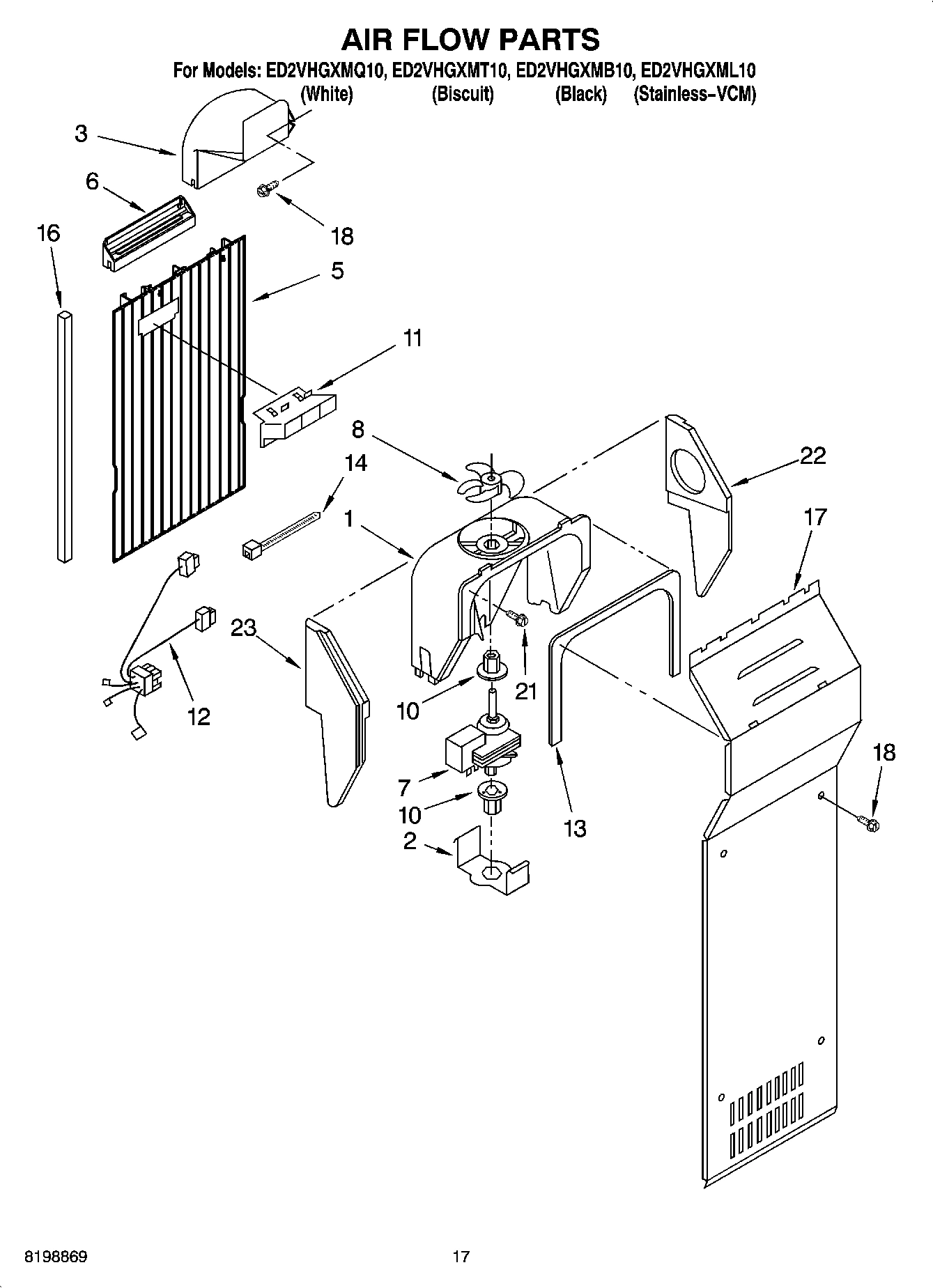

10 - AIR FLOW PARTS

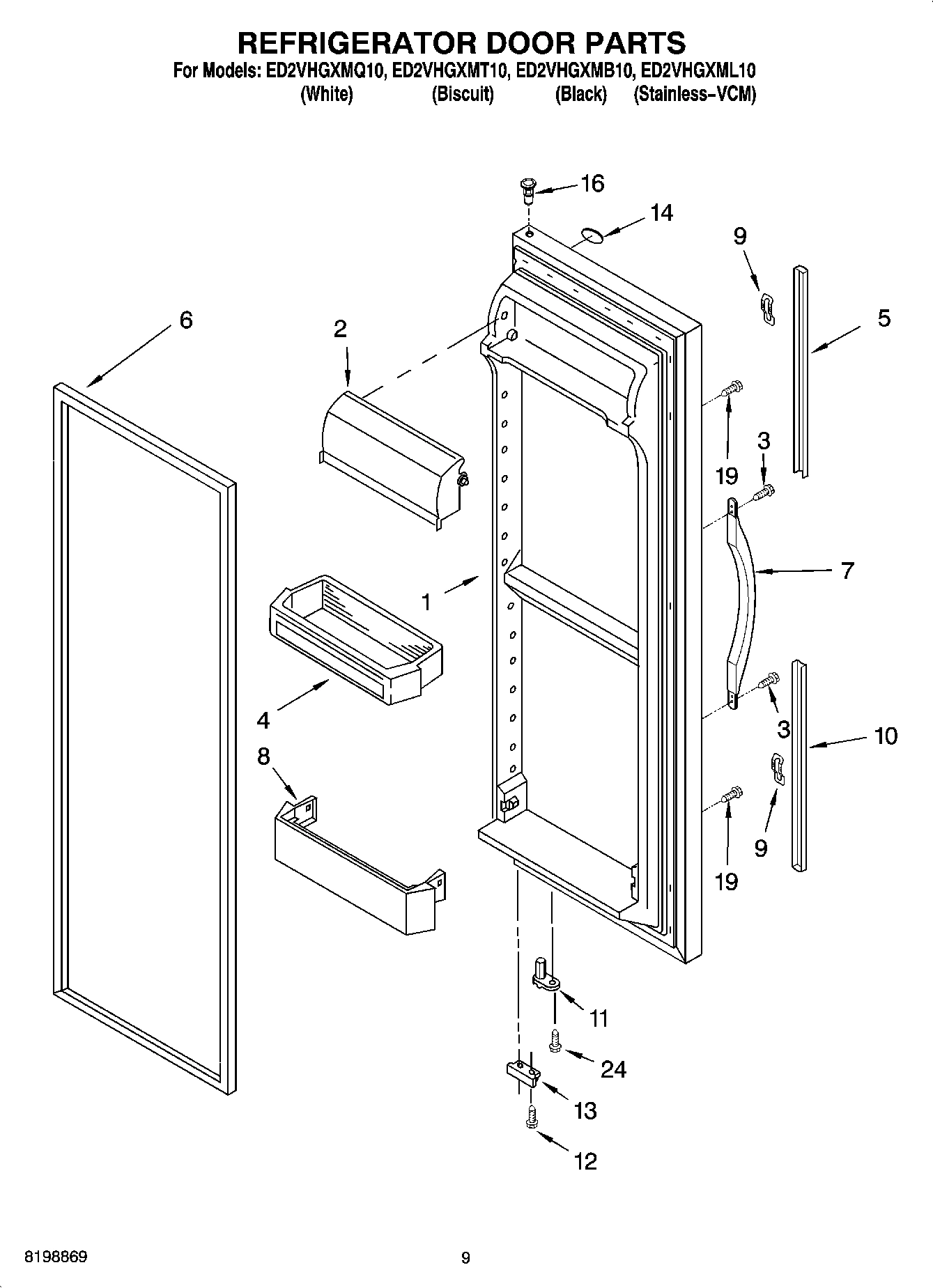

06 - REFRIGERATOR DOOR PARTS

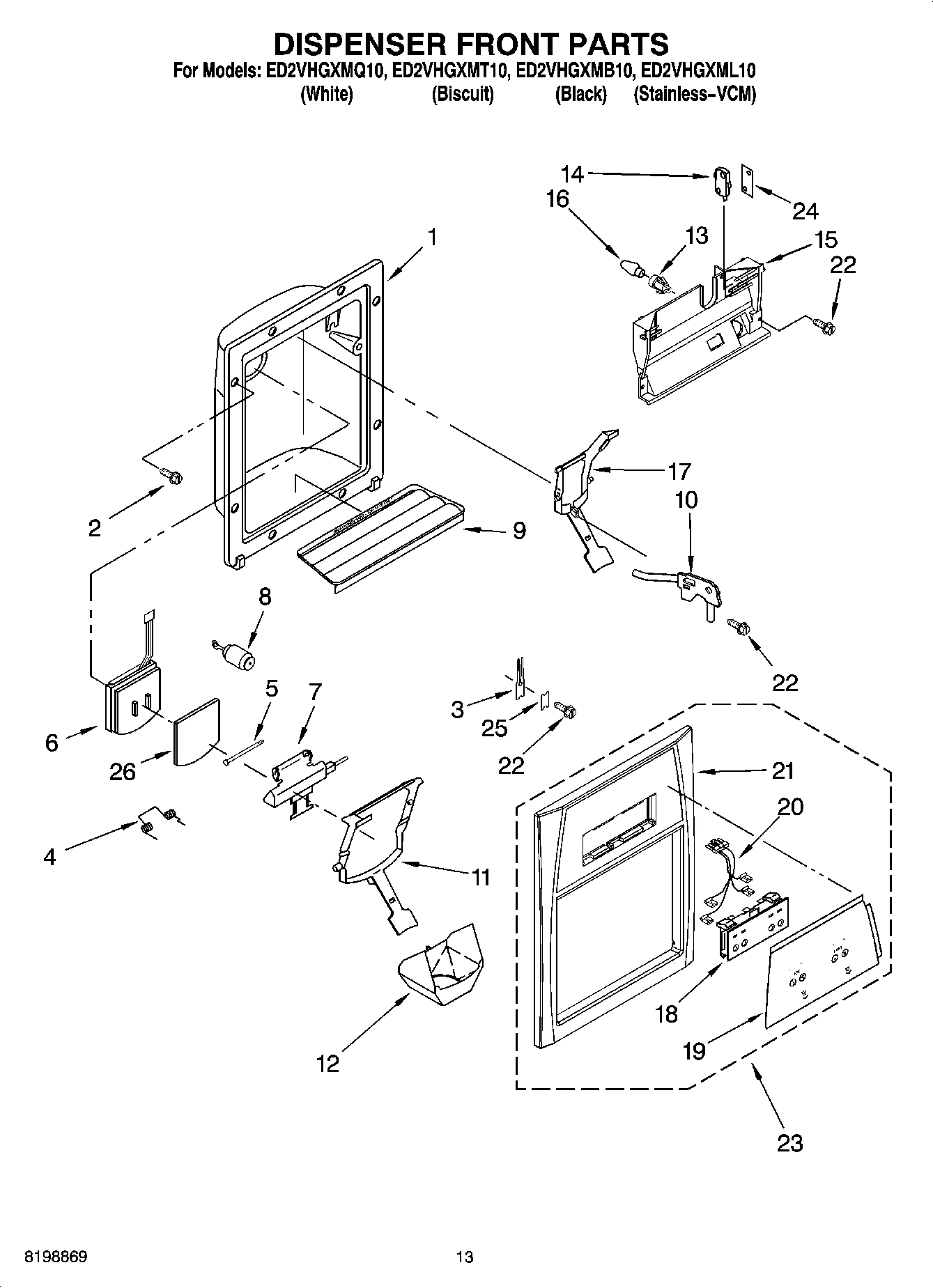

08 - DISPENSER FRONT PARTS

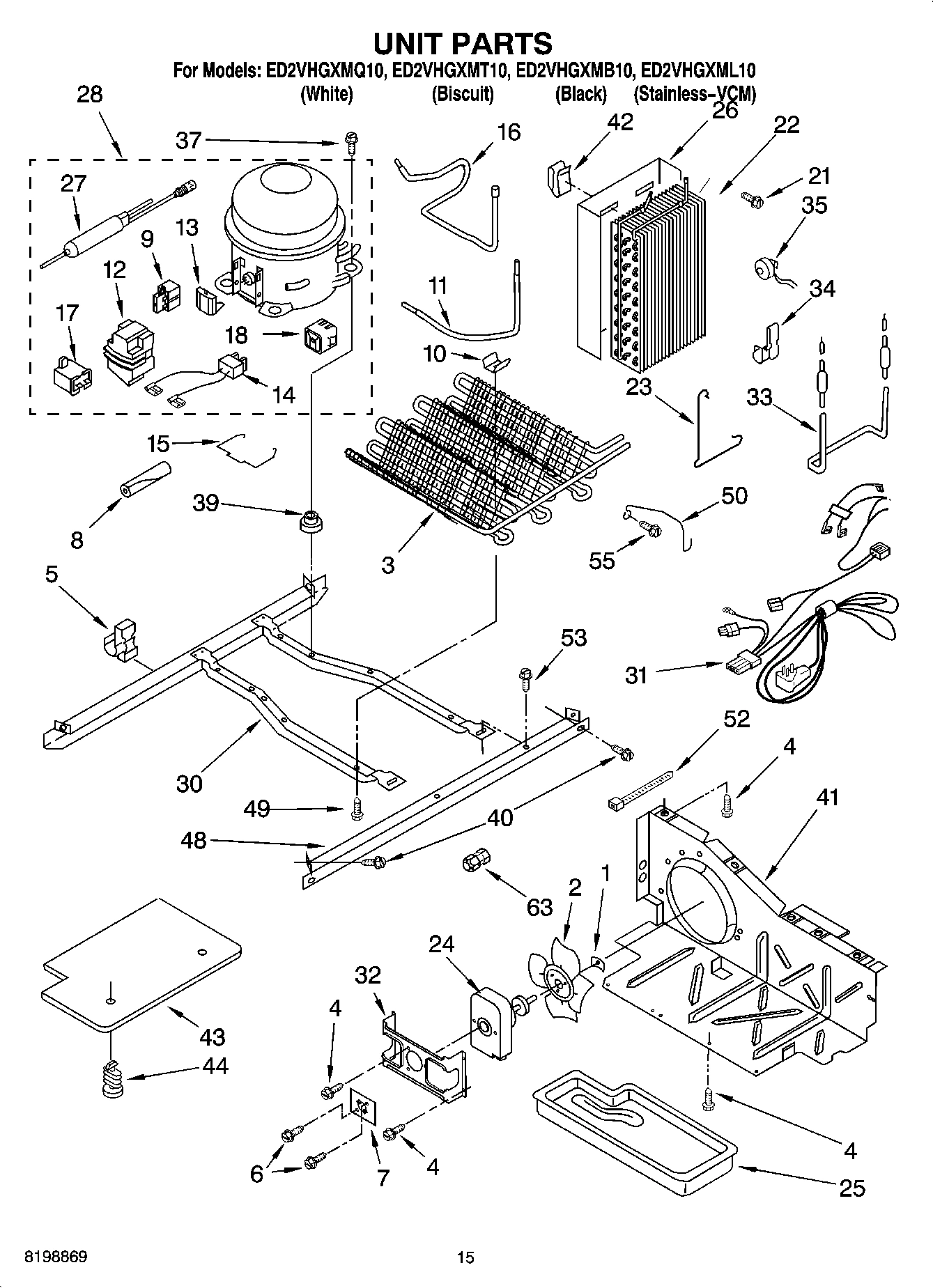

09 - UNIT PARTS

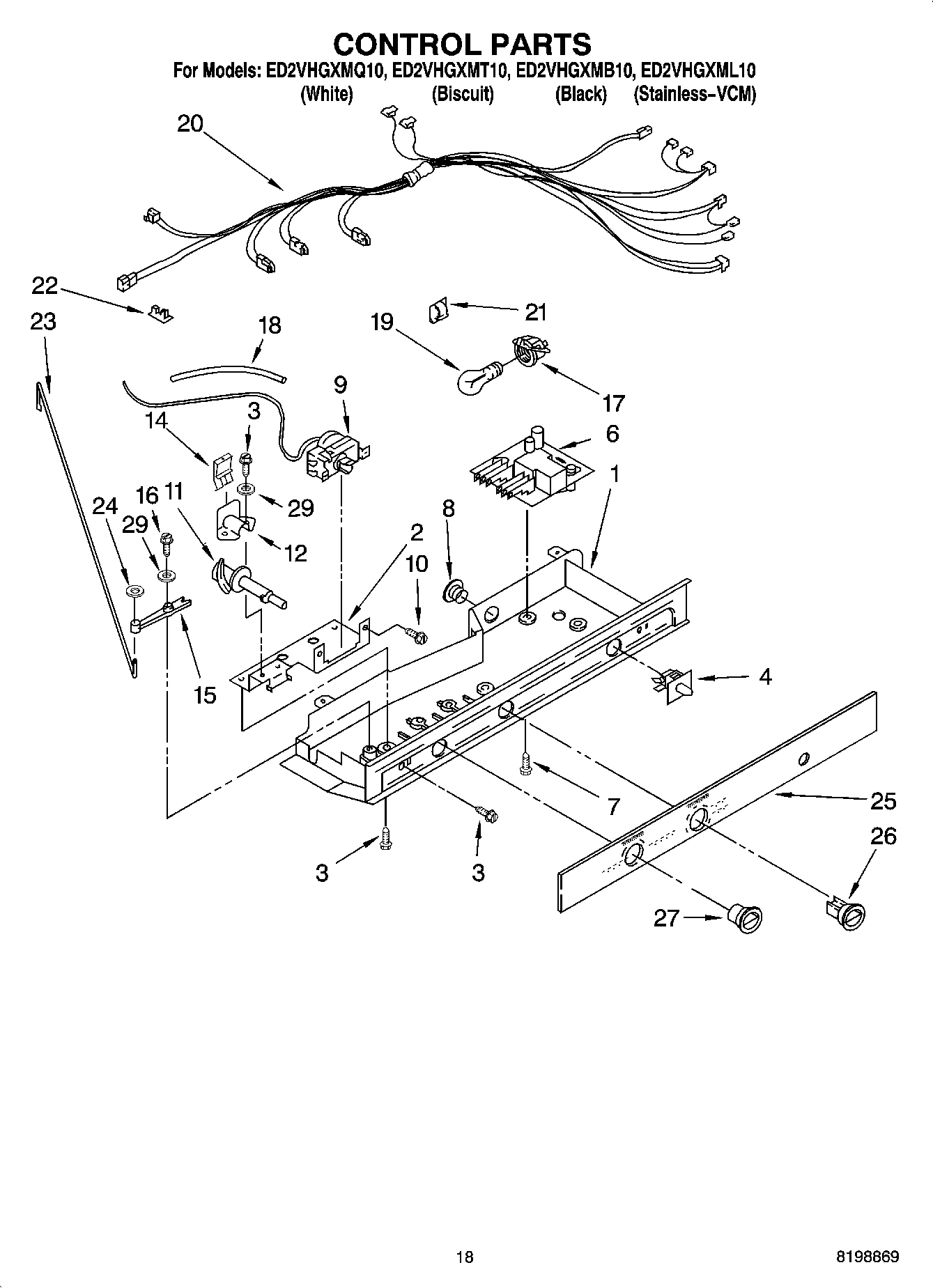

11 - CONTROL PARTS
Common parts from model Whirlpool ED2VHGXMT10 REFRIGERATOR
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
Enamel, Almond (12 Oz. Spray Can) WPL 350956 Contact Us For Availability
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
WPL 876370 WPL 876370 Contact Us For Availability
WPL 876029 WPL 876029 Contact Us For Availability
WPL 833938 WPL 833938 Contact Us For Availability
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
WPL 799344 WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
1
Control Box WPL 2200136 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
Handle, Center (Black) WPL 2186649B Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Door, Ice Compartment WPL 2171712 Contact Us For Availability
3
Condenser Assembly WPL 2204484 Contact Us For Availability
5
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
5
Clip, Wire & Tube WPL 2208280 Contact Us For Availability
6
Screw WPL 8281160 Contact Us For Availability
7
Insert, Bracket WPL 2216997 Contact Us For Availability
8
Shim WPL 2209697 Contact Us For Availability
8
Hole Plug WPL 940014 Contact Us For Availability
9
Relay (Service Only) WPL 2183454 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability
11
Freezer Bin WPL 2216111 Contact Us For Availability
11
Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
14
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Clip, Retaining WPL 2223314 Contact Us For Availability
16
TUBE, SUCTION WPL 2205764 Contact Us For Availability
16
Screw WPL 627068 Contact Us For Availability
18
Extension, Top (White) WPL 2194971W Contact Us For Availability
20
Control Box Harness WPL 2206511 Contact Us For Availability
21
Air Diffuser Cover WPL 2152019 Contact Us For Availability
21
Front Cover, Housing (Not Available Order 23 WPL ARI32460A2 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2255768B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2255768T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2255768W Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
BLOCK BLADE WPL 2157405 Contact Us For Availability
25
Escutcheon, Control Box WPL 2255597 Contact Us For Availability
26
Thermostat knob WPL 2182111 Contact Us For Availability
26
Roll Pin WPL 489229 Contact Us For Availability
26
Shield, Ice Door WPL 987121 Contact Us For Availability
26
Heat Shield WPL 2256149 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
28
Screw WPL 8533917 Contact Us For Availability
29
SPRING, WASHER WPL 489203 Contact Us For Availability
33
Spring, Return WPL 1119020 Contact Us For Availability
34
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
39
Washer, Plain WPL 489234 Contact Us For Availability
40
Screw WPL 489340 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149718 Contact Us For Availability
50
Guard, Fan WPL 2186496 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
63
FOLLOWING PARTS N WPL ARI32461A5 Contact Us For Availability
63
WPL ARI32462A4 WPL ARI32462A4 Contact Us For Availability
63
WPL ARI32463A7 WPL ARI32463A7 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
× ![]()
