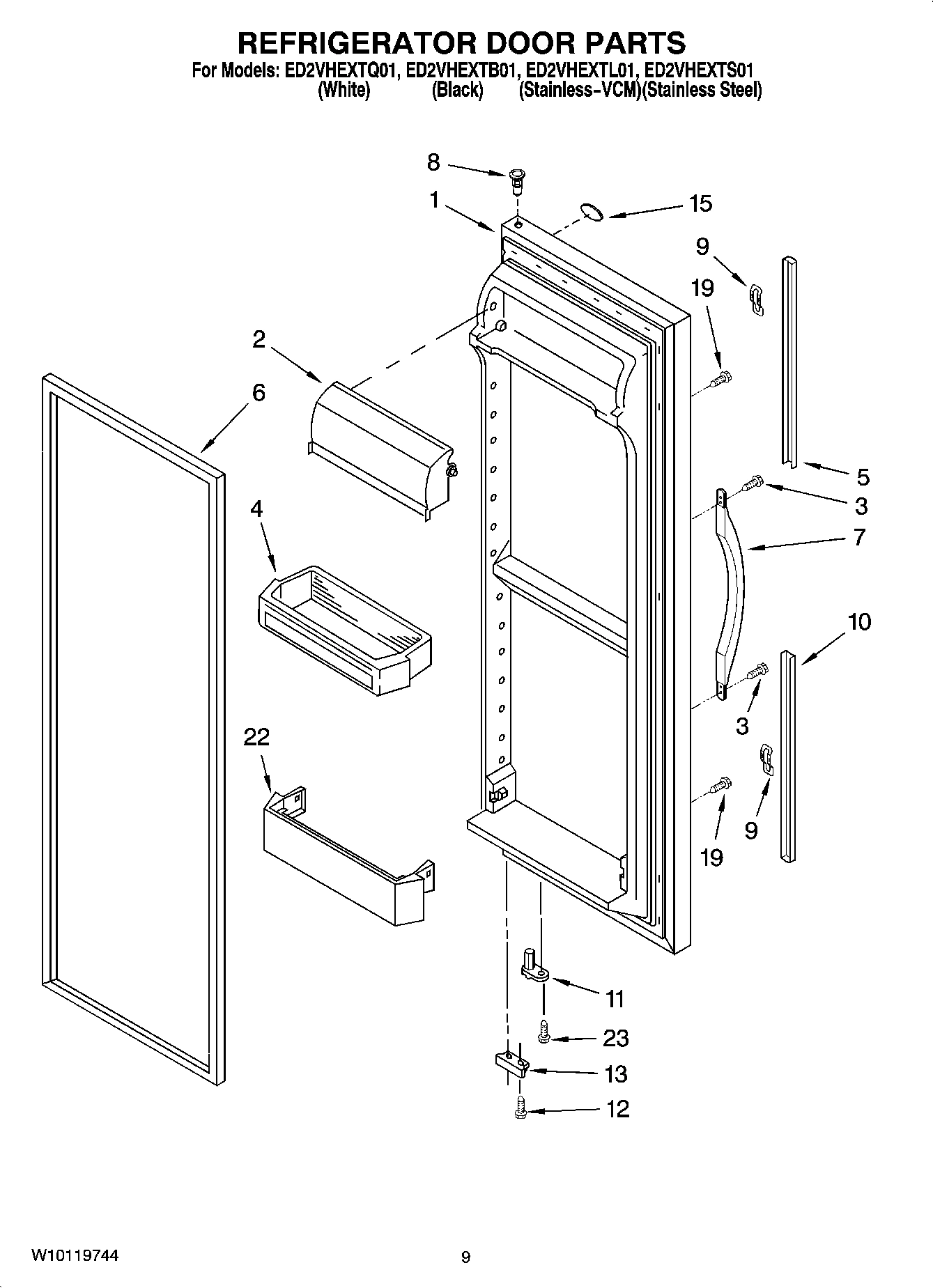

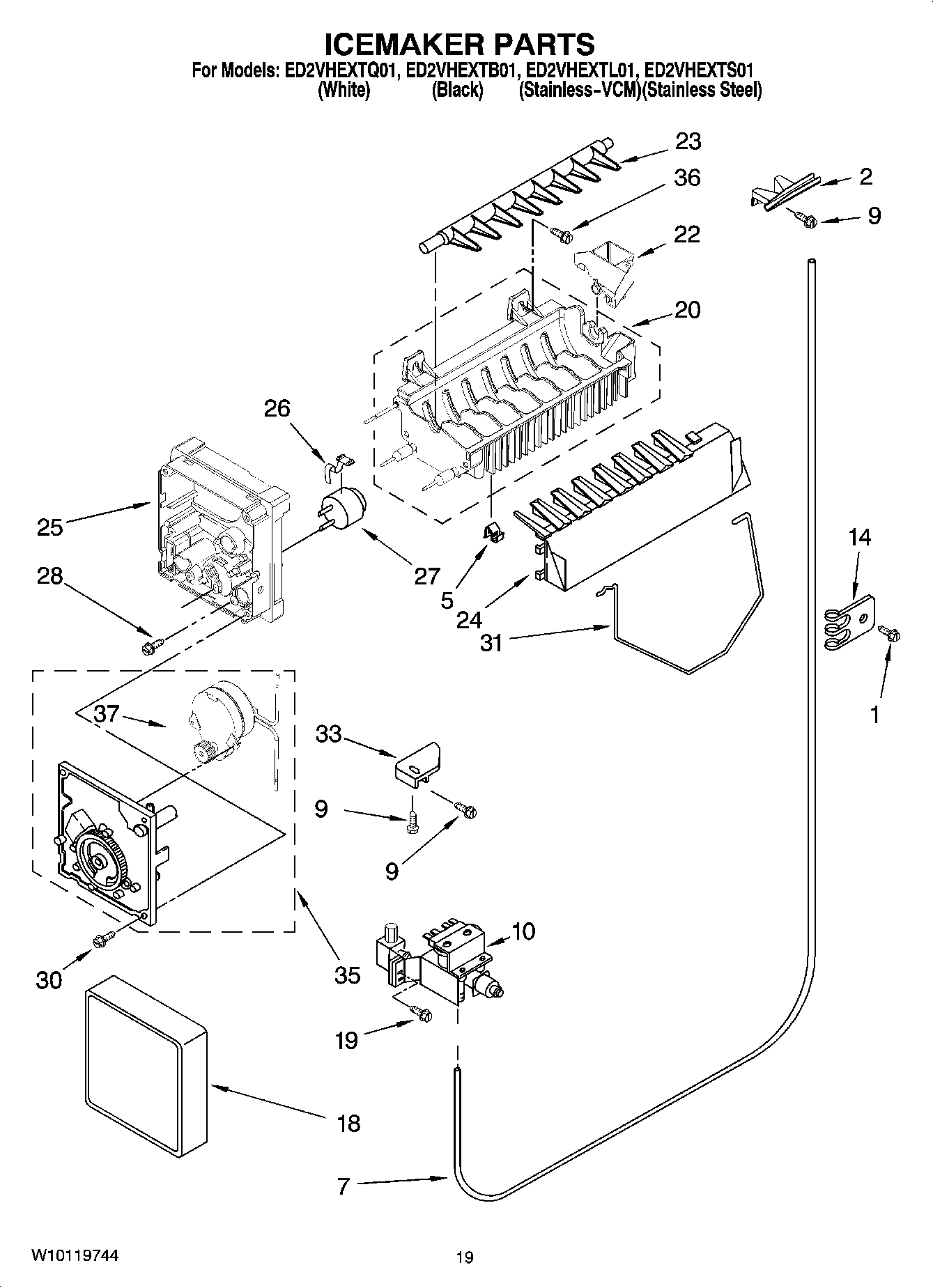

Model Whirlpool ED2VHEXTL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP2309517 Whirlpool Crisper Snack Pan In Stock WPL WP2309517 $84.79

1

Bracket, Motor WPL 2183728 Contact Us For Availability

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

Handle (Includes 4) (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Handle (Includes 4) (White) WPL 2186649W Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $120.22

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2309717 Whirlpool Refrigerator Door Trim Backorder WPL WP2309717 $36.45

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

8

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $38.84

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

Shim (2) WPL 2209697 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $81.31

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $55.82

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.16

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $58.93

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

Pivot Arm WPL 1110559 Contact Us For Availability

16

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $143.17

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10276354 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276354 $142.03

Extension, Top (White) WPL 2194971W Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $119.53

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

22

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $30.23

22

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2311693W Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

2311615 Whirlpool Refrigerator Knob In Stock WPL 2311615 $32.26

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2209769 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

37

Screw (2) WPL 488280 Contact Us For Availability

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

50

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

100

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07
