Model Whirlpool ED2NHGXVQ01 REFRIGERATOR – Common Parts & Diagrams

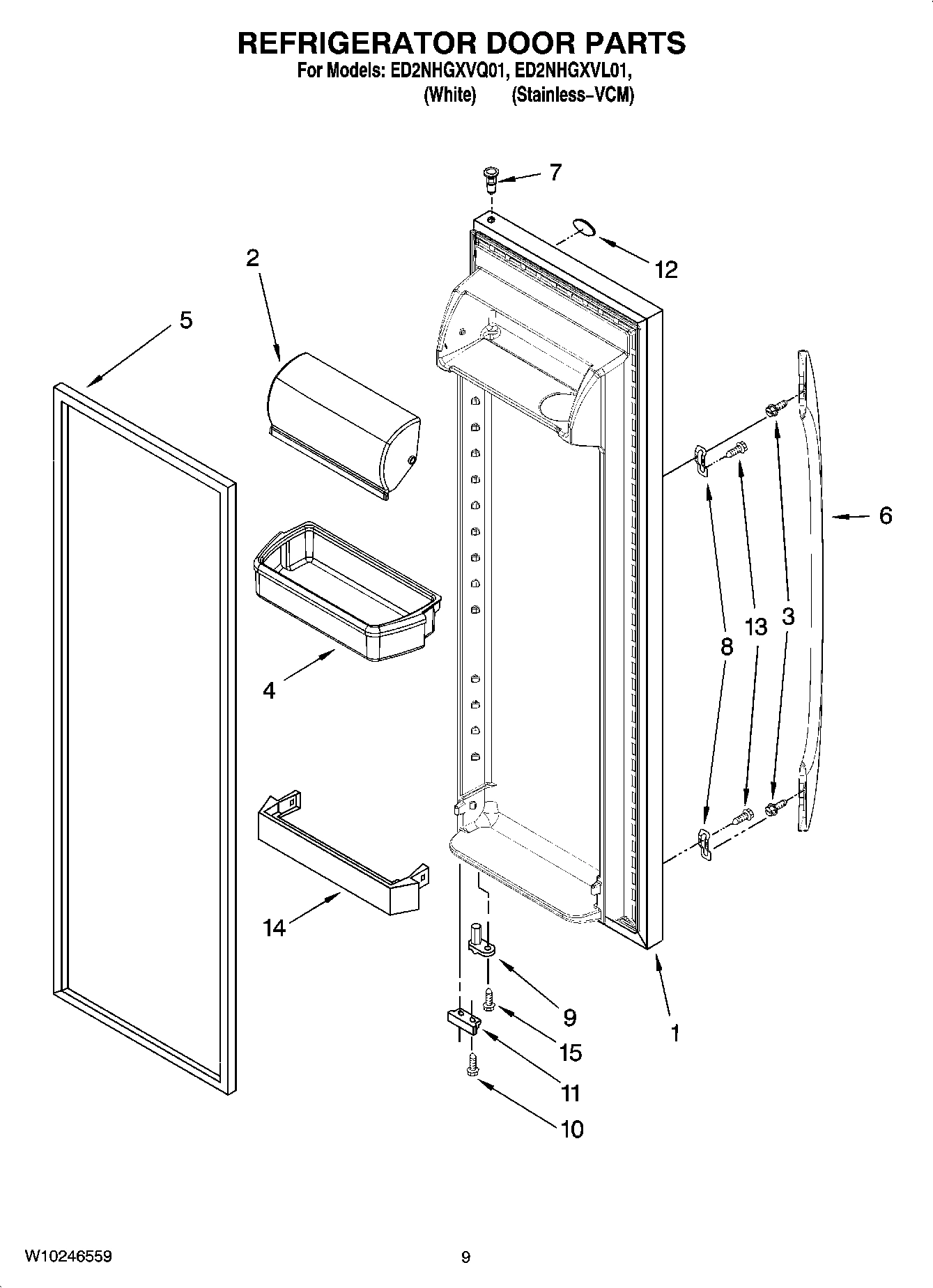

06 - REFRIGERATOR DOOR PARTS

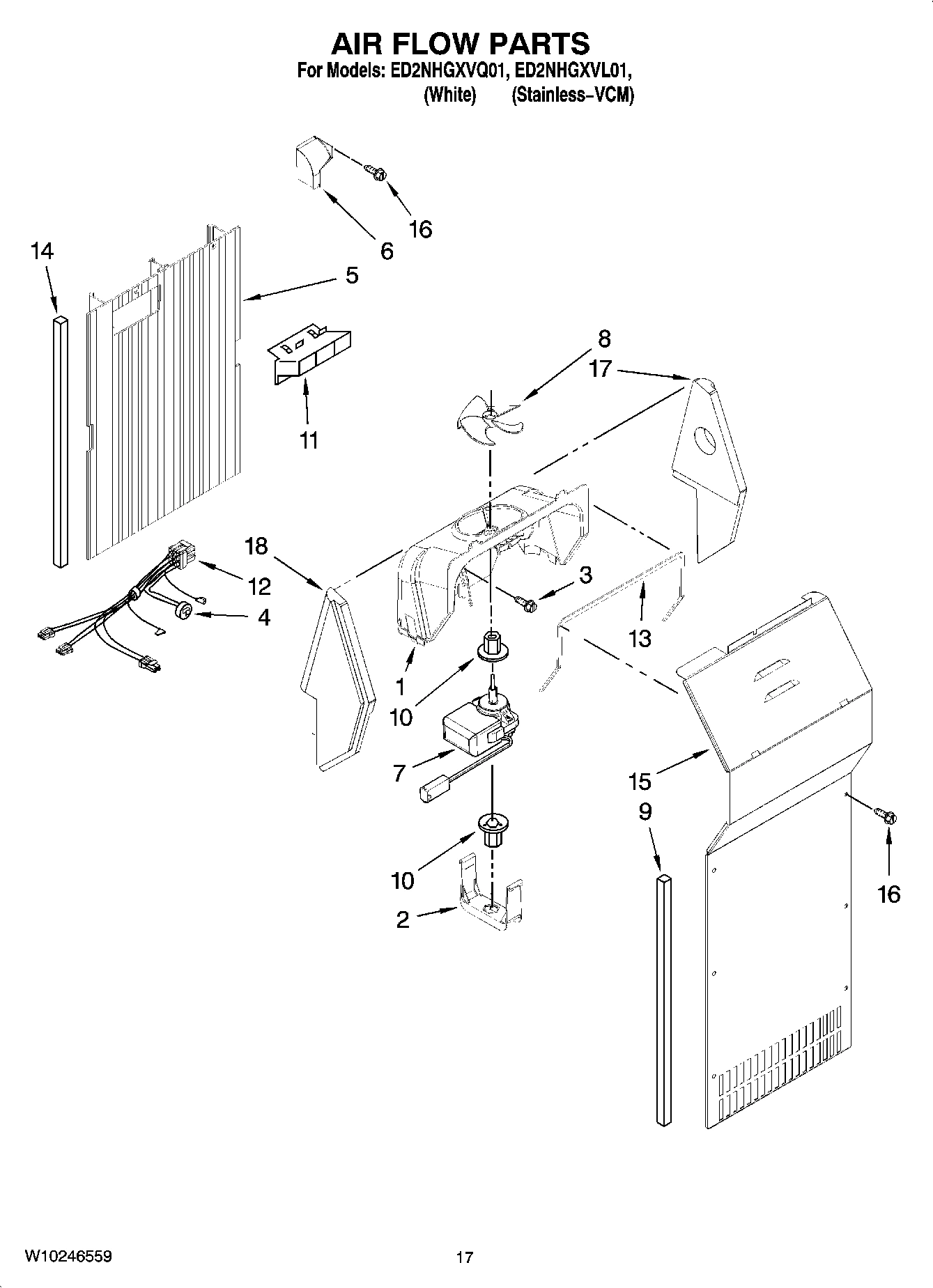

10 - AIR FLOW PARTS
07 - FREEZER DOOR PARTS
09 - UNIT PARTS
12 - ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)
01 - CABINET PARTS
08 - DISPENSER FRONT PARTS
11 - CONTROL PARTS
04 - FREEZER LINER PARTS
05 - MOTOR AND ICE CONTAINER PARTS
02 - REFRIGERATOR LINER PARTS
03 - REFRIGERATOR SHELF PARTS
Common parts from model Whirlpool ED2NHGXVQ01 REFRIGERATOR
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Graphite) WPL 8171357 Contact Us For Availability
Kit, Terminal Connector WPL 833938 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
Torx Key WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2254588 Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI31785A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI31784A9 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 2311611 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Louver WPL 2257741 Contact Us For Availability
3
Door, Ice Compartment WPL 2171712 Contact Us For Availability
4
SCREW WPL 8533920 Contact Us For Availability
5
Screw WPL 488280 Contact Us For Availability
6
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
6
Clip, Control Box (2) WPL 2311612 Contact Us For Availability
8
Air Diffuser Cover WPL 2152019 Contact Us For Availability
9
Shim (2) WPL 2209697 Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
13
Pivot Arm WPL 1110559 Contact Us For Availability
17
Screw WPL 8533917 Contact Us For Availability
18
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
19
BLOCK BLADE WPL 2157405 Contact Us For Availability
20
Roll Pin WPL 489229 Contact Us For Availability
20
CLIP, WIRING WPL 1115375 Contact Us For Availability
21
Connecting Rod WPL 2311631 Contact Us For Availability
22
Fastener, Push-On WPL 489285 Contact Us For Availability
22
SCREW WPL 489136 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL W10153747 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL W10153748 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Control Knob WPL 2311615 Contact Us For Availability
25
Screw WPL 627068 Contact Us For Availability
26
Spring, Return WPL 1119020 Contact Us For Availability
26
SPRING, WASHER WPL 489203 Contact Us For Availability
27
Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability
27
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
31
Extension Tube WPL 2304937 Contact Us For Availability
31
Washer, Plain WPL 489234 Contact Us For Availability
33
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
× ![]()
