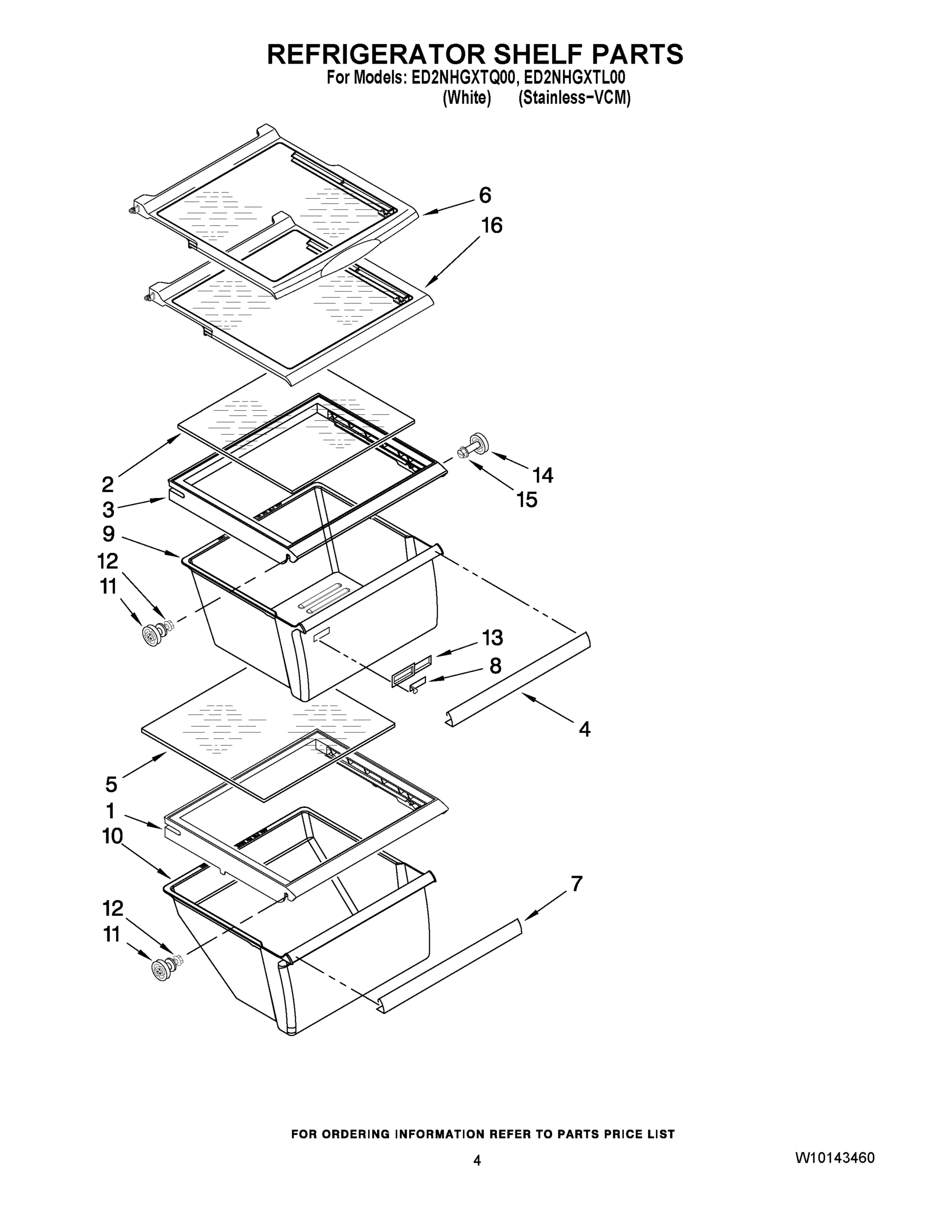

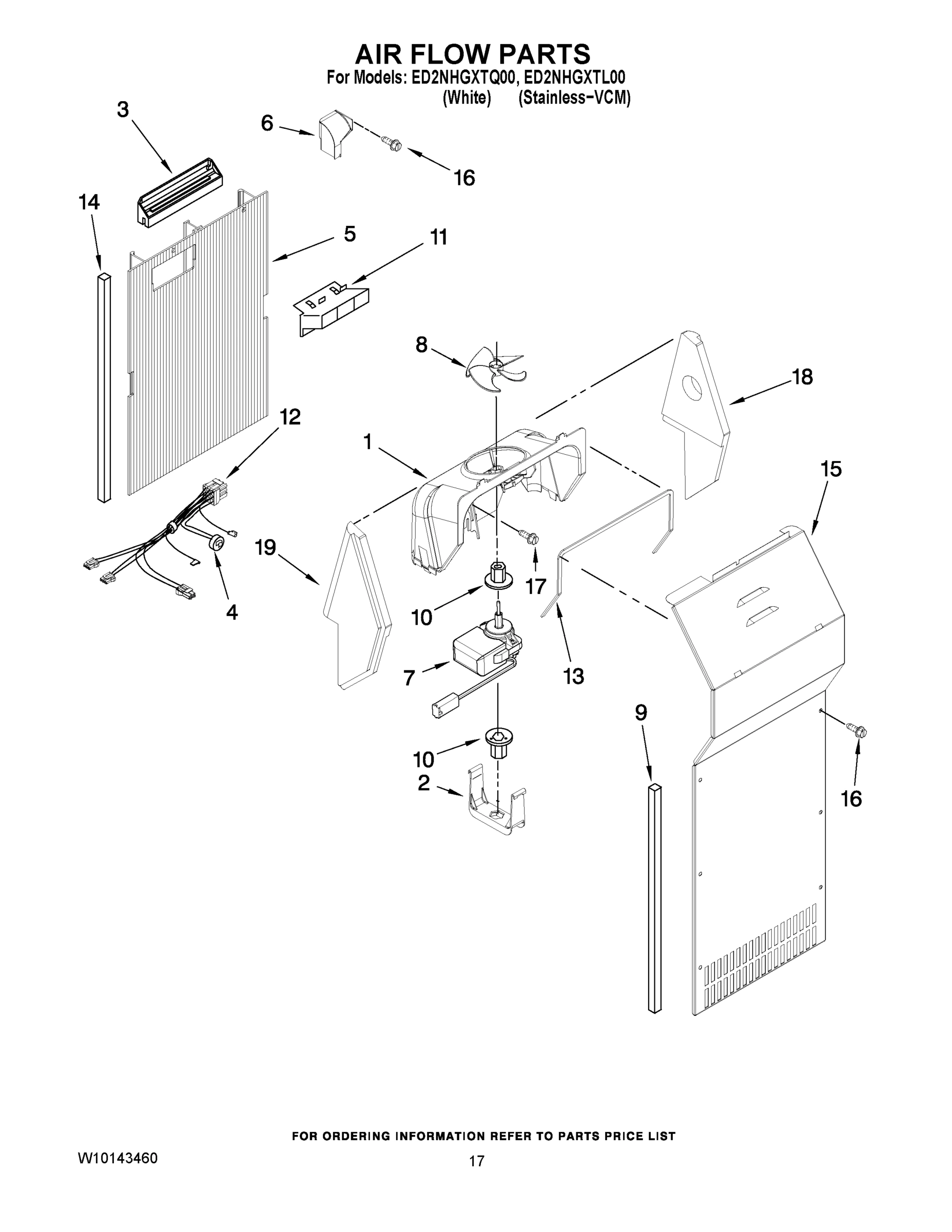

Model Whirlpool ED2NHGXTQ00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

4

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $54.30

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

SCREW WPL 8533920 Contact Us For Availability

5

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

6

WP2309717 Whirlpool Refrigerator Door Trim Backorder WPL WP2309717 $34.72

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

8

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $28.79

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

8

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

8

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

9

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $56.13

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Pivot Arm WPL 1110559 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

16

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

16

2311633 Whirlpool Refrigerator Wire Harness Backorder WPL 2311633 $130.51

16

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

18

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

18

CLIP, WIRING WPL 1115375 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $28.80

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

Fastener, Push-On WPL 489285 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

21

W10723843 Whirlpool Refrigerator Thermostat K Backorder WPL W10723843 $11.14

21

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

22

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

23

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

23

Front Cover Assembly (Includes Items 18, 19, WPL 2311693W Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

33

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

34

Clip, Heat Shield WPL 2155547 Contact Us For Availability

W11115203 Whirlpool Control Panel Backorder WPL W11115203 $244.13

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

36

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

36

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

37

Unit Mounting Rail WPL 2149718 Contact Us For Availability

38

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

39

Guard, Fan WPL 2260516 Contact Us For Availability

40

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

40

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

41

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

42

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE (5.0OZ. (R-134A)) WPL NP Contact Us For Availability
