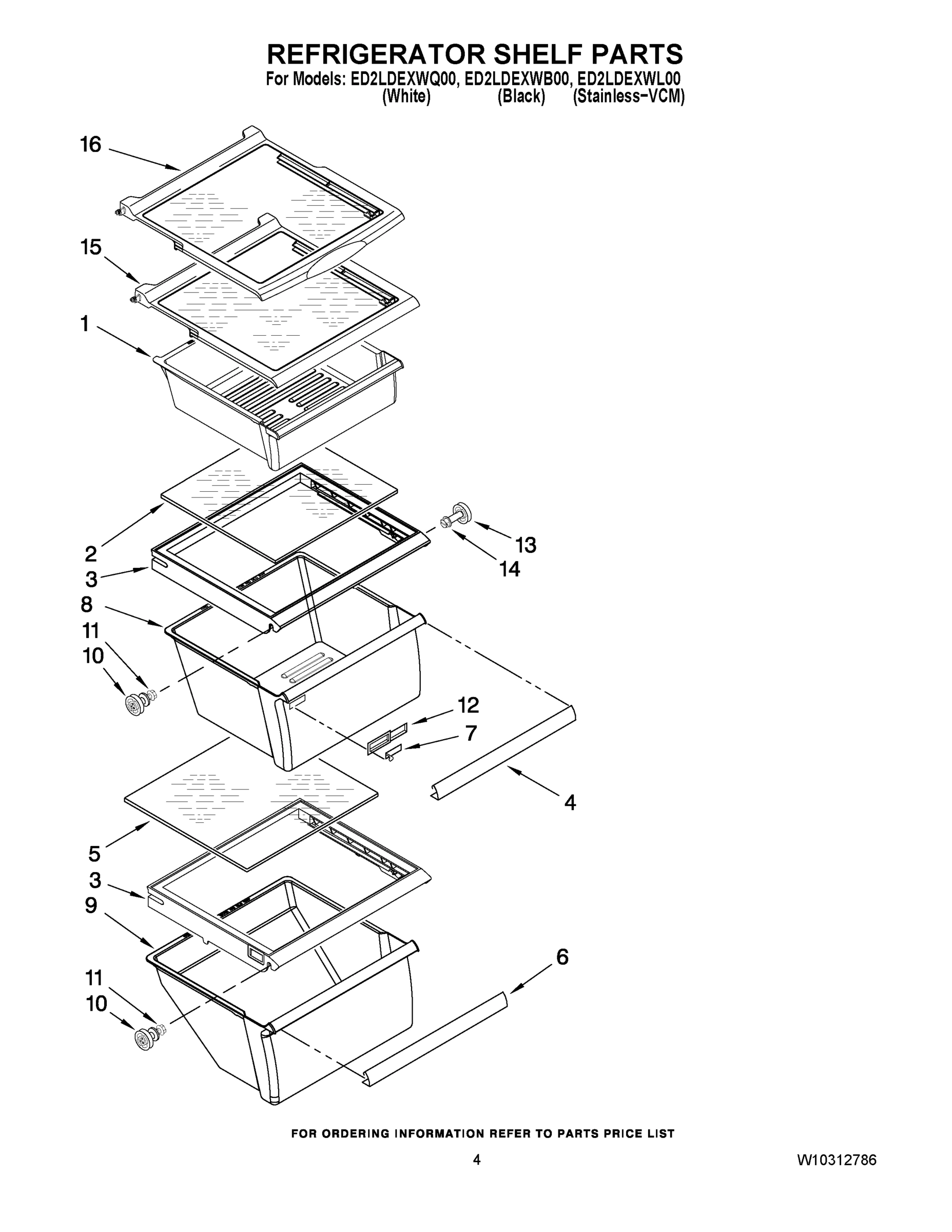

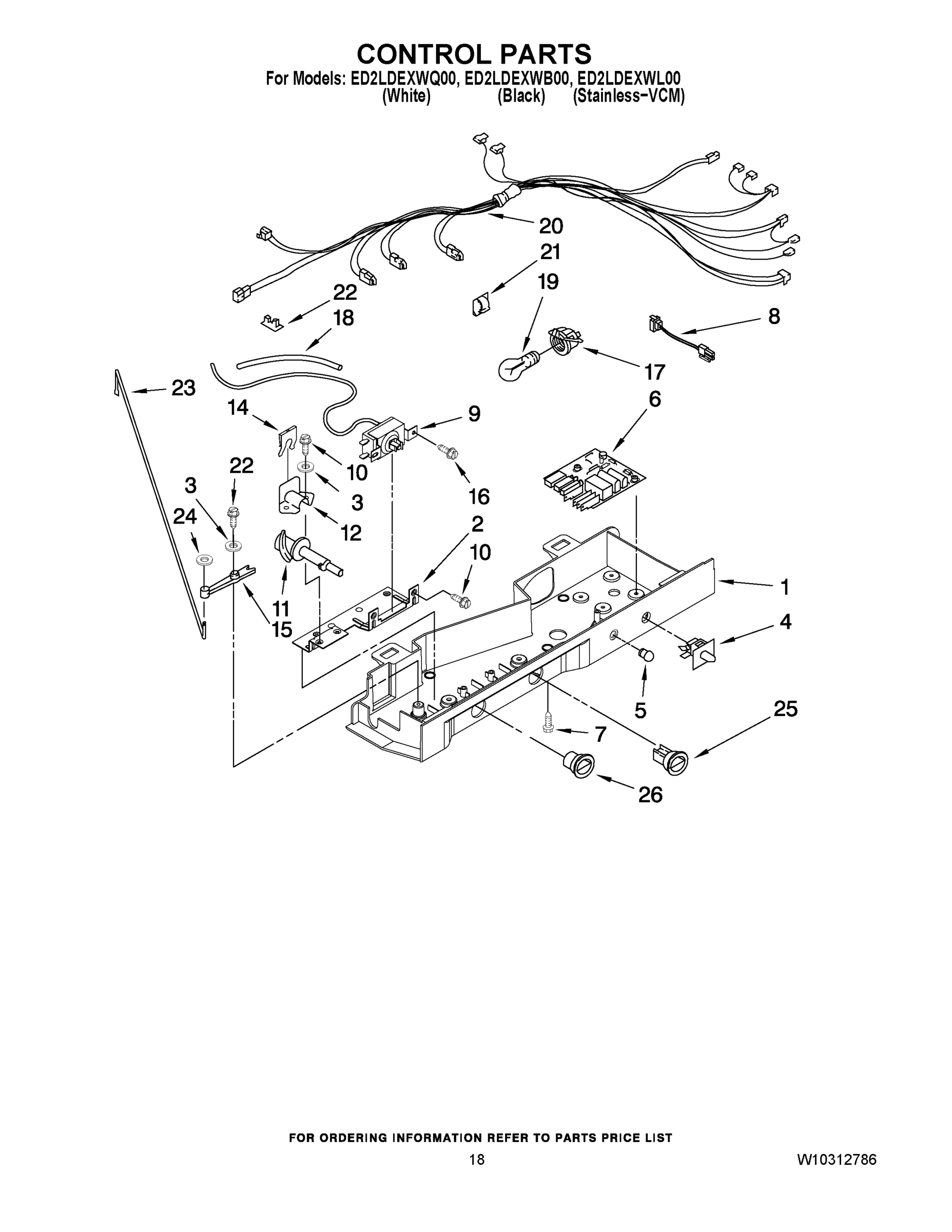

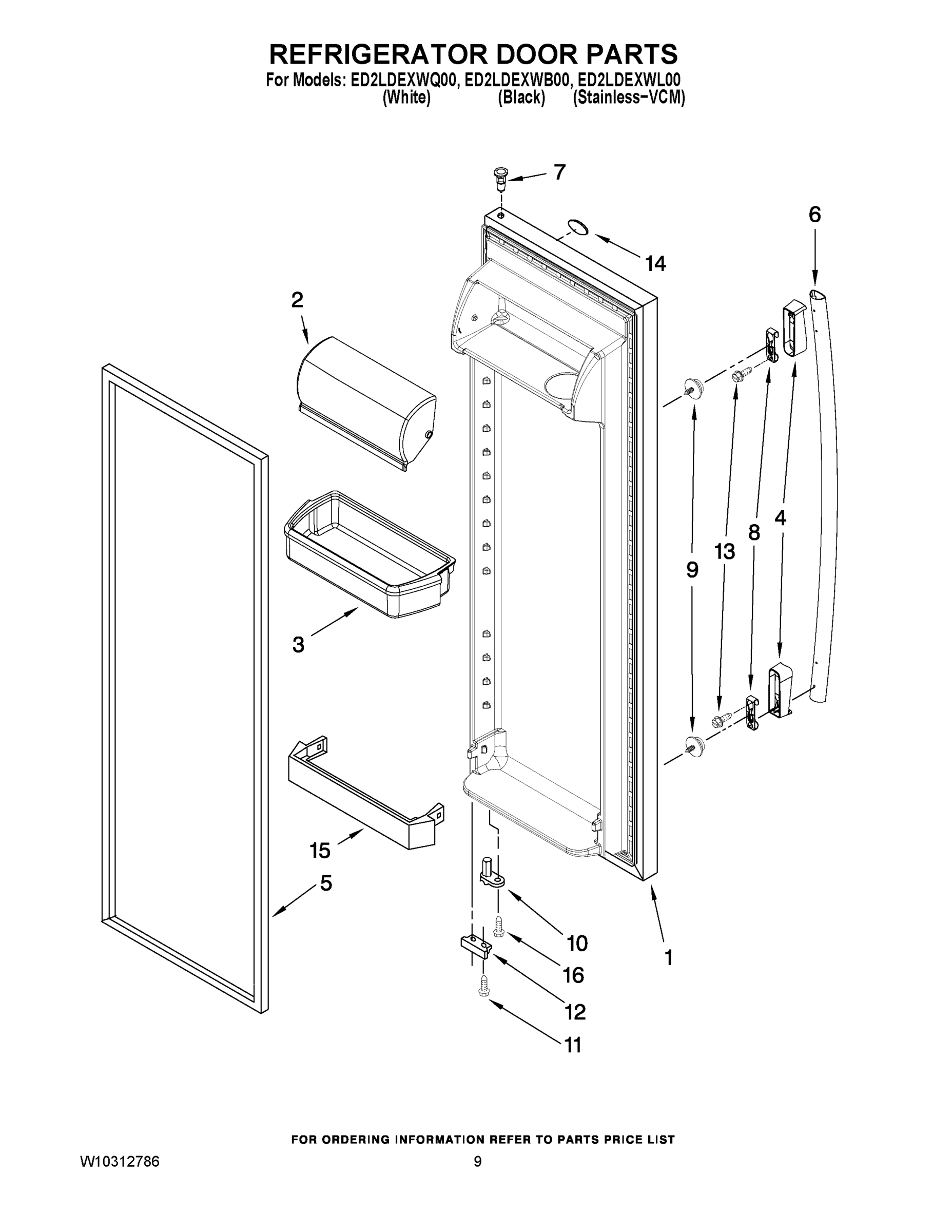

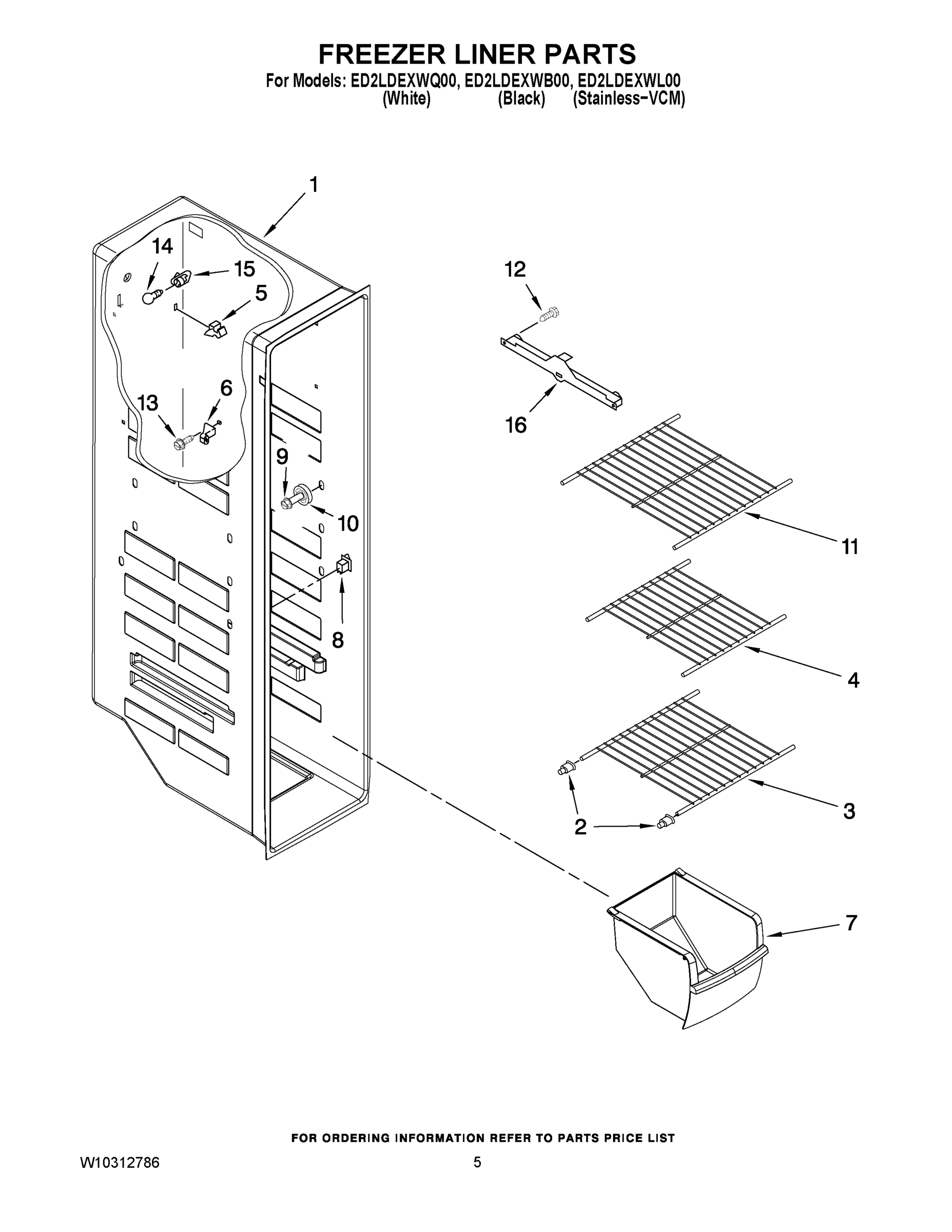

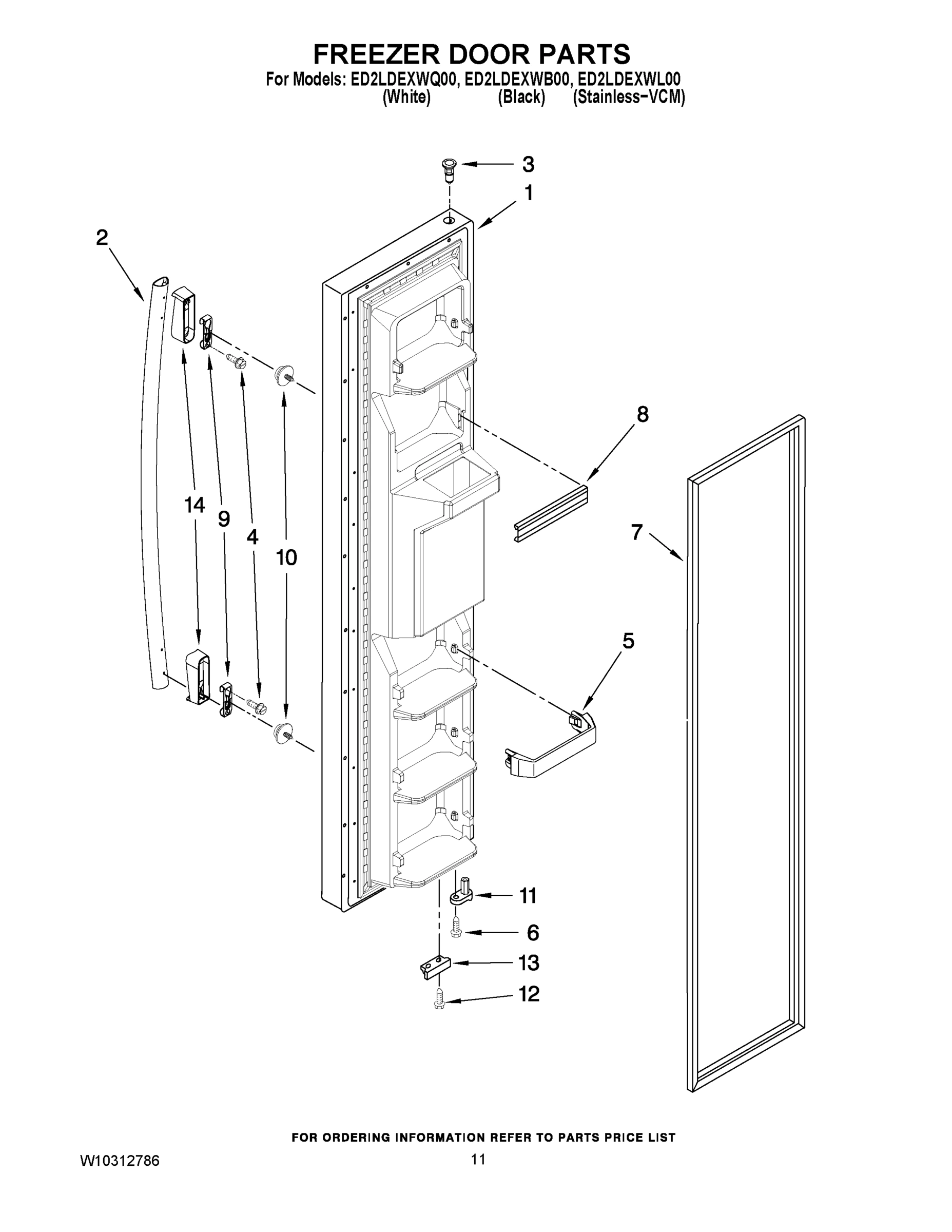

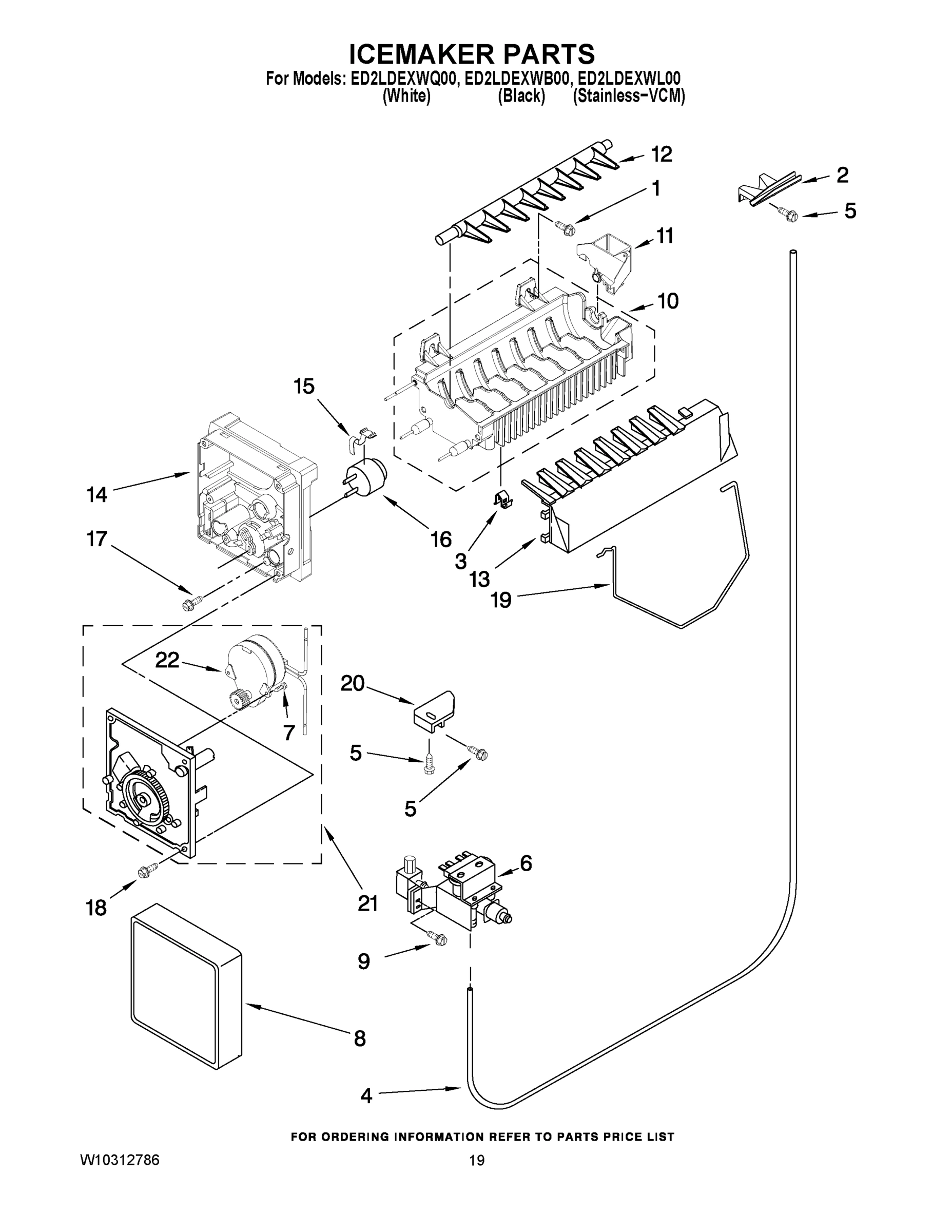

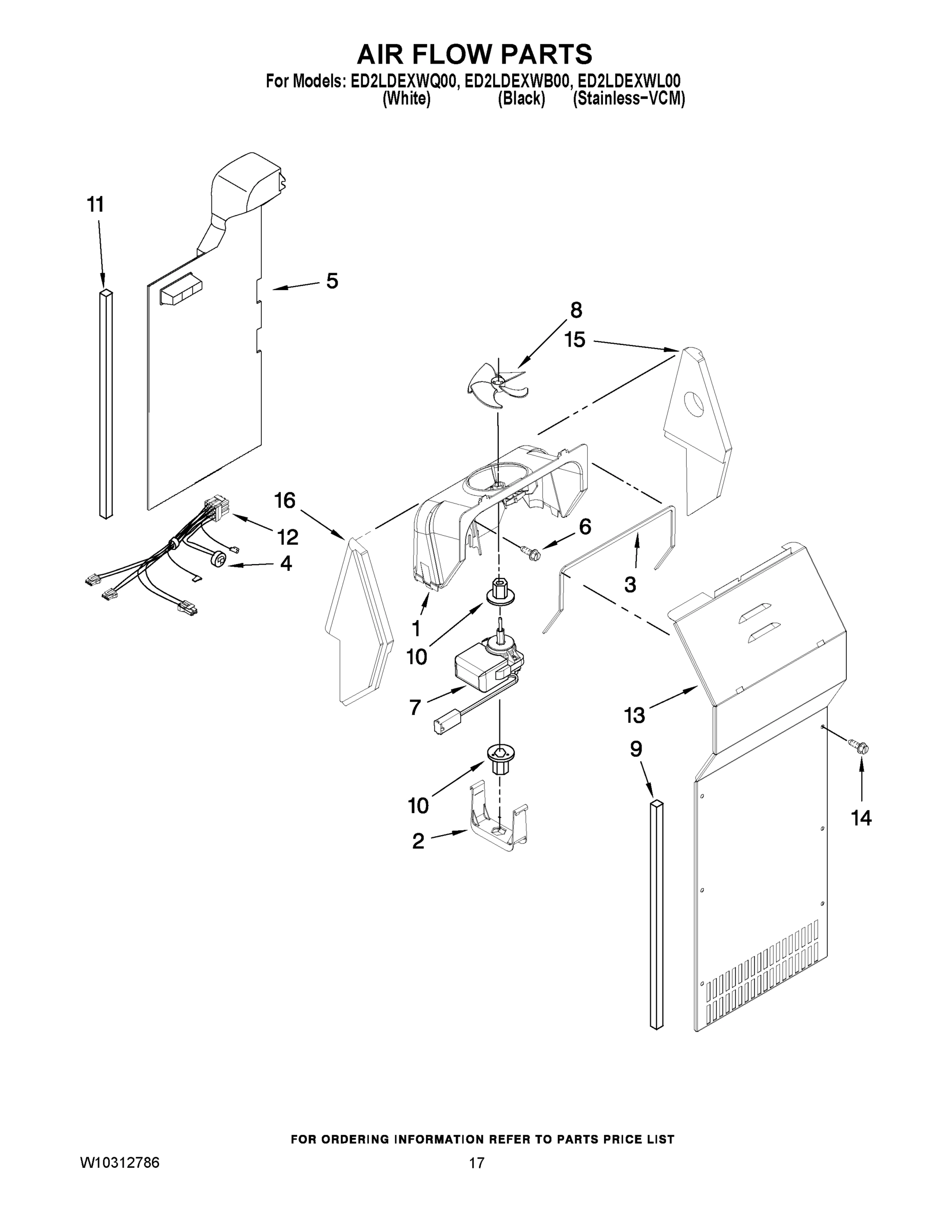

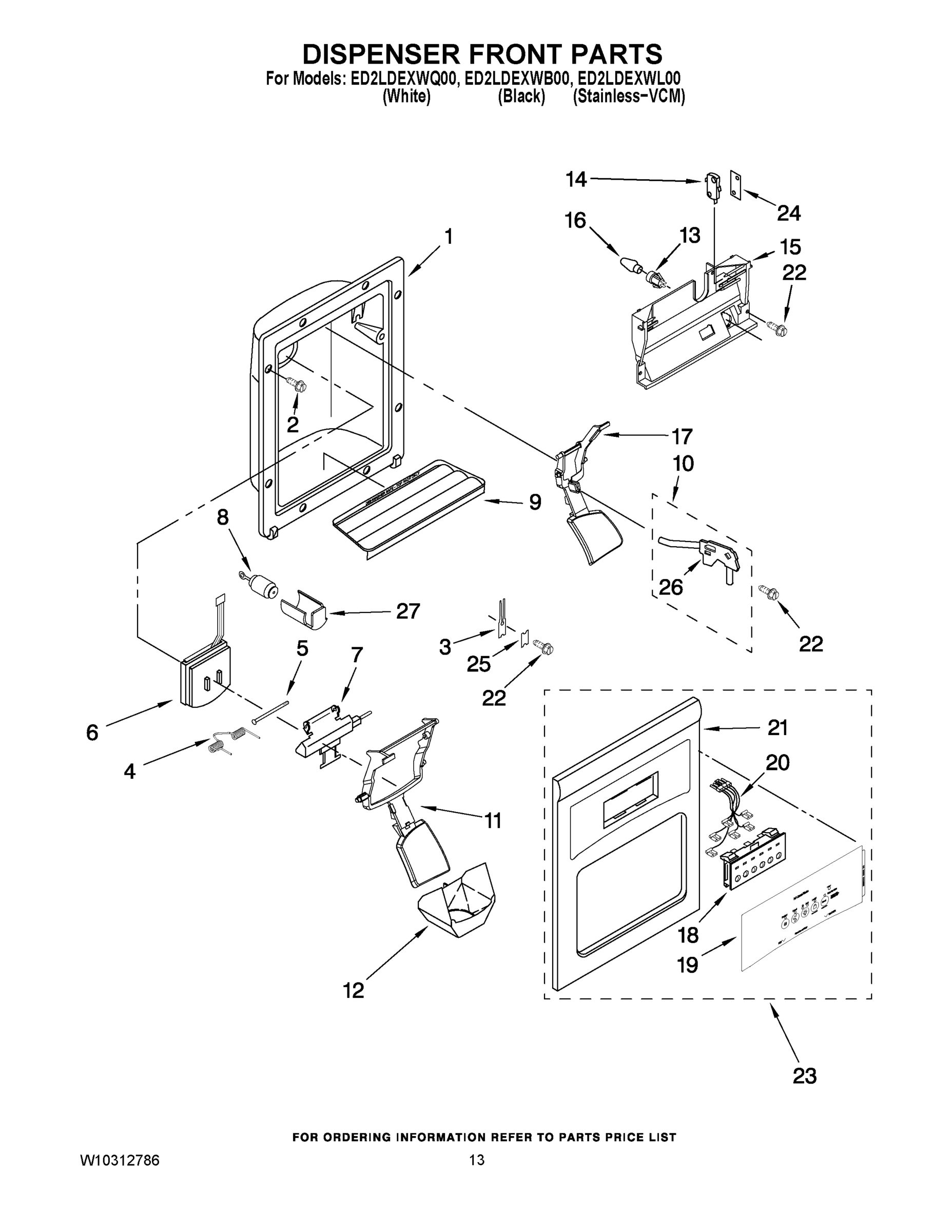

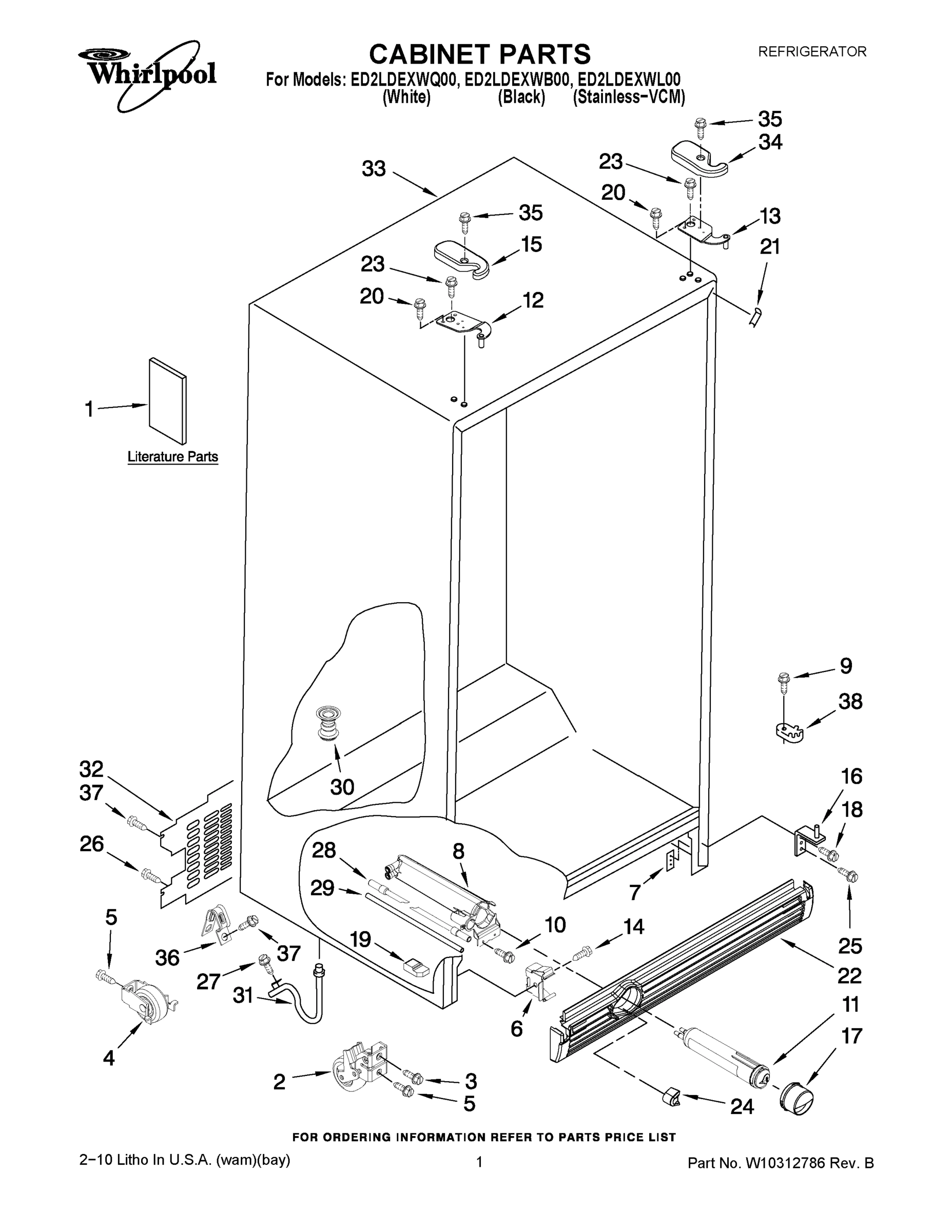

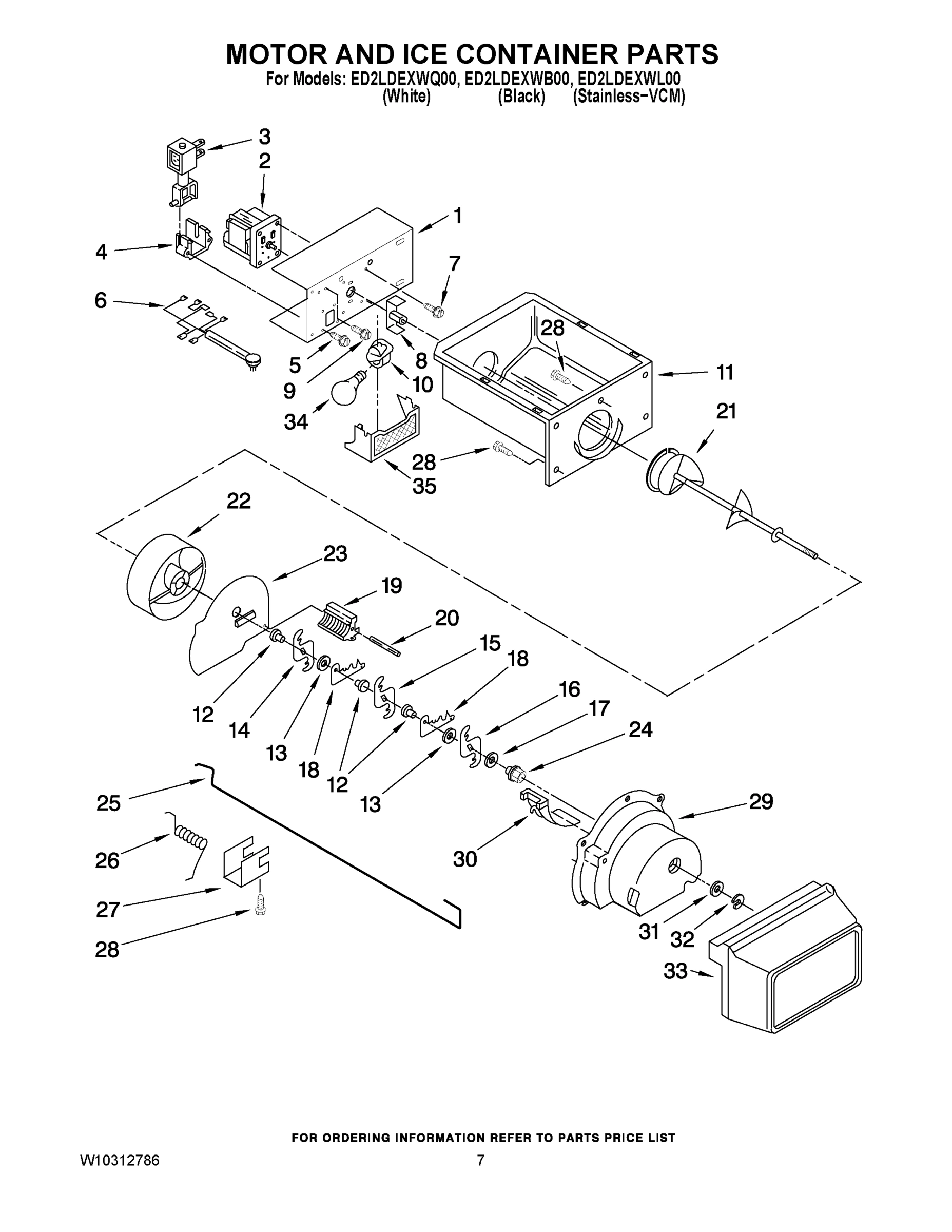

Model Whirlpool ED2LDEXWL00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Bracket, Motor WPL 2254588 Contact Us For Availability

1

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10231652 Contact Us For Availability

1

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10231653 Contact Us For Availability

1

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10231654 Contact Us For Availability

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

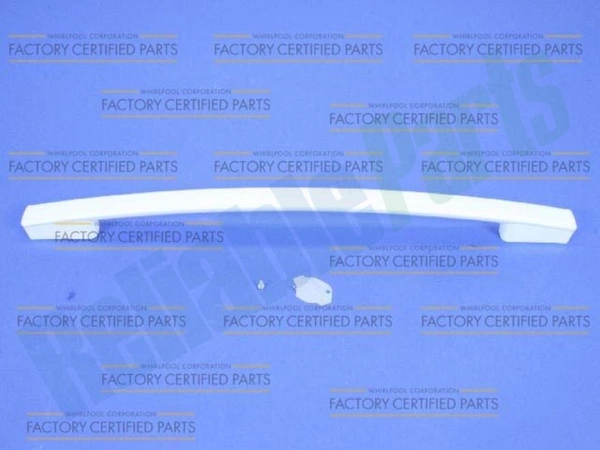

WPW10127761K Whirlpool Refrigerator Handle Backorder WPL WPW10127761K $91.44

2

WPW10127762 Whirlpool Refrigerator Handle Backorder WPL WPW10127762 $93.38

2

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

2

HANDLE (STAINLESS/SATINA) WPL W10221069 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2203828 Whirlpool Door Shelf Bin In Stock WPL WP2203828 $54.30

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

WP8533988 Whirlpool Screw Fastener In Stock WPL WP8533988 $2.51

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10166220 Whirlpool Refrigerator Air Duct Backorder WPL W10166220 $38.27

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2309717 Whirlpool Refrigerator Door Trim Backorder WPL WP2309717 $34.72

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

6

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $28.79

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

7

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

7

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

7

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP2309758 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2309758 $56.13

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

7

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

8

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

8

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

8

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

8

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

W10252495 Whirlpool Refrigerator Wire Cover Backorder WPL W10252495 $27.45

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

10

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.02

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $34.13

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.38

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Bracket, Door Stop (Black) WPL W10185571 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2188831 Whirlpool Refrigerator Start Device Backorder WPL WP2188831 $61.09

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

Bracket, Door Stop (White) WPL 2321218W Contact Us For Availability

Bracket, Door Stop (Black) WPL W10185567 Contact Us For Availability

W10127769 Whirlpool Refrigerator Handle End C Backorder WPL W10127769 $31.95

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

Endcap (Black) WPL W10127770 Contact Us For Availability

End Cap (Apollo Grey) WPL W10127772 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $135.64

Pivot Arm WPL 1110559 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $117.02

HINGE BOTTOM (2) WPL W10251408 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $32.50

18

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

18

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

19

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

19

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

19

Clamp WPL 2161324 Contact Us For Availability

20

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

20

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

20

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

21

W11252732 Whirlpool Refrigerator Filler Backorder WPL W11252732 $7.16

21

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

22

WPW10194474 Whirlpool Refrigerator Shield Backorder WPL WPW10194474 $52.17

22

WPW10283955 Whirlpool Refrigerator Grille Backorder WPL WPW10283955 $46.04

23

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

23

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

26

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

30

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

32

Air Baffle WPL W10163483 Contact Us For Availability

33

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

34

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

34

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

35

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

35

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
