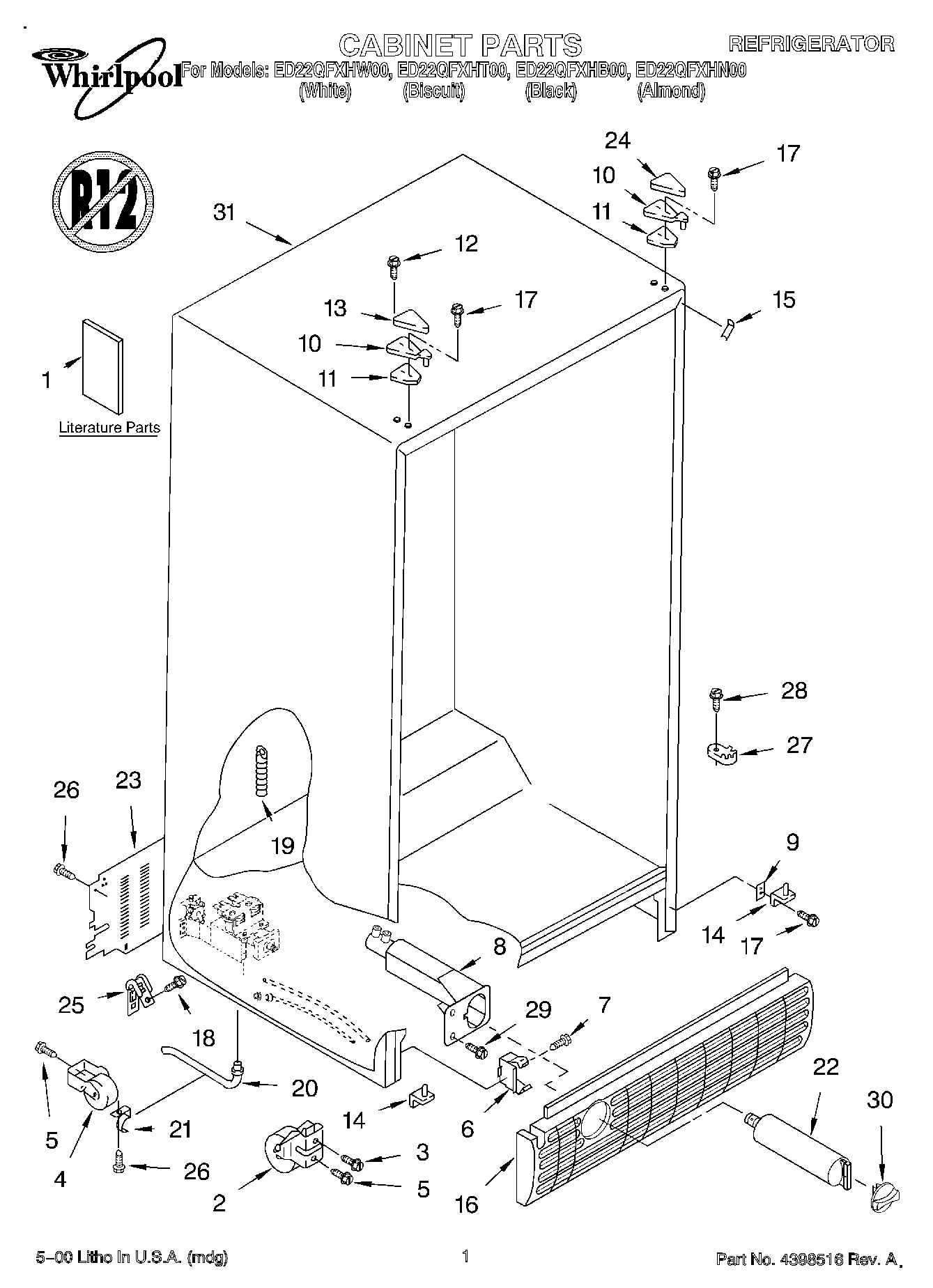

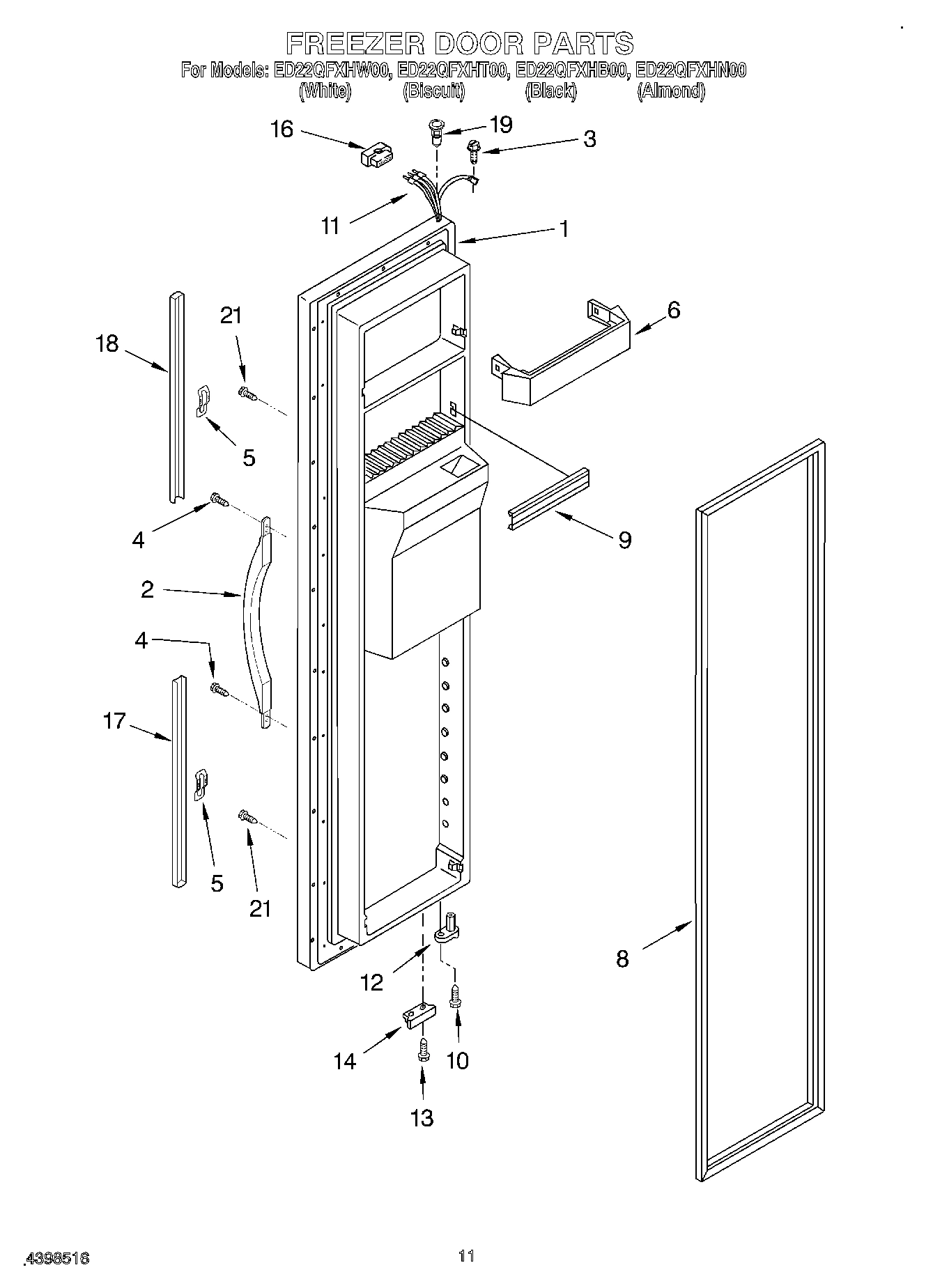

Model Whirlpool ED22QFXHB00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI26849A7 Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Black WPL 2194275B Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Almon WPL 2194275N Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (Biscu WPL 2194275T Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (White WPL 2194275W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI26851A4 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

4388357 Whirlpool Refrigerator Evaporator Cov Backorder WPL 4388357 $93.63

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

6

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $25.24

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Door, Ice WPL 2180205 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability

7

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

8

2159073 Whirlpool Refrigerator Door Gasket Backorder WPL 2159073 $87.71

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Black) WPL 2183787B Contact Us For Availability

9

Shelf Ladder WPL 2181796 Contact Us For Availability

9

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

9

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2183787T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability

Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

Backorder WPL 2179404 $8.47

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability

Divider, Bin WPL 2195496 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2194971B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194971B $52.14

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Grommet (4) WPL 2176134 Contact Us For Availability

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

Extension, Top (Almond) WPL 2194971N Contact Us For Availability

Extension, Top (Biscuit) WPL 2194971T Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Pivot Arm WPL 1110559 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $53.75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $87.10

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Extension, Top (White) WPL 2194971W Contact Us For Availability

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Black) WPL 2205772B Contact Us For Availability

Overlay, Front Cover (Almond) WPL 2205772N Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2205772T Contact Us For Availability

Overlay, Front Cover (White) WPL 2205772W Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Wire Assembly WPL 2196198 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Light Lens WPL 2203266 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI26852A2 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Screw WPL 488280 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Front Cover Assembly (Includes Items 18, 19, WPL 2205773B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205773N Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205773T Contact Us For Availability

Front Cover Assemb WPL 2205773W Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WPL 625834 WPL 625834 Contact Us For Availability

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
