Model Whirlpool ED22PFXBN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

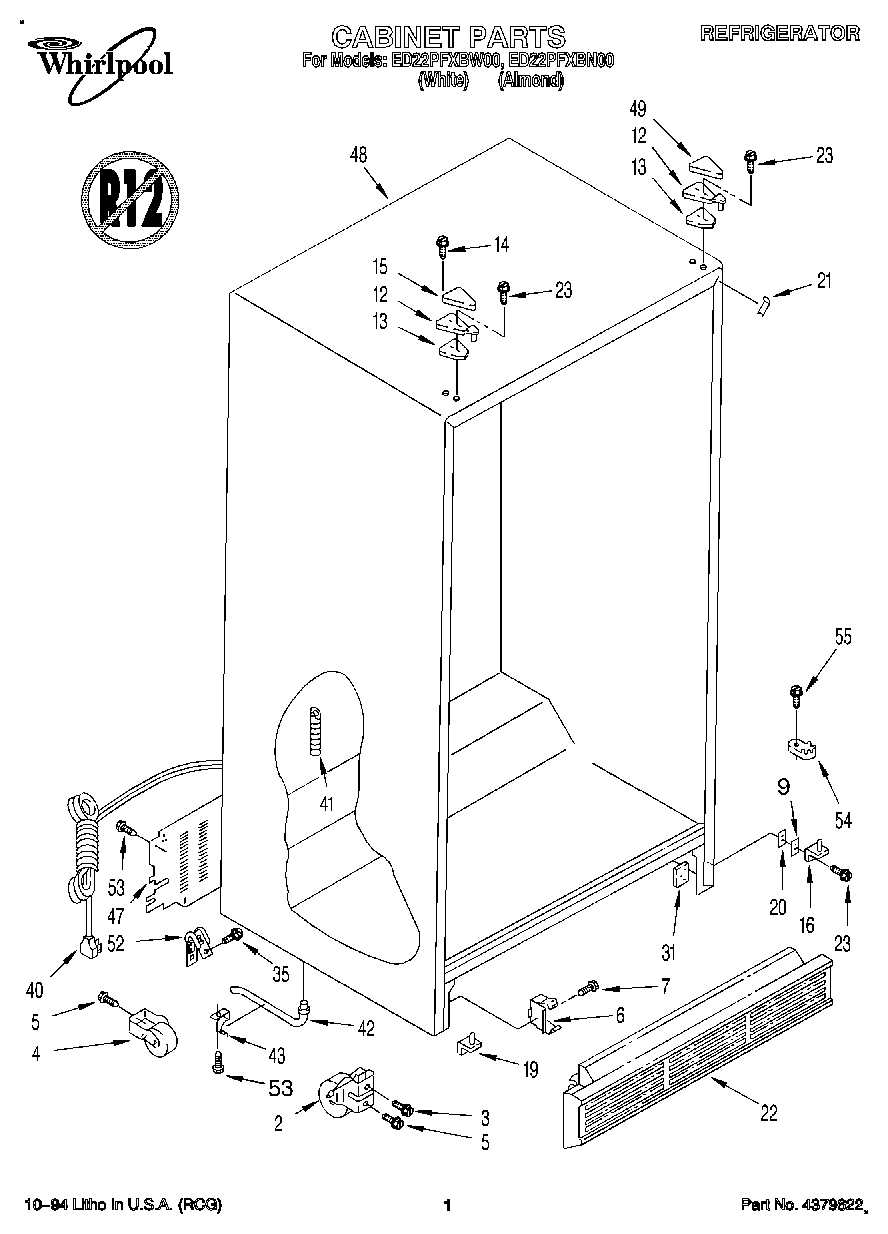

01 - CABINET

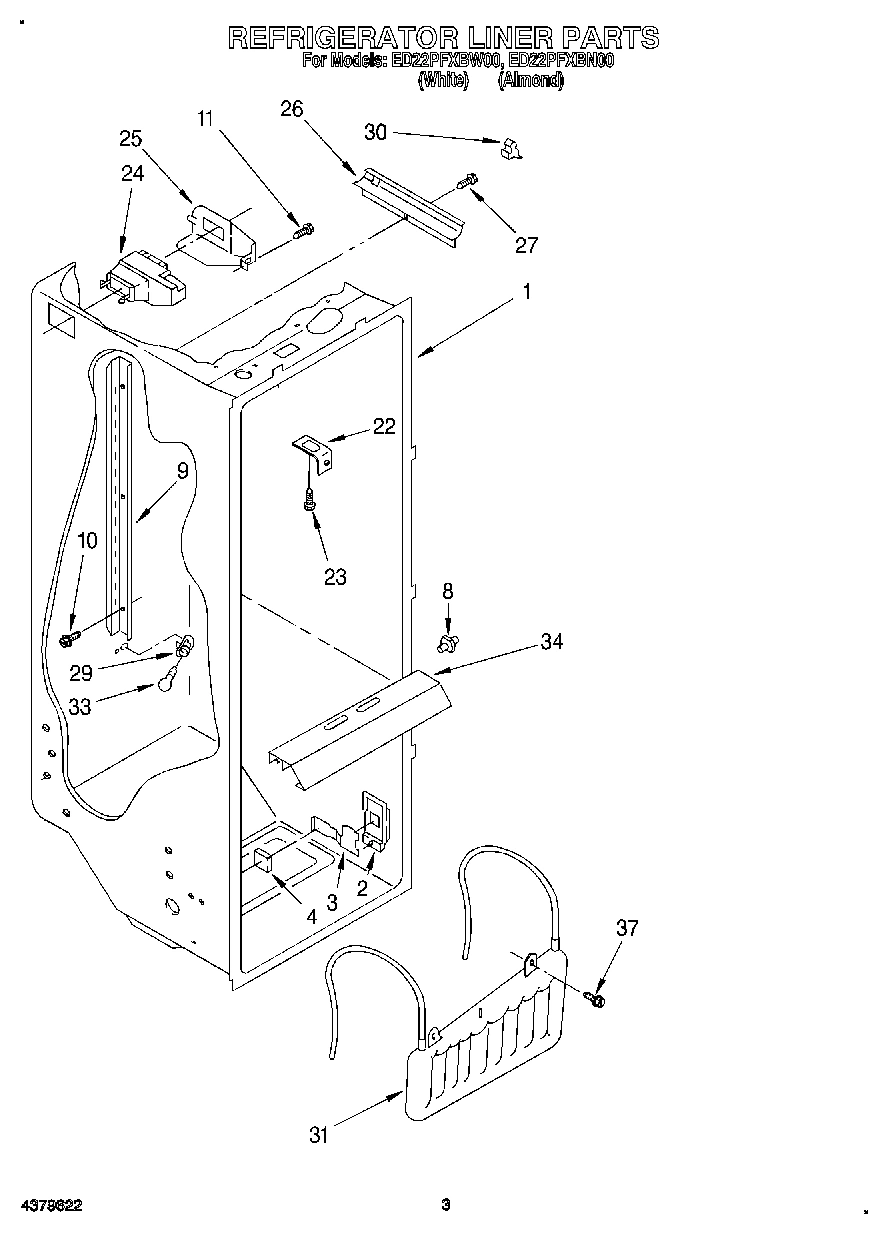

02 - REFRIGERATOR LINER
08 - DISPENSER FRONT
10 - AIRFLOW
12 - ICEMAKER, LIT/OPTIONAL
05 - FREEZER INTERIOR
03 - REFRIGERATOR SHELF
09 - UNIT
11 - CONTROL
07 - FREEZER DOOR
04 - FREEZER LINER
06 - REFRIGERATOR DOOR
Common parts from model Whirlpool ED22PFXBN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2171844 WPL LIT2171844 Contact Us For Availability
WPL LIT2175983 WPL LIT2175983 Contact Us For Availability
WPL LIT2175985 WPL LIT2175985 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 1118413 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2177121 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2177212 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI145532A Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2177127 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2177128 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Glass, Shelf WPL 2148237 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Door, Ice Compartment WPL 2170788 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Reflector, Shelf WPL 2170621 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
5
Trim, Shelf WPL 2170597 Contact Us For Availability
5
Insert, Handle (White) WPL 1119361 Contact Us For Availability
5
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Trim, Crisper Cover WPL 2170835 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2154984 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Handle, Center WPL 1118417 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
8
Shelf (Long) WPL 1114609 Contact Us For Availability
8
Shelf (Short) WPL 1118165 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Trim, Shelf WPL 2162938 Contact Us For Availability
10
Insert, Handle (White) WPL 1119367 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
10
Bin, Freezer WPL 2148194 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Meat Pan WPL 2170932 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
12
Grommet (8) WPL 1110779 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Tube, Water Inlet WPL 2155247 Contact Us For Availability
13
Cover WPL 2170949 Contact Us For Availability
13
Bracket, Door Stop WPL 2155334 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Pan Shelf & Slide WPL 2148122 Contact Us For Availability
15
Relay (See Overload) WPL ARI145535A Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover Ice Container WPL 2171259 Contact Us For Availability
16
Glass WPL 2148300 Contact Us For Availability
16
Retainer, Insert WPL 1119366 Contact Us For Availability
17
Trim, Front WPL 2170594 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
18
Cover WPL 628355 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Snack Bin WPL 2170938 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Divider, Bin WPL 2152335 Contact Us For Availability
21
Lens, Dispenser Light WPL 983359 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
woodgrain handle insert WPL 4210445 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4318948 Contact Us For Availability
22
Black Handle Insert WPL 4319080 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 1115383 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
27
Stop, Glass WPL 1119056 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
33
Heater, Defrost WPL 2161322 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
E WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
