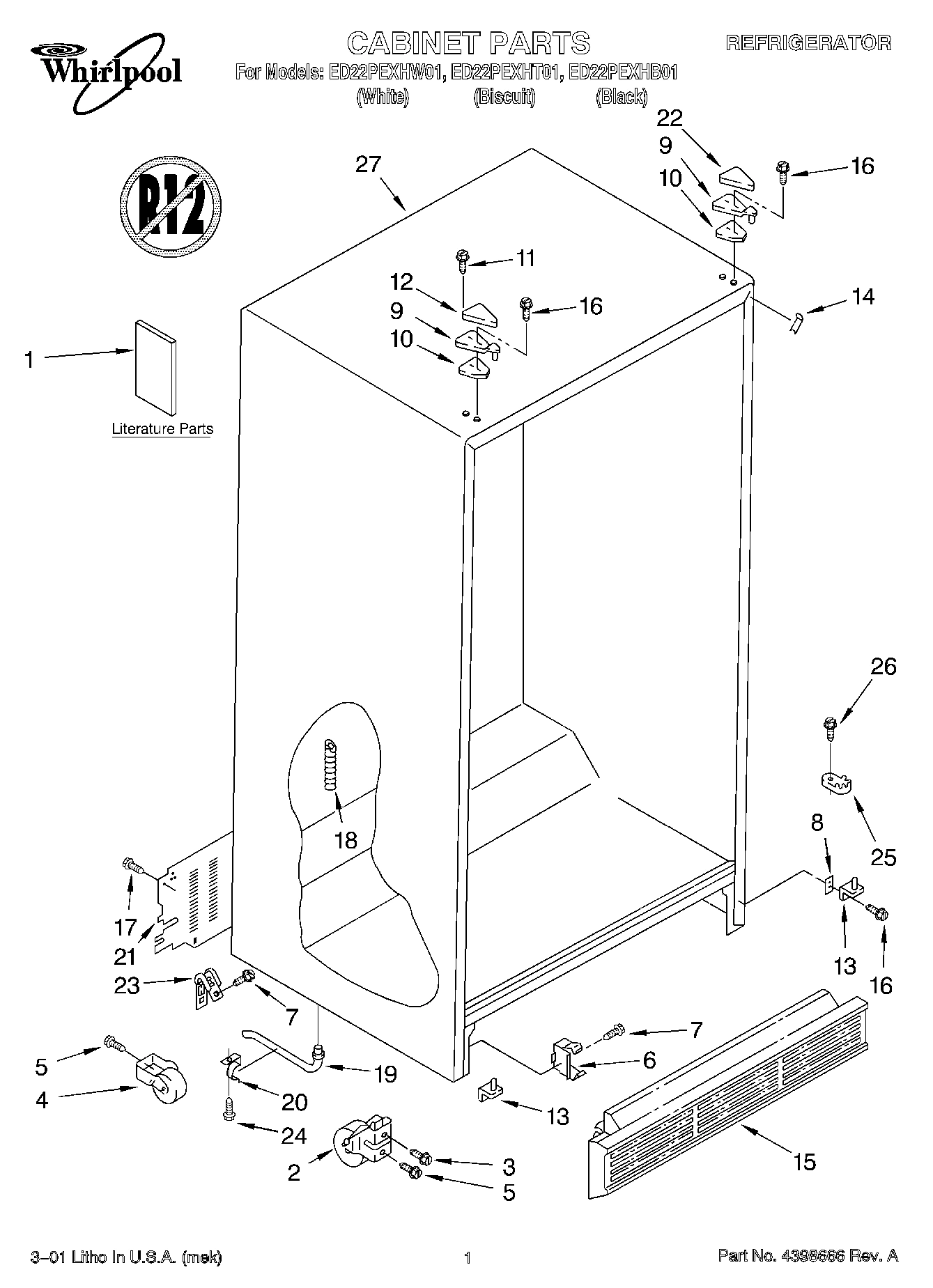

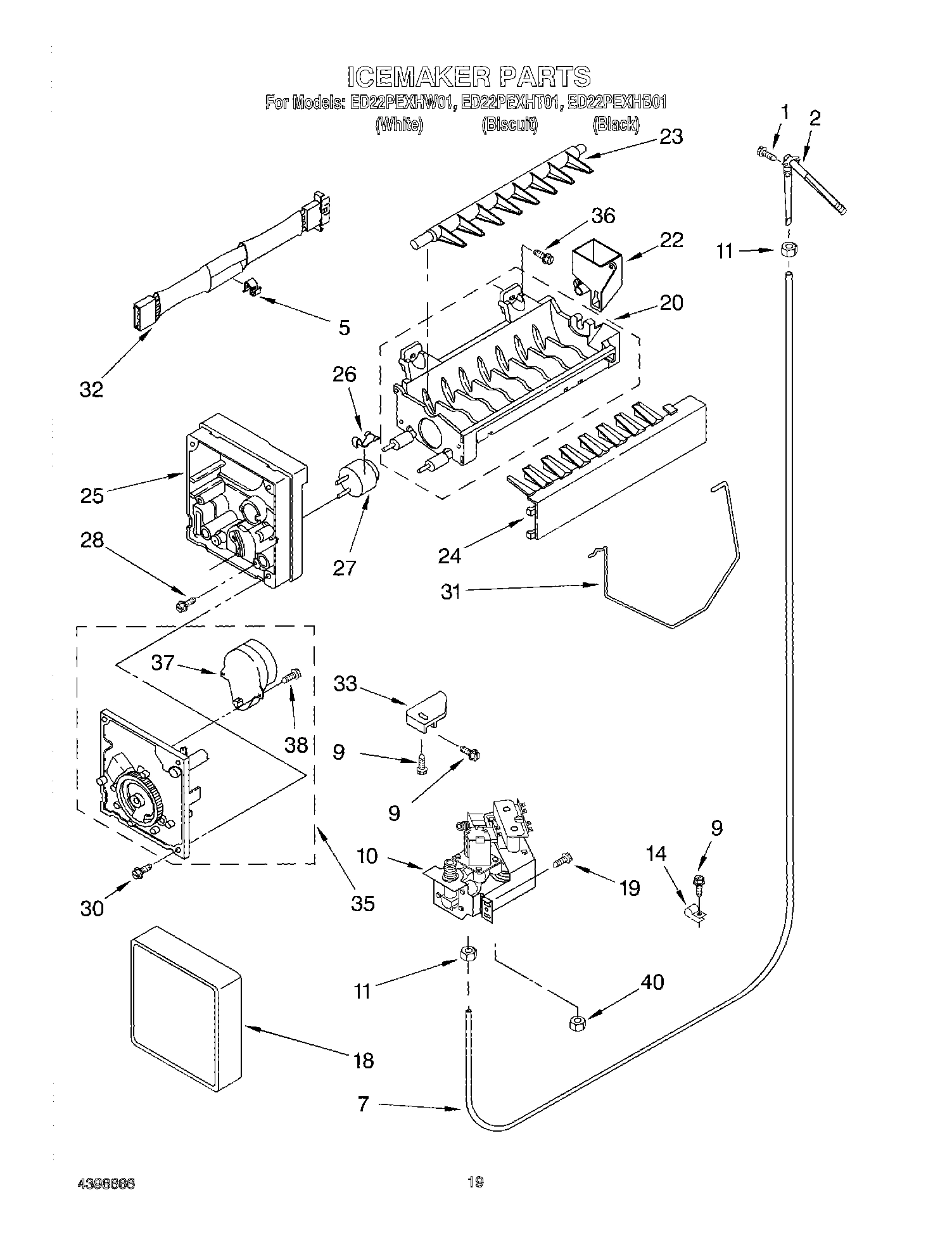

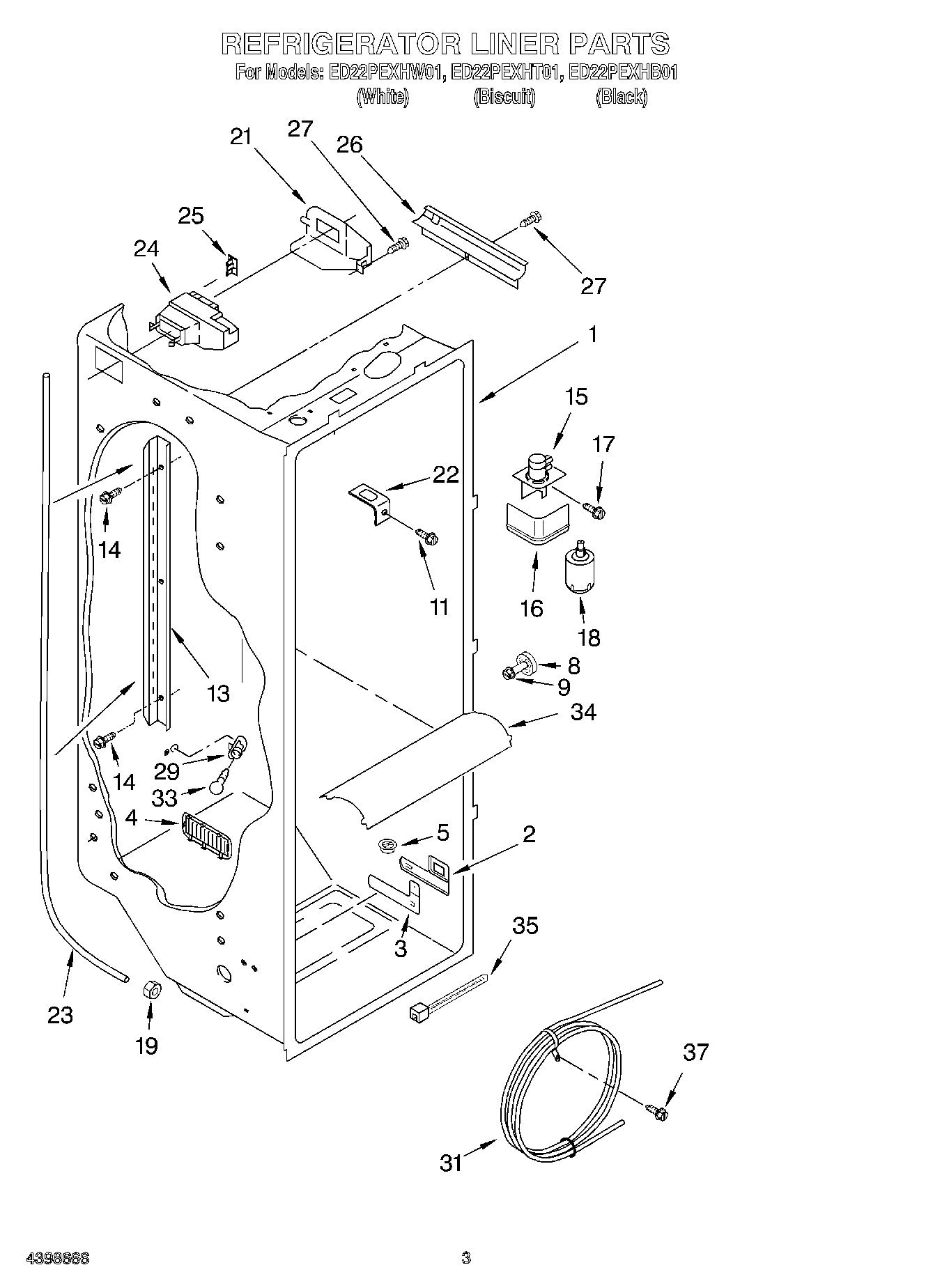

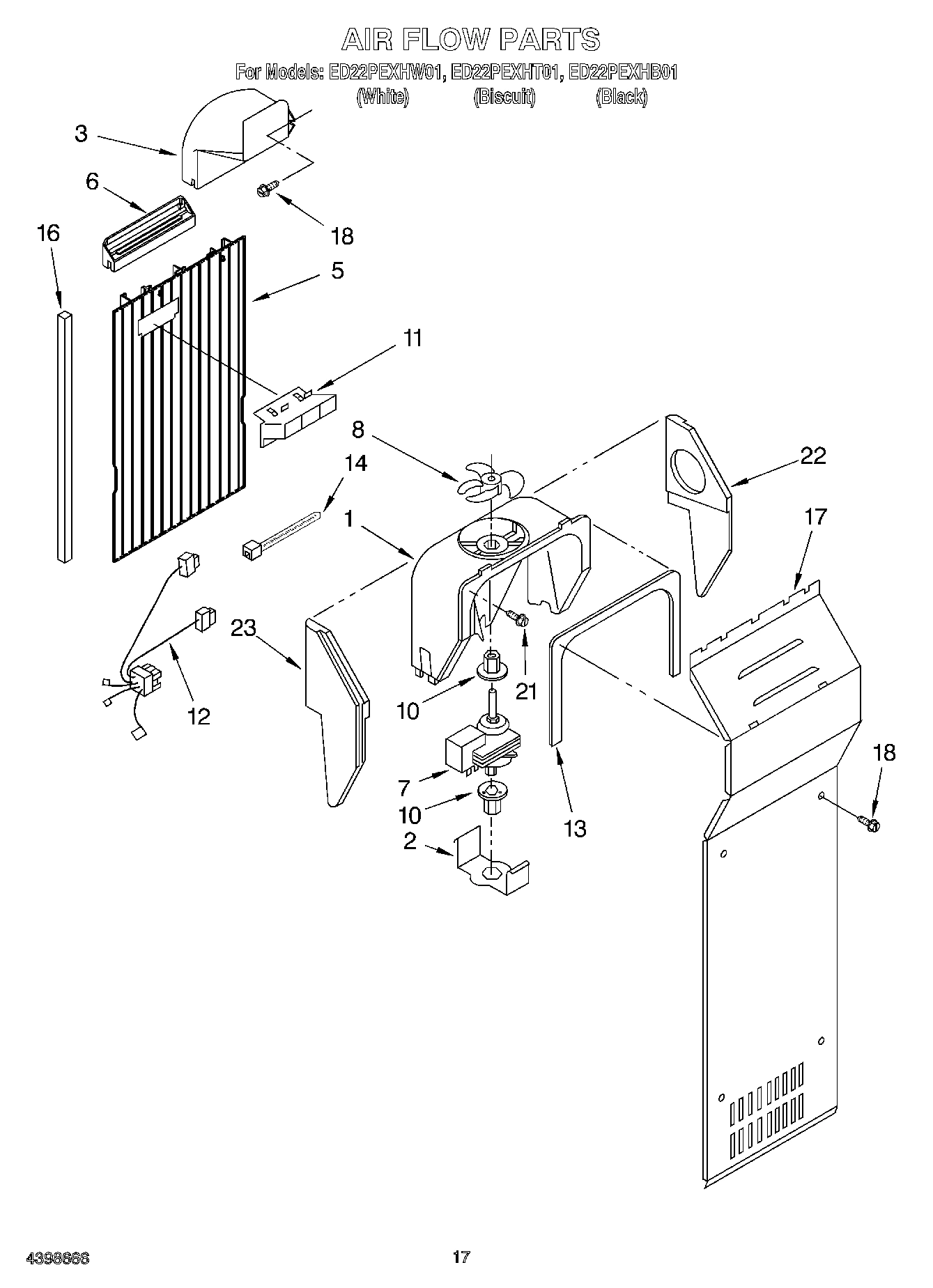

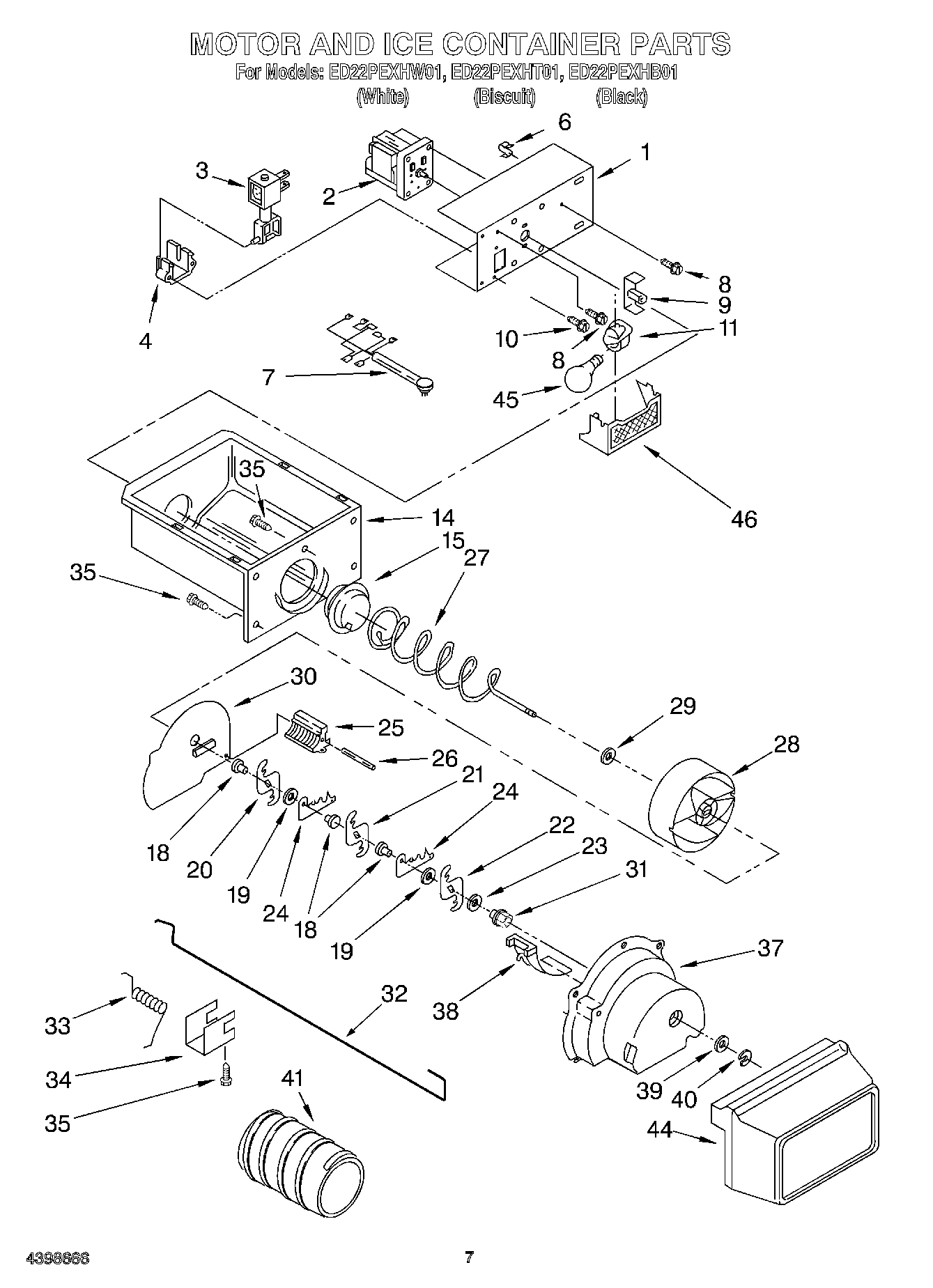

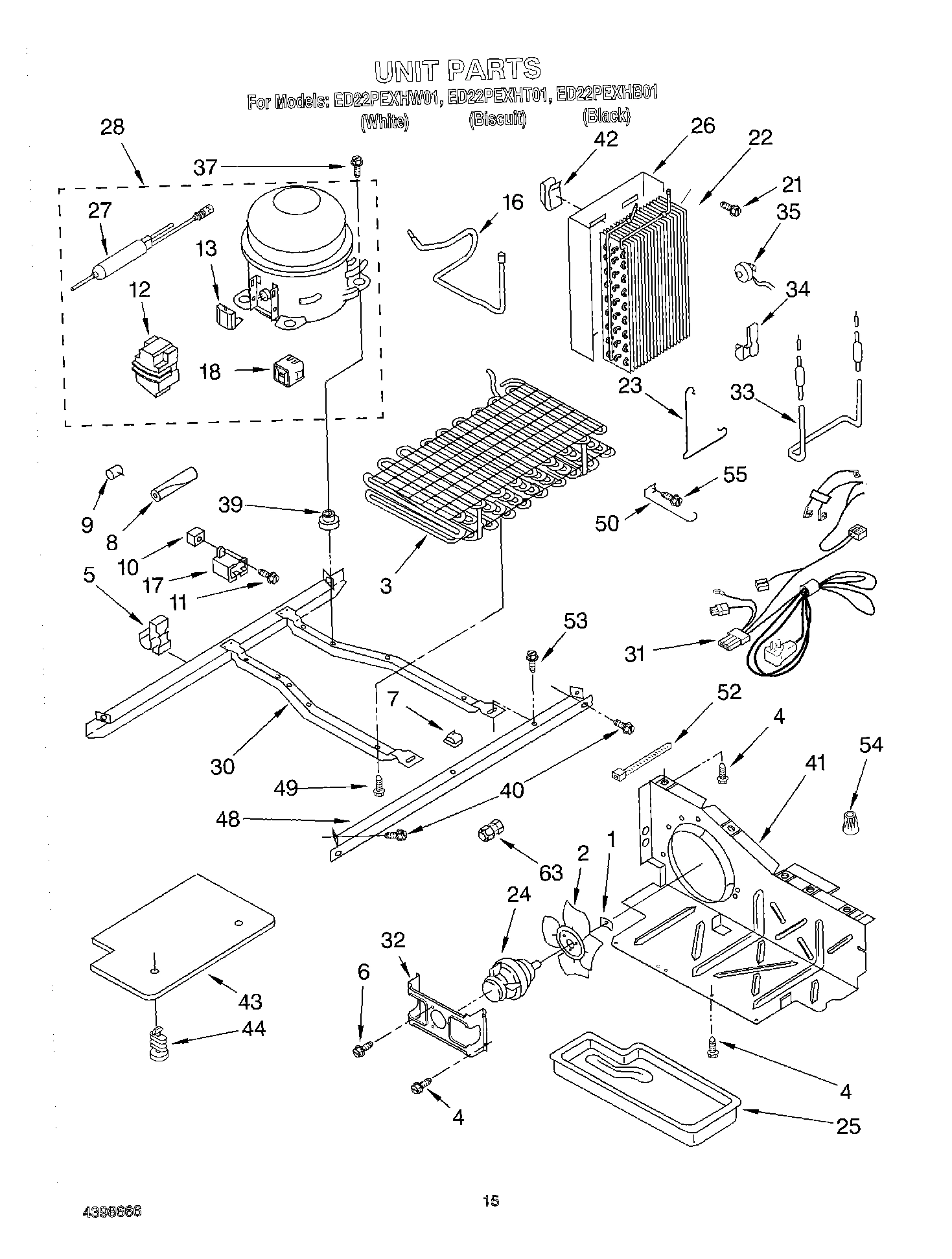

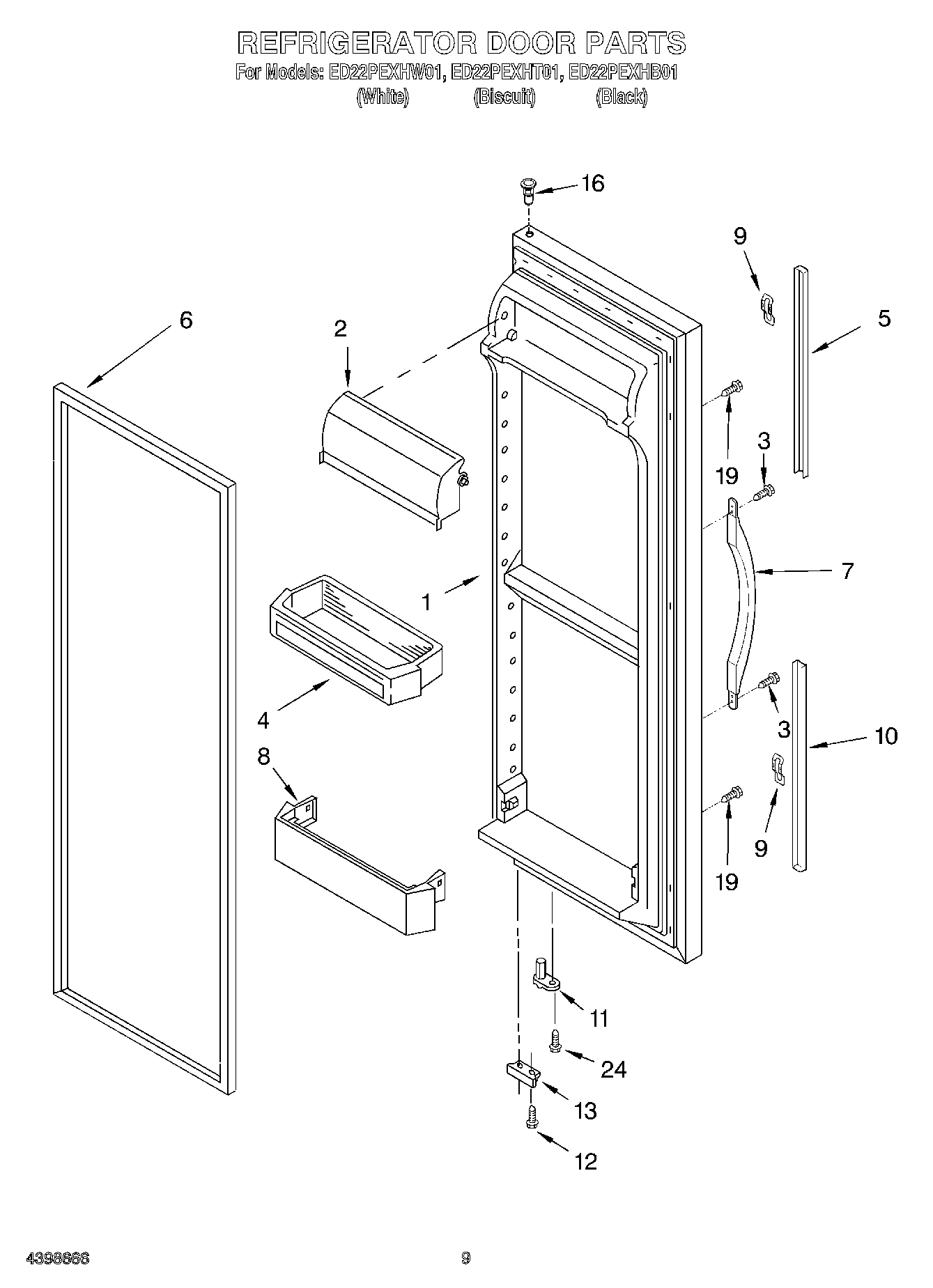

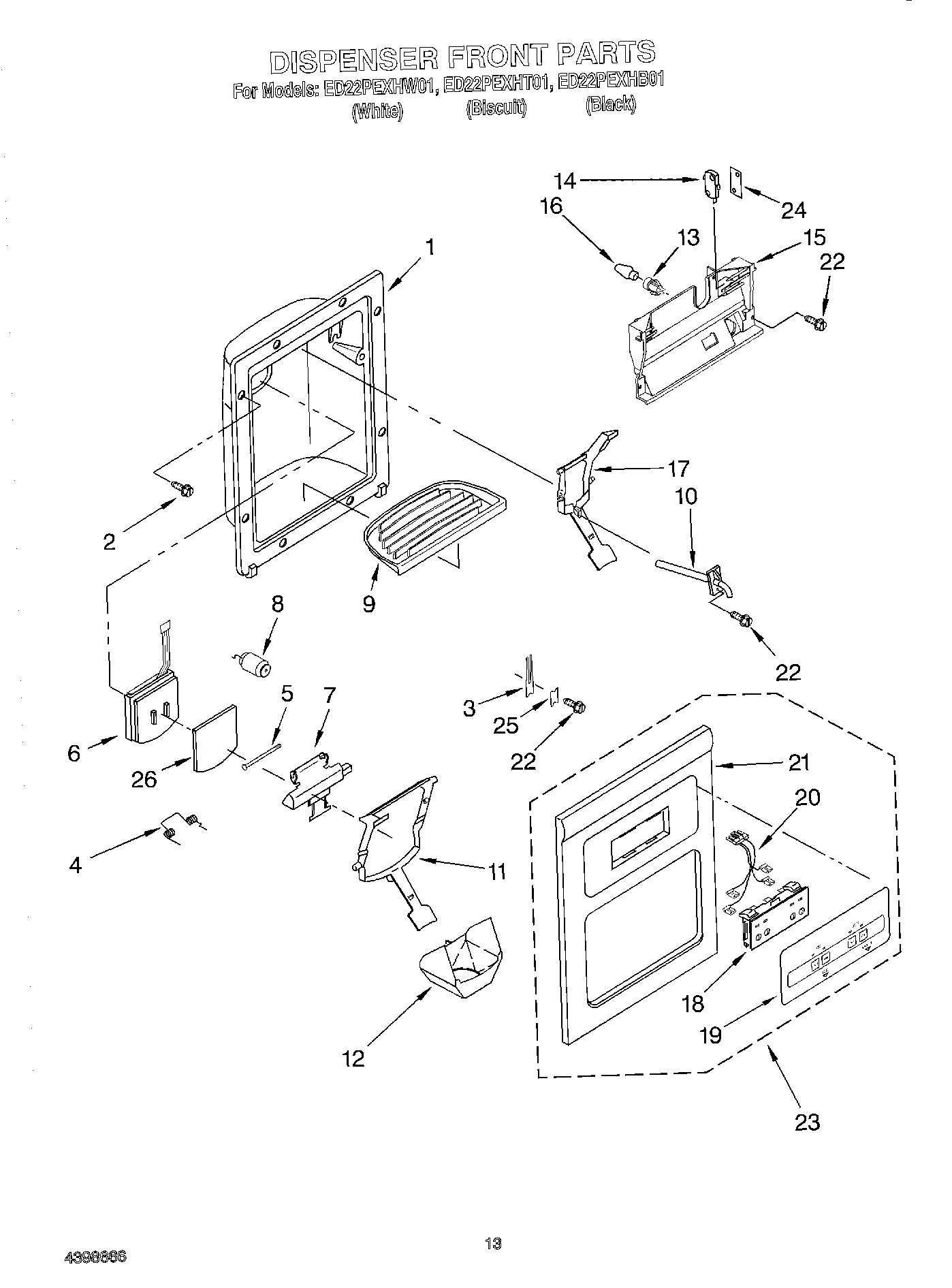

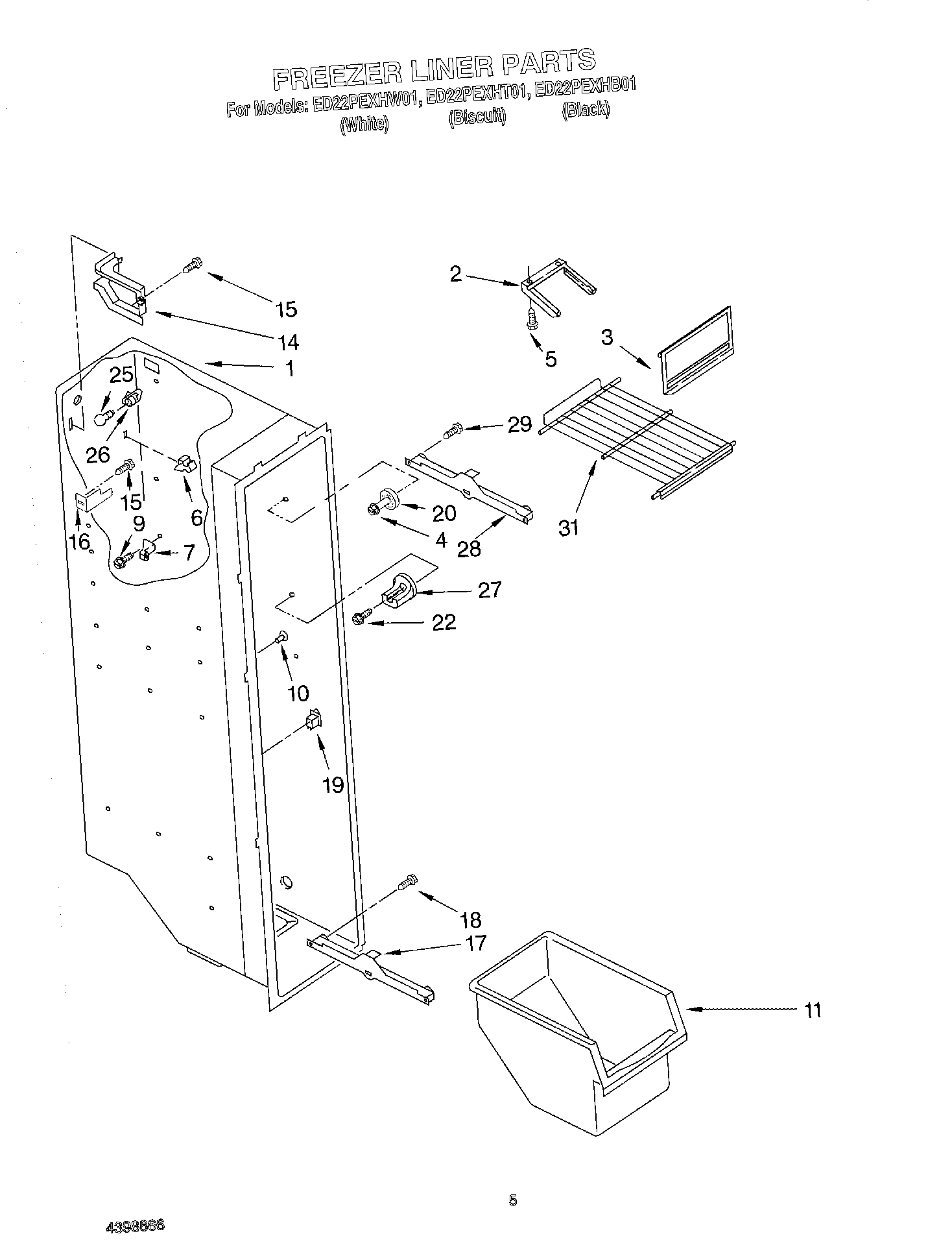

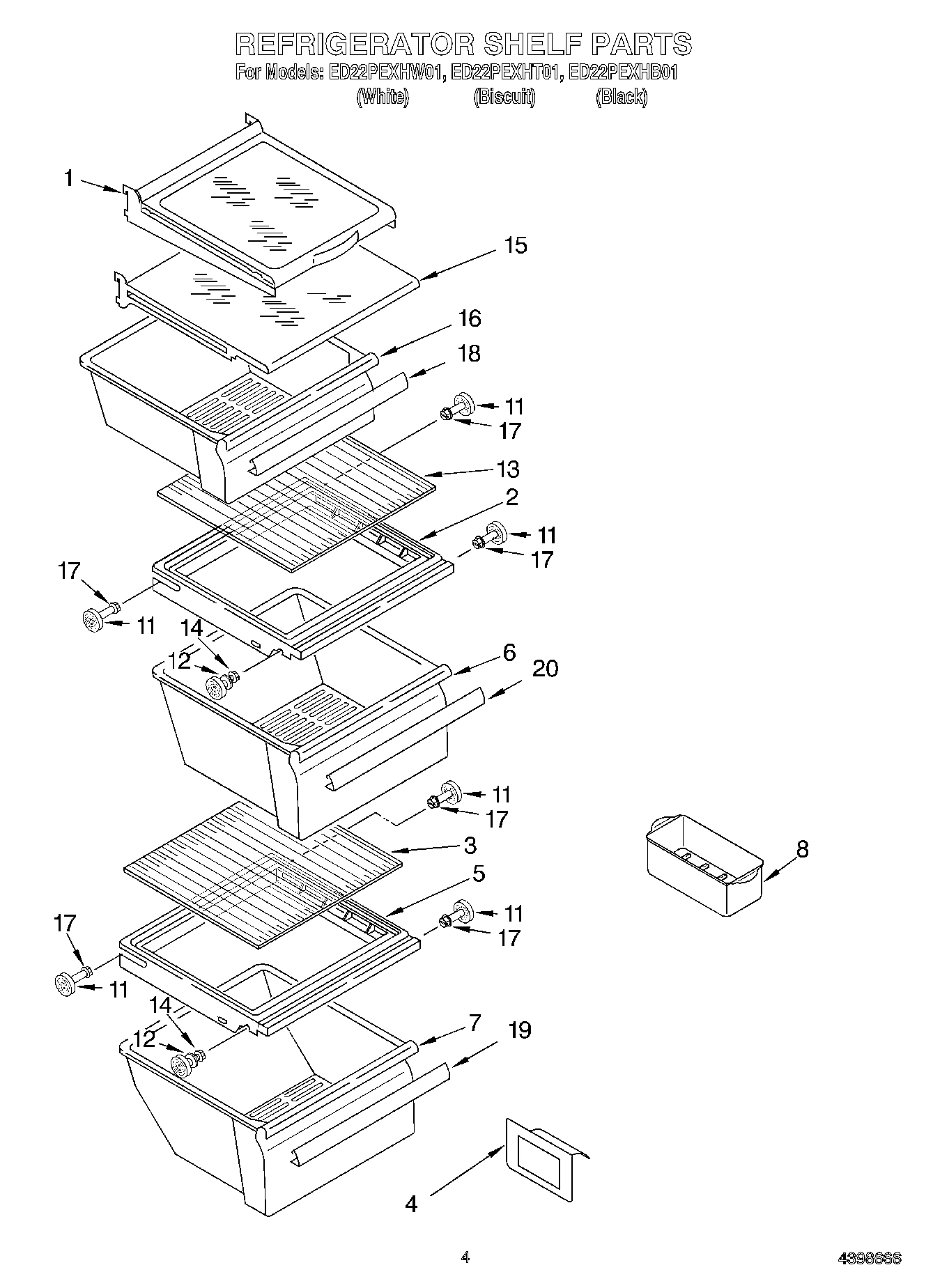

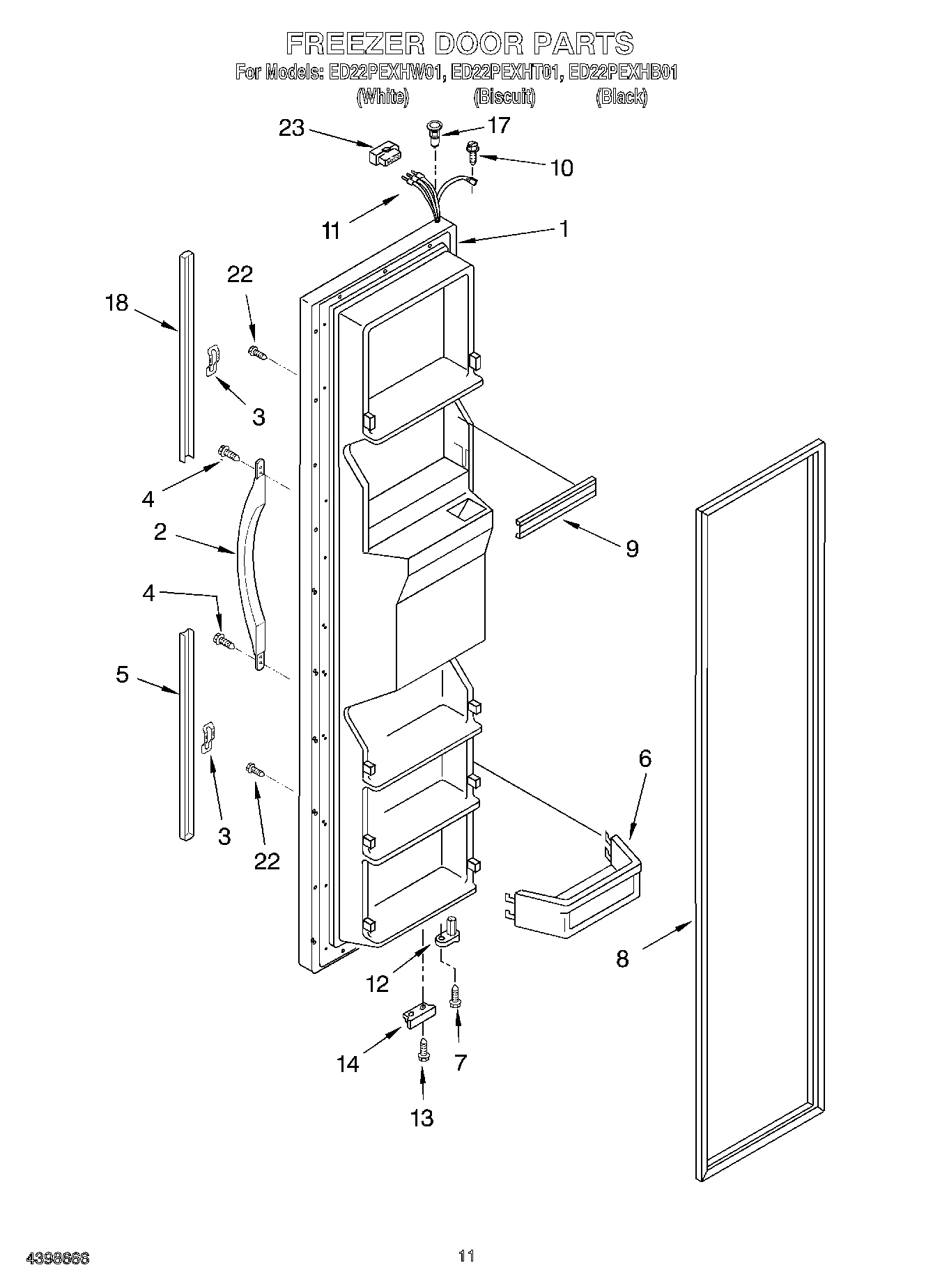

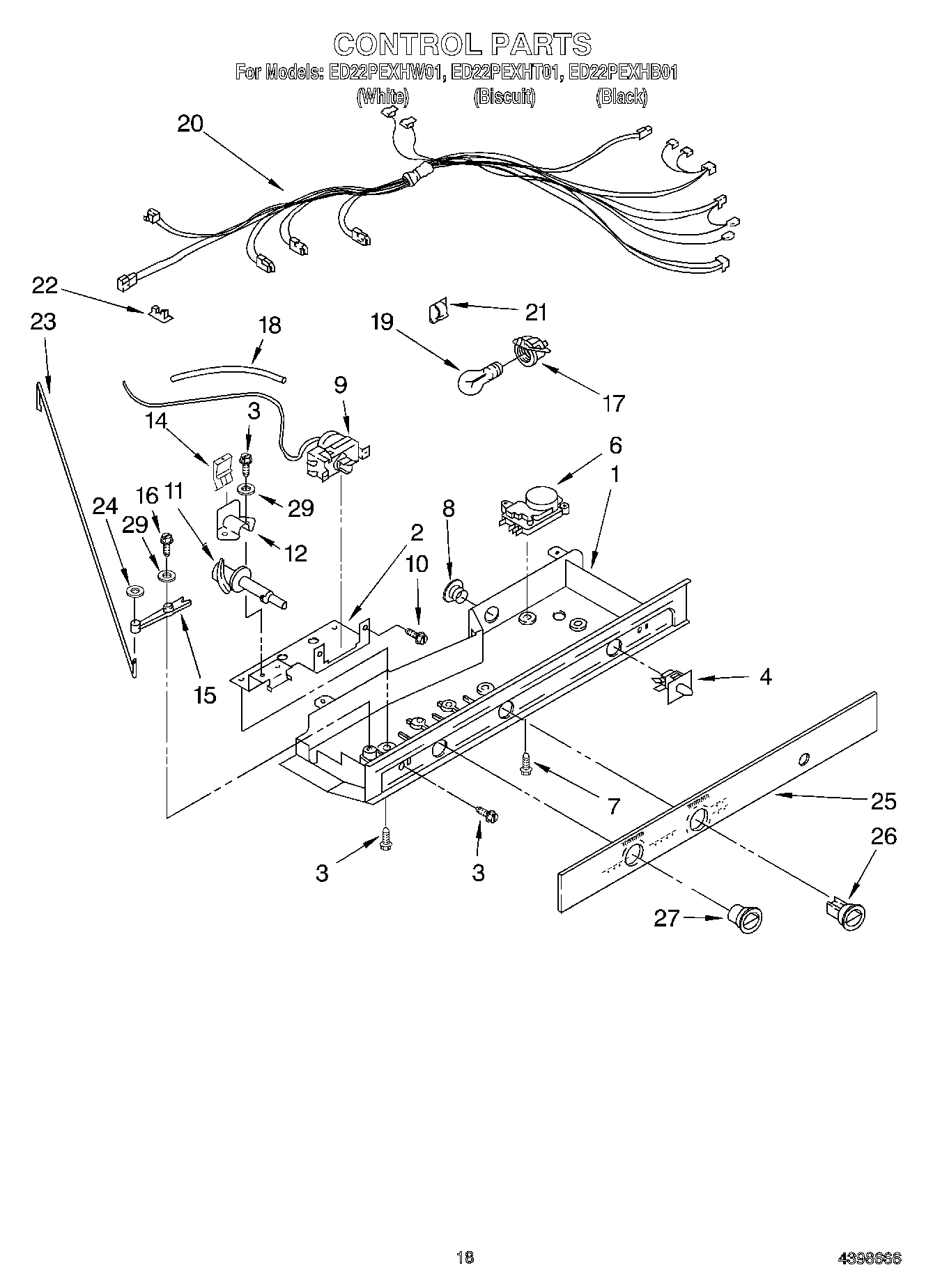

Model Whirlpool ED22PEXHB01 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Bracket, Motor WPL 2183728 Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2205864B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2205864T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2205864W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $166.24

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Extension, Top (White) WPL 2194971W Contact Us For Availability

5

Extension, Bottom (Biscuit) WPL 2194970T Contact Us For Availability

5

Extension, Bottom (White) WPL 2194970W Contact Us For Availability

6

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $92.09

6

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $155.34

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

Defrost Timer (10 Hr.) WPL 2176648 Contact Us For Availability

6

Trivet, Shelf WPL 2194286 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

9

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Black) WPL 2183787B Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $55.82

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Valve, Solenoid WPL 2206123 Contact Us For Availability

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Wire Harness WPL 2198271 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Hinge Cover (White) WPL 1129262 Contact Us For Availability

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

13

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

13

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $78.43

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $91.46

WP2194971B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194971B $54.74

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Extension, Top (Biscuit) WPL 2194972T Contact Us For Availability

Extension, Top (White) WPL 2194972W Contact Us For Availability

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

Control Box Harness WPL 2186802 Contact Us For Availability

21

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

21

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clamp WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Shield, Ice Door WPL 987121 Contact Us For Availability

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Knob, Air Control WPL 2197871 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $46.02

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

40

Nut, Compression WPL 1129179 Contact Us For Availability

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

43

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR R WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
