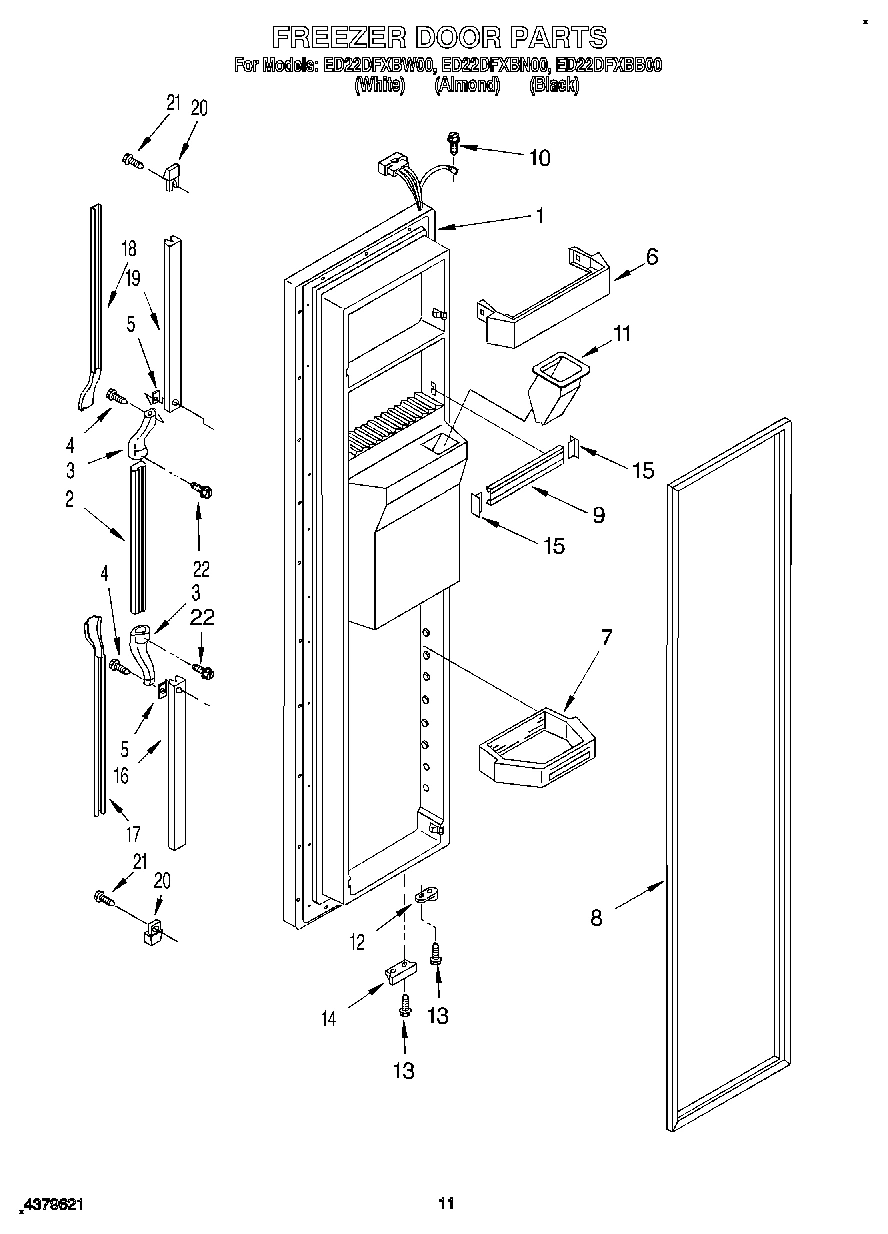

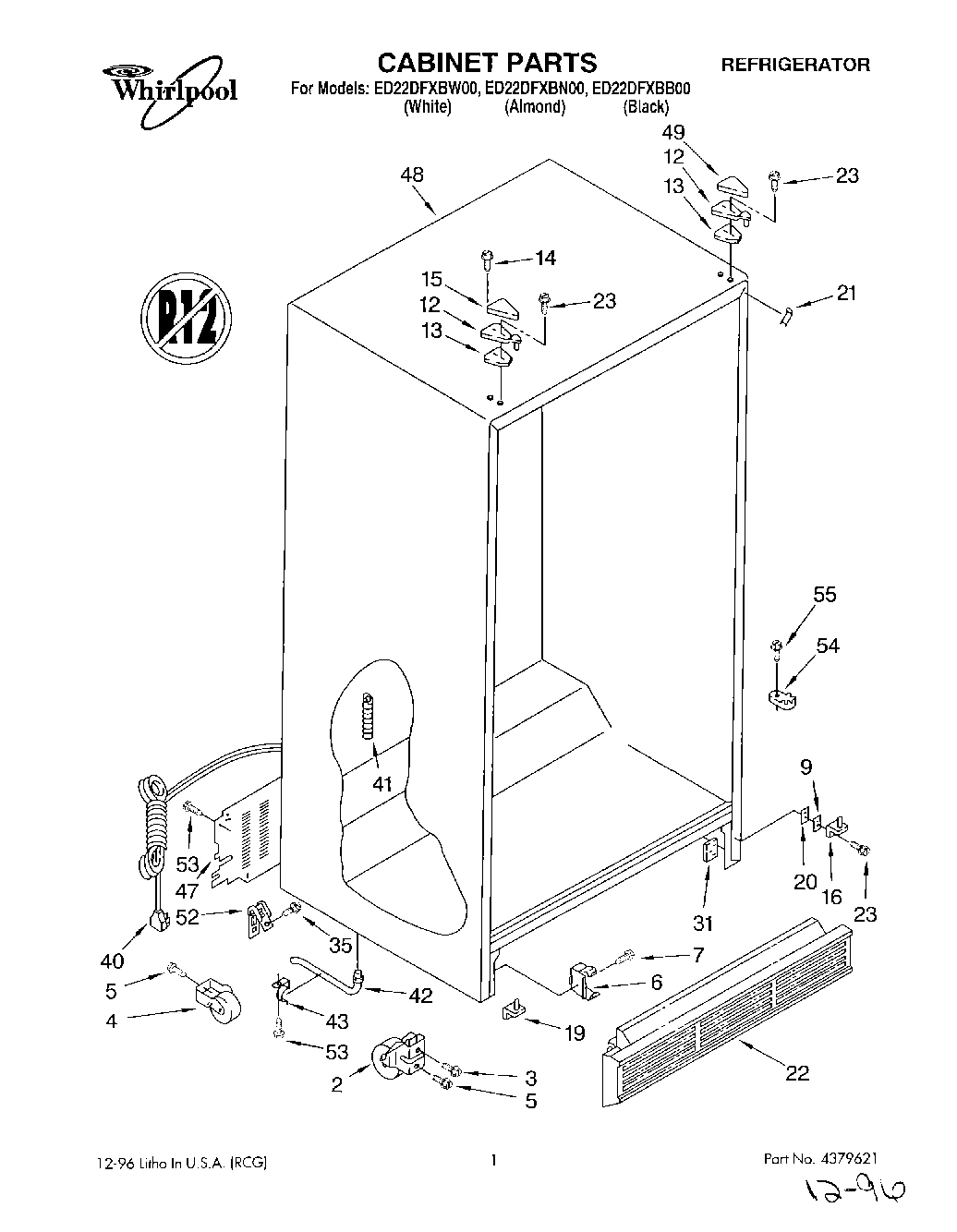

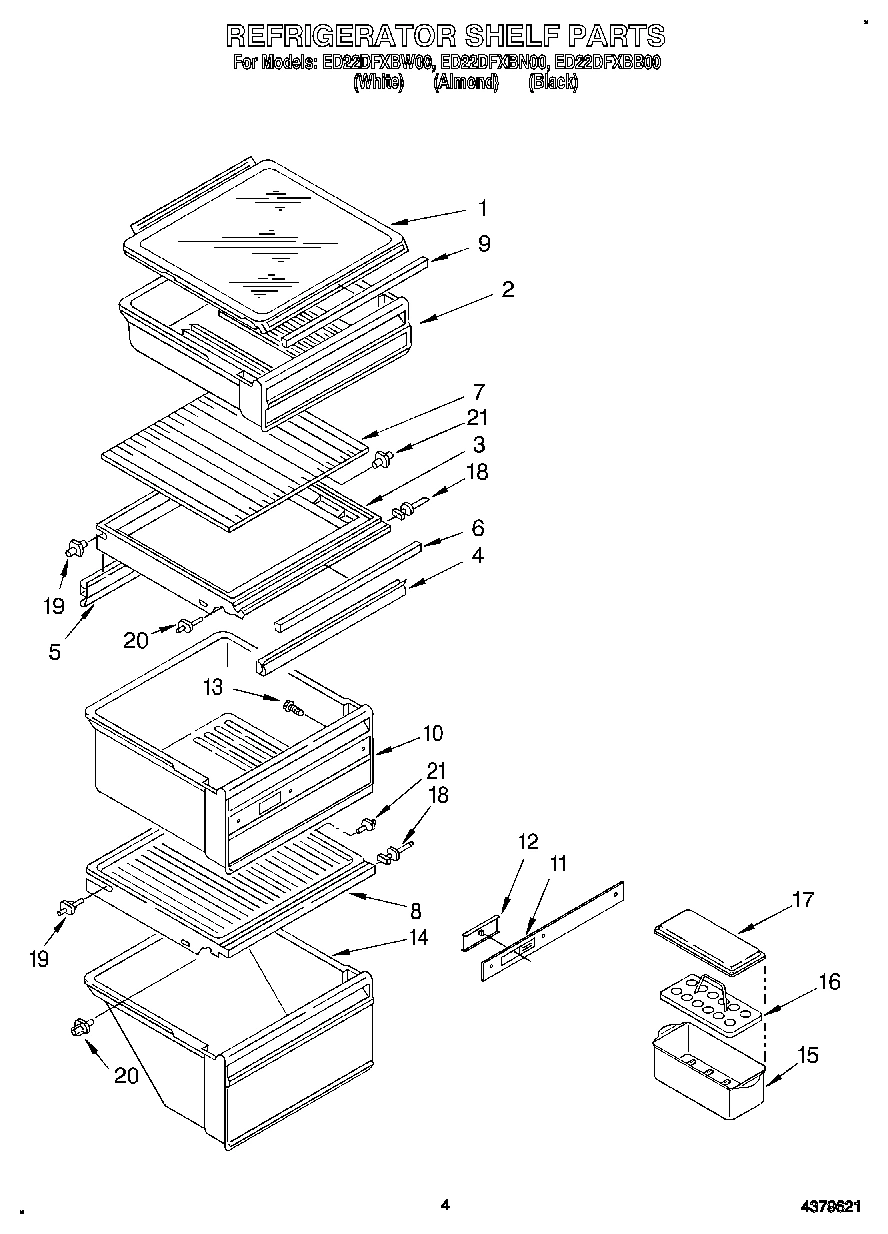

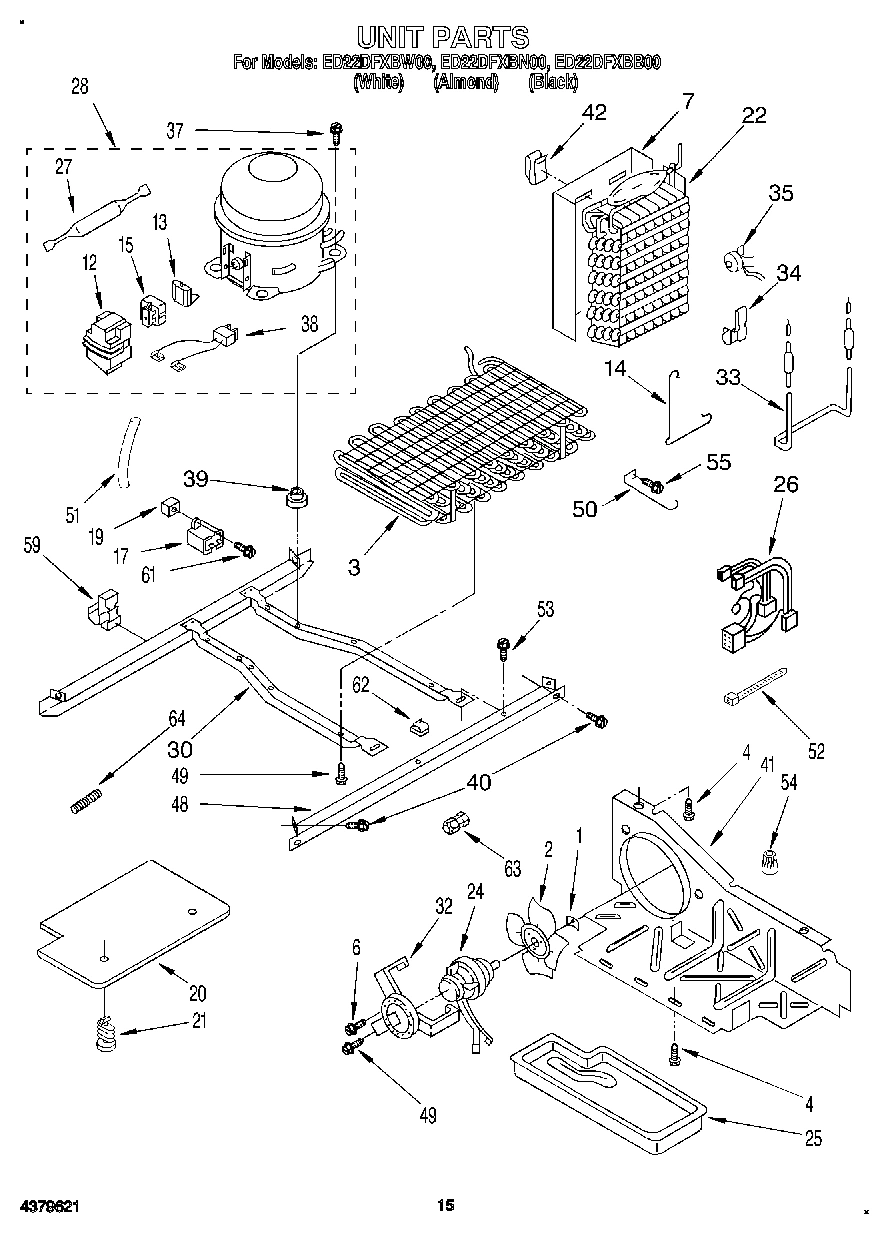

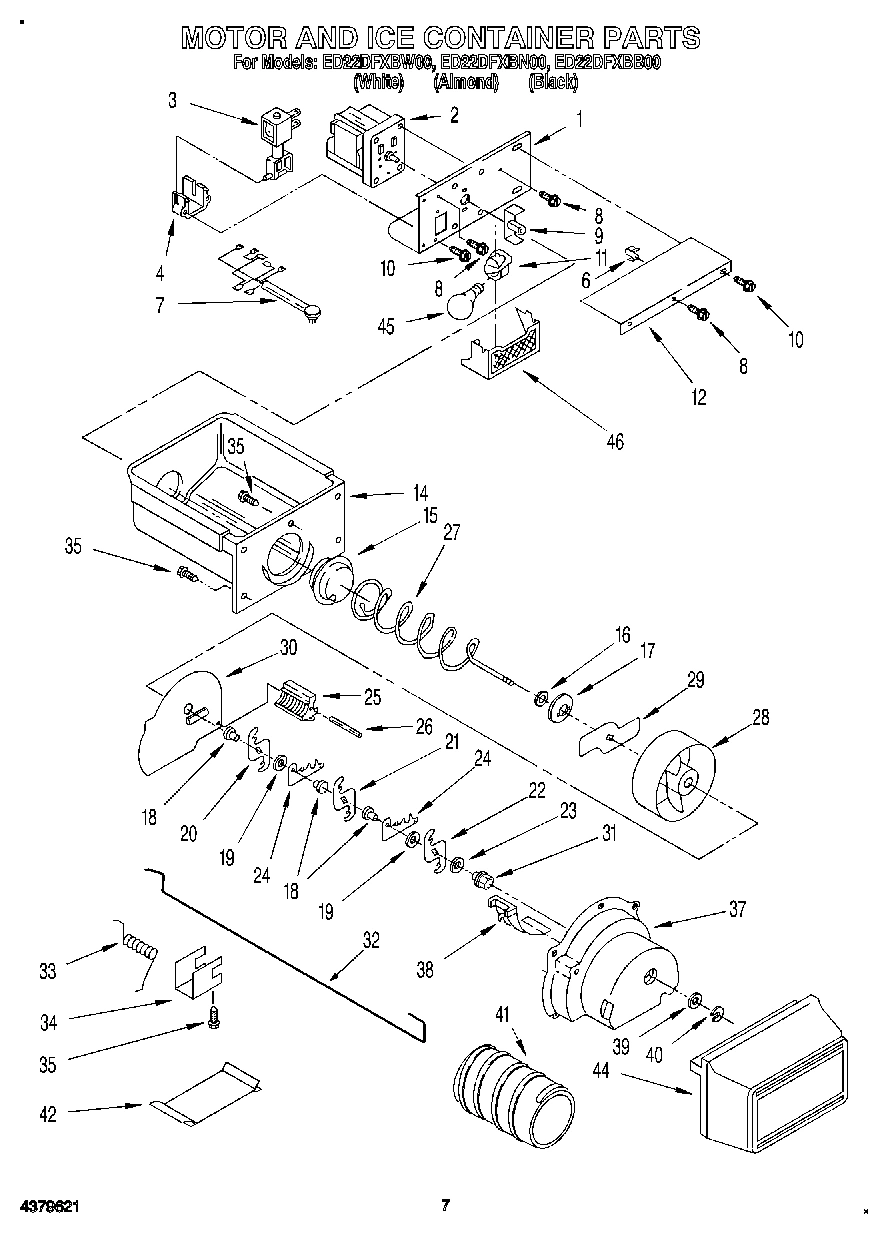

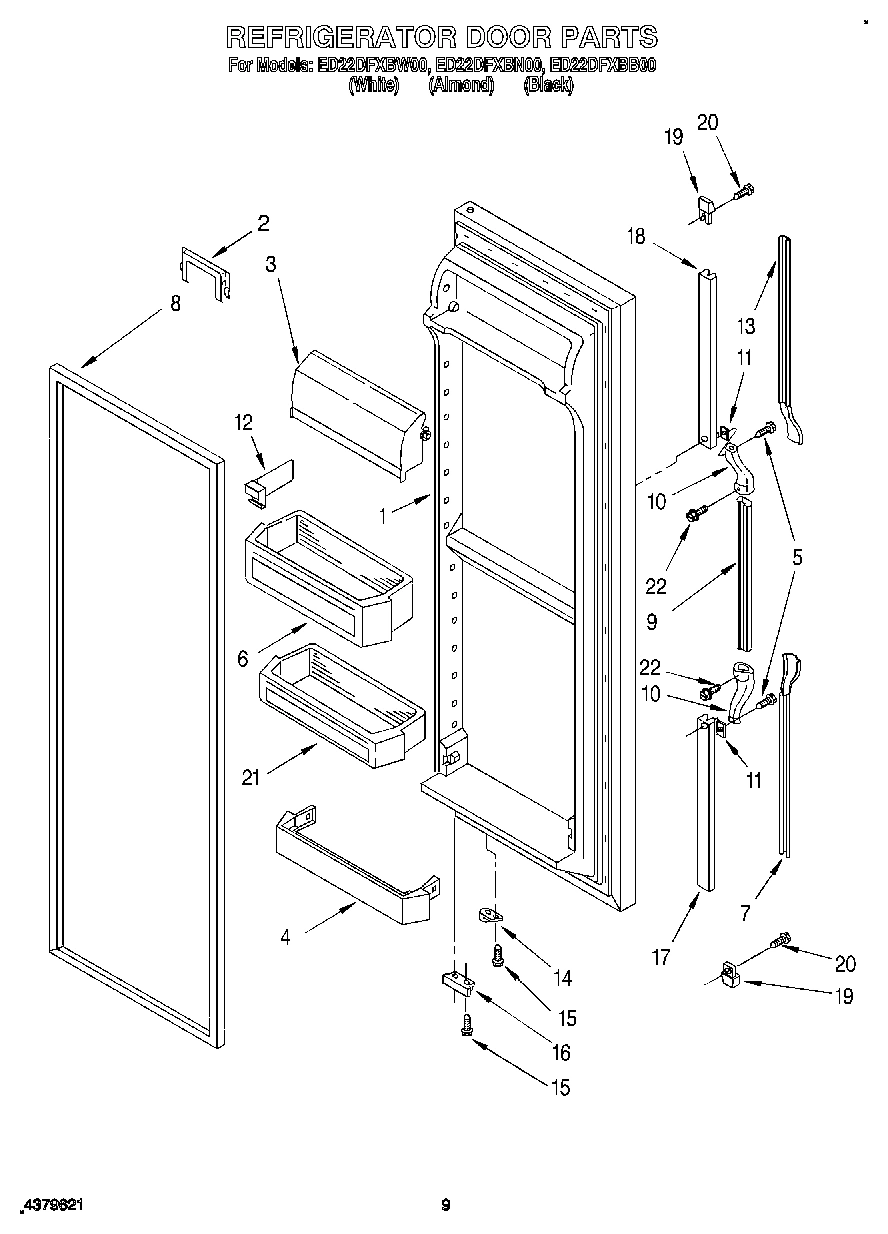

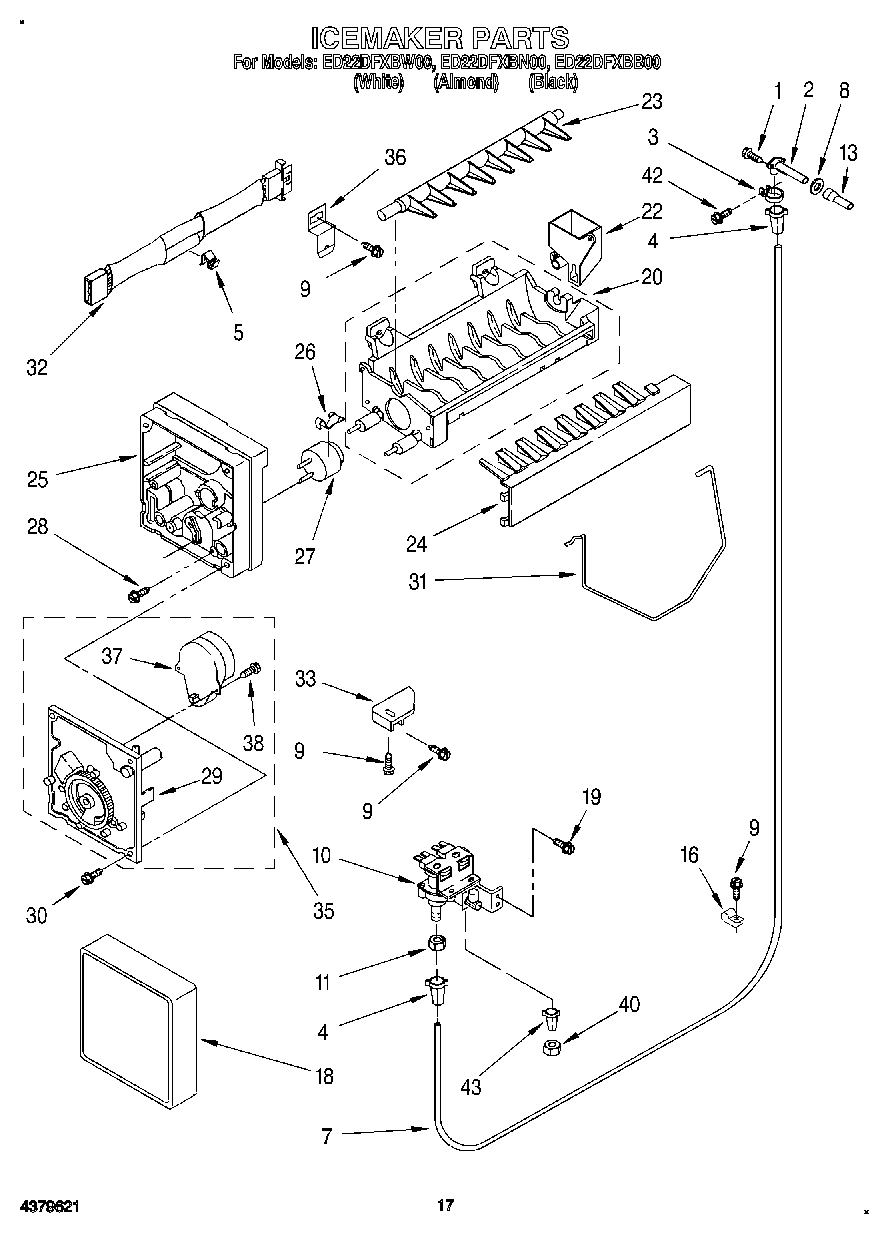

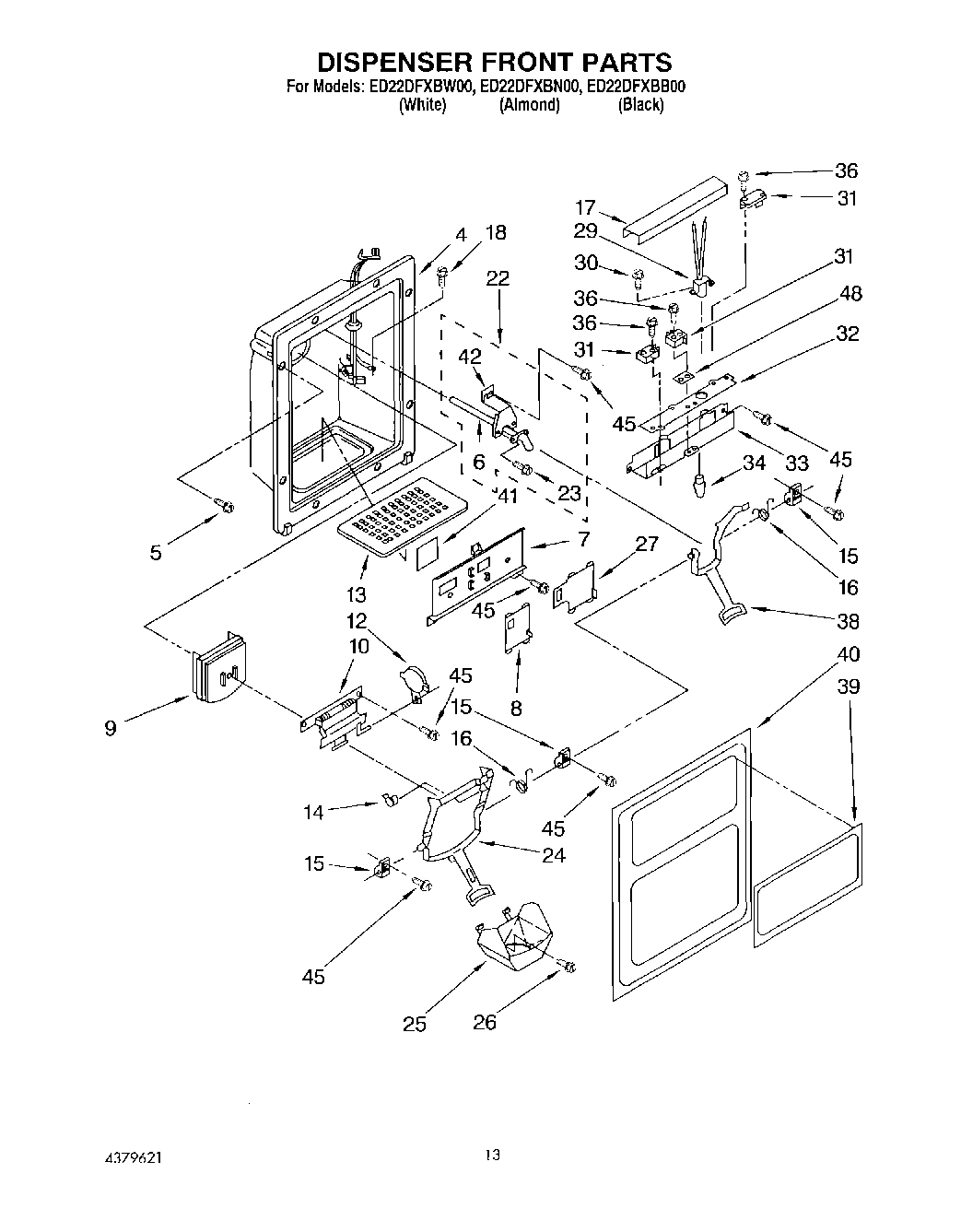

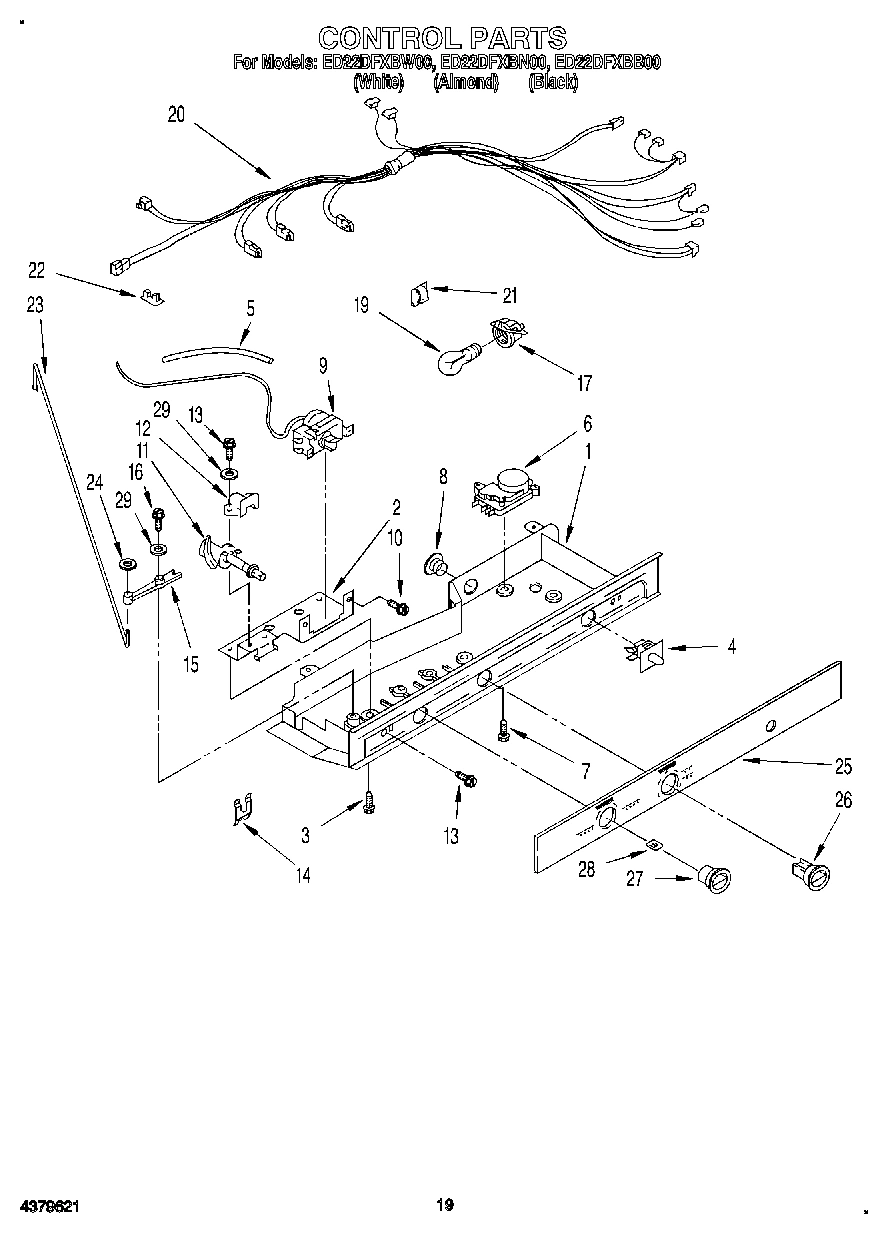

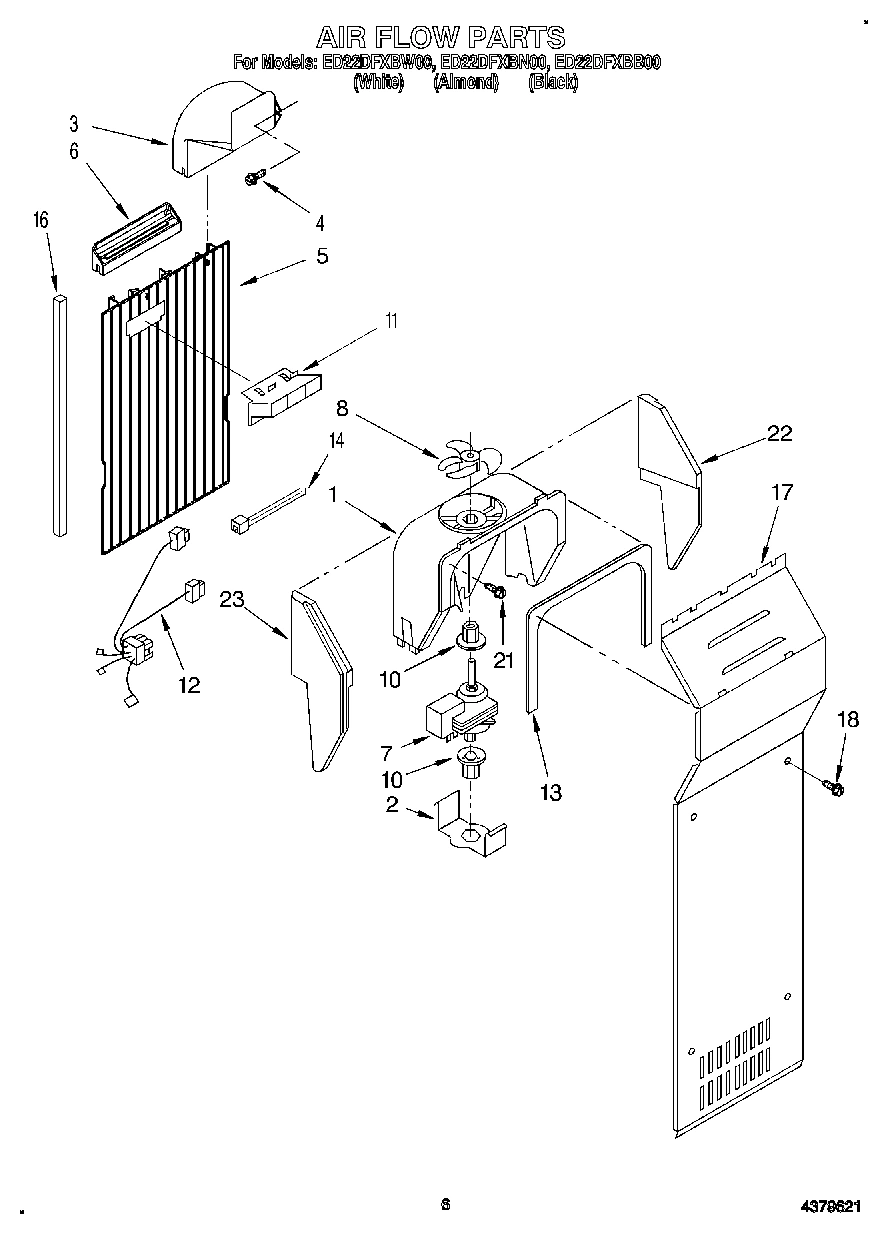

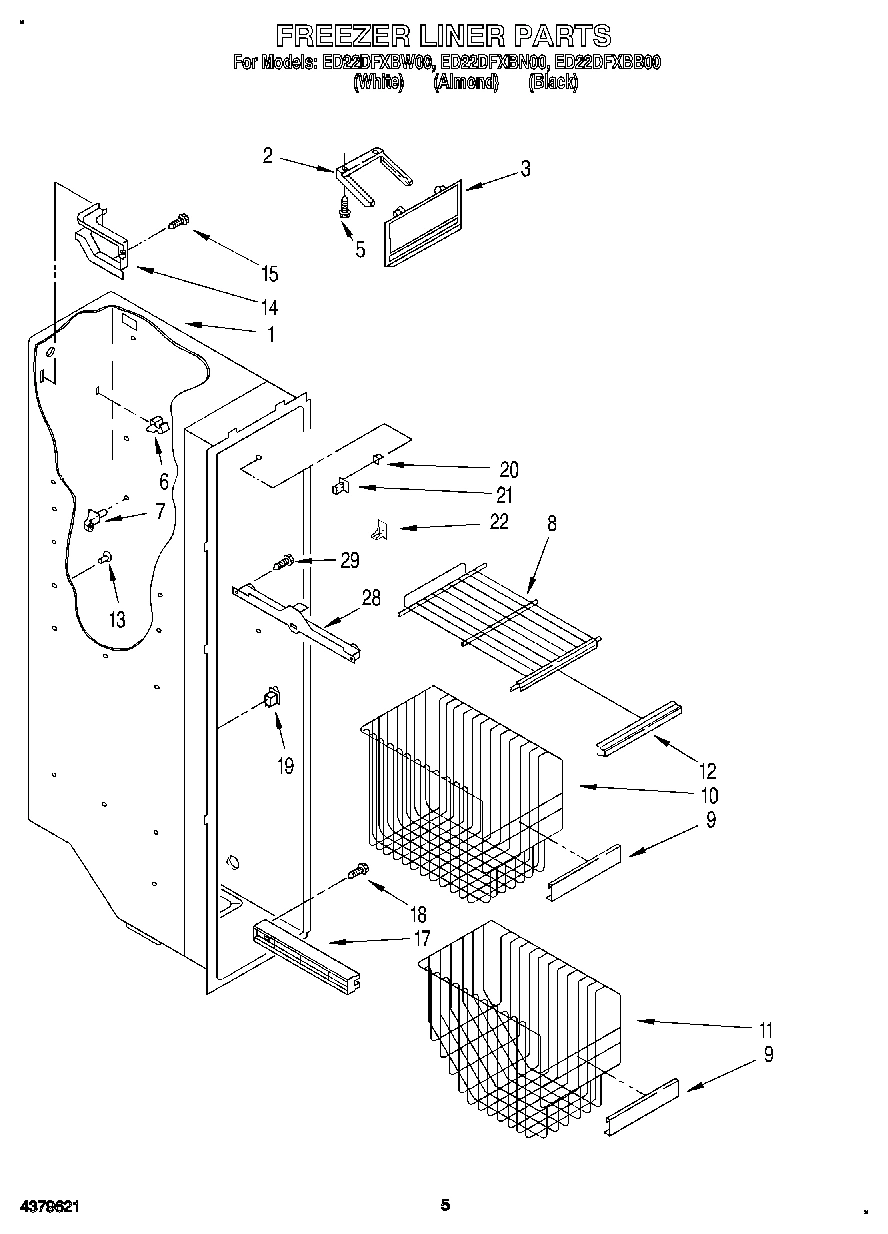

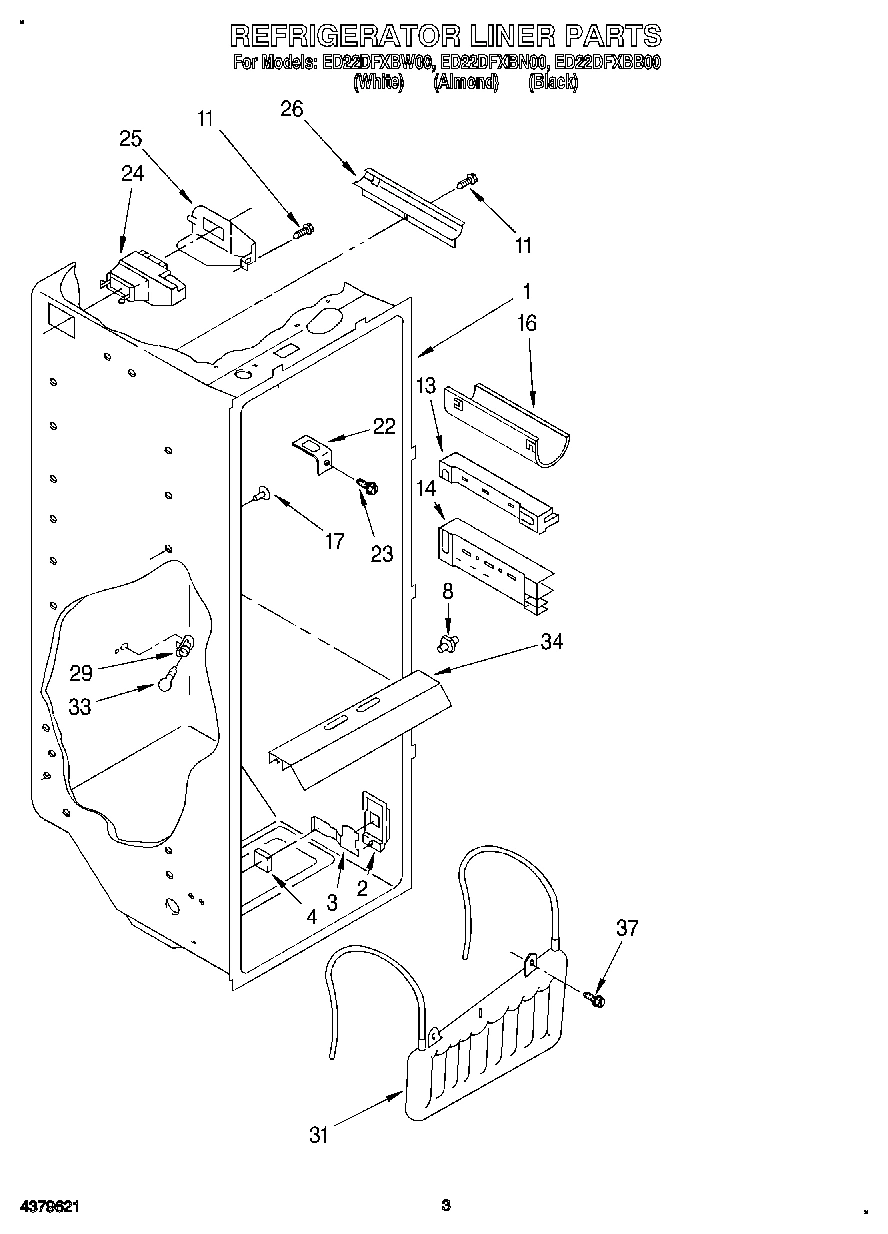

Model Whirlpool ED22DFXBW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

WPL  1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
WPL  LIT2175981
WPL LIT2175981 WPL LIT2175981 Contact Us For Availability
View on Model
WPL  LIT2175983
WPL LIT2175983 WPL LIT2175983 Contact Us For Availability
View on Model
WPL  LIT2176632
WPL LIT2176632 WPL LIT2176632 Contact Us For Availability
View on Model
WPL  LIT628370
WPL LIT628370 WPL LIT628370 Contact Us For Availability
View on Model
1
Control Box
Control Box WPL 2169147 Contact Us For Availability
View on Model
1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI145246A Contact Us For Availability
View on Model
1
Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI145245A Contact Us For Availability
View on Model
1
Freezer Door (Includes Item No.8 And Dispense
Freezer Door (Includes Item No.8 And Dispense WPL 2177122 Contact Us For Availability
View on Model
1
Freezer Door (Includes Item No.8 And Dispense
Freezer Door (Includes Item No.8 And Dispense WPL 2177218 Contact Us For Availability
View on Model
1
Freezer Door (Includes Item No.8 And Dispense
Freezer Door (Includes Item No.8 And Dispense WPL 2177219 Contact Us For Availability
View on Model
2
Fan, Blade
Fan, Blade WPL 1108179 Contact Us For Availability
View on Model
2
Mounting Bracket
Mounting Bracket WPL 1110629 Contact Us For Availability
View on Model
2
Slide, Ice Door
Slide, Ice Door WPL 1115380 Contact Us For Availability
View on Model
2
Escutcheon, Meat Pan Control
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
View on Model
2
Front Roller (2)
Front Roller (2) WPL 2174749 Contact Us For Availability
View on Model
2
Handle, Center (Black)
Handle, Center (Black) WPL 1118417 Contact Us For Availability
View on Model
2
Handle, Center (White)
Handle, Center (White) WPL 1124713 Contact Us For Availability
View on Model
2
Handle, Center (Almond)
Handle, Center (Almond) WPL 943079 Contact Us For Availability
View on Model
3
Screw (2)
Screw (2) WPL 489397 Contact Us For Availability
View on Model
3
Door, Ice Compartment
Door, Ice Compartment WPL 2162945 Contact Us For Availability
View on Model
3
Slide, Meat Pan Control
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
View on Model
3
Screw
Screw WPL 489432 Contact Us For Availability
View on Model
3
End Cap (2)
End Cap (2) WPL 1119359 Contact Us For Availability
View on Model
4
Pad, Foam
Pad, Foam WPL 992358 Contact Us For Availability
View on Model
4
Housing, Dispenser (Not a Serviceable Part)
Housing, Dispenser (Not a Serviceable Part) WPL ARI145247A Contact Us For Availability
View on Model
5
Screw,
Screw, WPL 488454 Contact Us For Availability
View on Model
5
Shim, End Cap (2)
Shim, End Cap (2) WPL 935075 Contact Us For Availability
View on Model
6
Defrost Timer (10 Hr.)
Defrost Timer (10 Hr.) WPL 2154984 Contact Us For Availability
View on Model
6
Trivet, Shelf
Trivet, Shelf WPL 2156019 Contact Us For Availability
View on Model
6
Tube, Water (See Item No.22)
Tube, Water (See Item No.22) WPL ARI145248A Contact Us For Availability
View on Model
7
Wiring Assembly, Ice Dispenser
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
View on Model
7
Shelf Bin (3)
Shelf Bin (3) WPL 2162890 Contact Us For Availability
View on Model
7
Frame, Slides (Black)
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
View on Model
7
Frame, Slides (White)
Frame, Slides (White) WPL 2152717 Contact Us For Availability
View on Model
7
Frame, Slides (Almond)
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
View on Model
8
Shelf
Shelf WPL 2155640 Contact Us For Availability
View on Model
8
Slide, Cube/Crush Switch (Black)
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
View on Model
8
Slide, Cube/Crush Switch (White)
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
View on Model
8
Slide, Cube/Crush Switch (Almond)
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
View on Model
9
Trim, Basket
Trim, Basket WPL 2162835 Contact Us For Availability
View on Model
9
Shim
Shim WPL 836196 Contact Us For Availability
View on Model
10
Basket, Tall
Basket, Tall WPL 2152087 Contact Us For Availability
View on Model
10
Door Mechanism Assembly
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
View on Model
11
Cam Assembly
Cam Assembly WPL 2161250 Contact Us For Availability
View on Model
11
Basket, Slope
Basket, Slope WPL 2152089 Contact Us For Availability
View on Model
11
Chute, Ice
Chute, Ice WPL 2156146 Contact Us For Availability
View on Model
12
Trim, Shelf
Trim, Shelf WPL 2162938 Contact Us For Availability
View on Model
13
Track, Shelf (Right Side (2))
Track, Shelf (Right Side (2)) WPL 1114632 Contact Us For Availability
View on Model
13
Track, Shelf (Left Side (2))
Track, Shelf (Left Side (2)) WPL 1114633 Contact Us For Availability
View on Model
13
Shim, Hinge Top
Shim, Hinge Top WPL 1123515 Contact Us For Availability
View on Model
13
Grommet
Grommet WPL 1110779 Contact Us For Availability
View on Model
13
Grille, Overflow (White)
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
View on Model
13
Grille, Overflow (Almond)
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
View on Model
13
Grille, Overflow (Black)
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
View on Model
13
Tube, Water Inlet
Tube, Water Inlet WPL 2155247 Contact Us For Availability
View on Model
14
Track, Shelf (Right Side)
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
View on Model
14
Clip, Defrost Heater
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
View on Model
14
Retainer, Damper
Retainer, Damper WPL 938439 Contact Us For Availability
View on Model
14
Cover, Wiring
Cover, Wiring WPL 2155572 Contact Us For Availability
View on Model
14
Screw
Screw WPL 489284 Contact Us For Availability
View on Model
14
Bracket, Door Stop (Chrome)
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
View on Model
14
Bracket, Door Stop (Black)
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
View on Model
14
Clip, Bearing (2)
Clip, Bearing (2) WPL 987917 Contact Us For Availability
View on Model
15
Pivot Arm
Pivot Arm WPL 1110559 Contact Us For Availability
View on Model
15
Bearing, Lever (3)
Bearing, Lever (3) WPL 983697 Contact Us For Availability
View on Model
16
Spring, Lever (2)
Spring, Lever (2) WPL 983696 Contact Us For Availability
View on Model
16
Stop, Cone
Stop, Cone WPL 1118480 Contact Us For Availability
View on Model
16
Wine Rack
Wine Rack WPL 1124828 Contact Us For Availability
View on Model
16
Hinge Bottom (R.H) (Black)
Hinge Bottom (R.H) (Black) WPL 2155320 Contact Us For Availability
View on Model
16
Hinge Bottom (R.H) (Chrome)
Hinge Bottom (R.H) (Chrome) WPL 2155321 Contact Us For Availability
View on Model
16
Retainer, Insert
Retainer, Insert WPL 1119360 Contact Us For Availability
View on Model
17
Shelf Track (Right Side (4))
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
View on Model
17
Shelf Track (Left Side (4))
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
View on Model
17
Feeder Cone
Feeder Cone WPL 1119074 Contact Us For Availability
View on Model
17
Insert, Handle (Black)
Insert, Handle (Black) WPL 1118435 Contact Us For Availability
View on Model
17
Insert, Handle (White)
Insert, Handle (White) WPL 1119361 Contact Us For Availability
View on Model
17
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
View on Model
17
Shield, Wiring
Shield, Wiring WPL 2147165 Contact Us For Availability
View on Model
18
Insert, Handle (Black)
Insert, Handle (Black) WPL 1118436 Contact Us For Availability
View on Model
18
Insert, Handle (White)
Insert, Handle (White) WPL 1119367 Contact Us For Availability
View on Model
18
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
View on Model
18
Cover
Cover WPL 628355 Contact Us For Availability
View on Model
19
Shelf Stud
Shelf Stud WPL 1115290 Contact Us For Availability
View on Model
19
Hinge Bottom (L.H) (Black)
Hinge Bottom (L.H) (Black) WPL 2155322 Contact Us For Availability
View on Model
19
Hinge Bottom (L.H) (Chrome)
Hinge Bottom (L.H) (Chrome) WPL 2155323 Contact Us For Availability
View on Model
19
Retainer, Insert
Retainer, Insert WPL 1119366 Contact Us For Availability
View on Model
20
Spacer, Hinge
Spacer, Hinge WPL 987179 Contact Us For Availability
View on Model
20
Control Box Harness
Control Box Harness WPL 2149186 Contact Us For Availability
View on Model
20
Stud
Stud WPL 946355 Contact Us For Availability
View on Model
20
End Cap (2)
End Cap (2) WPL 2156220 Contact Us For Availability
View on Model
21
Screw
Screw WPL 489075 Contact Us For Availability
View on Model
21
Shelf Bin
Shelf Bin WPL 2162888 Contact Us For Availability
View on Model
21
Stud, R.S. Front
Stud, R.S. Front WPL 946356 Contact Us For Availability
View on Model
21
Filler, Wrapper (White)
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
View on Model
21
Filler, Wrapper (Almond)
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
View on Model
21
Filler, Wrapper (Black)
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
View on Model
22
Grille (Black)
Grille (Black) WPL 2155476 Contact Us For Availability
View on Model
22
Screw
Screw WPL 489022 Contact Us For Availability
View on Model
22
CLIP, WIRING
CLIP, WIRING WPL 1115375 Contact Us For Availability
View on Model
22
Stud, L.S. Rear
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
View on Model
22
Grille (White)
Grille (White) WPL 2155477 Contact Us For Availability
View on Model
22
Grille (Almond)
Grille (Almond) WPL 2155478 Contact Us For Availability
View on Model
23
Connecting Rod
Connecting Rod WPL 1123960 Contact Us For Availability
View on Model
24
Lever, Ice Dispenser (White)
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
View on Model
24
Fastener, Push-On
Fastener, Push-On WPL 489285 Contact Us For Availability
View on Model
24
Blade, Fixed (2)
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
View on Model
24
Lever, Ice Dispenser (Black)
Lever, Ice Dispenser (Black) WPL 2177143 Contact Us For Availability
View on Model
24
Lever, Ice Dispenser (Almond)
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
View on Model
25
Guide, Ice (White)
Guide, Ice (White) WPL 1124730 Contact Us For Availability
View on Model
25
Escutcheon, Control Box
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
View on Model
25
Guide, Ice (Black)
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
View on Model
25
Guide, Ice (Almond)
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
View on Model
26
Screw (Stainless)
Screw (Stainless) WPL 488892 Contact Us For Availability
View on Model
26
Screw (Black)
Screw (Black) WPL 489197 Contact Us For Availability
View on Model
27
Knob, Air Control
Knob, Air Control WPL 1116853 Contact Us For Availability
View on Model
27
Slide, Light Switch (Black)
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
View on Model
27
Slide, Light Switch (White)
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
View on Model
27
Slide, Light Switch (Almond)
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
View on Model
27
Cement Alumilastic)
Cement Alumilastic) WPL 542369 Contact Us For Availability
View on Model
28
Knob, Retainer
Knob, Retainer WPL 837444 Contact Us For Availability
View on Model
29
WPL  876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
29
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
29
Leveler, Enamel (13 Oz. Spray Can)
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
View on Model
29
Transformer (115-230 Volt)
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
View on Model
29
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
29
Enamel, Black (1 Qt. Uncut)
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
View on Model
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
View on Model
29
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
29
Lamp Holder
Lamp Holder WPL 2147131 Contact Us For Availability
View on Model
30
Screw
Screw WPL 488361 Contact Us For Availability
View on Model
31
Tap Plate (2)
Tap Plate (2) WPL 2147310 Contact Us For Availability
View on Model
32
Insulator, Control Bracket
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
View on Model
33
Heater, Defrost
Heater, Defrost WPL 2161322 Contact Us For Availability
View on Model
33
Bracket, Control
Bracket, Control WPL 2147163 Contact Us For Availability
View on Model
34
Light Lens
Light Lens WPL 2169504 Contact Us For Availability
View on Model
36
Screw,
Screw, WPL 489155 Contact Us For Availability
View on Model
36
Clip, Support (2)
Clip, Support (2) WPL 2155021 Contact Us For Availability
View on Model
37
Screw (2)
Screw (2) WPL 488280 Contact Us For Availability
View on Model
38
Lever, Water Dispenser (
Lever, Water Dispenser ( WPL 2177149 Contact Us For Availability
View on Model
38
Lever, Water Dispenser (Black)
Lever, Water Dispenser (Black) WPL 2177148 Contact Us For Availability
View on Model
38
WPL  2177150
WPL 2177150 WPL 2177150 Contact Us For Availability
View on Model
39
WPL  2150319
WPL 2150319 WPL 2150319 Contact Us For Availability
View on Model
39
WPL  2162923
WPL 2162923 WPL 2162923 Contact Us For Availability
View on Model
39
WPL  2162924
WPL 2162924 WPL 2162924 Contact Us For Availability
View on Model
40
Cord, Service
Cord, Service WPL 937360 Contact Us For Availability
View on Model
40
WPL  2148705
WPL 2148705 WPL 2148705 Contact Us For Availability
View on Model
40
WPL  2162925
WPL 2162925 WPL 2162925 Contact Us For Availability
View on Model
40
WPL  2162927
WPL 2162927 WPL 2162927 Contact Us For Availability
View on Model
40
Nut, Compression
Nut, Compression WPL 1129179 Contact Us For Availability
View on Model
41
WPL  2147172
WPL 2147172 WPL 2147172 Contact Us For Availability
View on Model
42
Housing Filler
Housing Filler WPL 2152700 Contact Us For Availability
View on Model
42
WPL  987049
WPL 987049 WPL 987049 Contact Us For Availability
View on Model
43
Insert
Insert WPL 1129177 Contact Us For Availability
View on Model
44
Front Cover, Ice Container
Front Cover, Ice Container WPL 2171262 Contact Us For Availability
View on Model
46
Light Lens, Dispenser
Light Lens, Dispenser WPL 983359 Contact Us For Availability
View on Model
48
WPL  625834
WPL 625834 WPL 625834 Contact Us For Availability
View on Model
48
Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI145244A Contact Us For Availability
View on Model
49
Hinge Cover (Black)
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
View on Model
64
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
