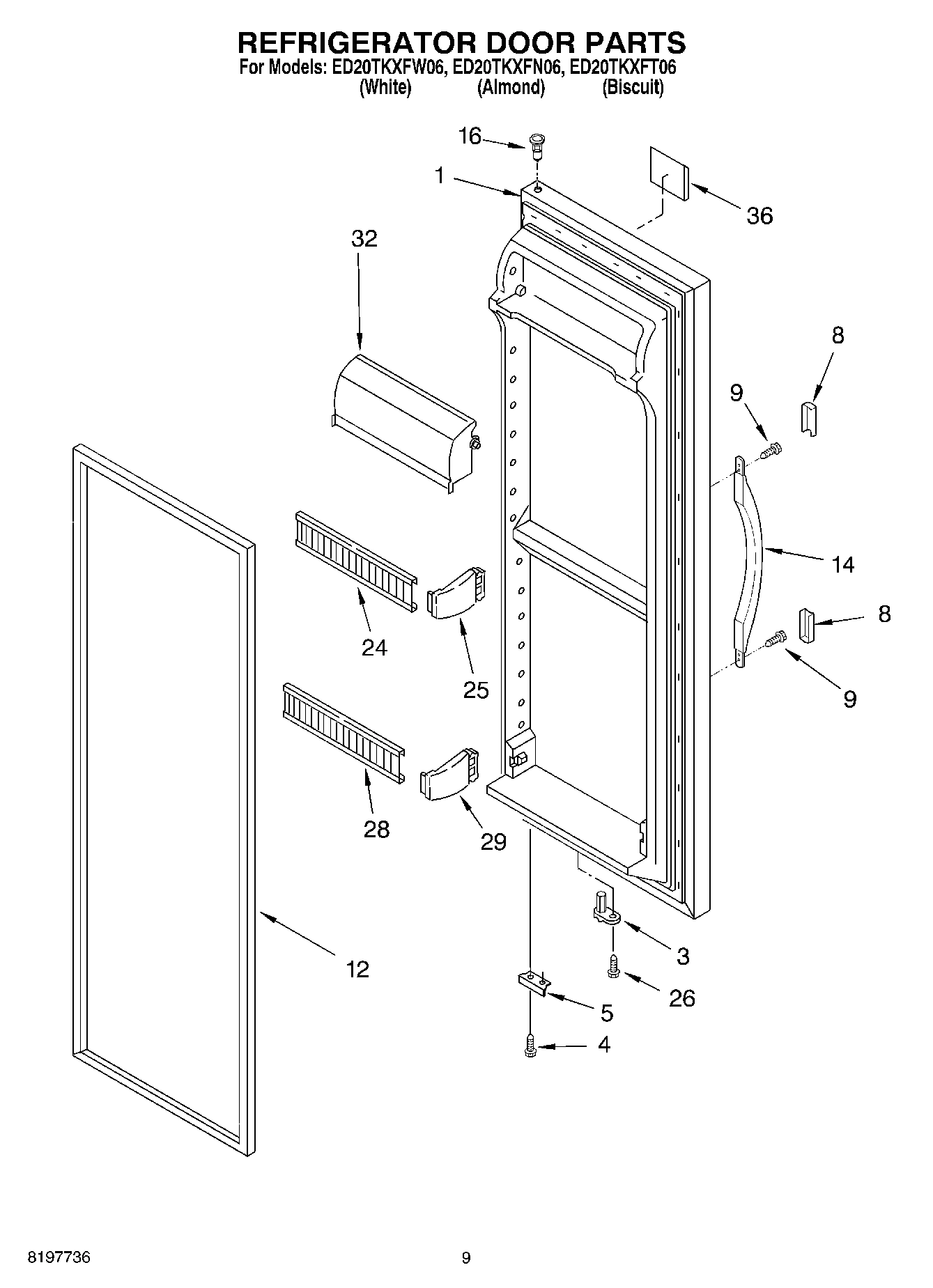

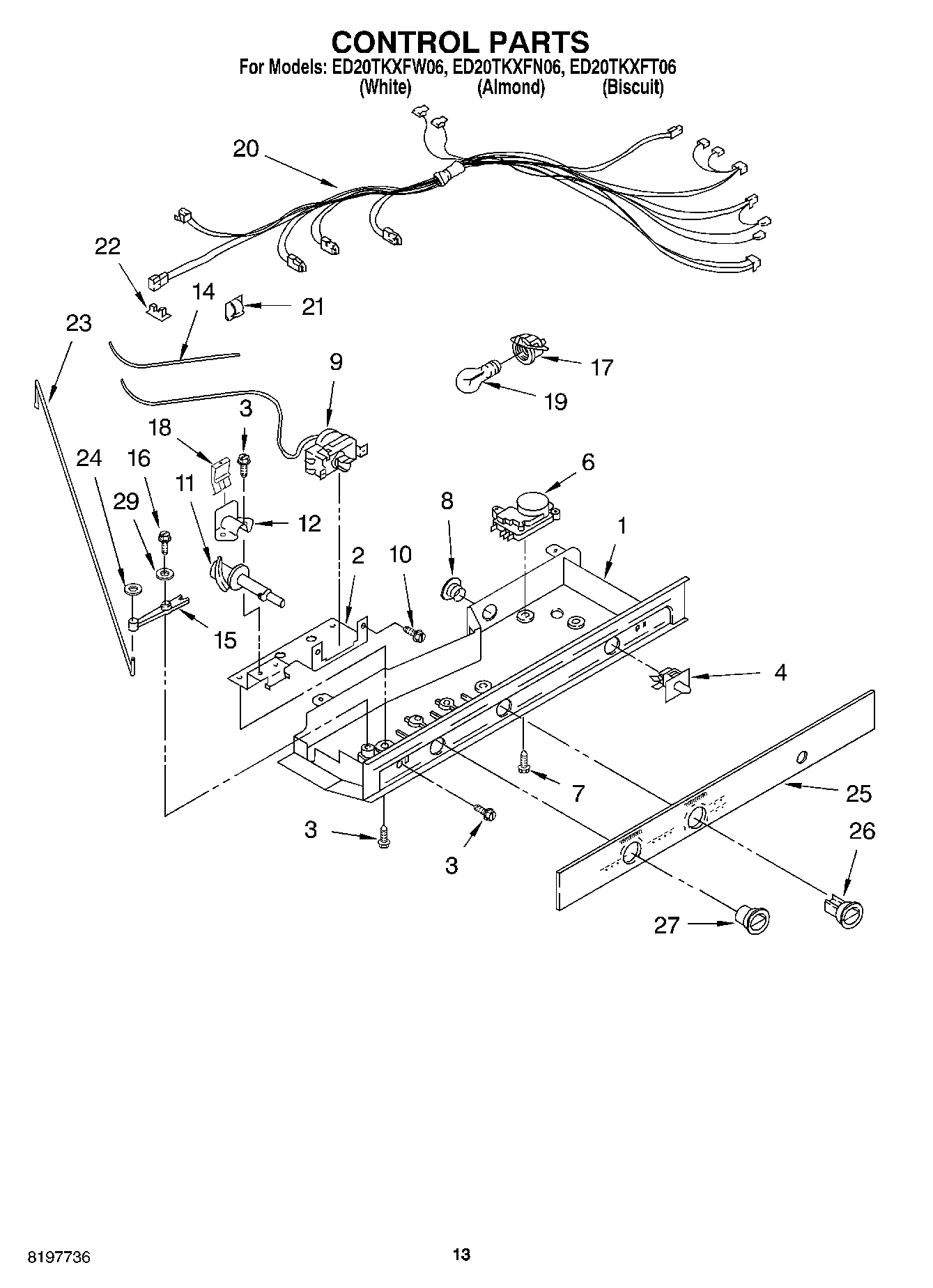

Model Whirlpool ED20TKXFW06 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2205958 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2211845 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2216772 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI25939A5 Contact Us For Availability

1

Freezer, Door (Almond) WPL 2212055N Contact Us For Availability

1

Freezer, Door (Biscuit) WPL 2212055T Contact Us For Availability

1

Freezer, Door (White) WPL 2212055W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

5

Bracket, Door Stop WPL 2195950 Contact Us For Availability

6

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

6

Shelf Ladder (2) WPL 2206270 Contact Us For Availability

7

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

7

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

8

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

9

Stud, Rear WPL 2196207 Contact Us For Availability

9

Cover, Unit Compartment WPL 2182057 Contact Us For Availability

9

Cabinet (Not A Serviceable Part) WPL ARI25938A1 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

Grommet (10) WPL 2176134 Contact Us For Availability

Extension WPL 2209704 Contact Us For Availability

Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability

Endcap, Handle (2) (Biscuit) WPL 2193353T Contact Us For Availability

11

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

11

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

11

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2159073 Whirlpool Refrigerator Door Gasket Backorder WPL 2159073 $87.71

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

13

Shim, Hinge (2) WPL 2196048 Contact Us For Availability

13

Shelf, Cantilever WPL 2173178 Contact Us For Availability

14

Handle, Center (White) WPL 2186649W Contact Us For Availability

14

Screw WPL 489284 Contact Us For Availability

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

Pivot Arm WPL 1110559 Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

16

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

16

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

17

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

17

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

18

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

18

Cover, Meat Pan WPL 2217039 Contact Us For Availability

19

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

19

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

19

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

20

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

20

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

20

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10804014 Whirlpool Refrigerator Grille Backorder WPL W10804014 $73.81

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Grille (Almond) WPL 2198469N Contact Us For Availability

Grille (Biscuit) WPL 2198469T Contact Us For Availability

23

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

24

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

24

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

25

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Cover, Conduit WPL 2150330 Contact Us For Availability

27

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Hole Seal WPL 2185731 Contact Us For Availability

28

Glass, Shelf WPL 2177978 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Retainer WPL 1125594 Contact Us For Availability

30

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

31

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

34

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

34

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

37

Trim, Door Shelf WPL 2198483 Contact Us For Availability

38

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

38

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $6.79

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

41

Air Baffle WPL 2196201 Contact Us For Availability

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

48

Rail, Unit Mounting WPL 2149718 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $24.10

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
