Model DU1200XTSB1 – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS

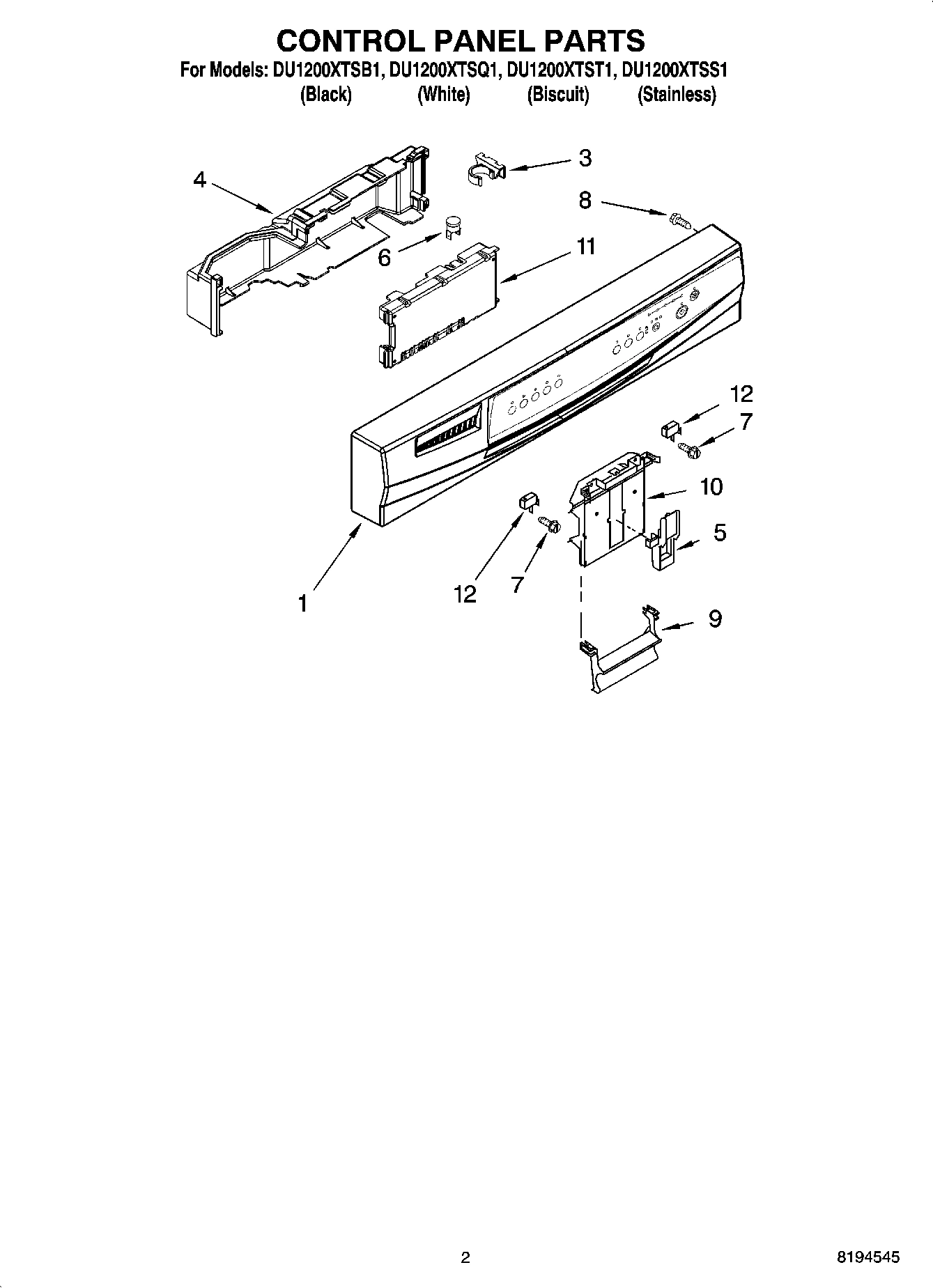

02 - CONTROL PANEL PARTS

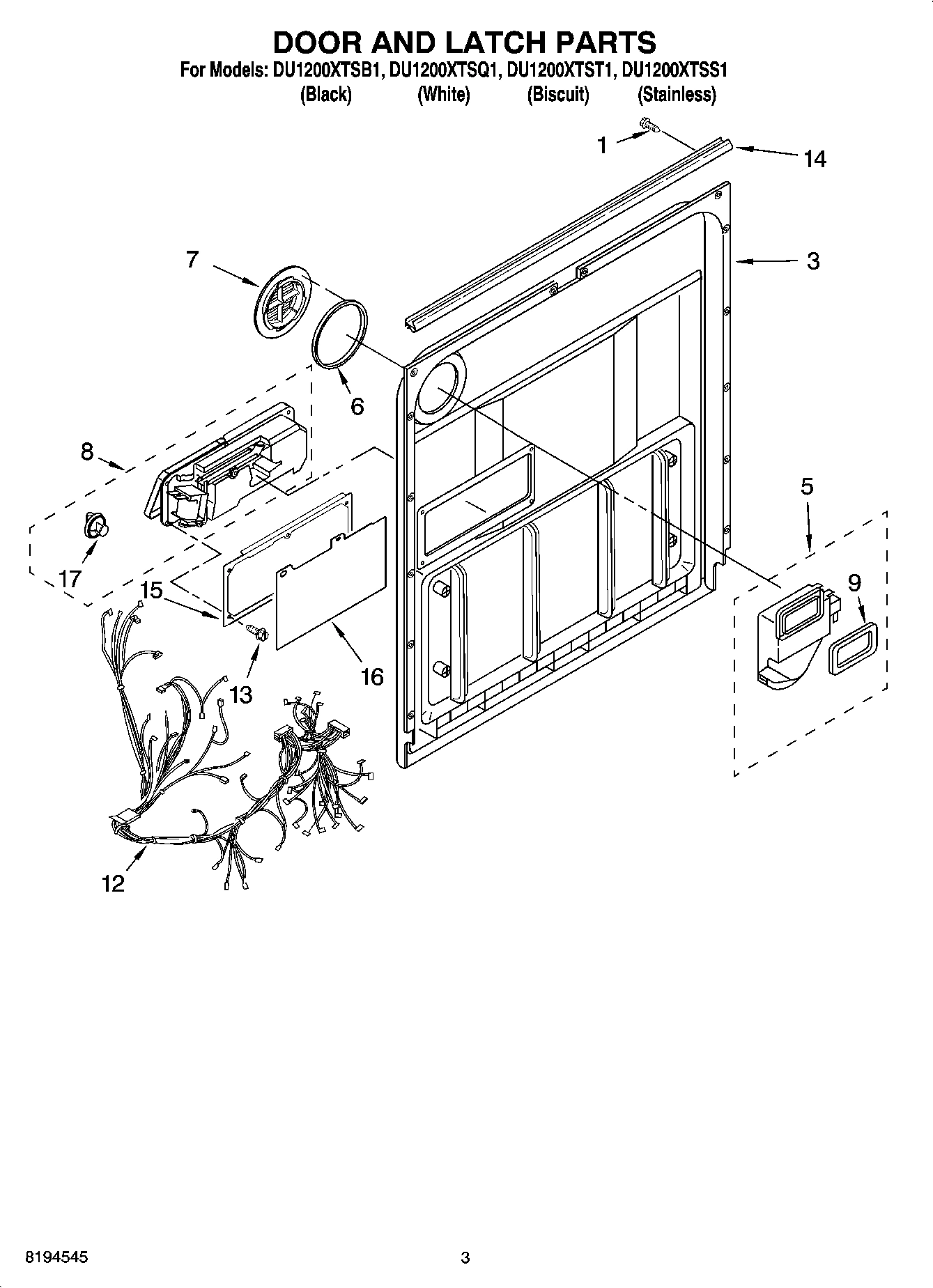

03 - DOOR AND LATCH PARTS
04 - LOWER WASHARM PARTS

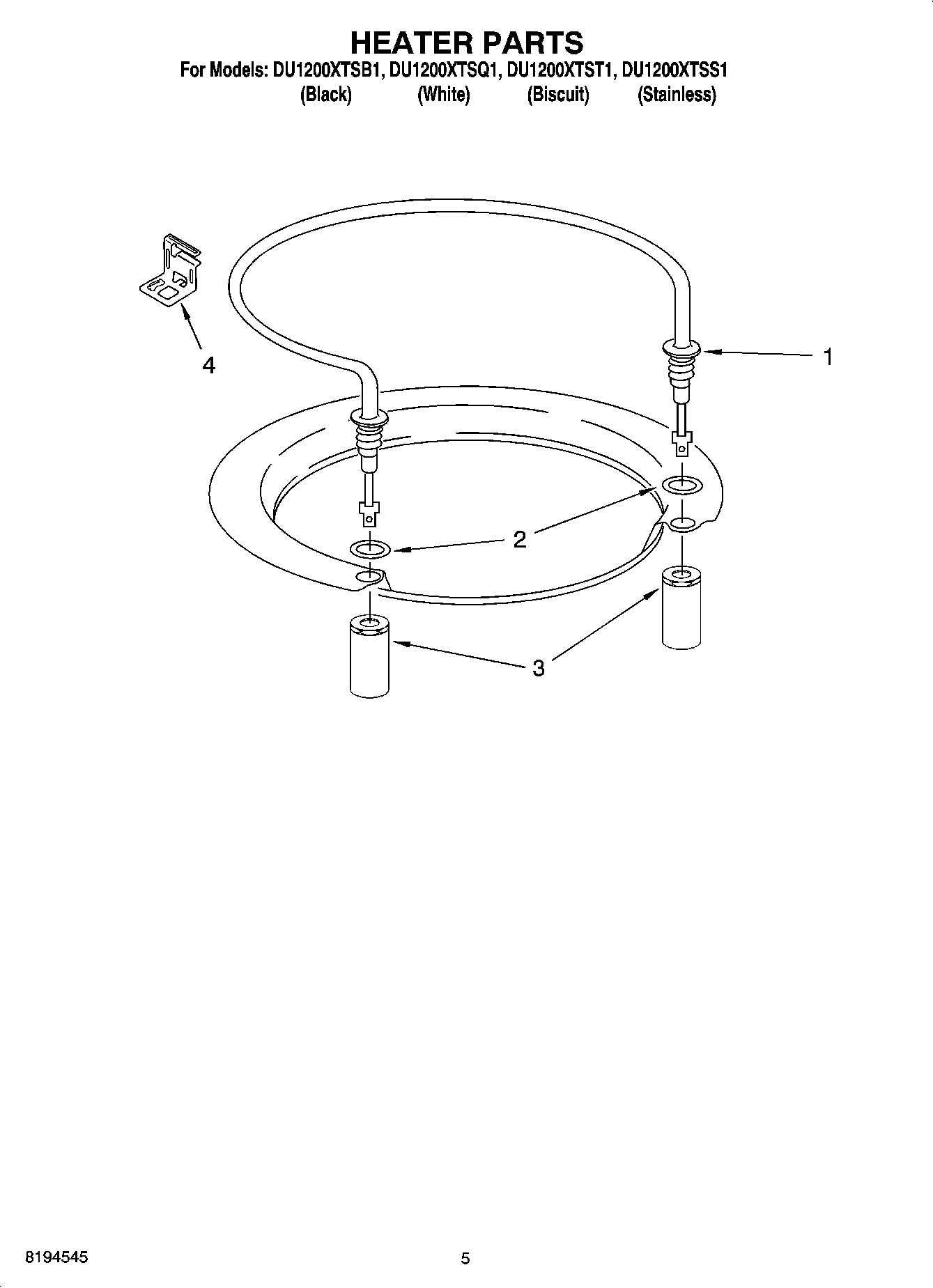

05 - HEATER PARTS
06 - FILL AND OVERFILL PARTS

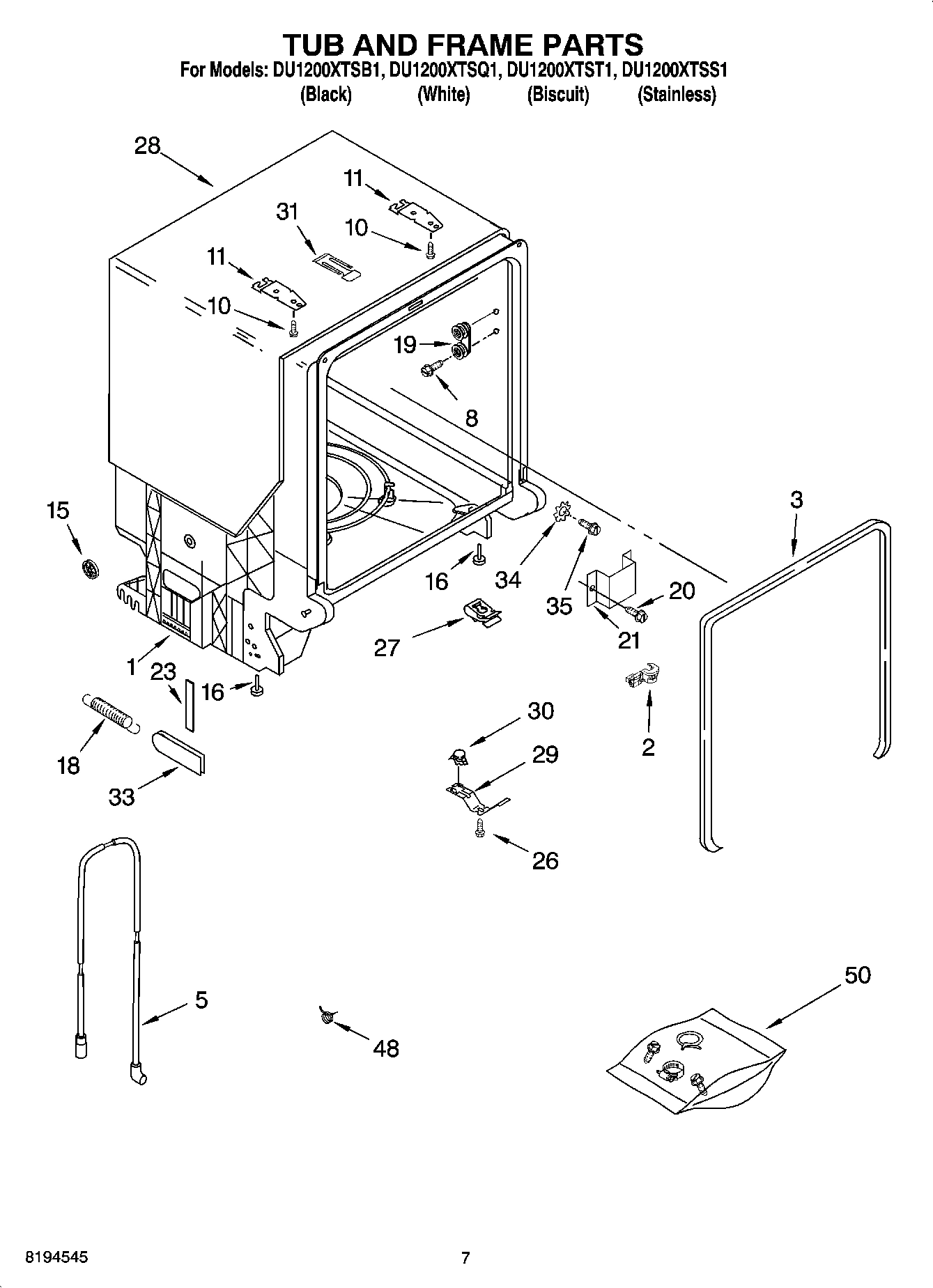

07 - TUB AND FRAME PARTS

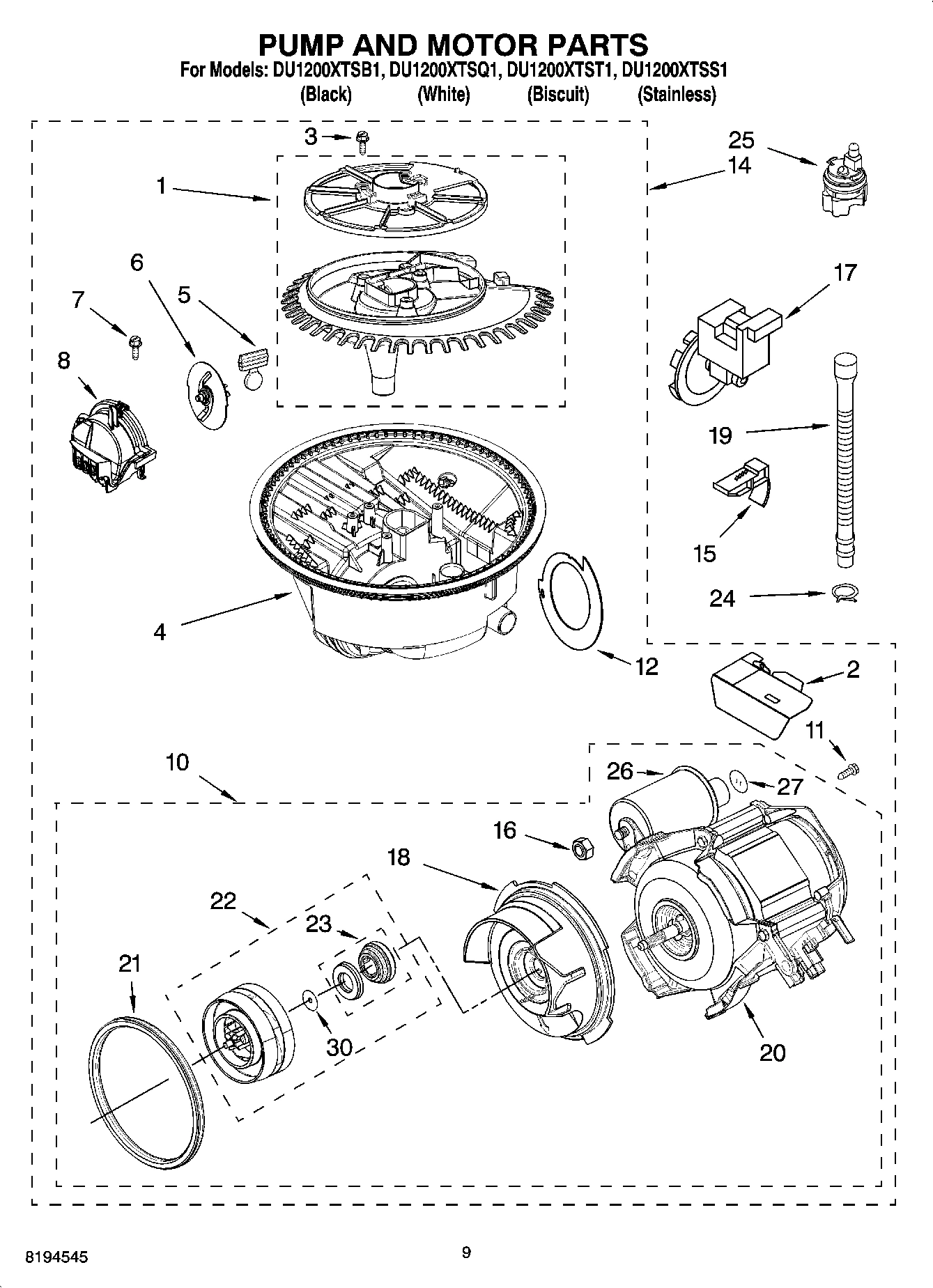

08 - PUMP AND MOTOR PARTS

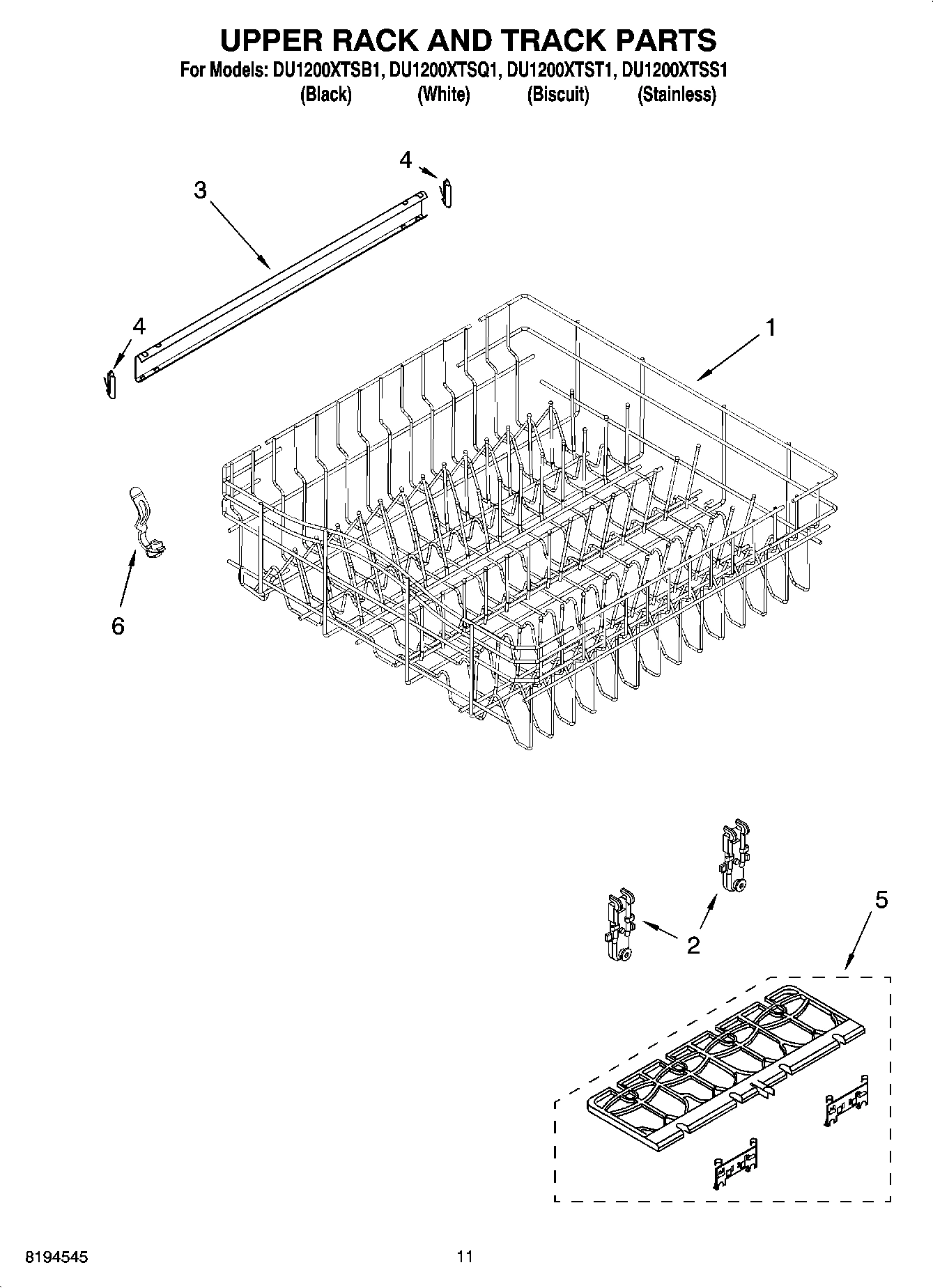

09 - UPPER RACK AND TRACK PARTS

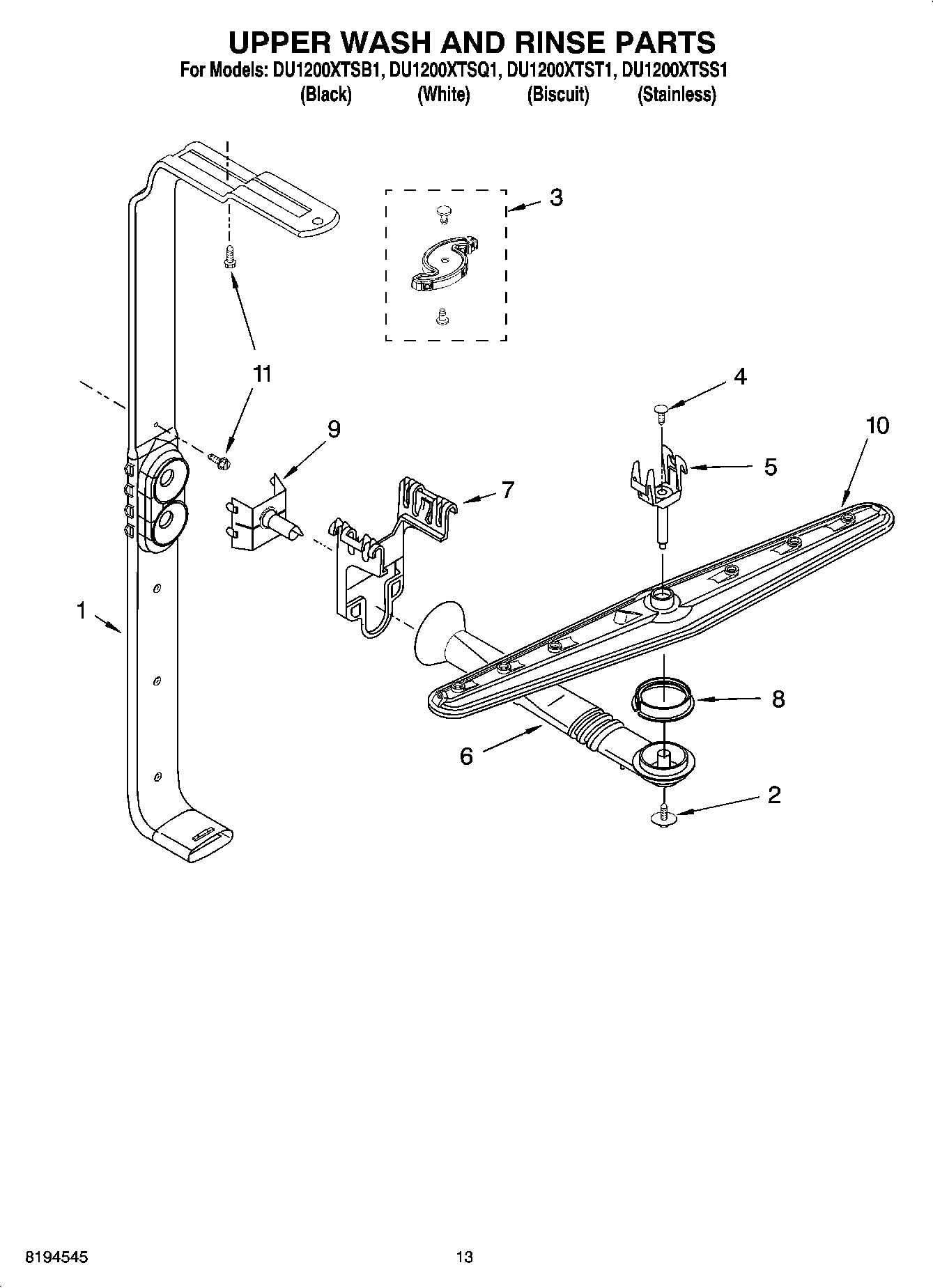

10 - UPPER WASH AND RINSE PARTS

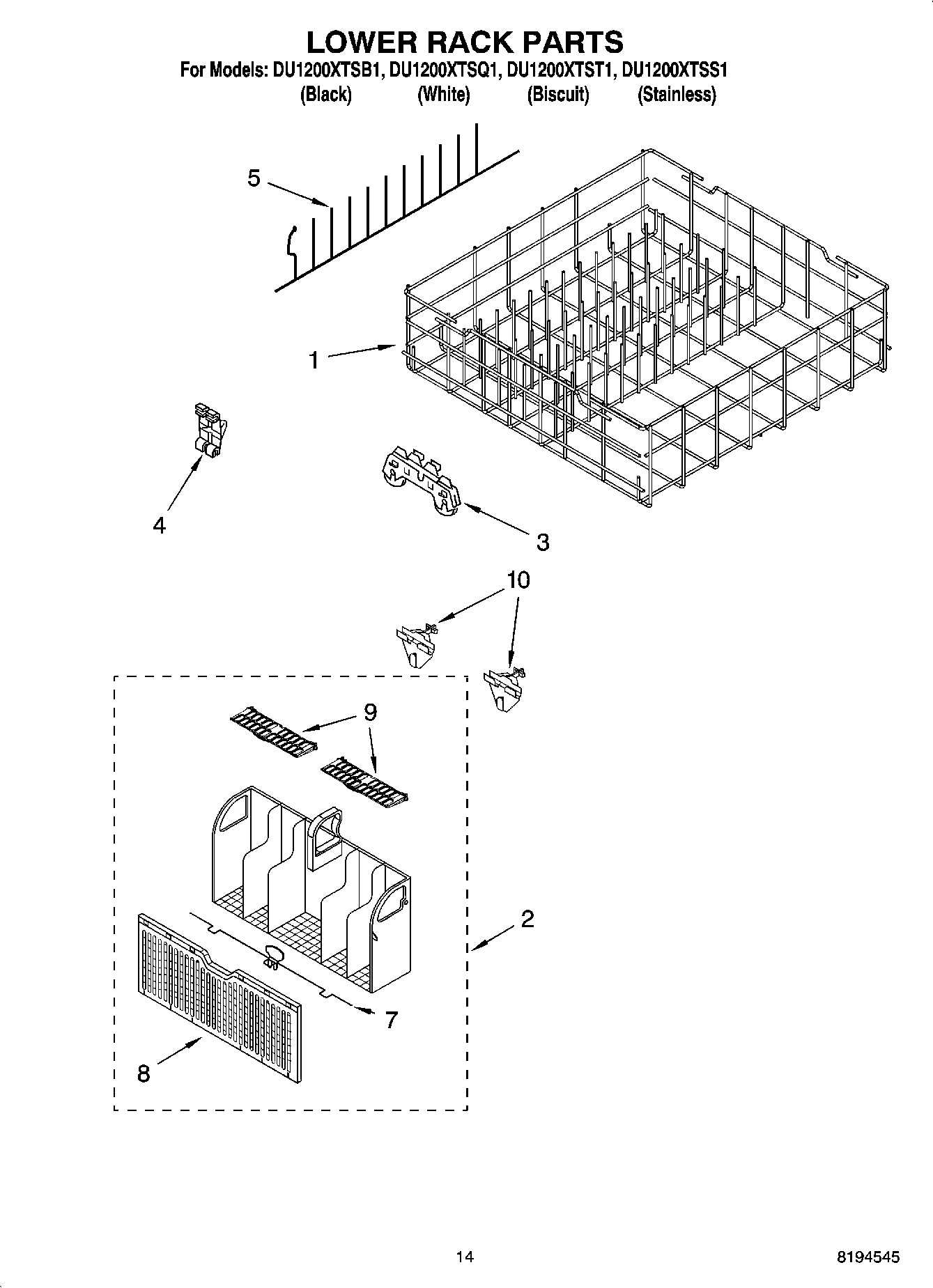

11 - LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
