Model GE DSKS433EA0AA Dryer Electric – Common Parts & Diagrams
BLOWER
CABINET, FRONT PANEL, DOOR & CONTROL PANEL

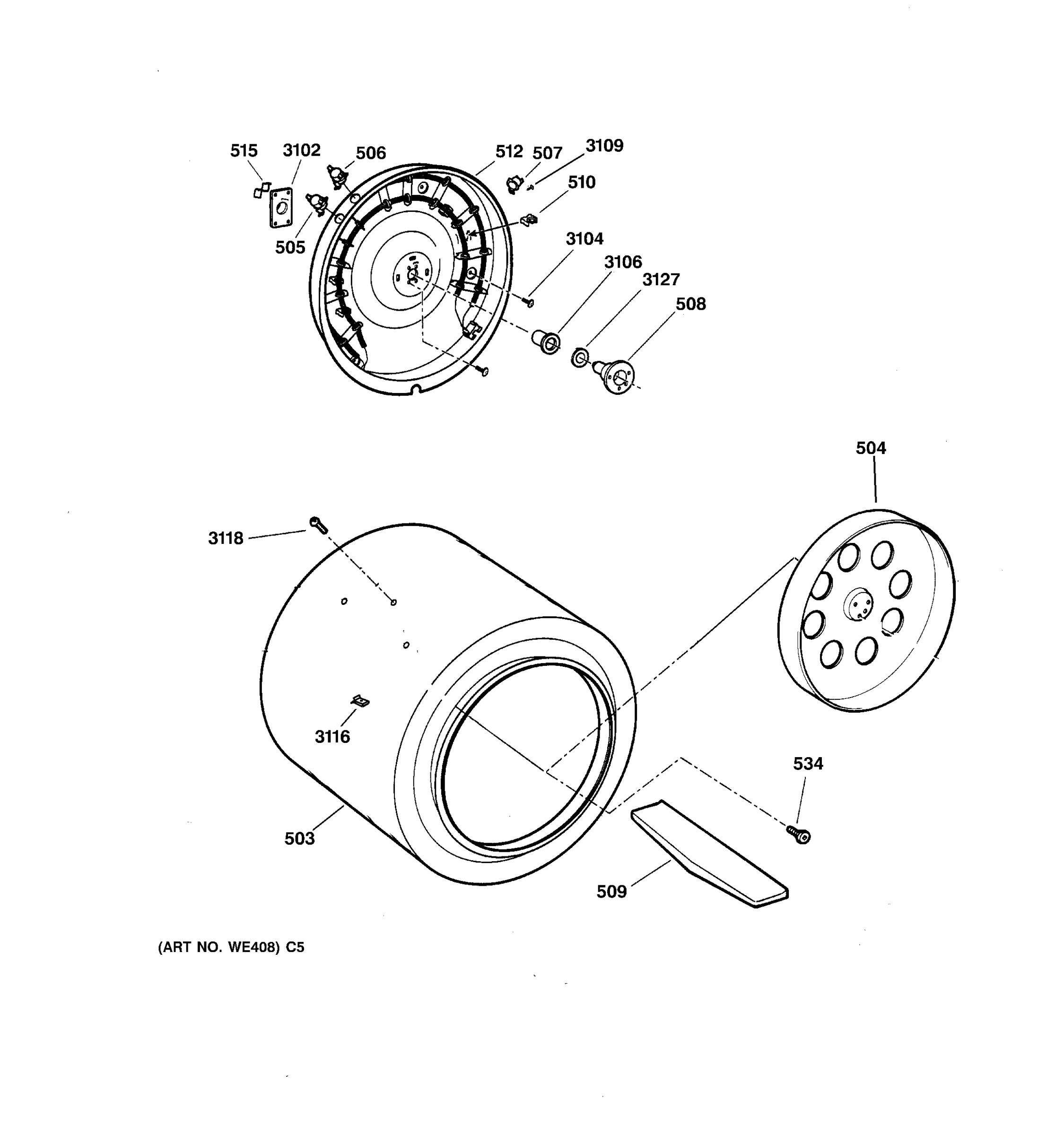

DRUM
Common parts from model GE DSKS433EA0AA Dryer Electric
1
INSTRUCTION, INSTALLATIO GEN 31-1819 Contact Us For Availability
1
GEN 31-2811 GEN 31-2811 Contact Us For Availability
1
GEN 49-9898 GEN 49-9898 Contact Us For Availability
80
GEN WE04M0198 GEN WE04M0198 Contact Us For Availability
202
BAFFLE, BLOWER HOUSING GEN WE01X0689 Contact Us For Availability
218
HOUSING, BLOWER GEN WE14X0176 Contact Us For Availability
228
PIPE, EXHAUST GEN WE14X0174 Contact Us For Availability
234
GEN WE02X0154 GEN WE02X0154 Contact Us For Availability
235
SCREW GEN WE02X0194 Contact Us For Availability
411
COVER, PLATE GEN WE01M0341 Contact Us For Availability
419
BLOCK, TERMINAL GEN WE04X0168 Contact Us For Availability
504
DEFLECTOR, HEAT GEN WE14X0173 Contact Us For Availability
507
THERMOSTAT GEN WE04M0173 Contact Us For Availability
509
BAFFLE, DRUM GEN WE01X1093 Contact Us For Availability
530
MOTOR & PULLEY GEN WE17M0024 Contact Us For Availability
534
GEN WE02X0153 GEN WE02X0153 Contact Us For Availability
3001
TOP, COVER AD GEN WE20X0695 Contact Us For Availability
3003
GEN WE01X1079 GEN WE01X1079 Contact Us For Availability
3004
CLIP, TOP COVER GEN WE01X1080 Contact Us For Availability
3007
GEN WE02X0196 GEN WE02X0196 Contact Us For Availability
3008
PANEL, SIDE AD GEN WE20X0697 Contact Us For Availability
3009
GEN WE4M264 GEN WE4M264 Contact Us For Availability
3011
GEN WE02X0321 GEN WE02X0321 Contact Us For Availability
3012
SPEED CLIP GEN WE01M0317 Contact Us For Availability
3013
GEN WE10M87 GEN WE10M87 Contact Us For Availability
3014
DOOR, INNER AD GEN WE10M0099 Contact Us For Availability
3020
SWITCH, DOOR GEN WE4M41 Contact Us For Availability
3025
GEN WE19M1151 GEN WE19M1151 Contact Us For Availability
3026
FRONT, CABINET AD GEN WE20M0280 Contact Us For Availability
3027
DUCT, AIR GEN WE14M0060 Contact Us For Availability
3030
BEARING, DRUM GEN WE03M0021 Contact Us For Availability
3031
SWITCH, START GEN WE4M145 Contact Us For Availability
3032
GEN WE4M265 GEN WE4M265 Contact Us For Availability
3033
BRACKET, CABINET FRONT GEN WE1M193 Contact Us For Availability
3034
CABLE CLIP GEN WE01X0408 Contact Us For Availability
3036
RECEPTACLE (120V) GEN WE04X0721 Contact Us For Availability
3044
GASKET GEN WE09M0017 Contact Us For Availability
3045
INSULATION, CABINET GEN WE1M465 Contact Us For Availability
3047
GEN WE18M0020 GEN WE18M0020 Contact Us For Availability
3048
SHIELD, START SWITCH GEN WE1M456 Contact Us For Availability
3053
KNOB, TIMER AD GEN WE01X1264 Contact Us For Availability
3054
GEN WE1M466 GEN WE1M466 Contact Us For Availability
3056
GEN WH02M0385 GEN WH02M0385 Contact Us For Availability
3057
GEN WE2M150 GEN WE2M150 Contact Us For Availability
3062
KNOCKOUT GEN WE01X1087 Contact Us For Availability
3063
KNOCKOUT - BOTTOM GEN WE01X1088 Contact Us For Availability
3064
CABINET, BASE & REAR GEN WE20M0278 Contact Us For Availability
3067
GEN WE02X0343 GEN WE02X0343 Contact Us For Availability
3116
GEN WE02X0326 GEN WE02X0326 Contact Us For Availability
3118
GEN WH02M0342 GEN WH02M0342 Contact Us For Availability
3214
THERMOSTAT GEN WE04X0722 Contact Us For Availability
3215
GEN WE4M195 GEN WE4M195 Contact Us For Availability
× ![]()
