Model GE DDG6580GEL Dryer Gas – Common Parts & Diagrams

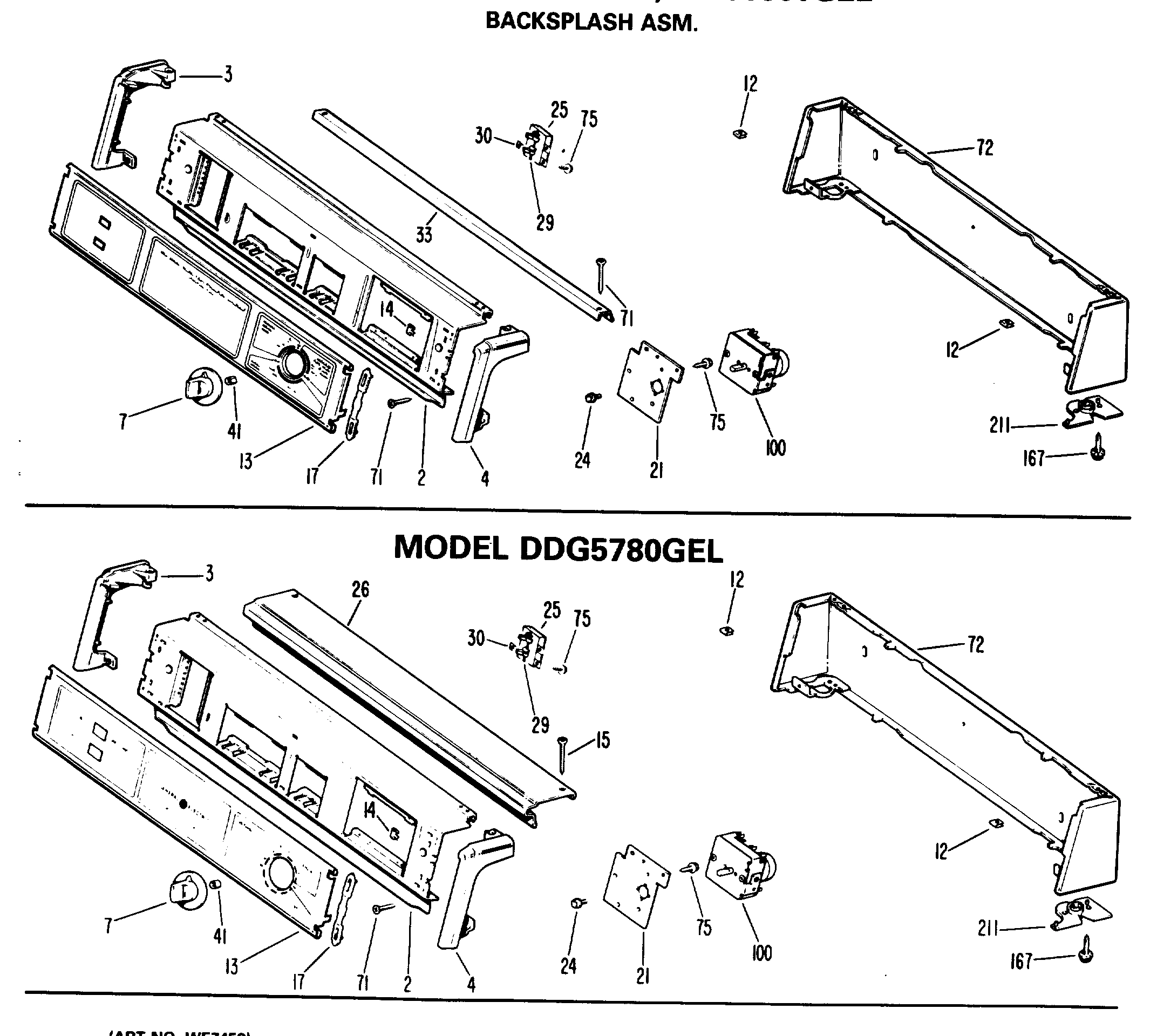

BACKSPLASH ASM.

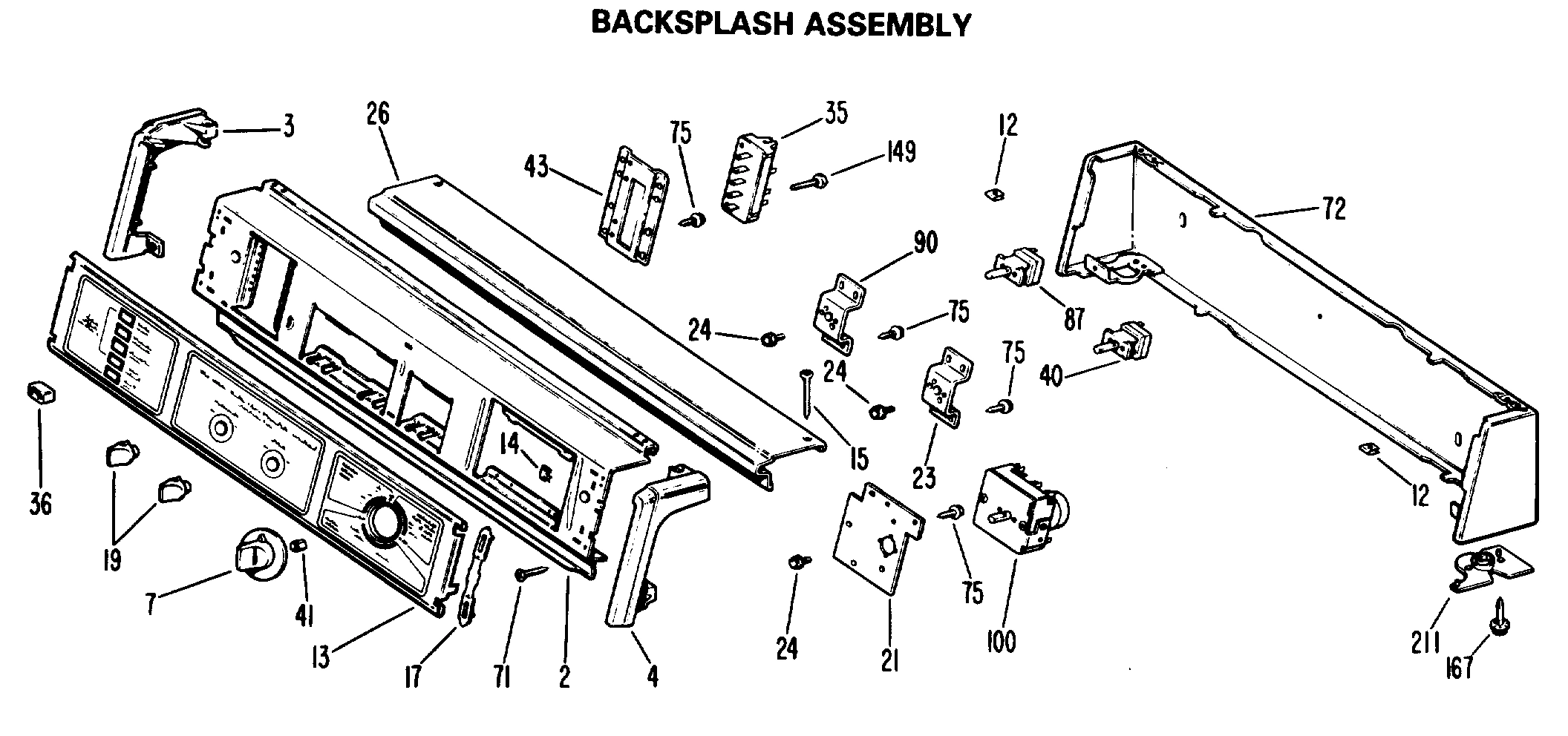

BACKSPLASH ASSEMBLY

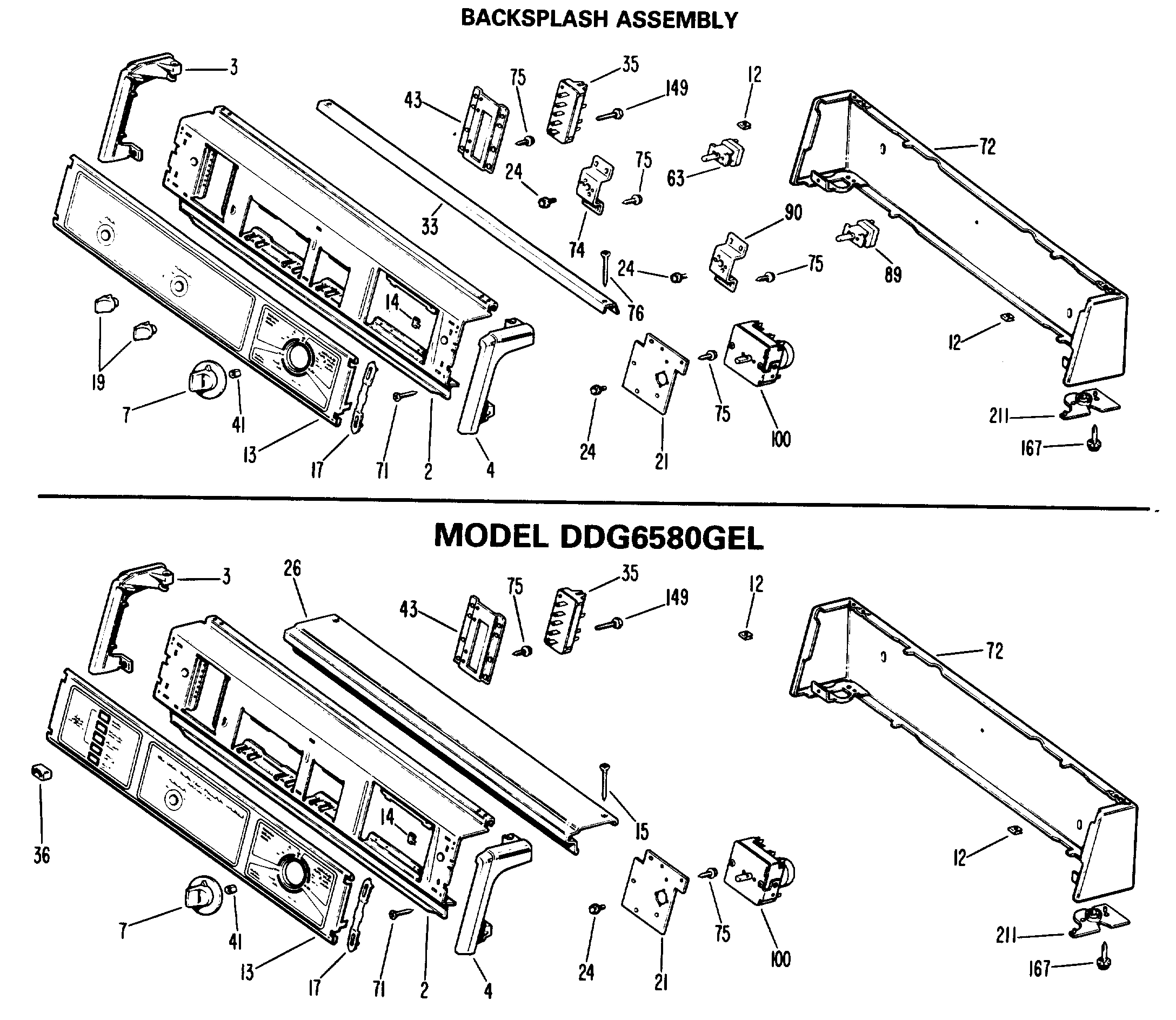

BACKSPLASH ASSEMBLY

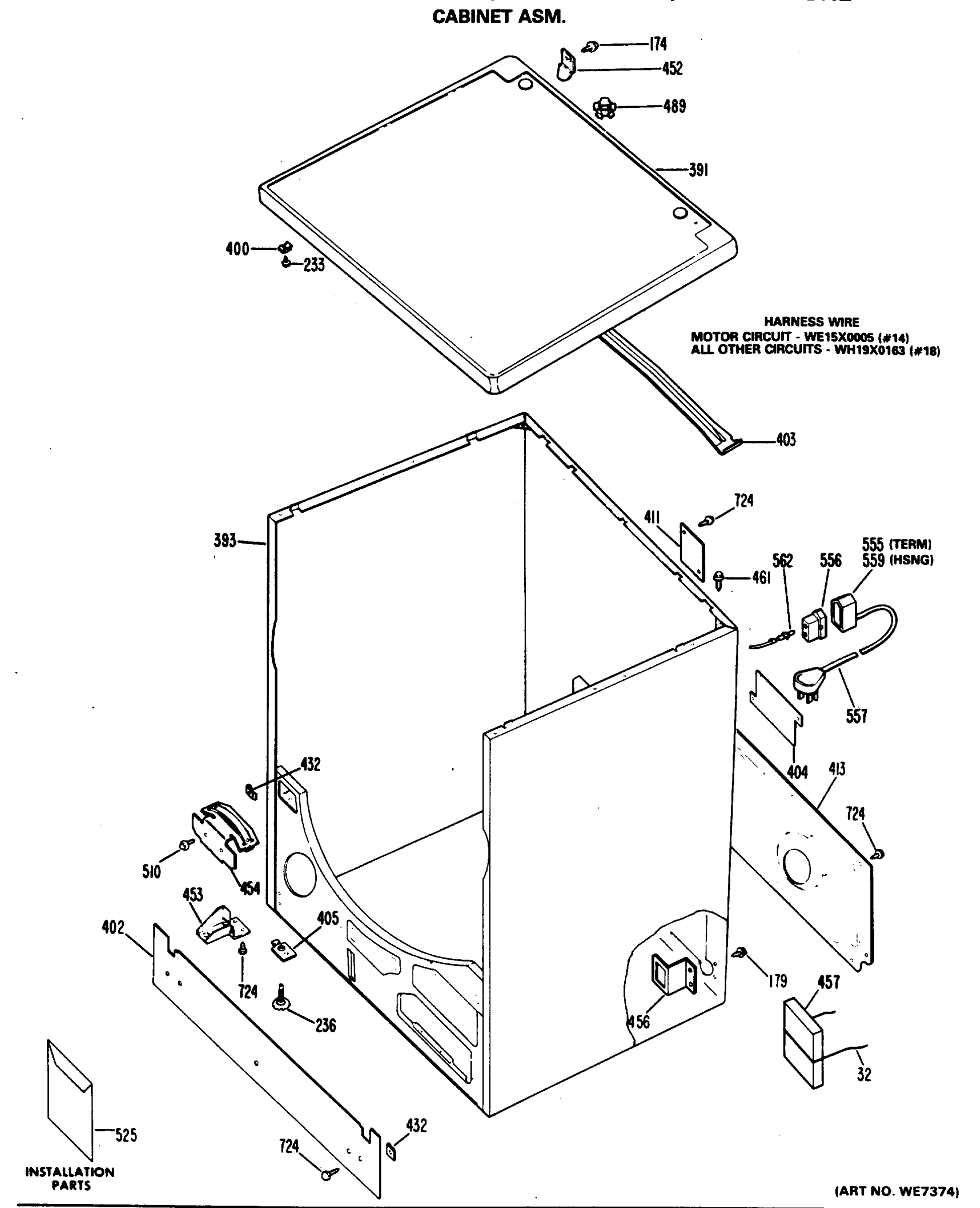

CABINET ASM.

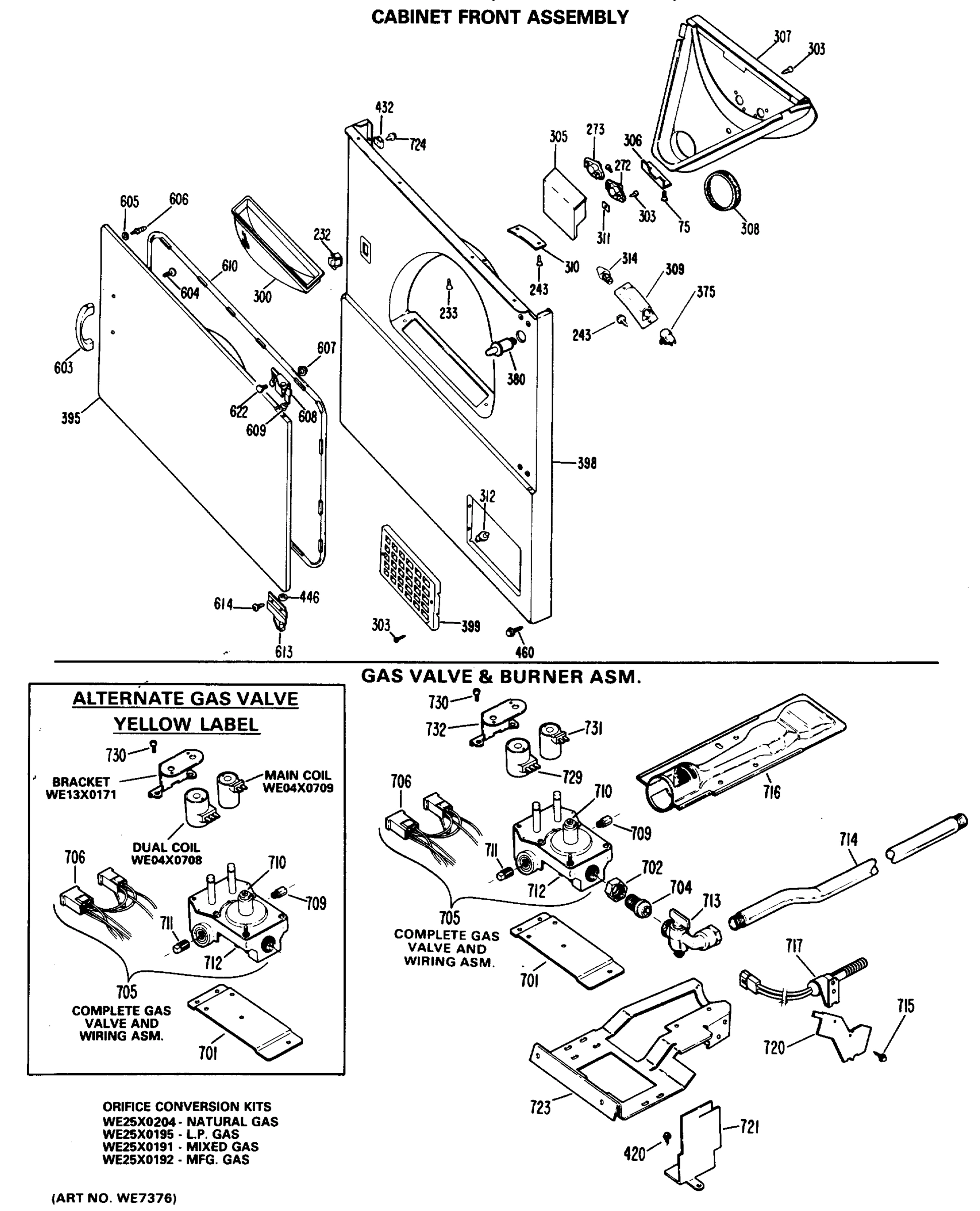

CABINET FRONT ASSEMBLY

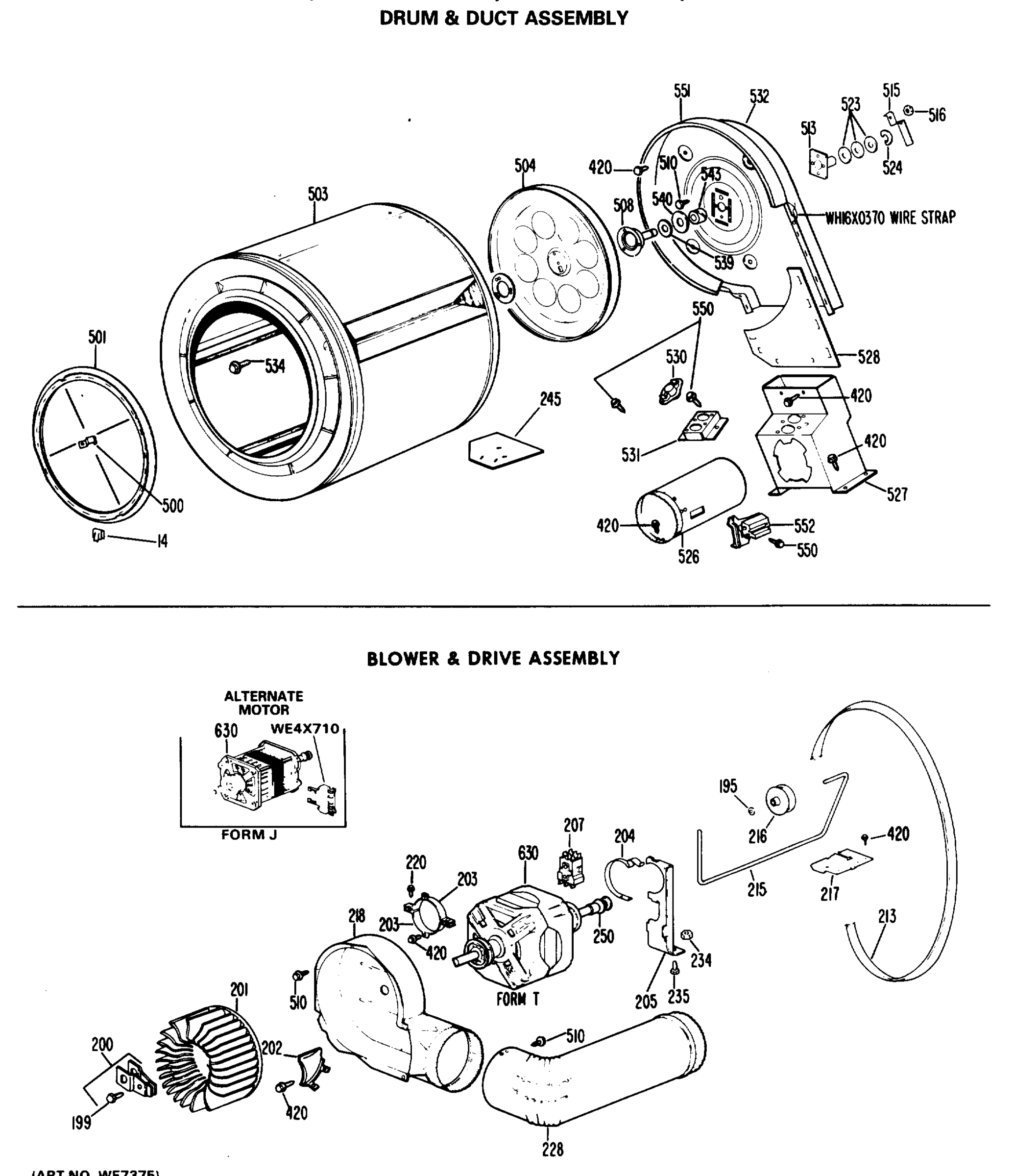

DRUM & DUCT ASSEMBLY
Common parts from model GE DDG6580GEL Dryer Gas
2
GEN WE19X0719 GEN WE19X0719 Contact Us For Availability
3
GEN WE19X0793 GEN WE19X0793 Contact Us For Availability
4
GEN WE19X0792 GEN WE19X0792 Contact Us For Availability
7
KNOB & CLIP ASM GEN WE01X0978 Contact Us For Availability
12
NUT SHEET METAL GEN WB01X0358 Contact Us For Availability
13
GEN WE19X0876 GEN WE19X0876 Contact Us For Availability
14
CLIP GROUND GEN WE01X0762 Contact Us For Availability
15
GEN WZ04X0319 GEN WZ04X0319 Contact Us For Availability
17
GEN WH01X2008 GEN WH01X2008 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
26
GEN WE19X0860 GEN WE19X0860 Contact Us For Availability
32
GEN WH16X0370 GEN WH16X0370 Contact Us For Availability
35
GEN WE04X0612 GEN WE04X0612 Contact Us For Availability
36
GEN WE01X0981 GEN WE01X0981 Contact Us For Availability
41
CLIP KNOB GEN WE01X0980 Contact Us For Availability
43
GEN WH16X0343 GEN WH16X0343 Contact Us For Availability
71
SCR 8-18 AB OV 3/4 S GEN WH02X0947 Contact Us For Availability
72
BACKSPLASH WRAPPER WH GEN WH46X0211 Contact Us For Availability
72
BACKSPLASH WRAPPER AD GEN WH46X0212 Contact Us For Availability
72
BACKSPLASH WRAPPER HA GEN WH46X0215 Contact Us For Availability
100
GEN WE04X0625 GEN WE04X0625 Contact Us For Availability
149
SCR 8-18 B HXW 3/4 S GEN WZ04X0280 Contact Us For Availability
167
SCR 1/4-14 AB HXW 3/4 S GEN WE02X0186 Contact Us For Availability
195
GEN WH02X0885 GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
GEN WE01X0689 GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0161 GEN WE13X0161 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
211
GEN WE01X0553 GEN WE01X0553 Contact Us For Availability
215
GEN WE03X0069 GEN WE03X0069 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
GEN WE14X0134 GEN WE14X0134 Contact Us For Availability
220
GEN WE02X0275 GEN WE02X0275 Contact Us For Availability
228
GEN WE14X0139 GEN WE14X0139 Contact Us For Availability
233
SCR 8-15 A OV 1/2 S GEN WZ04X0236 Contact Us For Availability
234
NUT SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCR 5/16-12 B HX 3/4 S GEN WE02X0194 Contact Us For Availability
243
SCR 8-15 A FL 3/8 S GEN WZ05X0155 Contact Us For Availability
245
GEN WE01X1055 GEN WE01X1055 Contact Us For Availability
250
GEN WE12X0041 GEN WE12X0041 Contact Us For Availability
272
GEN WE04X0607 GEN WE04X0607 Contact Us For Availability
273
GEN WE04X0608 GEN WE04X0608 Contact Us For Availability
300
FILTER ASM LINT GEN WE18X0026 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
GEN WE01X0944 GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0144 GEN WE14X0144 Contact Us For Availability
310
GEN WE01X0446 GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
380
GEN WE04X0197 GEN WE04X0197 Contact Us For Availability
391
WELD ASM COVER WH GEN WE20X0664 Contact Us For Availability
391
WELD ASM COVER AD GEN WE20X0665 Contact Us For Availability
393
GEN WE20X0670 GEN WE20X0670 Contact Us For Availability
393
GEN WE20X0672 GEN WE20X0672 Contact Us For Availability
395
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
395
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
398
CABINET FRONT ASM WH GEN WE20X0500 Contact Us For Availability
398
CABINET FRONT ASM AD GEN WE20X0570 Contact Us For Availability
399
GEN WE10X0205 GEN WE10X0205 Contact Us For Availability
399
GEN WE10X0256 GEN WE10X0256 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
402
GEN WE20X0347 GEN WE20X0347 Contact Us For Availability
403
GEN WE14X0037 GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
GEN WE01X0468 GEN WE01X0468 Contact Us For Availability
411
KNOCKOUT CABINET WRAPPER GEN WE01X0426 Contact Us For Availability
413
GEN WE14X0066 GEN WE14X0066 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
432
NUT CLIP GEN WL02X0071 Contact Us For Availability
446
WASHER FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WE01X1094 GEN WE01X1094 Contact Us For Availability
453
SUPPORT LEVELING SCREW GEN WE13X0080 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
457
COUNTERWEIGHT DRYER GEN WE01X0937 Contact Us For Availability
460
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
489
GEN WH02X2572 GEN WH02X2572 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
513
RETAINER BEARING GEN WE01X0461 Contact Us For Availability
523
WASHER FLAT GEN WE02X0183 Contact Us For Availability
524
RING RETAINING GEN WE01X5104 Contact Us For Availability
525
PACK INSTALL GEN WE25X0098 Contact Us For Availability
526
GEN WE14X0112 GEN WE14X0112 Contact Us For Availability
527
GEN WE14X0083 GEN WE14X0083 Contact Us For Availability
528
GEN WE14X0072 GEN WE14X0072 Contact Us For Availability
530
GEN WE04X0592 GEN WE04X0592 Contact Us For Availability
531
GEN WE13X0138 GEN WE13X0138 Contact Us For Availability
532
GEN WE14X0125 GEN WE14X0125 Contact Us For Availability
534
SCR 10-14 TF TR 1/2 S GEN WE02X0153 Contact Us For Availability
540
WASHER FLAT GEN WE02X0198 Contact Us For Availability
550
SCR 8-18 AB HXW 3/8 S GEN WE02X0281 Contact Us For Availability
551
PAD FELT K GEN WE09X0044 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
557
CORD POWER ASM GEN WE08X0031 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
603
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
604
SCR 10-24 T PT 13/16 S GEN WE02X0227 Contact Us For Availability
605
WASHER FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
GEN WE02X0110 GEN WE02X0110 Contact Us For Availability
608
GEN WE01X0345 GEN WE01X0345 Contact Us For Availability
609
GEN WE01X0404 GEN WE01X0404 Contact Us For Availability
610
GEN WE09X0028 GEN WE09X0028 Contact Us For Availability
613
GEN WE01X0344 GEN WE01X0344 Contact Us For Availability
614
GEN WZ04X0257 GEN WZ04X0257 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
701
GEN WE13X0166 GEN WE13X0166 Contact Us For Availability
702
GEN WE02X0319 GEN WE02X0319 Contact Us For Availability
704
NIPPLE GAS VALVE GEN WE02X0320 Contact Us For Availability
713
GEN WE01X1078 GEN WE01X1078 Contact Us For Availability
714
GEN WE01X1077 GEN WE01X1077 Contact Us For Availability
715
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
720
GEN WE13X0183 GEN WE13X0183 Contact Us For Availability
721
GEN WE13X0118 GEN WE13X0118 Contact Us For Availability
723
BRACKET VALVE GEN WE13X0117 Contact Us For Availability
724
SCR 10-16 AB HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
732
GEN WE13X0169 GEN WE13X0169 Contact Us For Availability
732
GEN WE13X0171 GEN WE13X0171 Contact Us For Availability
9999
GEN 31-1821 GEN 31-1821 Contact Us For Availability
9999
GEN 31-2453 GEN 31-2453 Contact Us For Availability
9999
GEN 49-9618 GEN 49-9618 Contact Us For Availability
× ![]()
