Model GE DDC4498AJL Dryer Gas – Common Parts & Diagrams
0
1
2

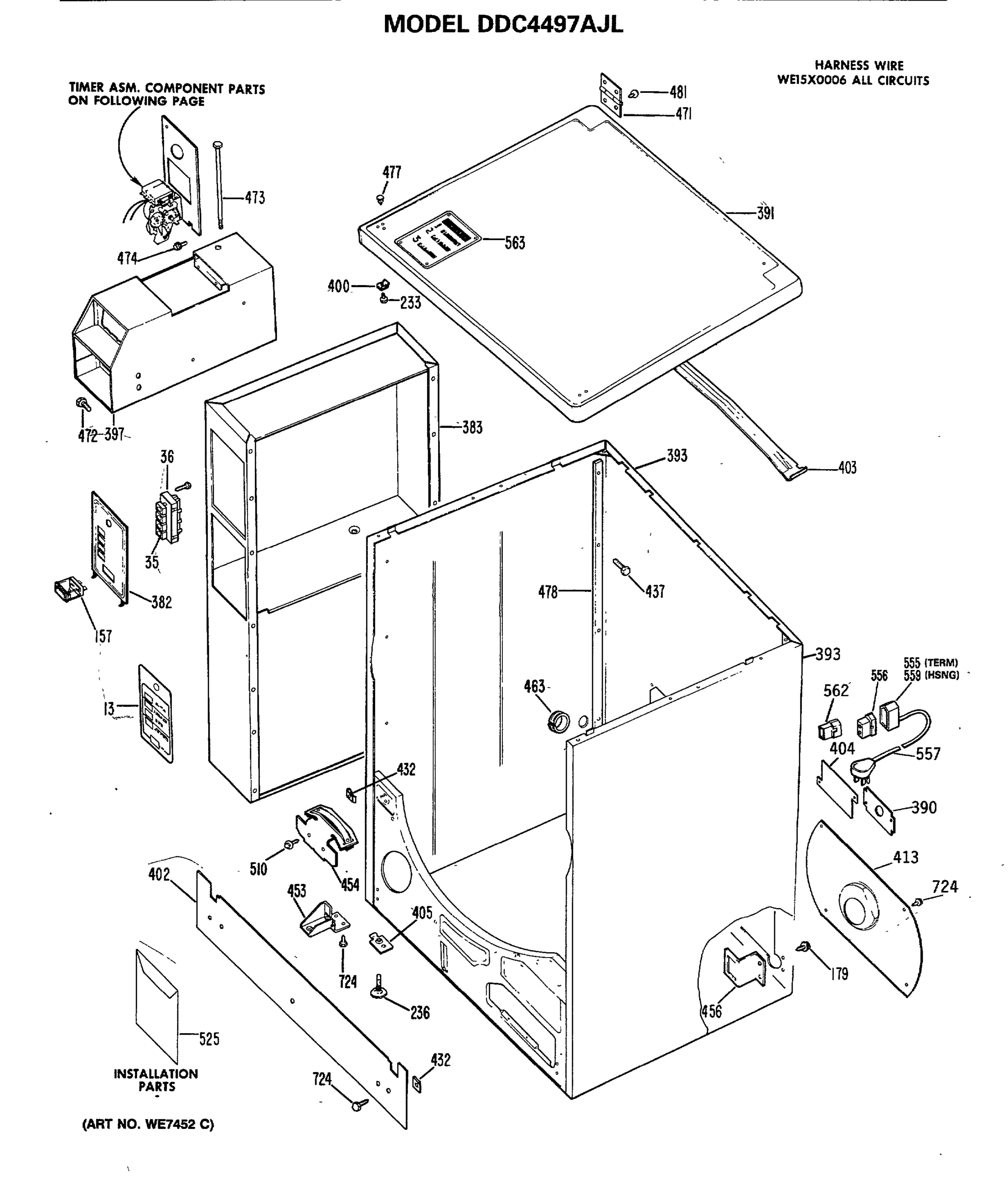

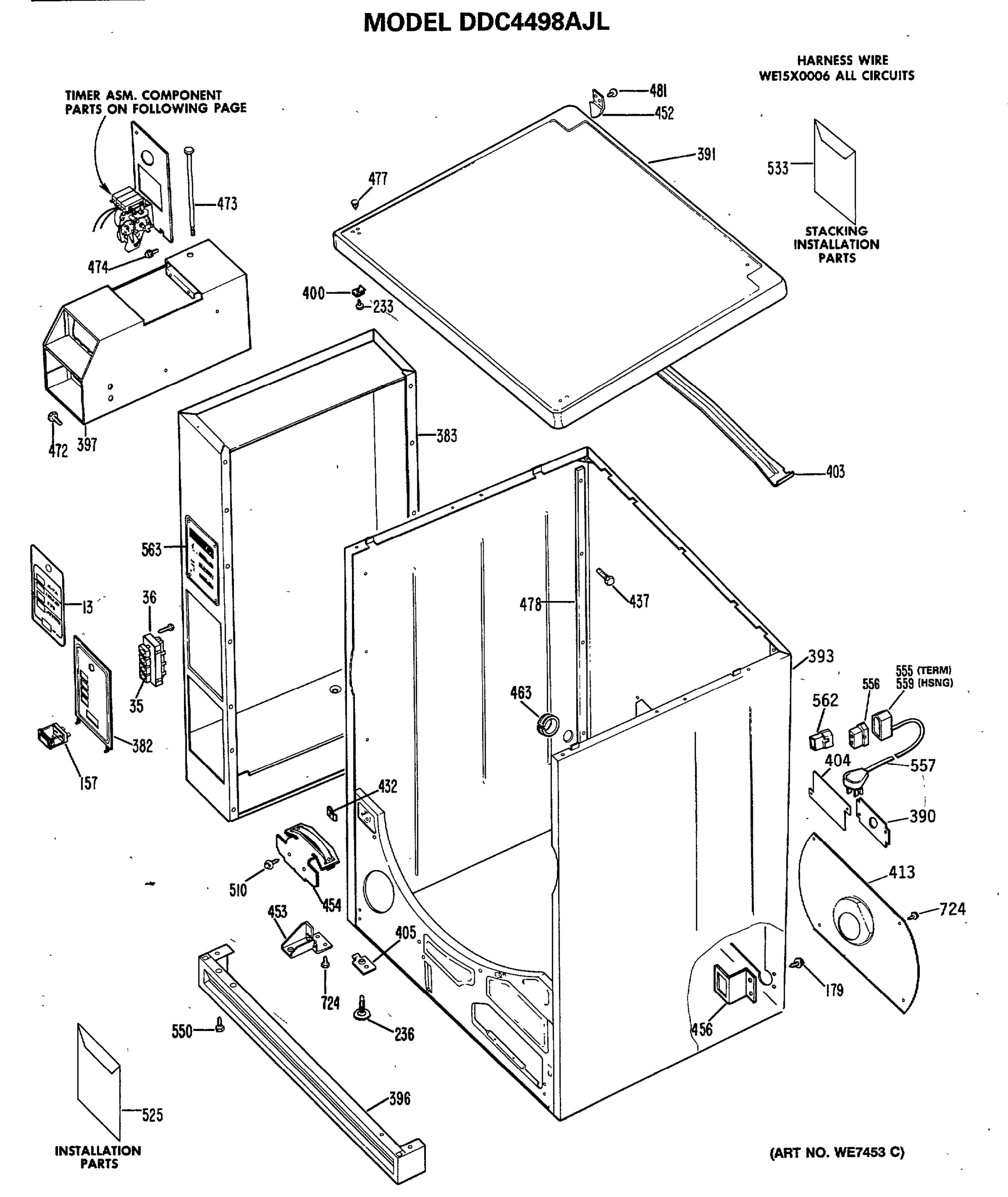

CABINET FRONT ASSEMBLY
DRUM & DUCT ASSEMBLY
Common parts from model GE DDC4498AJL Dryer Gas
13
GEN WE01X0977 GEN WE01X0977 Contact Us For Availability
14
CLIP GROUND GEN WE01X0762 Contact Us For Availability
35
GEN WE04X0569 GEN WE04X0569 Contact Us For Availability
36
GEN WH01X2257 GEN WH01X2257 Contact Us For Availability
149
GEN WZ04X0280 GEN WZ04X0280 Contact Us For Availability
157
GEN WE01X0976 GEN WE01X0976 Contact Us For Availability
165
GEN WE01X0956 GEN WE01X0956 Contact Us For Availability
169
GEN WH01X2194 GEN WH01X2194 Contact Us For Availability
177
NUT CLIP GEN WH02X0923 Contact Us For Availability
185
GEN WZ20X0007 GEN WZ20X0007 Contact Us For Availability
195
GEN WH02X0885 GEN WH02X0885 Contact Us For Availability
199
GEN WE02X0280 GEN WE02X0280 Contact Us For Availability
202
GEN WE01X0689 GEN WE01X0689 Contact Us For Availability
205
GEN WE13X0161 GEN WE13X0161 Contact Us For Availability
207
SWITCH START (FORM T) GEN WE04X0344 Contact Us For Availability
210
GEN WE13X0160 GEN WE13X0160 Contact Us For Availability
215
GEN WE03X0069 GEN WE03X0069 Contact Us For Availability
217
GEN WE13X0159 GEN WE13X0159 Contact Us For Availability
218
GEN WE14X0134 GEN WE14X0134 Contact Us For Availability
221
GEN WE01X1171 GEN WE01X1171 Contact Us For Availability
228
GEN WE14X0139 GEN WE14X0139 Contact Us For Availability
233
SCR 8-15 A OV 1/2 S GEN WZ04X0236 Contact Us For Availability
234
NUT SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCR 5/16-12 B HX 3/4 S GEN WE02X0194 Contact Us For Availability
237
GEN WE04X0532 GEN WE04X0532 Contact Us For Availability
238
GEN WE01X0945 GEN WE01X0945 Contact Us For Availability
239
GEN WE02X0272 GEN WE02X0272 Contact Us For Availability
243
SCR 8-15 A FL 3/8 S GEN WZ05X0155 Contact Us For Availability
245
GEN WE01X1055 GEN WE01X1055 Contact Us For Availability
250
GEN WE12X0041 GEN WE12X0041 Contact Us For Availability
253
GEN WE02X0245 GEN WE02X0245 Contact Us For Availability
255
GEN WE01X0844 GEN WE01X0844 Contact Us For Availability
300
GEN WE18X0043 GEN WE18X0043 Contact Us For Availability
303
GEN WE02X0270 GEN WE02X0270 Contact Us For Availability
305
GEN WE01X0944 GEN WE01X0944 Contact Us For Availability
306
GEN WE01X0409 GEN WE01X0409 Contact Us For Availability
307
GEN WE14X0144 GEN WE14X0144 Contact Us For Availability
310
GEN WE01X0446 GEN WE01X0446 Contact Us For Availability
311
GEN WE02X0192 GEN WE02X0192 Contact Us For Availability
312
GEN WE02X0191 GEN WE02X0191 Contact Us For Availability
315
GEN WE04X0598 GEN WE04X0598 Contact Us For Availability
316
GEN WE04X0547 GEN WE04X0547 Contact Us For Availability
318
GEN WE02X0125 GEN WE02X0125 Contact Us For Availability
319
GEN WE02X0200 GEN WE02X0200 Contact Us For Availability
320
GEN WE01X0667 GEN WE01X0667 Contact Us For Availability
321
GEN WE01X0932 GEN WE01X0932 Contact Us For Availability
382
GEN WE10X0263 GEN WE10X0263 Contact Us For Availability
382
GEN WE10X0264 GEN WE10X0264 Contact Us For Availability
382
GEN WE10X0265 GEN WE10X0265 Contact Us For Availability
383
GEN WE20X0600 GEN WE20X0600 Contact Us For Availability
383
GEN WE20X0602 GEN WE20X0602 Contact Us For Availability
383
GEN WE20X0604 GEN WE20X0604 Contact Us For Availability
390
GEN WE01X1175 GEN WE01X1175 Contact Us For Availability
391
GEN WE20X0608 GEN WE20X0608 Contact Us For Availability
391
GEN WE20X0609 GEN WE20X0609 Contact Us For Availability
391
GEN WE20X0610 GEN WE20X0610 Contact Us For Availability
393
GEN WE20X0755 GEN WE20X0755 Contact Us For Availability
393
GEN WE20X0756 GEN WE20X0756 Contact Us For Availability
393
GEN WE20X0757 GEN WE20X0757 Contact Us For Availability
395
GEN WE10X0258 GEN WE10X0258 Contact Us For Availability
395
GEN WE10X0260 GEN WE10X0260 Contact Us For Availability
395
GEN WE10X0262 GEN WE10X0262 Contact Us For Availability
396
GEN WE20X0611 GEN WE20X0611 Contact Us For Availability
396
GEN WE20X0612 GEN WE20X0612 Contact Us For Availability
396
GEN WE20X0613 GEN WE20X0613 Contact Us For Availability
397
GEN WE20X0656 GEN WE20X0656 Contact Us For Availability
397
GEN WE20X0657 GEN WE20X0657 Contact Us For Availability
397
GEN WE20X0658 GEN WE20X0658 Contact Us For Availability
398
GEN WE20X0500 GEN WE20X0500 Contact Us For Availability
398
GEN WE20X0568 GEN WE20X0568 Contact Us For Availability
398
GEN WE20X0570 GEN WE20X0570 Contact Us For Availability
399
DOOR ACCESS WH GEN WE10X0266 Contact Us For Availability
399
DOOR ACCESS HA GEN WE10X0267 Contact Us For Availability
399
DOOR ACCESS AD GEN WE10X0268 Contact Us For Availability
400
GEN WE02X0134 GEN WE02X0134 Contact Us For Availability
403
GEN WE14X0037 GEN WE14X0037 Contact Us For Availability
404
GEN WE01X0425 GEN WE01X0425 Contact Us For Availability
405
GEN WE01X0468 GEN WE01X0468 Contact Us For Availability
413
GEN WE14X0212 GEN WE14X0212 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
420
SCR 10-16 B HXW 3/8 S GEN WH02X0893 Contact Us For Availability
432
NUT CLIP GEN WL02X0071 Contact Us For Availability
437
GEN WZ02X0514 GEN WZ02X0514 Contact Us For Availability
446
WASHER FLAT GEN WE02X0279 Contact Us For Availability
452
GEN WE01X1094 GEN WE01X1094 Contact Us For Availability
453
GEN WE13X0104 GEN WE13X0104 Contact Us For Availability
454
GEN WE25X0060 GEN WE25X0060 Contact Us For Availability
455
GEN WL11X0056 GEN WL11X0056 Contact Us For Availability
460
SCR 10-16 AB HXW 1 S GEN WZ04X0264 Contact Us For Availability
473
GEN WE02X0283 GEN WE02X0283 Contact Us For Availability
474
SCR 10-32 M HX 1/2 S GEN 10-32X1/2 Contact Us For Availability
477
GEN WE01X0966 GEN WE01X0966 Contact Us For Availability
478
GEN WE01X0965 GEN WE01X0965 Contact Us For Availability
479
GEN WE02X0284 GEN WE02X0284 Contact Us For Availability
481
GEN WH02X0967 GEN WH02X0967 Contact Us For Availability
500
GEN WE01X0299 GEN WE01X0299 Contact Us For Availability
501
GEN WE09X0030 GEN WE09X0030 Contact Us For Availability
503
GEN WE21X0049 GEN WE21X0049 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
513
RETAINER BEARING GEN WE01X0461 Contact Us For Availability
525
PACK ASM INSTALLATION GEN WE25X0143 Contact Us For Availability
526
GEN WE14X0112 GEN WE14X0112 Contact Us For Availability
527
GEN WE14X0083 GEN WE14X0083 Contact Us For Availability
528
GEN WE14X0072 GEN WE14X0072 Contact Us For Availability
529
GEN WE04X0583 GEN WE04X0583 Contact Us For Availability
530
GEN WE04X0592 GEN WE04X0592 Contact Us For Availability
531
GEN WE13X0127 GEN WE13X0127 Contact Us For Availability
532
GEN WE14X0125 GEN WE14X0125 Contact Us For Availability
533
GEN WE25X0144 GEN WE25X0144 Contact Us For Availability
534
SCR 10-14 TF TR 1/2 S GEN WE02X0153 Contact Us For Availability
549
GEN WB17X0145 GEN WB17X0145 Contact Us For Availability
550
SCR 8-18 AB HXW 3/8 S GEN WE02X0281 Contact Us For Availability
551
PAD FELT K GEN WE09X0044 Contact Us For Availability
551
GEN WH12X0417 GEN WH12X0417 Contact Us For Availability
555
GEN WB17X5053 GEN WB17X5053 Contact Us For Availability
556
GEN WH12X0497 GEN WH12X0497 Contact Us For Availability
557
CORD POWER ASM GEN WE08X0031 Contact Us For Availability
559
GEN WH12X0538 GEN WH12X0538 Contact Us For Availability
562
GEN WB17X5054 GEN WB17X5054 Contact Us For Availability
563
GEN WE01X0975 GEN WE01X0975 Contact Us For Availability
603
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
604
SCR 10-24 T PT 13/16 S GEN WE02X0227 Contact Us For Availability
605
WASHER FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X1042 GEN WE01X1042 Contact Us For Availability
607
GEN WE02X0110 GEN WE02X0110 Contact Us For Availability
608
GEN WE01X0345 GEN WE01X0345 Contact Us For Availability
609
GEN WE01X0404 GEN WE01X0404 Contact Us For Availability
610
GEN WE09X0028 GEN WE09X0028 Contact Us For Availability
613
GEN WE01X0344 GEN WE01X0344 Contact Us For Availability
614
GEN WZ04X0257 GEN WZ04X0257 Contact Us For Availability
620
GEN WE02X0252 GEN WE02X0252 Contact Us For Availability
622
GEN WE02X0177 GEN WE02X0177 Contact Us For Availability
701
GEN WE13X0166 GEN WE13X0166 Contact Us For Availability
702
GEN WE02X0319 GEN WE02X0319 Contact Us For Availability
704
NIPPLE GAS VALVE GEN WE02X0320 Contact Us For Availability
711
GEN 1/8-27 NPT GEN 1/8-27 NPT Contact Us For Availability
713
GEN WE01X1078 GEN WE01X1078 Contact Us For Availability
714
GEN WE01X1077 GEN WE01X1077 Contact Us For Availability
715
SCREW GEN WD02X5063 Contact Us For Availability
720
GEN WE13X0183 GEN WE13X0183 Contact Us For Availability
721
GEN WE13X0118 GEN WE13X0118 Contact Us For Availability
723
BRACKET VALVE GEN WE13X0117 Contact Us For Availability
724
SCR 10-16 AB HXW 1/2 S GEN WZ04X0288 Contact Us For Availability
732
GEN WE13X0169 GEN WE13X0169 Contact Us For Availability
32767
GEN 00-6169 GEN 00-6169 Contact Us For Availability
32767
GEN 00-8003 GEN 00-8003 Contact Us For Availability
32767
GEN 50-1213-29 GEN 50-1213-29 Contact Us For Availability
32767
TIMING CAM. 4-PIN. OTHER TIMING CAMS AVAILABL GEN 50-161-4 Contact Us For Availability
32767
TIMING MOTOR, 115V-60 HZ., 1/180 R.P.M. OTHER GEN 50-61-13 Contact Us For Availability
32767
GEN 59-204 GEN 59-204 Contact Us For Availability
32767
GEN 59-9999 GEN 59-9999 Contact Us For Availability
32767
GEN 75-2006 GEN 75-2006 Contact Us For Availability
32767
GEN KIT-1585 GEN KIT-1585 Contact Us For Availability
× ![]()
