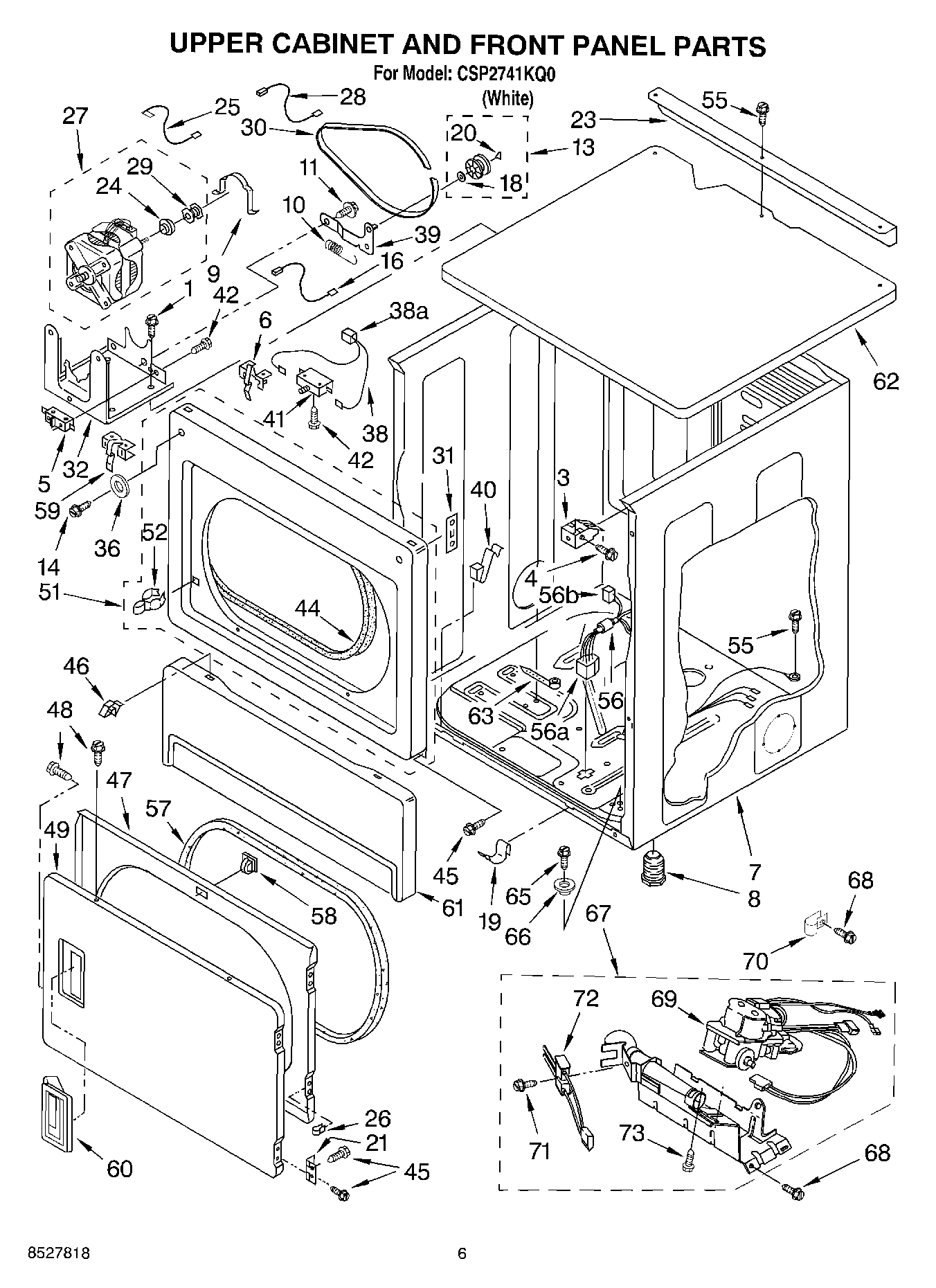

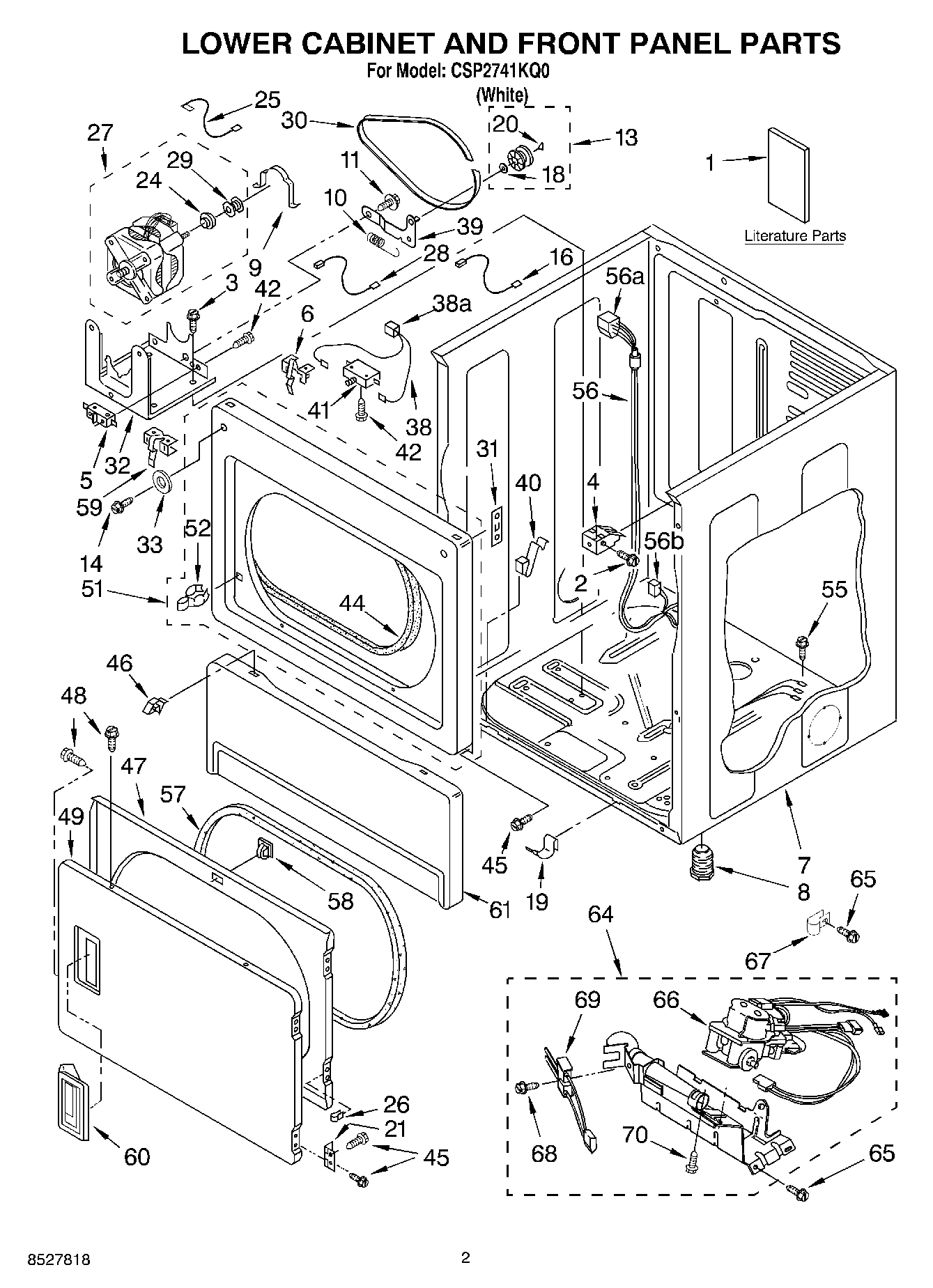

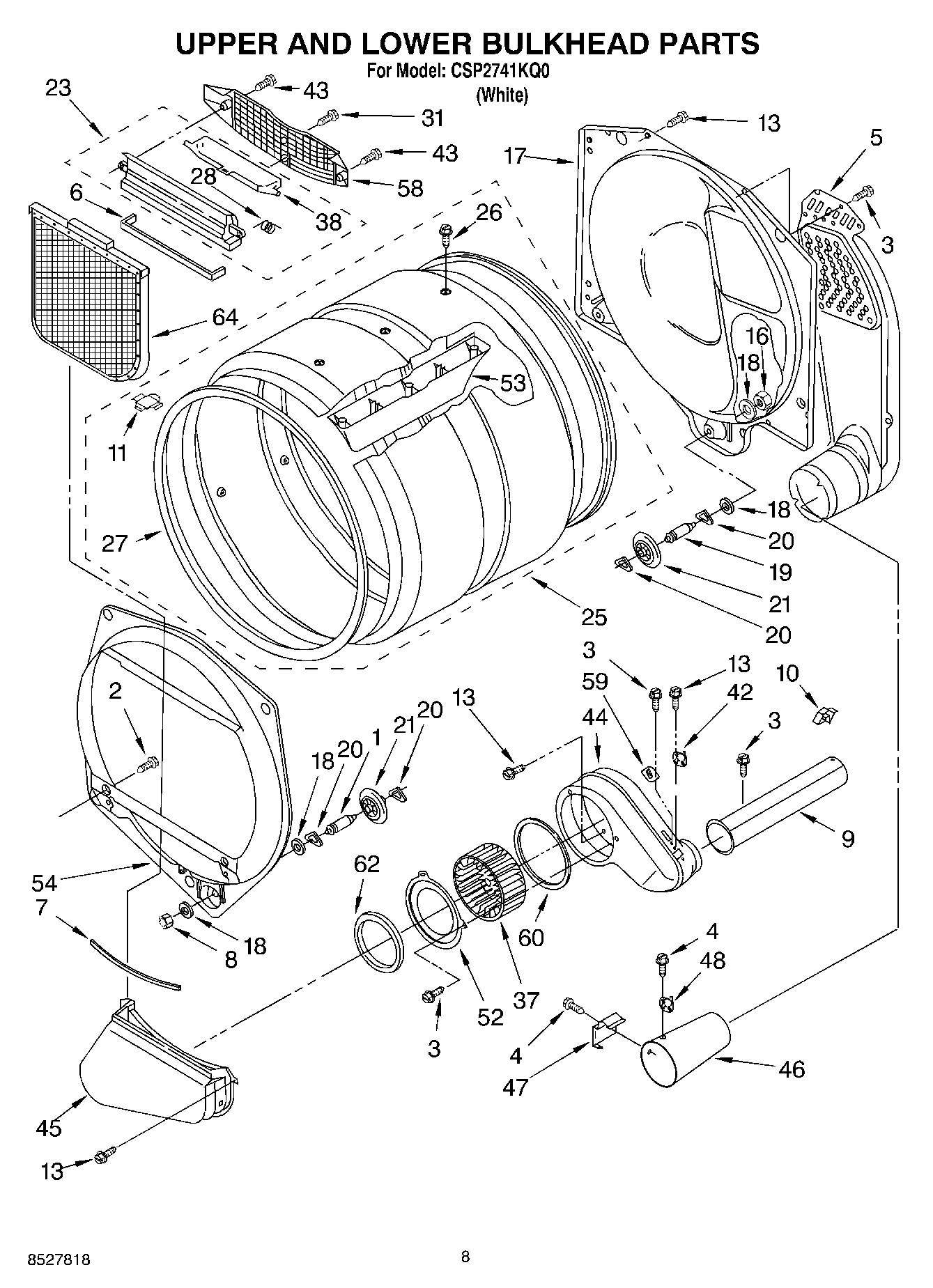

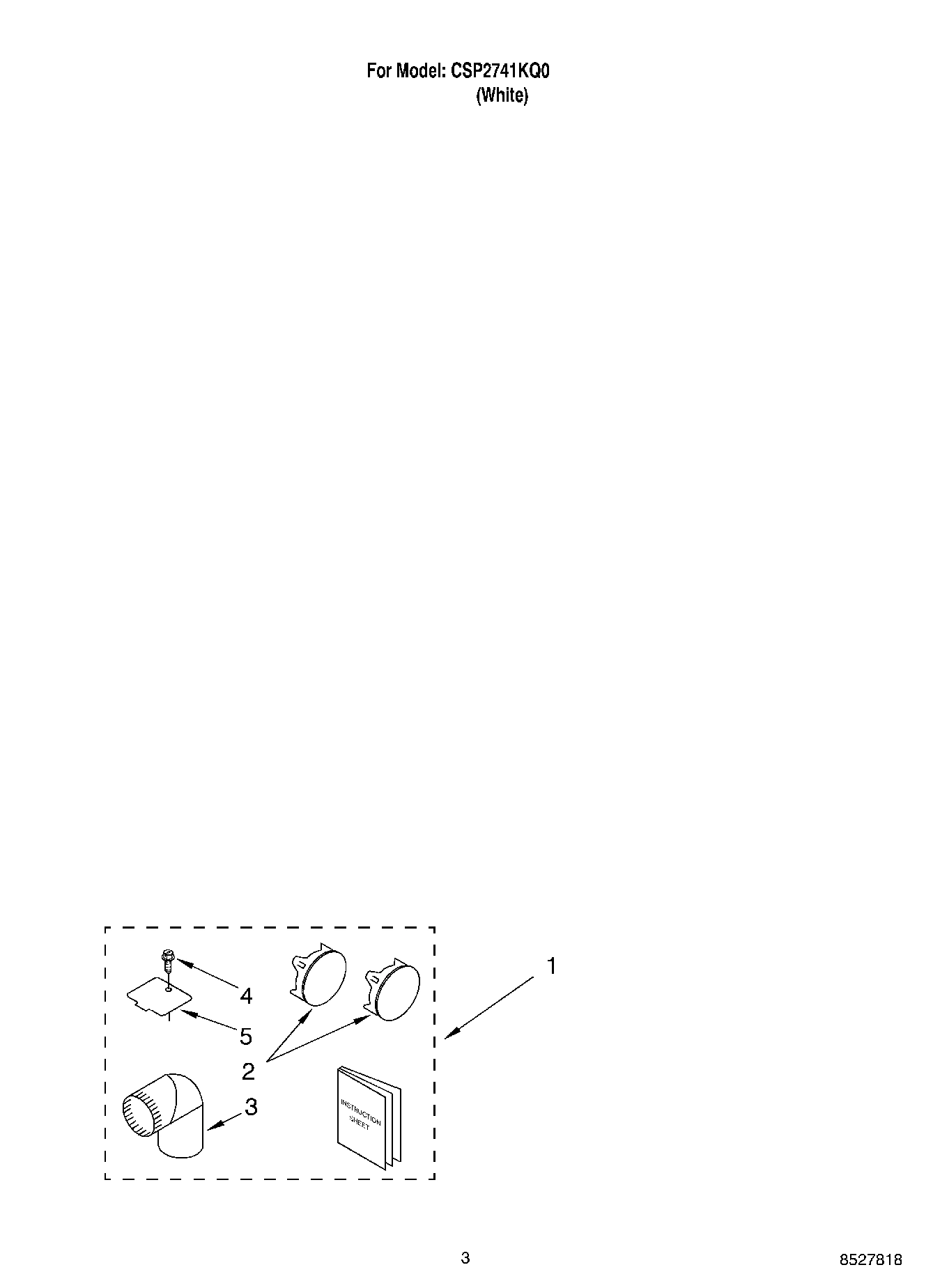

Model Whirlpool CSP2741KQ0 COMMERCIAL (STACKED) GAS DRYER – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $30.25

1A

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

2

W11676450 Whirlpool Screw Backorder WPL W11676450 $8.11

2

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

3

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $14.48

3

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.51

4

3391846 Whirlpool Clip In Stock WPL 3391846 $10.76

4

W10850756 Whirlpool Screw Backorder WPL W10850756 $2.51

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $4.65

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

6

3390115 Whirlpool Bracket Assembly Backorder WPL 3390115 $26.21

6

WP691581 Whirlpool Actuator In Stock WPL WP691581 $3.70

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

7

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $167.71

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $2.51

8

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $3.75

8

WP343777 Whirlpool Cam Backorder WPL WP343777 $3.70

9

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $47.27

9

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $27.83

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

10

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

11

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

12

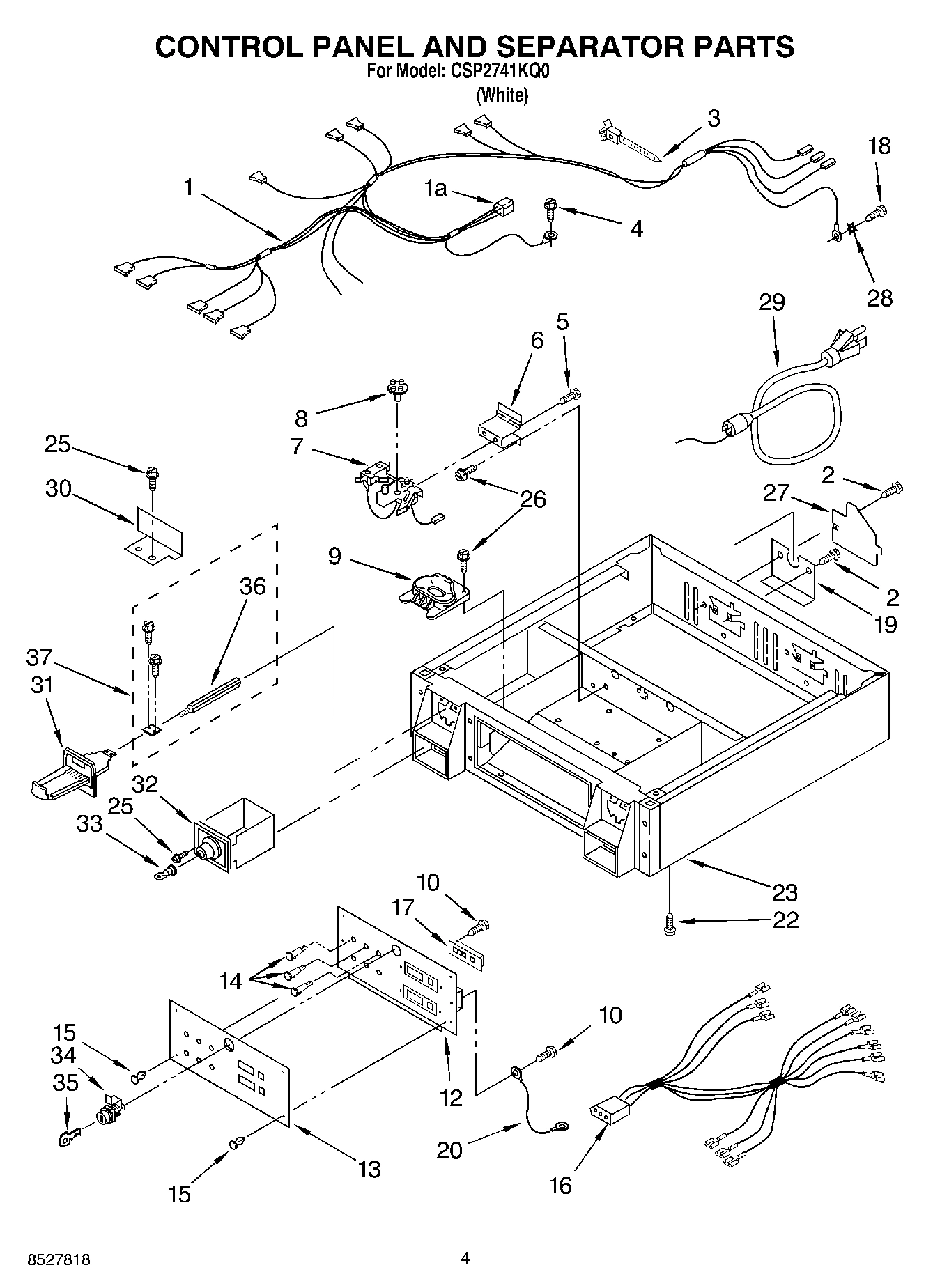

Panel, Control WPL 3979100 Contact Us For Availability

13

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

13

Insert, Decorative WPL 8527831 Contact Us For Availability

14

3979327 Whirlpool Light Backorder WPL 3979327 $11.80

14

Lamp, Indicator (Amber) WPL 3979326 Contact Us For Availability

14

Lamp, Indicator (Red) WPL 3979325 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

15

Rivet (4) WPL 354239 Contact Us For Availability

16

8283296 Whirlpool Wire Harness Backorder WPL 8283296 $37.94

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability

17

W11299300 Whirlpool Bulkhead Assembly In Stock WPL W11299300 $118.41

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

WPW10330137 Whirlpool Push Button Switch In Stock WPL WPW10330137 $198.90

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $9.59

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

19

3390189 Whirlpool Relief Valve Backorder WPL 3390189 $8.45

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $3.70

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $29.96

20

3401699 Whirlpool Wire Backorder WPL 3401699 $7.32

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

21

W11175815 Whirlpool Hinge Backorder WPL W11175815 $31.27

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $7.12

22

697441 Whirlpool Valve Backorder WPL 697441 $117.00

23

3979115 Whirlpool Bracket Backorder WPL 3979115 $34.53

23

W10862444 Whirlpool Collar In Stock WPL W10862444 $390.49

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $29.06

24

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $51.66

24

Nut, Compression WPL 233076 Contact Us For Availability

25

W10545923 Whirlpool Drum Assembly Backorder WPL W10545923 $229.26

25

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

26

Nut, ``U`` (4) WPL 3389249 Contact Us For Availability

26

Screw, 10-32 x 3/8 WPL 98437 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $25.42

27

W10841144 Whirlpool Drive Motor In Stock WPL W10841144 $154.50

27

W11539855 Whirlpool Refrigerator Pump In Stock WPL W11539855 $338.82

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

Wire, Jumper WPL 3394081 Contact Us For Availability

Retainer, Terminal (2) WPL 3390443 Contact Us For Availability

29

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $36.97

29

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

30

3390424 Whirlpool Extension Backorder WPL 3390424 $33.64

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

31

WP3390902 Whirlpool Clip Backorder WPL WP3390902 $4.78

31

Slide Mechanism (When Ordering, Specify Numbe WPL ARI144886A Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

32

Money Box W/Lock Greenwald Abloy Illinios Duo WPL ARI144887A Contact Us For Availability

33

WP2151749 Whirlpool Refrigerator Cover Backorder WPL WP2151749 $124.51

34

Security Lock & Cam Assembly WPL ARI144888A Contact Us For Availability

35

Key, Service Door WPL ARI144889A Contact Us For Availability

36

Washer WPL 3392186 Contact Us For Availability

36

Bolt, Slide Mechanism WPL 3393262 Contact Us For Availability

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

W11222846 Whirlpool Door Backorder WPL W11222846 $74.30

38

Harness, Door Switch WPL 3389967 Contact Us For Availability

38A

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

40

Clip, Lint Duct WPL 3388600 Contact Us For Availability

41

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

42

WP3387138 Whirlpool Cycling Thermostat In Stock WPL WP3387138 $45.88

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

43

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

44

WP8544363 Whirlpool Housing Backorder WPL WP8544363 $56.42

45

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

45

Lint Duct Assembly WPL 3390531 Contact Us For Availability

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $3.70

46

WP8066047 Whirlpool Funnel Backorder WPL WP8066047 $52.98

47

280083 Whirlpool Rear Door Backorder WPL 280083 $114.92

47

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

48

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $43.57

48

WP694091 Whirlpool Screw Backorder WPL WP694091 $2.51

49

W11663440 Whirlpool Door Backorder WPL W11663440 $130.22

51

Upper Front Panel WPL 3393081 Contact Us For Availability

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $31.07

53

WPW10113136 Whirlpool Drum Baffle Backorder WPL WPW10113136 $53.93

54

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $85.65

56

Harness (Upper) WPL 3401105 Contact Us For Availability

56A

Plug, Multi- Terminal WPL 3390423 Contact Us For Availability

56B

Receptacle WPL 717252 Contact Us For Availability

57

WP3390735 Whirlpool Door Seal Backorder WPL WP3390735 $41.23

58

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

WP3390719 Whirlpool Dryer Thermal Fuse In Stock WPL WP3390719 $8.32

59

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

60

3389522 Whirlpool Handle Backorder WPL 3389522 $43.61

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

WP3406797 Whirlpool Toe Panel Backorder WPL WP3406797 $81.54

62

3389351 Whirlpool Top Backorder WPL 3389351 $145.19

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $28.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

65

3400500 Whirlpool Screw Backorder WPL 3400500 $9.59

66

Bushing WPL 3389233 Contact Us For Availability

67

Burner Assembly 60 Hz. (Refer To Parts Page F WPL 3401797 Contact Us For Availability

69

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

70

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

71

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

72

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

73

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92
