Model GE CES750M2N5S5 Electric Range – Common Parts & Diagrams
CONTROL PANEL

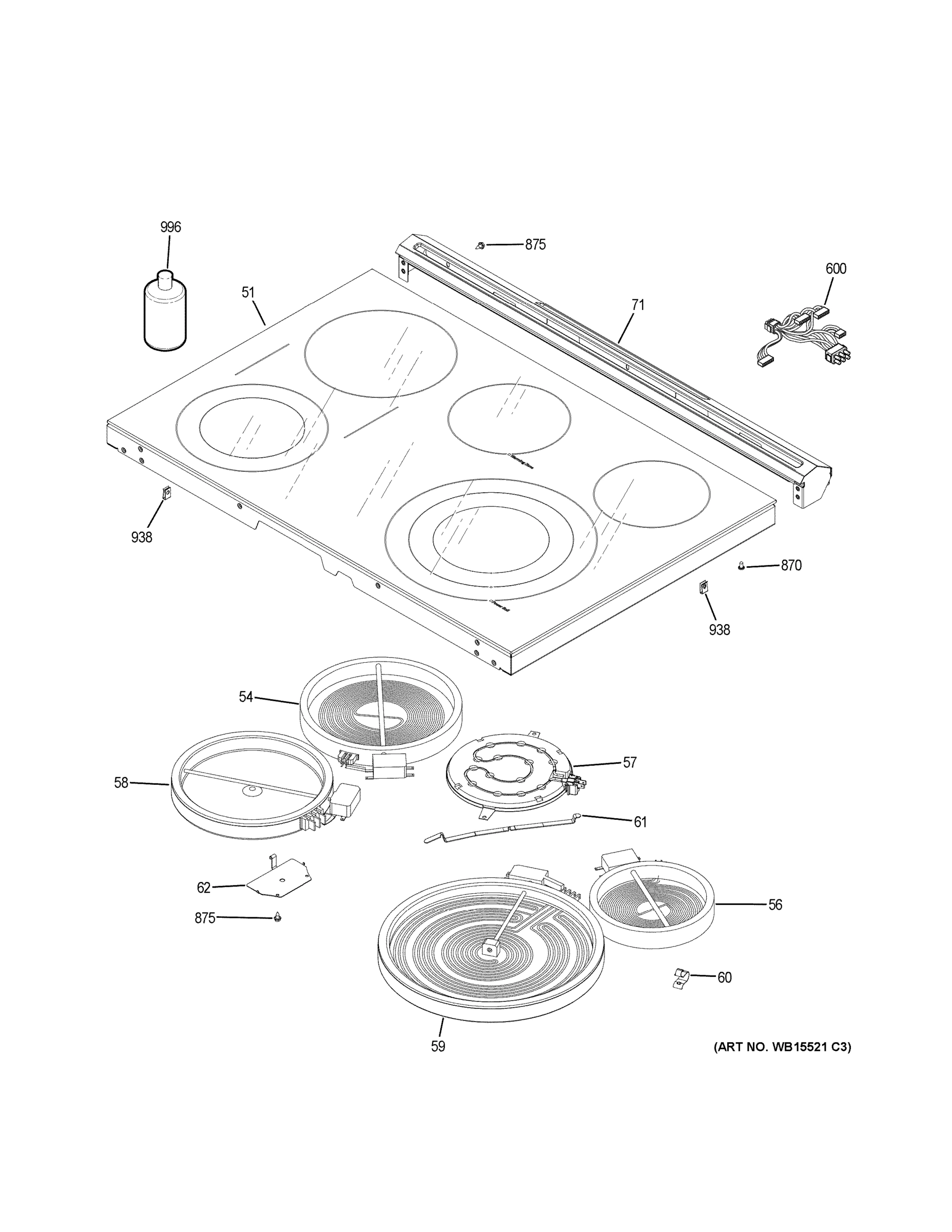

COOKTOP
COOLING FAN
UPPER DOOR
UPPER OVEN
LOWER DOOR
LOWER OVEN
CONVECTION FAN
Common parts from model GE CES750M2N5S5 Electric Range
1
CONTROL PANEL TRIM ASM GEN WB07X29238 Contact Us For Availability
5
CONTROL LIGHTS GUIDE GEN WB63X29528 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
26
CONTROL PANEL GASKET GEN WB35X29473 Contact Us For Availability
32
BLOWER AND FAD ASM GEN WB26X29203 Contact Us For Availability
43
HUB BLADE ASM GEN WB02T10289 Contact Us For Availability
54
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT WARMER LOW PRF GEN WB30X10035 Contact Us For Availability
58
ELEMENT HALIANT (DUAL) GEN WB30T10135 Contact Us For Availability
59
ELEMENT HALIANT 12 TRPL GEN WB30T10155 Contact Us For Availability
60
SPRING RADIANT ELEMENT GEN WB09X40389 Contact Us For Availability
111
GASKET OVN DR GEN WB04T10076 Contact Us For Availability
113
RETAINER INSLN OVN DR GEN WB02T10371 Contact Us For Availability
131
DOOR BUMPER GEN WB01T10022 Contact Us For Availability
136
STAINLESS STEEL HANDLE AND ENDCAP GEN WB15X32948 Contact Us For Availability
150
LATCH ASM GEN WB10X29243 Contact Us For Availability
157
SWITCH SPDT HIGH AMP GEN WB24T10147 Contact Us For Availability
158
SWITCH HIGH LIMIT GEN WB21K10127 Contact Us For Availability
218
COVER TERMINAL BLOCK GEN WB02T10564 Contact Us For Availability
221
SIDE PANEL DG GEN WB63X28679 Contact Us For Availability
241
RACK OVEN (GY) GEN WB48T10059 Contact Us For Availability
251
ELEMENT HIDDEN BAKE ASM GEN WB44T10082 Contact Us For Availability
252
BROIL ELEMENT ASM GEN WB44X29240 Contact Us For Availability
254
BLOCK TERMINAL ASM GEN WB17X38438 Contact Us For Availability
257
LAMP HALOGEN G9 GEN WB08T10045 Contact Us For Availability
258
LAMP HALOGEN ASM GEN WB25X24909 Contact Us For Availability
259
OV LAMP LENS GEN WB25T10013 Contact Us For Availability
262
TRIM VERTICAL SIDES GEN WB07T10621 Contact Us For Availability
263
COVER FRONT GEN WB34X42993 Contact Us For Availability
266
BASE RAIL GEN WB02T10353 Contact Us For Availability
267
BASE RAIL GEN WB02T10352 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
BRACKET STRAIN RELIEF GEN WB02T10542 Contact Us For Availability
270
MACHINE CONTROL RELAY BOARD GEN WB27X29202 Contact Us For Availability
271
RELAY DAUGHTER BOARD GEN WB27X29201 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10X30495 Contact Us For Availability
280
MEAT PROBE GEN WB20T10024 Contact Us For Availability
282
VENT TUBE GEN WB38X33648 Contact Us For Availability
285
LOWER VENT TUBE ASM GEN WB34X29237 Contact Us For Availability
291
COVER HOLE GEN WB02T10487 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
408
PCB STANDOFF GEN WB02T10477 Contact Us For Availability
409
MACHINE CONTROL FRAME GEN WB02X30450 Contact Us For Availability
411
GASKET OVN DOOR GEN WB04T10077 Contact Us For Availability
415
CONTROL BOARD RC17 (FLASHED) GEN WB27X33705 Contact Us For Availability
438
WINDOW PACK ASM UPR GEN WB56T10244 Contact Us For Availability
441
RACK OVEN GEN WB48T10042 Contact Us For Availability
453
SENSOR ASM GEN WB23T10015 Contact Us For Availability
481
RECEIVER HINGE UPR (RT) GEN WB10T10100 Contact Us For Availability
482
RECEIVER HINGE UPR ( LT) GEN WB10T10101 Contact Us For Availability
511
MOTOR PSC CONV GEN WB26X24910 Contact Us For Availability
514
BLACK CONVECTION FAN COVER GEN WB34X31766 Contact Us For Availability
534
SUPPORT OVN CAV (BK) GEN WB02X20947 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
594
MEAT PROBE RCPTK W/ HARN GEN WB18X25985 Contact Us For Availability
602
JUMPER HARNESS WIRE GEN WB18X32741 Contact Us For Availability
603
RJ45 CONNECTOR HARNESS GEN WB18X29523 Contact Us For Availability
606
TEMPERATURE SENSOR HARNESS WIRE GEN WB18X32742 Contact Us For Availability
609
PLUNGER SWITCH HARNESS WIRE GEN WB18X29530 Contact Us For Availability
801
SCREW GEN WB01M10002 Contact Us For Availability
802
SCREW 8-18 AB SKT25 7/8 GEN WB01X30451 Contact Us For Availability
803
SCR 10-32, 1/4 HEX, .350 GEN WB01T10125 Contact Us For Availability
809
SCR 10-16 AB TRT20 1/2 N GEN WB01X21735 Contact Us For Availability
828
INSERT PLUG GEN WB01X29474 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
977
NUT GEN WB02T10017 Contact Us For Availability
1003
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1005
SCR 8-18 AB TRT20NBS 5/8 GEN WB01X21650 Contact Us For Availability
× ![]()
