Model GE C2Y486P4T2W2 Gas Range Or Dual Fuel – Common Parts & Diagrams
CAFE CUSTOMIZATION
OPTIONAL ACCESSORIES

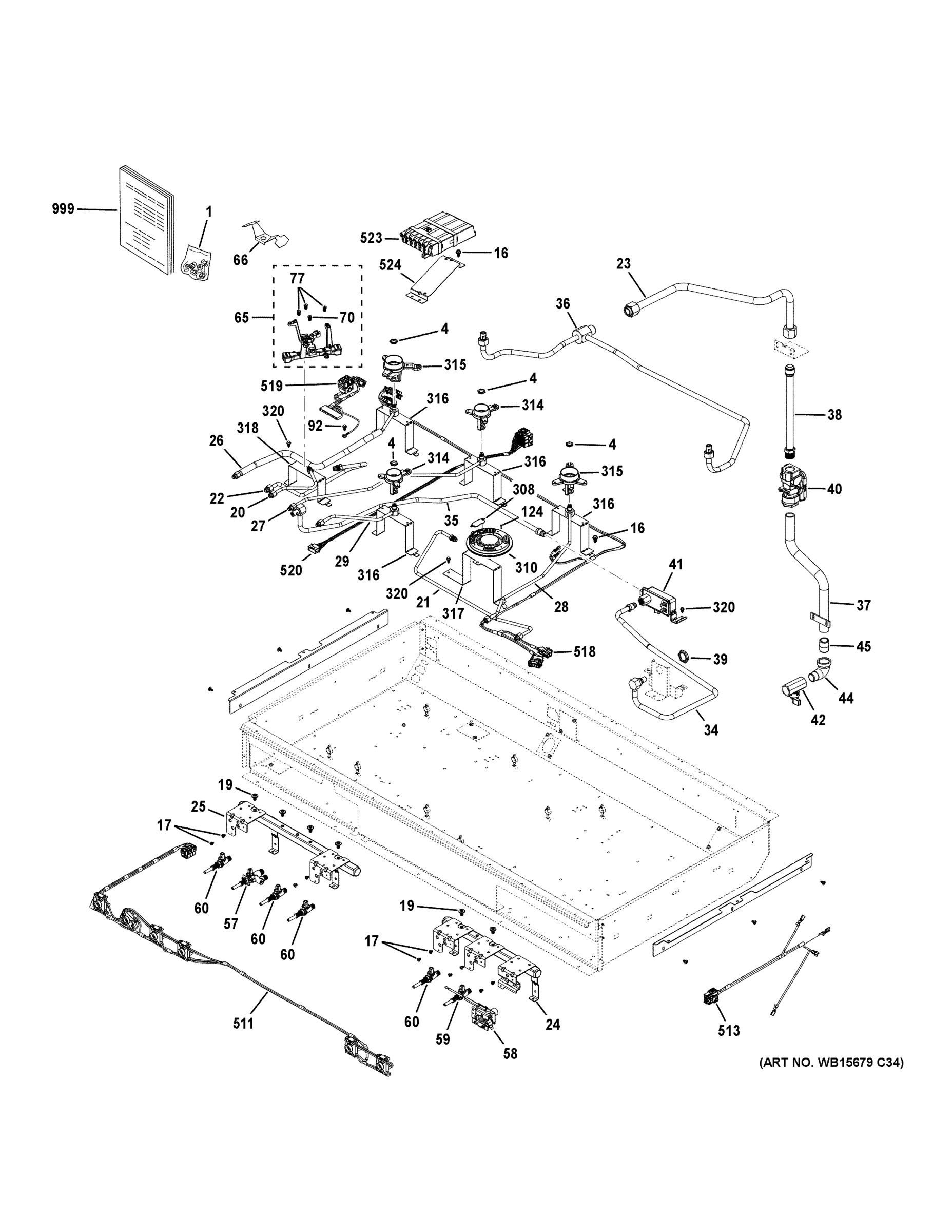

GAS & BURNER PARTS

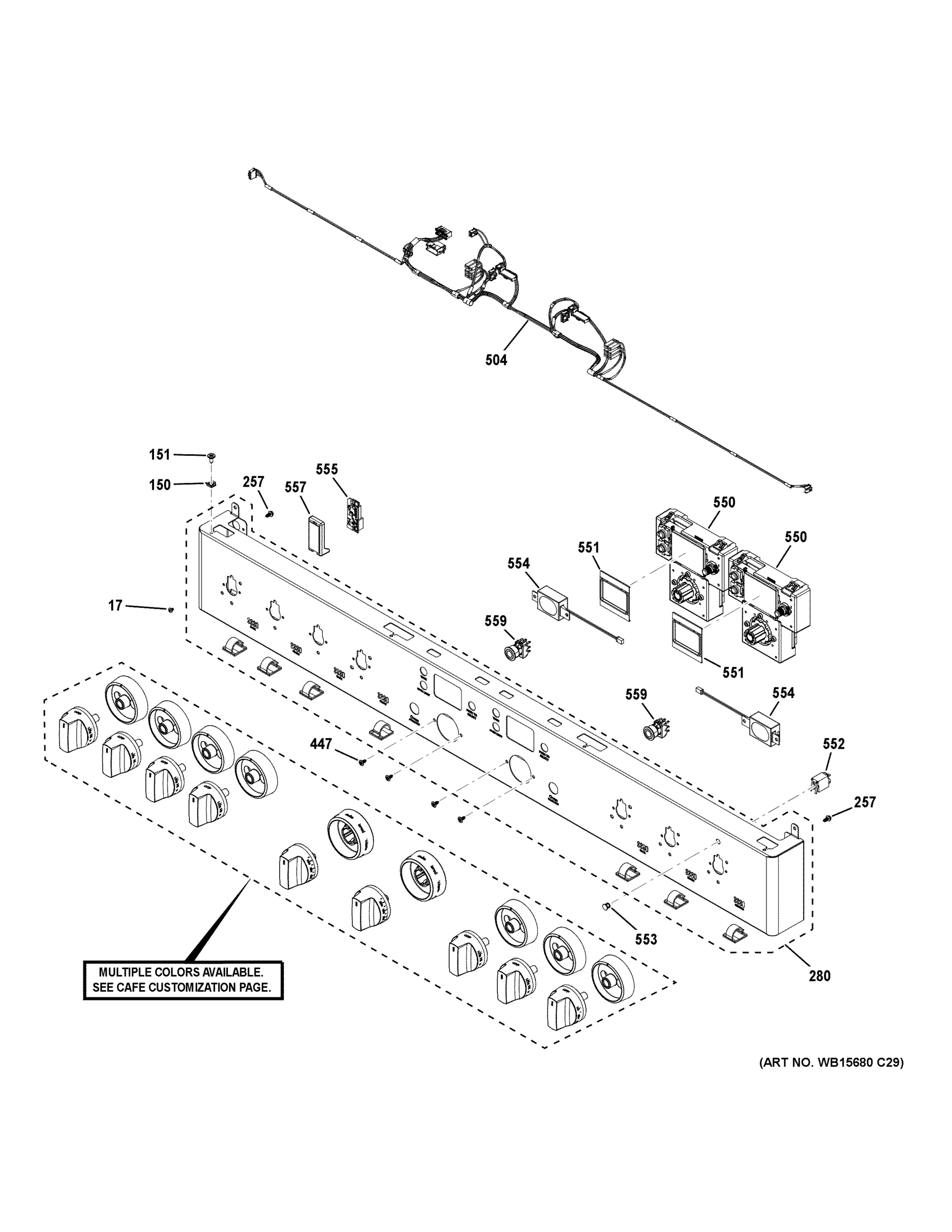

CONTROL PANEL

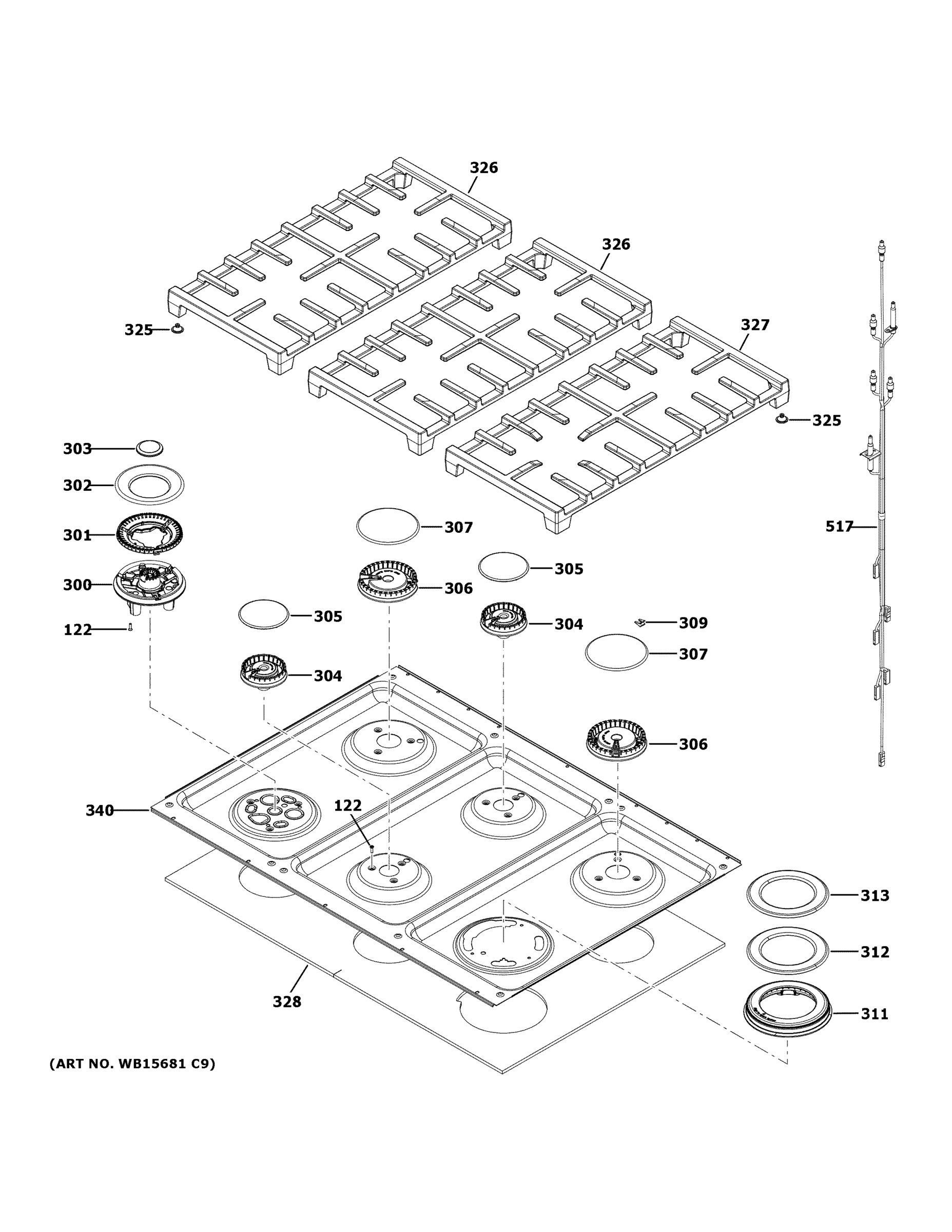

COOKTOP

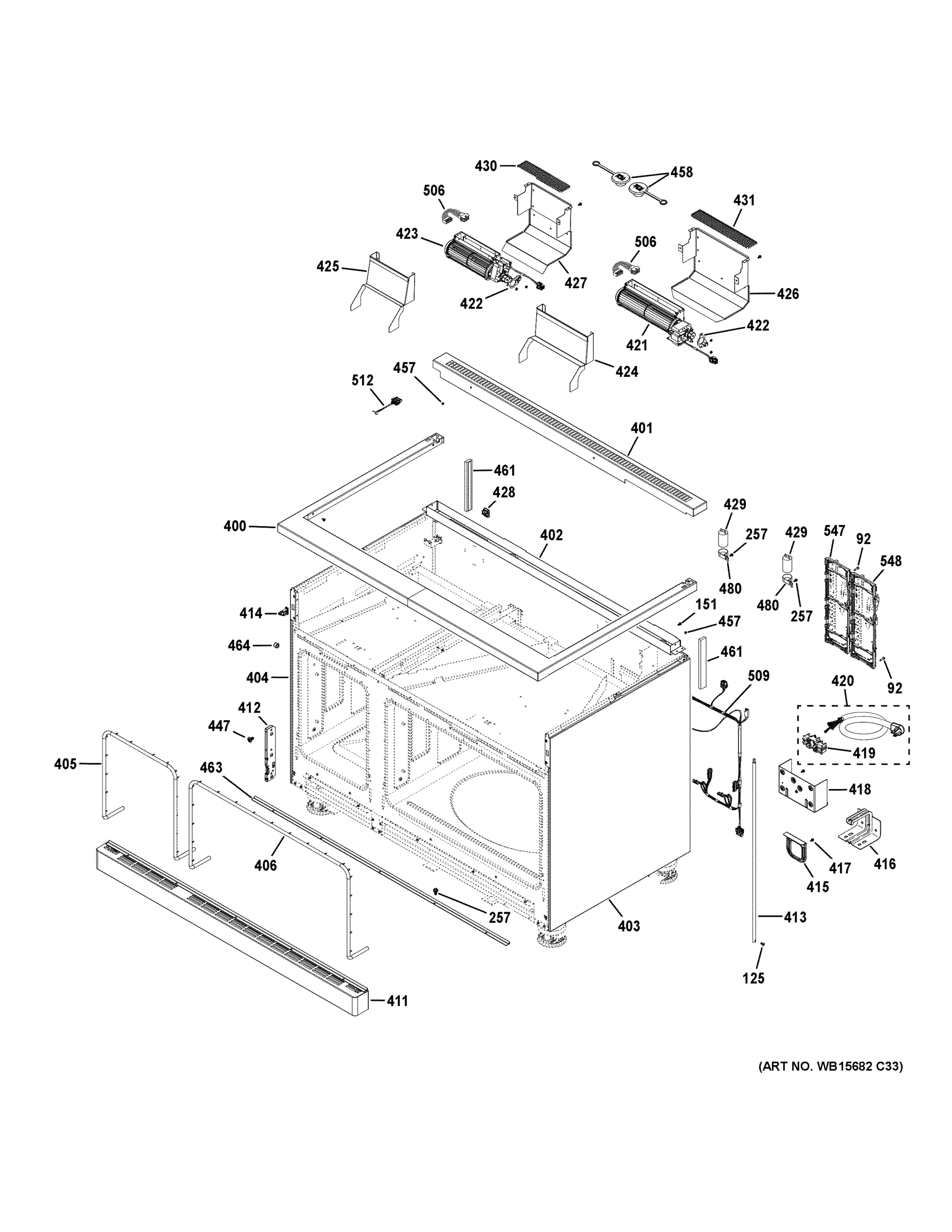

BODY PARTS

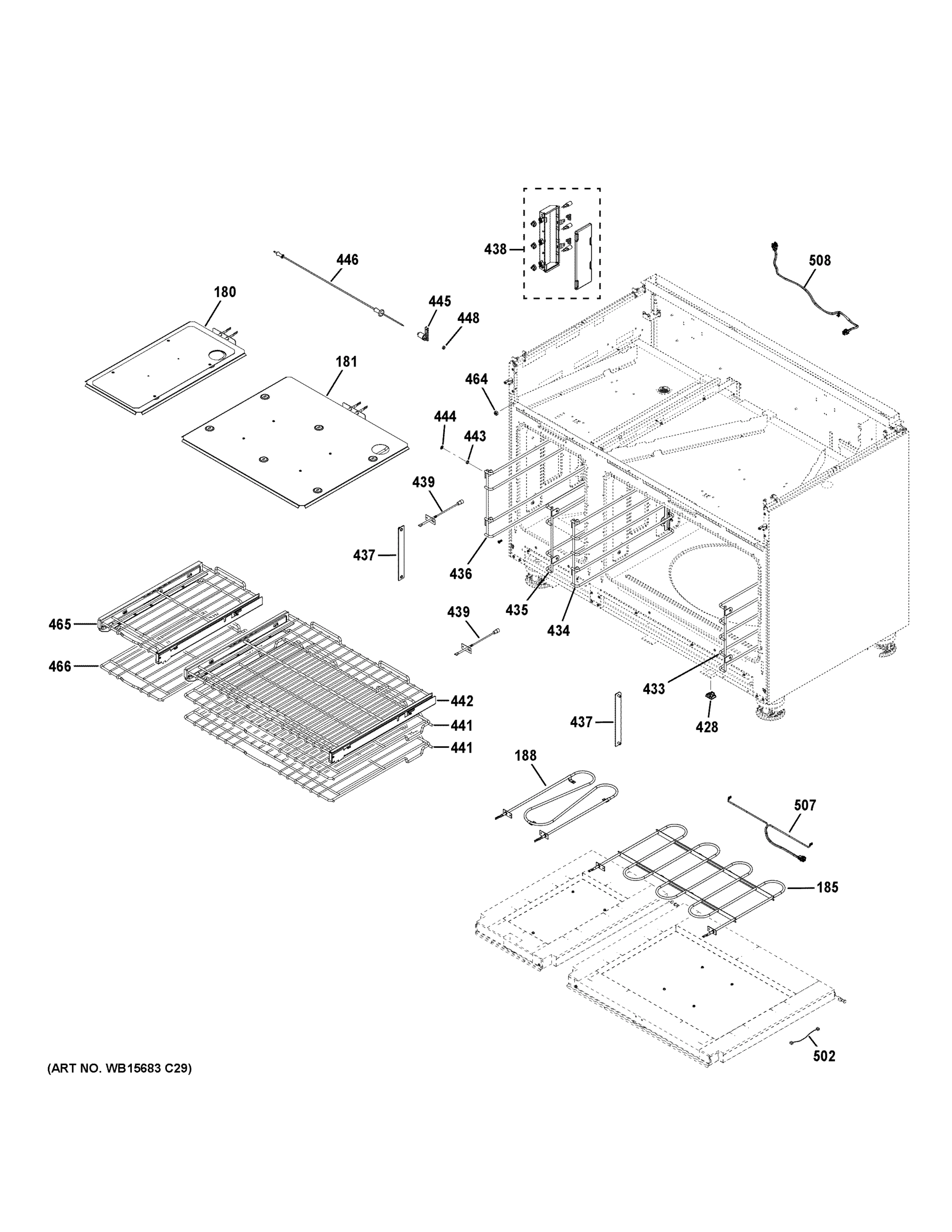

OVEN CAVITY PARTS

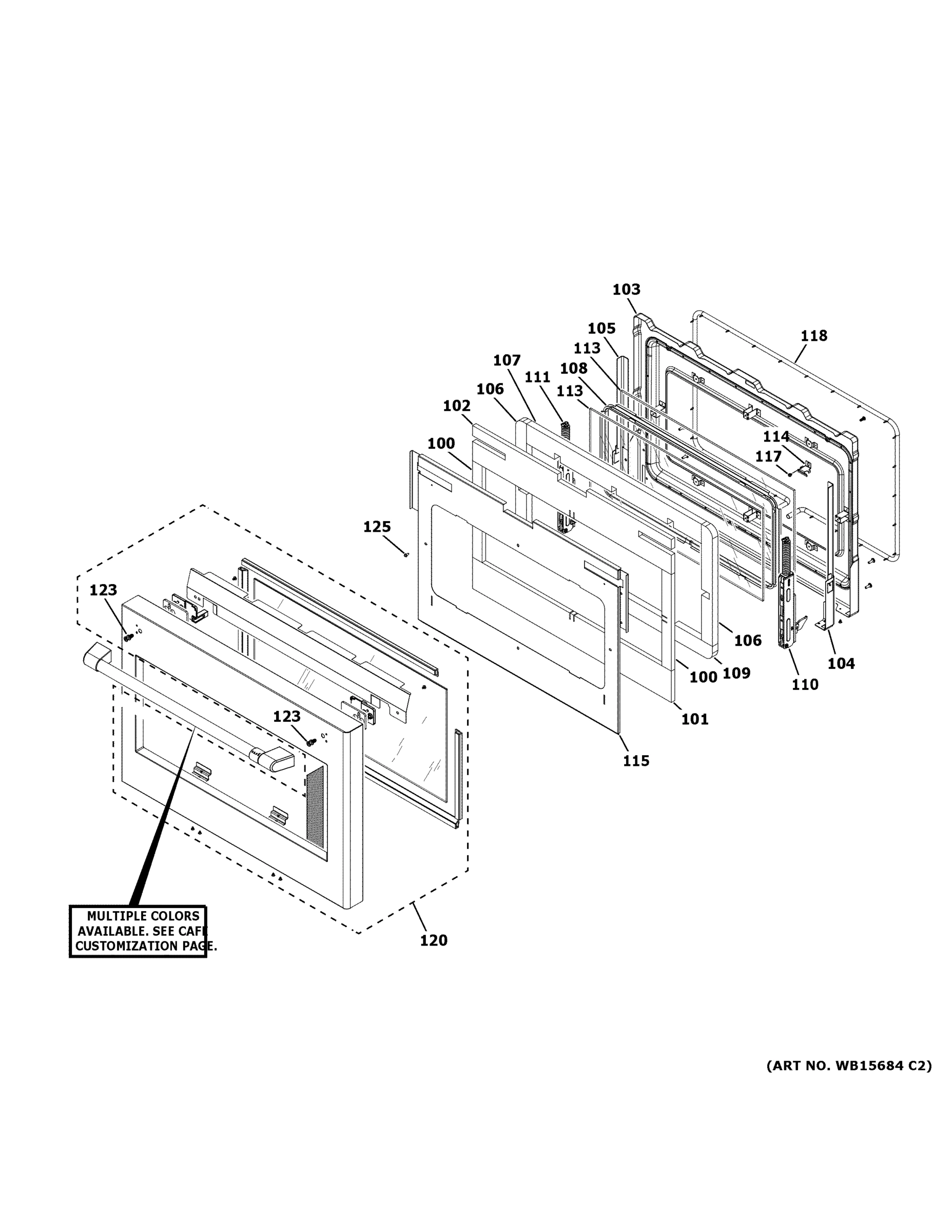

LARGE DOOR ASSEMBLY

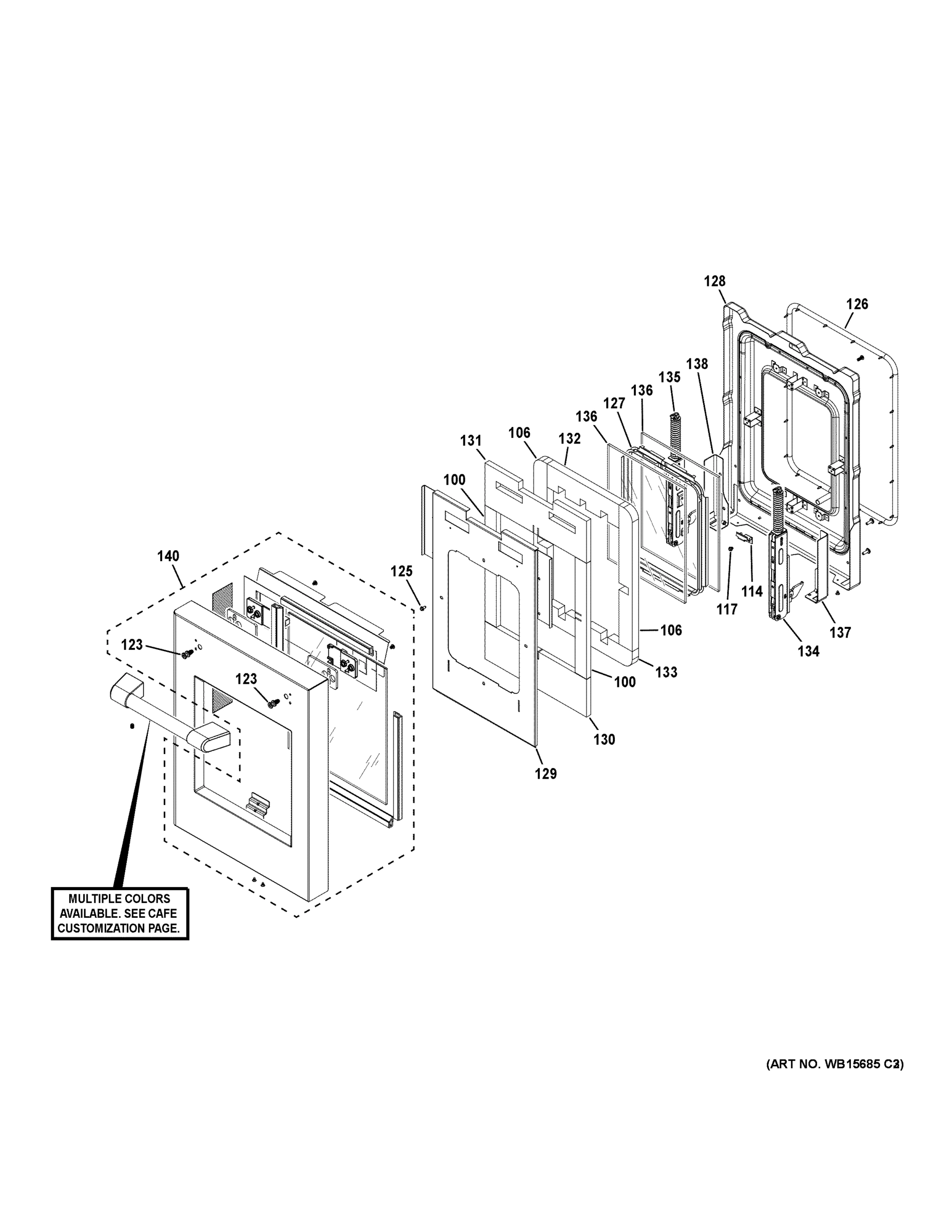

SMALL DOOR ASSEMBLY

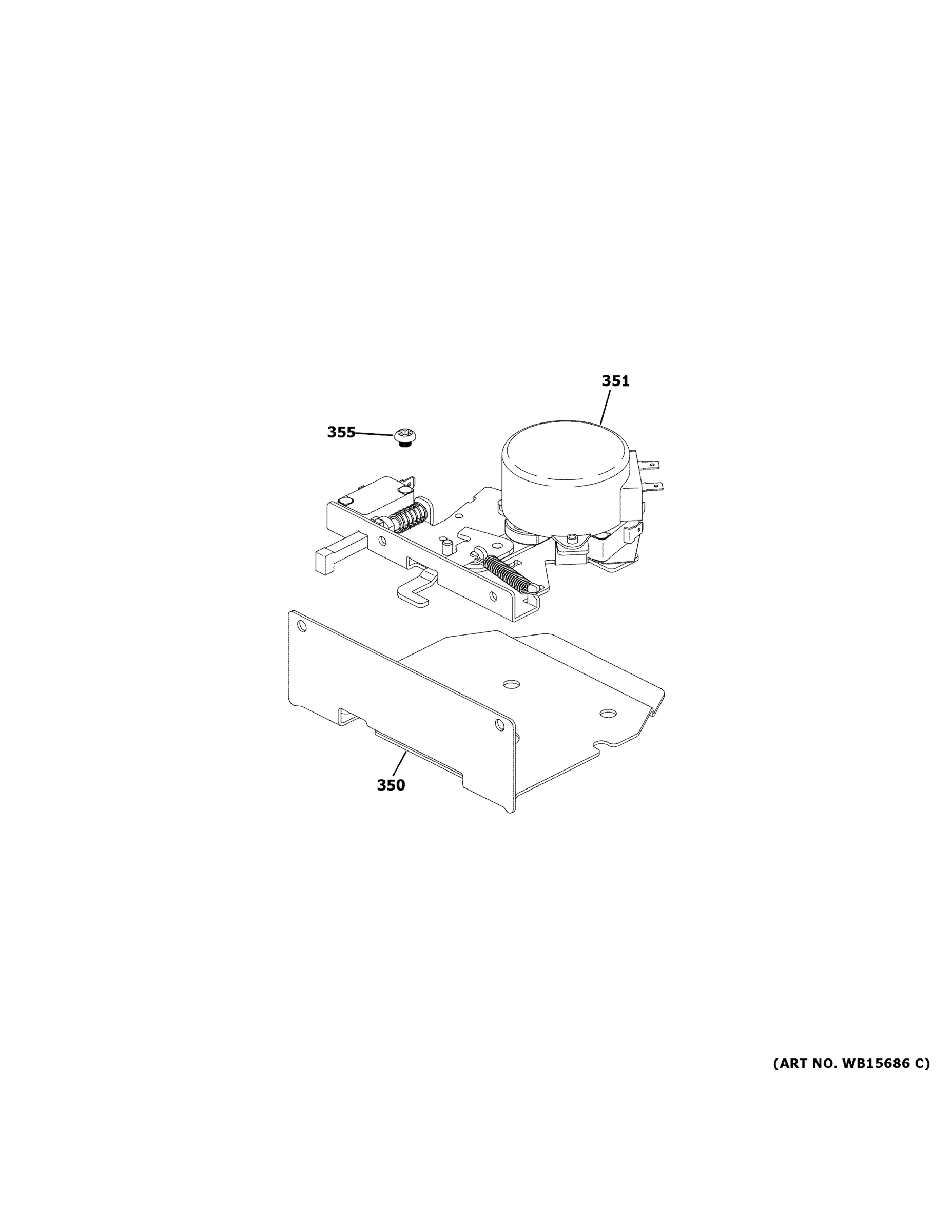

DOOR LOCK

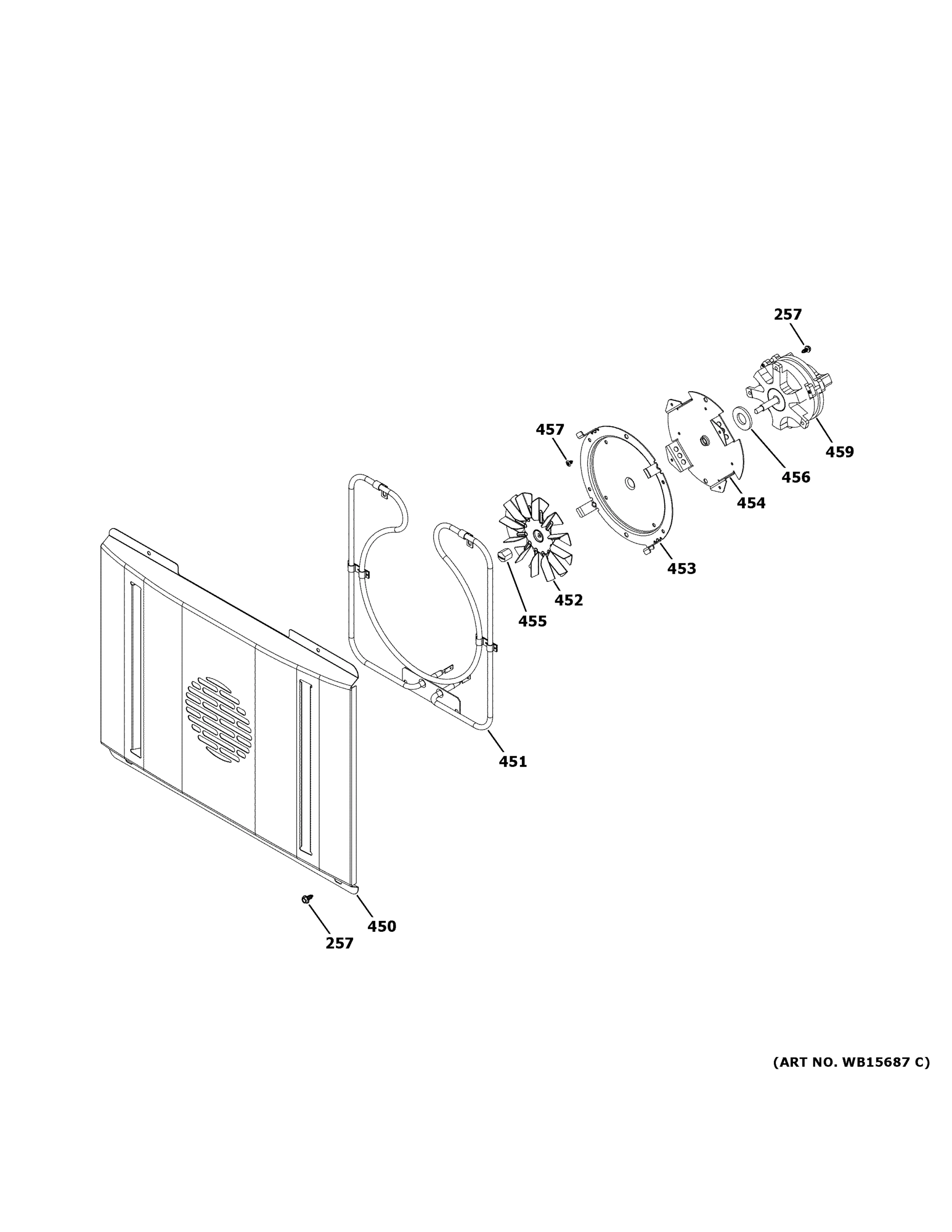

LARGE CONVECTION FAN

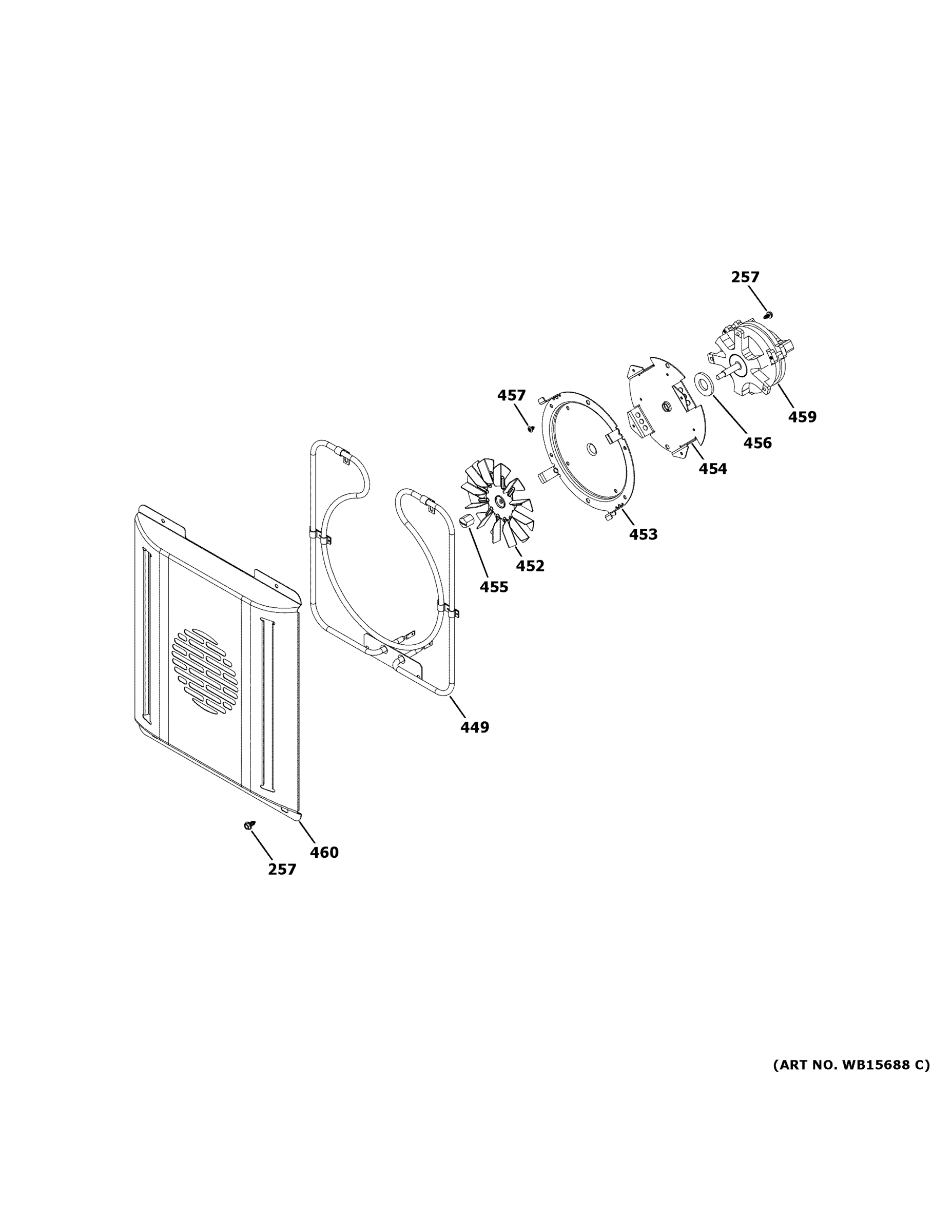

SMALL CONVECTION FAN

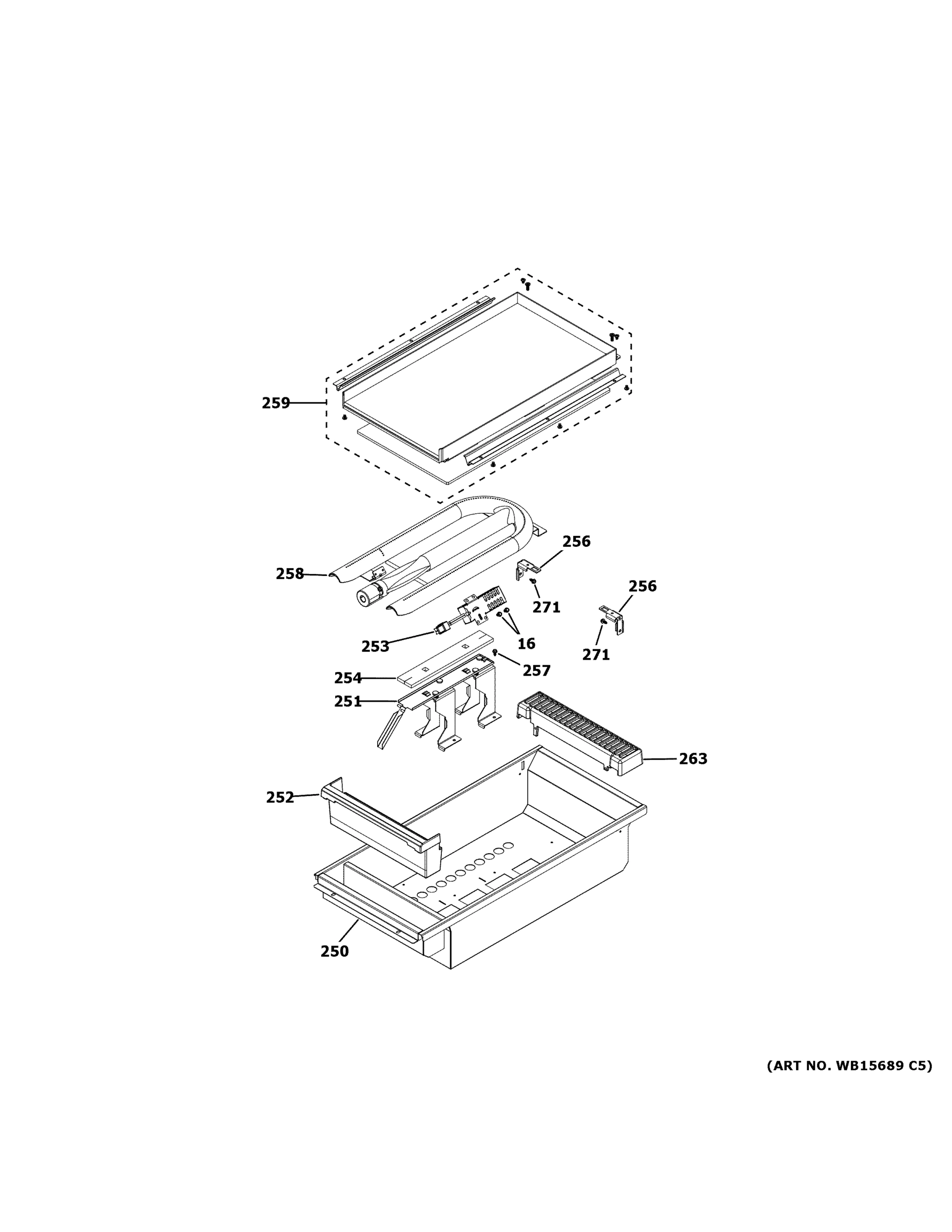

GRIDDLE ASSEMBLY
Common parts from model GE C2Y486P4T2W2 Gas Range Or Dual Fuel
16
SCREW GEN WB01K0035 Contact Us For Availability
23
TUBE MANIFOLD SUPPLY DUAL FUEL 48" GEN WB28X39403 Contact Us For Availability
24
PIPE MANIFOLD GEN WB28X39656 Contact Us For Availability
25
PIPE MANIFOLD GEN WB28X39655 Contact Us For Availability
35
TUBE AND NUT SUPPLY GRIDDLE SAFETY VA GEN WB28X39374 Contact Us For Availability
36
DUAL PIPE MANIFOLD GEN WB28X39669 Contact Us For Availability
37
PIPE SUPPLY GEN WB28X39658 Contact Us For Availability
38
MULTITUBE SUPPLY DUAL FUEL 48" GEN WB28X39377 Contact Us For Availability
39
NUT LOCK GEN WB1K6 Contact Us For Availability
100
FT INSUL DOOR SIDE GEN WB35K10174 Contact Us For Availability
101
FT INSUL DOOR BTM 27" GEN WB35K10178 Contact Us For Availability
102
FT INSUL DOOR TOP 27" GEN WB35K10175 Contact Us For Availability
103
LINER OVEN DOOR GEN WB56X39495 Contact Us For Availability
104
GUSSET DOOR RIGHT GEN WB34X39872 Contact Us For Availability
105
GUSSET DOOR LEFT GEN WB34X39869 Contact Us For Availability
106
RR INSUL DOOR SIDE GEN WB35K10181 Contact Us For Availability
107
RR INSUL DOOR TOP 27" GEN WB35K10183 Contact Us For Availability
109
RR INSUL DOOR BTM 27" GEN WB35K10186 Contact Us For Availability
114
CLIP WINDOW GEN WB02K10222 Contact Us For Availability
115
GUARD INSULATION GEN WB34X39456 Contact Us For Availability
117
SCR 10-32 TR T 1/2 S GEN WB01X39621 Contact Us For Availability
120
WHITE SLATE OUTER DOOR LARGE GEN WB56X39848 Contact Us For Availability
126
GASKET DOOR GEN WB35X39593 Contact Us For Availability
127
SPACER WINDOW GEN WB34K10110 Contact Us For Availability
128
LINER OVEN DOOR GEN WB56X39493 Contact Us For Availability
129
GUARD INSULATION GEN WB35X39452 Contact Us For Availability
130
FT INSUL DOOR BTM 12" GEN WB35K10180 Contact Us For Availability
131
FT INSUL DOOR TOP 12" GEN WB35K10177 Contact Us For Availability
132
RR INSUL DOOR TOP 12" GEN WB35K10182 Contact Us For Availability
133
RR INSUL DOOR BTM 12" GEN WB35K10185 Contact Us For Availability
134
HINGE DOOR RIGHT GEN WB10X39271 Contact Us For Availability
135
HINGE DOOR LEFT GEN WB10X39270 Contact Us For Availability
137
GUSSET DOOR RIGHT GEN WB34X39874 Contact Us For Availability
138
GUSSET DOOR LEFT GEN WB34X39873 Contact Us For Availability
140
WHITE SLATE OUTER DOOR SMALL GEN WB56X39840 Contact Us For Availability
150
SPRING WASHER GEN WB01X39918 Contact Us For Availability
180
ELEMENT AND REFLECTOR BROIL COMPANION OV GEN WB44X39683 Contact Us For Availability
181
ELEMENT AND REFLECTOR BROIL MAIN OVEN GEN WB44X41126 Contact Us For Availability
250
GRIDDLE BODY WELD GEN WB31X39958 Contact Us For Availability
251
GRIDDLE TOWER ASSEMBLY GEN WB34X39960 Contact Us For Availability
254
INSULATION BULB GEN WB35X39460 Contact Us For Availability
258
BURNER GRIDDLE GEN WB16X39682 Contact Us For Availability
280
WHITE SLATE PANEL MANIFOLD 48" GEN WB36X39789 Contact Us For Availability
308
COVER INJET VORTEX GEN WB34X39891 Contact Us For Availability
310
LP INJET VORTEX ASM GEN WB16X48626 Contact Us For Availability
317
BRACKET INJET GEN WB34X39749 Contact Us For Availability
328
INSULATION TOP GEN WB35X39457 Contact Us For Availability
350
BRACKET LATCH GEN WB34X39910 Contact Us For Availability
402
DEFLECTOR SPILL GEN WB34X39862 Contact Us For Availability
411
WHITE SLATE PANEL ACCES 48" GEN WB56X39581 Contact Us For Availability
414
PIN PILOT GEN WB02X39946 Contact Us For Availability
418
BRACKET KNOCKOUT GEN WB02K10207 Contact Us For Availability
424
SHROUND FAN GEN WB34X39903 Contact Us For Availability
425
SHROUND FAN GEN WB34X39904 Contact Us For Availability
426
SHROUD FAN BACK GEN WB34X39905 Contact Us For Availability
427
SHROUD FAN BACK GEN WB34X39907 Contact Us For Availability
428
BRACKET RJ45 GEN WB34X39909 Contact Us For Availability
430
SCREEN FAN GEN WB02X39877 Contact Us For Availability
431
SCREEN FAN GEN WB02X39876 Contact Us For Availability
437
BRACE CAVITY ASM GEN WB02K10198 Contact Us For Availability
442
RACK OVEN SLIDE GEN WB48X39626 Contact Us For Availability
443
SPRING WASHER GEN WB01X39917 Contact Us For Availability
448
NUT RECEPTACL HEX 1/4-32 GEN WB01K10120 Contact Us For Availability
449
ELEMENT CONVECTION COMPANION OVEN GEN WB44X39451 Contact Us For Availability
451
ELEMENT CONVECTION MAIN OVEN GEN WB44X39447 Contact Us For Availability
458
PLUG SPILL GUARD GEN WB02X40626 Contact Us For Availability
460
COVER FAN 12" GEN WB34X39894 Contact Us For Availability
461
SPACER GEN WB01X39922 Contact Us For Availability
463
STAINLESS STEEL BARRIER DOOR 48" GEN WB07X39587 Contact Us For Availability
465
RACK OVEN SLIDE GEN WB48X39628 Contact Us For Availability
466
RACK OVEN STANDARD 12" GEN WB48X39627 Contact Us For Availability
480
CLAMP CAPACITOR GEN WB02X41626 Contact Us For Availability
504
HARNESS SERIAL UI GEN WB18X45213 Contact Us For Availability
507
HARNESS HIDDEN BAKE GEN WB18X39309 Contact Us For Availability
508
HARNESS EXT HIDDEN BAKE GEN WB18X39349 Contact Us For Availability
509
HARNESS SERIAL RELAY GEN WB18X39335 Contact Us For Availability
512
HARNESS EXTENSION RJ45 GEN WB18X39321 Contact Us For Availability
513
HARNESS THERMOSTAT EXT GEN WB18X39316 Contact Us For Availability
518
HARNESS THERMOSTAT GEN WB18X39289 Contact Us For Availability
551
TRIM DISPLAY GEN WB02X41146 Contact Us For Availability
553
LENS GEN WB02X30231 Contact Us For Availability
999
PM INSTALL ANTI-TIP BRKT GEN 3110694 Contact Us For Availability
999
PM ATTENTION INSTALLER GEN 3110695 Contact Us For Availability
999
PM INSTALL INSTRUCTIONS GEN 312000815 Contact Us For Availability
999
PM OWNERS MANUAL GEN 492000660 Contact Us For Availability
999
PRINTED ONLYMINI MANUAL AND WIRING GEN 312001767 Contact Us For Availability
× ![]()
