Model GE C2S985SET3SS Gas Range Or Dual Fuel – Common Parts & Diagrams
GAS & BURNER PARTS

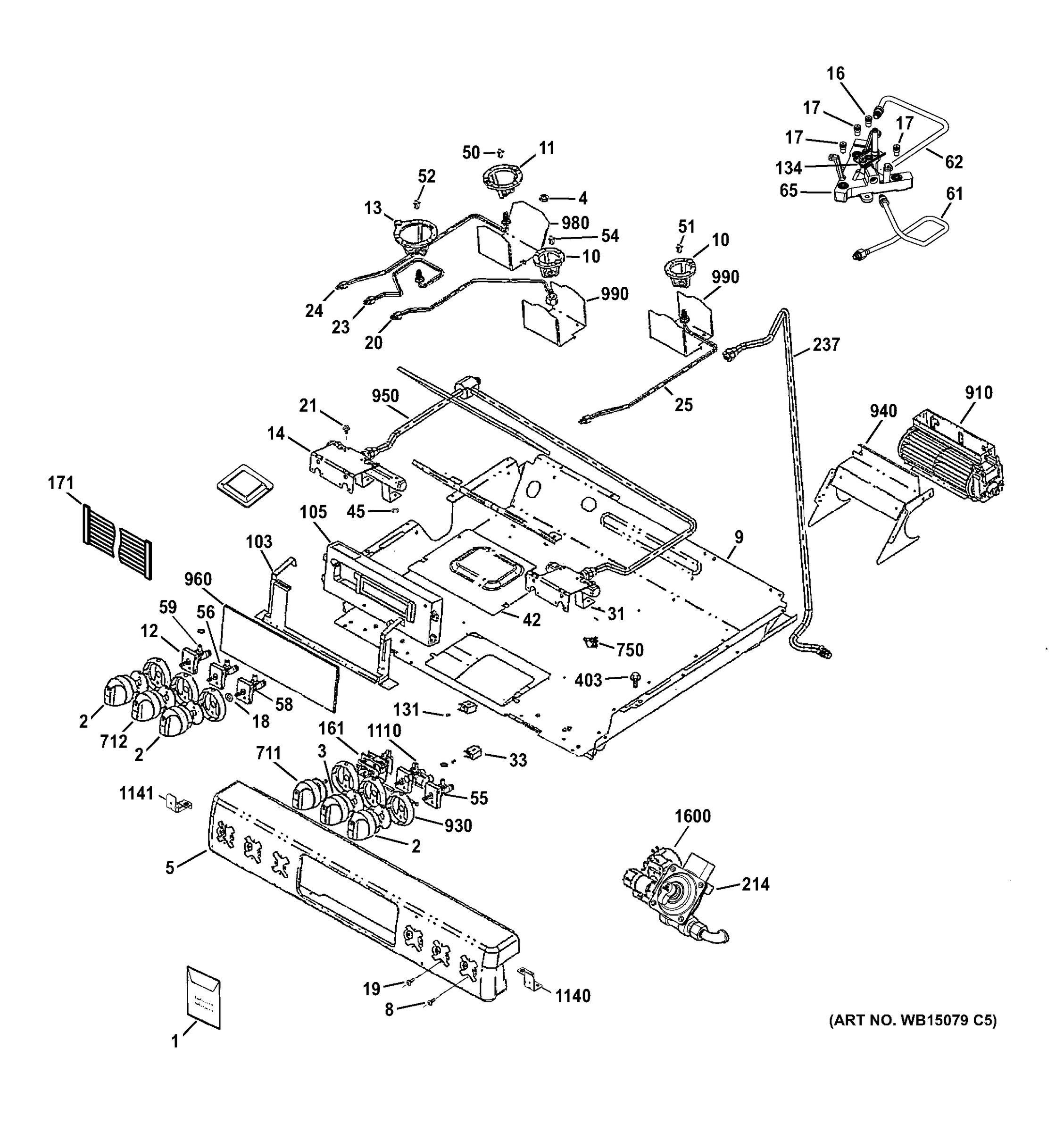

CONTROL PANEL & COOKTOP
BODY PARTS
DOOR & DRAWER PARTS
Common parts from model GE C2S985SET3SS Gas Range Or Dual Fuel
1
KIT CONVERSION LP GEN WB28K10799 Contact Us For Availability
1
CLEANER-SS GEN WB02T10111 Contact Us For Availability
2
KNOB ASSEMBLY GEN WB03K10265 Contact Us For Availability
3
KNOB ASSEMBLY GEN WB03K10308 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
5
PANEL MANIFOLD GEN WB36K10989 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
10
CKT BRACKET SMALL GEN WB02K10360 Contact Us For Availability
10
SCR 8-18 1/4 GEN WB01K10102 Contact Us For Availability
11
CKT BRACKET MDM & LGE GEN WB02K10361 Contact Us For Availability
12
HARNESS SWITCHES GEN WB18K10077 Contact Us For Availability
13
BRACKET COOKTOP XL GEN WB02K10363 Contact Us For Availability
16
ORIFICE SPUD GEN WB28K10694 Contact Us For Availability
17
ORIFICE SPUD GEN WB28K10693 Contact Us For Availability
20
ORIFICE HOLDER ASM GEN WB28K10696 Contact Us For Availability
21
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
21
SCR 8 HD 10-32 GEN WB01K10066 Contact Us For Availability
23
FL ORIFICE HOLDER GEN WB28K10740 Contact Us For Availability
24
LR ORIFICE HOLDER GEN WB28K10475 Contact Us For Availability
25
RR ORIFICE HOLDER GEN WB28K10741 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25K10010 Contact Us For Availability
43
SENSOR-OVEN GEN WB23X5340 Contact Us For Availability
50
ORIFICE-LP 89MM GEN WB28K10023 Contact Us For Availability
52
ORIFICE SPUD LP GEN WB28K10842 Contact Us For Availability
54
ORIFICE SPUD LP 86L GEN WB28K10215 Contact Us For Availability
55
VALVE BURNER 270 GEN WB21K10096 Contact Us For Availability
56
VALVE BURNER 270 HI-CAP GEN WB21K10080 Contact Us For Availability
58
VALVE BURNER 270 GEN WB21K10097 Contact Us For Availability
59
VALVE BURNER 270 GEN WB21K10119 Contact Us For Availability
61
TUBE MAIN DUAL VALVE GEN WB28K10698 Contact Us For Availability
62
TUBE SIMMER DUAL VALVE GEN WB28K10699 Contact Us For Availability
65
INJECT TOP BURNER ASM GEN WB28K10785 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
111
ELECTRODES HARNESS H. V. GEN WB18K10095 Contact Us For Availability
113
SIDE GRATE CAST GEN WB31K10219 Contact Us For Availability
114
RANGETOP GEN WB63K10283 Contact Us For Availability
115
CENTER GRATE CAST GEN WB31K10218 Contact Us For Availability
122
CKT SCREW GEN WB01K10106 Contact Us For Availability
128
LAMP INSULATION GEN WB02K10349 Contact Us For Availability
131
LENS GEN WB25K10009 Contact Us For Availability
134
ELECTRODE TOP GEN WB13T10080 Contact Us For Availability
150
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
151
ASM BURNER CAP (5000) GEN WB29K10022 Contact Us For Availability
152
CAP BURNER ASM (15K) GEN WB28K10222 Contact Us For Availability
153
BURNER CAP CENTRAL GEN WB29K10045 Contact Us For Availability
155
SMALL BURNER V 5K GEN WB16K10070 Contact Us For Availability
156
VISION BURNER XL GEN WB16K10062 Contact Us For Availability
157
3R BURNER ASM GEN WB16K10079 Contact Us For Availability
158
OVAL BURNER ASM GEN WB16K10076 Contact Us For Availability
159
BURNER MEDIUM (9500) GEN WB16K10055 Contact Us For Availability
160
SCREW TRILOBULAR GEN WB01K10110 Contact Us For Availability
161
THERMOSTAT GEN WB20K10017 Contact Us For Availability
162
BURNER CAP OUTER GEN WB29K10044 Contact Us For Availability
168
CLIP ELECTRODE GEN WB01K10114 Contact Us For Availability
169
VENTURI 15K LP GEN WB16K10083 Contact Us For Availability
171
HARNESS WIRE GLASS TOUCH GEN WB18T10386 Contact Us For Availability
205
COVER MOTOR GEN WB34K10099 Contact Us For Availability
209
PANEL SIDE BK GEN WB63K10119 Contact Us For Availability
210
BOTTOM OVEN GEN WB35K10209 Contact Us For Availability
214
PRESSURE REGULATOR GEN WB19K10018 Contact Us For Availability
221
HEATING ELEMENT BOTTOM GEN WB44K10015 Contact Us For Availability
221
HEATING ELEMENT TOP GEN WB44K10014 Contact Us For Availability
222
HINGE DOOR RIGHT GEN WB10K10037 Contact Us For Availability
222
HINGE DOOR LEFT GEN WB10K10036 Contact Us For Availability
233
PLUNGER SWITCH GEN WB24K10068 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
259
SLIDE & BEARING ASM GEN WB39K10025 Contact Us For Availability
259
SLIDE & BEARING ASM GEN WB39K10026 Contact Us For Availability
264
SUPPORT CATALYST GEN WB35K10028 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB02K10342 Contact Us For Availability
291
SUPPORT BROIL GEN WB02K10028 Contact Us For Availability
306
COVER DRAWER GEN WB55K10072 Contact Us For Availability
314
GLASS & PANEL DOOR ASM GEN WB57K10175 Contact Us For Availability
318
GASKET OVEN ASM GEN WB32K10052 Contact Us For Availability
319
CRYSTAL WINDOW GEN WB57K10174 Contact Us For Availability
351
PAN DRAWER GEN WB48K10033 Contact Us For Availability
352
RACK BAKING DRAWER GEN WB48K10010 Contact Us For Availability
359
BARRIER DOOR GEN WB07K10342 Contact Us For Availability
360
GASKET DRAWER ASM GEN WB04K10017 Contact Us For Availability
362
GASKET LOWER GEN WB04K10018 Contact Us For Availability
366
CATCH GEN WB02K10110 Contact Us For Availability
368
BUMPER, BLUE GEN WB02K10112 Contact Us For Availability
368
BUMPER GEN WB02K10343 Contact Us For Availability
388
SCR 10-16 AB TRW20 1/2 GEN WB01K10116 Contact Us For Availability
711
KNOB ASSEMBLY GEN WB03K10267 Contact Us For Availability
712
KNOB ASSEMBLY GEN WB03K10266 Contact Us For Availability
722
GEN WB34K10038 GEN WB34K10038 Contact Us For Availability
723
GEN WB35K10013 GEN WB35K10013 Contact Us For Availability
724
GEN WB02K10034 GEN WB02K10034 Contact Us For Availability
726
GEN WB26K10004 GEN WB26K10004 Contact Us For Availability
727
GEN WB34K10121 GEN WB34K10121 Contact Us For Availability
750
SWITCH LIMIT BIMETAL GEN WB24K10046 Contact Us For Availability
781
GRIDDLE GEN WB31K10220 Contact Us For Availability
800
SCR 8-18 AB IHW 3/8 SN GEN WB01K10042 Contact Us For Availability
910
BLOWER SERVICE KIT GEN WB26K10019 Contact Us For Availability
920
ENDCAP HANDLE GEN WB07K10426 Contact Us For Availability
960
GEN WB27K10389 GEN WB27K10389 Contact Us For Availability
1110
GEN WB21K10141 GEN WB21K10141 Contact Us For Availability
1120
GEN WB02K10178 GEN WB02K10178 Contact Us For Availability
1130
VENT MOTOR GEN WB02K10346 Contact Us For Availability
1200
BADGE GEN WD34X11435 Contact Us For Availability
1330
GEN WB10K10029 GEN WB10K10029 Contact Us For Availability
1600
GEN WB19K10059 GEN WB19K10059 Contact Us For Availability
× ![]()
