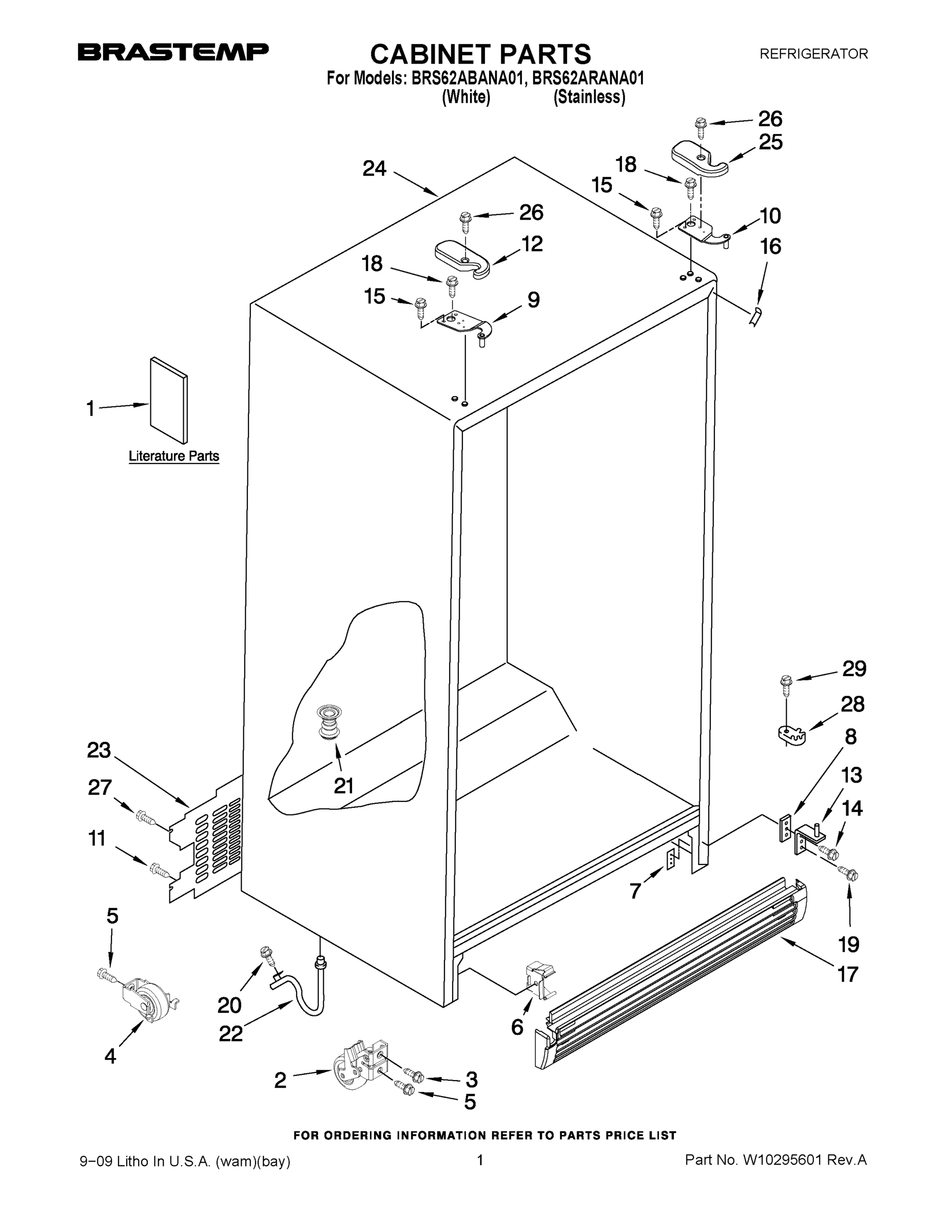

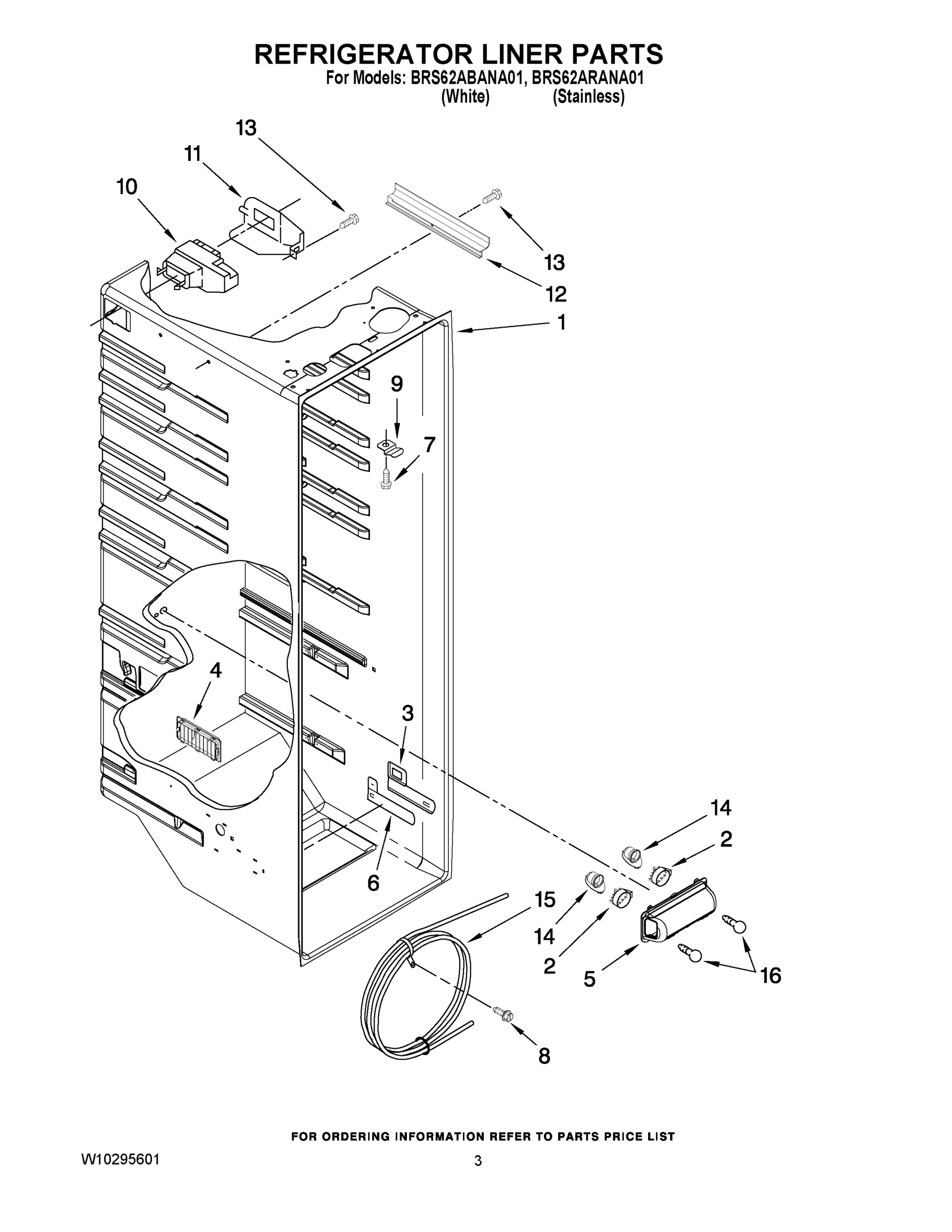

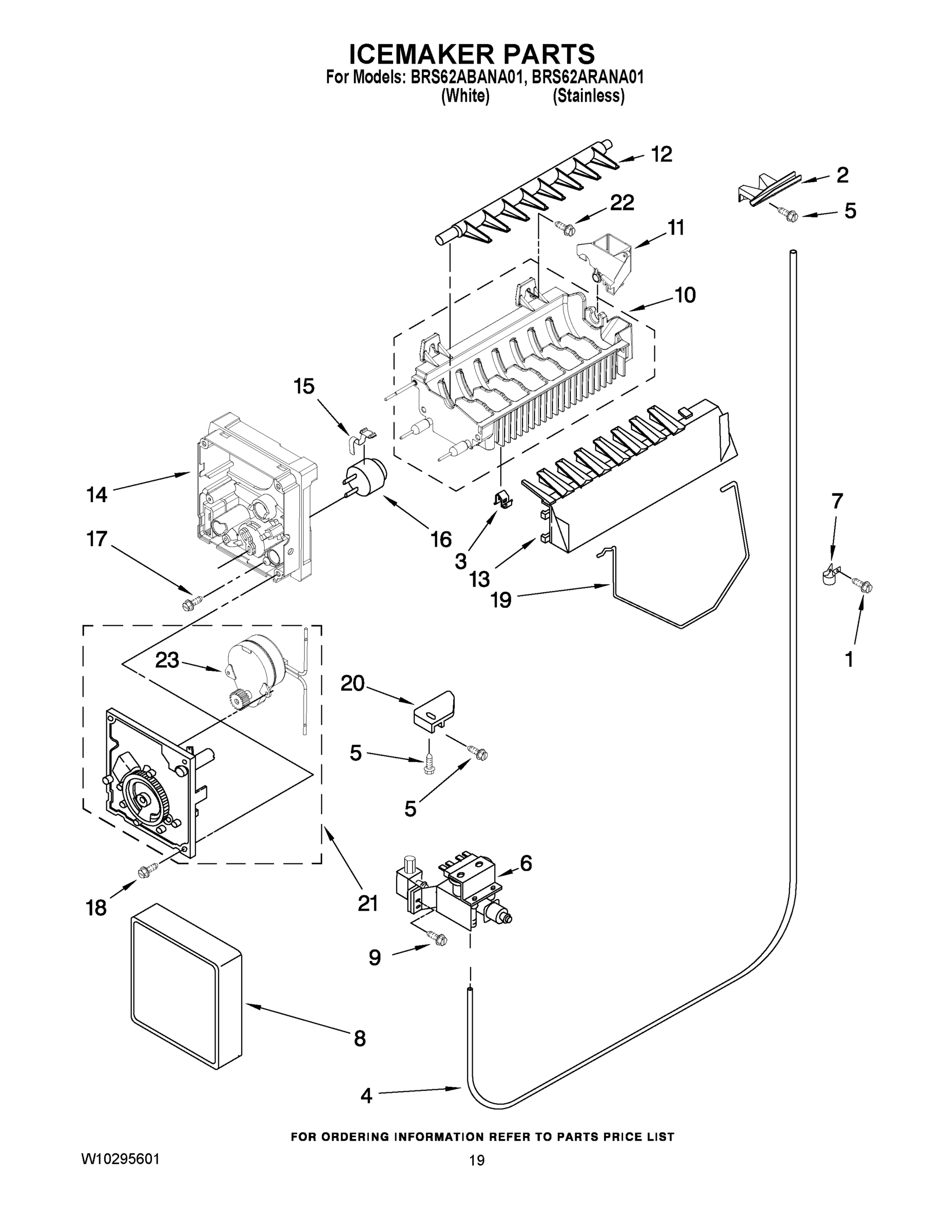

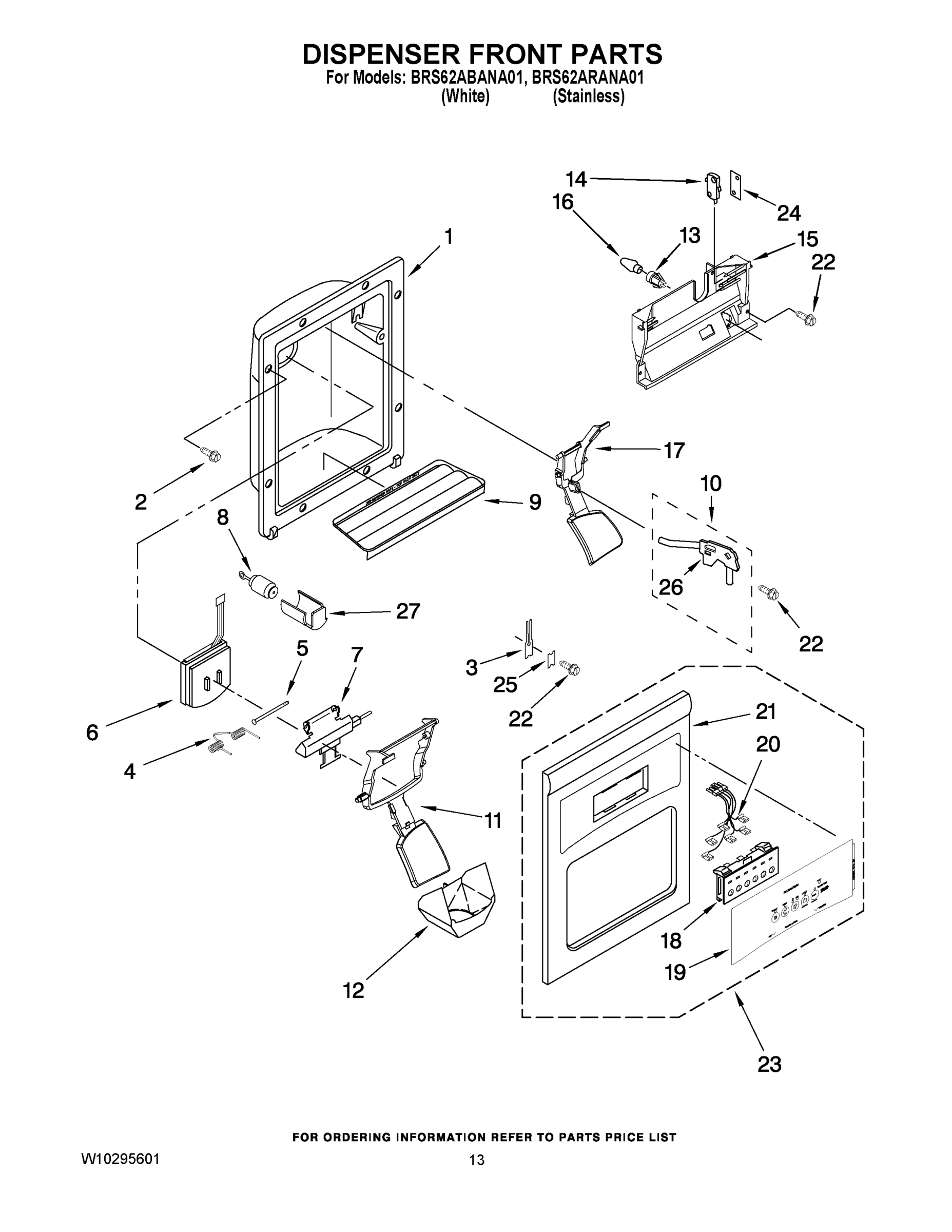

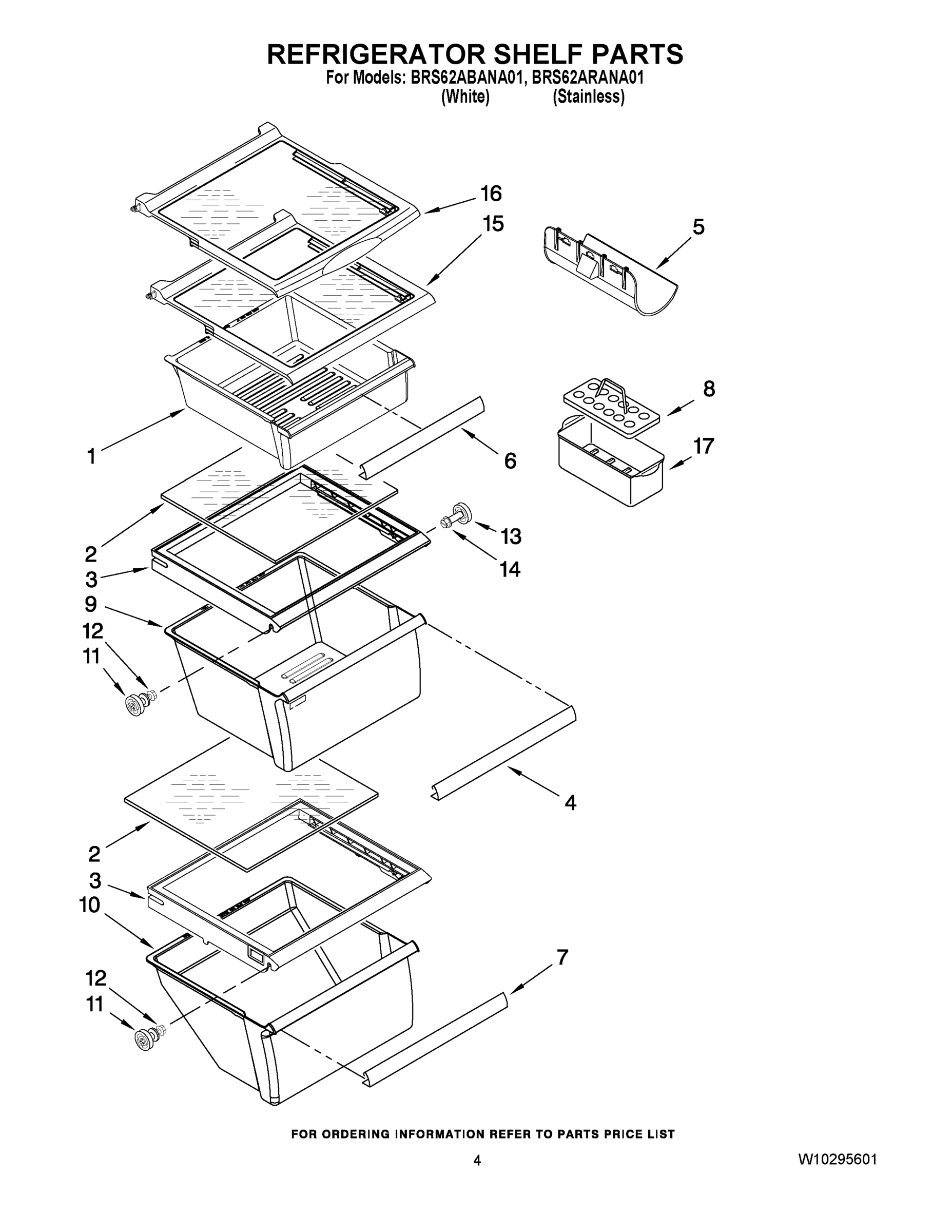

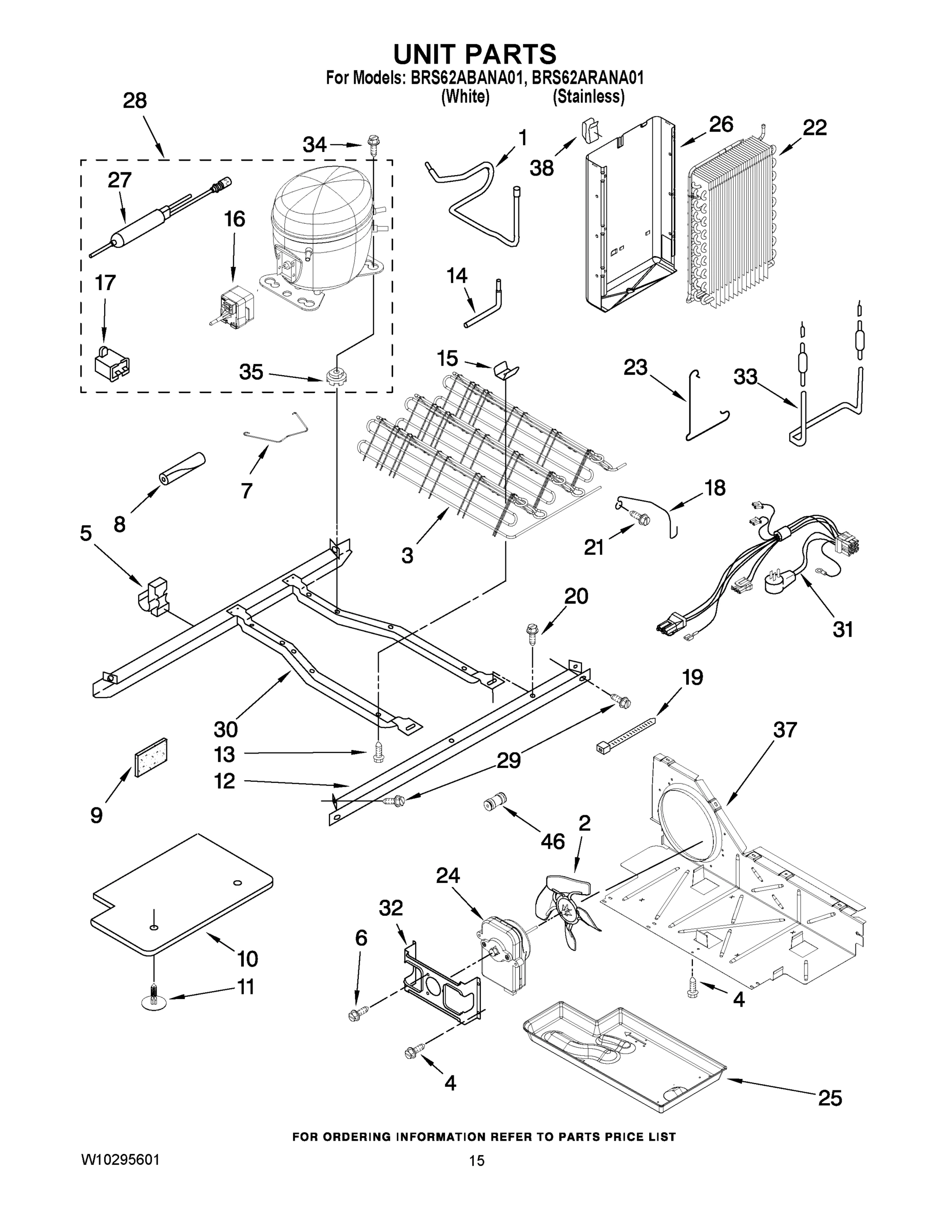

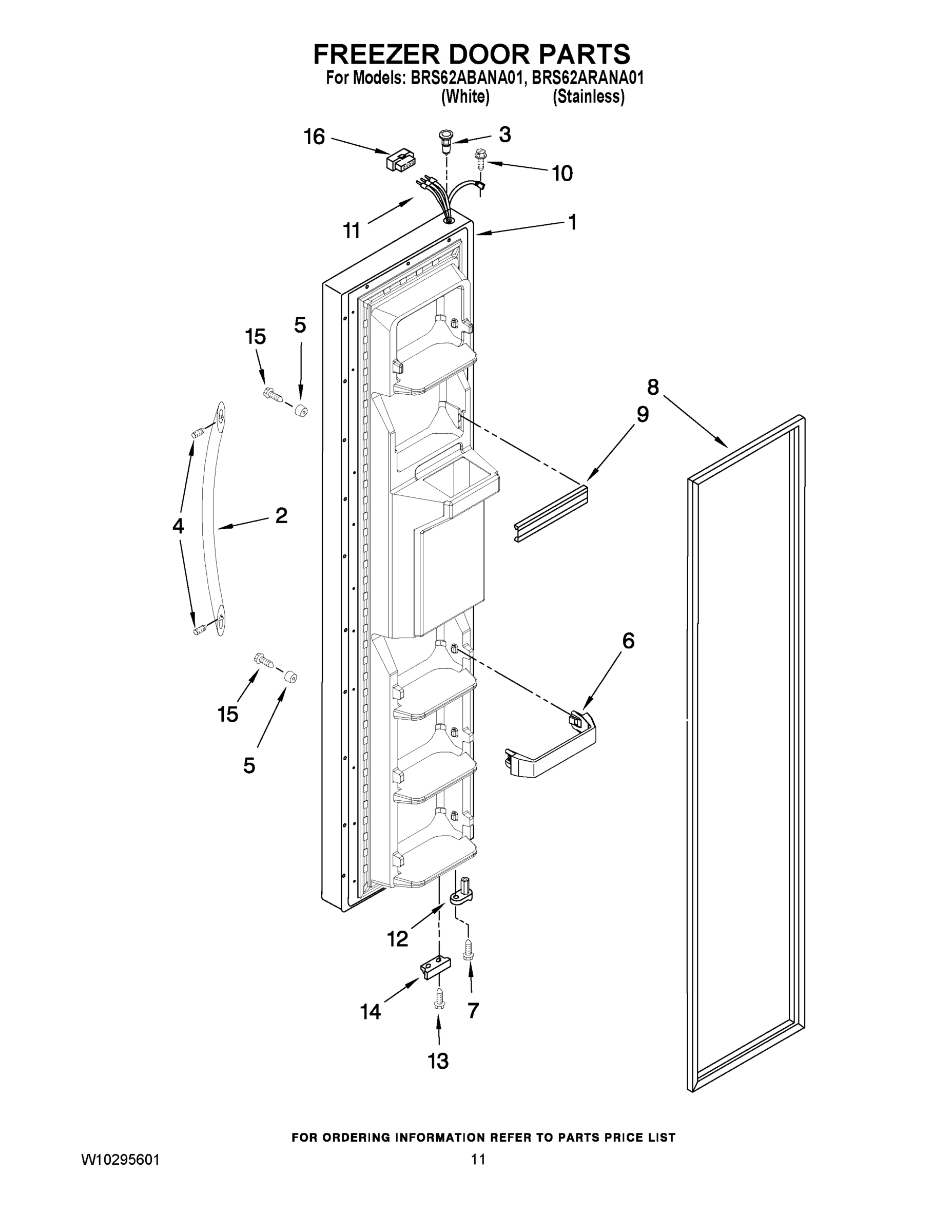

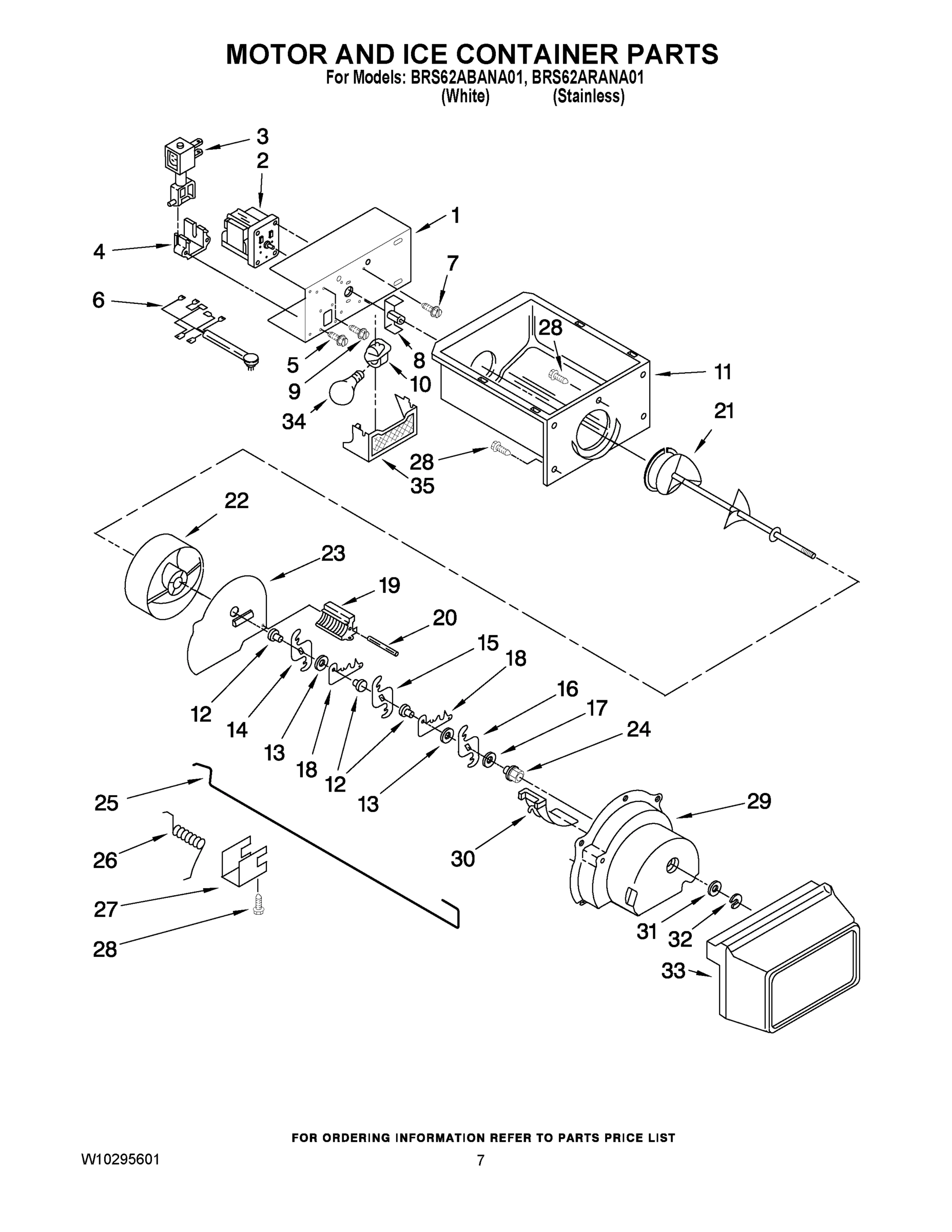

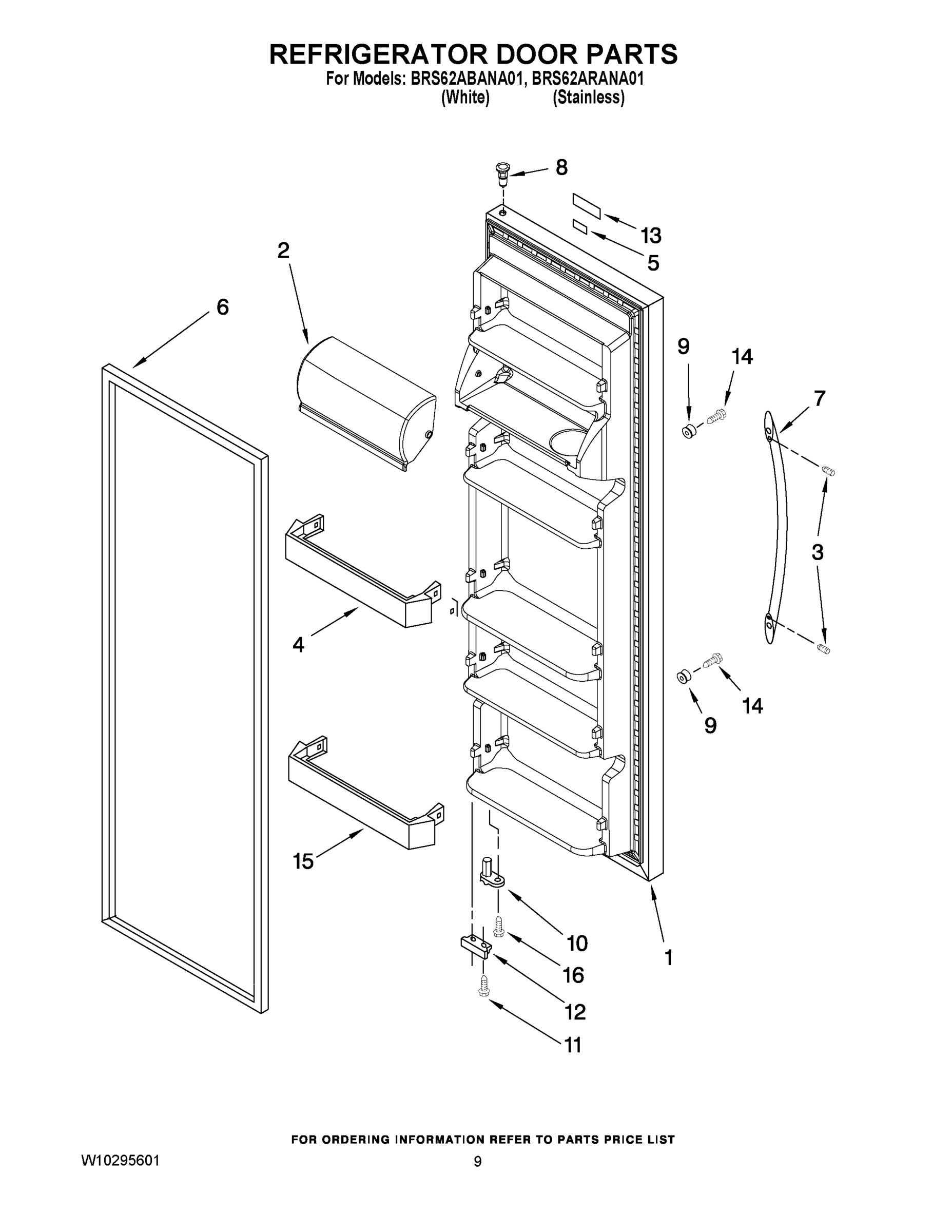

Model Whirlpool BRS62ARANA01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2309517 Whirlpool Crisper Snack Pan In Stock WPL WP2309517 $73.49

1

Bracket, Motor WPL 2254588 Contact Us For Availability

2

2311611 Whirlpool Refrigerator Bracket Backorder WPL 2311611 $8.73

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

2

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $9.59

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $65.49

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

WPW10130299 Whirlpool Refrigerator Cup Backorder WPL WPW10130299 $9.50

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

W10166220 Whirlpool Refrigerator Air Duct Backorder WPL W10166220 $38.27

5

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

5

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

6

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

6

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

6

W10136732 Whirlpool Refrigerator FIP Gasket In Stock WPL W10136732 $117.36

6

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $93.09

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

2254608S Whirlpool Handle Backorder WPL 2254608S $78.99

7

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

7

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $7.39

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

2311612 Whirlpool Refrigerator Clip Backorder WPL 2311612 $28.79

9

W10171992 Whirlpool Refrigerator Grille Backorder WPL W10171992 $28.80

9

W11553819 Whirlpool Refrigerator Insulation In Stock WPL W11553819 $9.59

9

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

9

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

9

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

W10252495 Whirlpool Refrigerator Wire Cover Backorder WPL W10252495 $27.45

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Pivot Arm WPL 1110559 Contact Us For Availability

Bracket, Door Stop (Apollo Grey) WPL 2321218AP Contact Us For Availability

Bracket, Door Stop (White) WPL 2321218W Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W11527119 Whirlpool Refrigerator Shelf Stud Backorder WPL W11527119 $4.12

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

Nameplate WPL 2321226 Contact Us For Availability

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WPW10191952 Whirlpool Refrigerator Screw Backorder WPL WPW10191952 $3.70

Screw WPL W10029730 Contact Us For Availability

15

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

15

WP2309941 Whirlpool Refrigerator Door Bar Tri In Stock WPL WP2309941 $43.04

15

WPW10276341 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276341 $135.64

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $59.55

WPW10276348 Whirlpool Refrigerator Glass Shel In Stock WPL WPW10276348 $117.02

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Screw WPL W10029760 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

WP2255432AP Whirlpool Refrigerator Dispenser Backorder WPL WP2255432AP $39.58

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

18

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

18

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

18

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

19

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

19

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

19

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $97.41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Fastener, Push-On WPL 489285 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

23

2311615 Whirlpool Refrigerator Knob Backorder WPL 2311615 $30.73

23

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

23

Clamp WPL 2161324 Contact Us For Availability

24

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

24

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

26

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

26

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

26

WPW10194474 Whirlpool Refrigerator Shield Backorder WPL WPW10194474 $52.17

27

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

29

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

33

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

34

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

37

Air Baffle WPL W10163483 Contact Us For Availability

100

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $219.07

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
