Model IPSO BD3LXFSS401UN01 Dryer – Common Parts & Diagrams

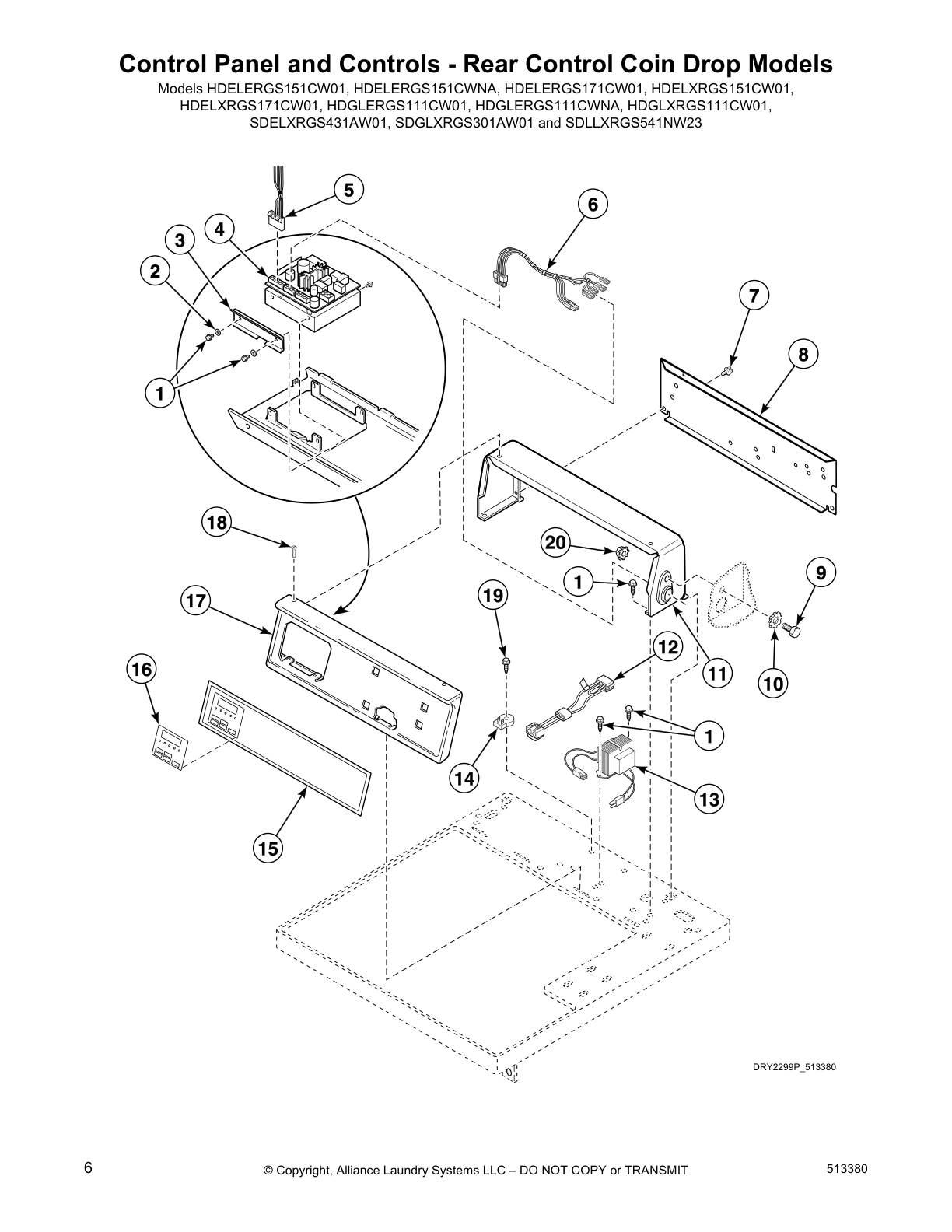

Control Panel and Controls - Rear Control Coin Drop Models

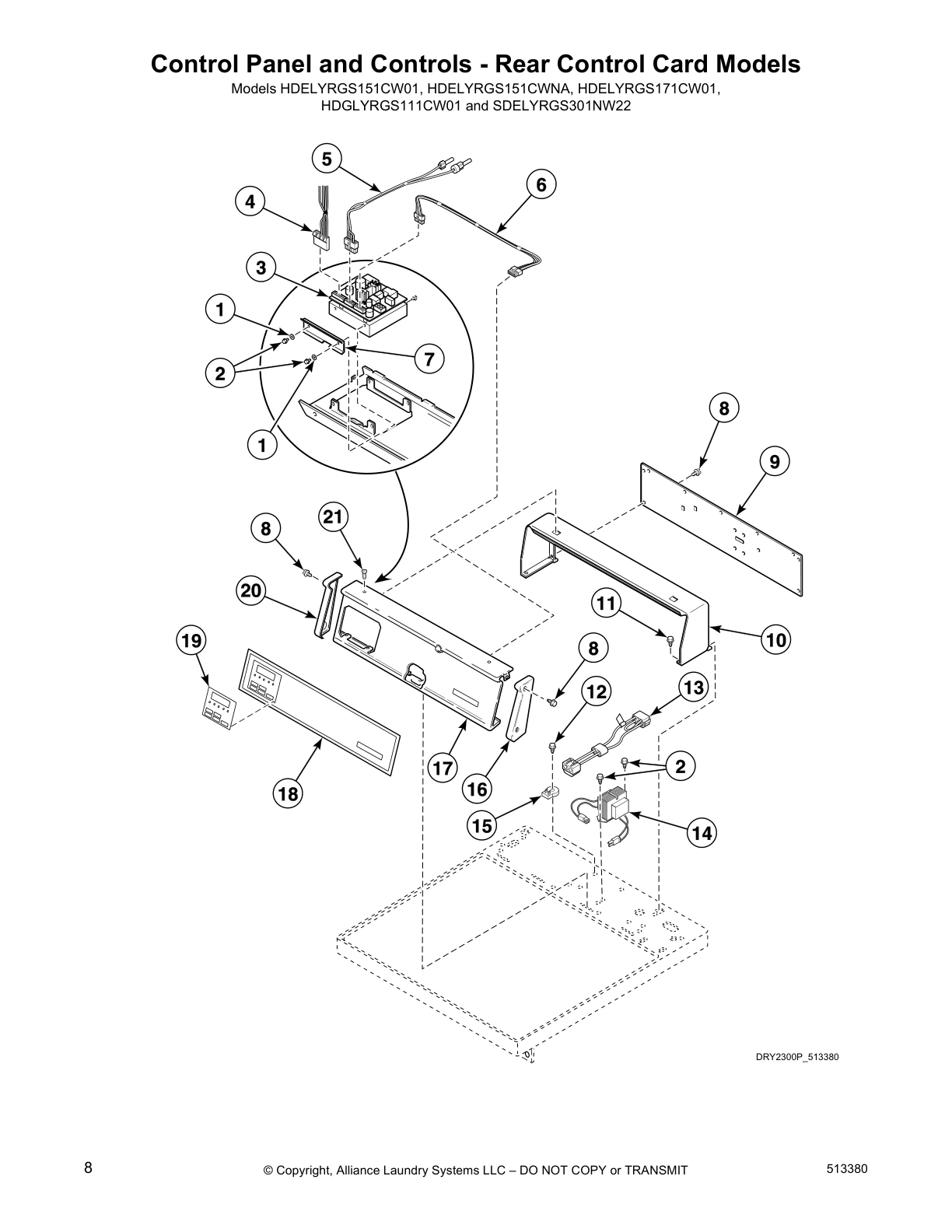

Control Panel and Controls - Rear Control Card Models

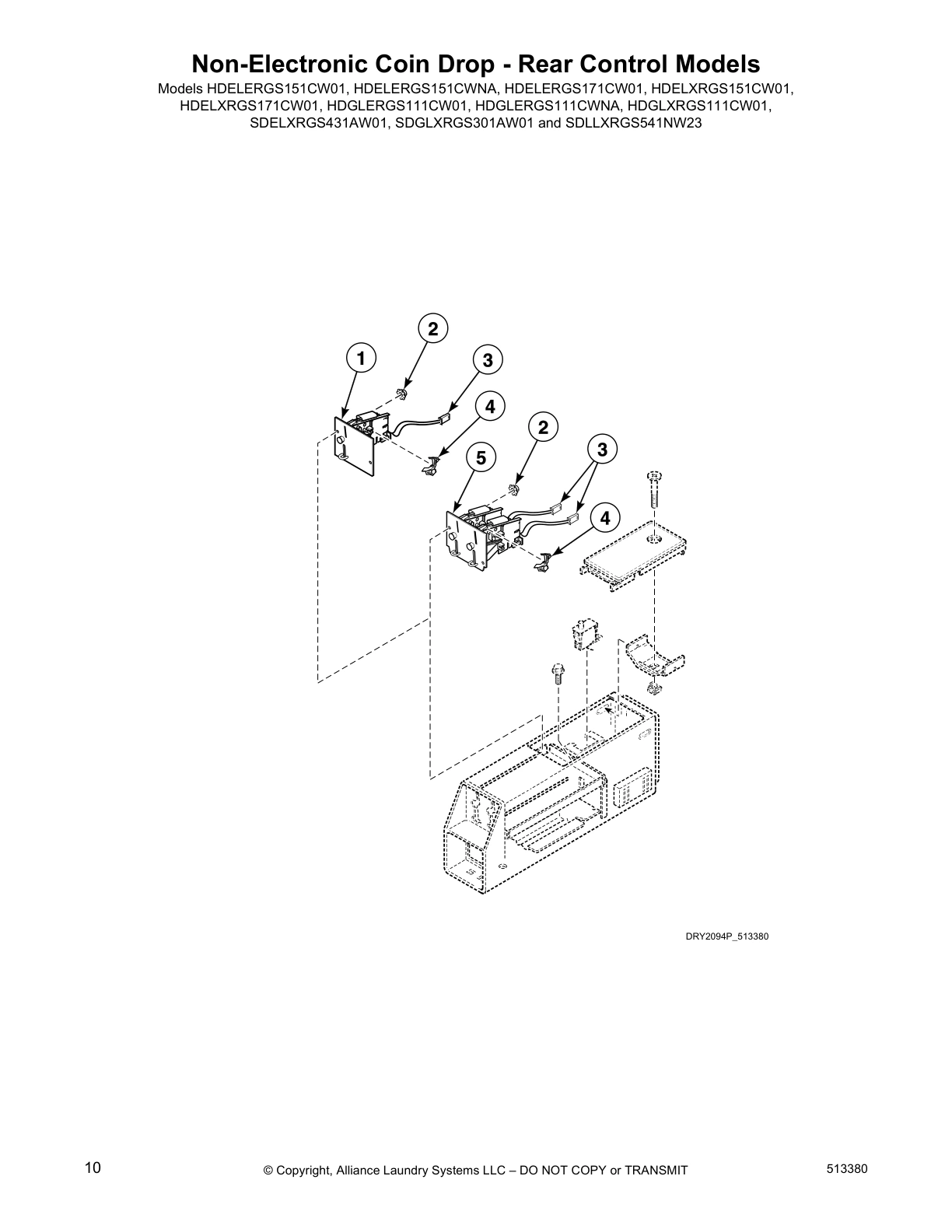

Non-Electronic Coin Drop - Rear Control Models

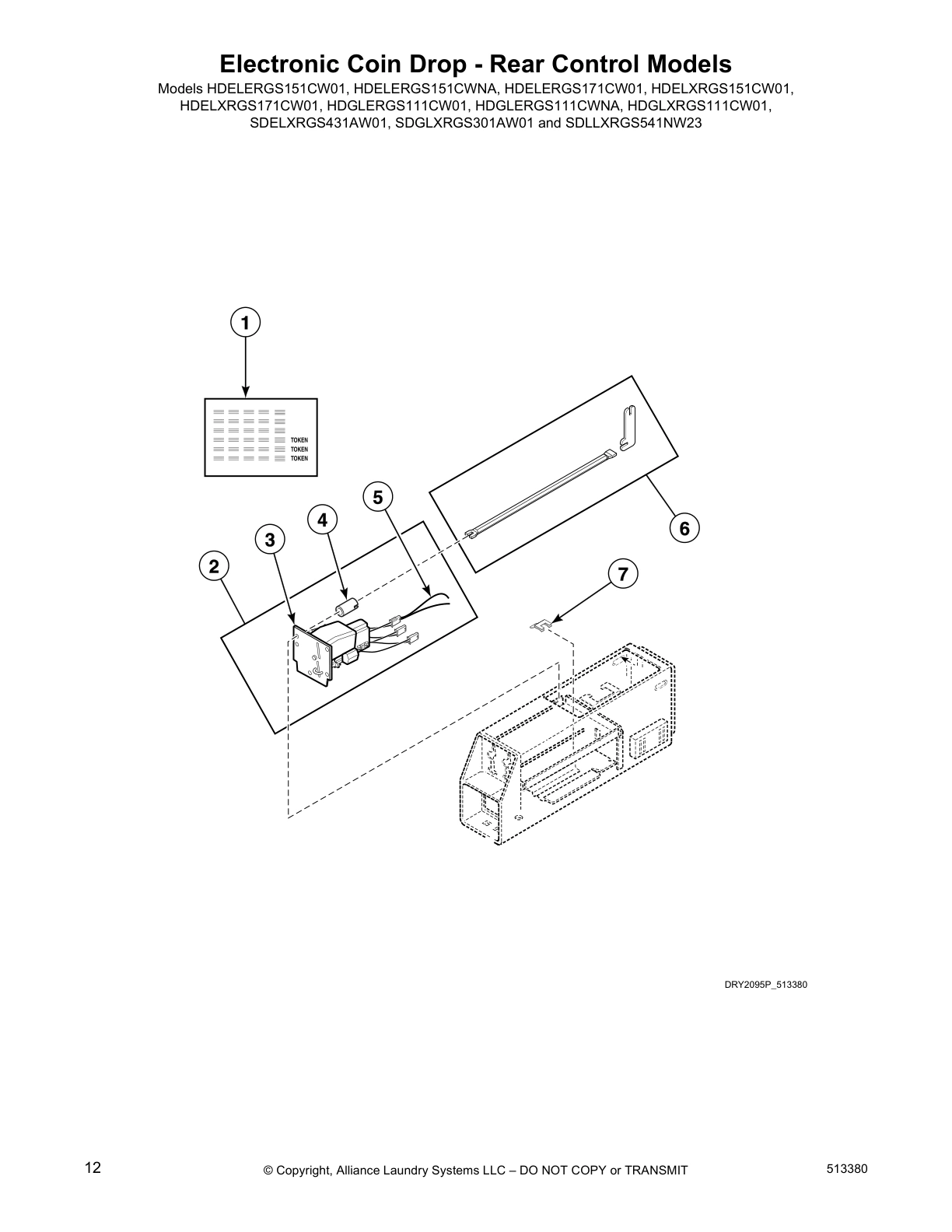

Electronic Coin Drop - Rear Control Models

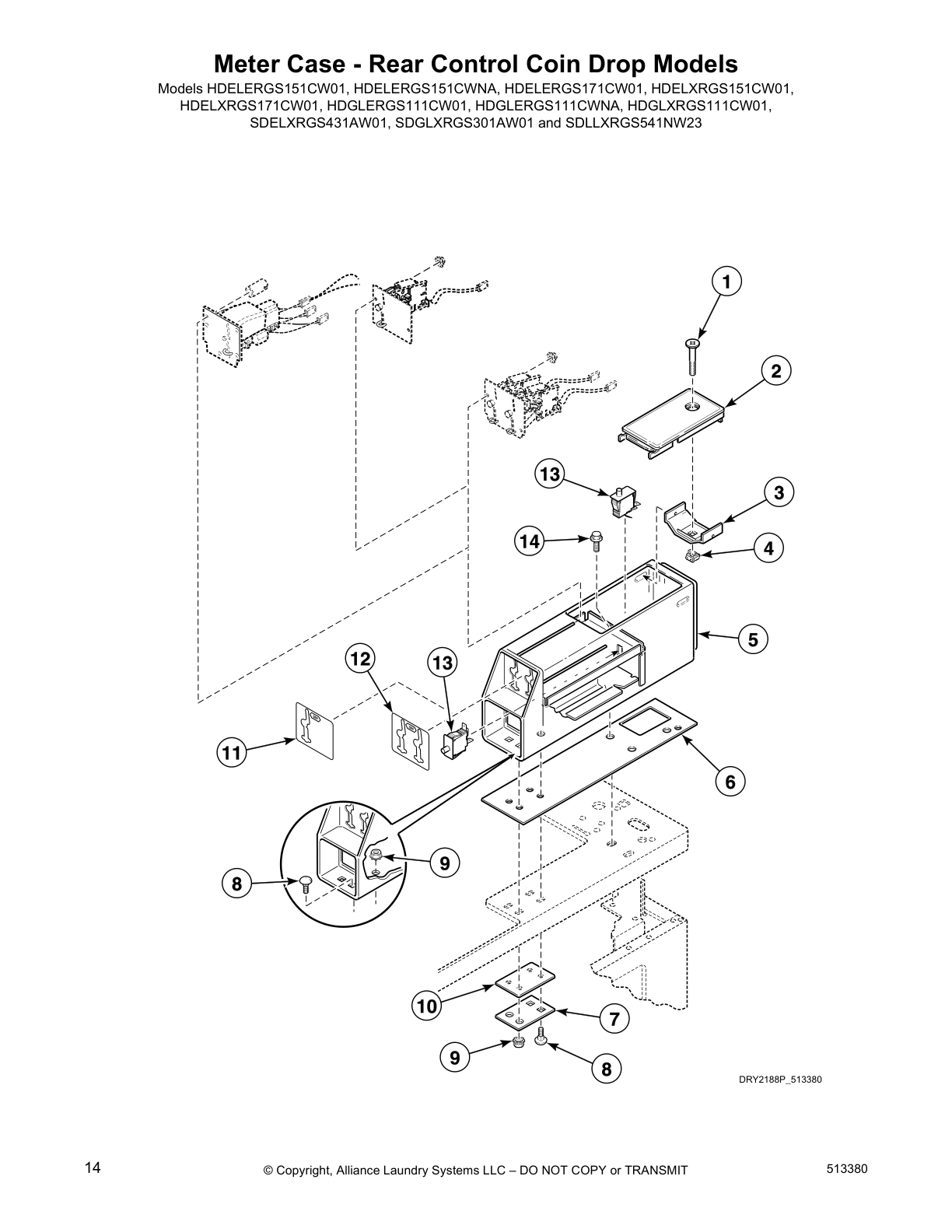

Meter Case - Rear Control Coin Drop Models

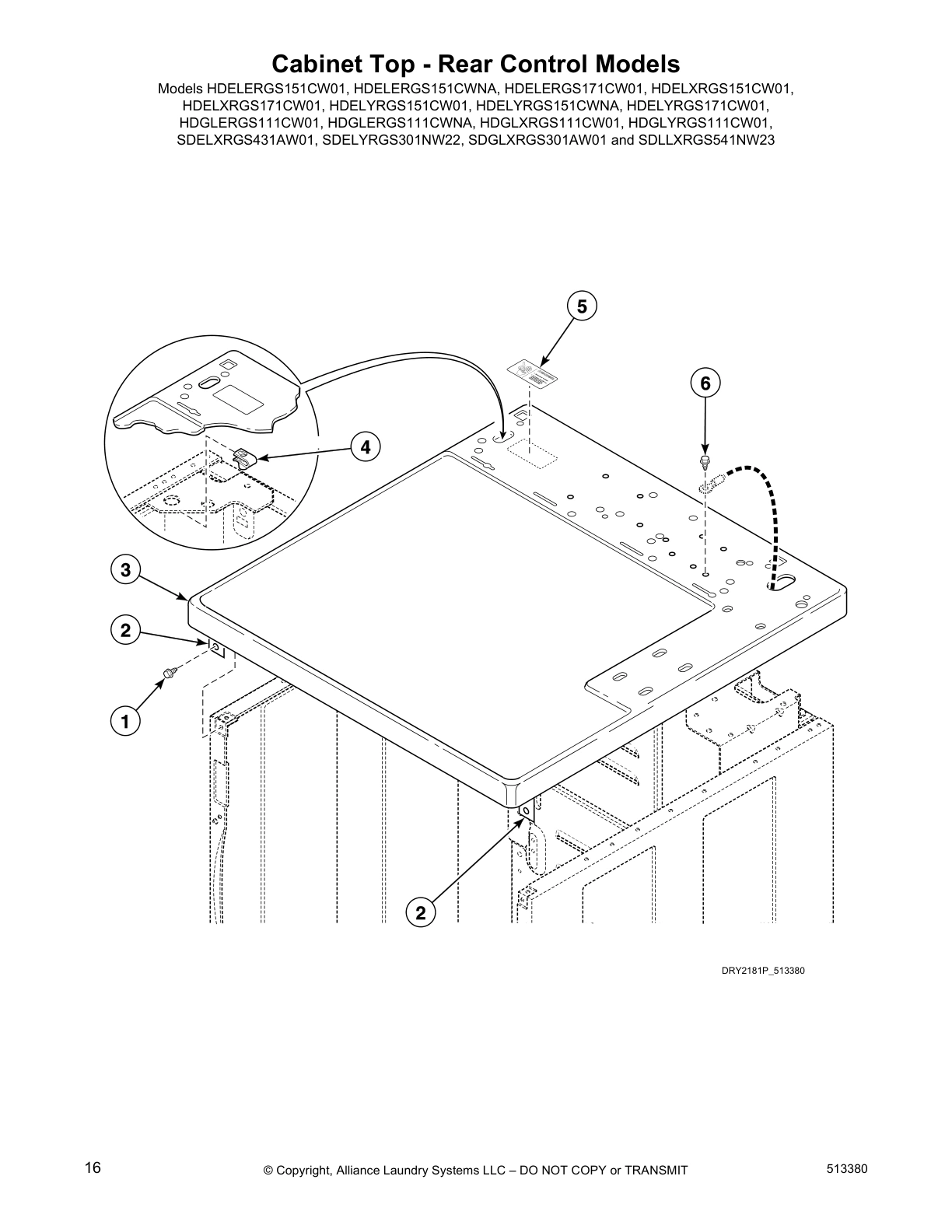

Cabinet Top - Rear Control Models

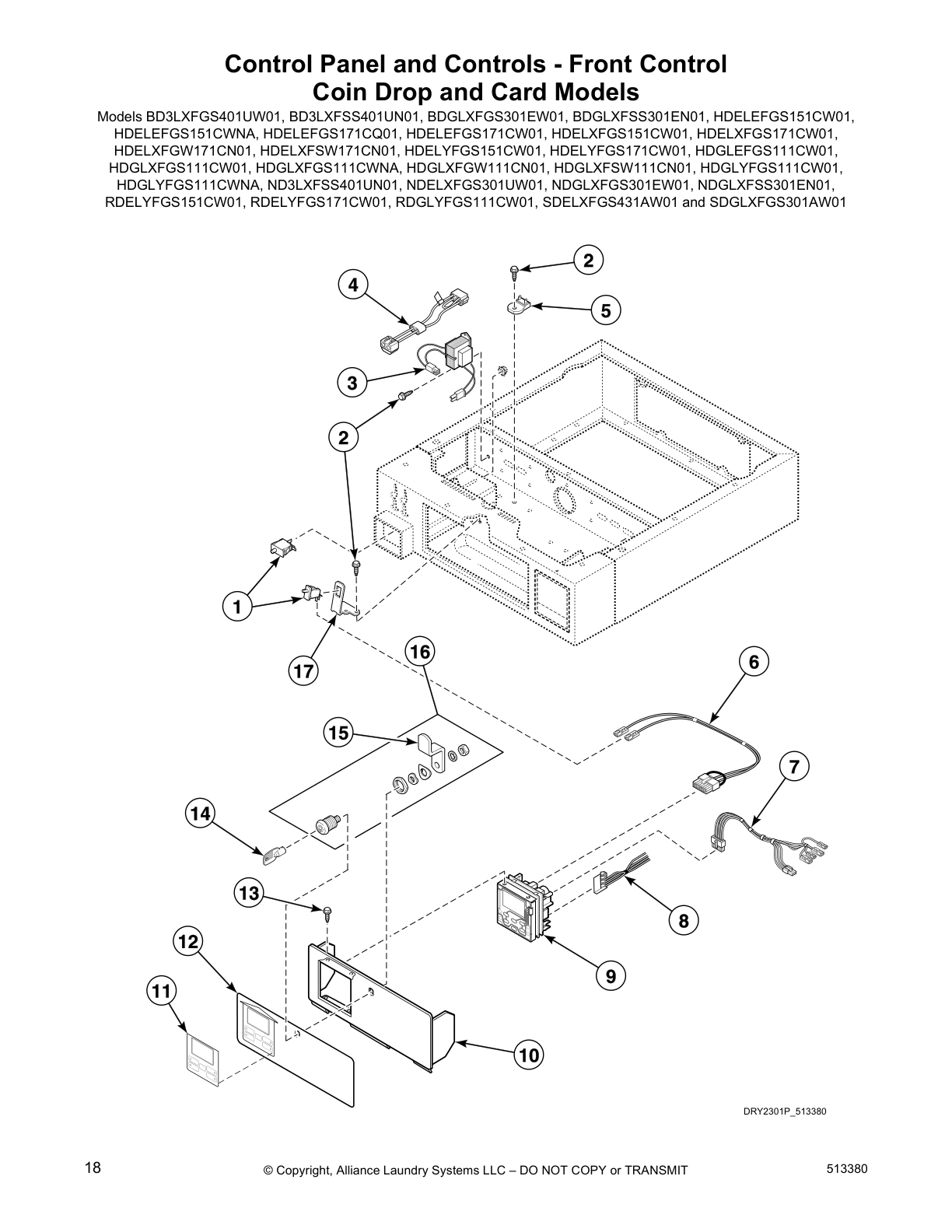

Control Panel and Controls - Front Control Coin Drop and Card Models

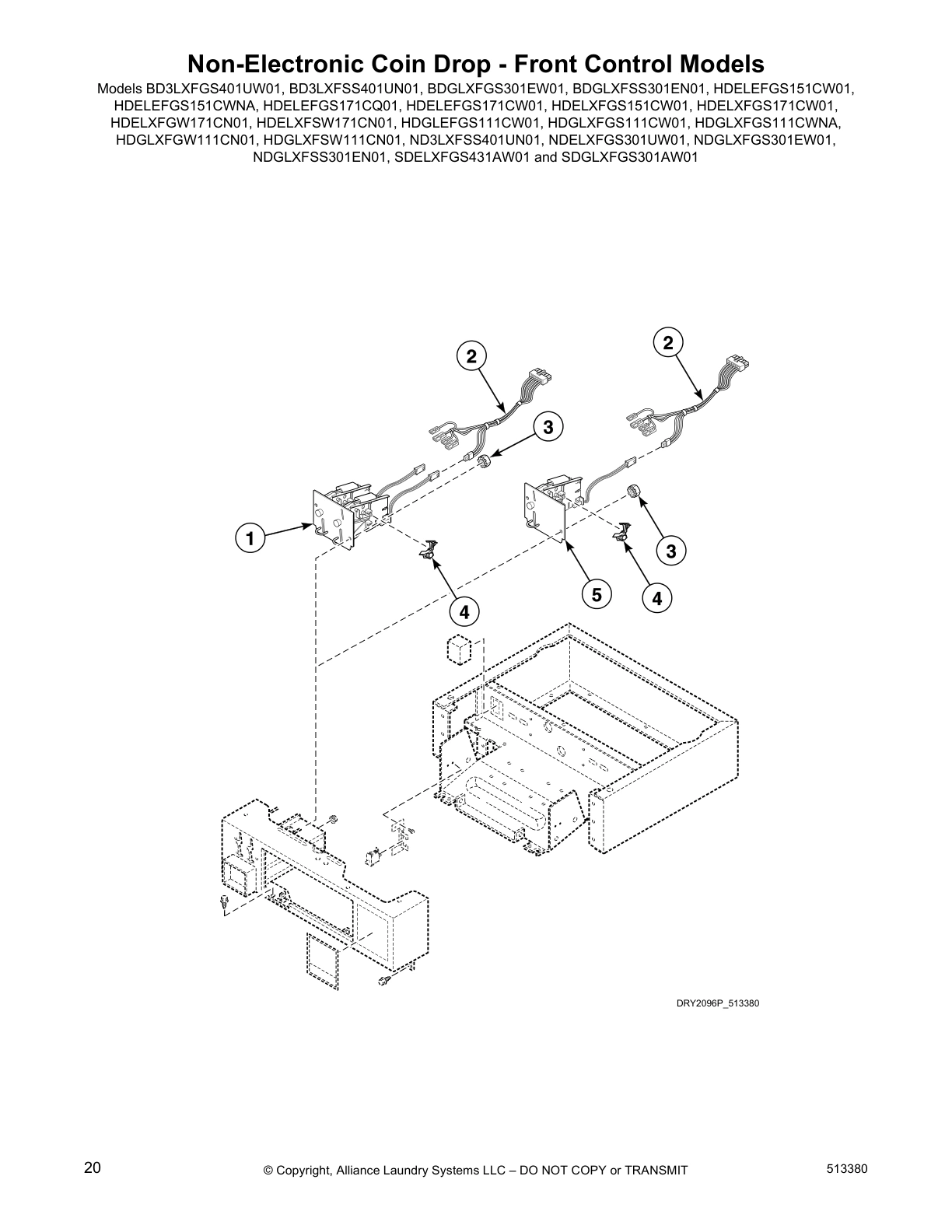

Non-Electronic Coin Drop - Front Control Models

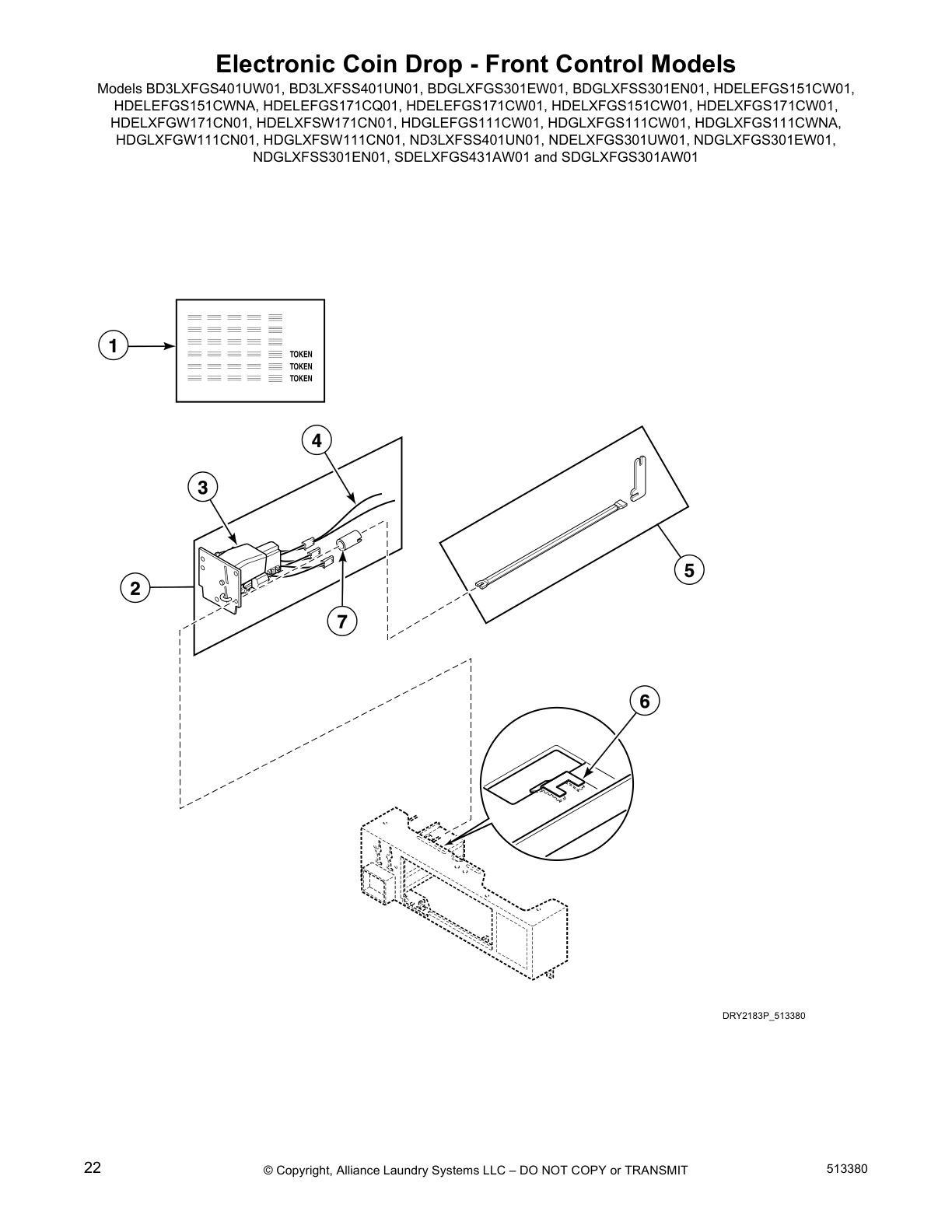

Electronic Coin Drop - Front Control Models

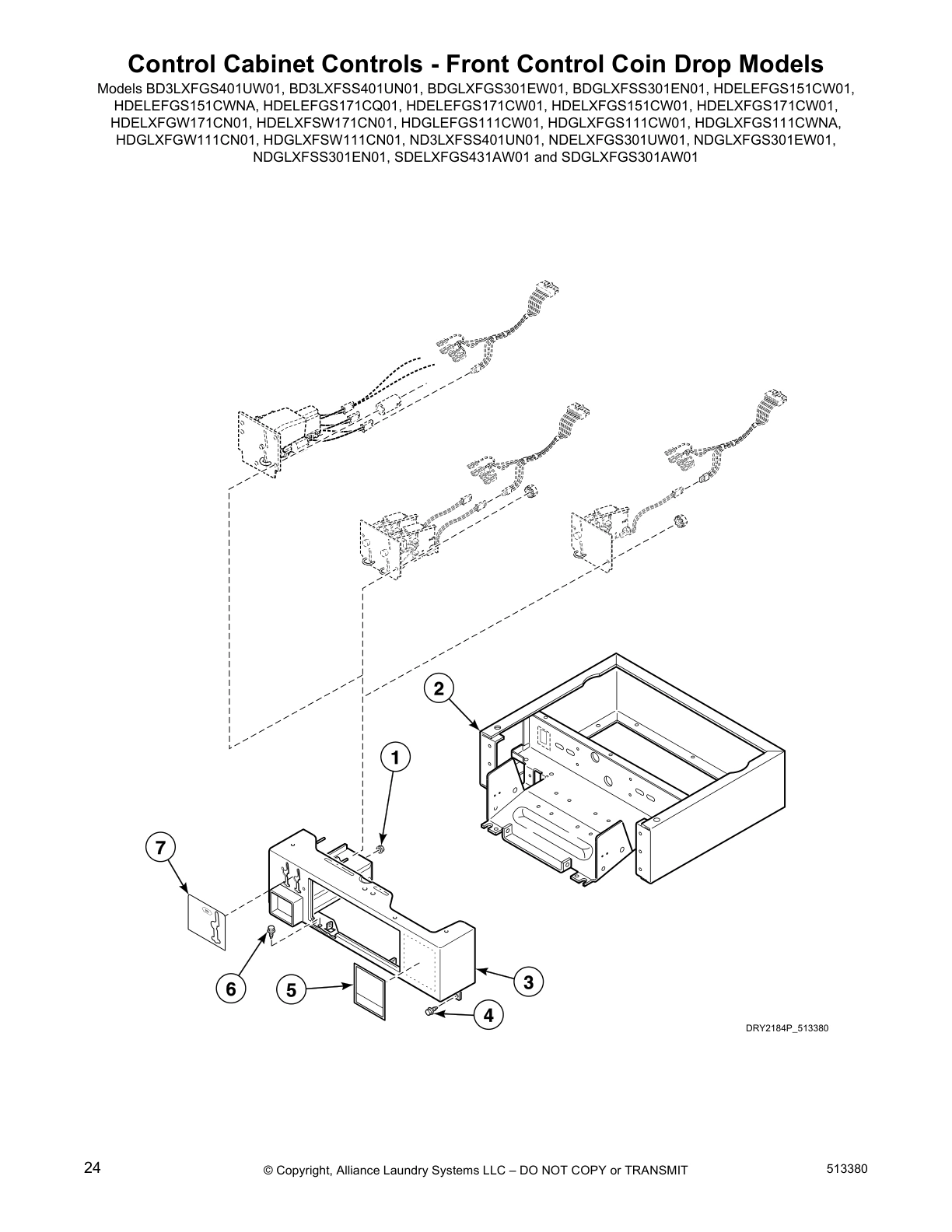

Control Cabinet Controls - Front Control Coin Drop Models

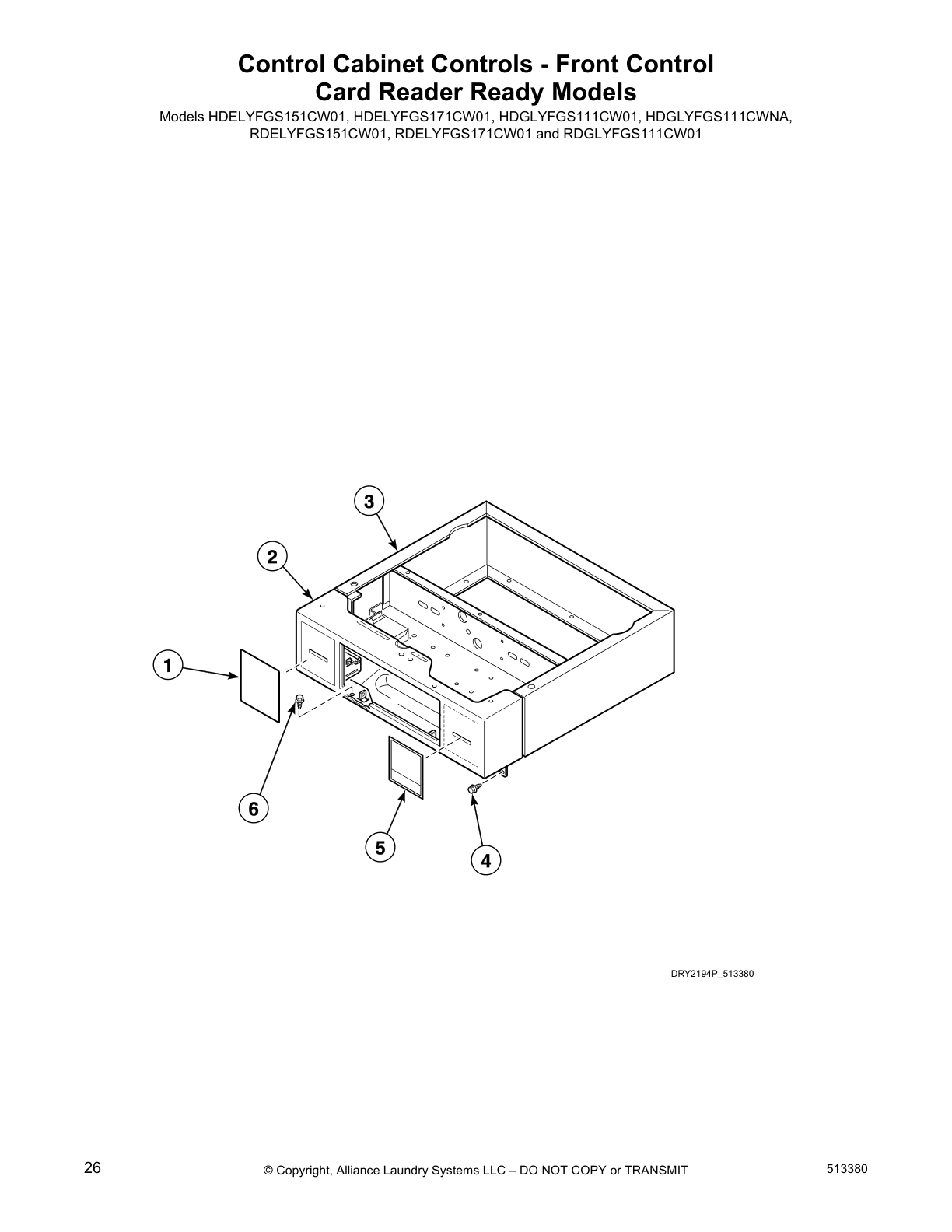

Control Cabinet Controls - Front Control Card Reader Ready Models

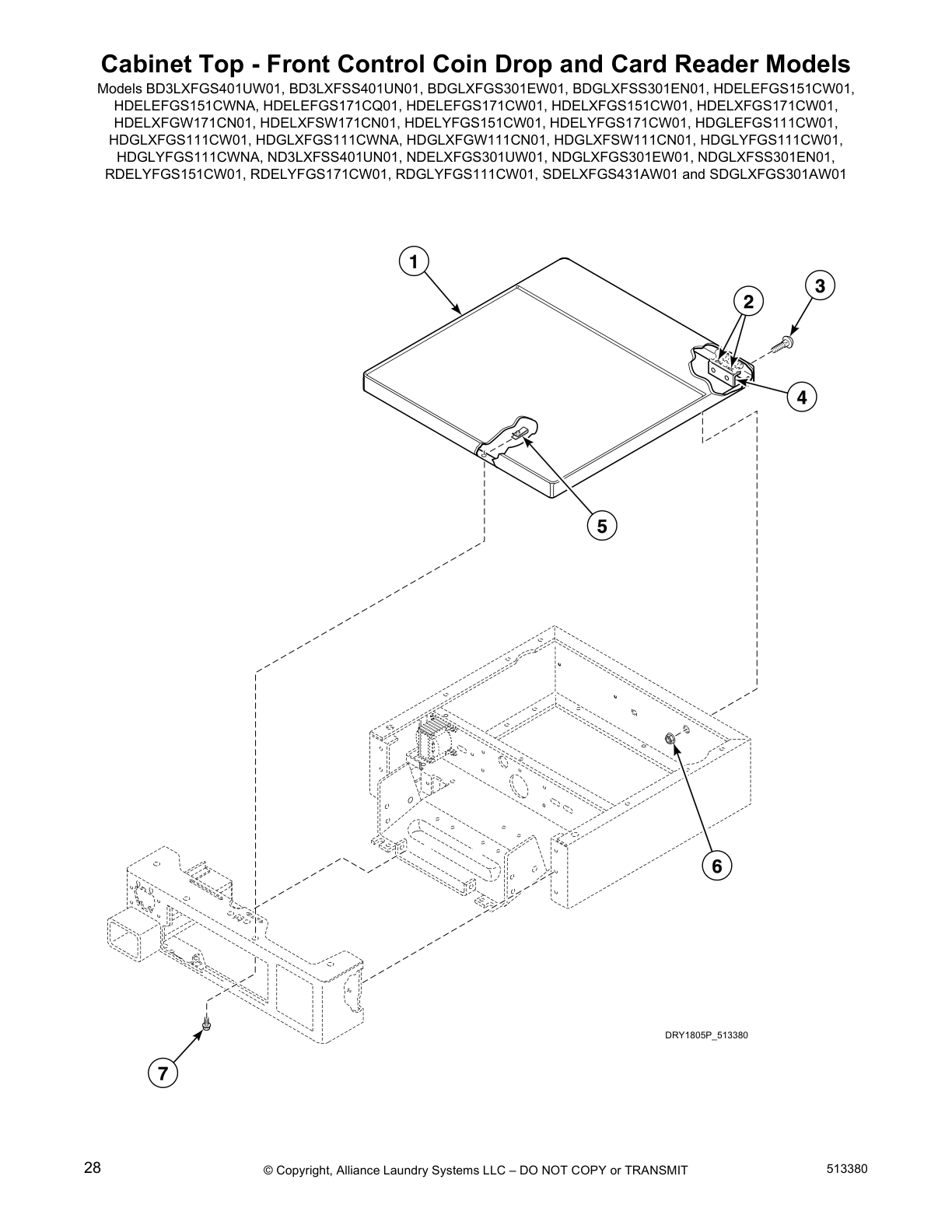

Cabinet Top - Front Control Coin Drop and Card Reader Models

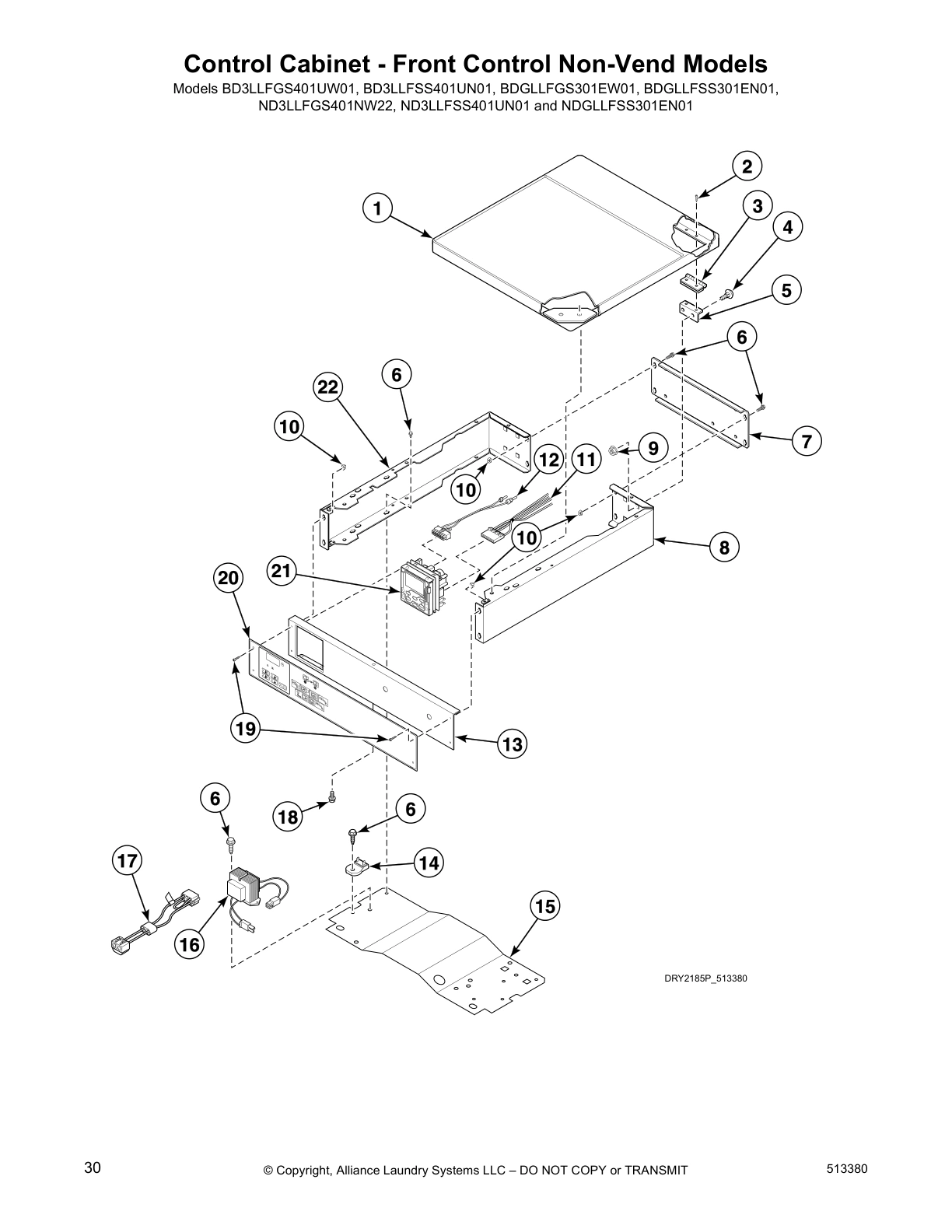

Control Cabinet - Front Control Non-Vend Models

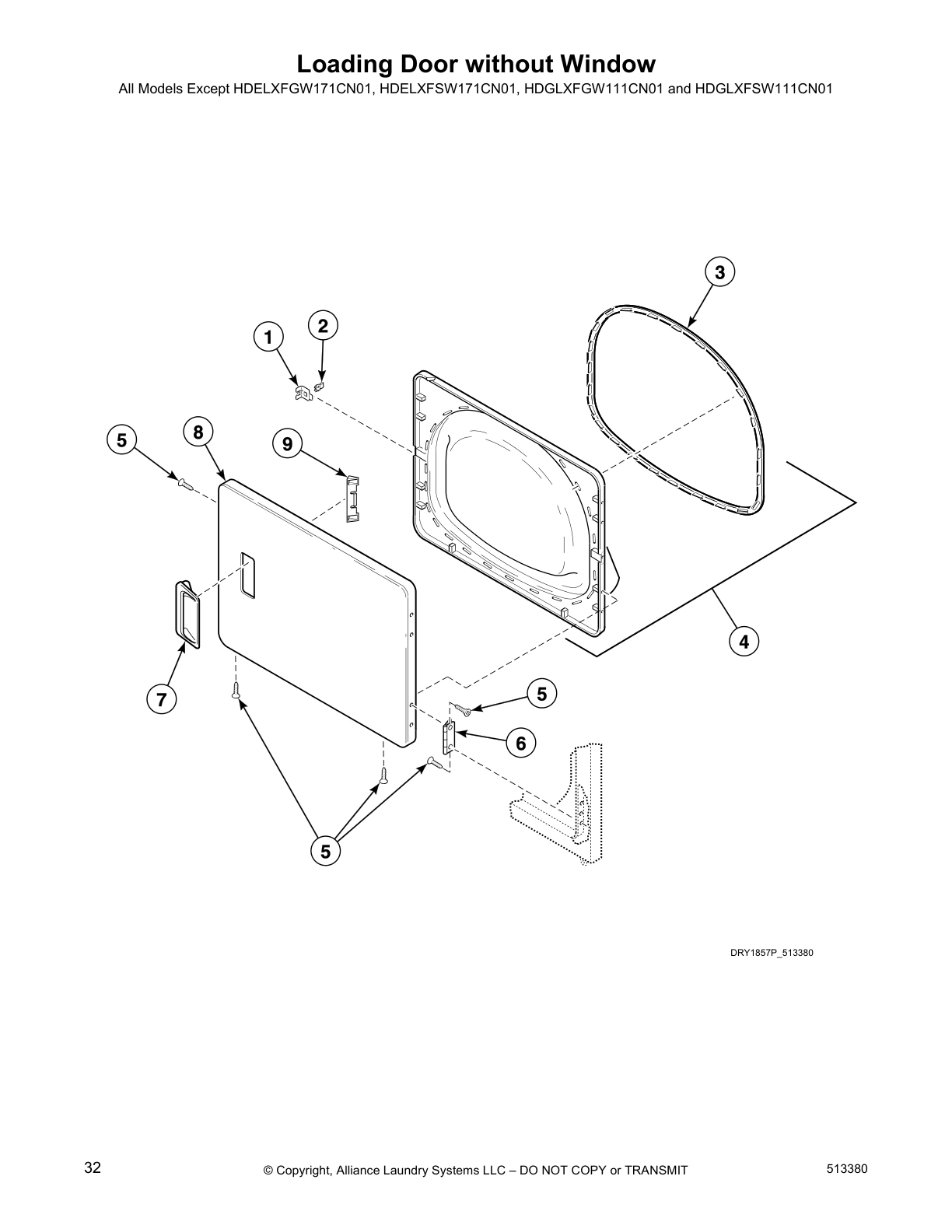

Loading Door without Window

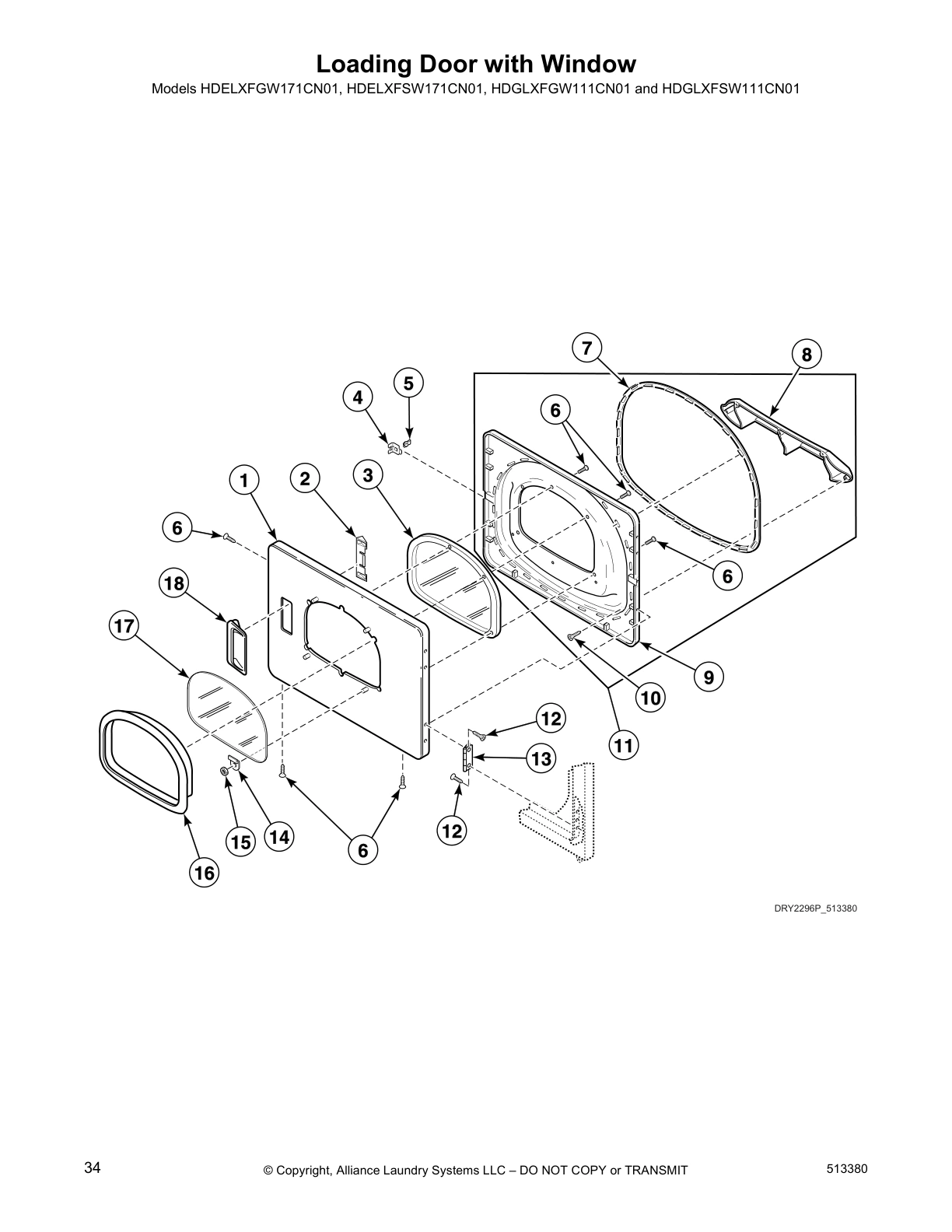

Loading Door with Window

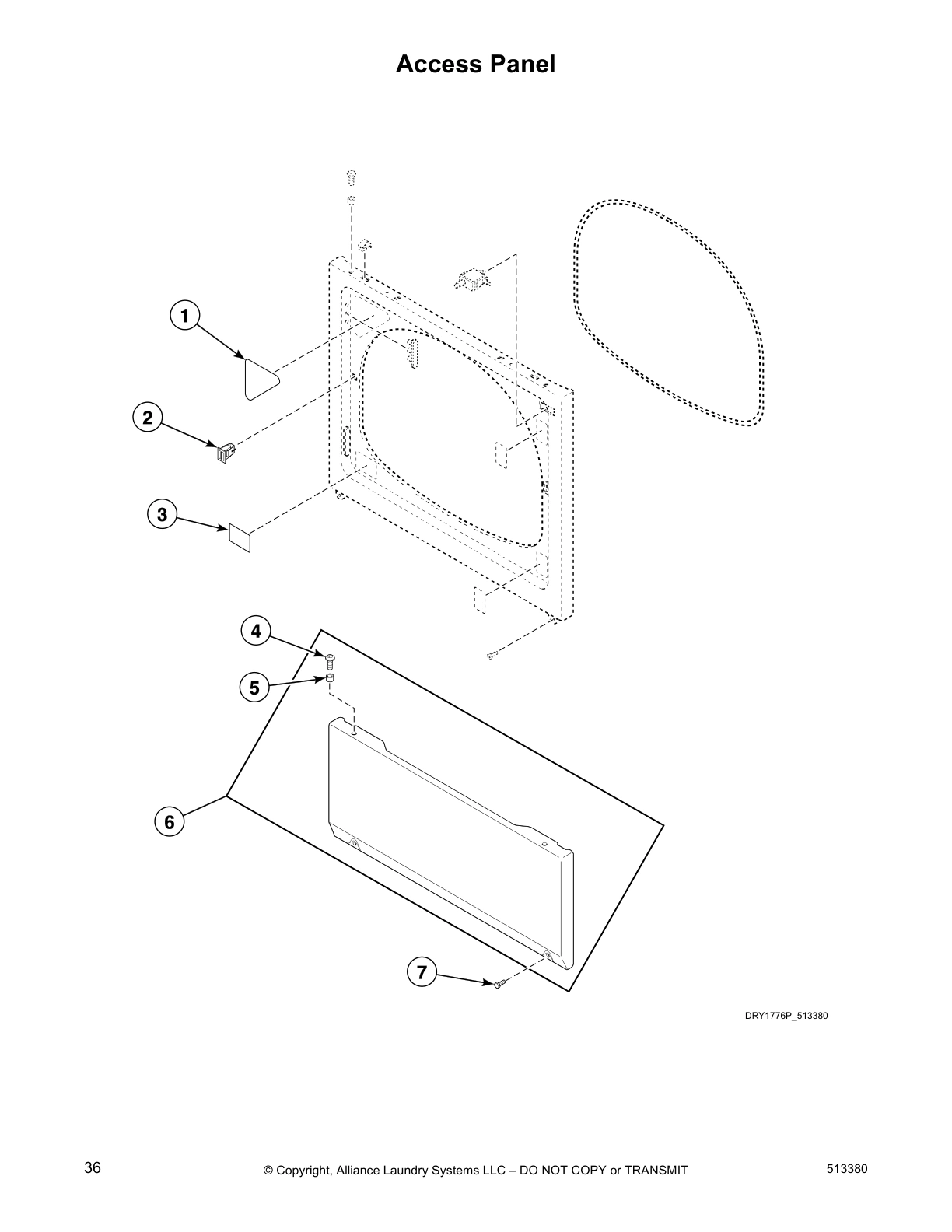

Access Panel

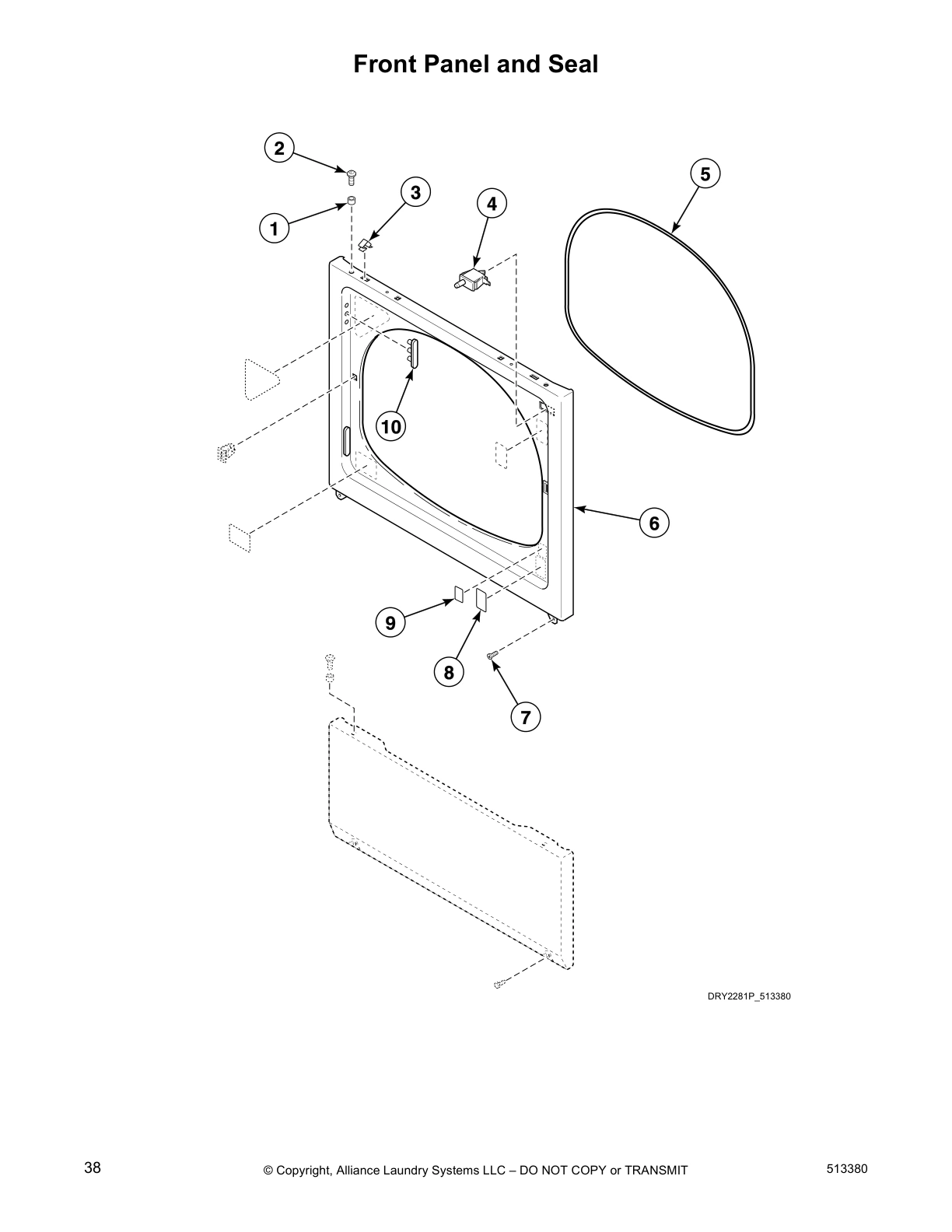

Front Panel and Seal

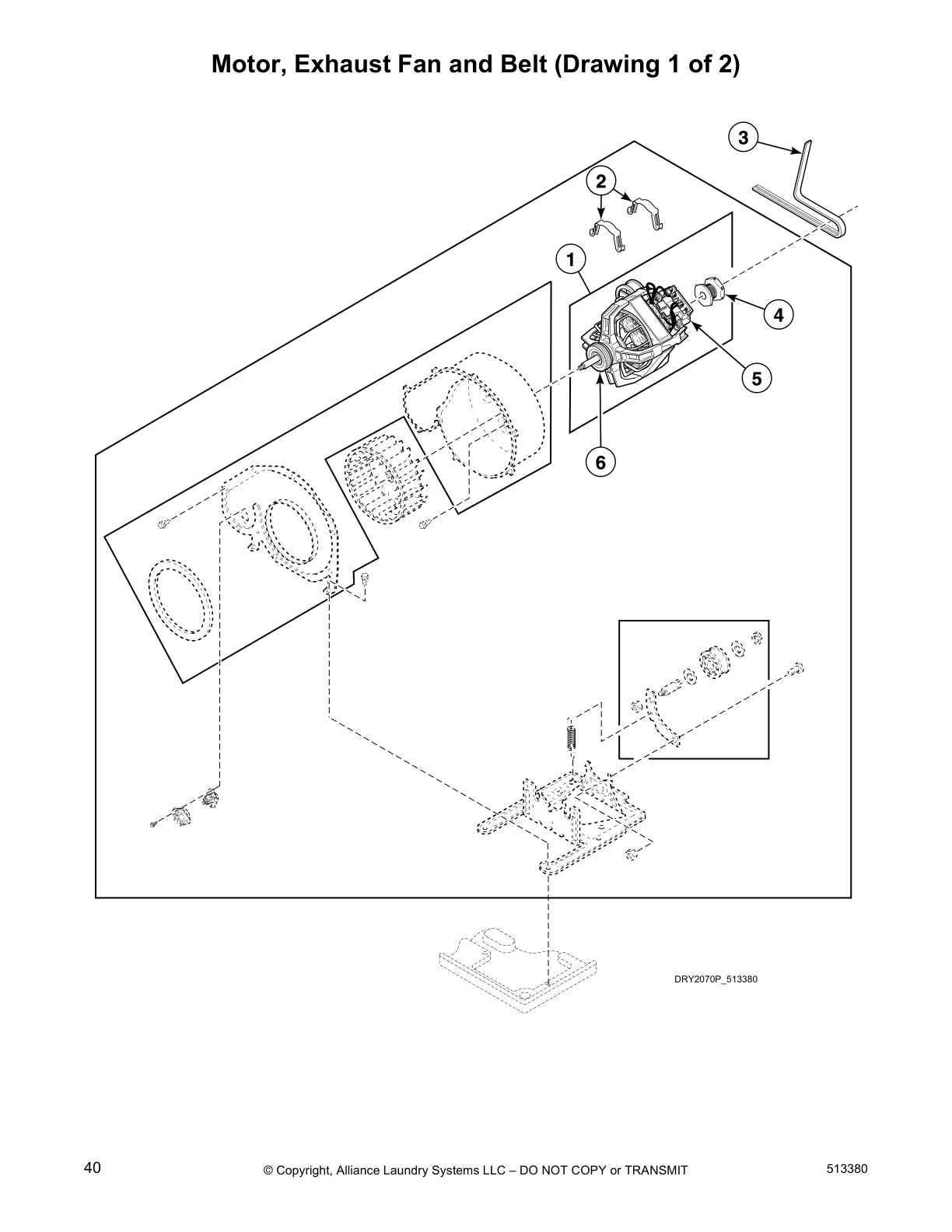

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

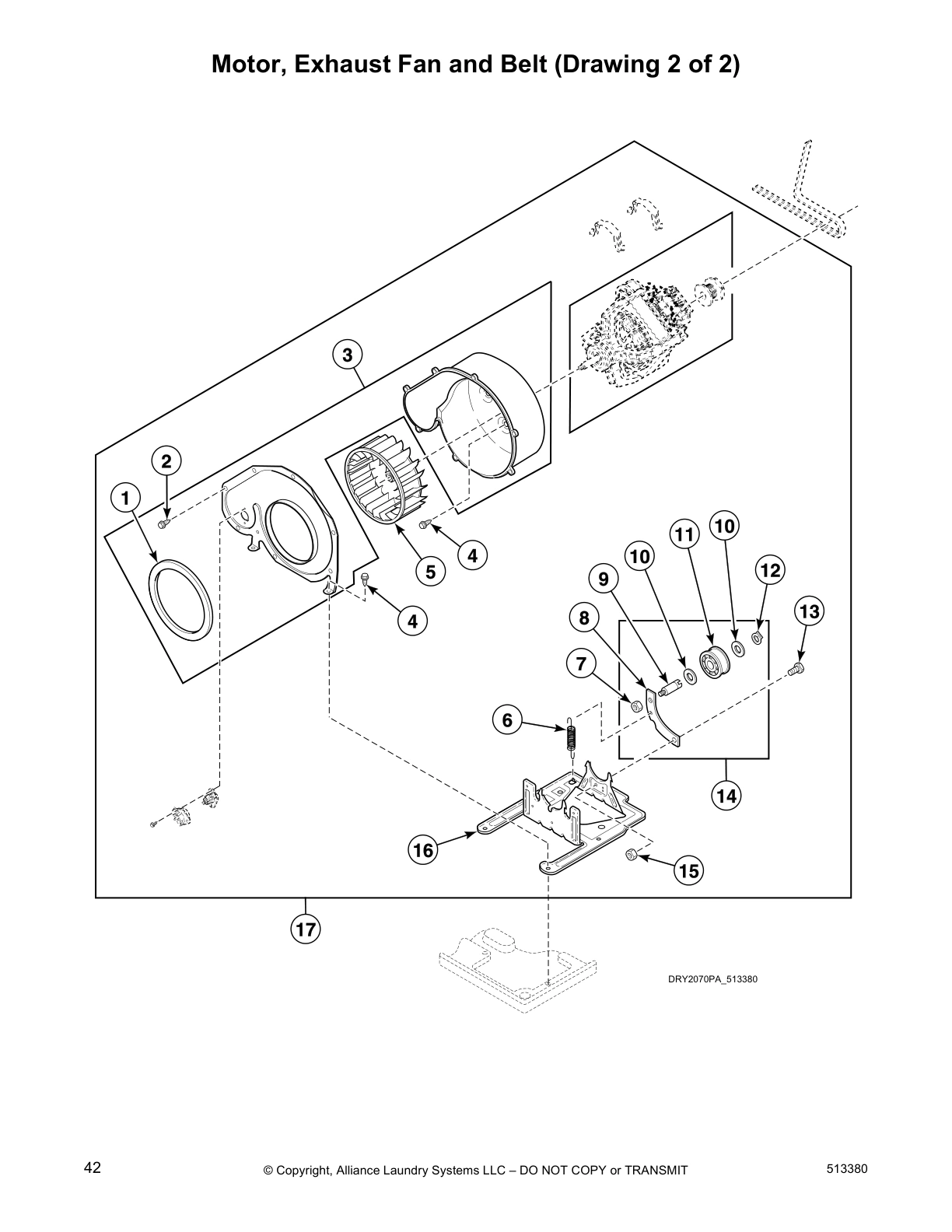

Motor, Exhaust Fan and Belt (Drawing 2 of 2)

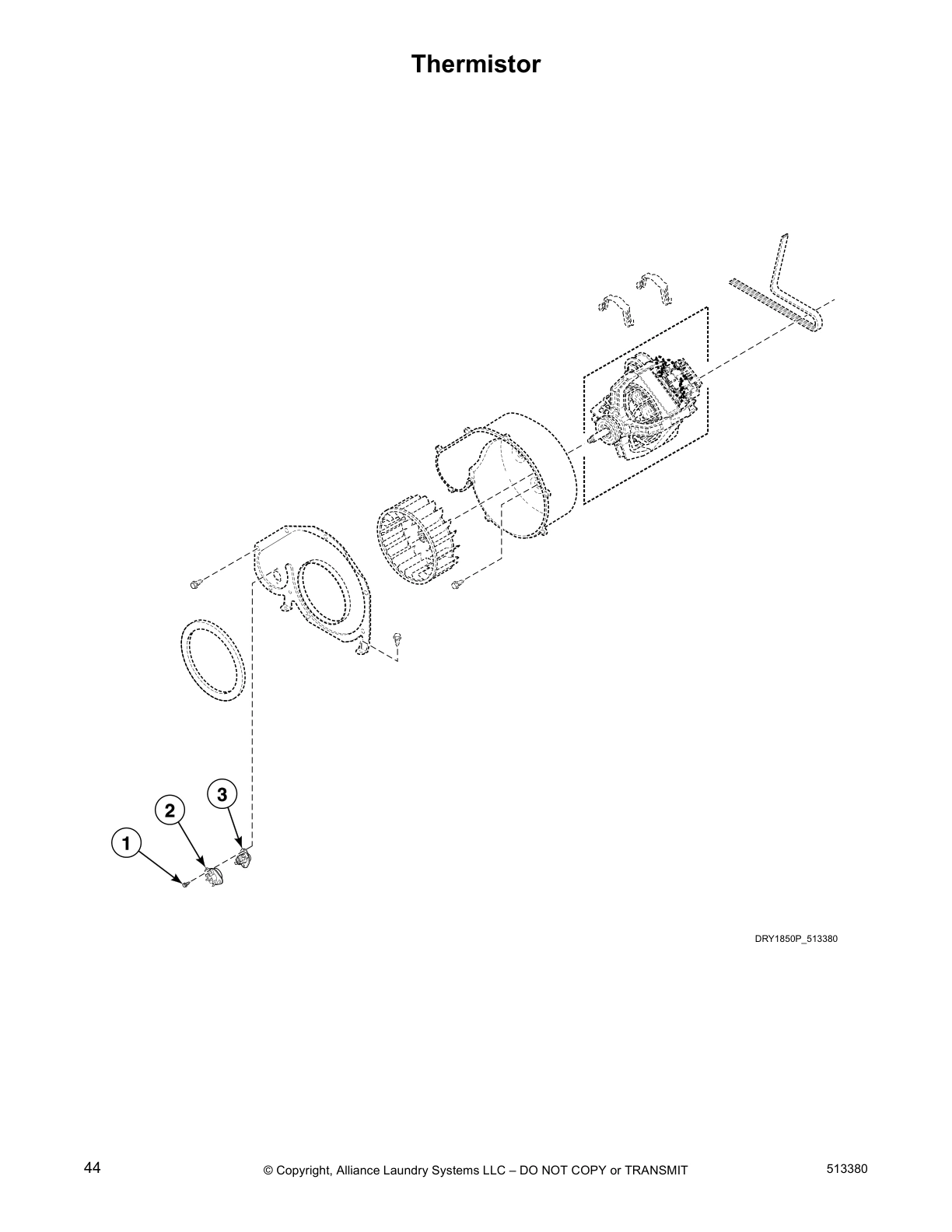

Thermistor

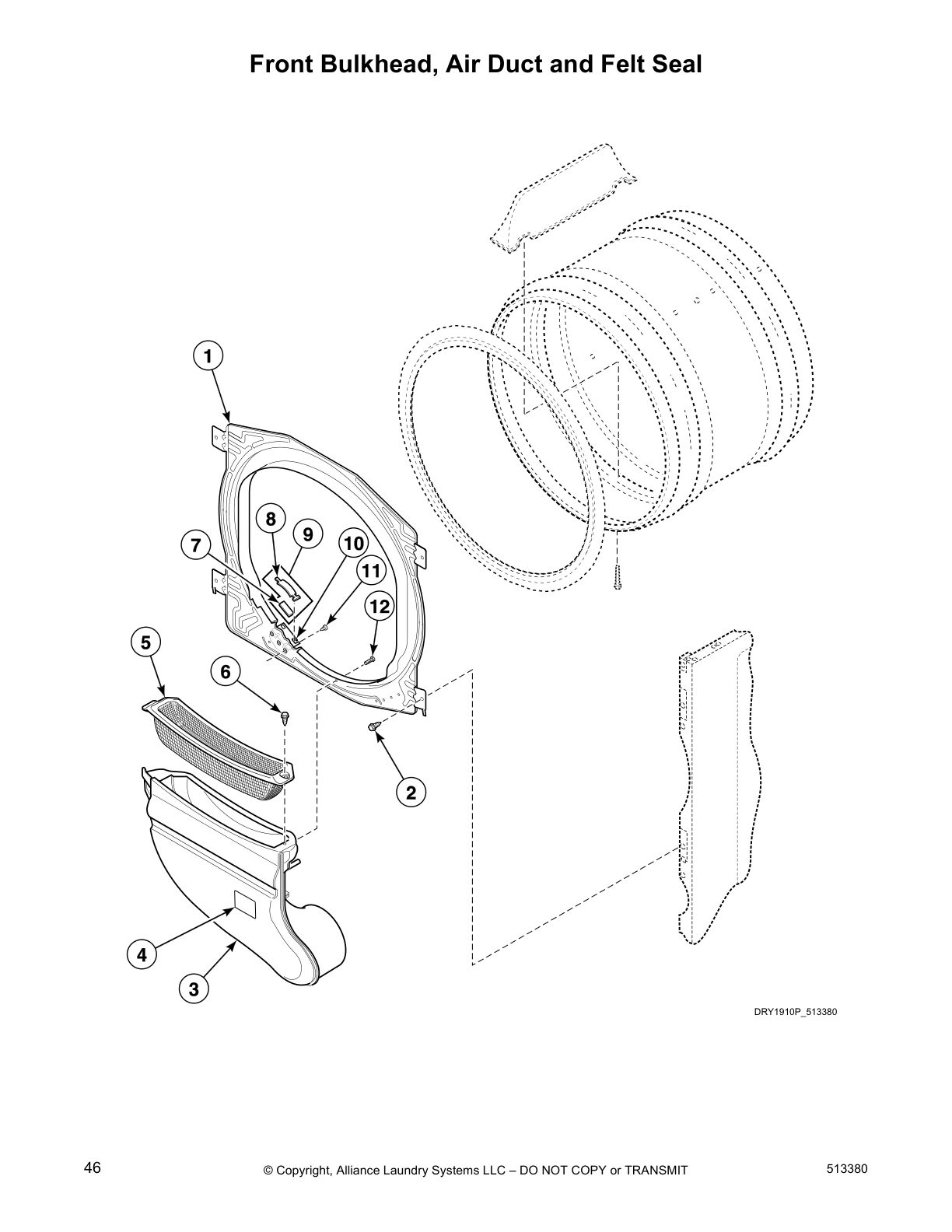

Front Bulkhead, Air Duct and Felt Seal

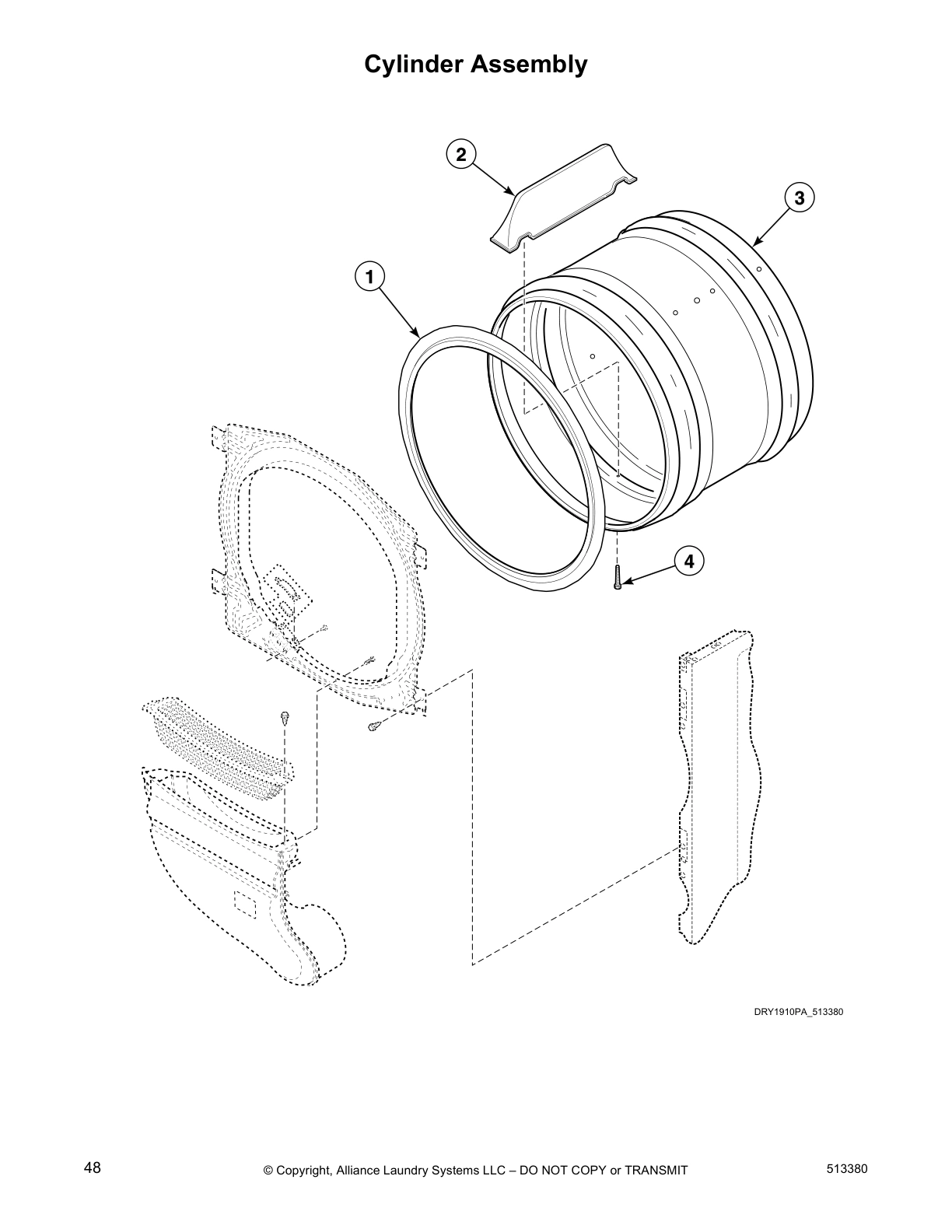

Cylinder Assembly

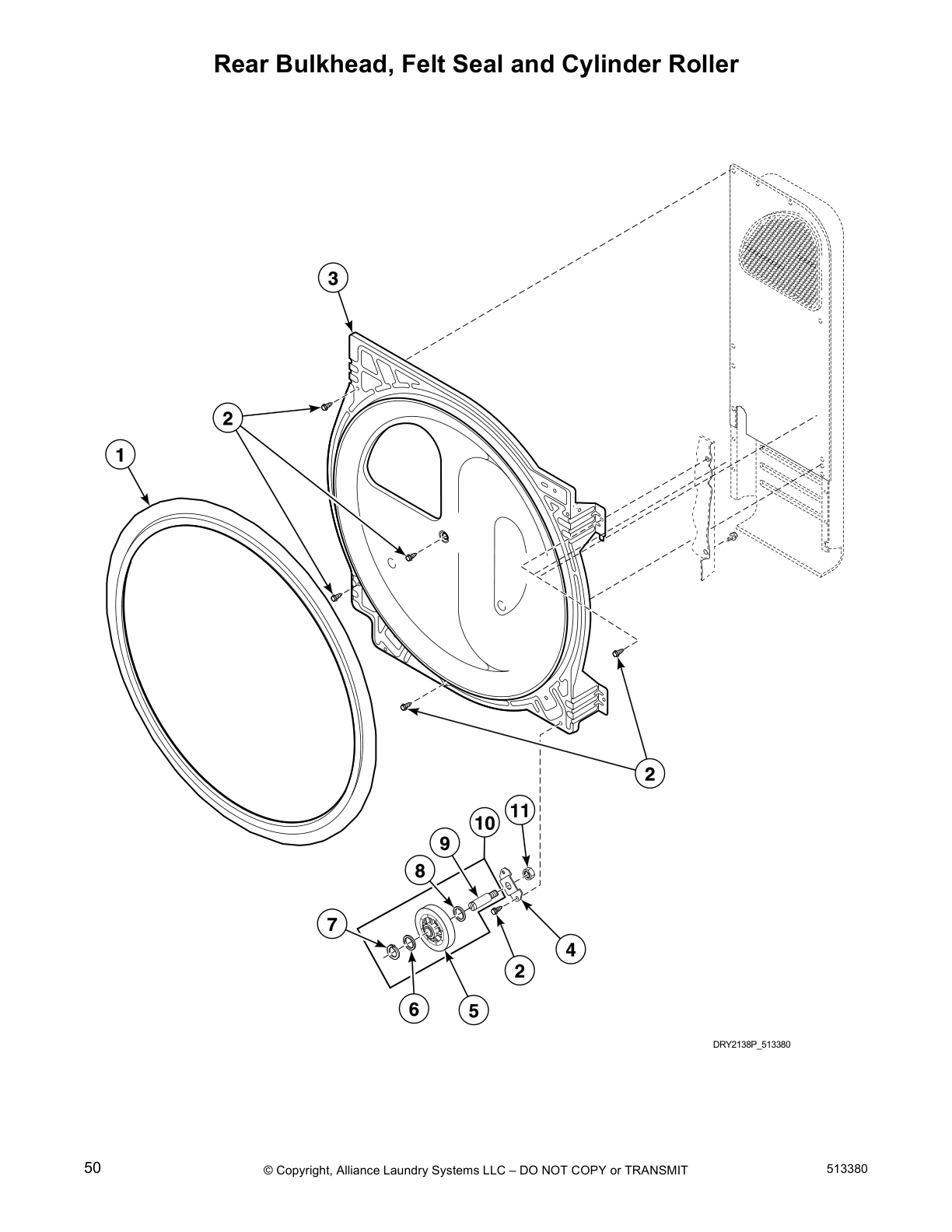

Rear Bulkhead, Felt Seal and Cylinder Roller

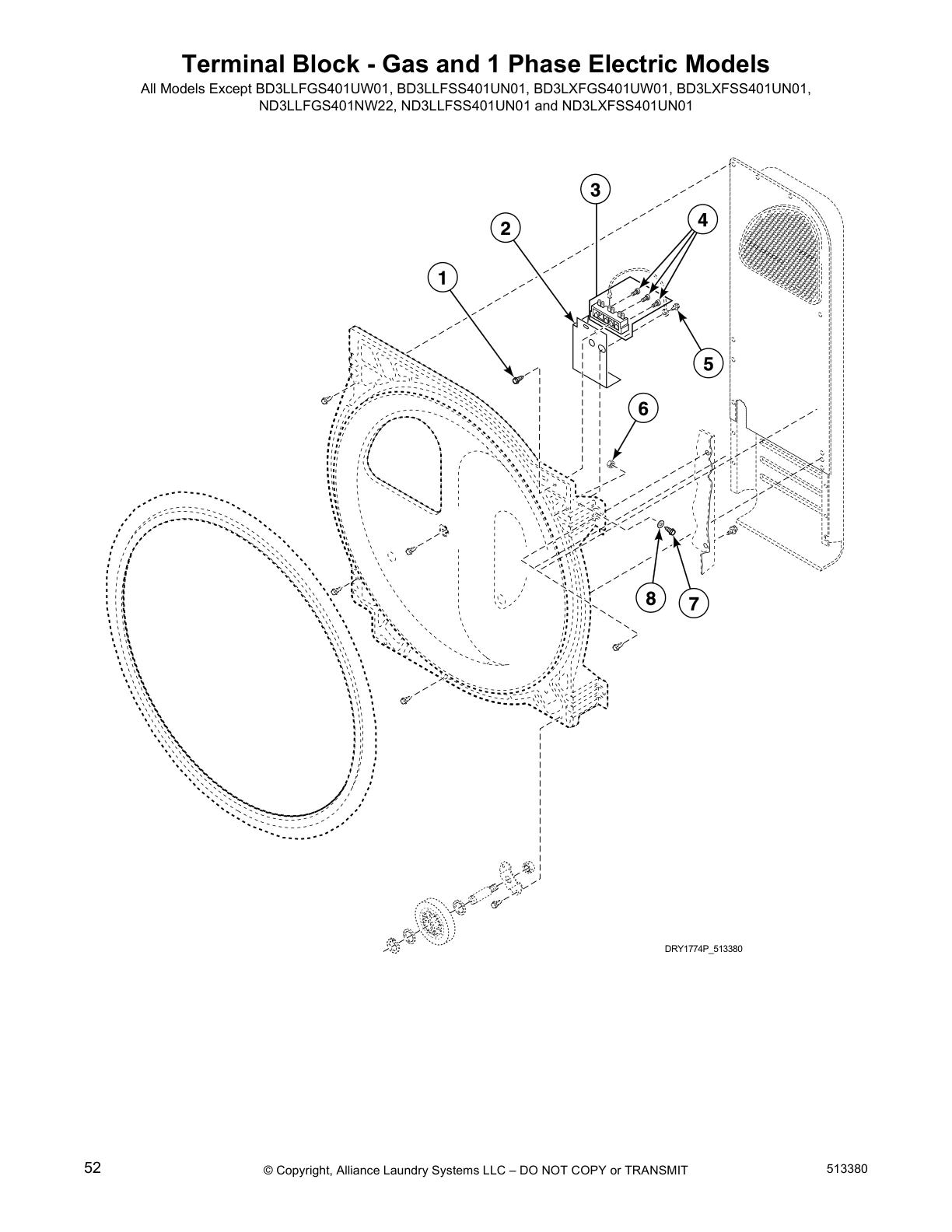

Terminal Block - Gas and 1 Phase Electric Models

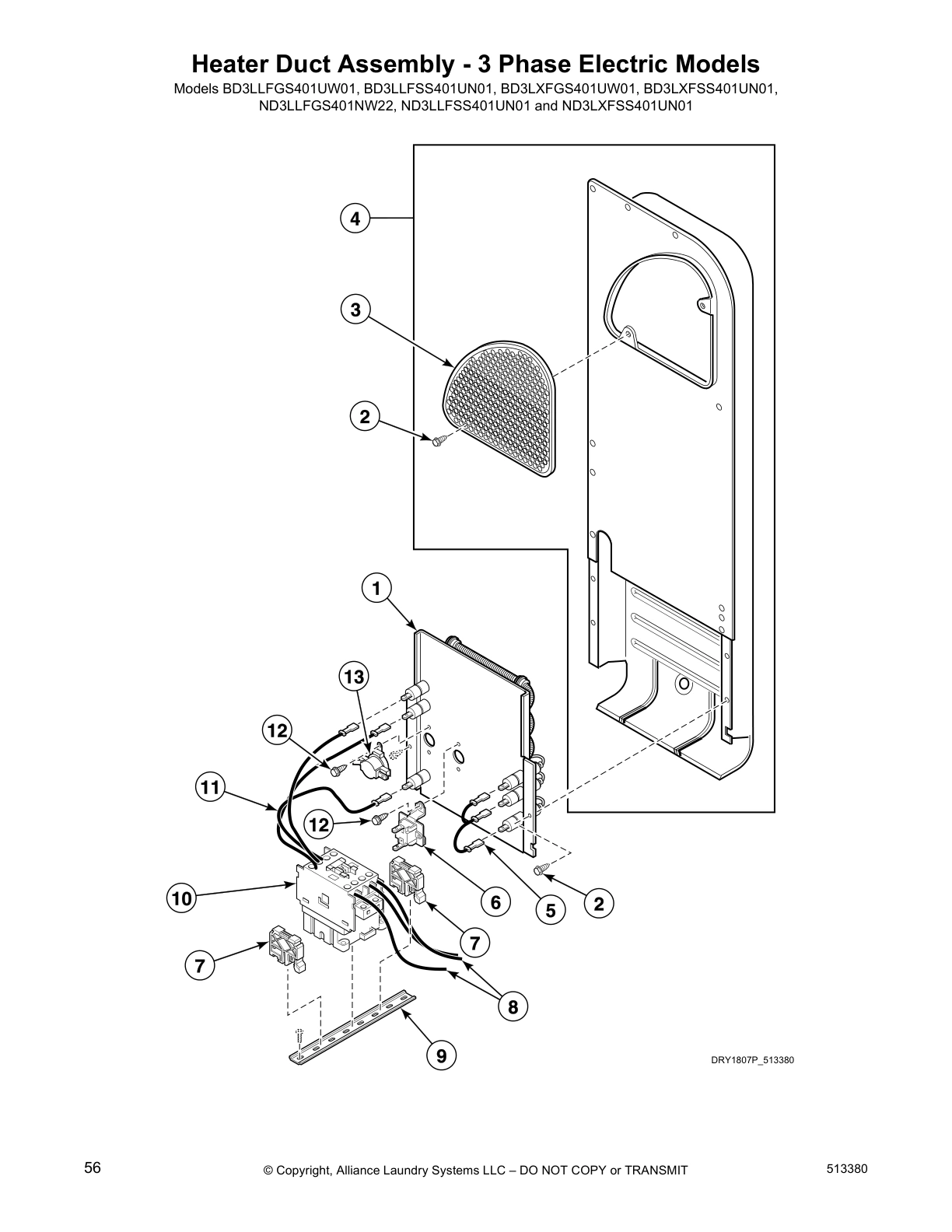

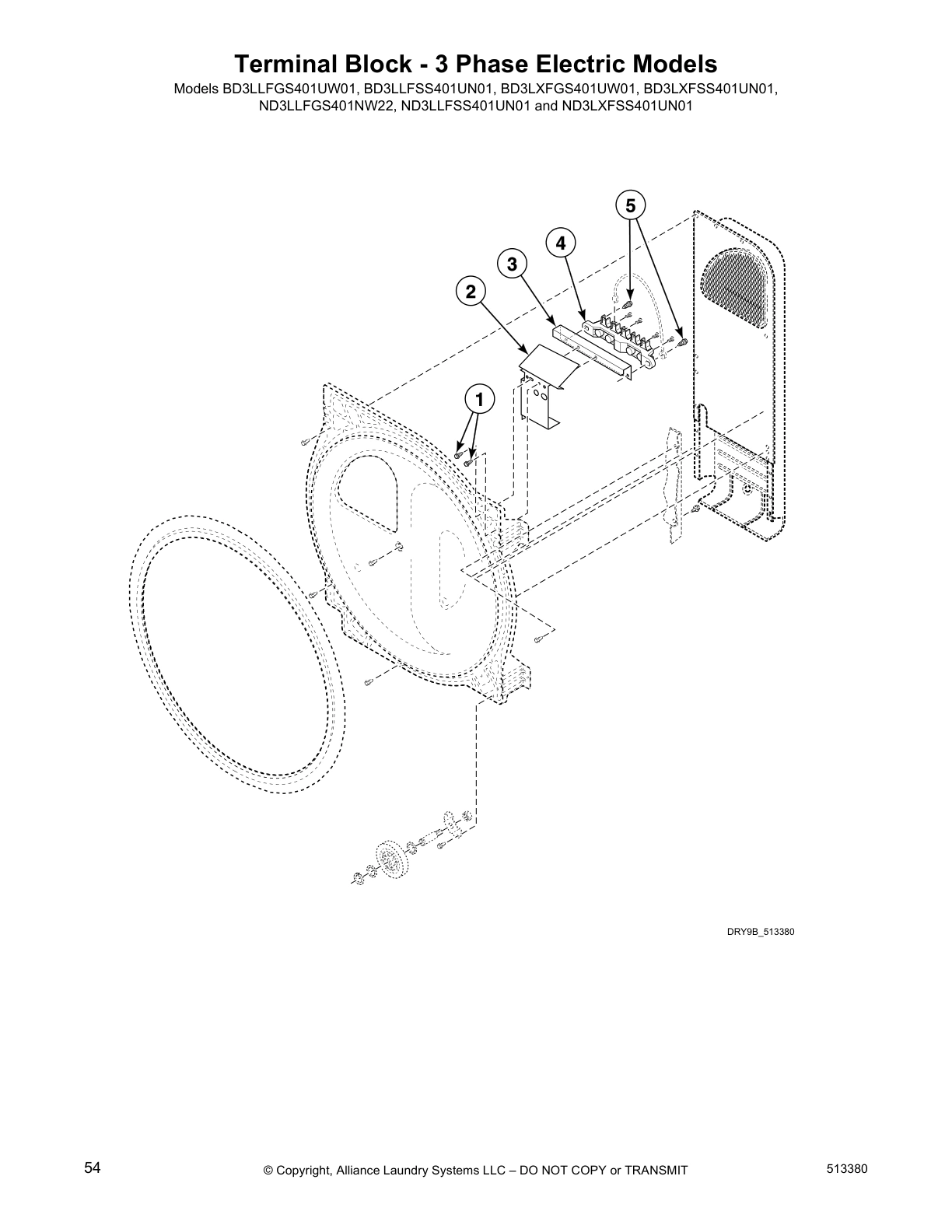

Terminal Block - 3 Phase Electric Models

Heater Duct Assembly - 3 Phase Electric Models

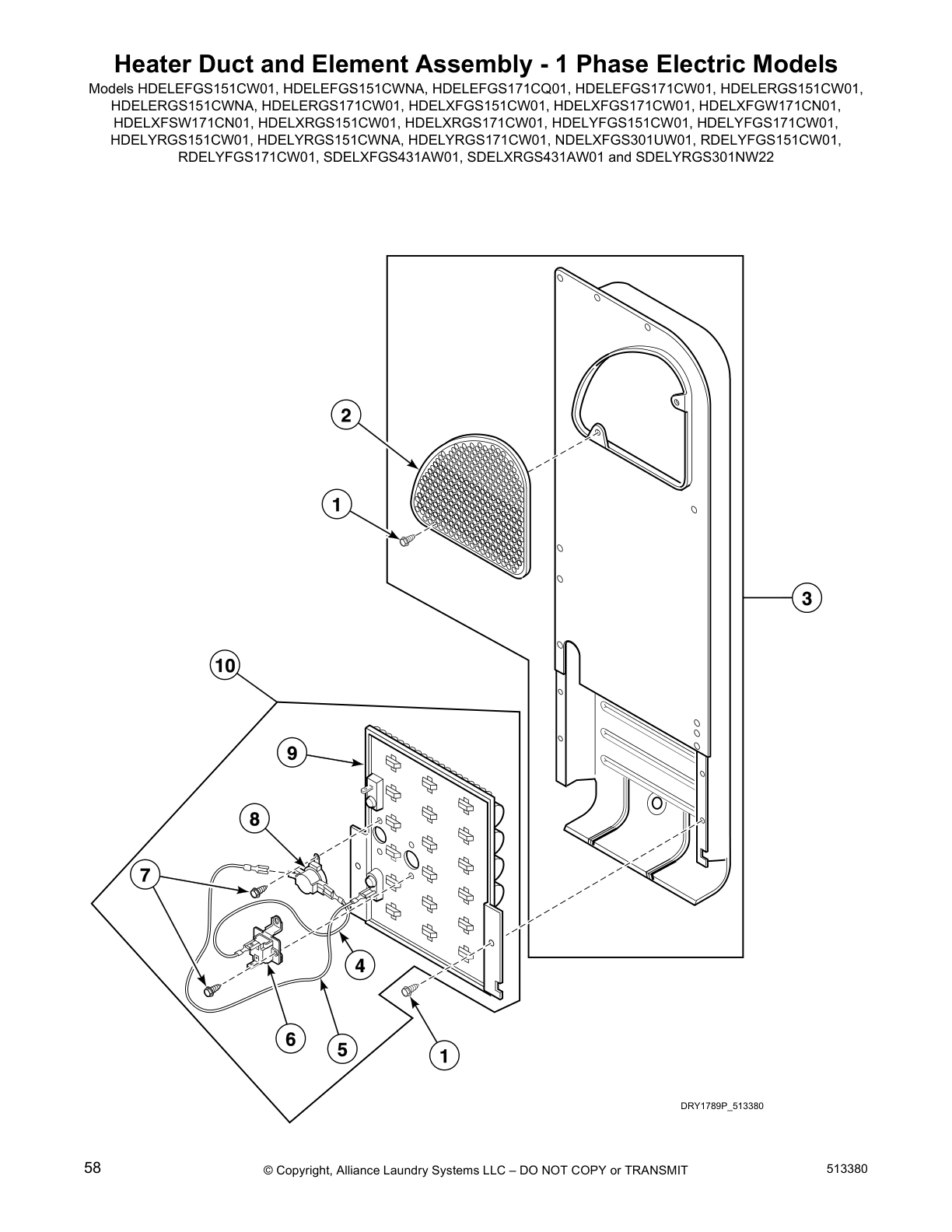

Heater Duct and Element Assembly - 1 Phase Electric Models

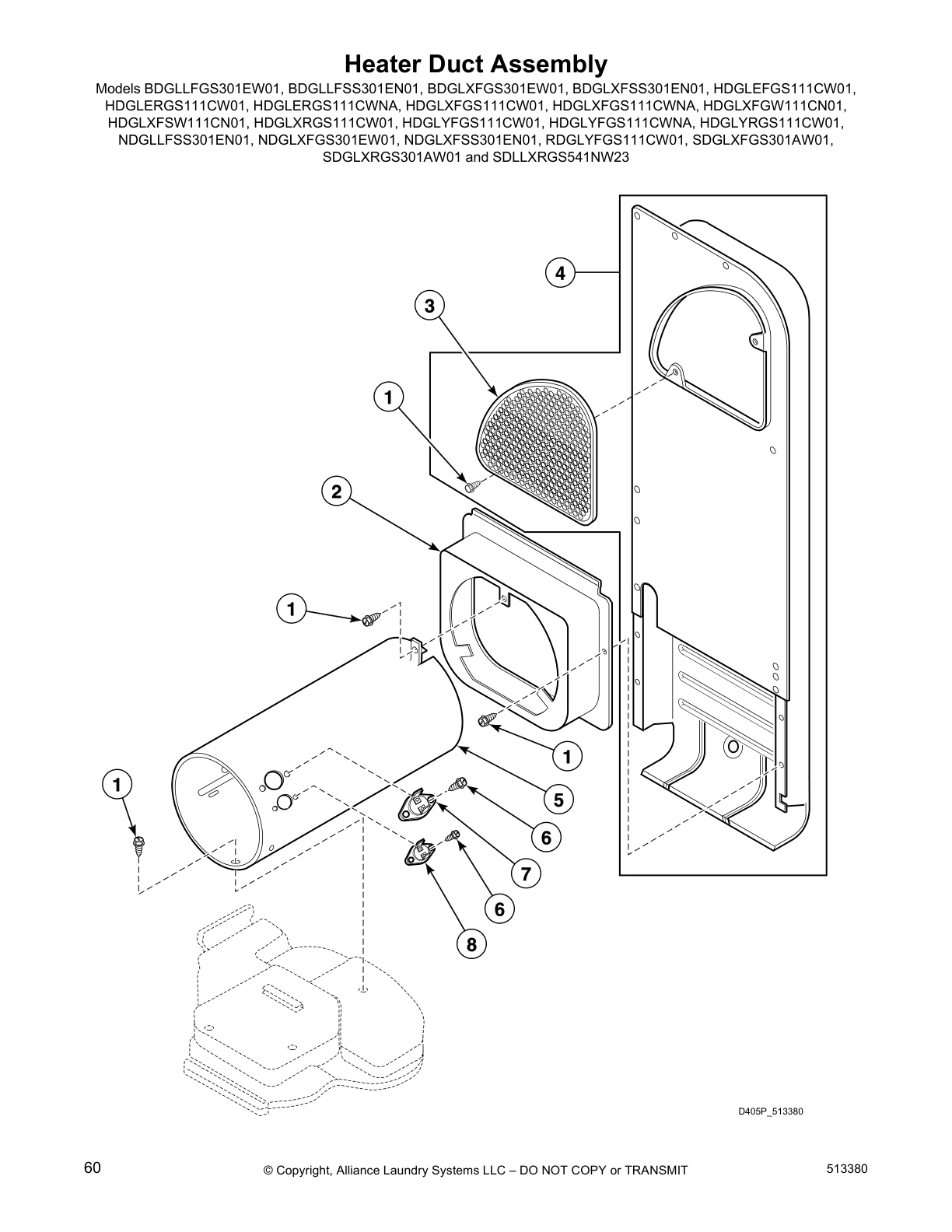

Heater Duct Assembly

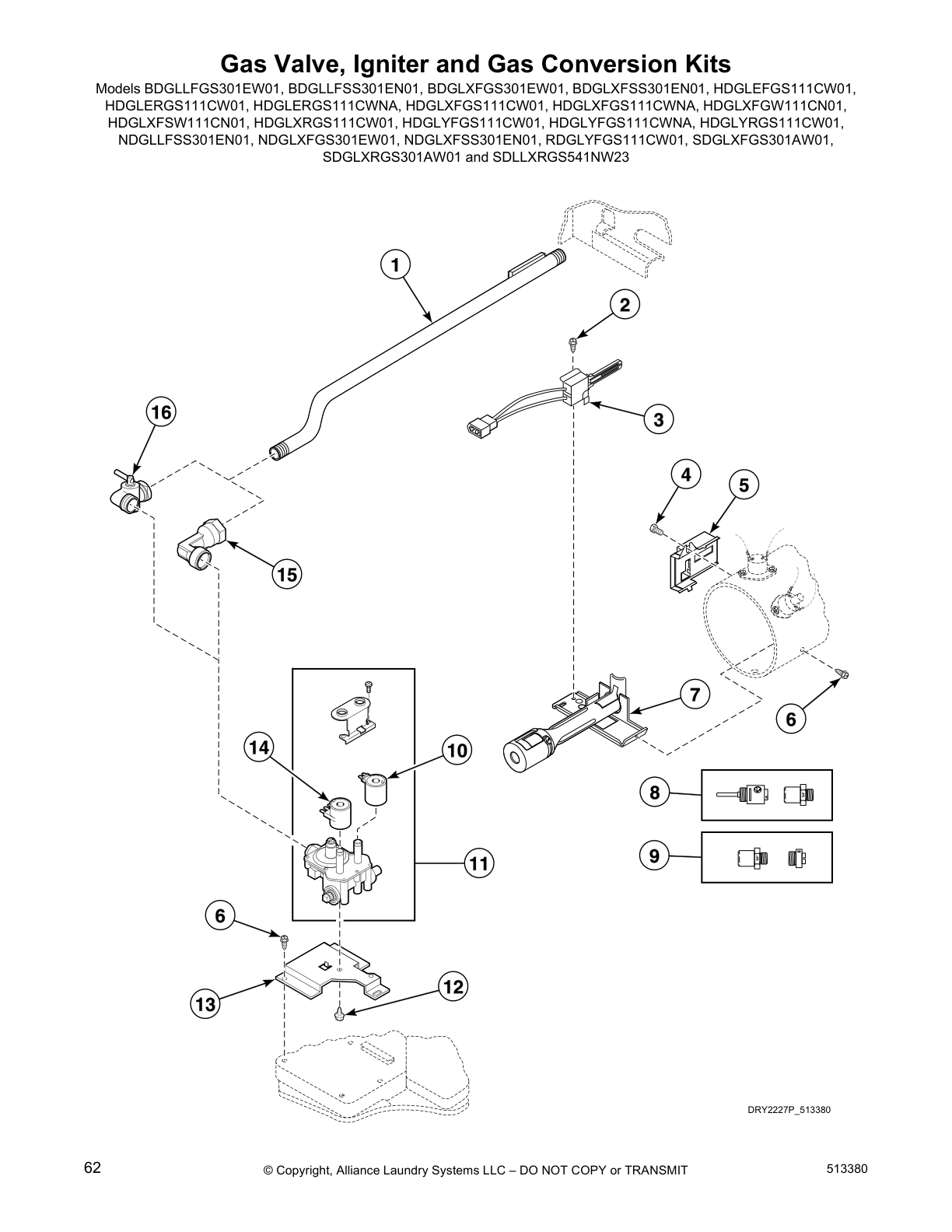

Gas Valve, Igniter and Gas Conversion Kits

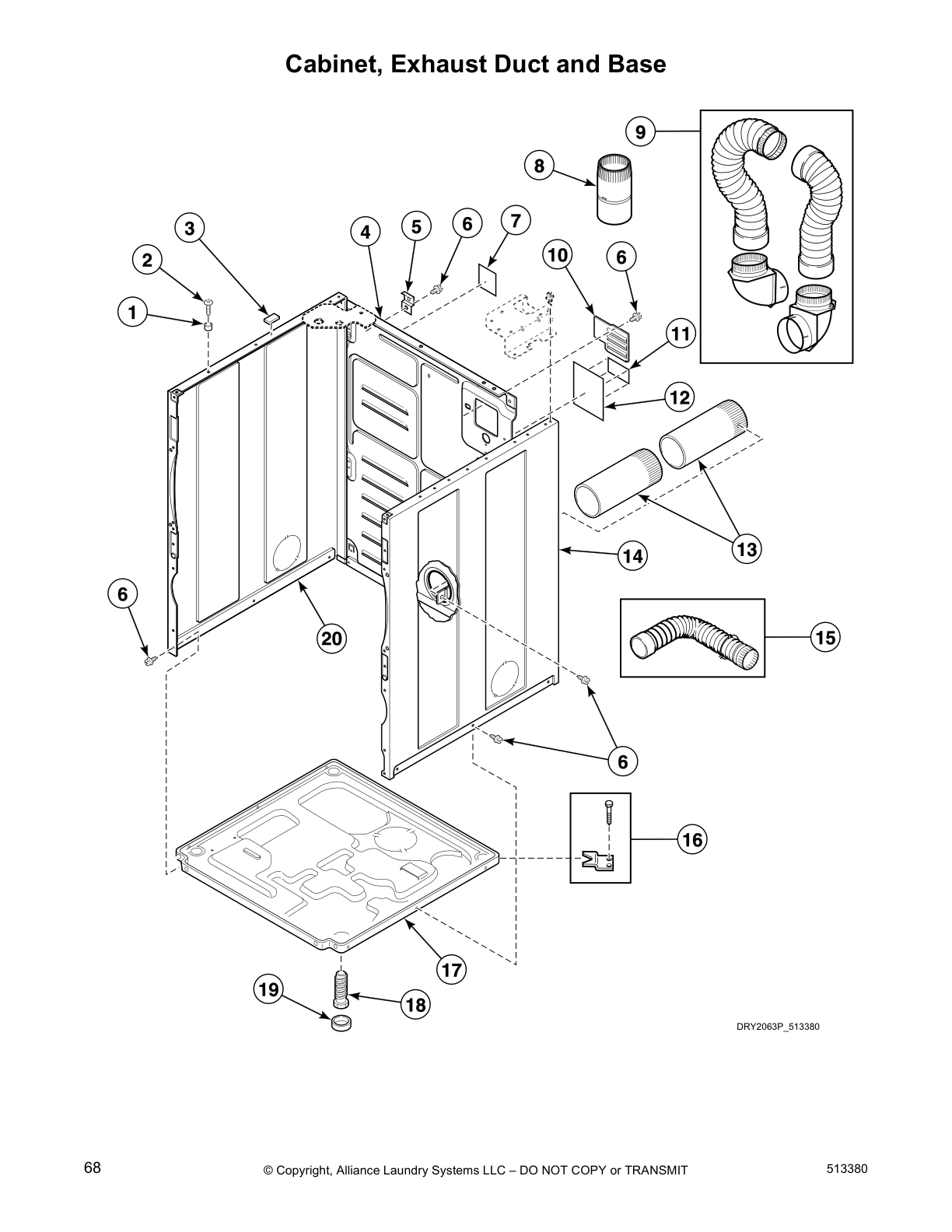

Cabinet, Exhaust Duct and Base

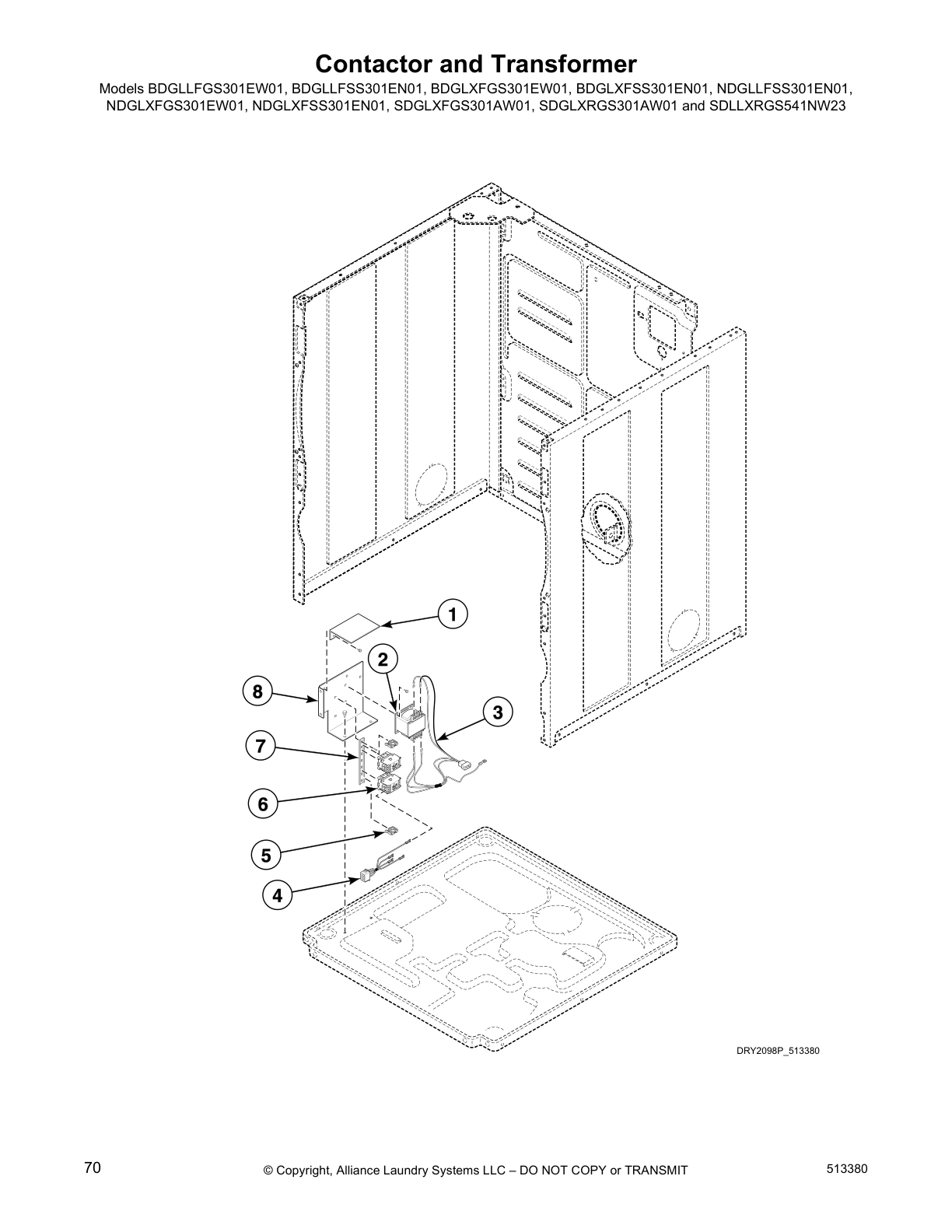

Contactor and Transformer

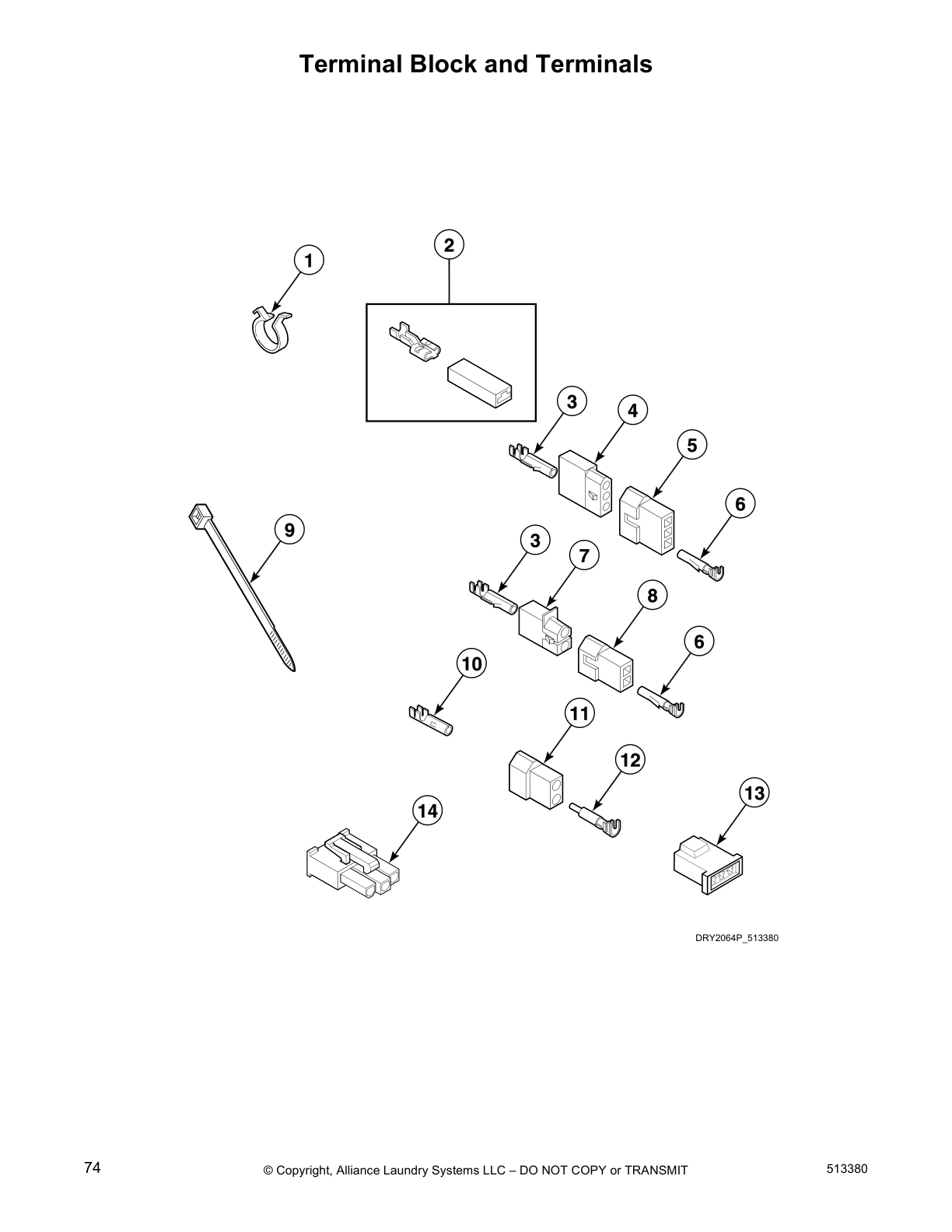

Terminal Block and Terminals

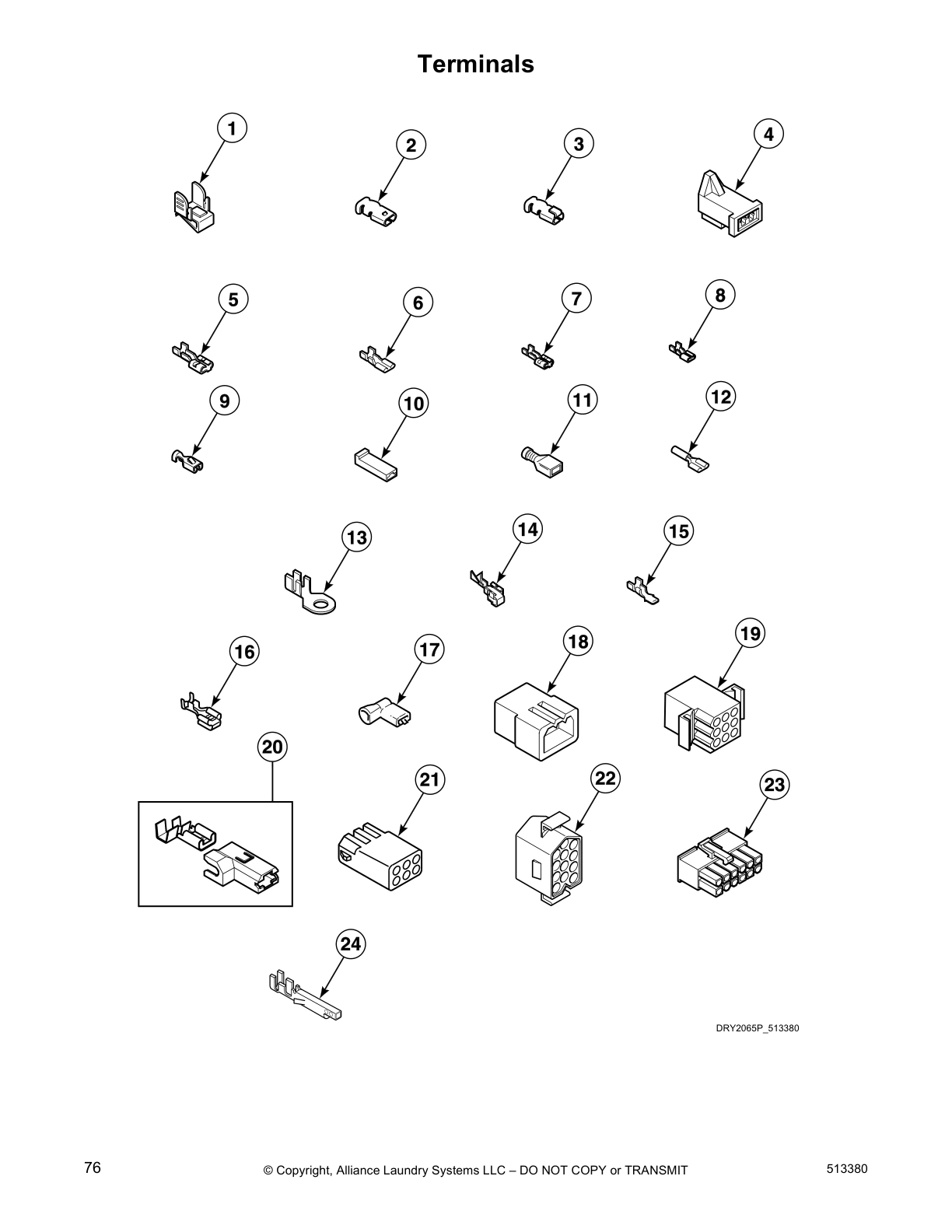

Terminals

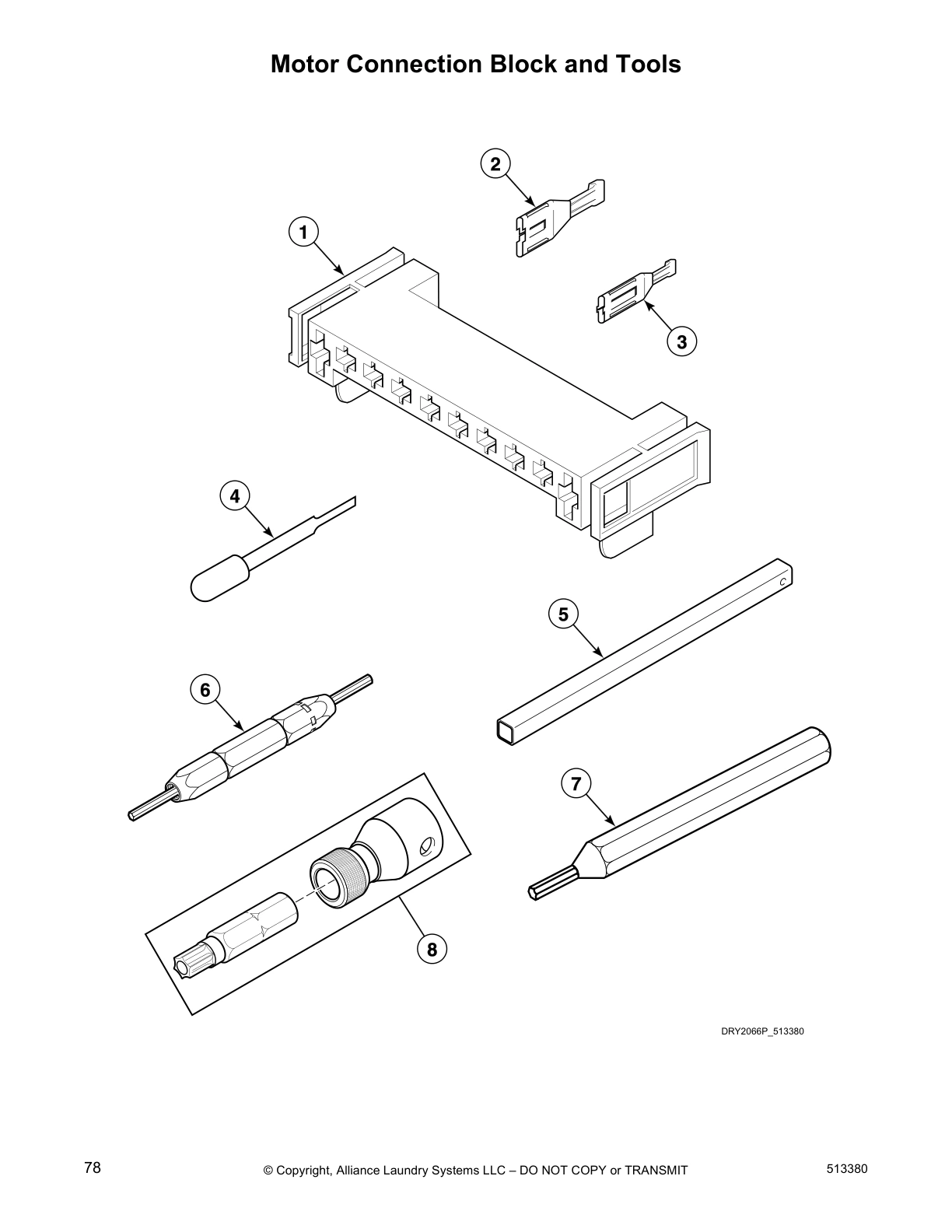

Motor Connection Block and Tools

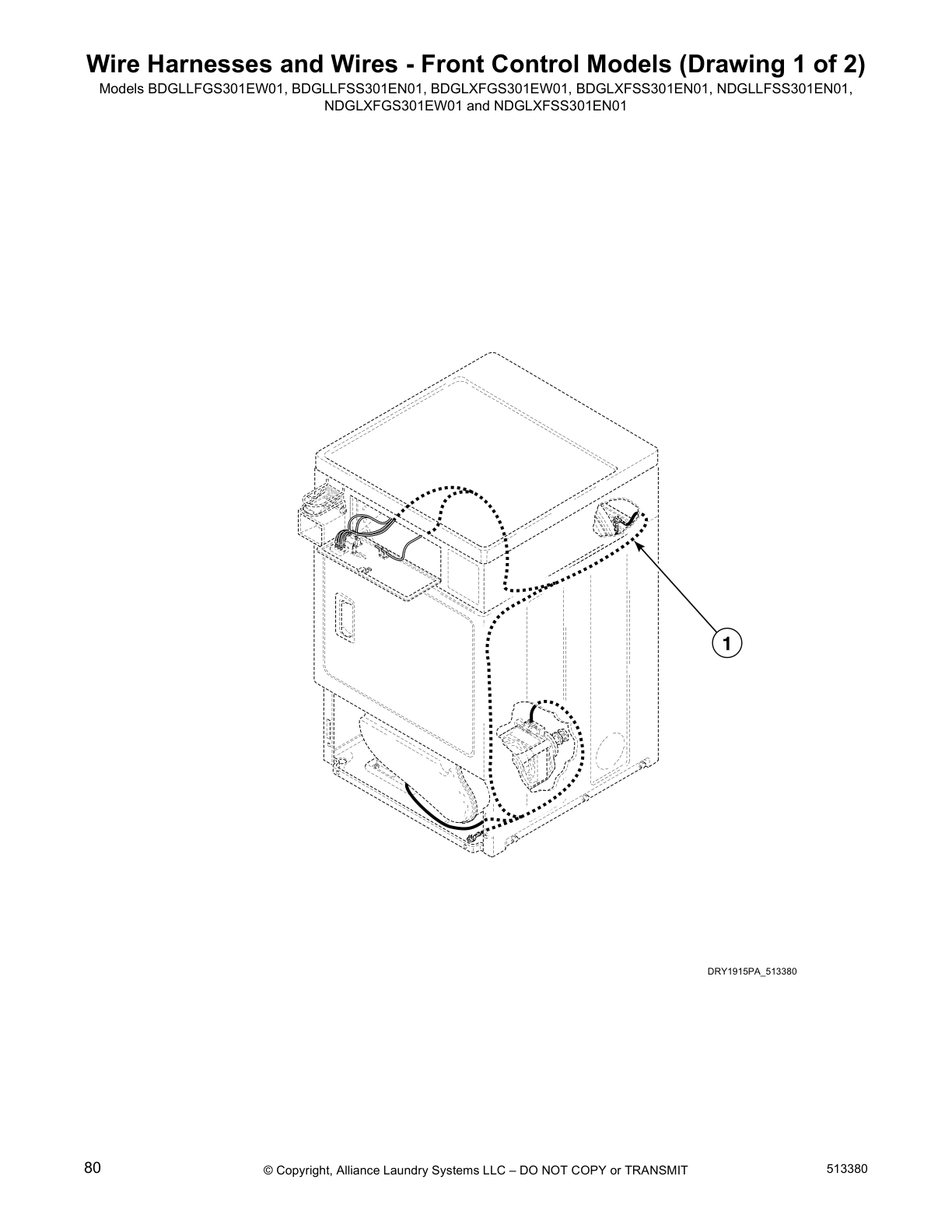

Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)

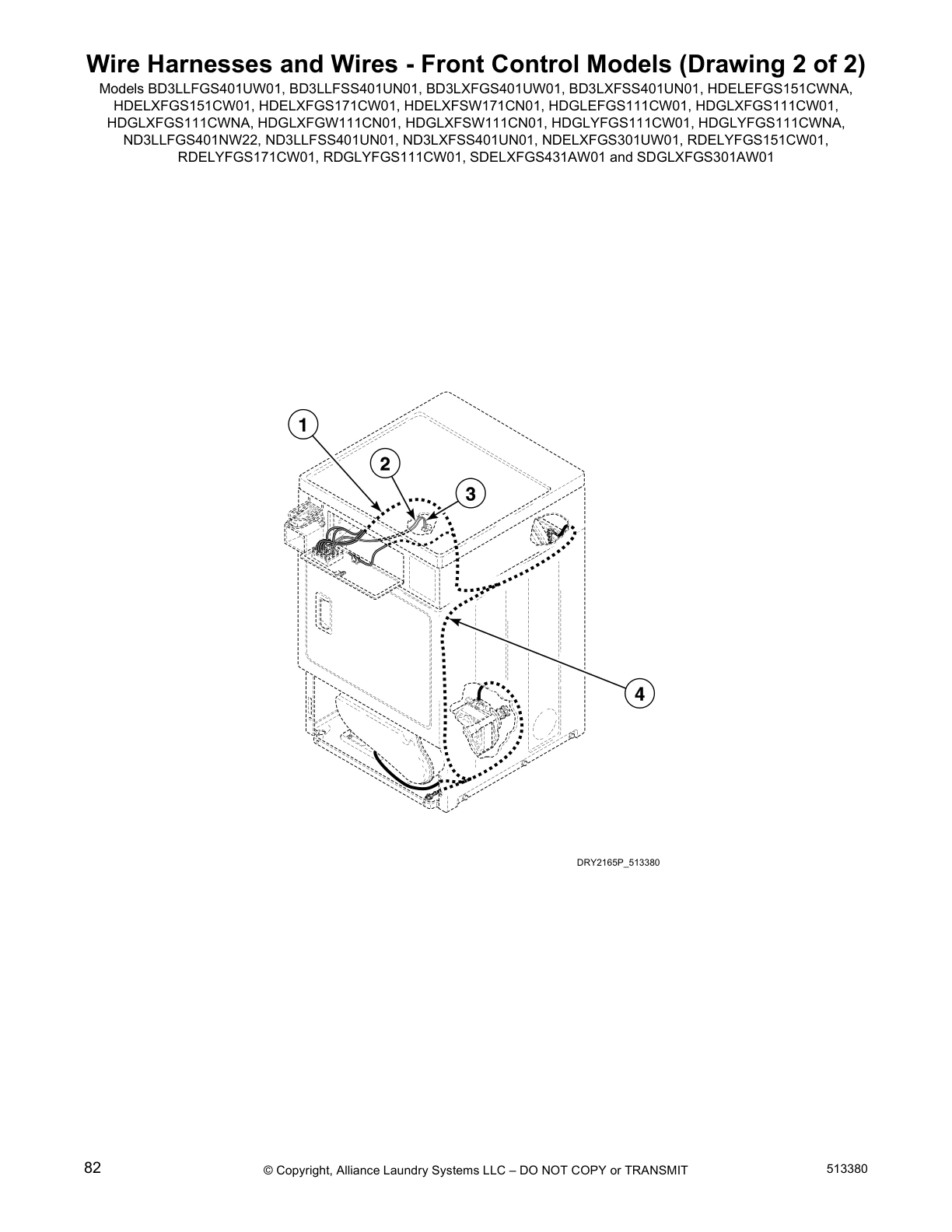

Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)

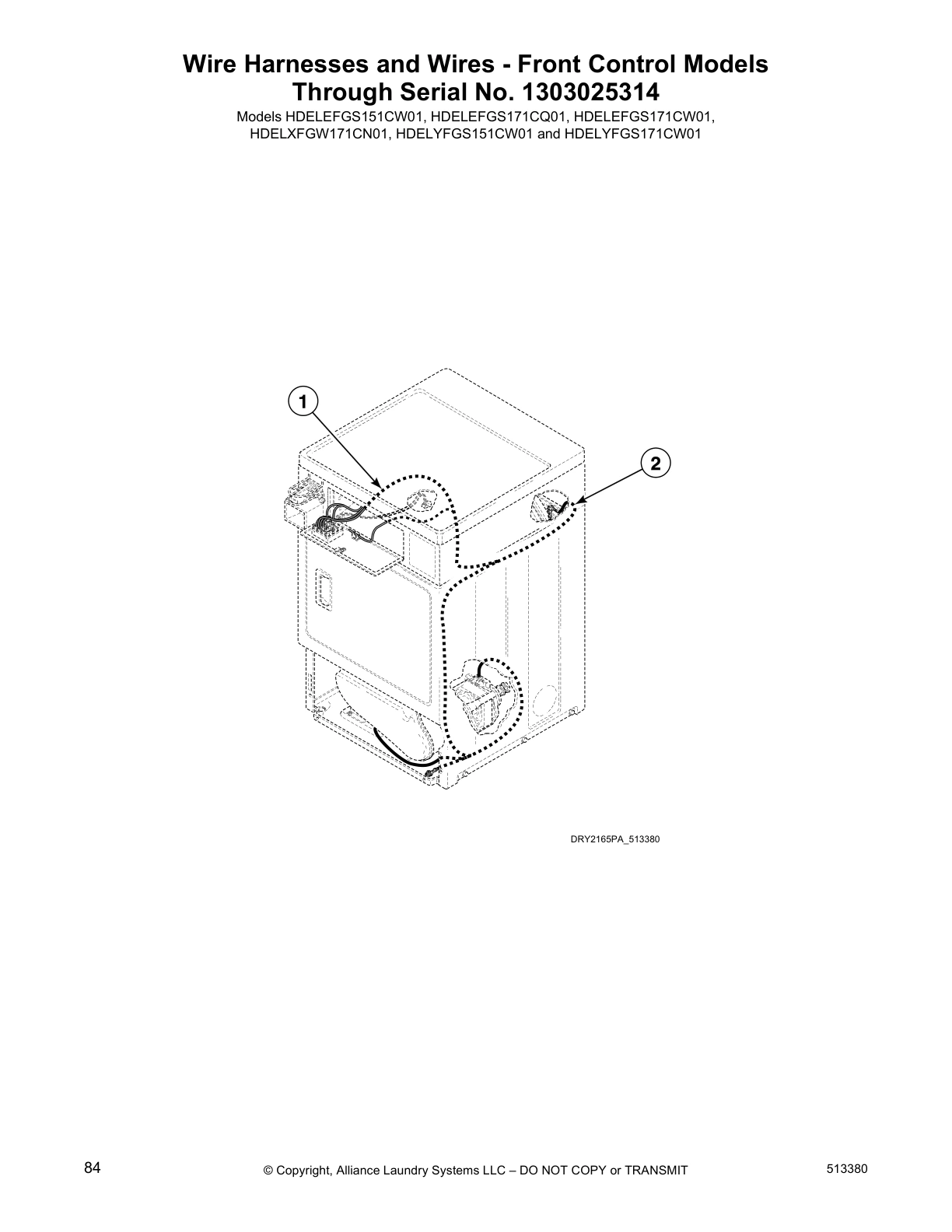

Wire Harnesses and Wires - Front Control Models Through Serial No. 1303025314

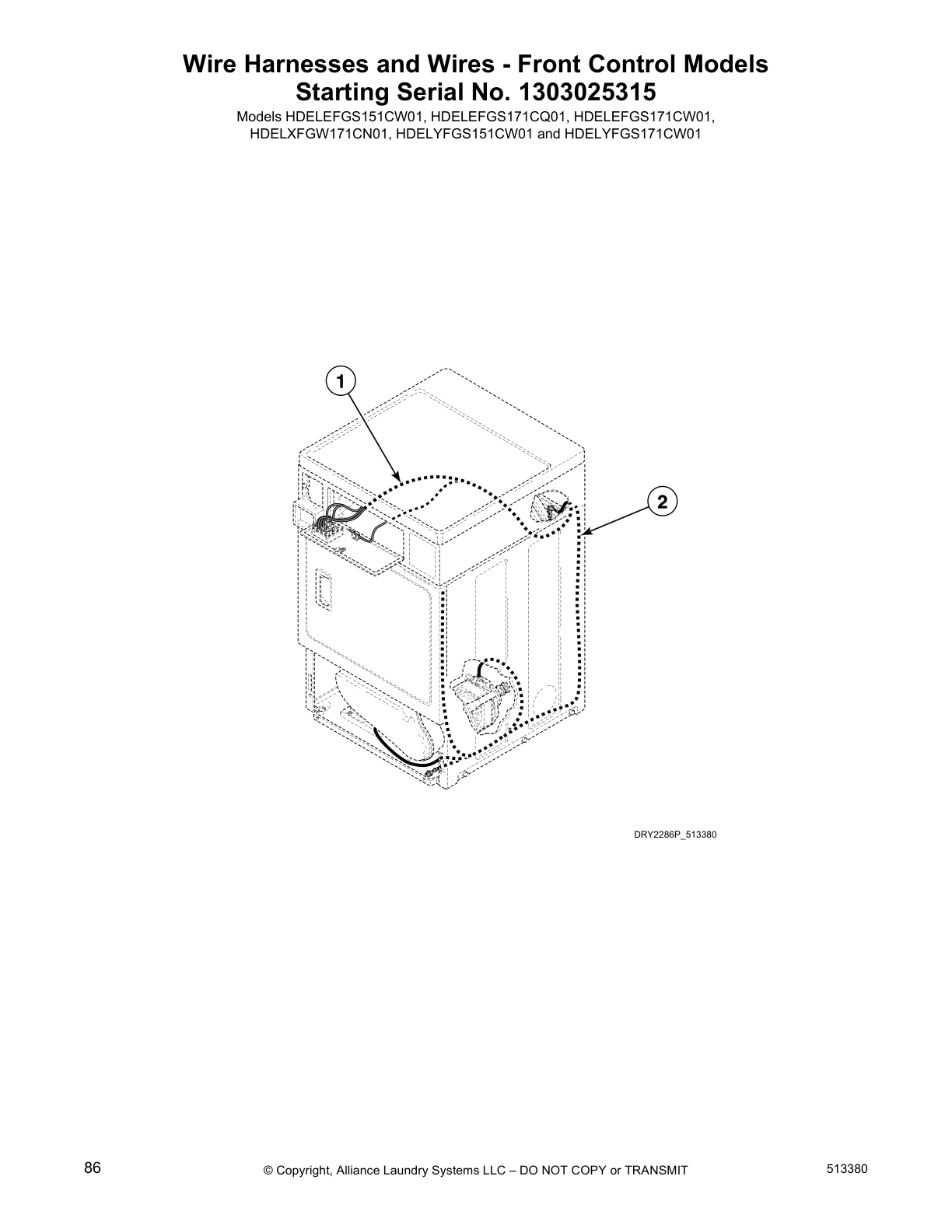

Wire Harnesses and Wires - Front Control Models Starting Serial No. 1303025315

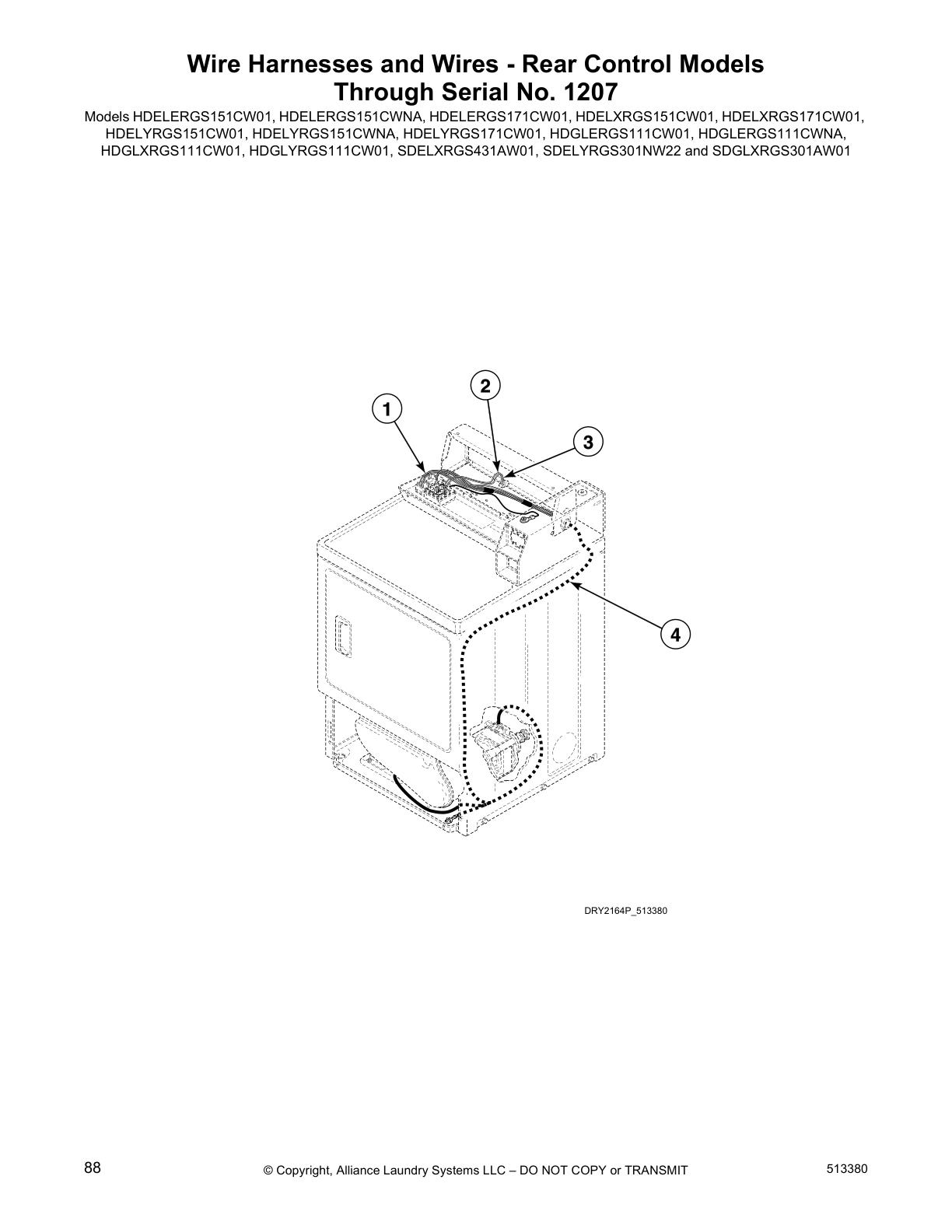

Wire Harnesses and Wires - Rear Control Models Through Serial No. 1207

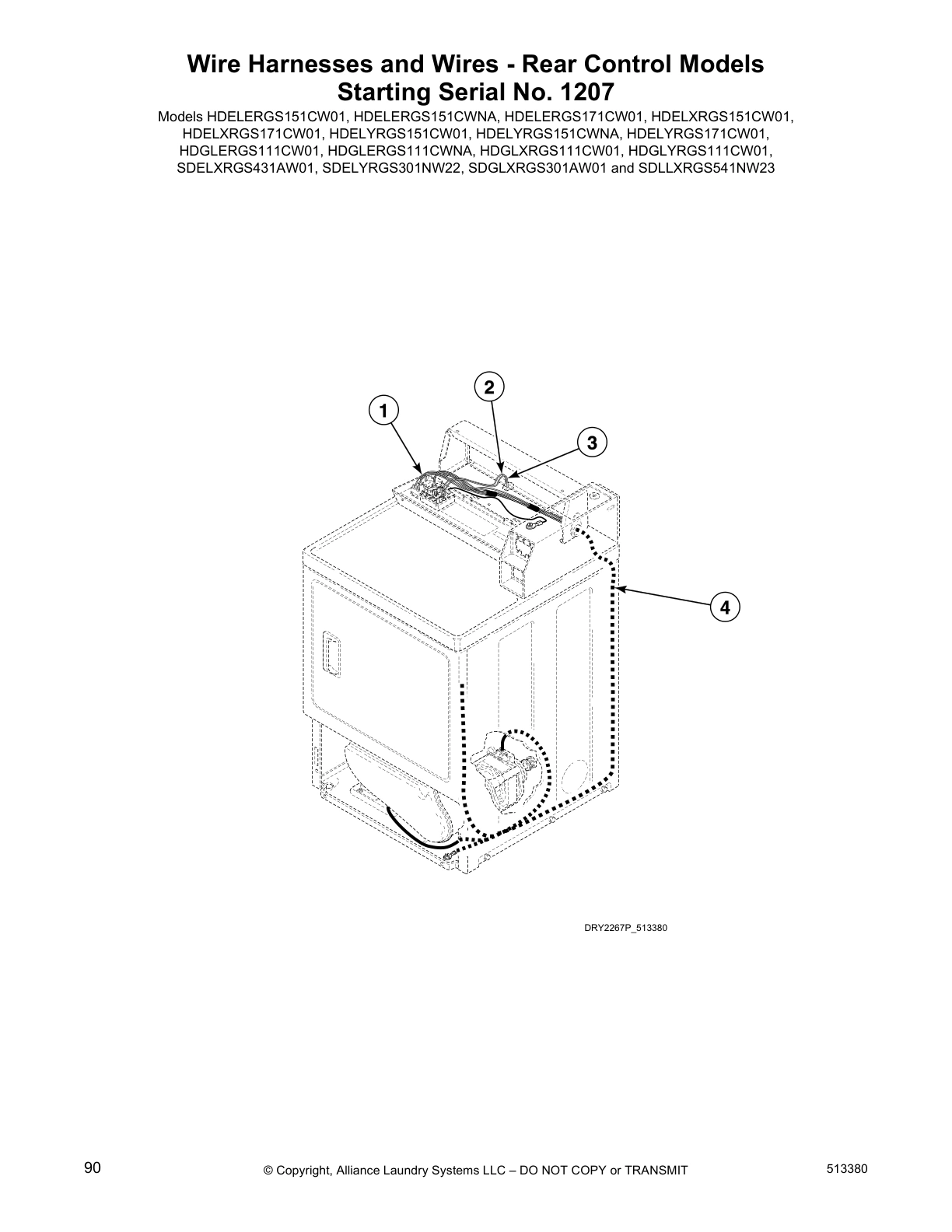

Wire Harnesses and Wires - Rear Control Models Starting Serial No. 1207

Common parts from model IPSO BD3LXFSS401UN01 Dryer
