Model IPSO BD3LLFGS401UW01 Dryer – Common Parts & Diagrams
Control Panel and Controls - Rear Control Coin Drop Models
Control Panel and Controls - Rear Control Card Models

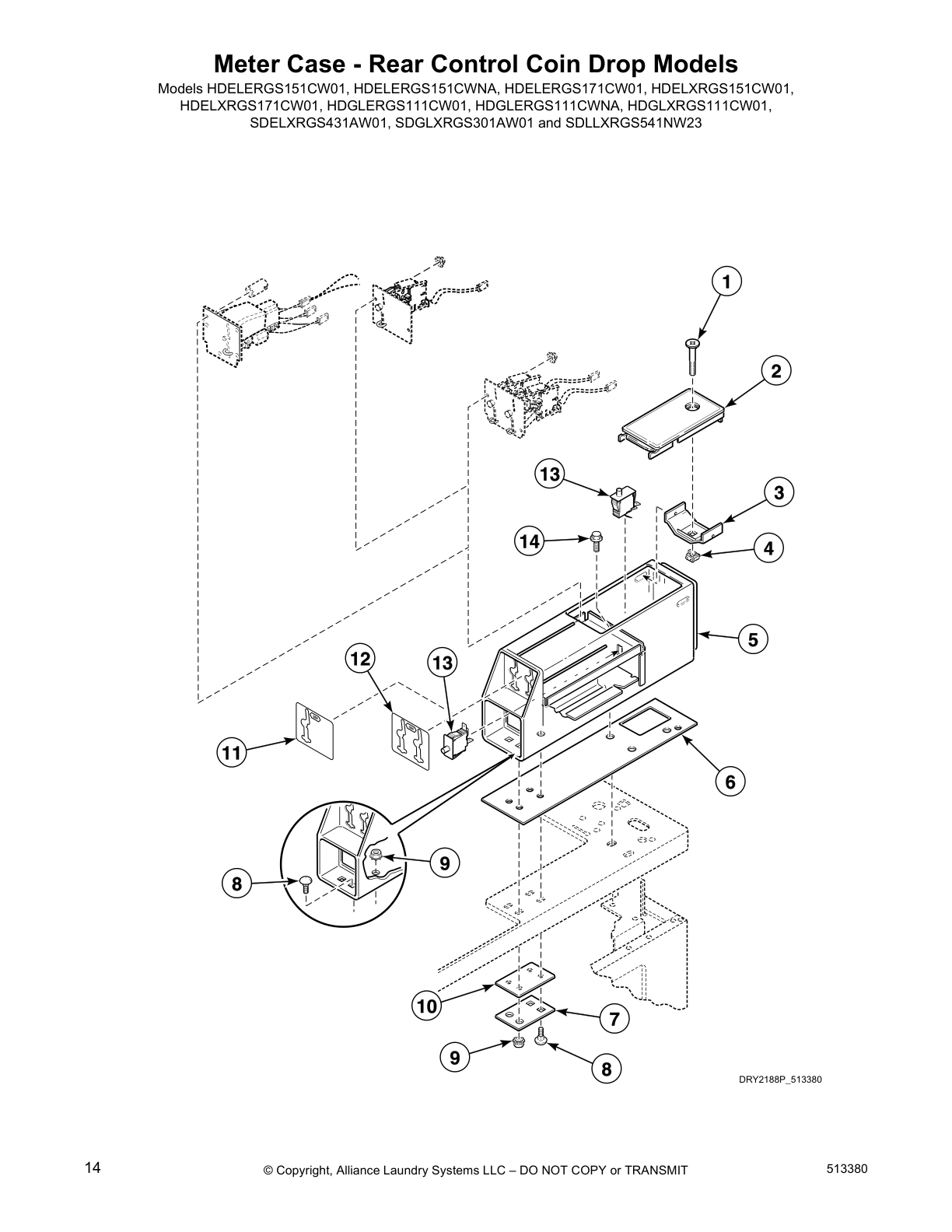

Meter Case - Rear Control Coin Drop Models

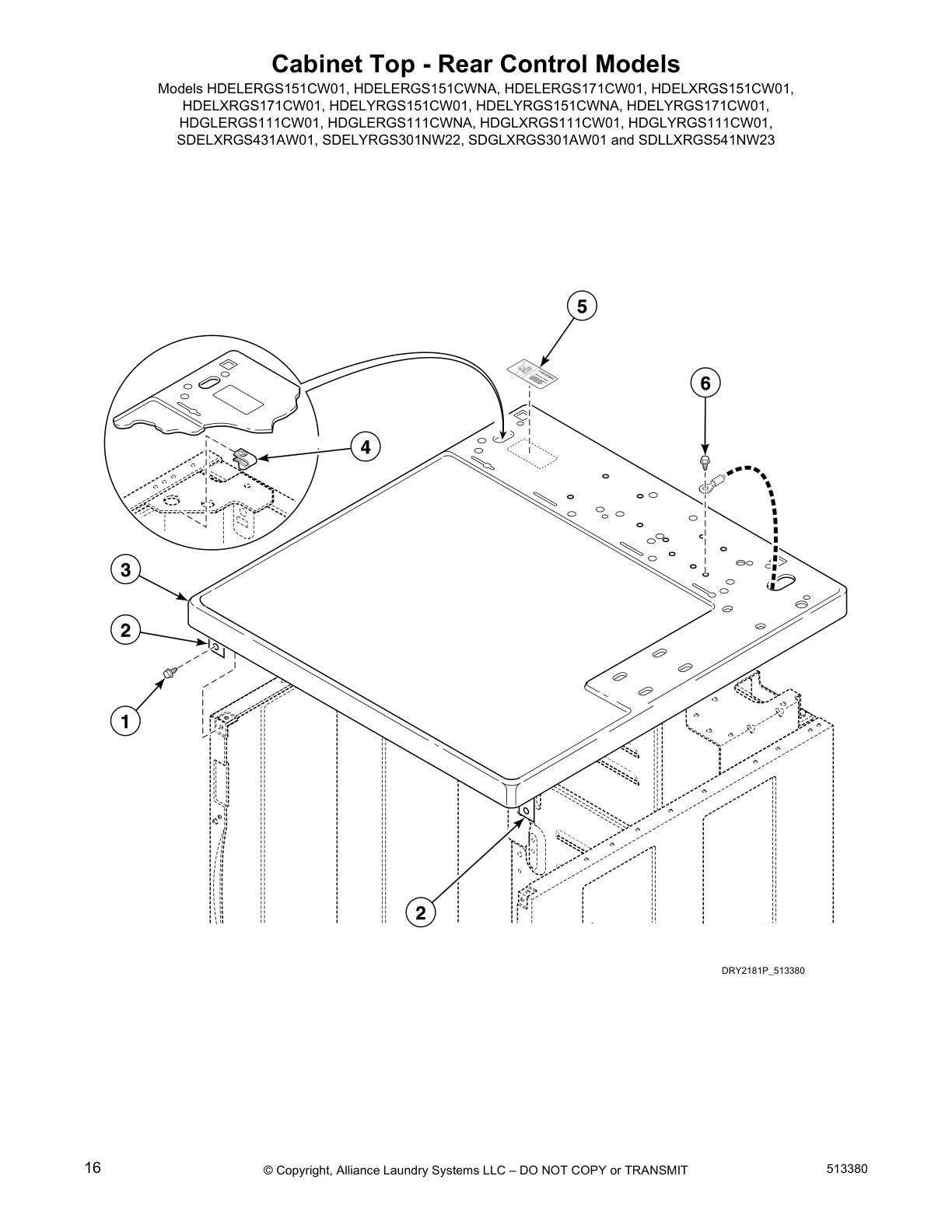

Cabinet Top - Rear Control Models
Control Panel and Controls - Front Control

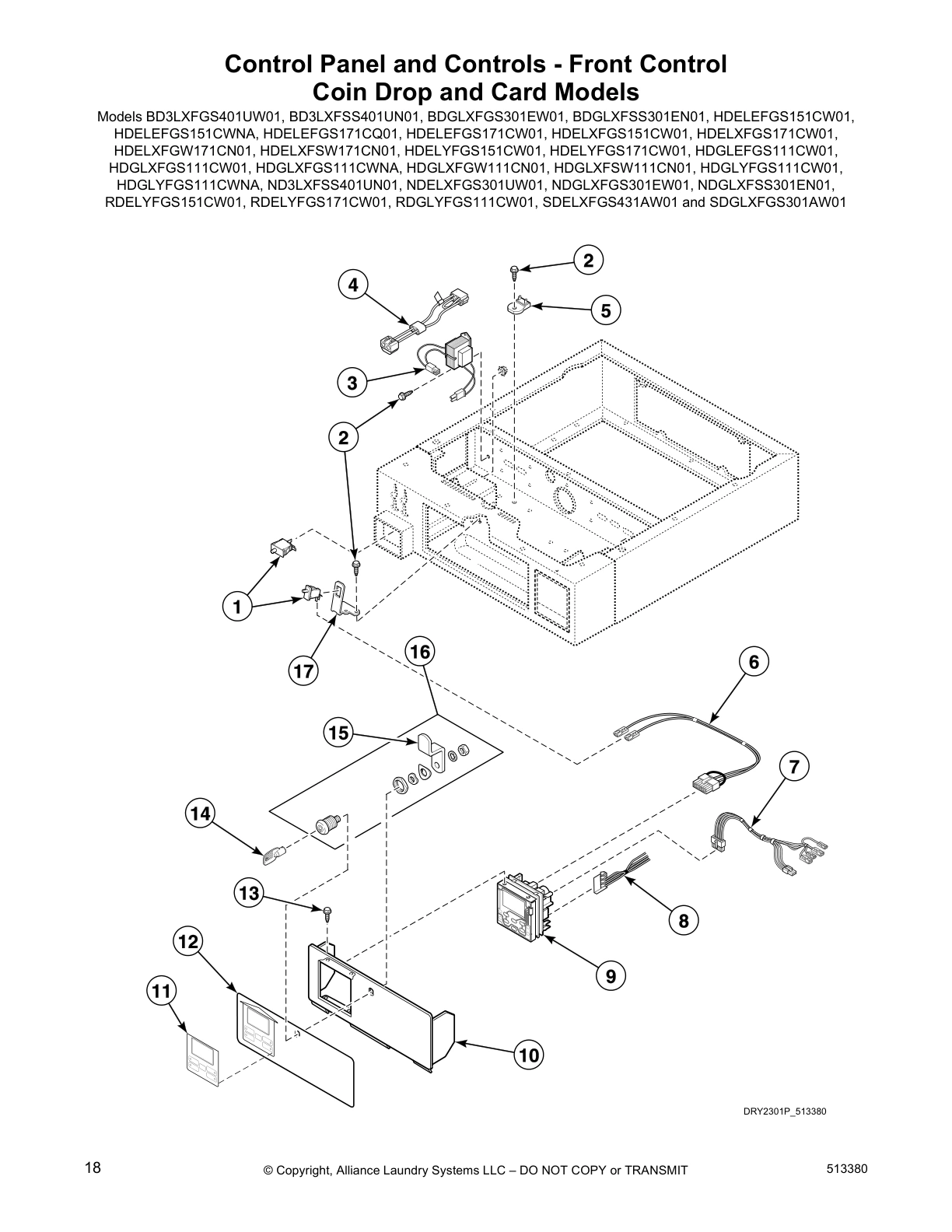

Coin Drop and Card Models

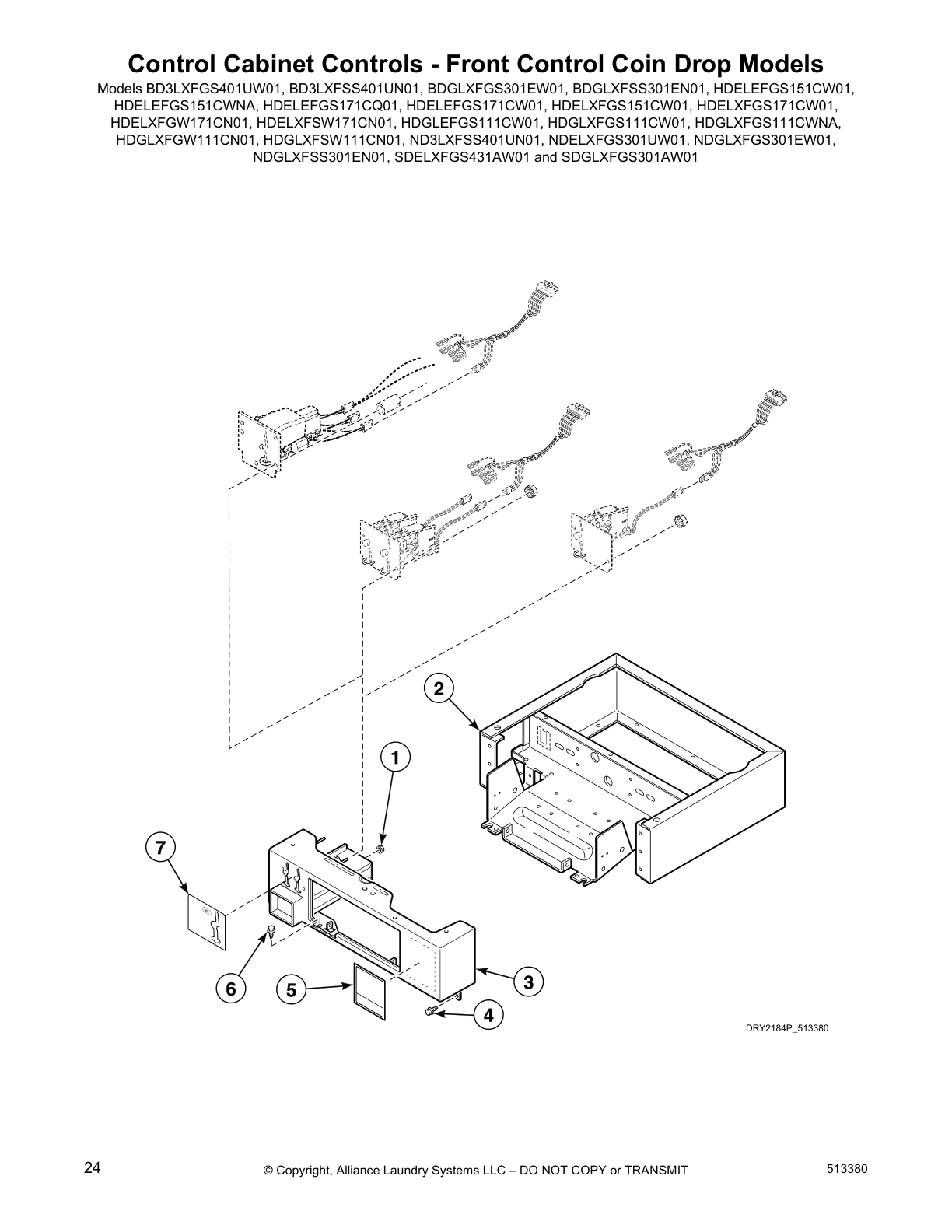

Control Cabinet Controls - Front Control Coin Drop Models
Control Cabinet Controls - Front Control

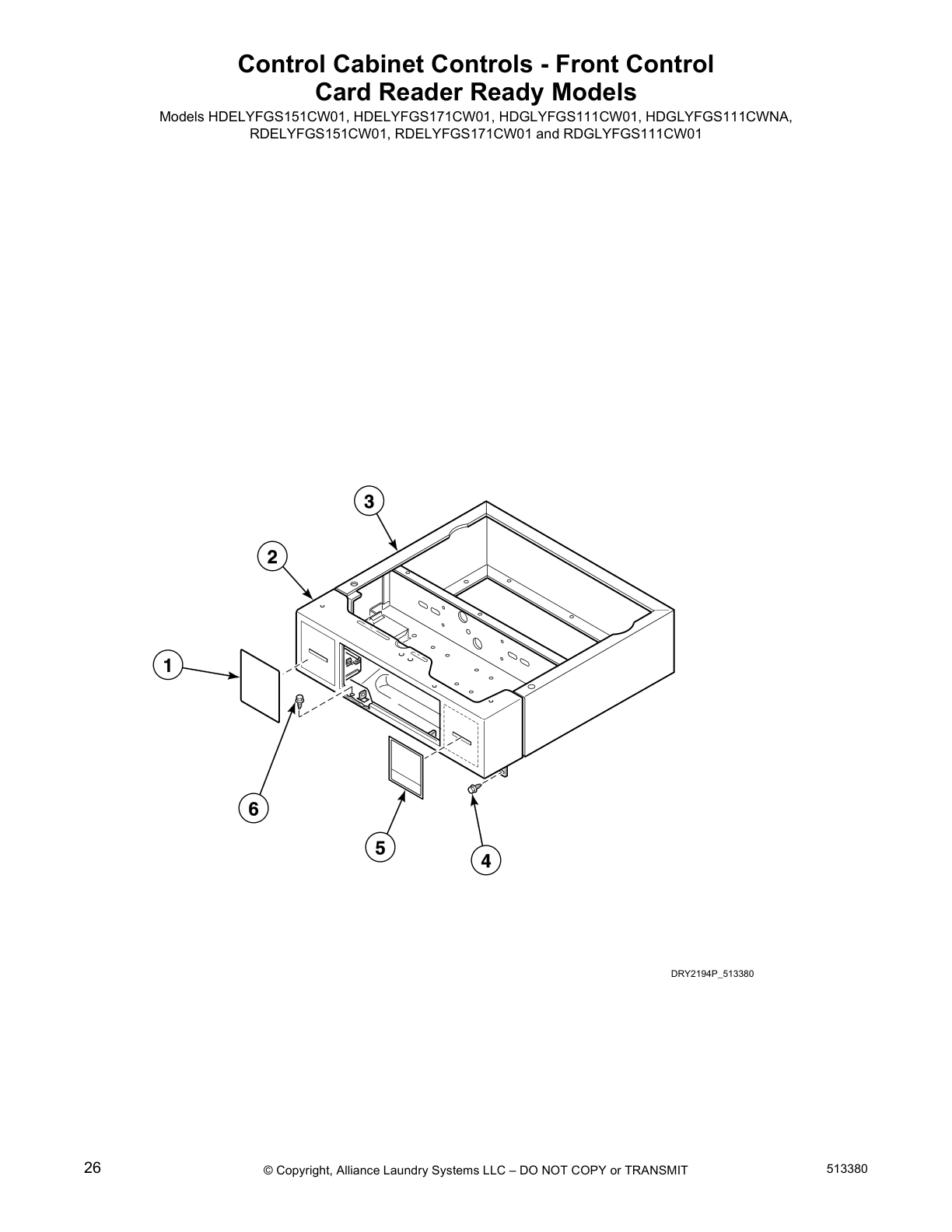

Card Reader Ready Models
Cabinet Top - Front Control Coin Drop and Card Reader Models

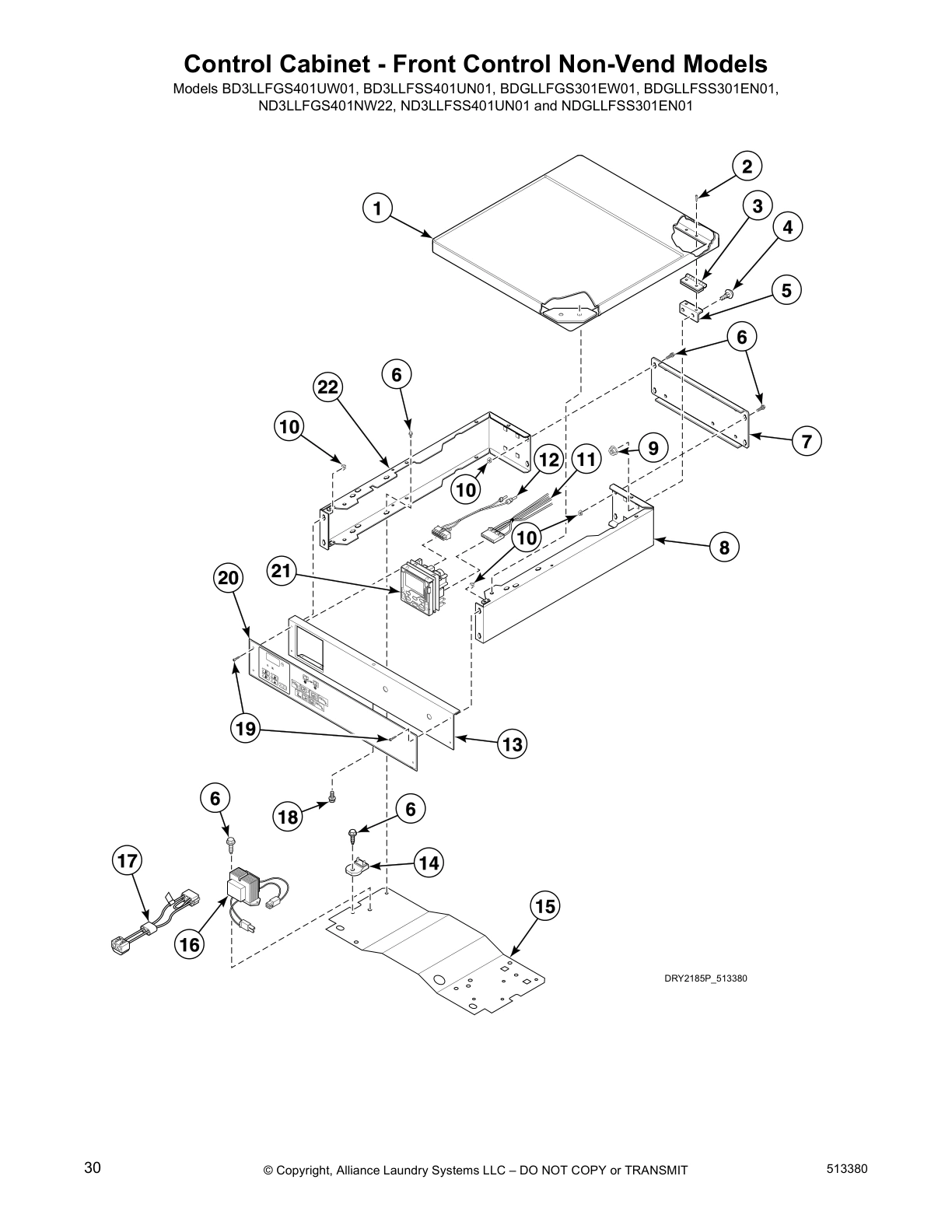

Control Cabinet - Front Control Non-Vend Models

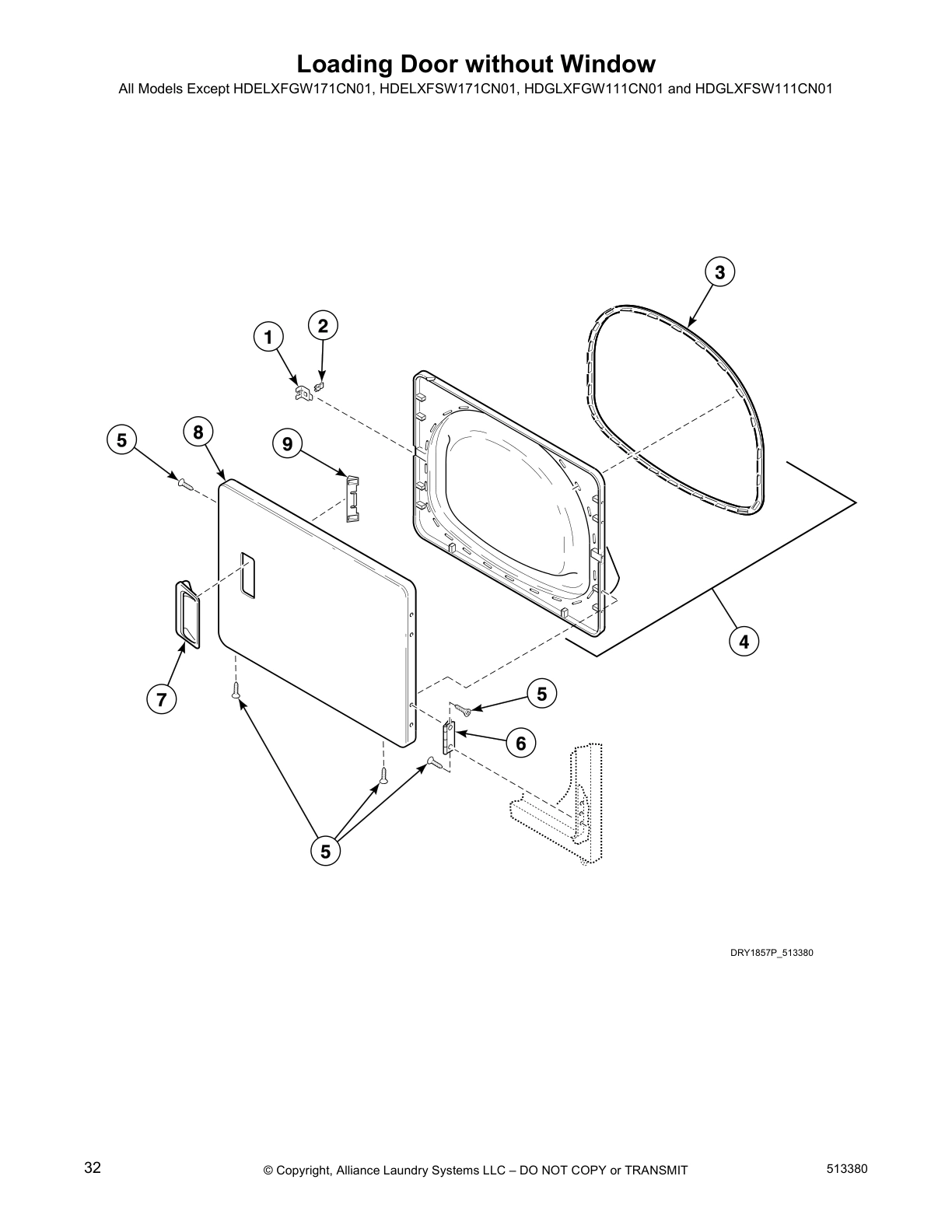

Loading Door without Window

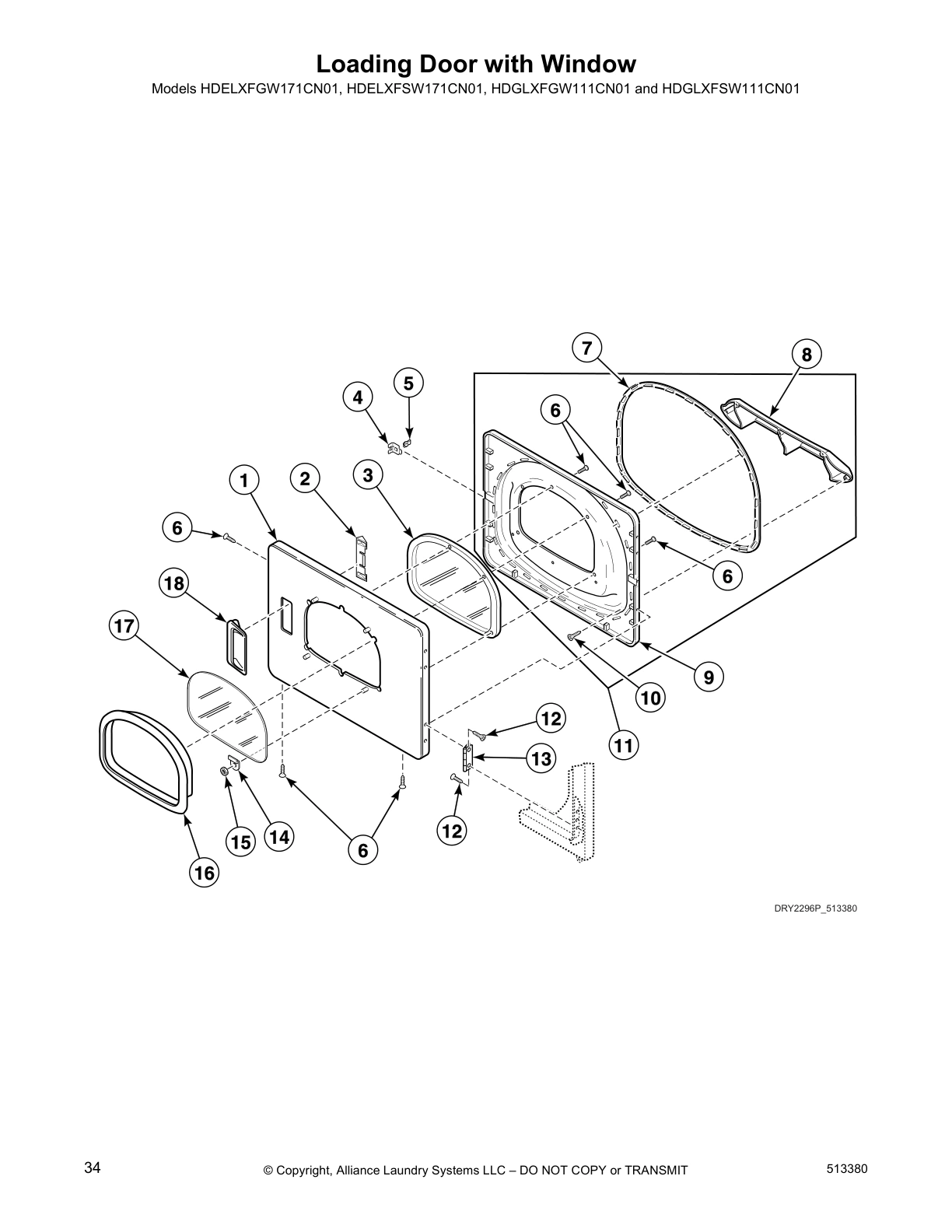

Loading Door with Window

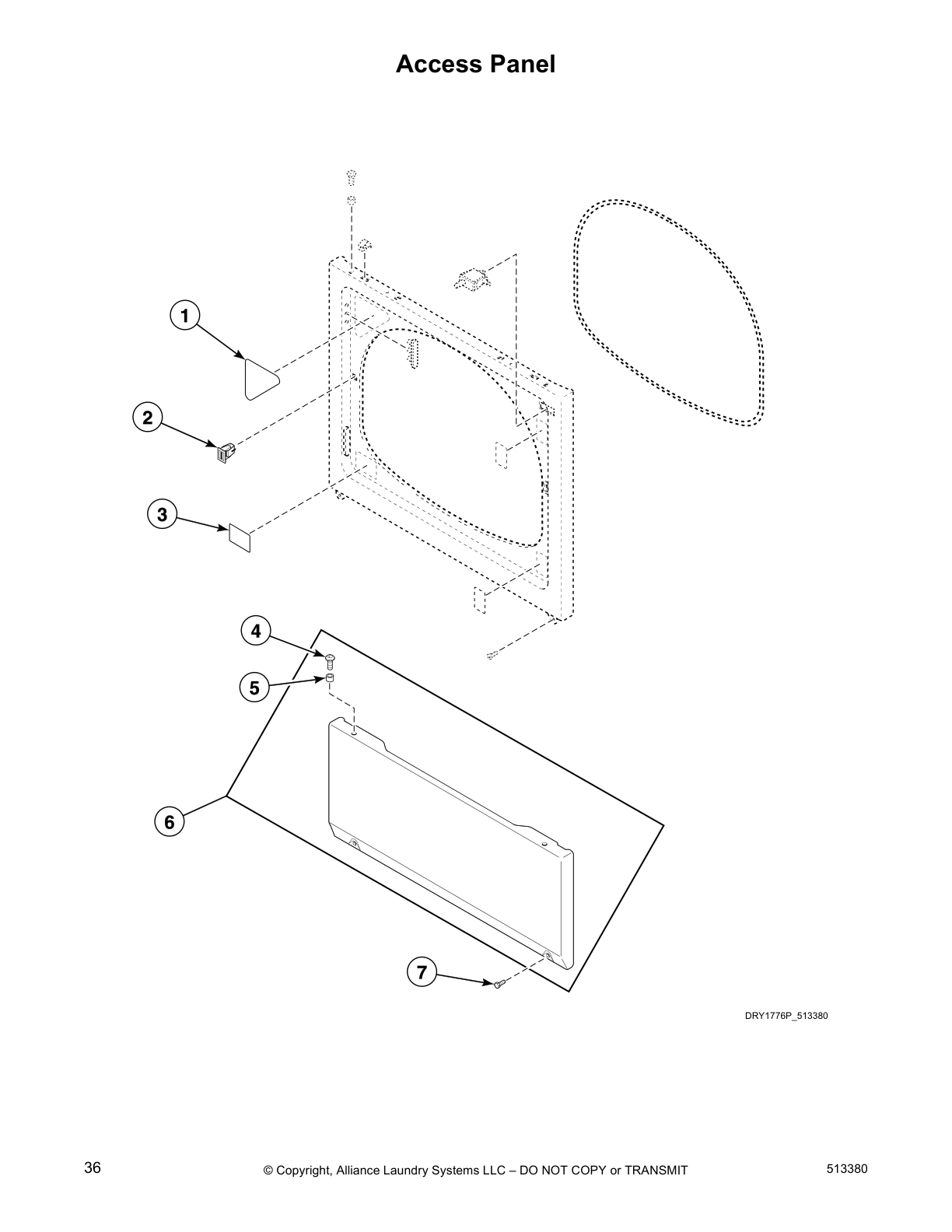

Access Panel

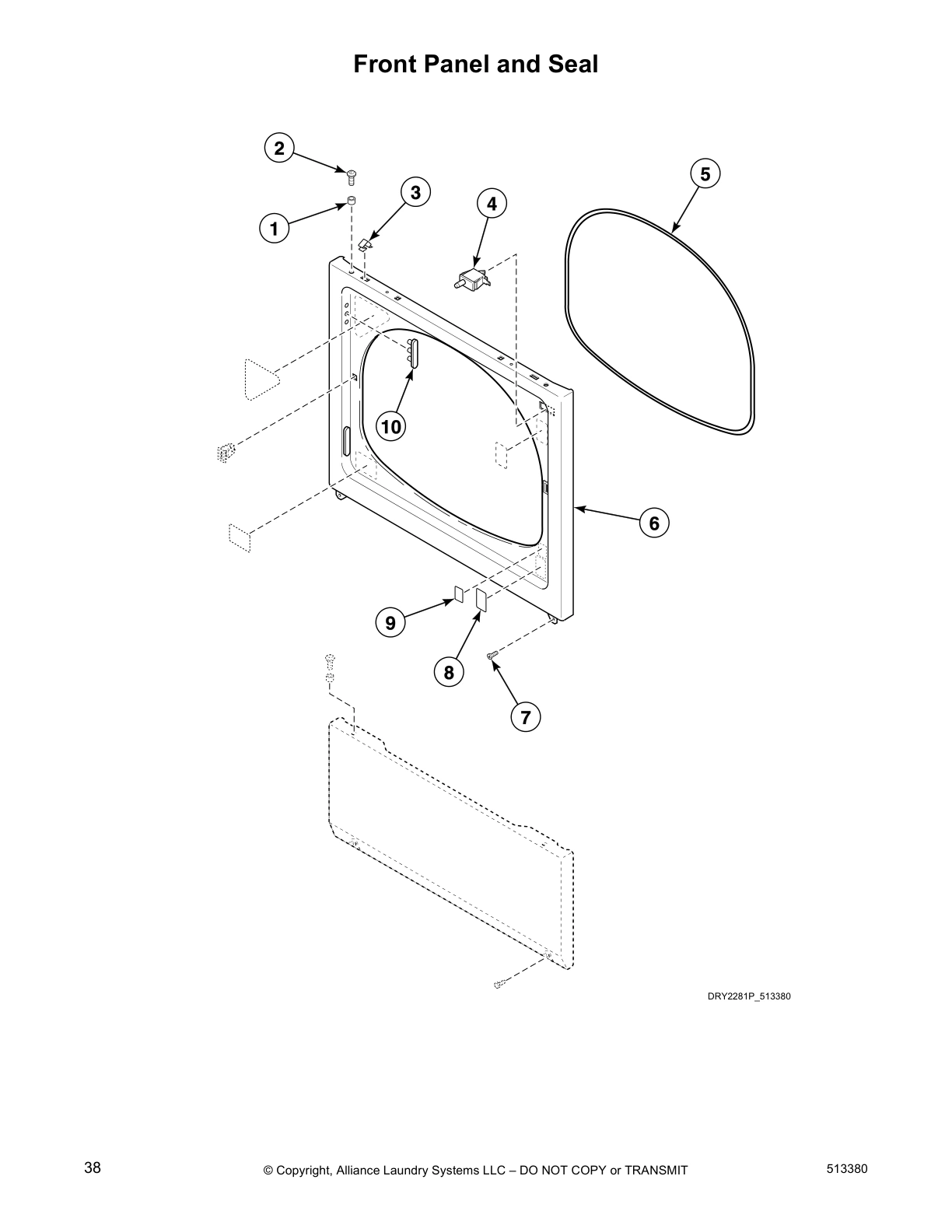

Front Panel and Seal

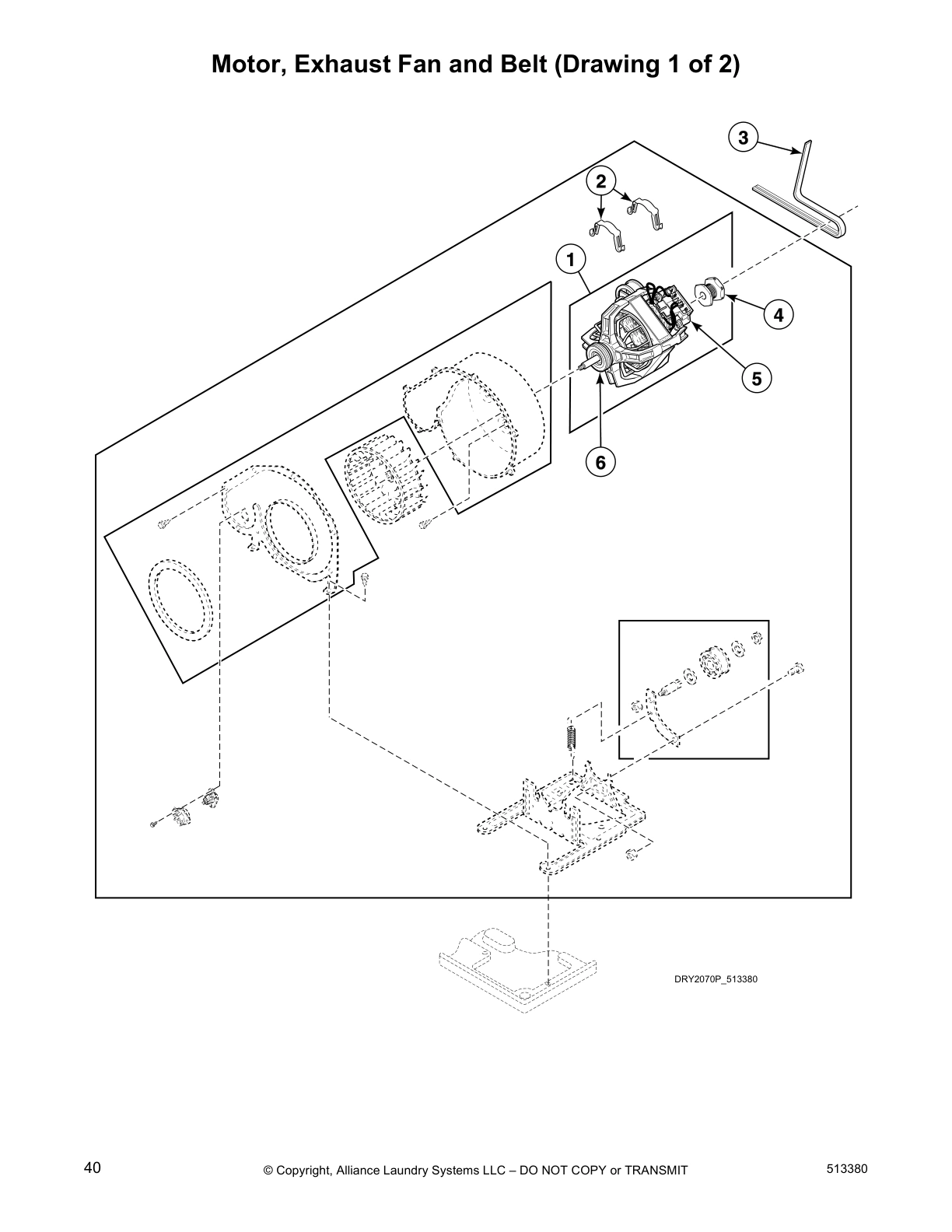

Motor, Exhaust Fan and Belt (Drawing 1 of 2)

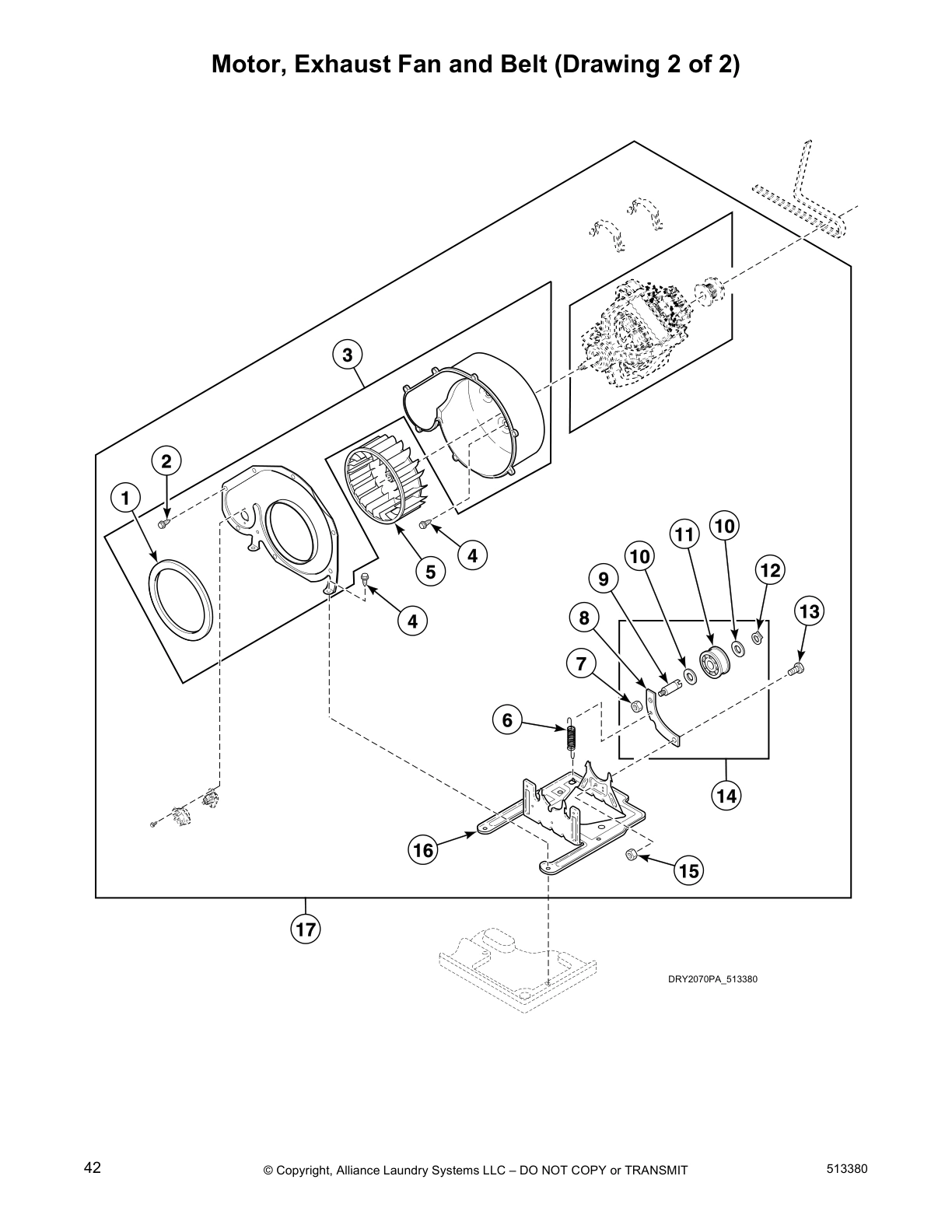

Motor, Exhaust Fan and Belt (Drawing 2 of 2)

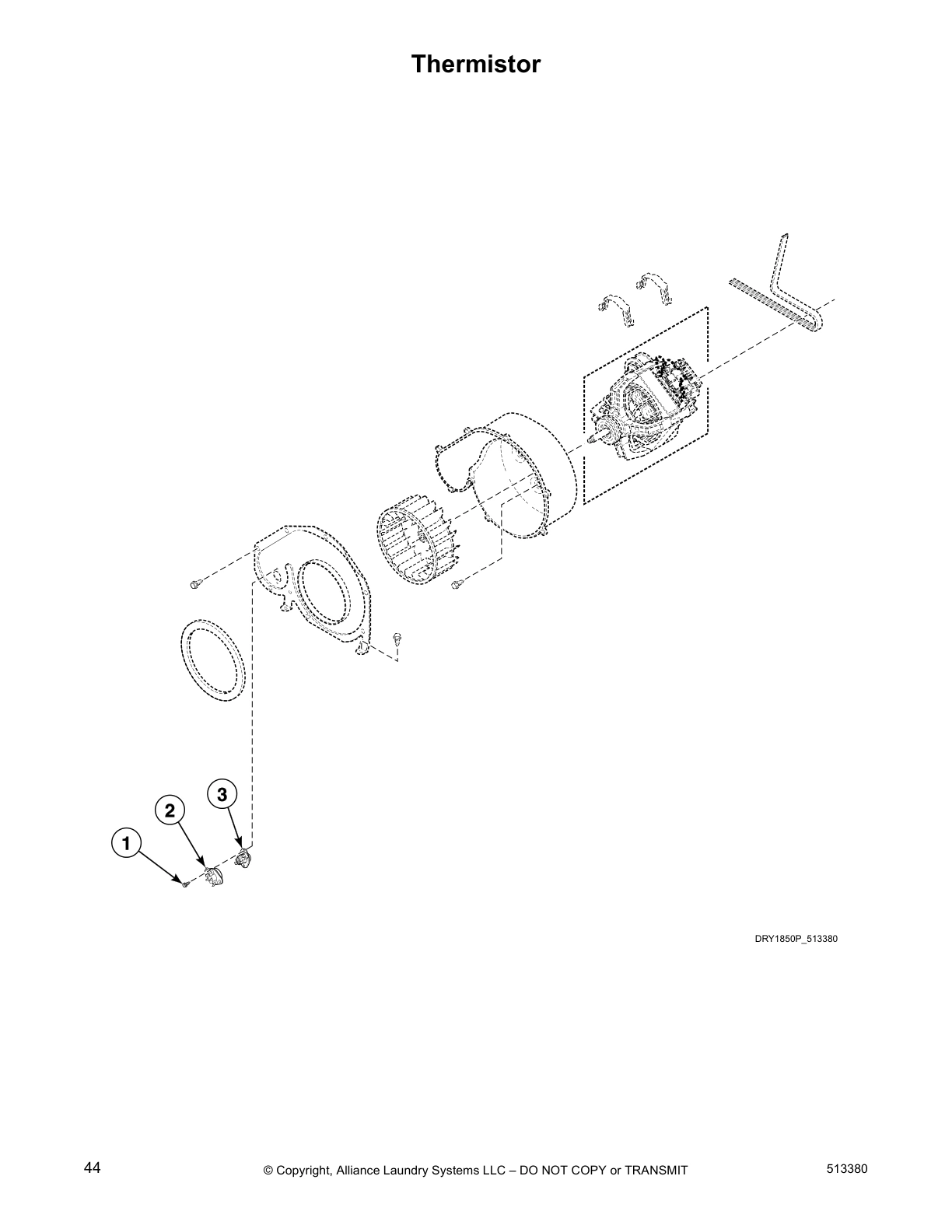

Thermistor

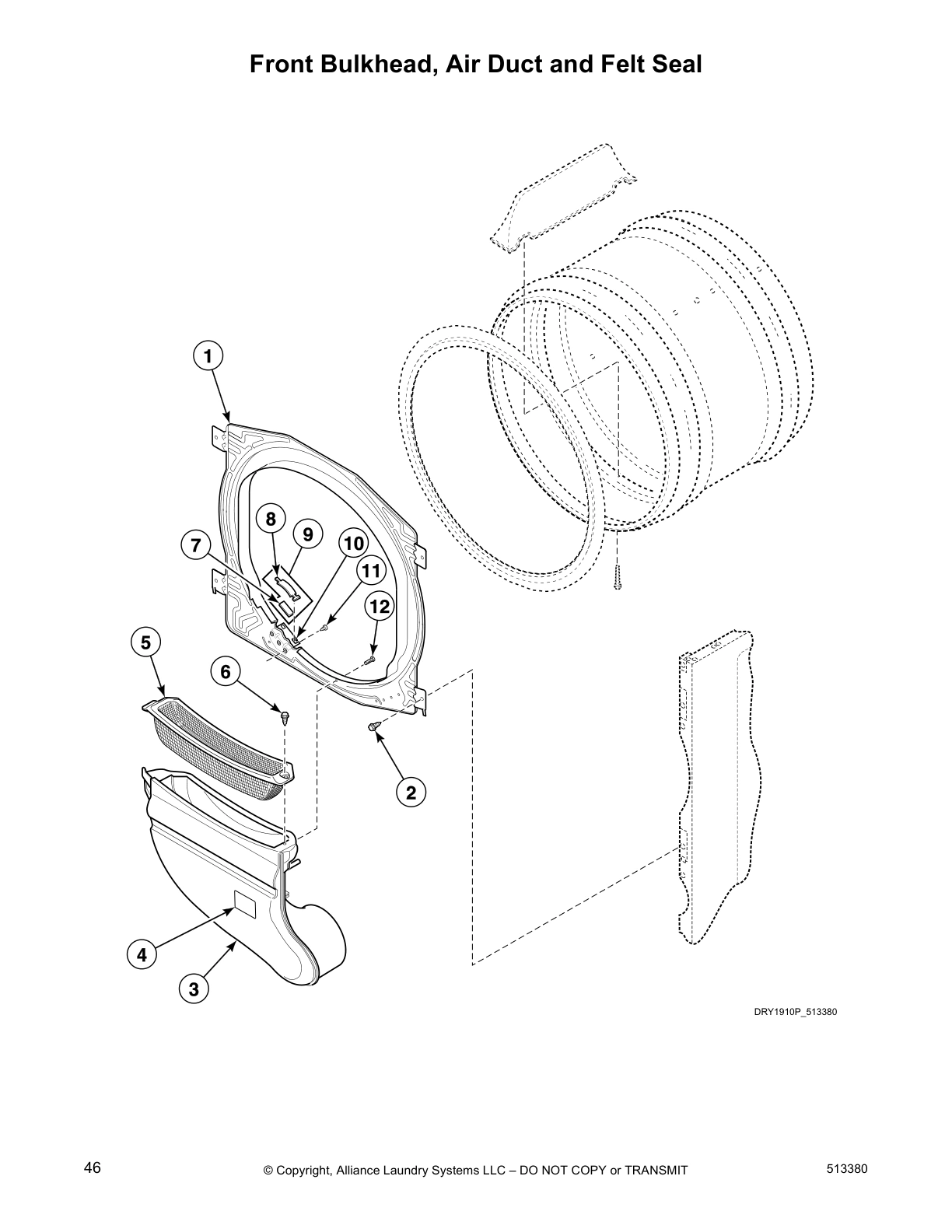

Front Bulkhead, Air Duct and Felt Seal

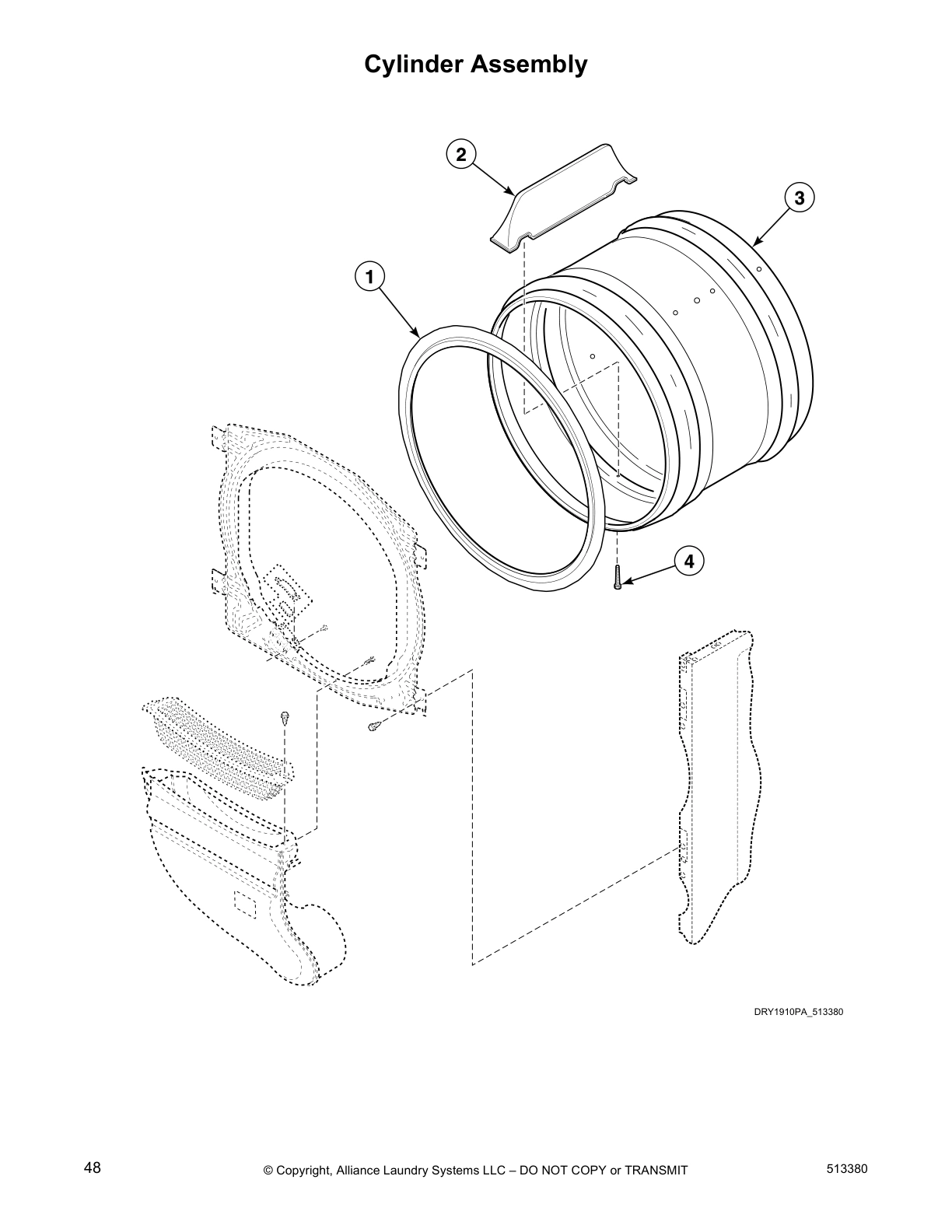

Cylinder Assembly

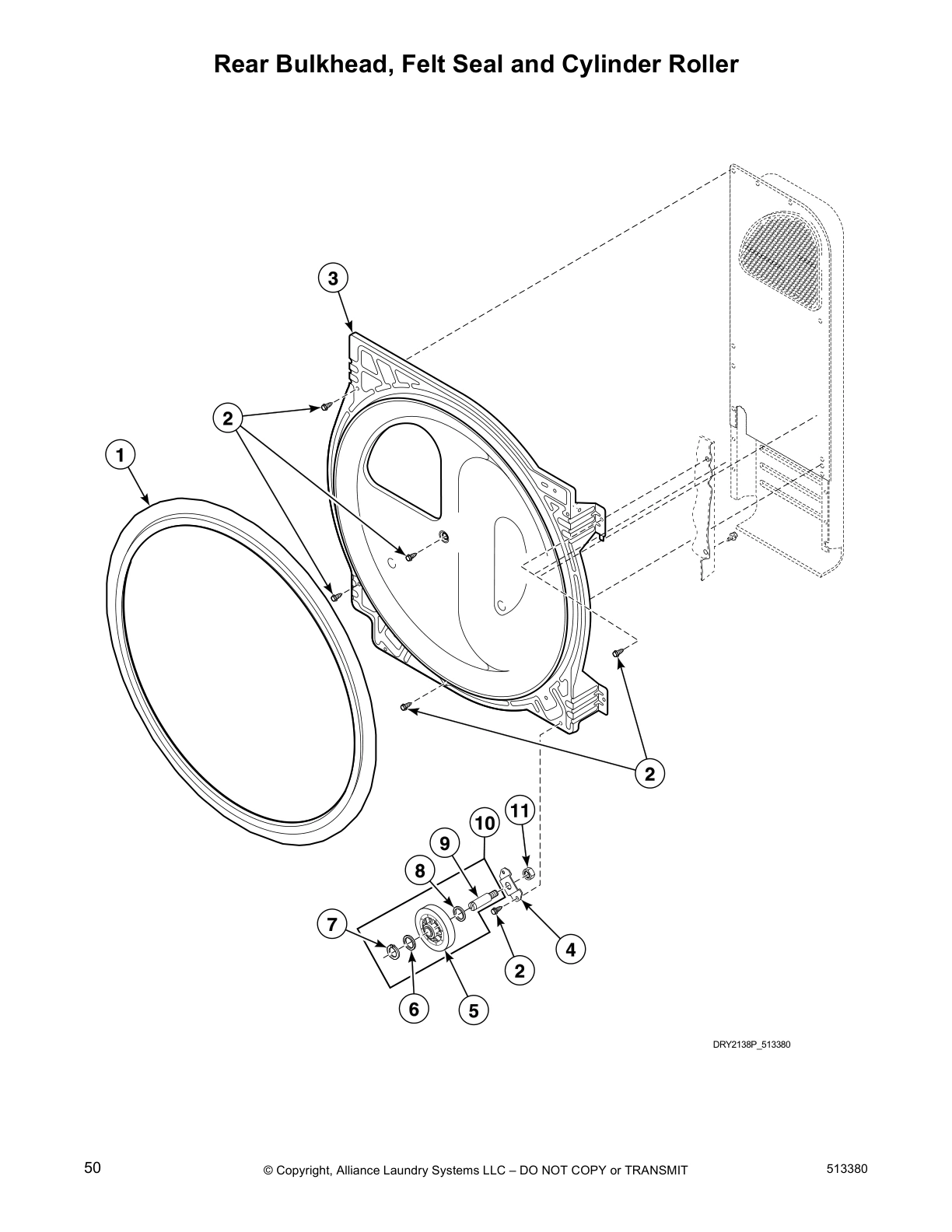

Rear Bulkhead, Felt Seal and Cylinder Roller

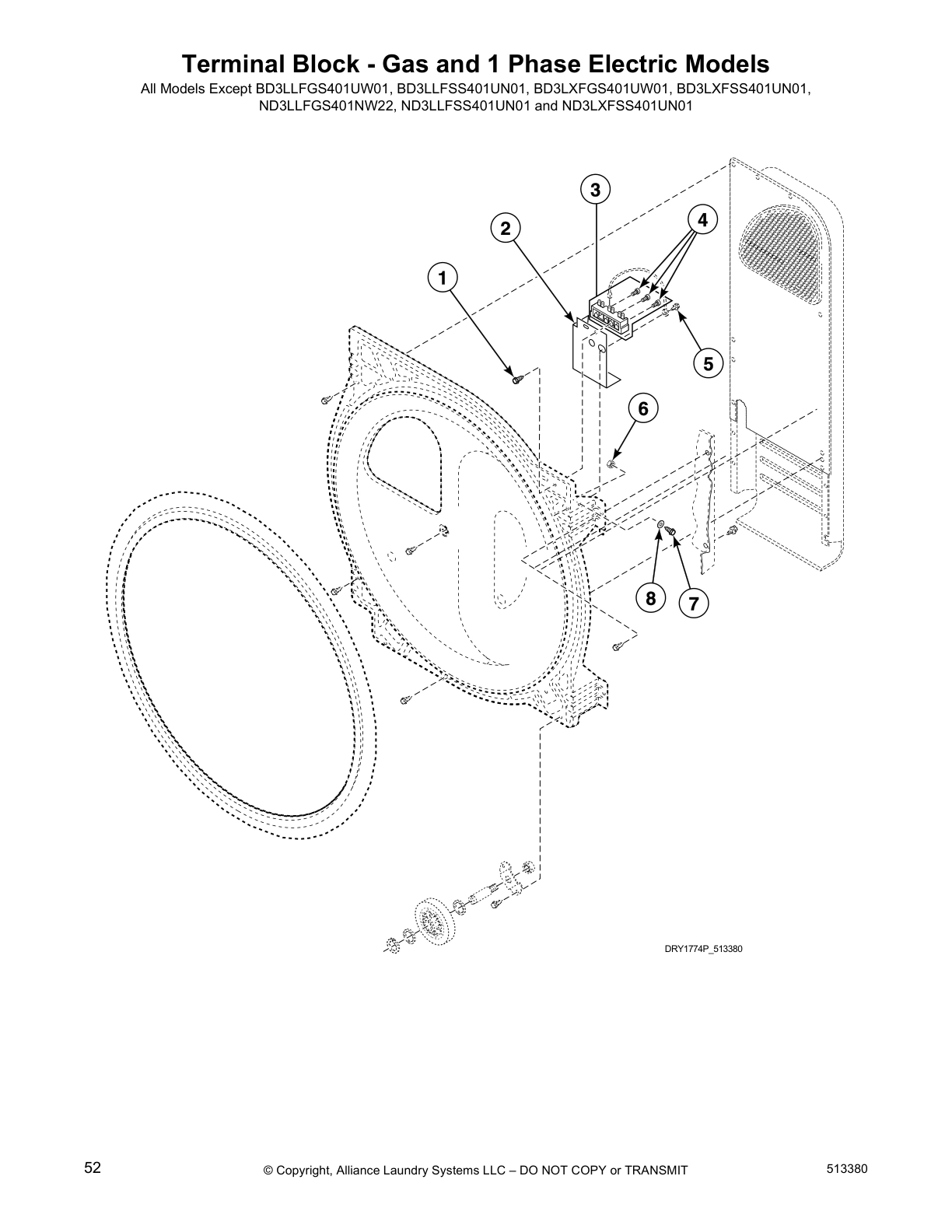

Terminal Block - Gas and 1 Phase Electric Models

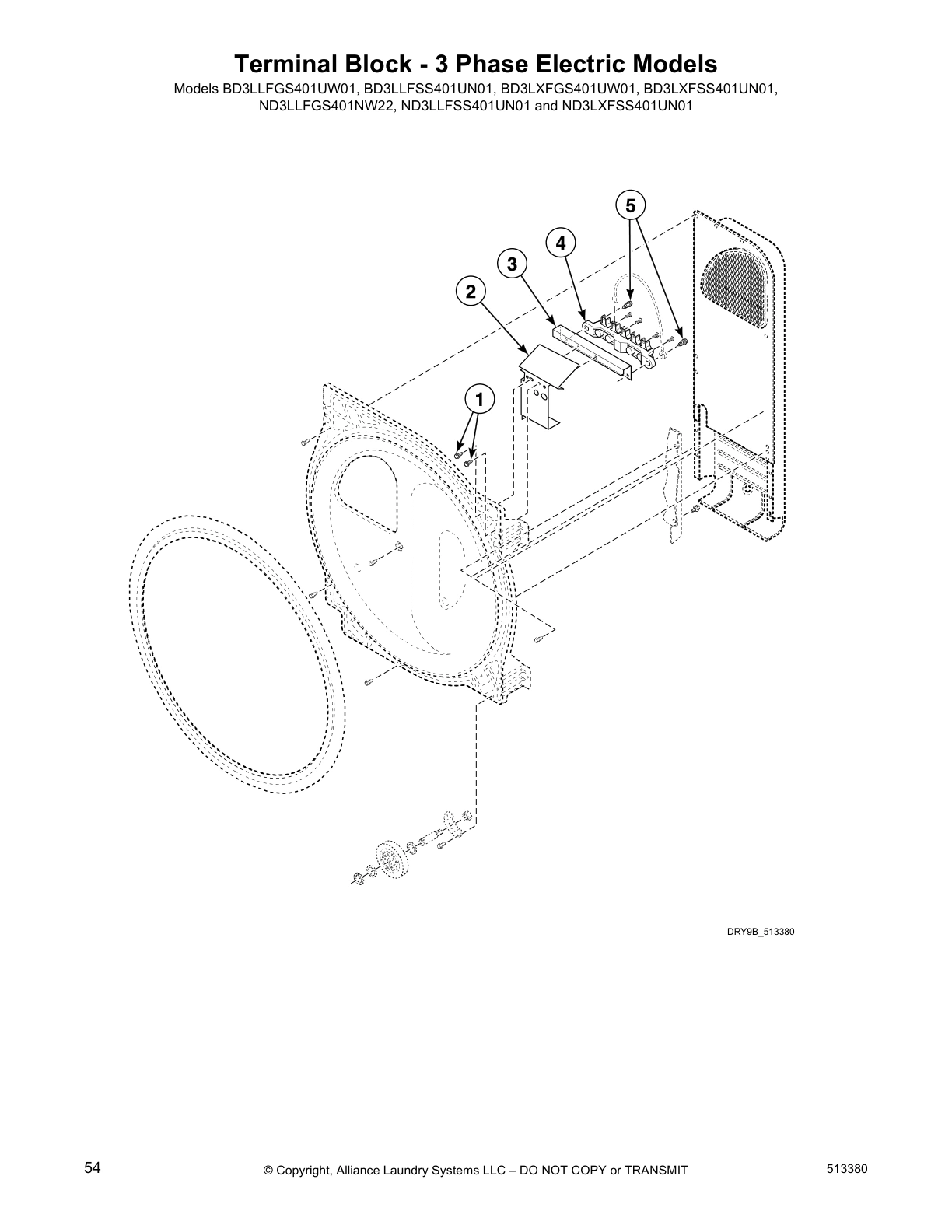

Terminal Block - 3 Phase Electric Models

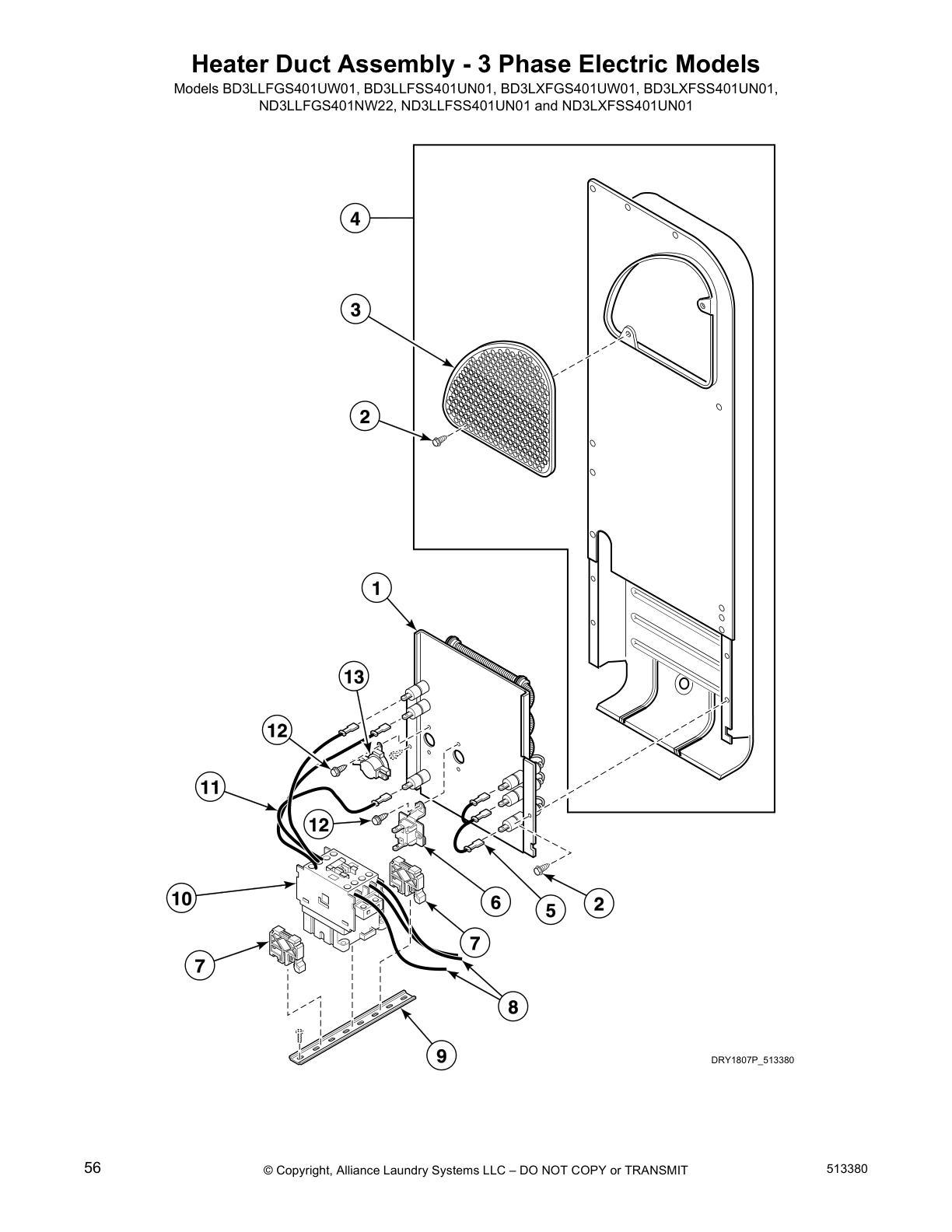

Heater Duct Assembly - 3 Phase Electric Models

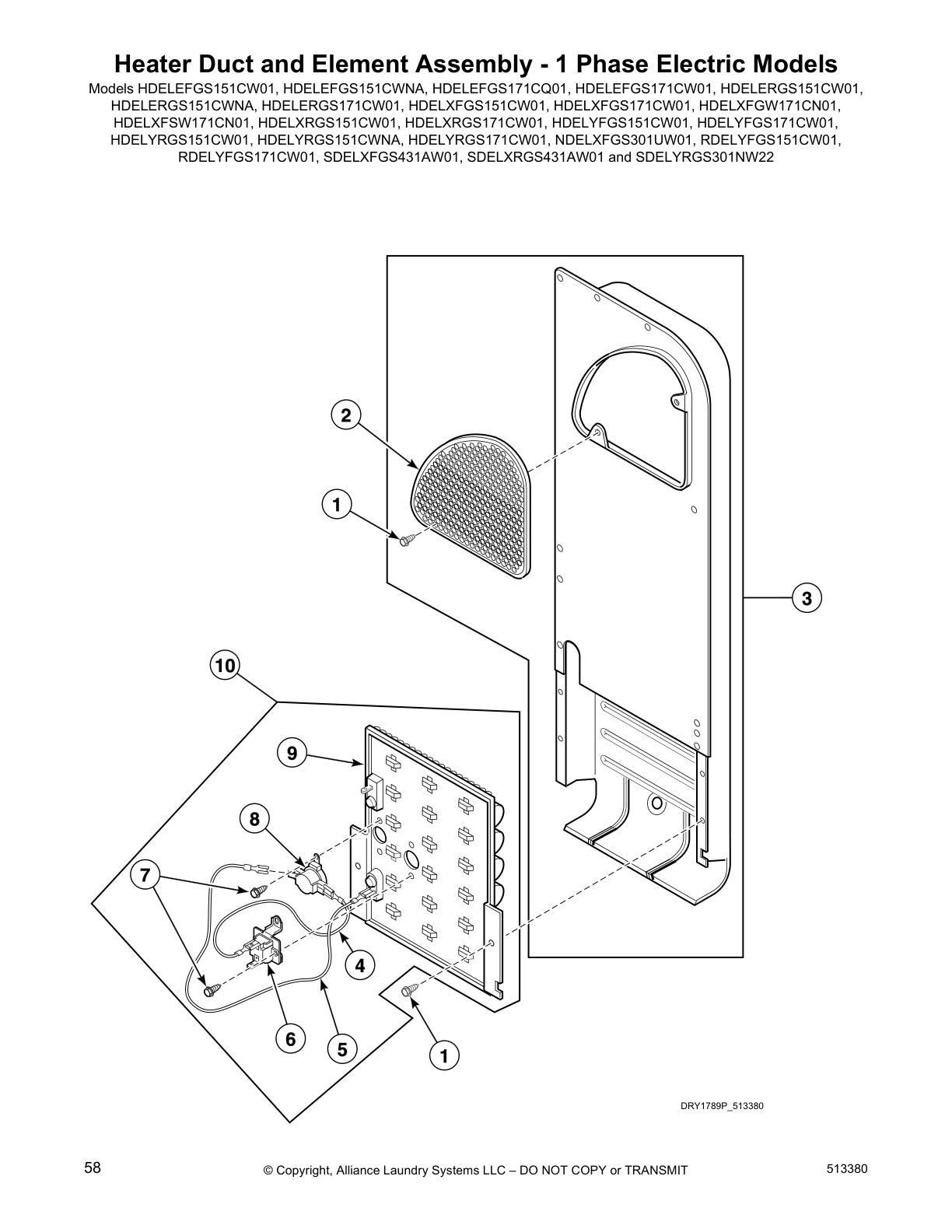

Heater Duct and Element Assembly - 1 Phase Electric Models

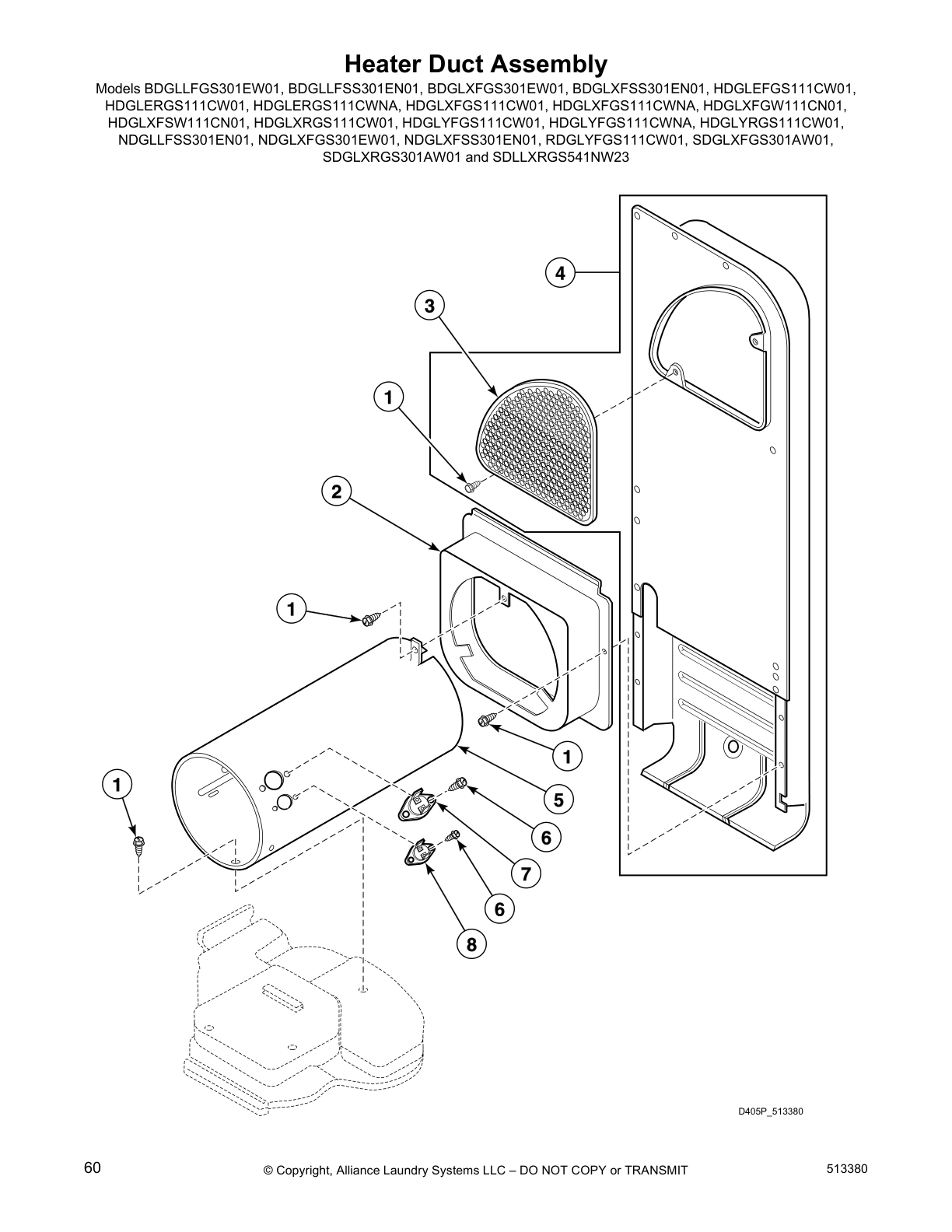

Heater Duct Assembly

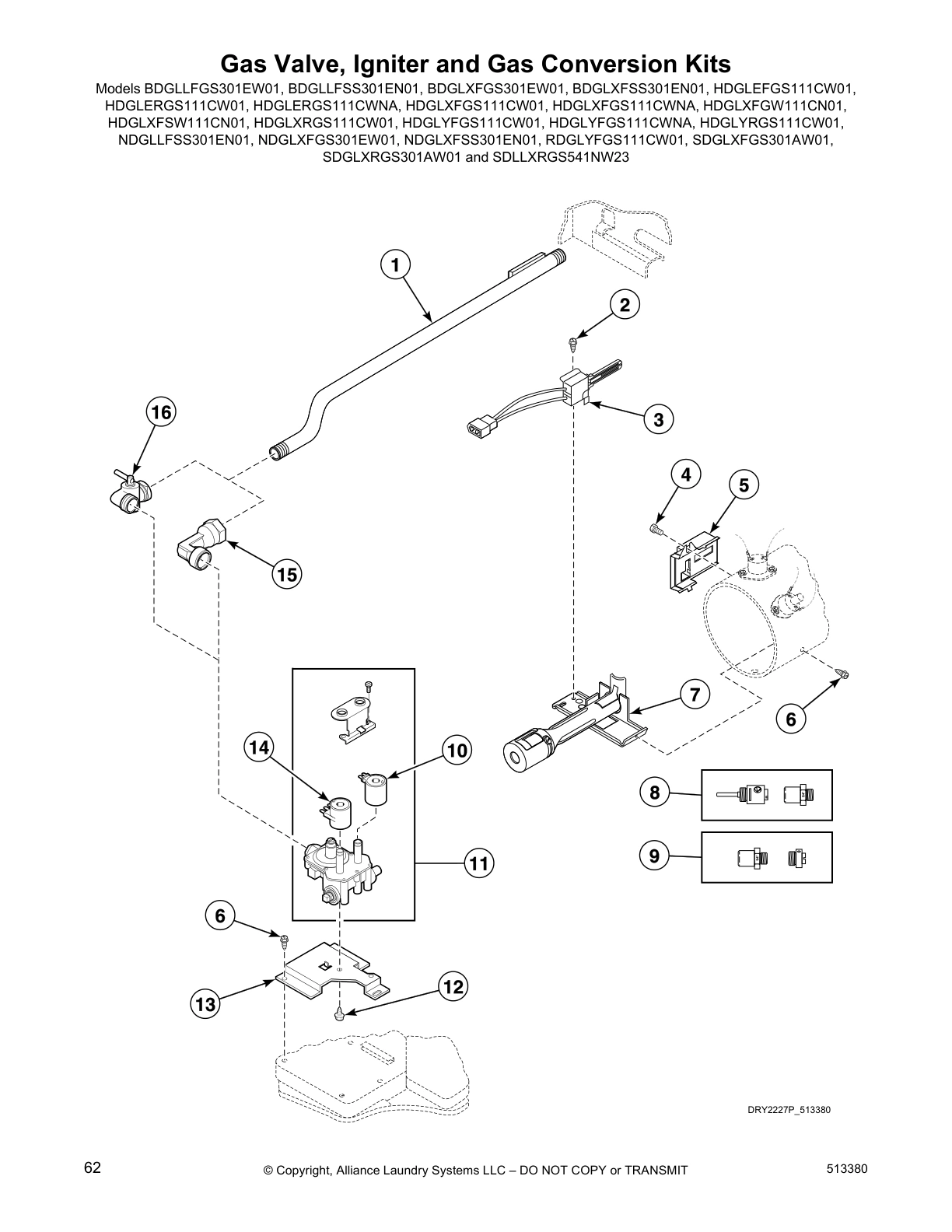

Gas Valve, Igniter and Gas Conversion Kits

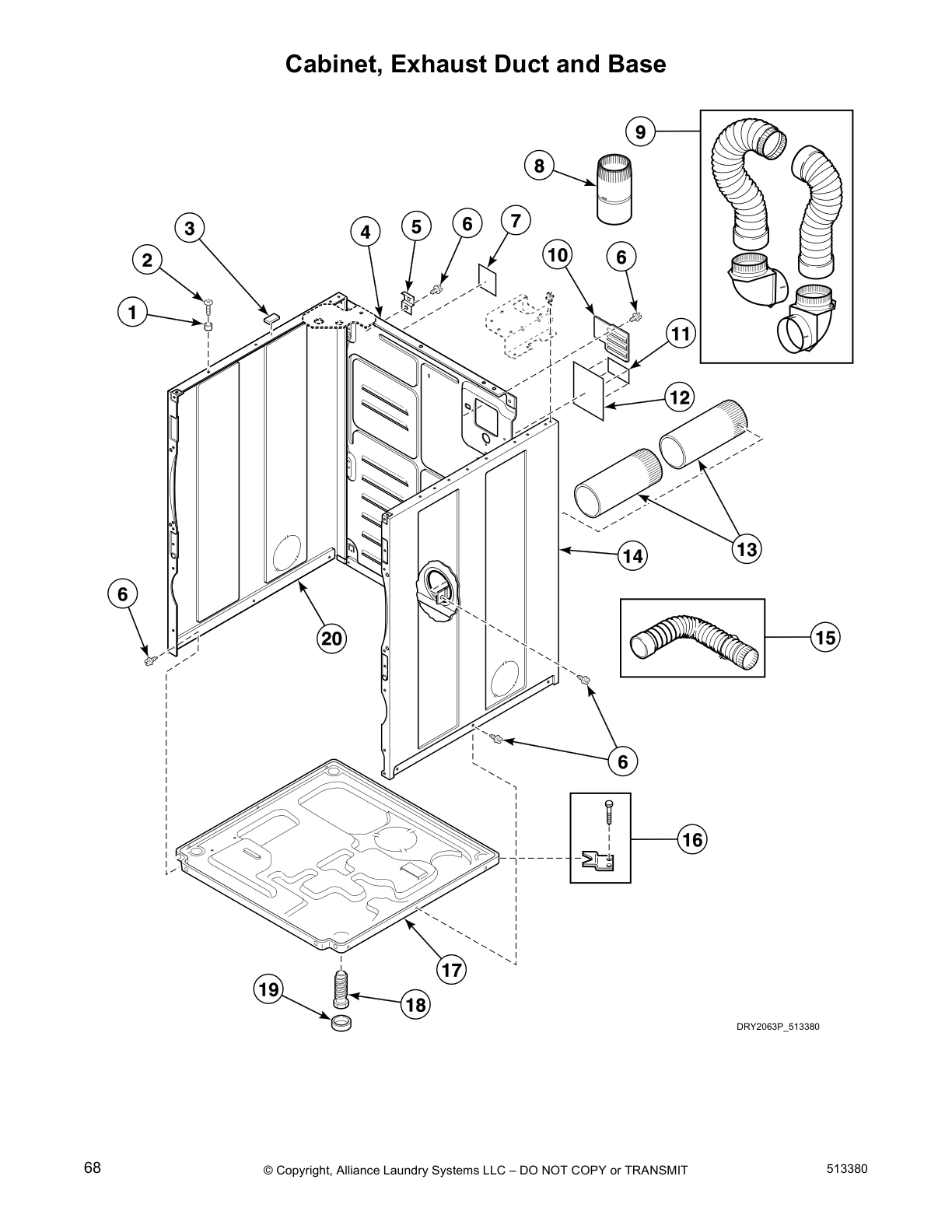

Cabinet, Exhaust Duct and Base

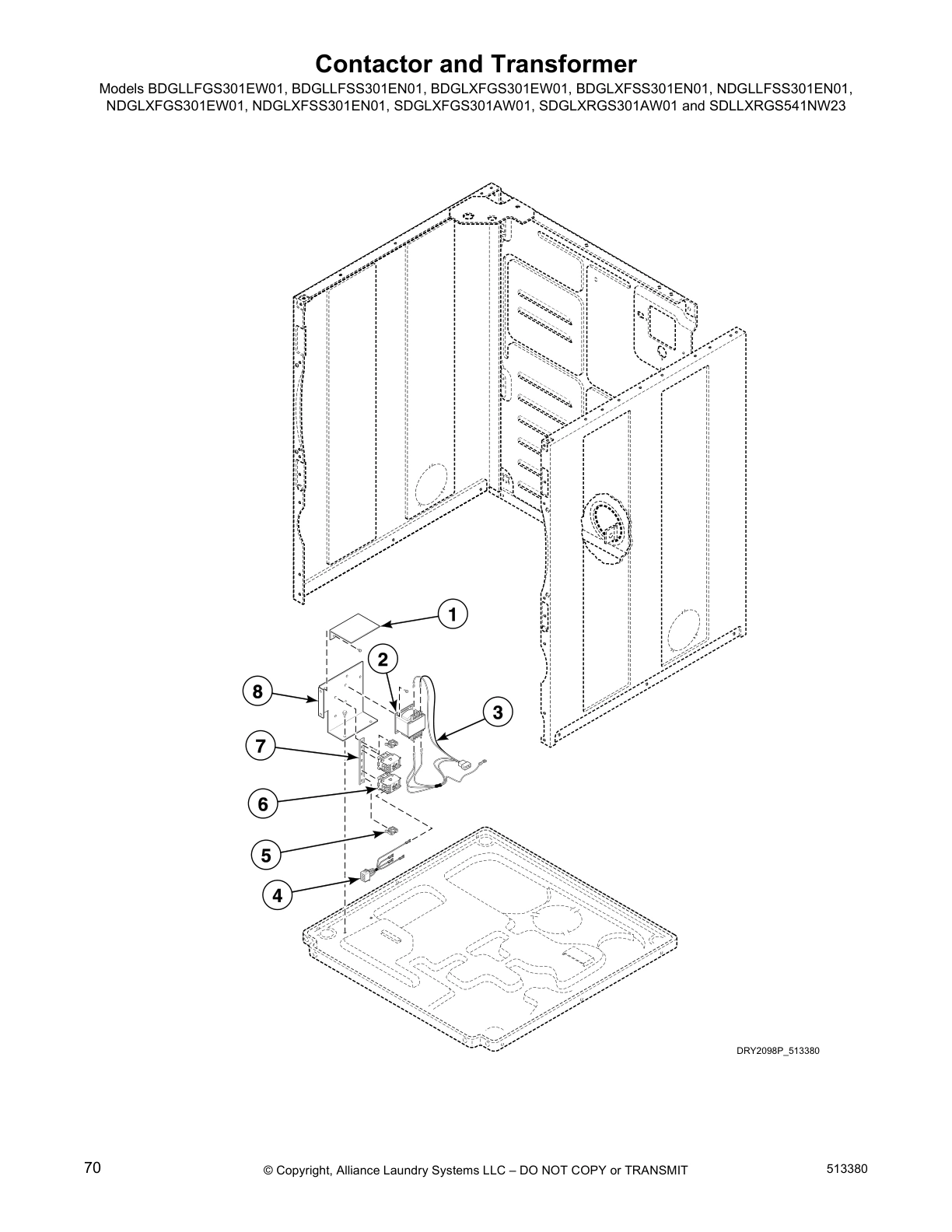

Contactor and Transformer

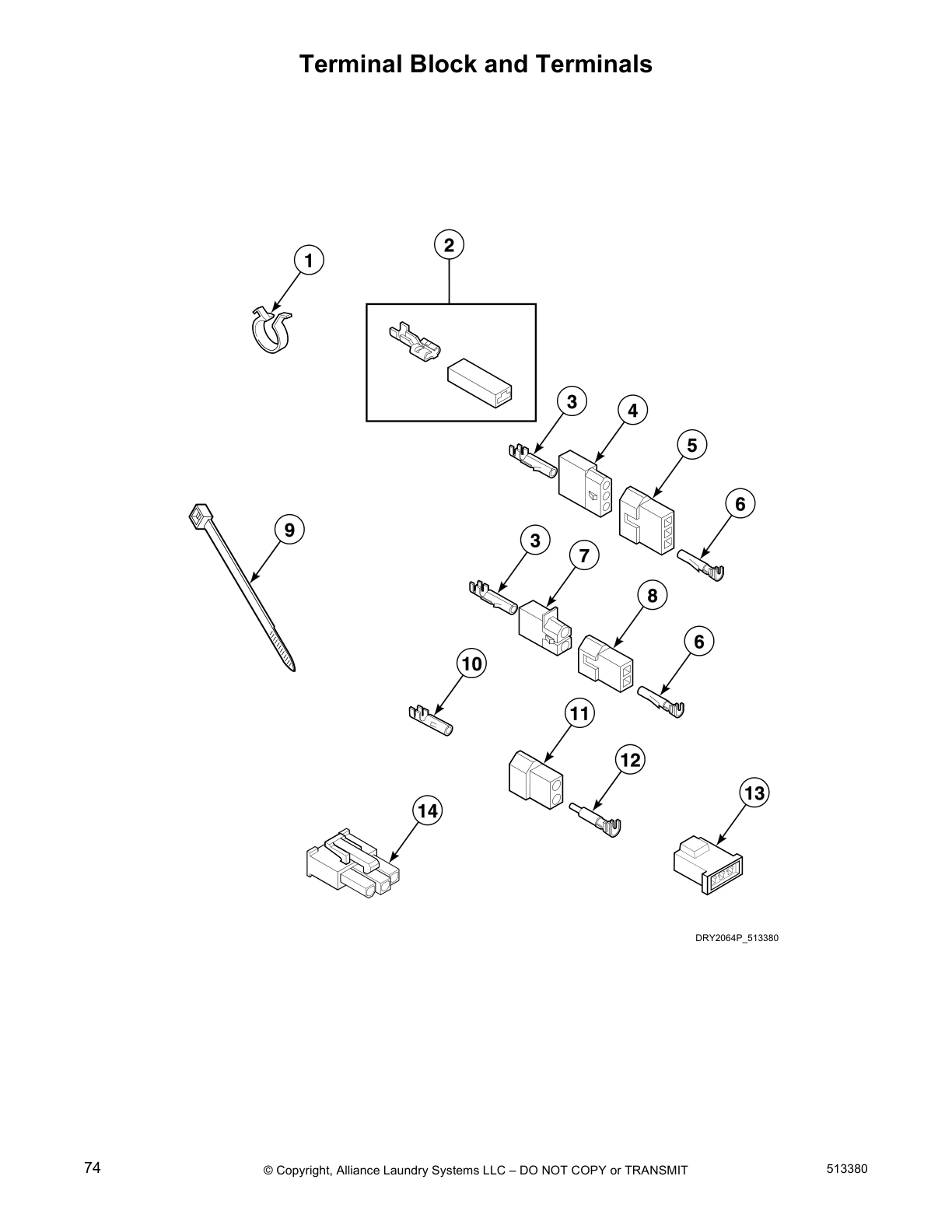

Terminal Block and Terminals

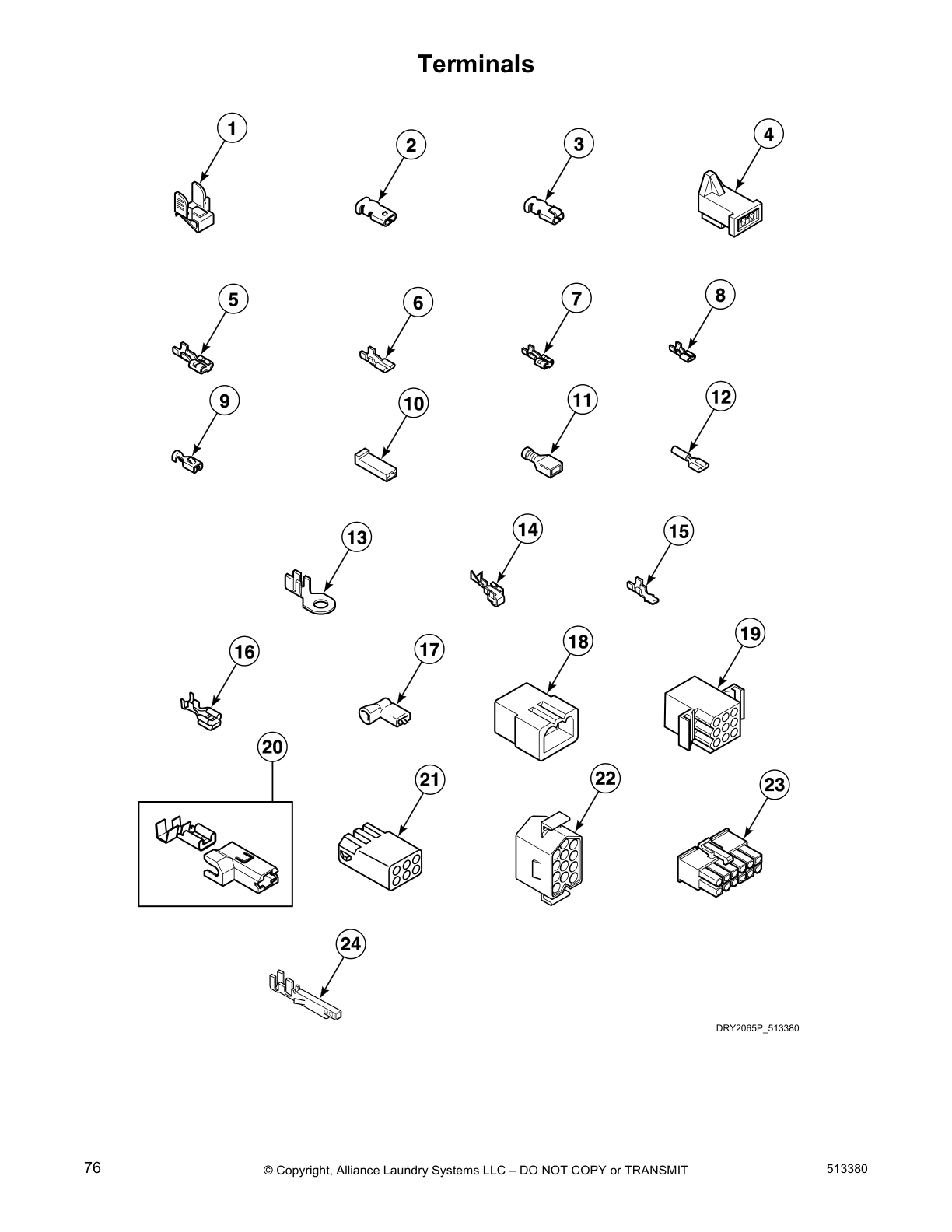

Terminals

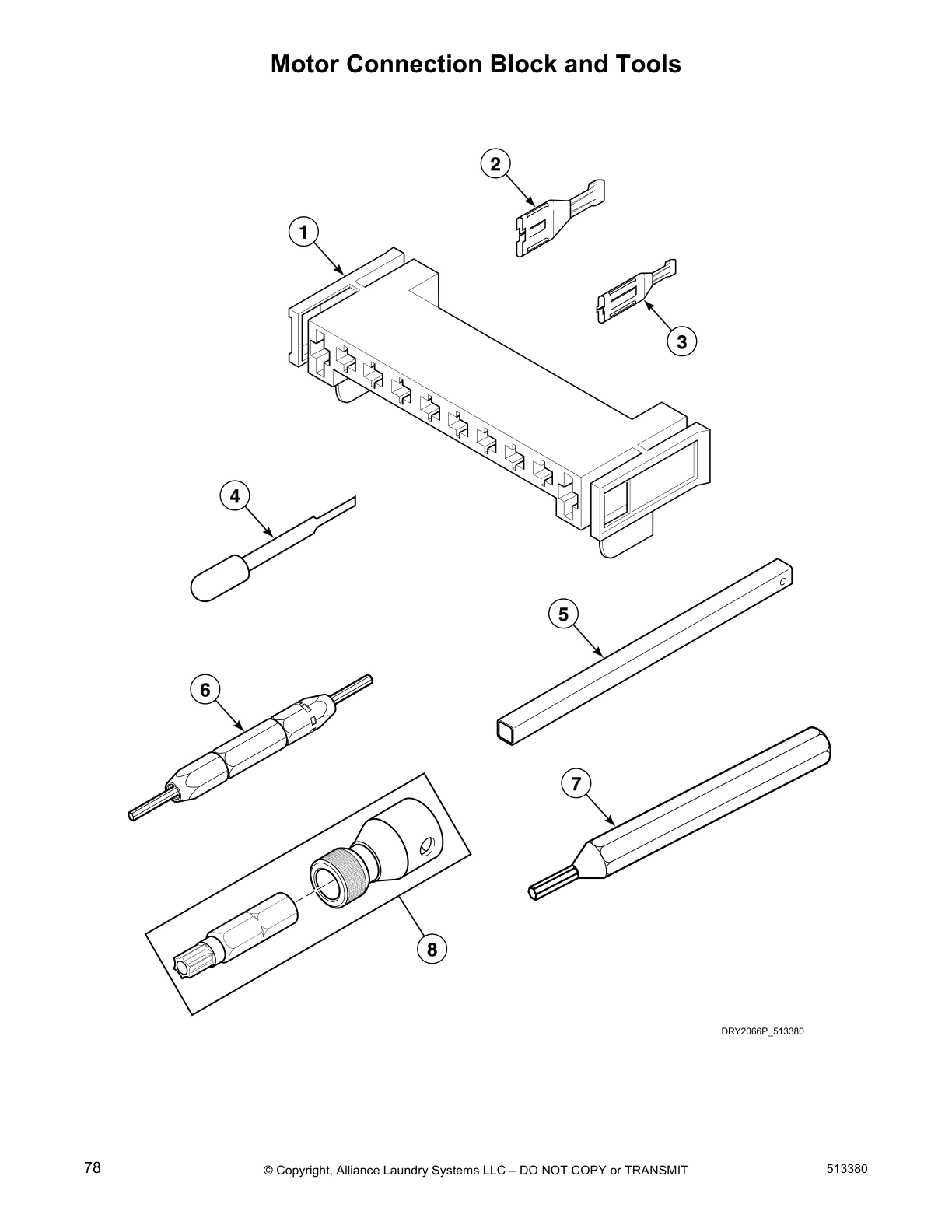

Motor Connection Block and Tools

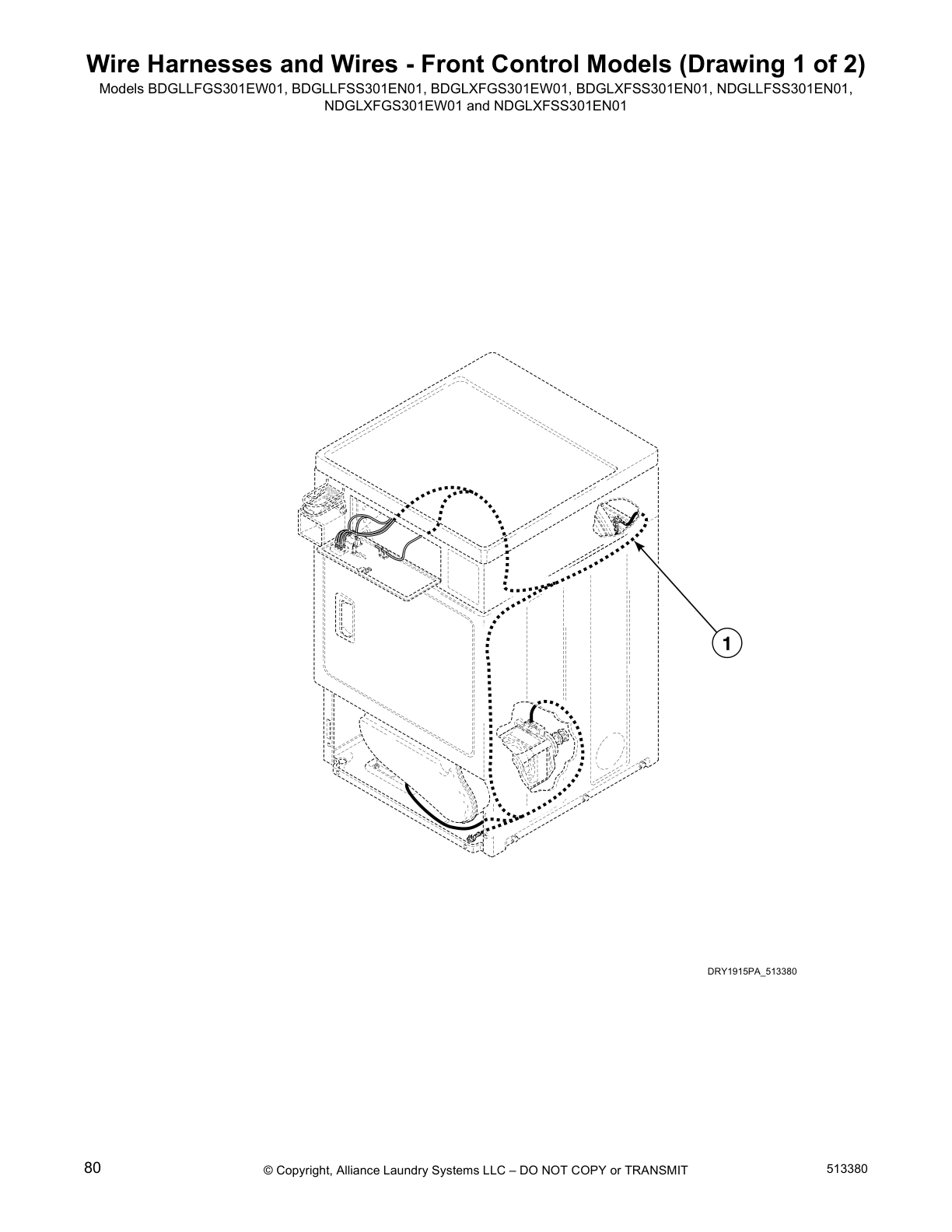

Wire Harnesses and Wires - Front Control Models (Drawing 1 of 2)

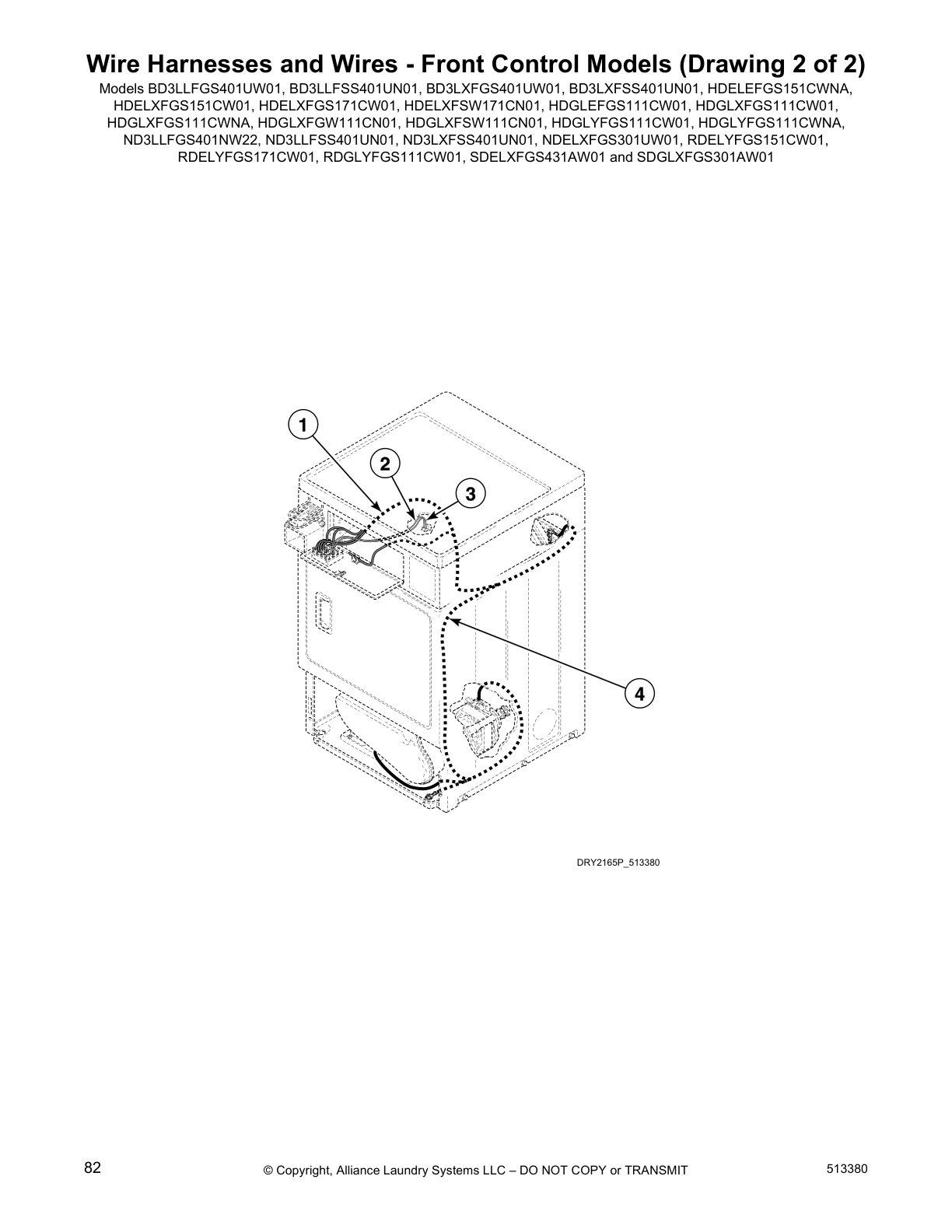

Wire Harnesses and Wires - Front Control Models (Drawing 2 of 2)
Wire Harnesses and Wires - Front Control Models

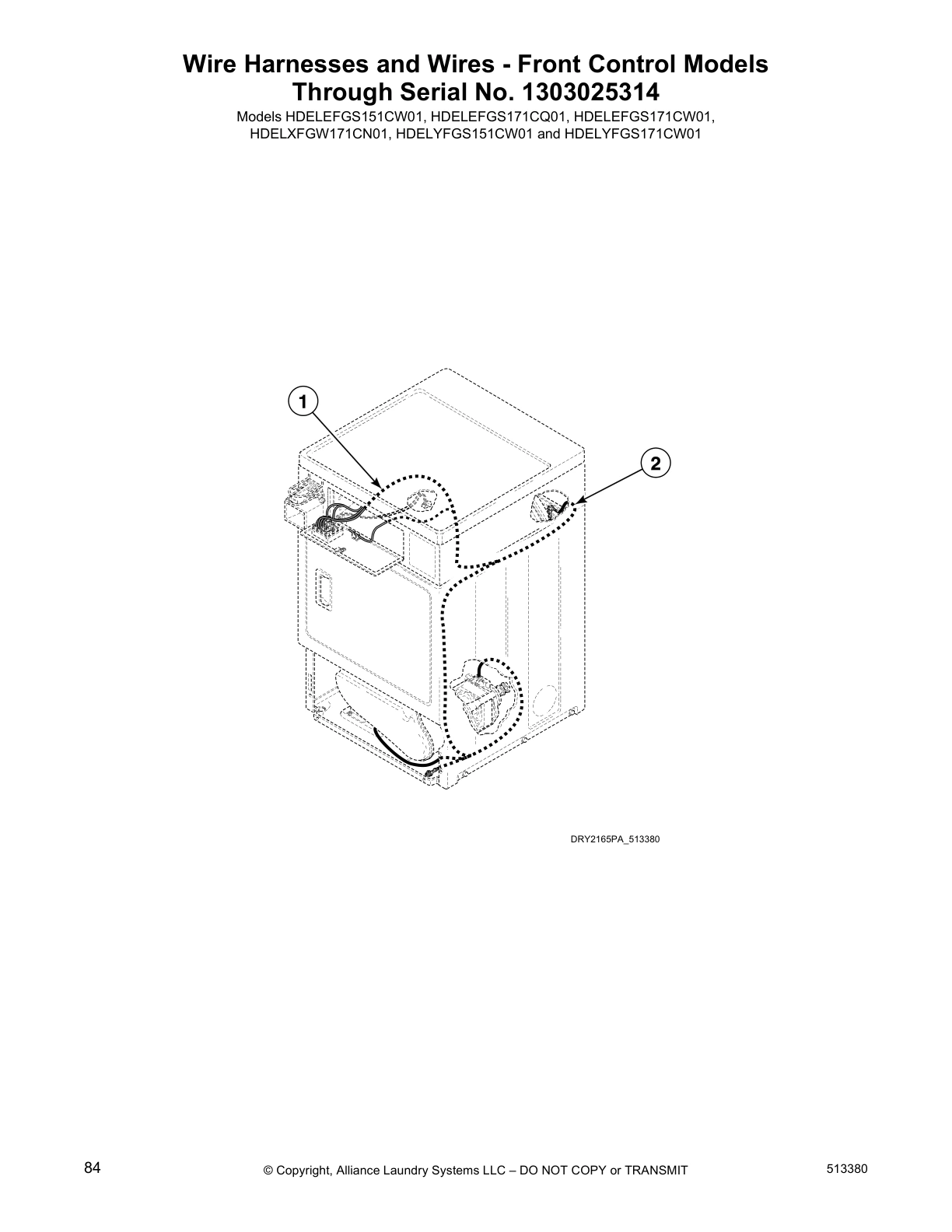

Through Serial No. 1303025314
Wire Harnesses and Wires - Front Control Models

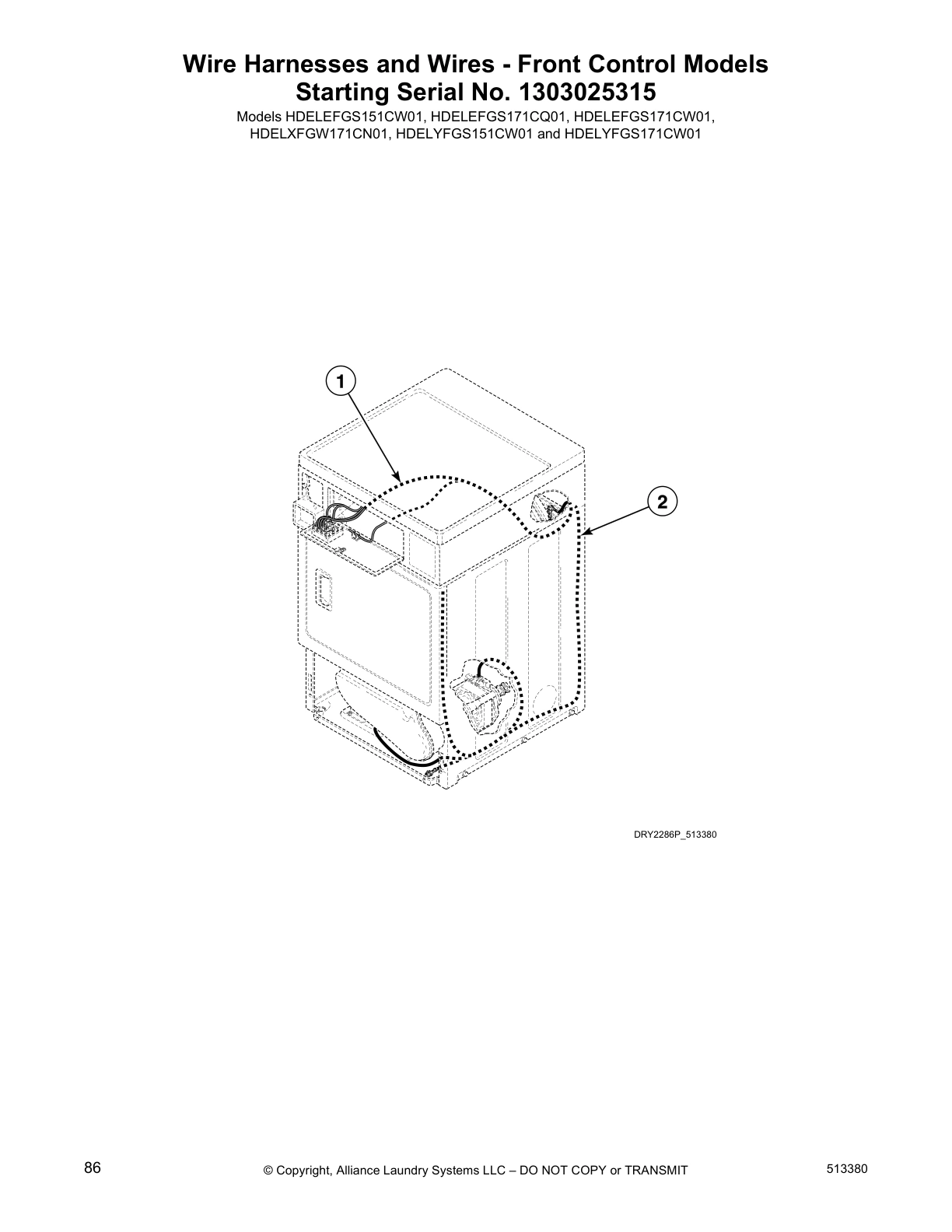

Starting Serial No. 1303025315
Wire Harnesses and Wires - Rear Control Models

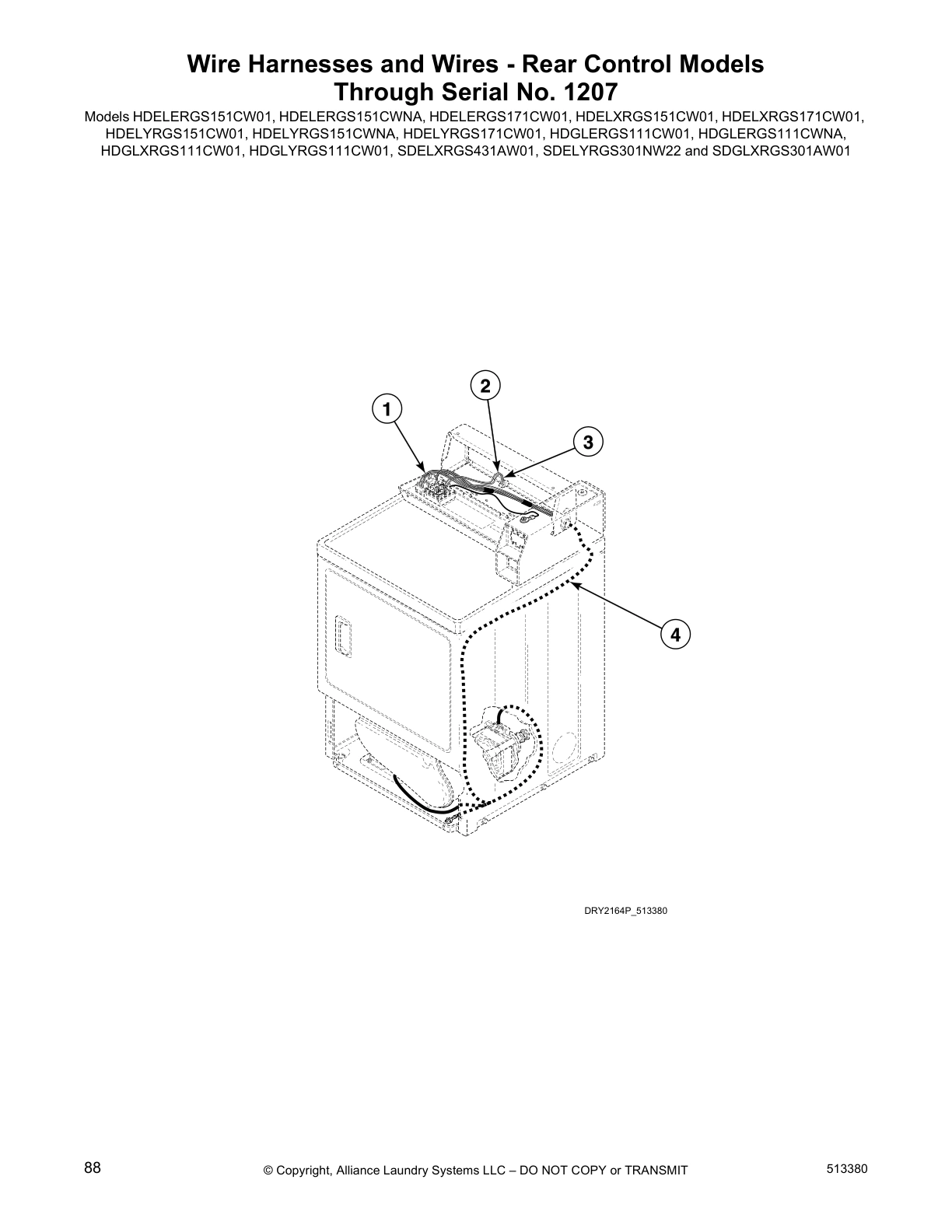

Through Serial No. 1207
Wire Harnesses and Wires - Rear Control Models

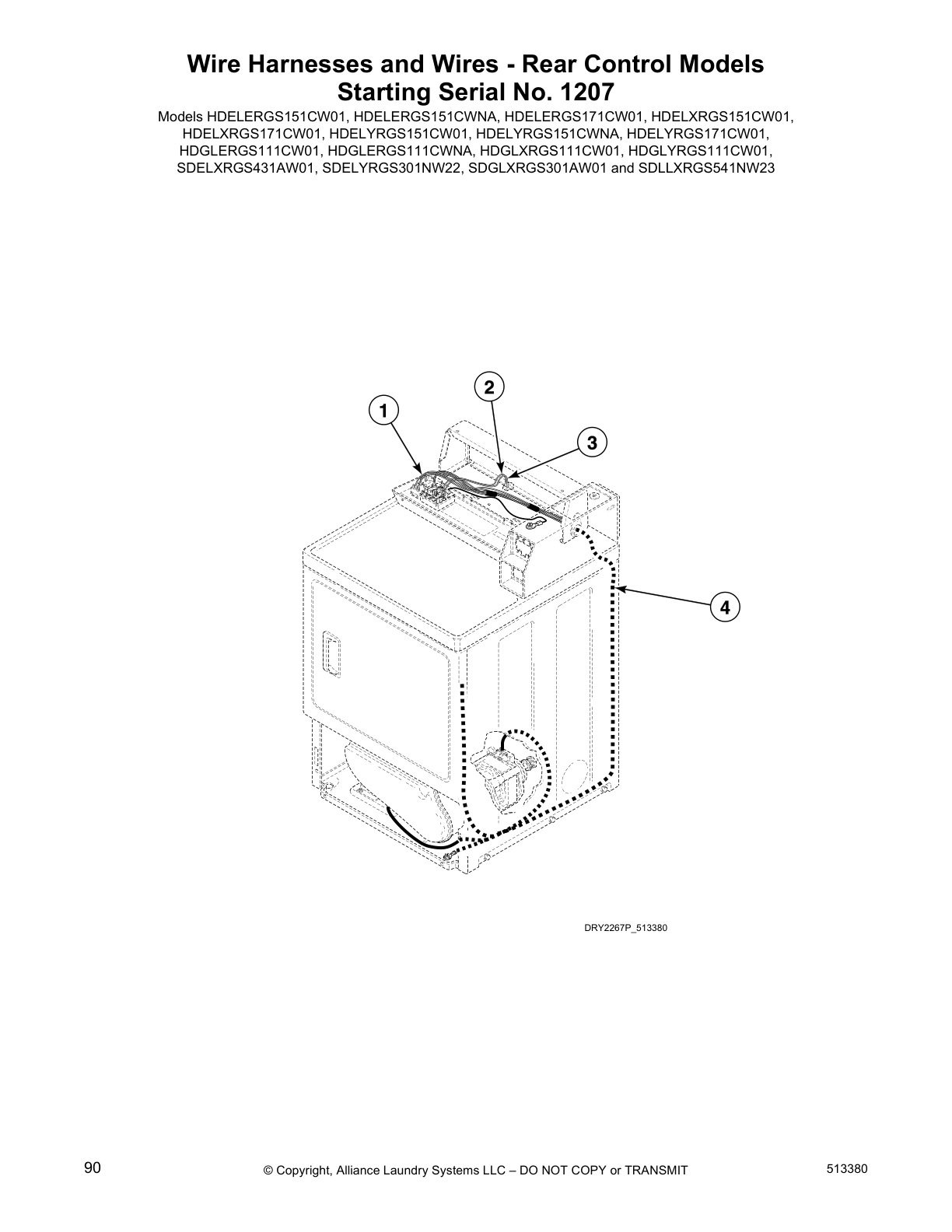

Starting Serial No. 1207
Common parts from model IPSO BD3LLFGS401UW01 Dryer
1
Wire Harness Assembly SPQ 512422P Contact Us For Availability
1
10 Position Housing SPQ 500338 Contact Us For Availability
2
Door Handle Wedge SPQ 510129 Contact Us For Availability
2
Female Terminal SPQ 00256 Contact Us For Availability
3
Terminal Extractor Tool SPQ 00255 Contact Us For Availability
4
Ratchet Extension Tool SPQ 00188 Contact Us For Availability
4
12 Gauge Wire SPQ 512646P Contact Us For Availability
6
Front Panel SPQ 510066WP Contact Us For Availability
8
SPQ 510133 SPQ 510133 Contact Us For Availability
16
Motor Mount SPQ 510060 Contact Us For Availability
NI
SPQ 62853 SPQ 62853 Contact Us For Availability
NI
SPQ 00156 SPQ 00156 Contact Us For Availability
NI
SPQ 00222 SPQ 00222 Contact Us For Availability
NI
Torx Bit SPQ 93501 Contact Us For Availability
× ![]()
