Model Maytag ASD2626HEQ REFRIGERATOR – Common Parts & Diagrams
01 - CABINET BACK
02 - CABINET BACK SERIES 50+
03 - COMPRESSOR
04 - COMPRESSOR SERIES 50+
05 - CRISPER ASSY

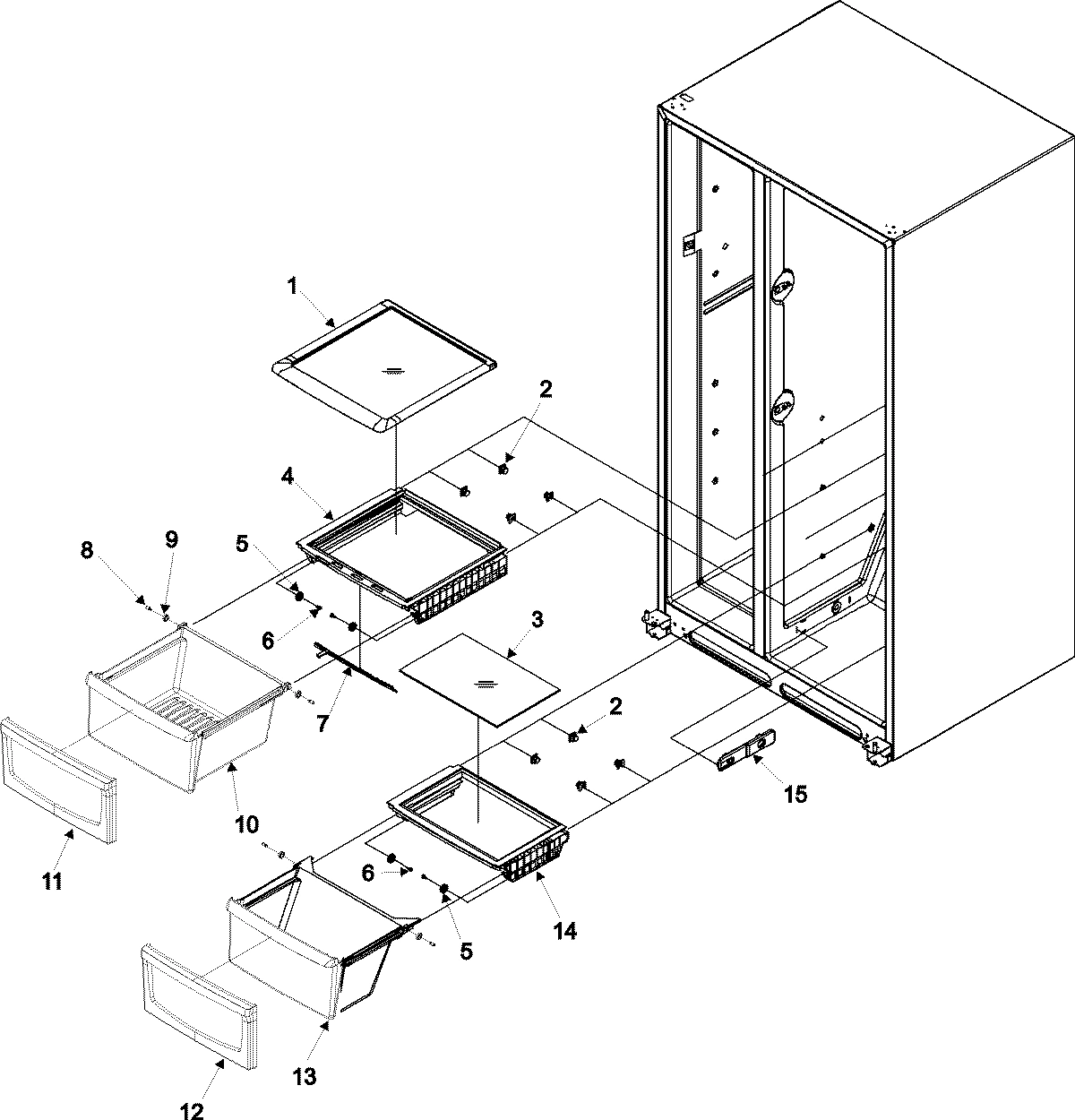

06 - CRISPER ASSY SERIES 50+

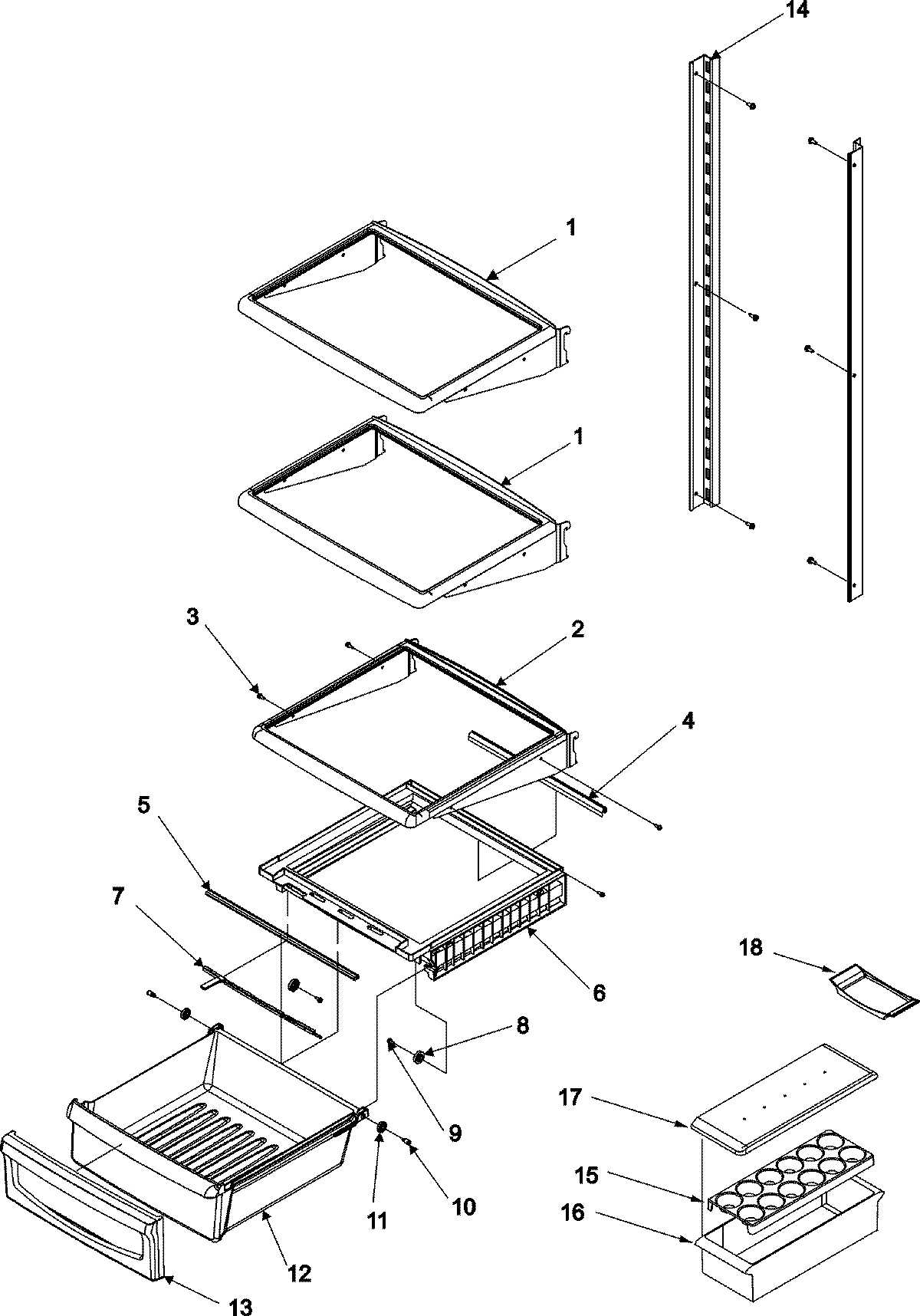

07 - DELI AND REF SHELF

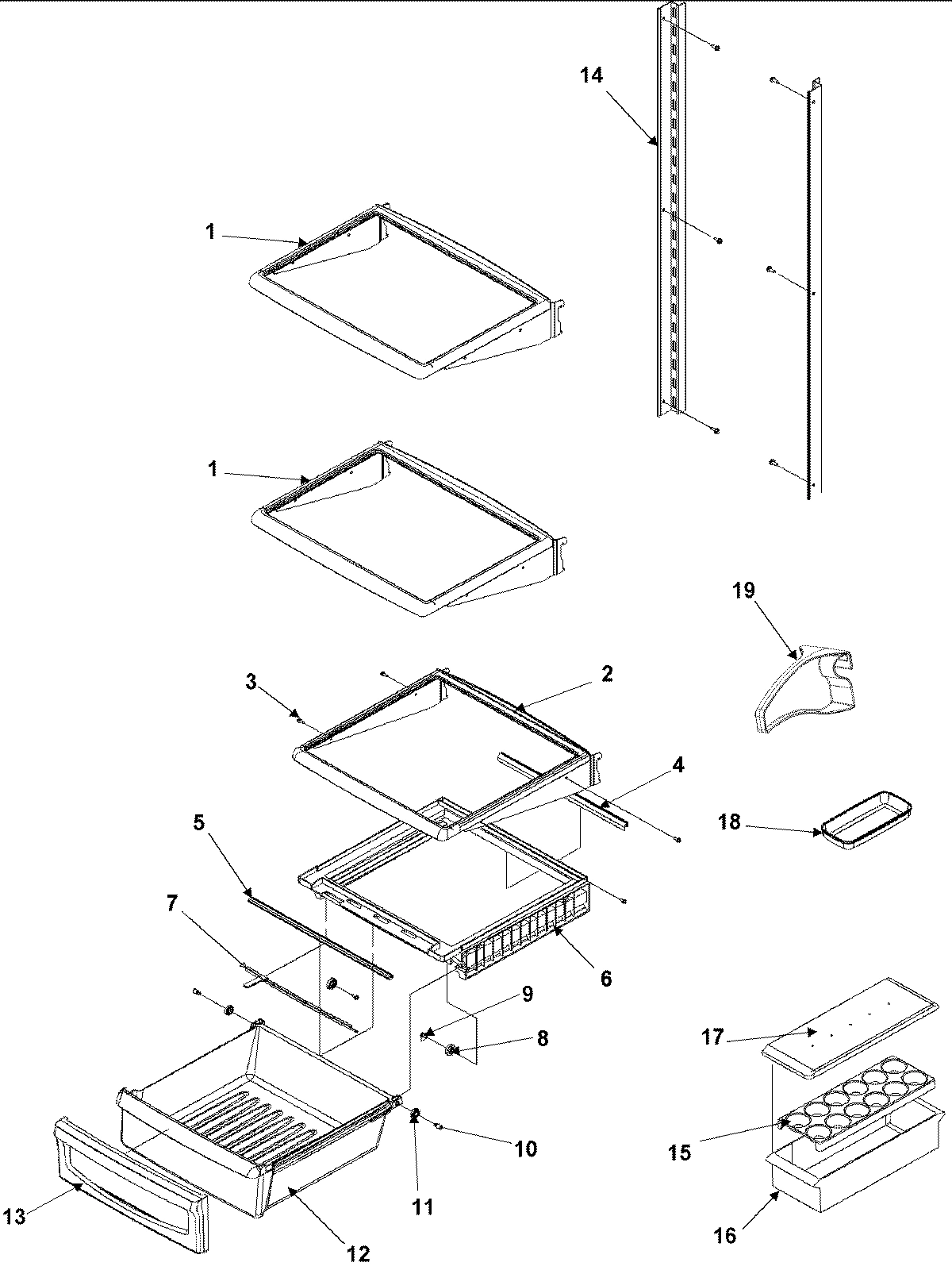

08 - DELI AND REF SHELF SERIES 50+
09 - ELEC CONTROL AND TOE GRILLE

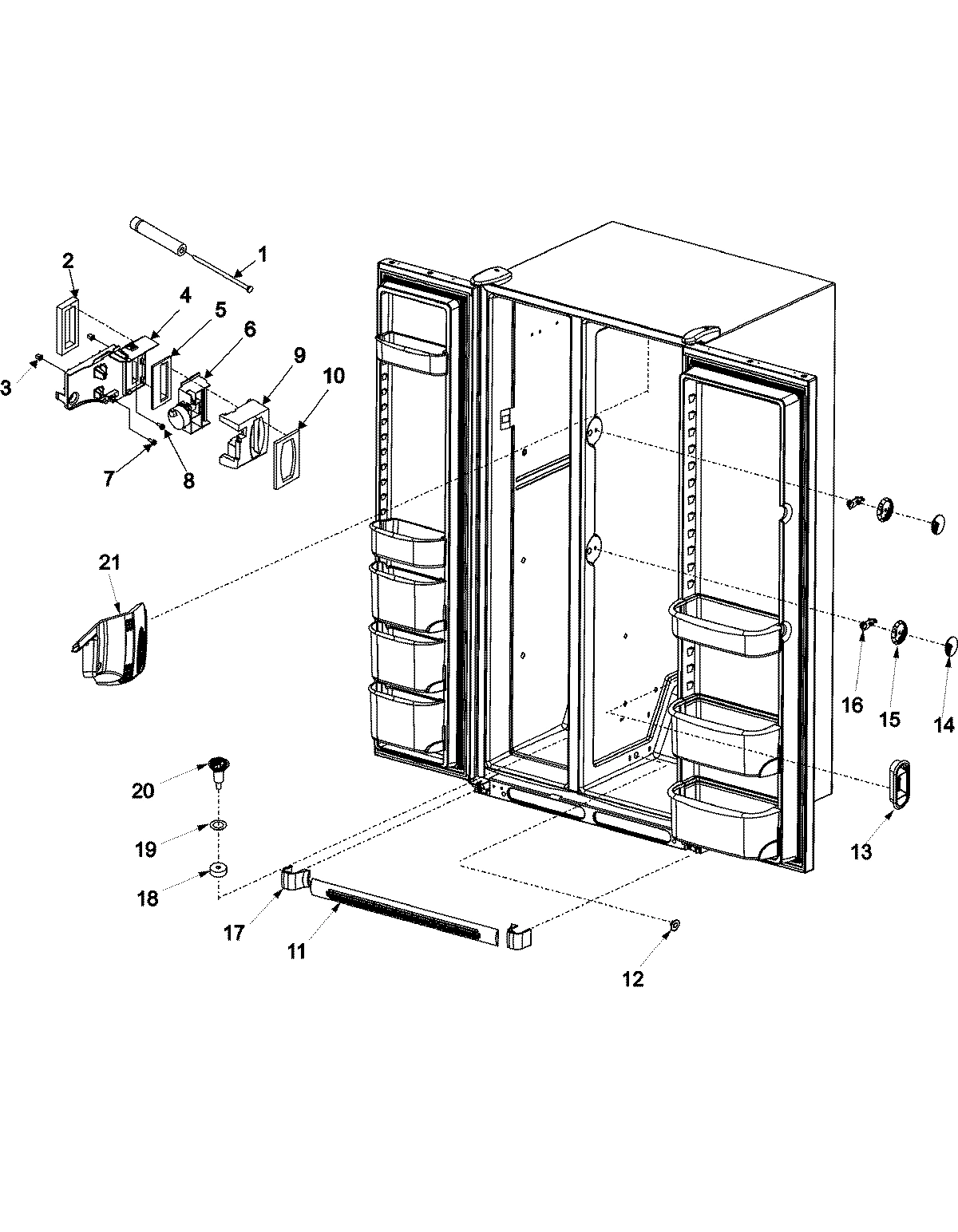

10 - ELEC CONTROL AND TOE GRILLE SERIES 50+
11 - EVAP FAN ASSY AND CONTROLS SERIES 50+

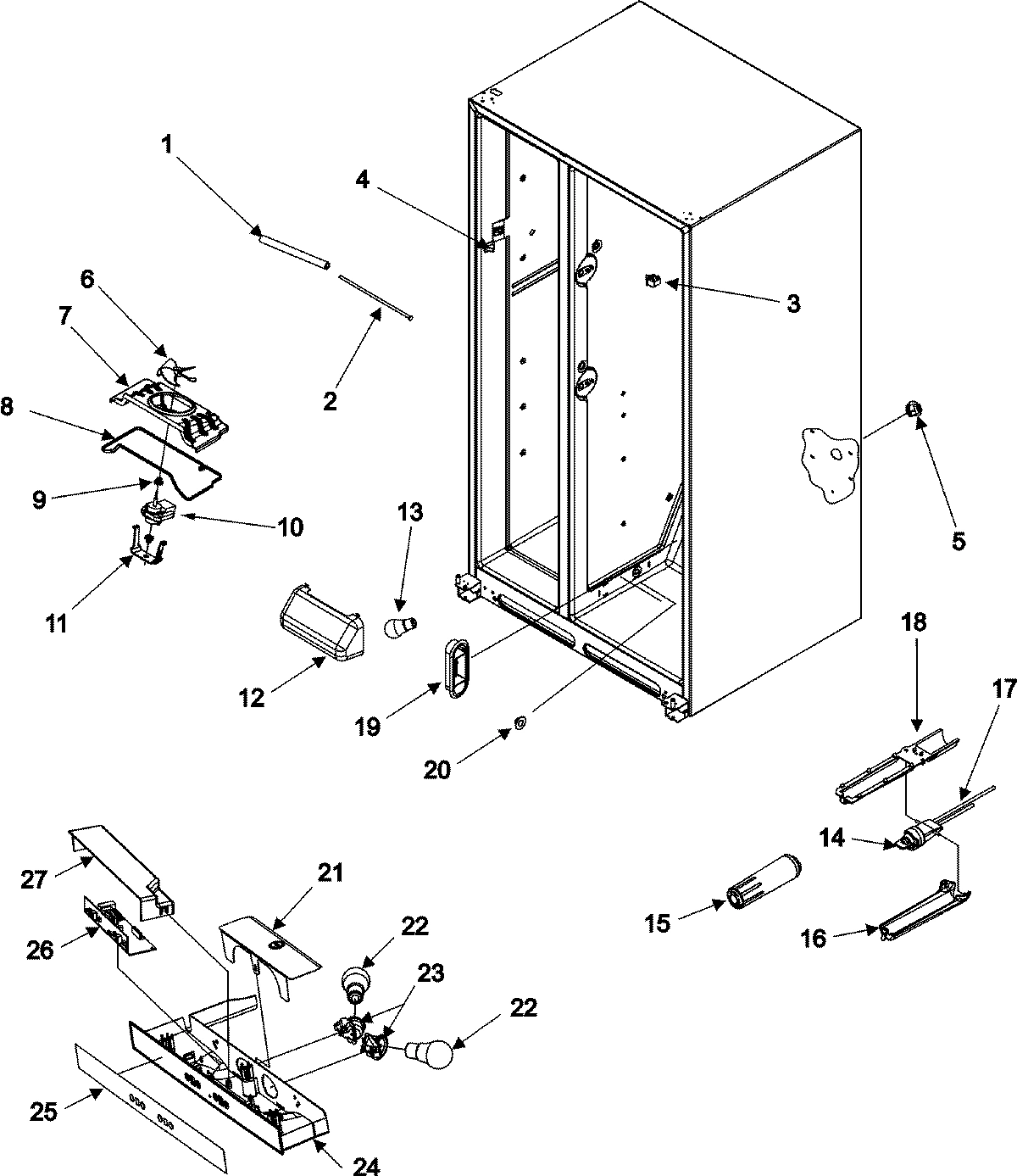

12 - EVAP FAN ASSY AND LIGHTS
13 - EVAPORATOR ASSY AND ROLLERS
14 - EVAPORATOR ASSY AND ROLLERS SERIES 50+

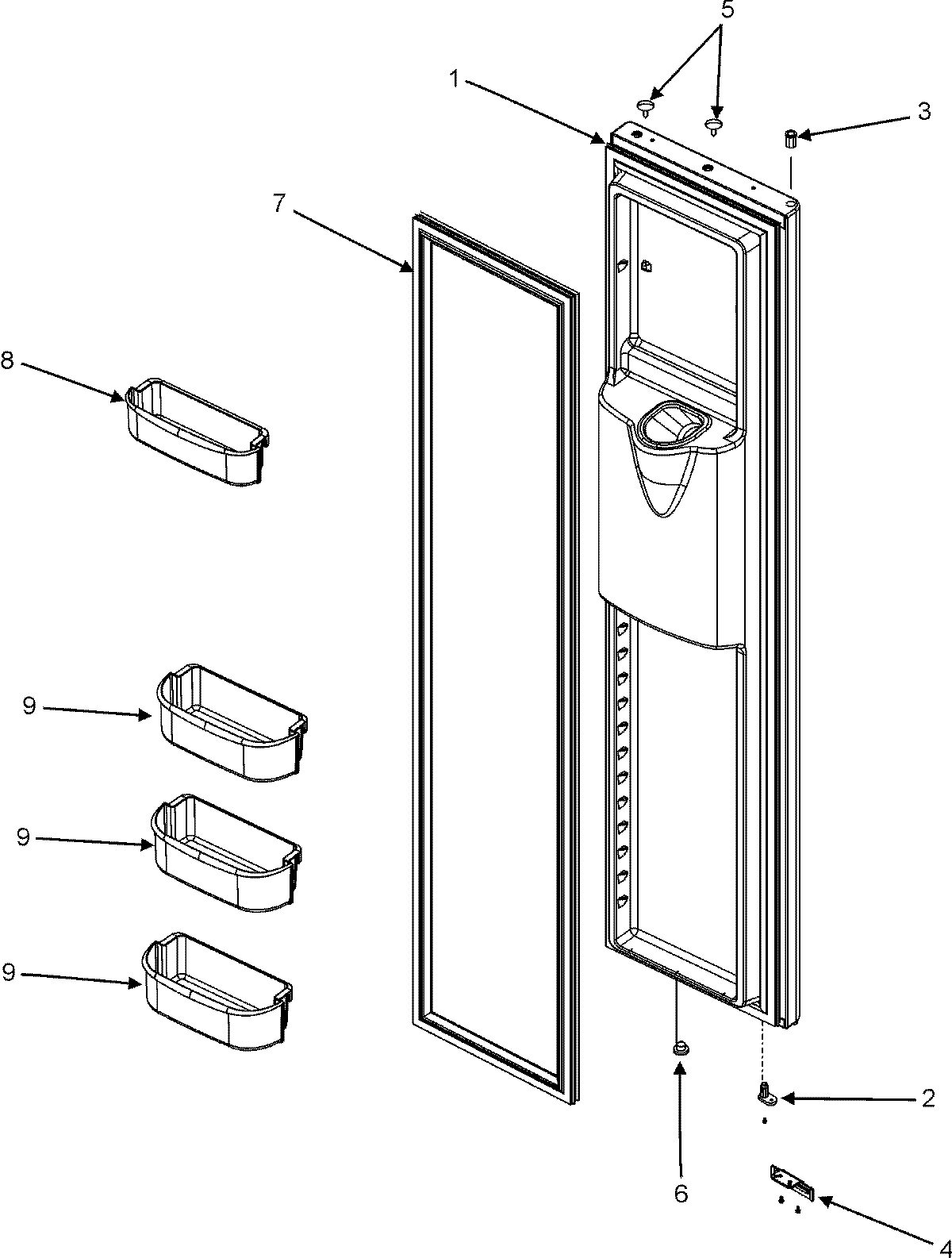

15 - FREEZER DOOR
16 - FREEZER DOOR SERIES 50+

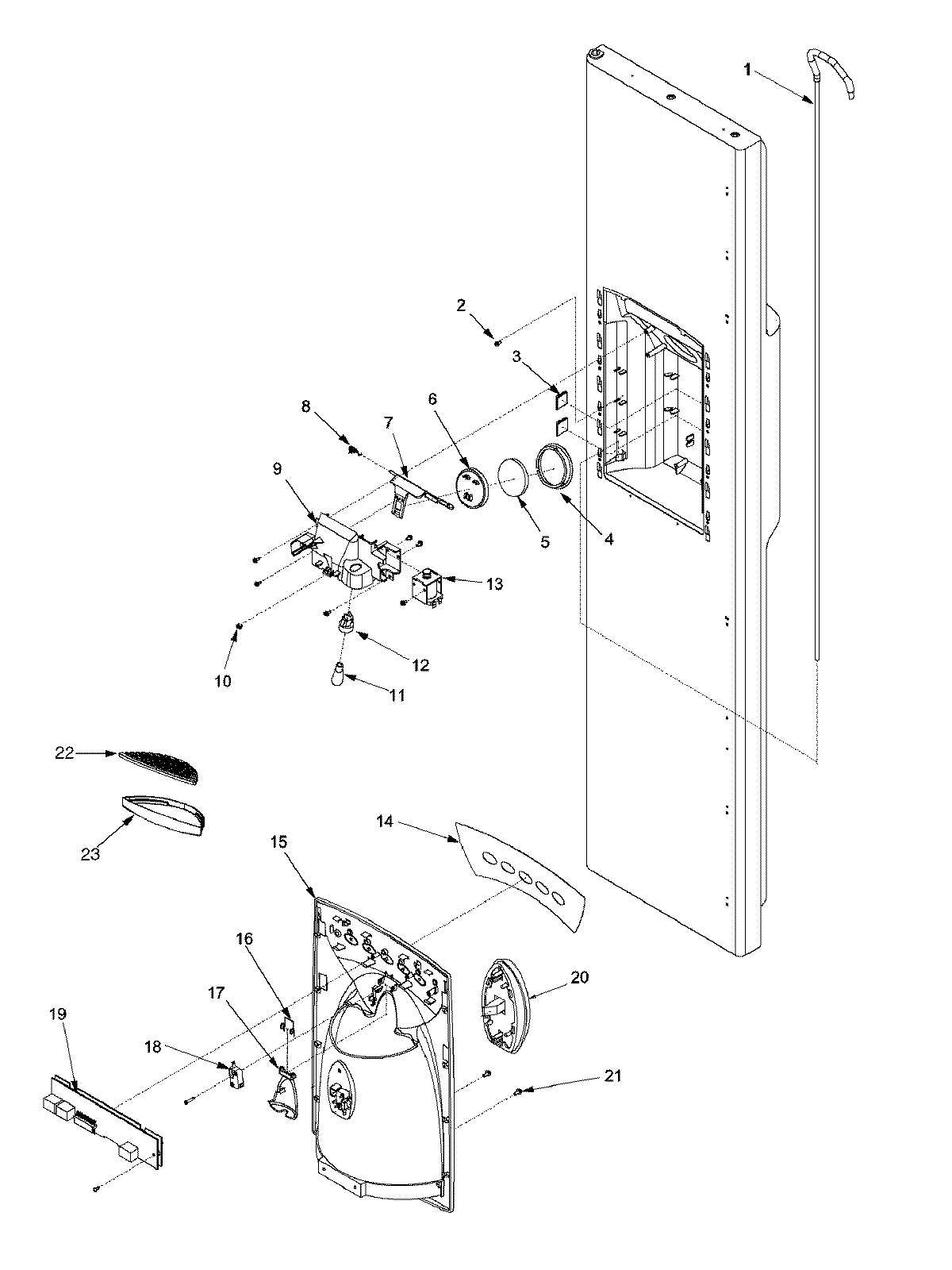

17 - FZ DOOR AND FACADE

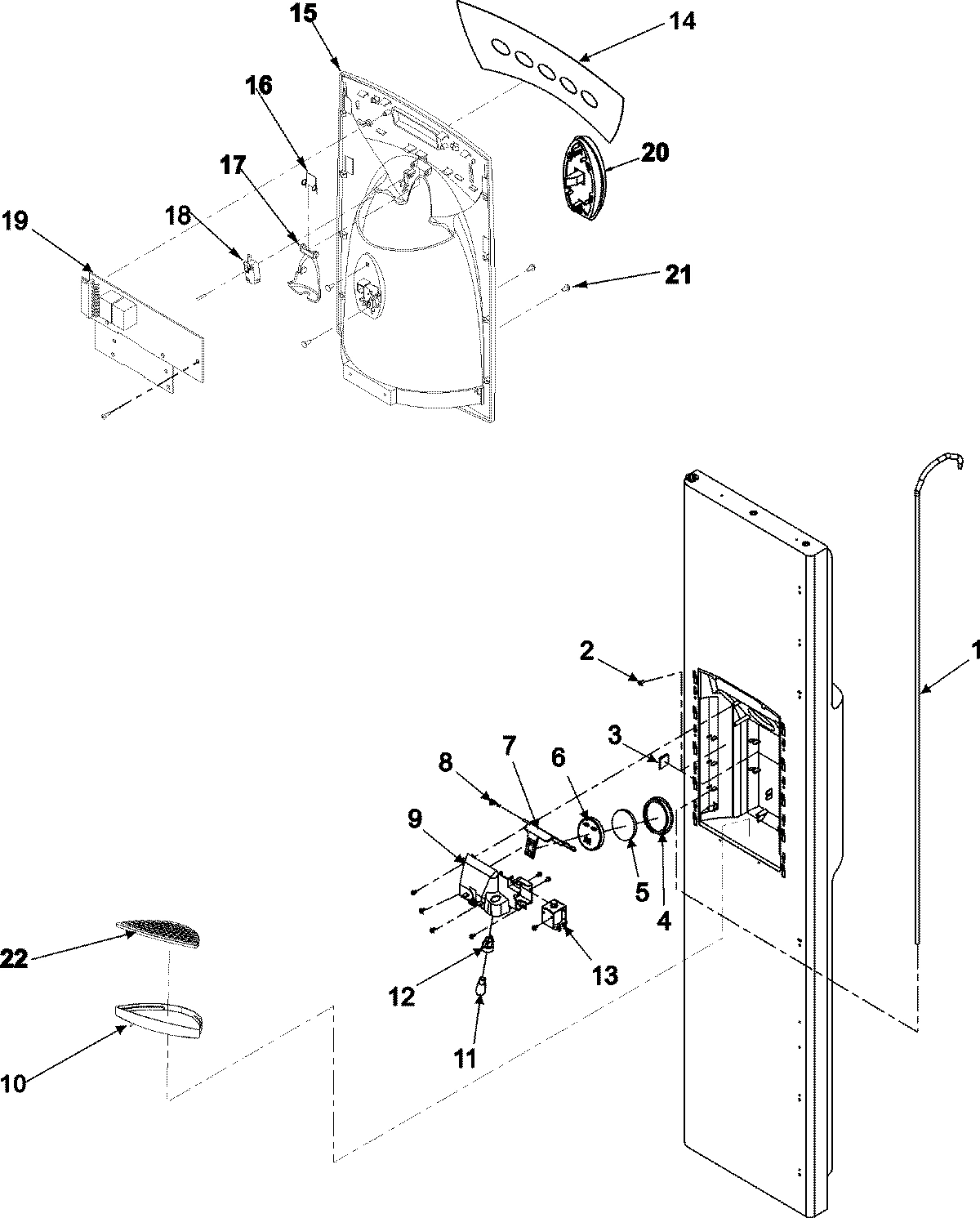

18 - FZ DOOR AND FACADE SERIES 50+
19 - FZ SHELF

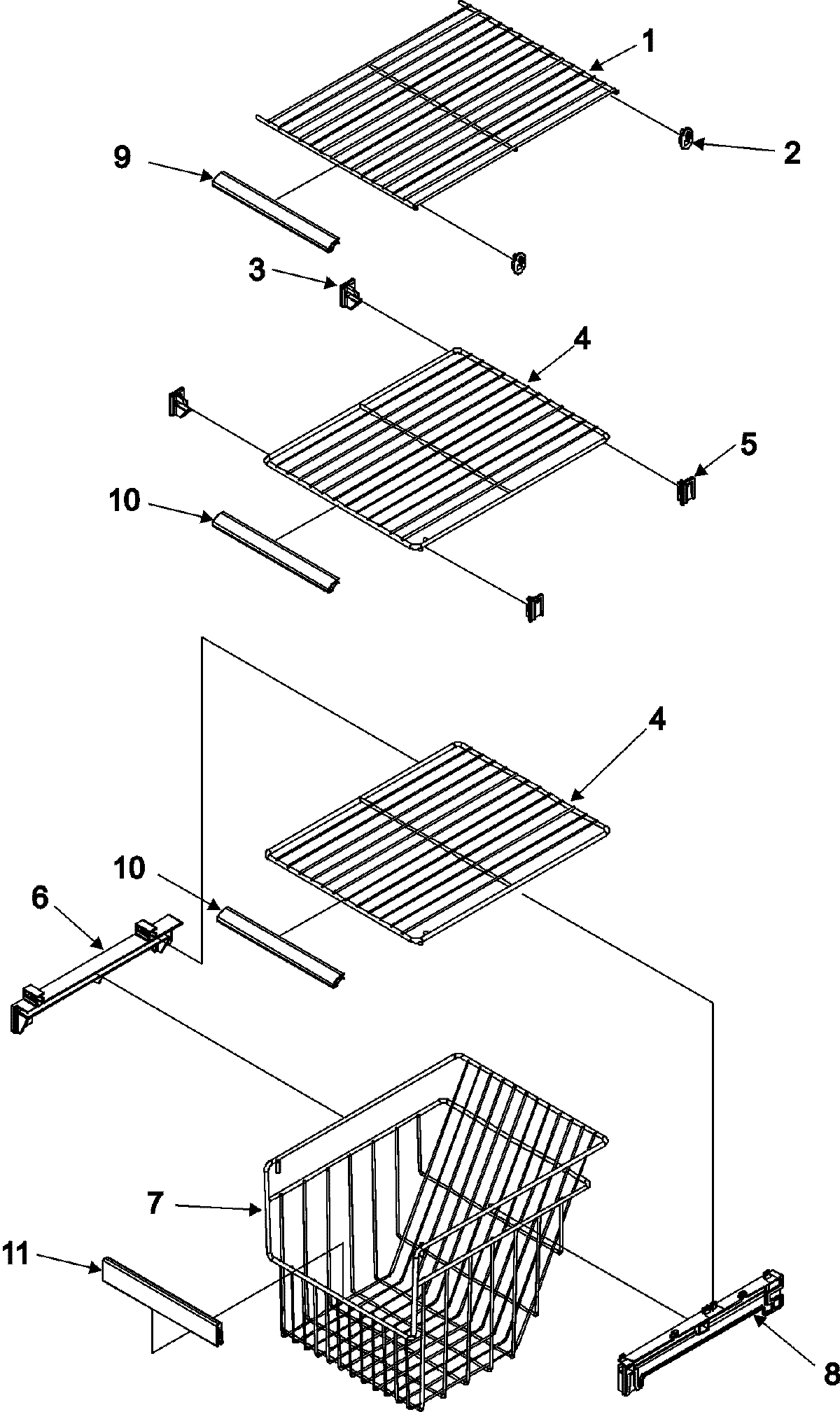

20 - FZ SHELF SERIES 50+

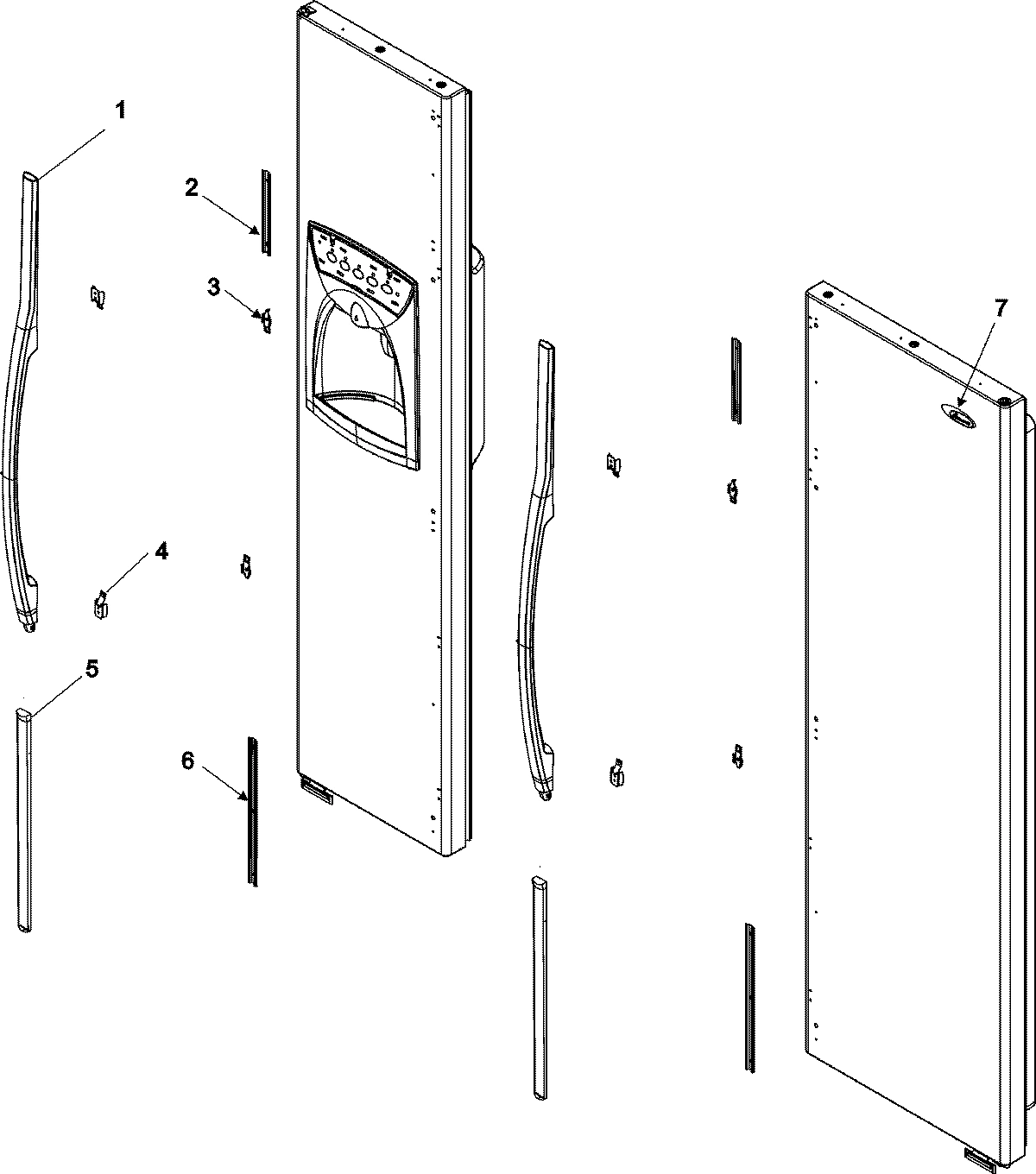

21 - HANDLES AND TRIM
22 - HANDLES AND TRIM SERIES 50+
23 - HINGES
24 - HINGES SERIES 50+
25 - ICE BUCKET ASSY
26 - ICE BUCKET ASSY SERIES 50+
27 - ICE MAKER
28 - ICE MAKER SERIES 50+
29 - LIGHTS AND ICE MAKER
30 - LIGHTS AND ICE MAKER SERIES 50+
31 - REFRIGERATOR DOOR

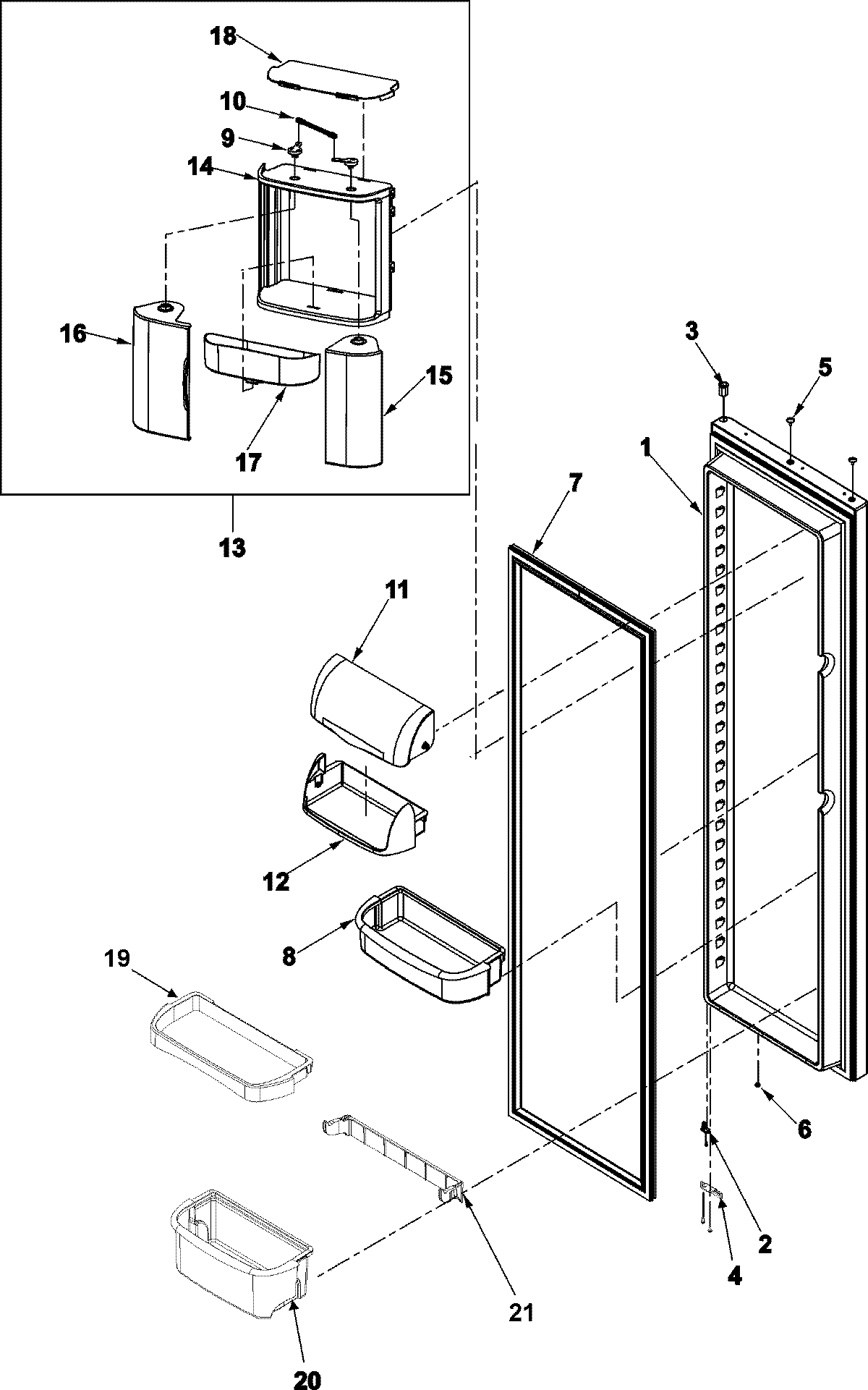

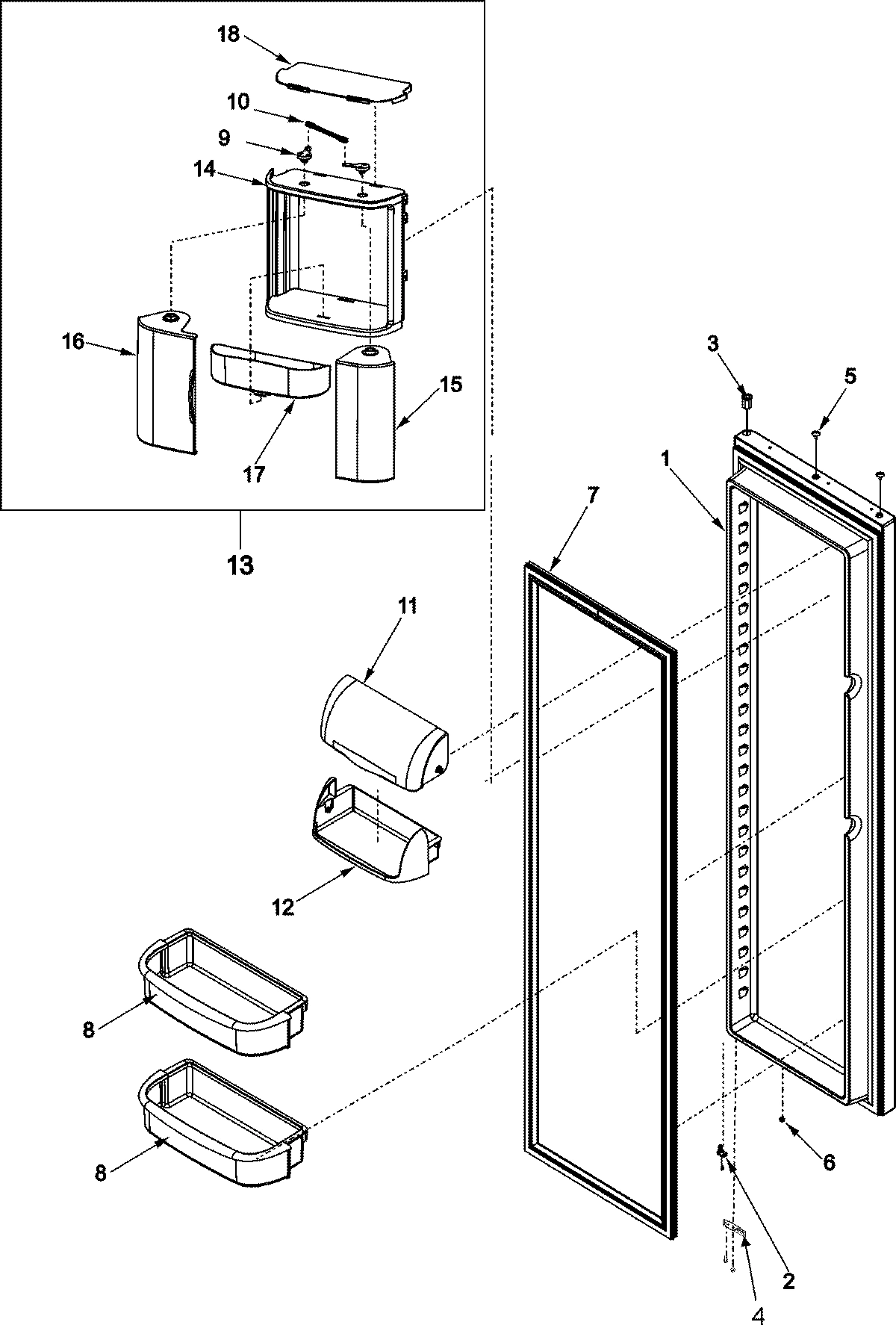

32 - REFRIGERATOR DOOR SERIES 50+
33 - SUPPLEMENTAL INFORMATION
34 - SUPPLEMENTAL INFORMATION SERIES 50+
35 - WIRING INFORMATION

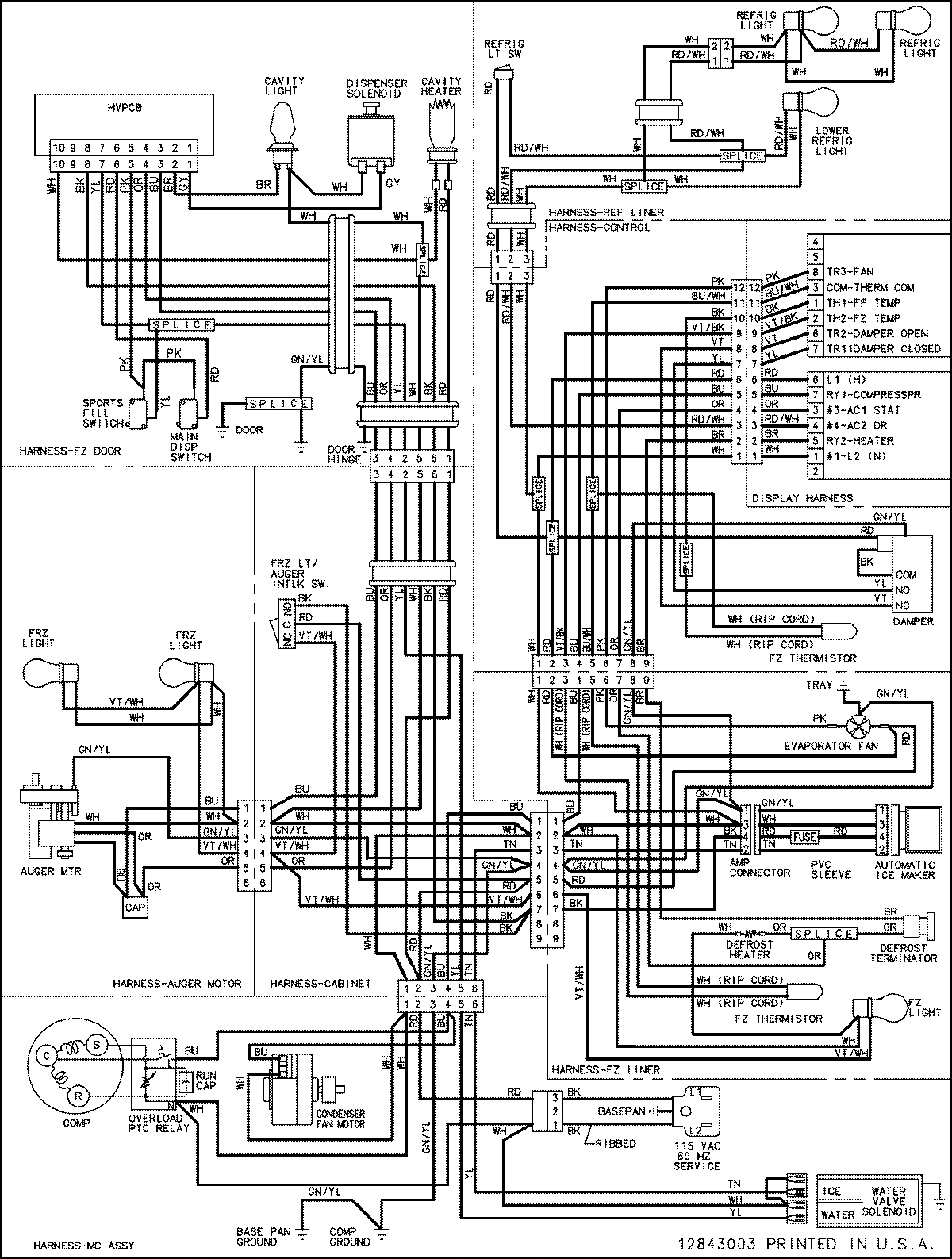

36 - WIRING INFORMATION SERIES 50+
Common parts from model Maytag ASD2626HEQ REFRIGERATOR
1
MAY 67003579 MAY 67003579 Contact Us For Availability
1
MAY 67004130 MAY 67004130 Contact Us For Availability
1
MAY 67004128 MAY 67004128 Contact Us For Availability
1
PLUG, BUTTON MAY 67002417 Contact Us For Availability
1
MAY A0329806 MAY A0329806 Contact Us For Availability
1
MAY 12676401 MAY 12676401 Contact Us For Availability
1
MAY 67004289 MAY 67004289 Contact Us For Availability
1
MAY 67004354 MAY 67004354 Contact Us For Availability
1
MAY 67004294 MAY 67004294 Contact Us For Availability
1
MAY 67004765 MAY 67004765 Contact Us For Availability
1
MAY 67003809 MAY 67003809 Contact Us For Availability
1
MAY 16022689 MAY 16022689 Contact Us For Availability
1
MAY 16023095 MAY 16023095 Contact Us For Availability
1
MAY 67004143 MAY 67004143 Contact Us For Availability
1
MAY 67004446 MAY 67004446 Contact Us For Availability
2
MAY 67004116 MAY 67004116 Contact Us For Availability
2
MAY 67004129 MAY 67004129 Contact Us For Availability
2
MAY 67004031 MAY 67004031 Contact Us For Availability
2
MAY M0322202 MAY M0322202 Contact Us For Availability
2
BLOCK, AIR COIL (RT) MAY 12590102 Contact Us For Availability
2
MAY 12571301B MAY 12571301B Contact Us For Availability
2
MAY M0220432 MAY M0220432 Contact Us For Availability
2
MAY R0181181 MAY R0181181 Contact Us For Availability
2
MAY C8973701 MAY C8973701 Contact Us For Availability
2
SUPPORT, FRZ SHELF MAY C8973801 Contact Us For Availability
2
MAY 67003976 MAY 67003976 Contact Us For Availability
2
MAY D7749401 MAY D7749401 Contact Us For Availability
2
MAY M0238833 MAY M0238833 Contact Us For Availability
2
MAY M0211019 MAY M0211019 Contact Us For Availability
3
MAY M0104102 MAY M0104102 Contact Us For Availability
3
MAY 67004132 MAY 67004132 Contact Us For Availability
3
MAY M0214931 MAY M0214931 Contact Us For Availability
3
BUSHING, DOOR (BLK) MAY 12395501B Contact Us For Availability
3
MAY 12015002 MAY 12015002 Contact Us For Availability
3
MAY M0238731 MAY M0238731 Contact Us For Availability
3
MAY 10114401 MAY 10114401 Contact Us For Availability
3
MAY 12671401 MAY 12671401 Contact Us For Availability
3
MAY 10961002 MAY 10961002 Contact Us For Availability
4
MAY 12665101 MAY 12665101 Contact Us For Availability
4
MAY 67004140 MAY 67004140 Contact Us For Availability
4
MAY 67004305 MAY 67004305 Contact Us For Availability
4
BRACKET, ELEC CONTROL MAY 67004447 Contact Us For Availability
4
MAY M0211018 MAY M0211018 Contact Us For Availability
4
SWITCH, LIGHT MAY 12466103 Contact Us For Availability
4
BLOCK, AIR COIL (LT) MAY 12590101 Contact Us For Availability
4
MAY 12636401C MAY 12636401C Contact Us For Availability
4
MAY 67004250 MAY 67004250 Contact Us For Availability
4
MAY 67004690 MAY 67004690 Contact Us For Availability
4
MAY 67004292 MAY 67004292 Contact Us For Availability
4
MAY 67004428 MAY 67004428 Contact Us For Availability
4
BAR, CRSH ICE BUCKET MAY 10113801 Contact Us For Availability
4
COVER, ICE MAKER MAY 12582501 Contact Us For Availability
5
MAY 67004306 MAY 67004306 Contact Us For Availability
5
MAY 67004889 MAY 67004889 Contact Us For Availability
5
MAY 12582801 MAY 12582801 Contact Us For Availability
5
MAY 67002226 MAY 67002226 Contact Us For Availability
5
MAY M0311606 MAY M0311606 Contact Us For Availability
5
MAY 12563401 MAY 12563401 Contact Us For Availability
5
MAY 10941102 MAY 10941102 Contact Us For Availability
5
MAY 67004296 MAY 67004296 Contact Us For Availability
5
MAY 59001208 MAY 59001208 Contact Us For Availability
5
BRACKET, MODULE & HEATER MAY 95107-1 Contact Us For Availability
5
MAY 95108-1 MAY 95108-1 Contact Us For Availability
6
MAY 67004448 MAY 67004448 Contact Us For Availability
6
MAY 12217201 MAY 12217201 Contact Us For Availability
6
MAY A3080001 MAY A3080001 Contact Us For Availability
6
MAY 67004182 MAY 67004182 Contact Us For Availability
6
MAY 67004117 MAY 67004117 Contact Us For Availability
6
MAY 67004126 MAY 67004126 Contact Us For Availability
7
MAY 67004119 MAY 67004119 Contact Us For Availability
7
MAY 67003968 MAY 67003968 Contact Us For Availability
7
MAY 67002271 MAY 67002271 Contact Us For Availability
7
MAY 67003966 MAY 67003966 Contact Us For Availability
7
MAY 67004310 MAY 67004310 Contact Us For Availability
7
GLIDE, HUMIDITY CONTROL (BLUE) MAY 67004884 Contact Us For Availability
7
MAY 67004298 MAY 67004298 Contact Us For Availability
7
MAY 67004887 MAY 67004887 Contact Us For Availability
7
MAY 67004253 MAY 67004253 Contact Us For Availability
7
MAY 67004251 MAY 67004251 Contact Us For Availability
7
MAY 67004026 MAY 67004026 Contact Us For Availability
7
SCREW MAY 95106-1 Contact Us For Availability
7
GLIDE, FRZ. (RT) MAY 67004323 Contact Us For Availability
8
MAY 10115001 MAY 10115001 Contact Us For Availability
8
MAY 67004169 MAY 67004169 Contact Us For Availability
8
MAY M0216539 MAY M0216539 Contact Us For Availability
8
MAY 67001508 MAY 67001508 Contact Us For Availability
8
TRAY, EVAP DRIP MAY 12558101WD Contact Us For Availability
8
MAY M0224416 MAY M0224416 Contact Us For Availability
8
MAY 12556901 MAY 12556901 Contact Us For Availability
8
MAY 67004179 MAY 67004179 Contact Us For Availability
8
HARNESS, ICE MAKER MAY 67002906 Contact Us For Availability
8
MAY 67003577 MAY 67003577 Contact Us For Availability
8
MAY 67004208 MAY 67004208 Contact Us For Availability
8
MAY 67004339 MAY 67004339 Contact Us For Availability
9
MAY M0238105 MAY M0238105 Contact Us For Availability
9
GROMMET, SCREW MAY M0580205 Contact Us For Availability
9
MAY 12626401 MAY 12626401 Contact Us For Availability
9
MAY 10623003 MAY 10623003 Contact Us For Availability
9
MAY 12557501 MAY 12557501 Contact Us For Availability
9
MAY 12314102 MAY 12314102 Contact Us For Availability
9
COVER, CORNER (BSQ) MAY 67003486 Contact Us For Availability
9
MAY M1200108 MAY M1200108 Contact Us For Availability
9
MAY 12583101 MAY 12583101 Contact Us For Availability
9
MAY 67002293 MAY 67002293 Contact Us For Availability
10
MAY 12582901 MAY 12582901 Contact Us For Availability
10
MAY 67004684 MAY 67004684 Contact Us For Availability
10
MAY 67002818 MAY 67002818 Contact Us For Availability
10
MAY 12314101 MAY 12314101 Contact Us For Availability
10
MAY 12636901ED MAY 12636901ED Contact Us For Availability
10
MAY 10114101 MAY 10114101 Contact Us For Availability
10
MAY 67003578 MAY 67003578 Contact Us For Availability
10
MAY 67002292 MAY 67002292 Contact Us For Availability
11
MAY R0131625 MAY R0131625 Contact Us For Availability
11
MAY 12627302 MAY 12627302 Contact Us For Availability
11
MAY 67002390 MAY 67002390 Contact Us For Availability
11
MAY 67004133 MAY 67004133 Contact Us For Availability
11
MAY 67004313 MAY 67004313 Contact Us For Availability
11
MAY 10508510 MAY 10508510 Contact Us For Availability
11
MAY 67003858 MAY 67003858 Contact Us For Availability
11
CAPACITOR MAY C8931612 Contact Us For Availability
11
MAY M0226528 MAY M0226528 Contact Us For Availability
11
MAY 67002957 MAY 67002957 Contact Us For Availability
12
MAY 67004315 MAY 67004315 Contact Us For Availability
12
MAY 67003892 MAY 67003892 Contact Us For Availability
12
SHIELD, CRISPER LIGHT MAY 67001507 Contact Us For Availability
12
MAY 67004309 MAY 67004309 Contact Us For Availability
12
MAY 12617501 MAY 12617501 Contact Us For Availability
12
MAY M0220431 MAY M0220431 Contact Us For Availability
12
MAY 10113901 MAY 10113901 Contact Us For Availability
12
MAY 67002304 MAY 67002304 Contact Us For Availability
13
MAY 12576801 MAY 12576801 Contact Us For Availability
13
MAY 67004206 MAY 67004206 Contact Us For Availability
13
MAY 67005639 MAY 67005639 Contact Us For Availability
13
FRONT, CRISPER PAN MAY 67004308 Contact Us For Availability
13
SCREW, SM MAY M0238642 Contact Us For Availability
13
MAY 12575401 MAY 12575401 Contact Us For Availability
13
MAY 12431302 MAY 12431302 Contact Us For Availability
13
MAY 10275201 MAY 10275201 Contact Us For Availability
13
MAY 67002887 MAY 67002887 Contact Us For Availability
13
MAY 67004286 MAY 67004286 Contact Us For Availability
14
MAY 67004247 MAY 67004247 Contact Us For Availability
14
MAY 67003840 MAY 67003840 Contact Us For Availability
14
MAY 12572901 MAY 12572901 Contact Us For Availability
14
MAY 67003146 MAY 67003146 Contact Us For Availability
14
MAY 67004300 MAY 67004300 Contact Us For Availability
14
MAY 67004336 MAY 67004336 Contact Us For Availability
14
MAY 10361806 MAY 10361806 Contact Us For Availability
14
MAY 10114601 MAY 10114601 Contact Us For Availability
14
MAY 67002294 MAY 67002294 Contact Us For Availability
15
MAY 10436506 MAY 10436506 Contact Us For Availability
15
MAY 67002225 MAY 67002225 Contact Us For Availability
15
FILTER, WATER SINGLE MAY 67003591 Contact Us For Availability
15
MAY 67001510 MAY 67001510 Contact Us For Availability
15
MAY 67004303 MAY 67004303 Contact Us For Availability
15
MAY 12636902ED MAY 12636902ED Contact Us For Availability
15
BLADE, ROTATING MAY 10114501 Contact Us For Availability
15
DRIVER (ICE MAKER) MAY 10114901 Contact Us For Availability
15
MAY 67002297 MAY 67002297 Contact Us For Availability
16
MAY 10423131 MAY 10423131 Contact Us For Availability
16
MAY 67002827 MAY 67002827 Contact Us For Availability
16
ROLLER BRACKET ASSY MAY 67002227 Contact Us For Availability
16
MAY B8385403 MAY B8385403 Contact Us For Availability
16
WASHER, WAVED MAY 10275101 Contact Us For Availability
16
MAY 67004268 MAY 67004268 Contact Us For Availability
17
MAY 10436404 MAY 10436404 Contact Us For Availability
17
MAY 12630301C MAY 12630301C Contact Us For Availability
17
MAY 67002378 MAY 67002378 Contact Us For Availability
17
MAY 12665402C MAY 12665402C Contact Us For Availability
17
WASHER STEPPED MAY 10114301 Contact Us For Availability
17
MAY 67003926 MAY 67003926 Contact Us For Availability
17
MAY 67002296 MAY 67002296 Contact Us For Availability
18
MAY 12688503 MAY 12688503 Contact Us For Availability
18
MAY 67004412 MAY 67004412 Contact Us For Availability
18
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
18
MAY 10450602 MAY 10450602 Contact Us For Availability
18
MAY M0237902 MAY M0237902 Contact Us For Availability
18
MAY 67002291 MAY 67002291 Contact Us For Availability
19
MAY 67003817 MAY 67003817 Contact Us For Availability
19
MAY 67004564 MAY 67004564 Contact Us For Availability
19
MAY 12634801 MAY 12634801 Contact Us For Availability
19
SEAL, O RING MAY M0500703 Contact Us For Availability
19
MAY M1205302 MAY M1205302 Contact Us For Availability
19
MAY M0238616 MAY M0238616 Contact Us For Availability
19
MAY 67004192 MAY 67004192 Contact Us For Availability
19
MAY 67004458 MAY 67004458 Contact Us For Availability
20
MAY 67003018 MAY 67003018 Contact Us For Availability
20
MAY 12456901 MAY 12456901 Contact Us For Availability
20
MAY 67002826 MAY 67002826 Contact Us For Availability
20
MAY Y12570701 MAY Y12570701 Contact Us For Availability
20
MAY 12593203S MAY 12593203S Contact Us For Availability
20
MAY 67004359 MAY 67004359 Contact Us For Availability
20
MAY 67004342 MAY 67004342 Contact Us For Availability
21
MAY 67004027 MAY 67004027 Contact Us For Availability
21
MAY 67005038 MAY 67005038 Contact Us For Availability
21
MAY 67004157 MAY 67004157 Contact Us For Availability
21
MAY M0223230 MAY M0223230 Contact Us For Availability
21
MAY 67004358 MAY 67004358 Contact Us For Availability
21
SHIELD, FZ LIGHT MAY 67004135 Contact Us For Availability
21
MAY 67004378 MAY 67004378 Contact Us For Availability
22
MAY 67002817 MAY 67002817 Contact Us For Availability
24
MAY 67004479 MAY 67004479 Contact Us For Availability
24
MAY 67004240 MAY 67004240 Contact Us For Availability
24
MAY 67005039 MAY 67005039 Contact Us For Availability
25
MAY 67004452 MAY 67004452 Contact Us For Availability
26
MAY 12002445 MAY 12002445 Contact Us For Availability
27
MAY 67004750 MAY 67004750 Contact Us For Availability
27
MAY 67004454 MAY 67004454 Contact Us For Availability
NI
MAY 67004461 MAY 67004461 Contact Us For Availability
NI
MAY 67006713 MAY 67006713 Contact Us For Availability
NI
MAY 67004249 MAY 67004249 Contact Us For Availability
NI
MAY 67006714 MAY 67006714 Contact Us For Availability
NI
MAY M0286708 MAY M0286708 Contact Us For Availability
NI
MAY 67004321 MAY 67004321 Contact Us For Availability
NI
MAY 67004961 MAY 67004961 Contact Us For Availability
NI
MAY 15003543 MAY 15003543 Contact Us For Availability
× ![]()
