Model Whirlpool ALW990EAW WASHER – Common Parts &amp; Diagrams

1

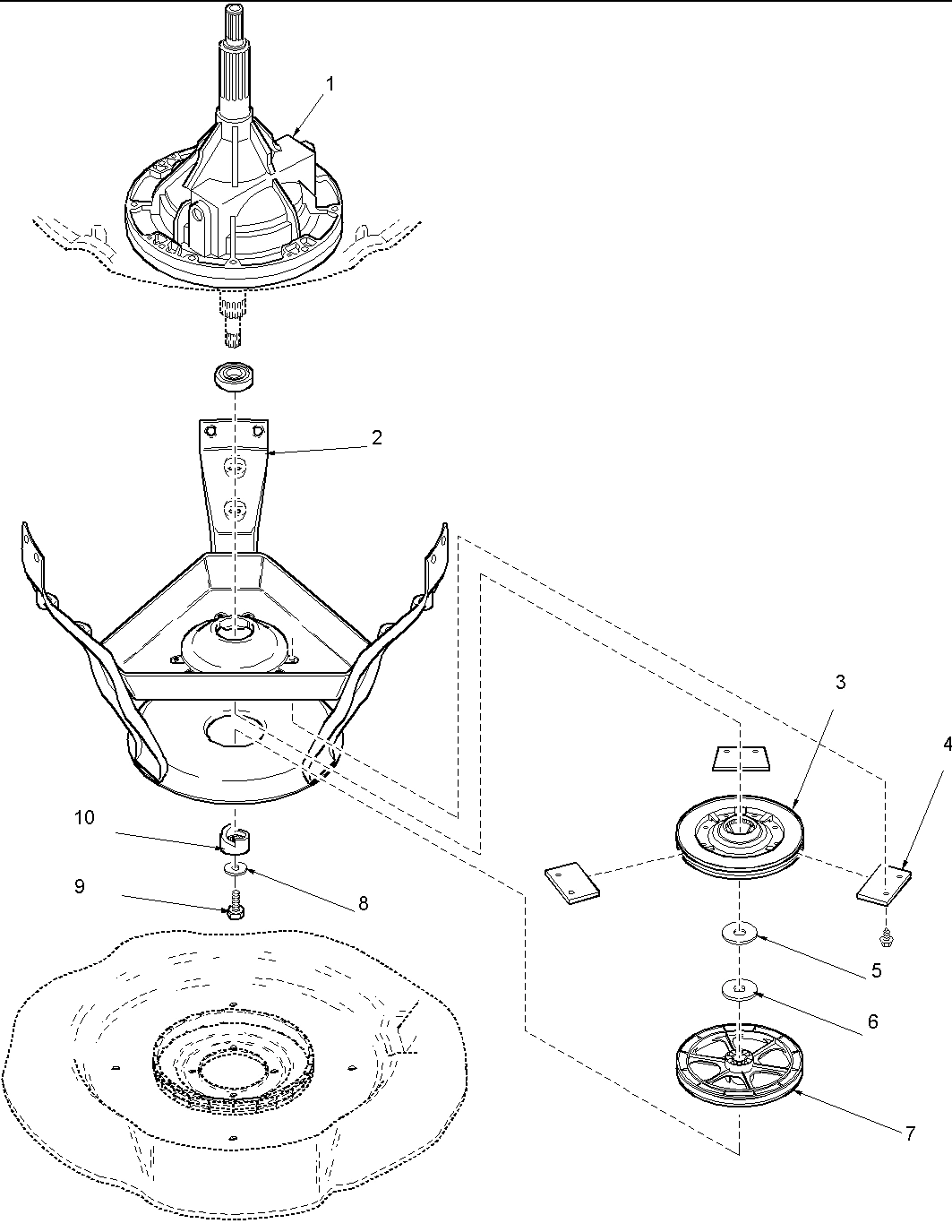

ASSEMBLY, TRANSMISSION (710) WPL 40032701 Contact Us For Availability

1

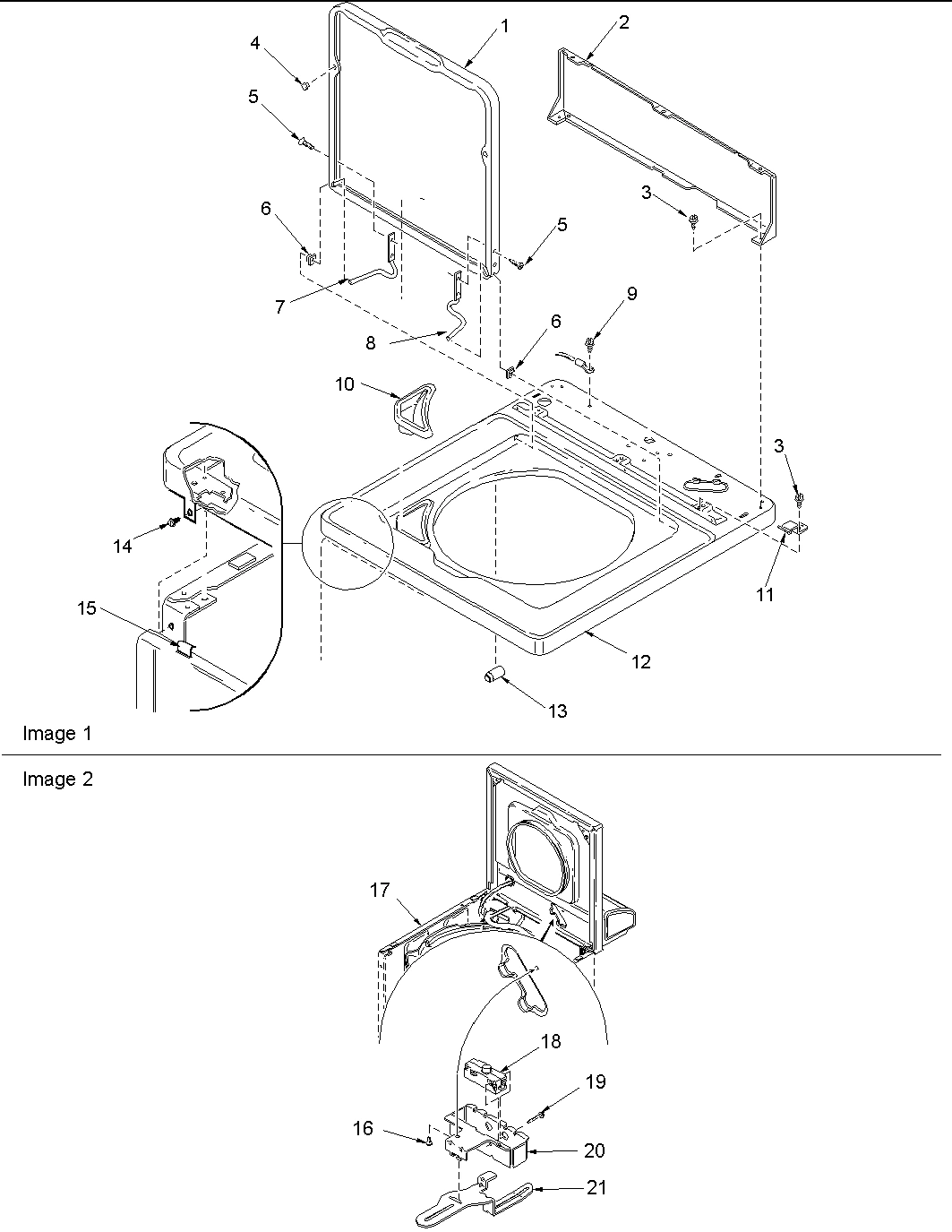

COVER, TOP (BSQ) WPL 503674C Contact Us For Availability

1

COVER, TOP (WHT) WPL 503674W Contact Us For Availability

1

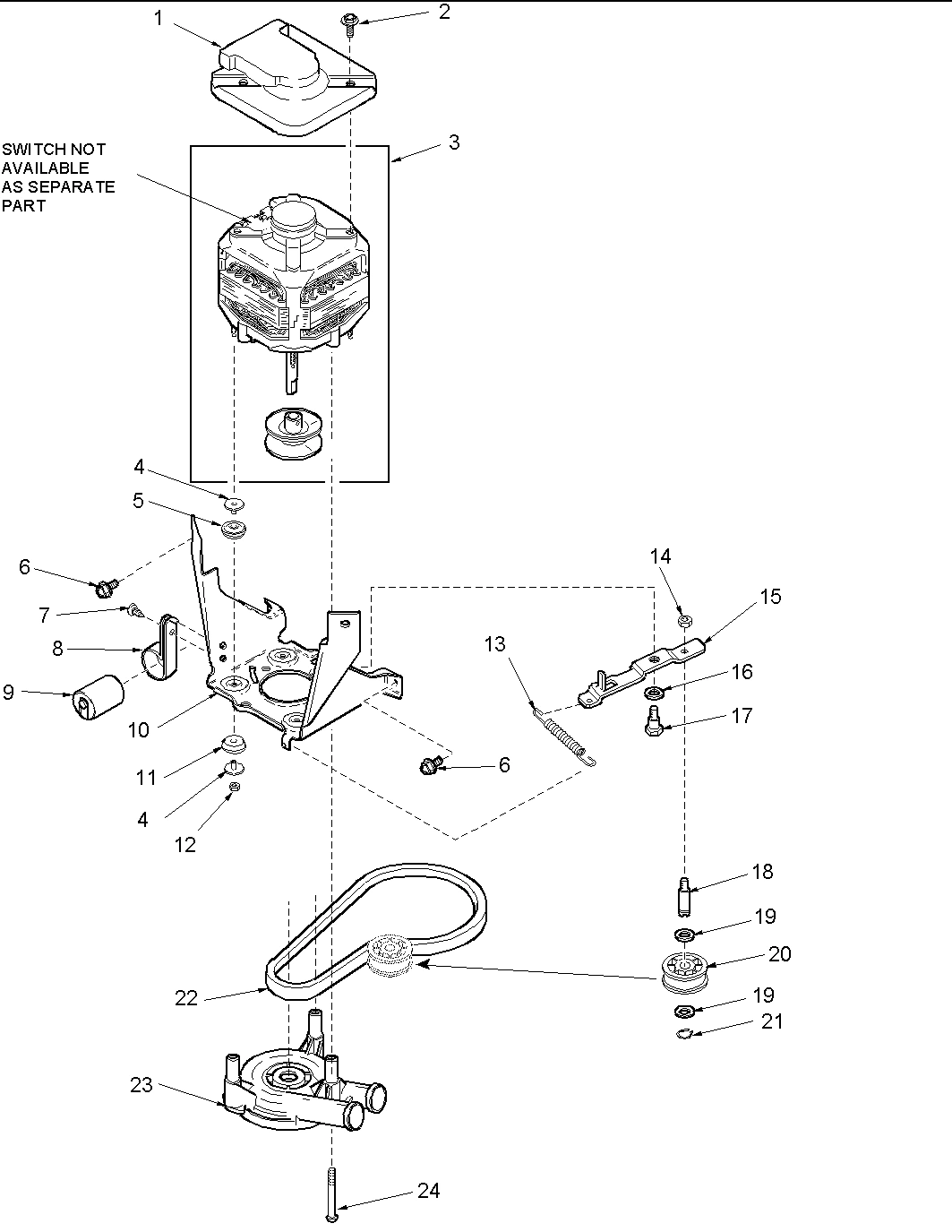

SHIELD, MOTOR WPL 40112301 Contact Us For Availability

1

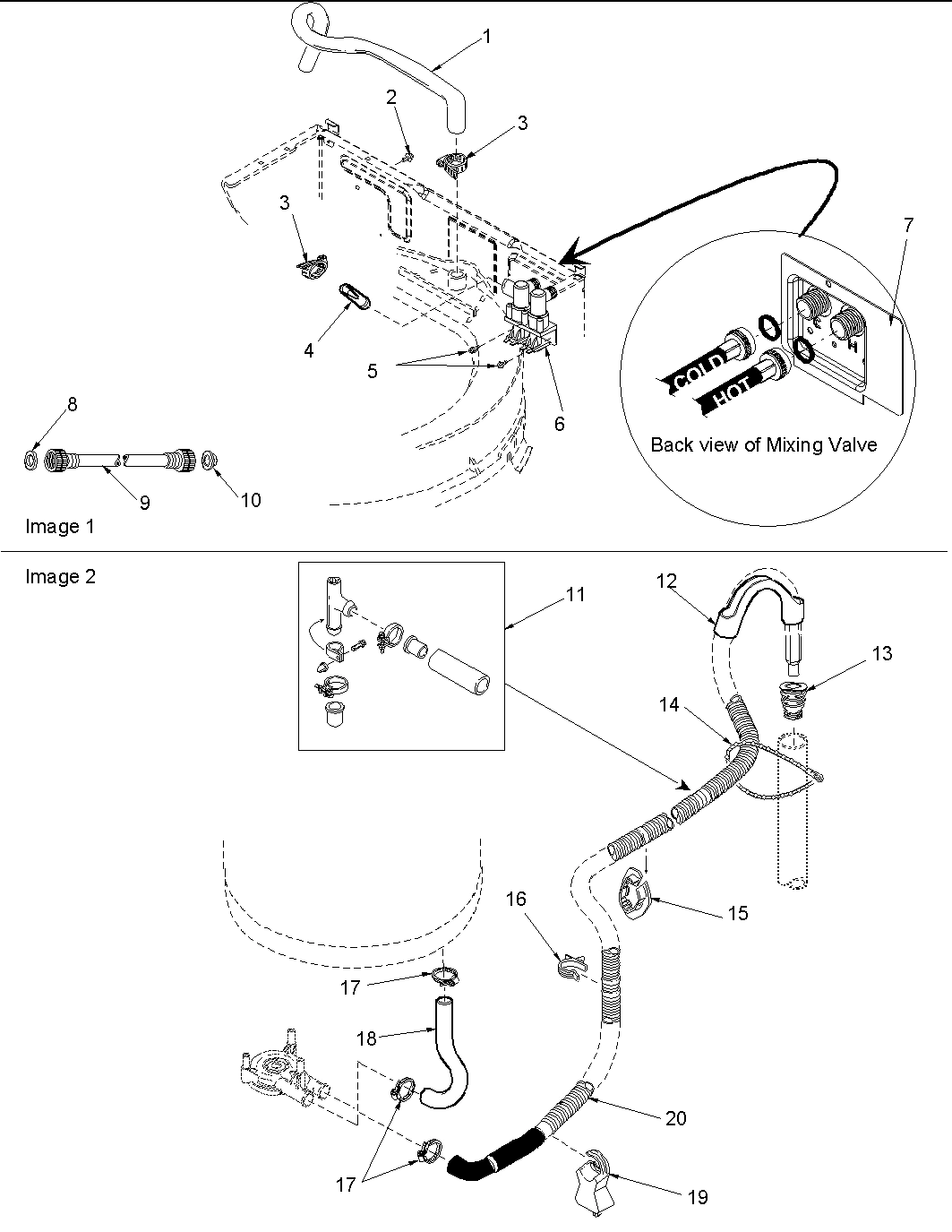

CHANNEL, WATER INLET WPL 40001901 Contact Us For Availability

1

LID,W/INSTRUCTIONS WPL 40111301C Contact Us For Availability

1

LID,W/INSTRUCTIONS WPL 40111301W Contact Us For Availability

1

HOSE WPL 40038401 Contact Us For Availability

2

WP4312464 Whirlpool Refrigerator Screw Backorder WPL WP4312464 $2.55

2

ASSEMBLEY, MILK STOOL WPL 40070001 Contact Us For Availability

2

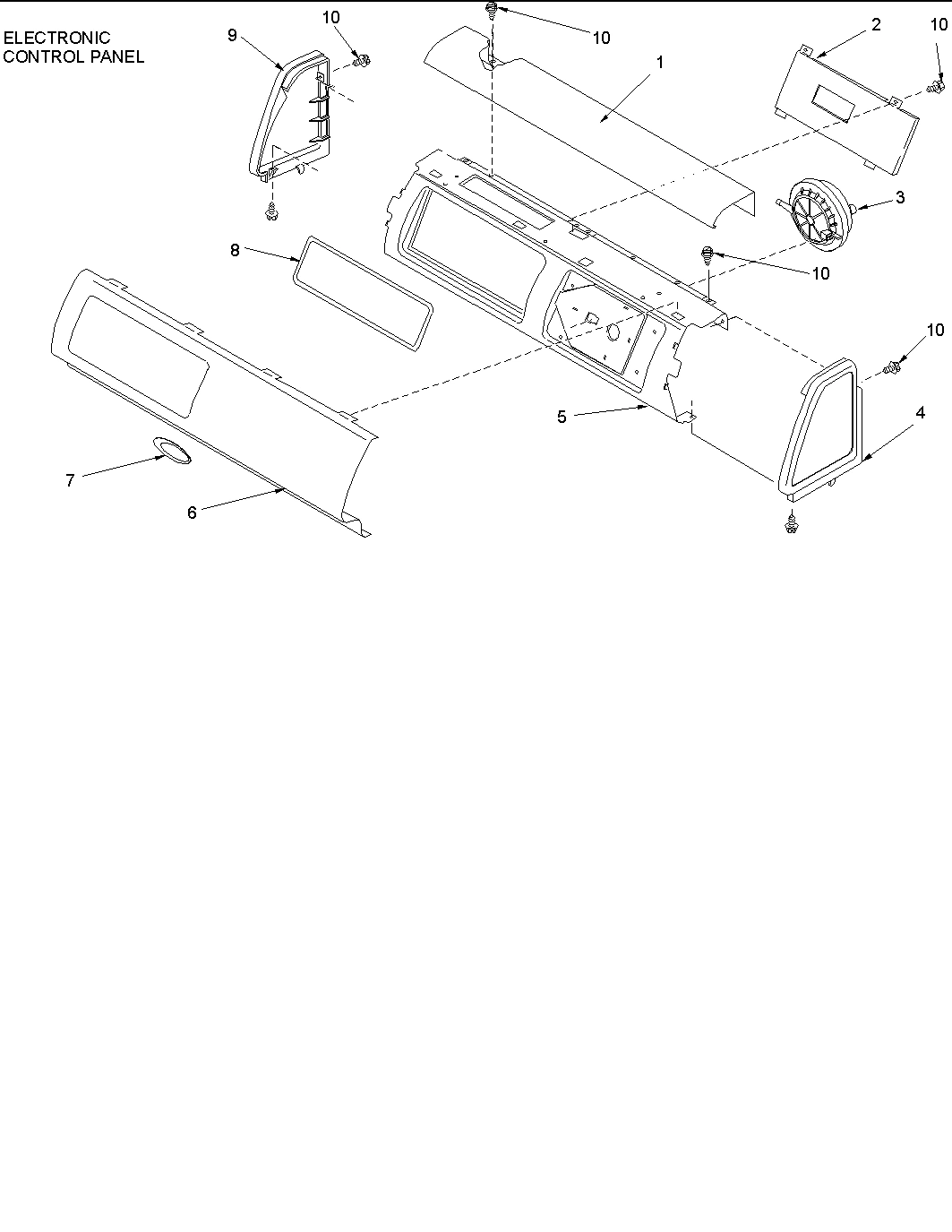

ASSY,ELEC CON & OVER(BISQUE) WPL 40081201CP Contact Us For Availability

2

ASSY,ELEC CONT & OVERLAY(WHITE WPL 40081201WP Contact Us For Availability

2

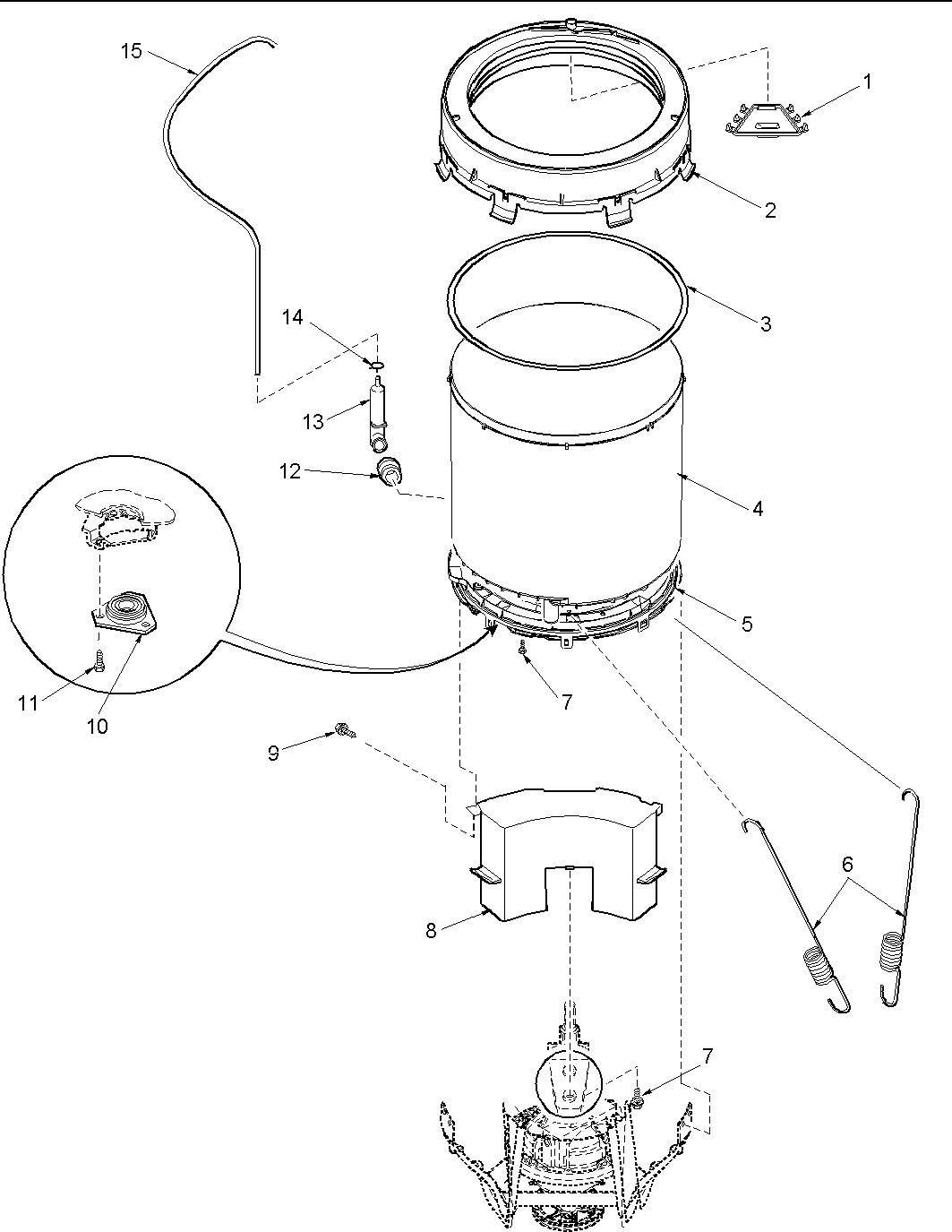

COVER,OUTER TUB WPL 40033101P Contact Us For Availability

2

COVER, OUTER TUB WPL 40111101 Contact Us For Availability

2

LOCATOR, PANEL WPL 505187 Contact Us For Availability

2

PANEL,HOME HOOD BACK WPL 40051401 Contact Us For Availability

2

PANEL, BACK WPL 40121402 Contact Us For Availability

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

3

BRAKE ASSEMBLY WPL 40003103 Contact Us For Availability

3

SWITCH,PRESSURE-3 LEVEL WPL 40082401 Contact Us For Availability

3

ASSY,MOTOR (3 SPEED) WPL 40096301 Contact Us For Availability

3

MOTOR, 3 SPD WPL 40096303 Contact Us For Availability

3

GASKET, TUB COVER WPL 40076601 Contact Us For Availability

4

KIT, BRAKE PAD WPL R0000014 No Longer Available

4

HINGE, TOP WPL 500003 Contact Us For Availability

4

ENDCAP (RT-WHT) WPL 40012701W Contact Us For Availability

4

POST, ISOLATOR WPL 40053701 Contact Us For Availability

4

TUB, PLASTIC OUTER WPL 40111001 Contact Us For Availability

4

BUMPER WPL 40038001 Contact Us For Availability

4

PREVENTOR, BACKFLOW WPL 34500 Contact Us For Availability

5

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.55

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

5

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $2.64

5

WASHER, 2 ODX.63 ID WPL 40065701 Contact Us For Availability

5

PANEL,SUPP CONTROL WPL 40039603 Contact Us For Availability

5

MOUNT, MOTOR UPPER WPL 40053801 Contact Us For Availability

5

BOTTOM, OUTER TUB WPL 40001102 Contact Us For Availability

6

WASHER, FLAT WPL 40063201 Contact Us For Availability

6

PANEL,GRAPHIC-ELEC WASH(WHITE) WPL 40077401W Contact Us For Availability

6

PANEL,GRAPHIC(BISQUE) WPL 40091301C Contact Us For Availability

6

SPRING, TALL TUB WPL 40045202 Contact Us For Availability

6

FOAM, 10`` X 24`` WPL 40091801 Contact Us For Availability

6

FOAM,6`` X 13`` X 1`` WPL 40106101 Contact Us For Availability

6

FOIL,6`` X 20`` X 5P5 WPL 40106401 Contact Us For Availability

6

BUSHING, HINGE WPL 40008201 Contact Us For Availability

6

VALVE,MIX N51 W/ THERMISTOR WPL 40093401 Contact Us For Availability

7

PULLEY,SPIN 710 RPM WPL 40047101 Contact Us For Availability

7

PULLEY, SPIN/AGIT (710 RPM) WPL 40047102 Contact Us For Availability

7

MEDALLION WPL 40083301 Contact Us For Availability

7

SCREW, 1/4-15X3/4 HEX WPL 40064301 Contact Us For Availability

7

TAPE,FOAM WPL 685366 Contact Us For Availability

7

HINGE, LID LEFT STOP WPL 40094002 Contact Us For Availability

7

PLATE,MIXING VALVE WPL 40061701 Contact Us For Availability

8

357030 Whirlpool Clamp Backorder WPL 357030 $10.94

8

INSERT, SPLINE WPL WP40008301 No Longer Available

8

WASHER WPL 40041501 Contact Us For Availability

8

GASKET, ELECTRONIC WPL 40074001 Contact Us For Availability

8

ASSY, COUNTERWEIGHT WPL 40015902 Contact Us For Availability

8

HINGE, LID RIGHT PASS WPL 40094101 Contact Us For Availability

8

WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability

9

W11629055 Whirlpool Fill Hose In Stock WPL W11629055 $17.37

9

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.55

9

KIT, DRIVE BELL AND SEAL WPL R9900189 Contact Us For Availability

9

SCREW, 1/4-20X5/8 HEX WPL 40063401 Contact Us For Availability

9

ENDCAP (LT-WHT) WPL 40012702W Contact Us For Availability

9

CAPACITOR WPL 40084501 Contact Us For Availability

9

SCREW, 1/4-20X7/8 HEX WPL 40070401 Contact Us For Availability

9

FOAM, 5`` X 5`` WPL 40091802 Contact Us For Availability

9

FOAM,5`` X 5`` X 1/2`` WPL 40106301 Contact Us For Availability

WP40004201P Whirlpool Main Bearing In Stock WPL WP40004201P $50.38

SCREW, SHOULDER 1/4 WPL 40065102 Contact Us For Availability

HELIX, PLASTIC WPL 40047401 Contact Us For Availability

HELIX, PLASTIC WPL 40047402 Contact Us For Availability

BRACKET,MOTOR MOUNT WPL 40015501 Contact Us For Availability

BRACKET,MOTOR MOUNT WPL 40015502 Contact Us For Availability

DISPENSER, BLEACH WPL 40093901 Contact Us For Availability

76660 Whirlpool Syphon Break with Clamps Backorder WPL 76660 $77.94

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $2.55

PLUG, BELL WPL 40008401 Contact Us For Availability

SCREW,5/16-18 X .50 WPL 40128701 Contact Us For Availability

MOUNT, MOTOR LOWER WPL 40054301 Contact Us For Availability

CLIP, HOLD DOWN WPL 40063901 Contact Us For Availability

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $2.55

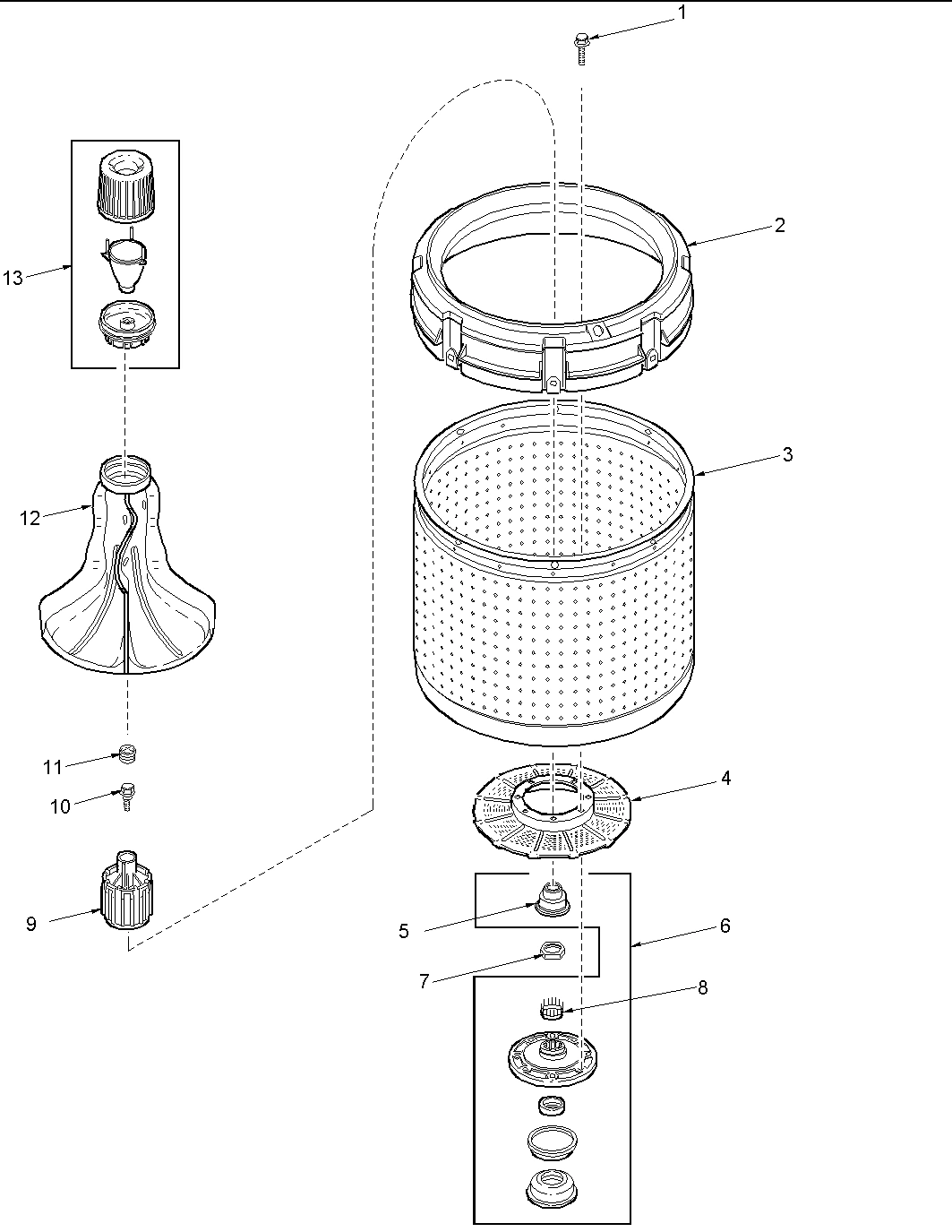

AGITATOR, FLEX VANE WPL 40000501W Contact Us For Availability

GROMMET WPL 40037801 Contact Us For Availability

BRACE, TOP WPL 56486 Contact Us For Availability

PANEL,TOP WPL 40000202C Contact Us For Availability

PANEL, TOP (WHT) WPL 40000202W Contact Us For Availability

SLEEVE, DRAIN HOSE WPL 33615 Contact Us For Availability

40008101 Whirlpool Adapter Backorder WPL 40008101 $34.28

ASSEMBLY, FABRIC SOFTNER WPL 40002101W Contact Us For Availability

SPRING, IDLER LEVER WPL 40061401 Contact Us For Availability

ASSEMBLY, PRESSURE BULB WPL 40008501 Contact Us For Availability

CAP, HINGE WPL 40102101 Contact Us For Availability

14

JAMNUT, 3/8-16 WPL 40038801 Contact Us For Availability

14

BRACKET, SELF LEVELING WPL 40031501 Contact Us For Availability

14

STRAP, STANDPIPE BEAD WPL 33489 Contact Us For Availability

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $3.88

RING, FRICTION WPL 40037401 Contact Us For Availability

RELIEF, STRAIN DRAIN WPL 40058501 Contact Us For Availability

LEVER, IDLER WPL 40041001 Contact Us For Availability

TUBING,PVC 38`` WPL 40065002 Contact Us For Availability

16

WASHER WPL 40054701 Contact Us For Availability

16

ASSY, BASE & LEVEL DOME WPL 40031201 Contact Us For Availability

16

CLIP, RETAINER-HOSE WPL 36014 Contact Us For Availability

WP210385 Whirlpool Lock Nut Backorder WPL WP210385 $2.55

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

SCREW, 1/4-20 WPL 40038901 Contact Us For Availability

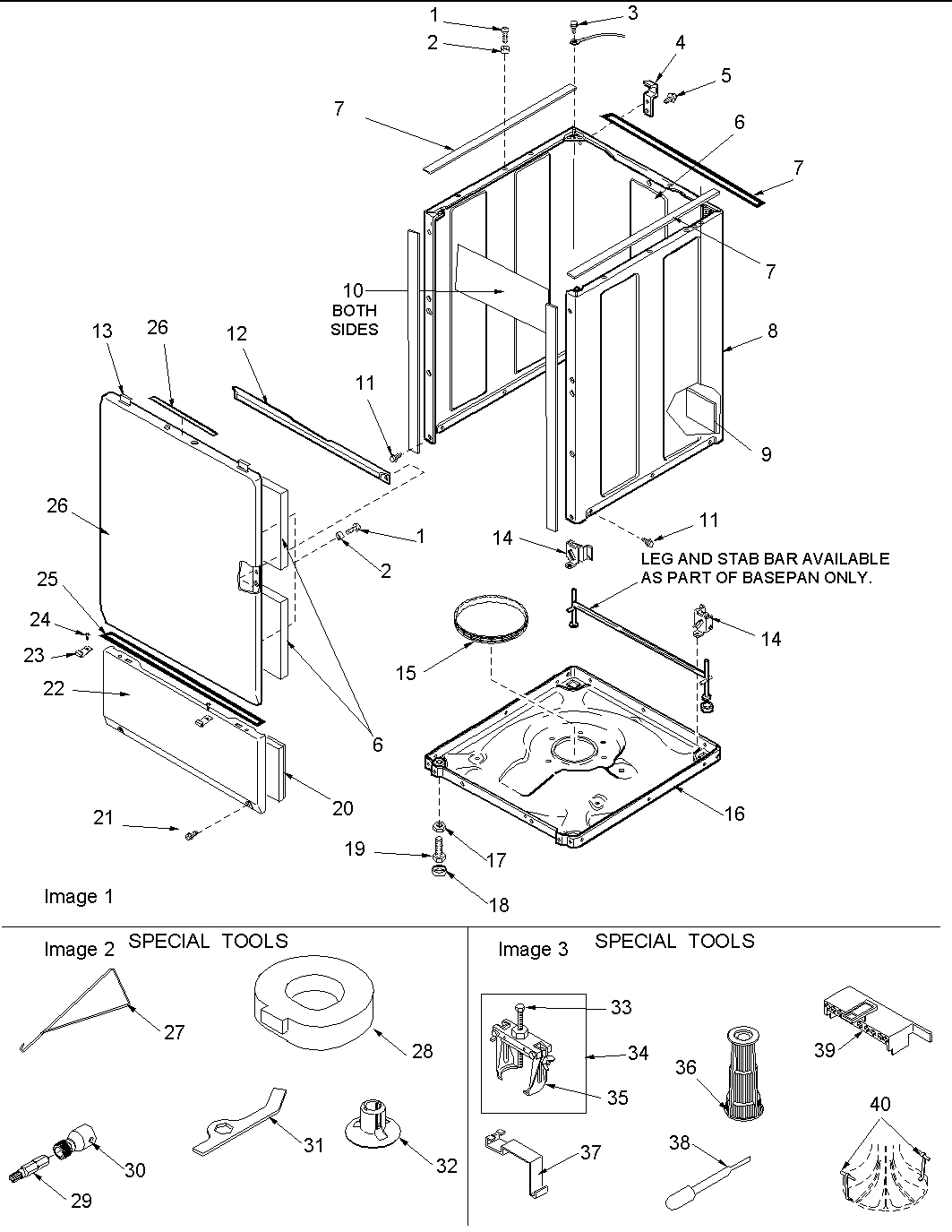

CABINET, WASHER (BSQ) WPL 40076401CP Contact Us For Availability

CABINET, WASHER (WHT) WPL 40076401WP Contact Us For Availability

CABINET, DRYER (WHT) WPL 40076402W Contact Us For Availability

18

WP56461 Whirlpool Shaft Backorder WPL WP56461 $57.41

18

FOOT, RUBBER WPL 40016001 Contact Us For Availability

18

SWITCH, SPST WPL 40035001 Contact Us For Availability

22003428 Whirlpool Adjustable Leg (with Nut) In Stock WPL 22003428 $7.54

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.55

SCREW, TAPPING No.6B-20 WPL 40040701 Contact Us For Availability

STAND, HOSE WPL 40044901 Contact Us For Availability

WP40045001 Whirlpool Idler Pulley In Stock WPL WP40045001 $25.93

WP40053901 Whirlpool Hose Drain In Stock WPL WP40053901 $35.58

FOAM,BARRIER 8``X 24`` WPL 40091701 Contact Us For Availability

FOAM,8`` X 23`` X 1/2`` WPL 40106201 Contact Us For Availability

HOLDER, LID SWITCH WPL 40009801 Contact Us For Availability

21

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $5.25

21

SCREW, No.12BX1/2 WPL 40034101 Contact Us For Availability

21

ARM, LID SWITCH WPL 40009701 Contact Us For Availability

22

WP27001006 Whirlpool Drive Belt In Stock WPL WP27001006 $23.95

22

PANEL, ACCESS (BSQ) WPL 40045301CP Contact Us For Availability

22

PANEL, ACCESS (WHT) WPL 40045301WP Contact Us For Availability

23

ASSEMBLY, PUMP COMPLETE WPL 40040301 Contact Us For Availability

23

CLIP, SPRING (BOTTOM) WPL 40034202 Contact Us For Availability

24

SCREW, 10-16X1.75 WPL 40063701 Contact Us For Availability

25

TAPE, FOAM WPL 40083101 Contact Us For Availability

26

PANEL, FRONT (BSQ) WPL 40035401CP Contact Us For Availability

26

PANEL, FRONT (WHT) WPL 40035401WP Contact Us For Availability

27

HOOK, SPRING WPL 289P4 Contact Us For Availability

28

SHIPPING BRACE ASSEMBLY WPL 40068201 Contact Us For Availability

29

T25 TAMPER RESISTANT BIT WPL 282P4 Contact Us For Availability

30

TORX BIT HOLDER WPL 24161 Contact Us For Availability

31

HEX WRENCH WPL 306P4 Contact Us For Availability

32

SHIPPING PLUG WPL 40047301 Contact Us For Availability

33

DRIVE BELL BOLT WPL 294P4B Contact Us For Availability

34

BELL TOOL WPL 294P4 Contact Us For Availability

35

DRIVE BELL ARMS WPL 294P5A Contact Us For Availability

36

SEAL TOOL WPL 293P4 Contact Us For Availability

37

TUB COVER GASKET TOOL WPL 273P4 Contact Us For Availability

38

TERMINAL EXTRACTOR TOOL WPL 283P4 Contact Us For Availability

39

10 CIRCUIT PLUG WPL 34677 Contact Us For Availability

40

AGITATOR HOOKS WPL 254P4P Contact Us For Availability

WP26594P Whirlpool Grease Filter Backorder WPL WP26594P $32.59

ASSY, WIRE HARNESS BASE WPL 40100102 Contact Us For Availability

ASSY,WIRE HARNESS HOOD WPL 40100901 Contact Us For Availability

MOTOR MOUNT UPPER ASSEMBLY WPL 40069401 Contact Us For Availability

MOTOR MOUNT LOWER ASSEMBLY WPL 40069501 Contact Us For Availability

FOAM,4`` X 22`` X 1/2`` WPL 40106001 Contact Us For Availability
