Model Speed Queen AGM459 Dryer – Common Parts & Diagrams

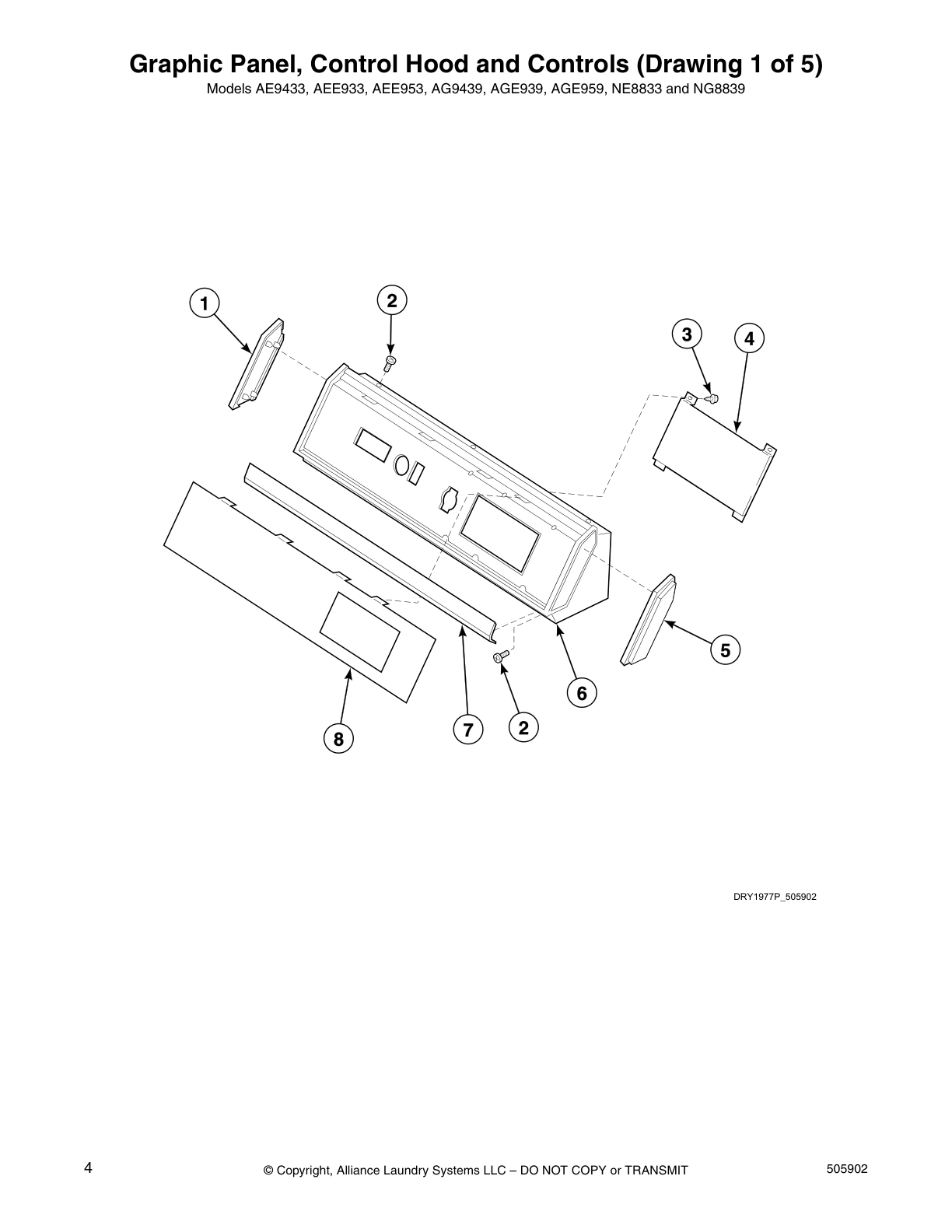

Graphic Panel, Control Hood and Controls (Drawing 1 of 5)

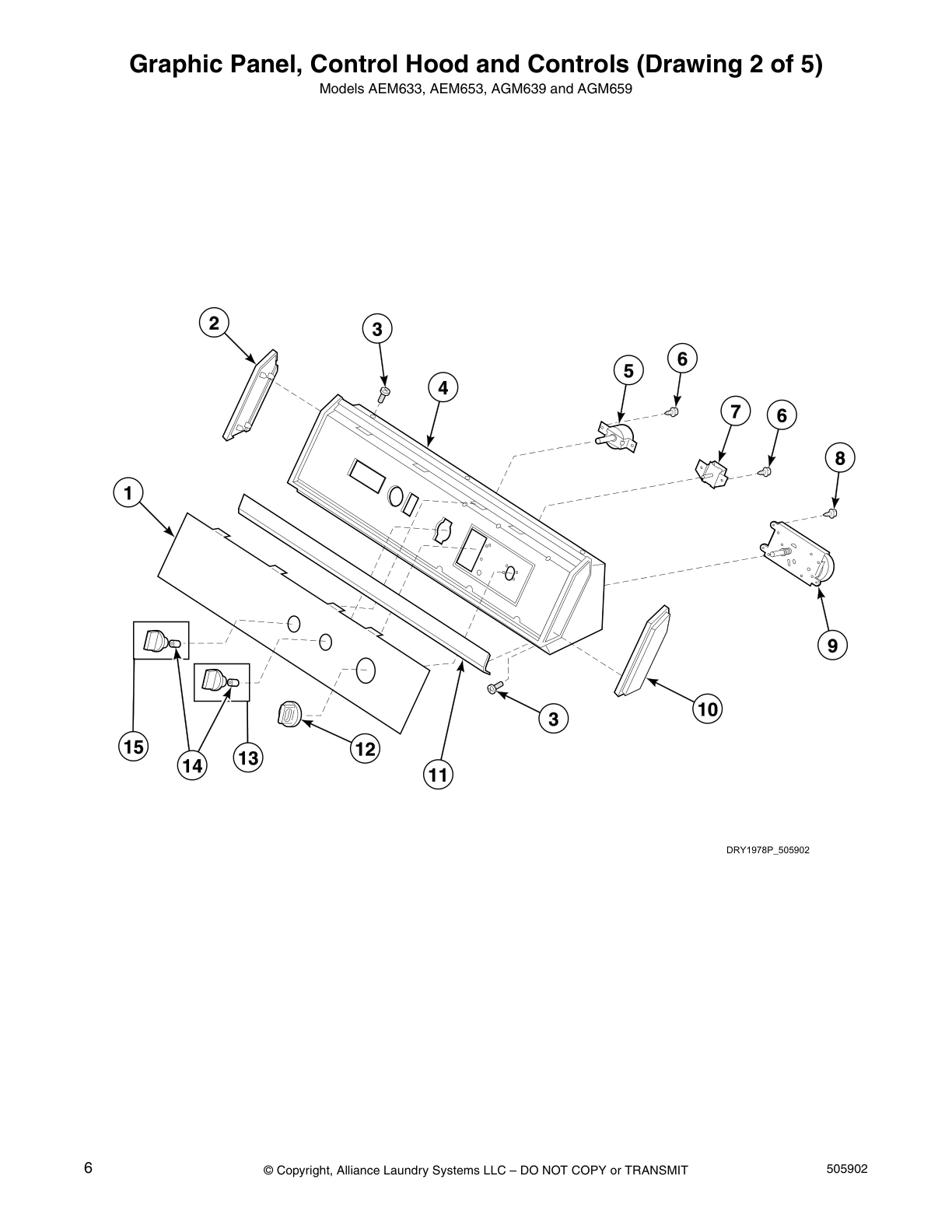

Graphic Panel, Control Hood and Controls (Drawing 2 of 5)

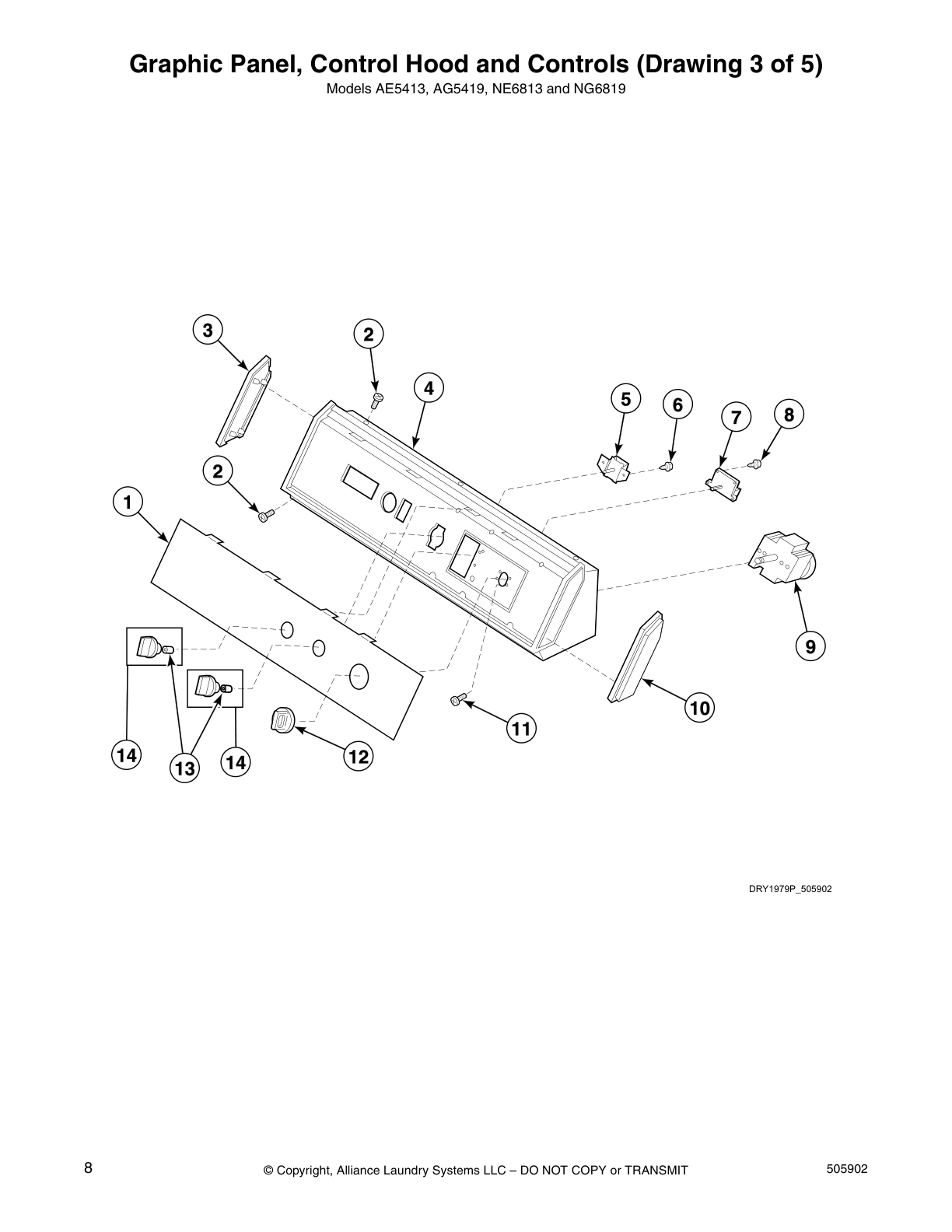

Graphic Panel, Control Hood and Controls (Drawing 3 of 5)

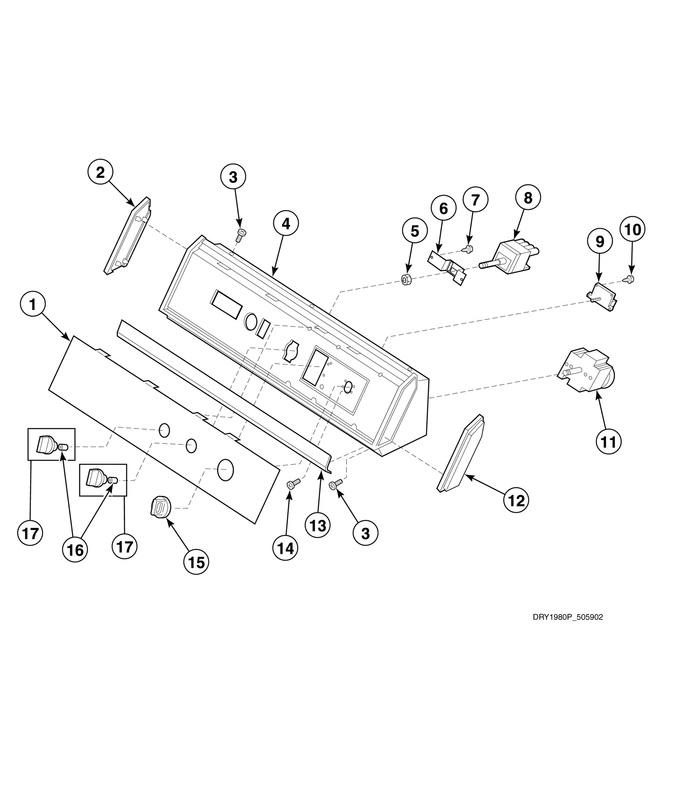

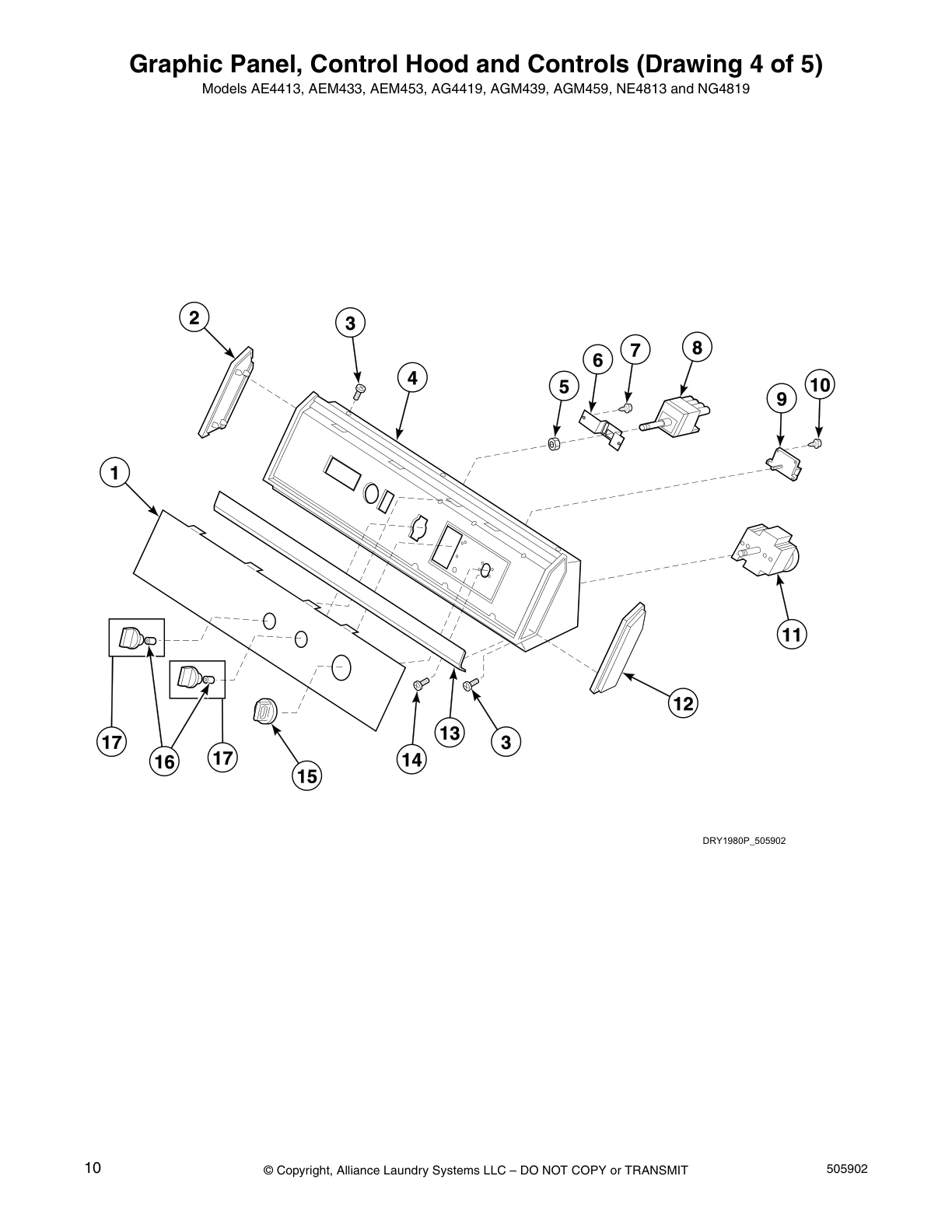

Graphic Panel, Control Hood and Controls (Drawing 4 of 5)

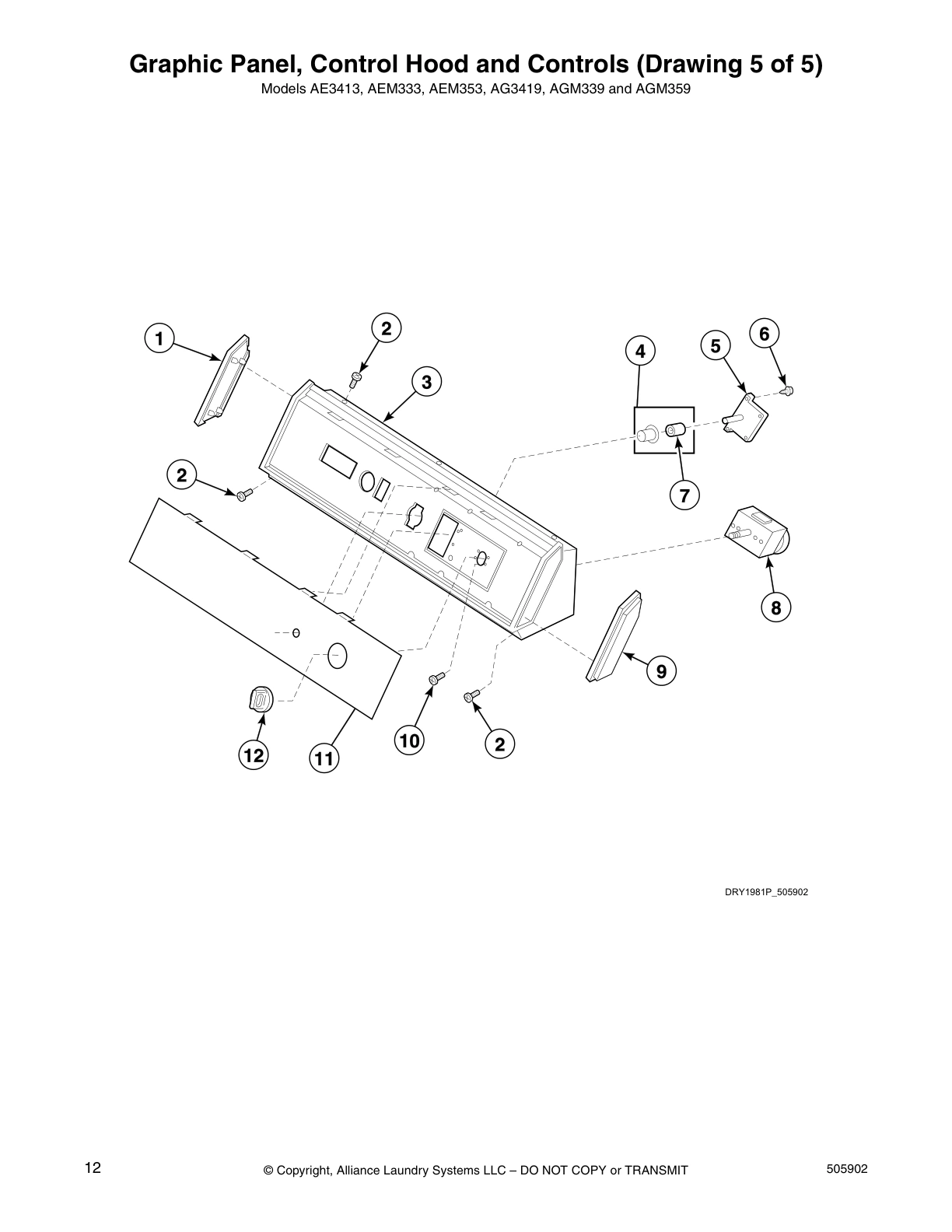

Graphic Panel, Control Hood and Controls (Drawing 5 of 5)

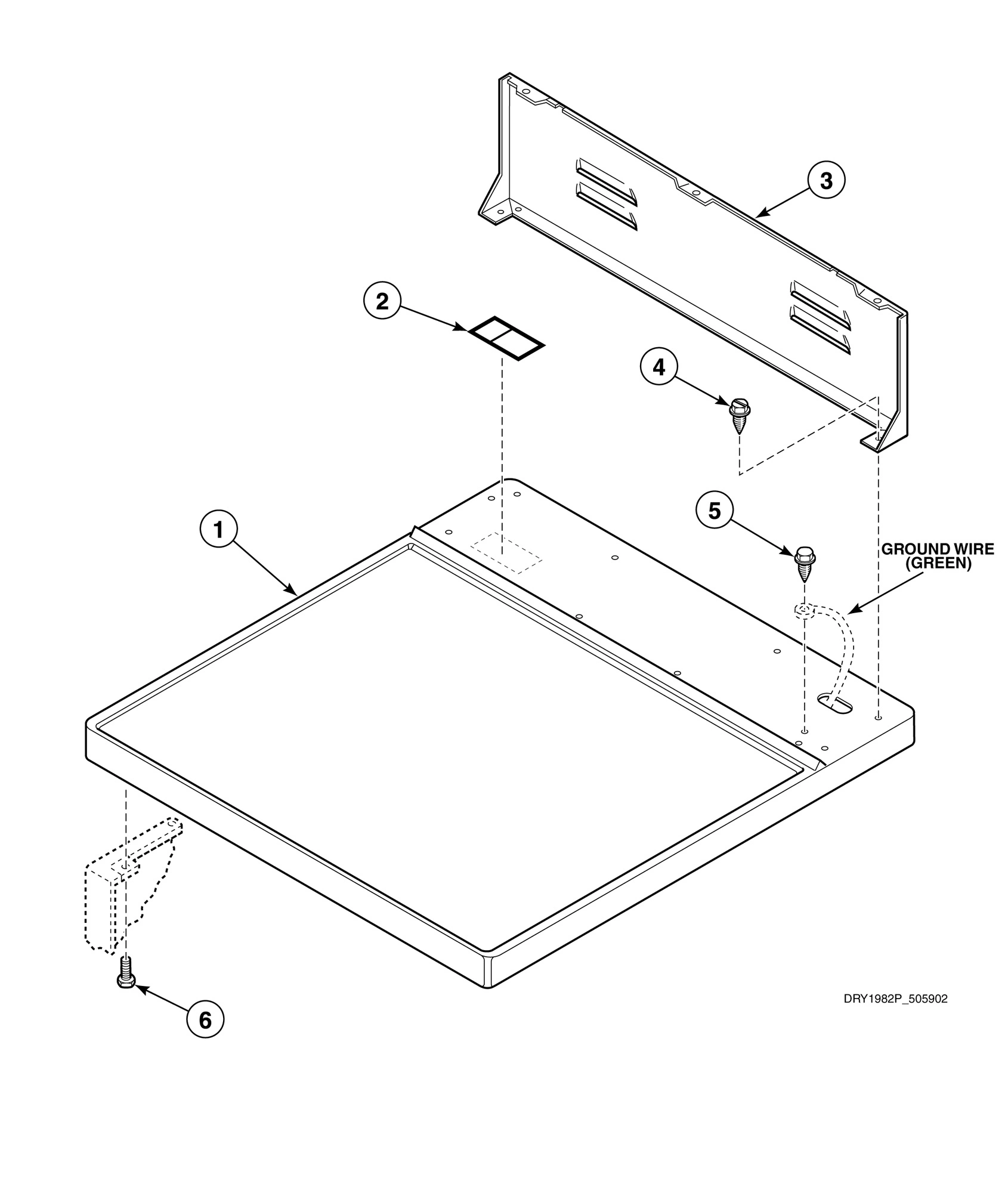

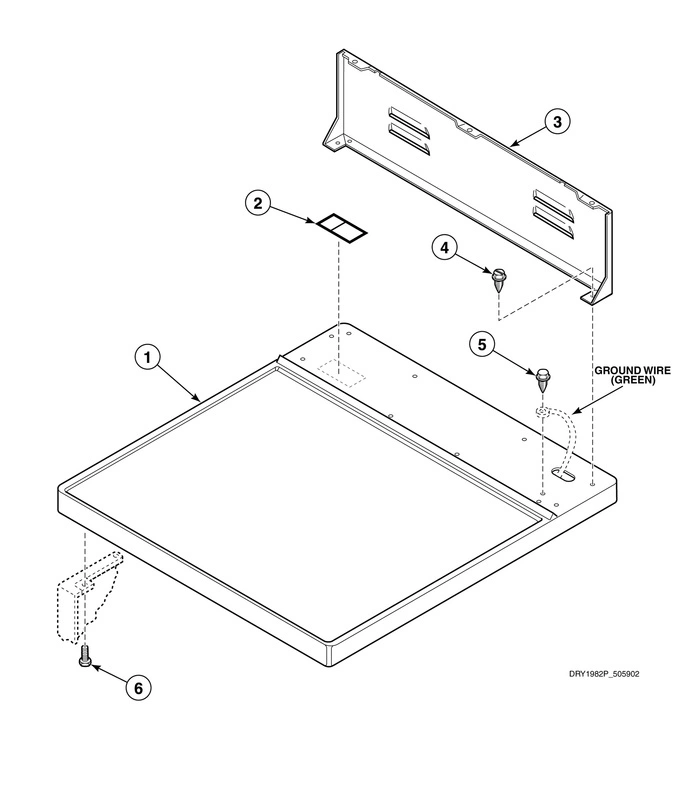

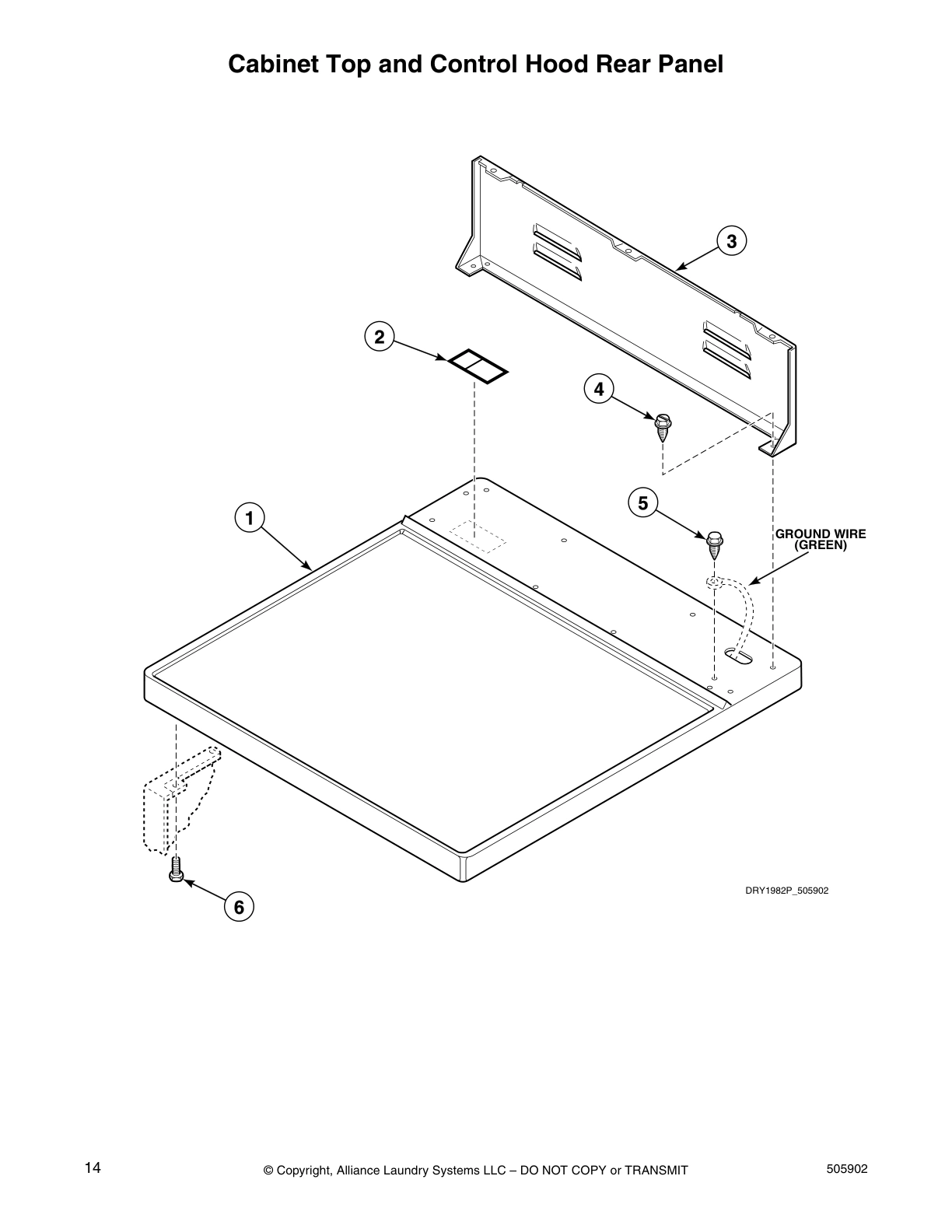

Cabinet Top and Control Hood Rear Panel

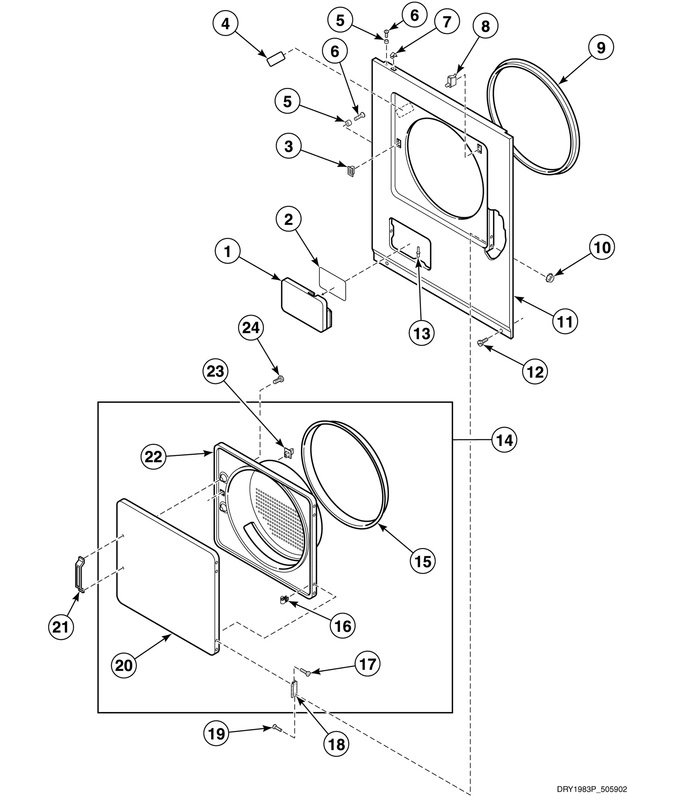

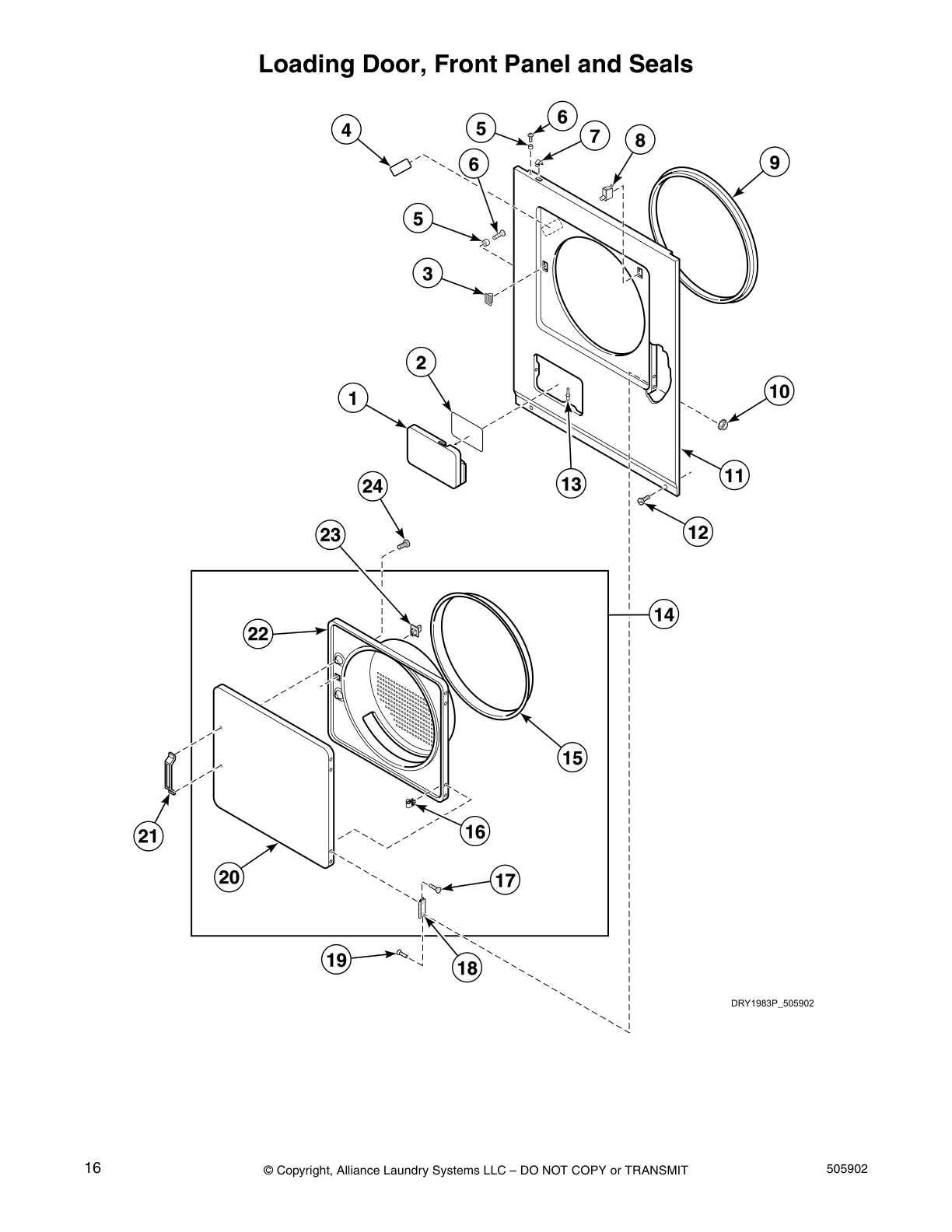

Loading Door, Front Panel and Seals

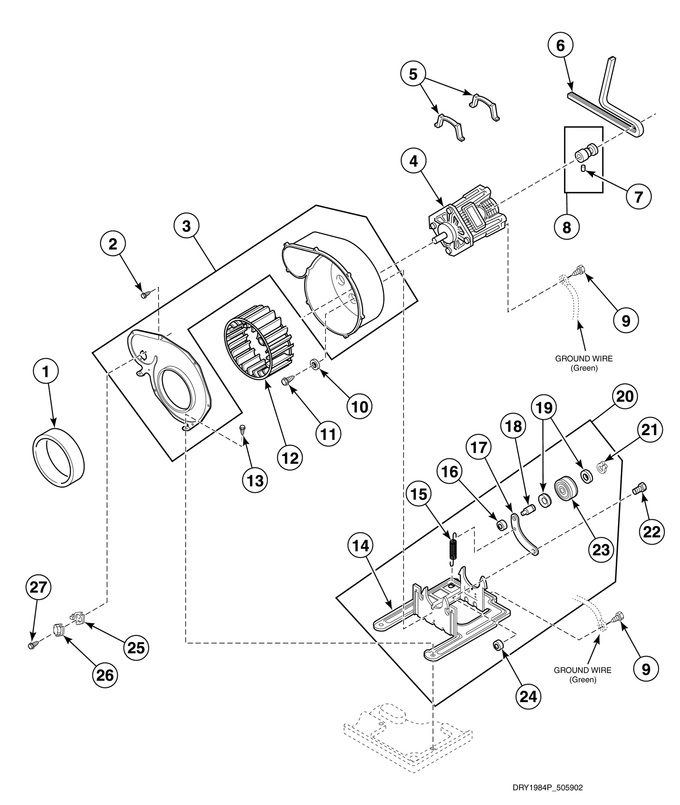

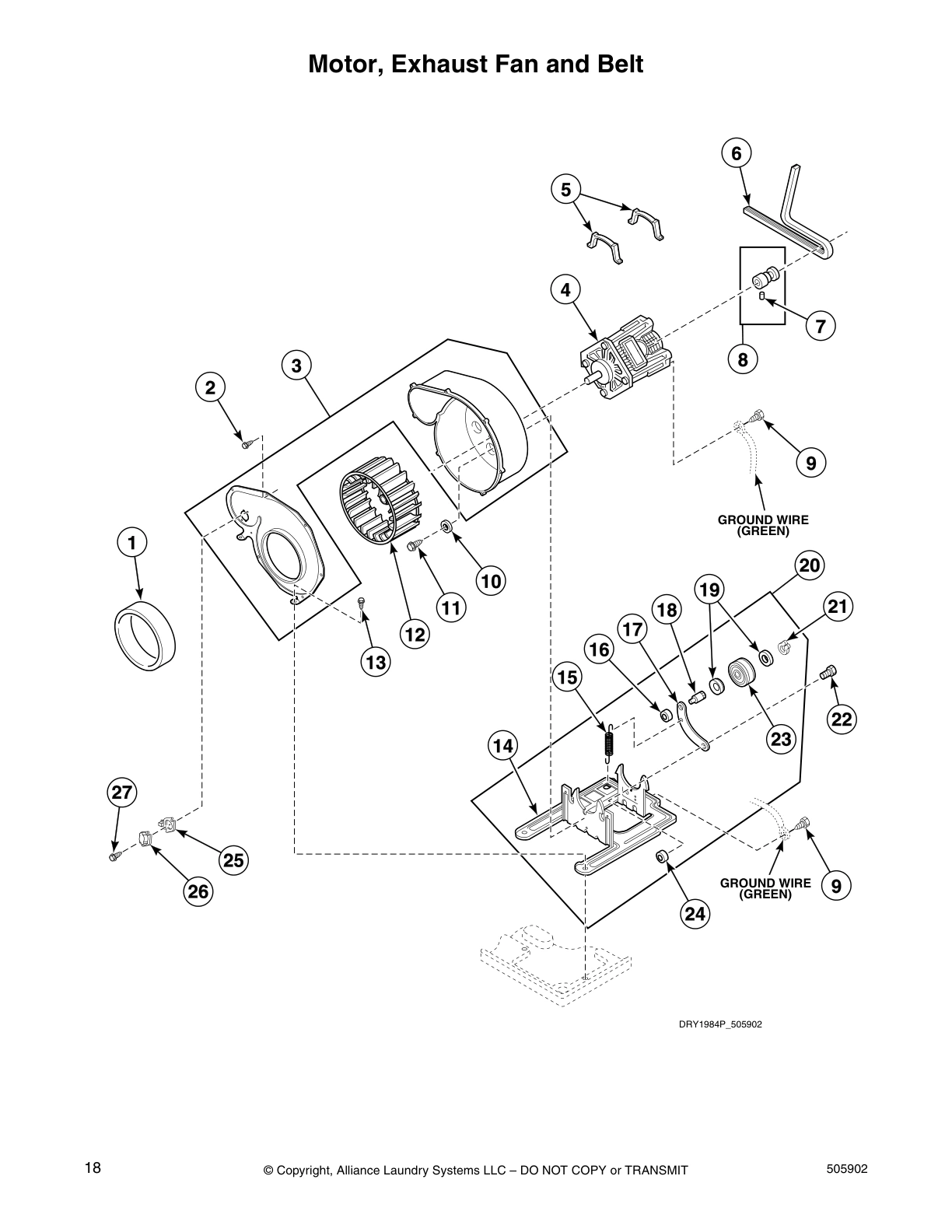

Motor, Exhaust Fan and Belt

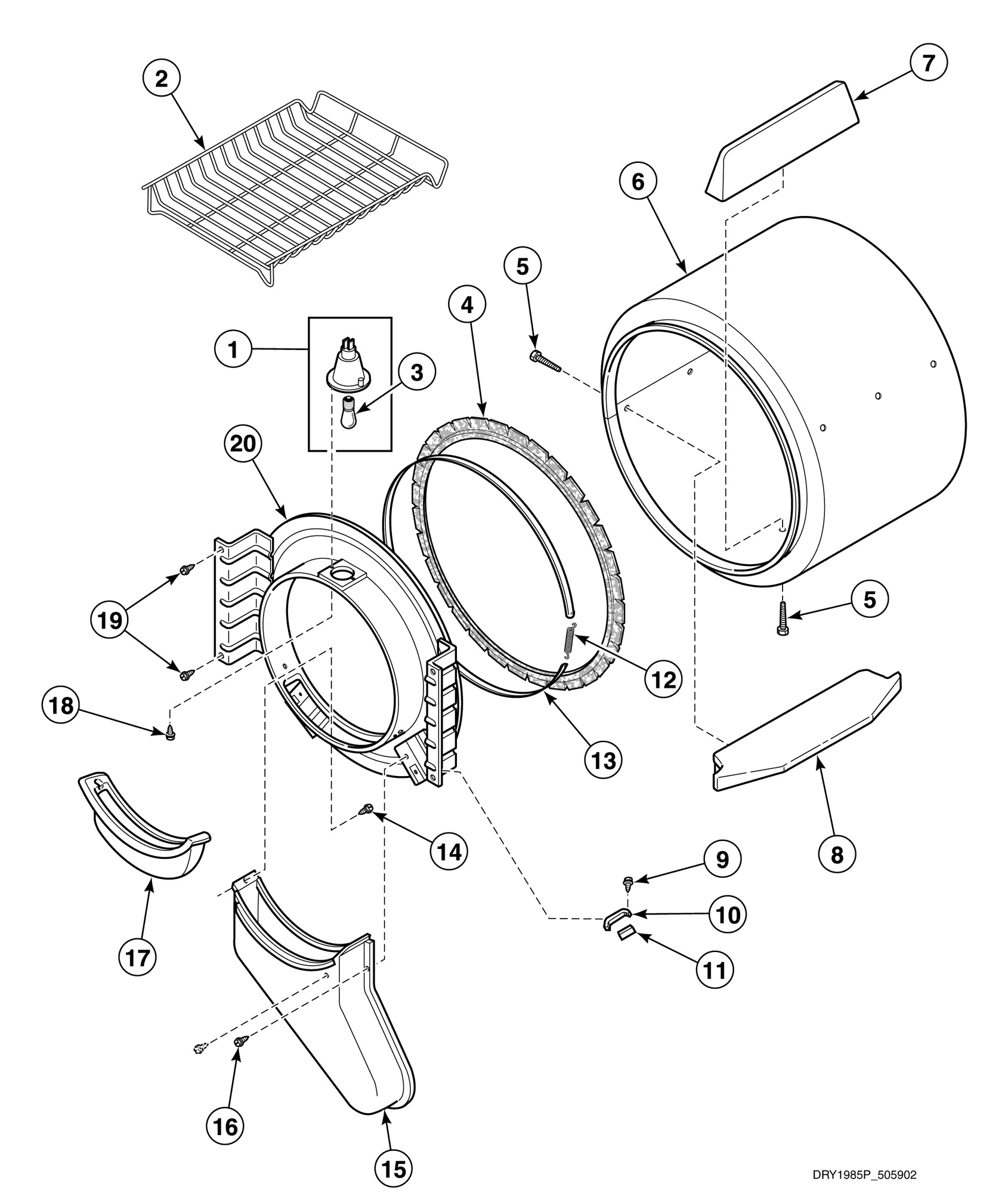

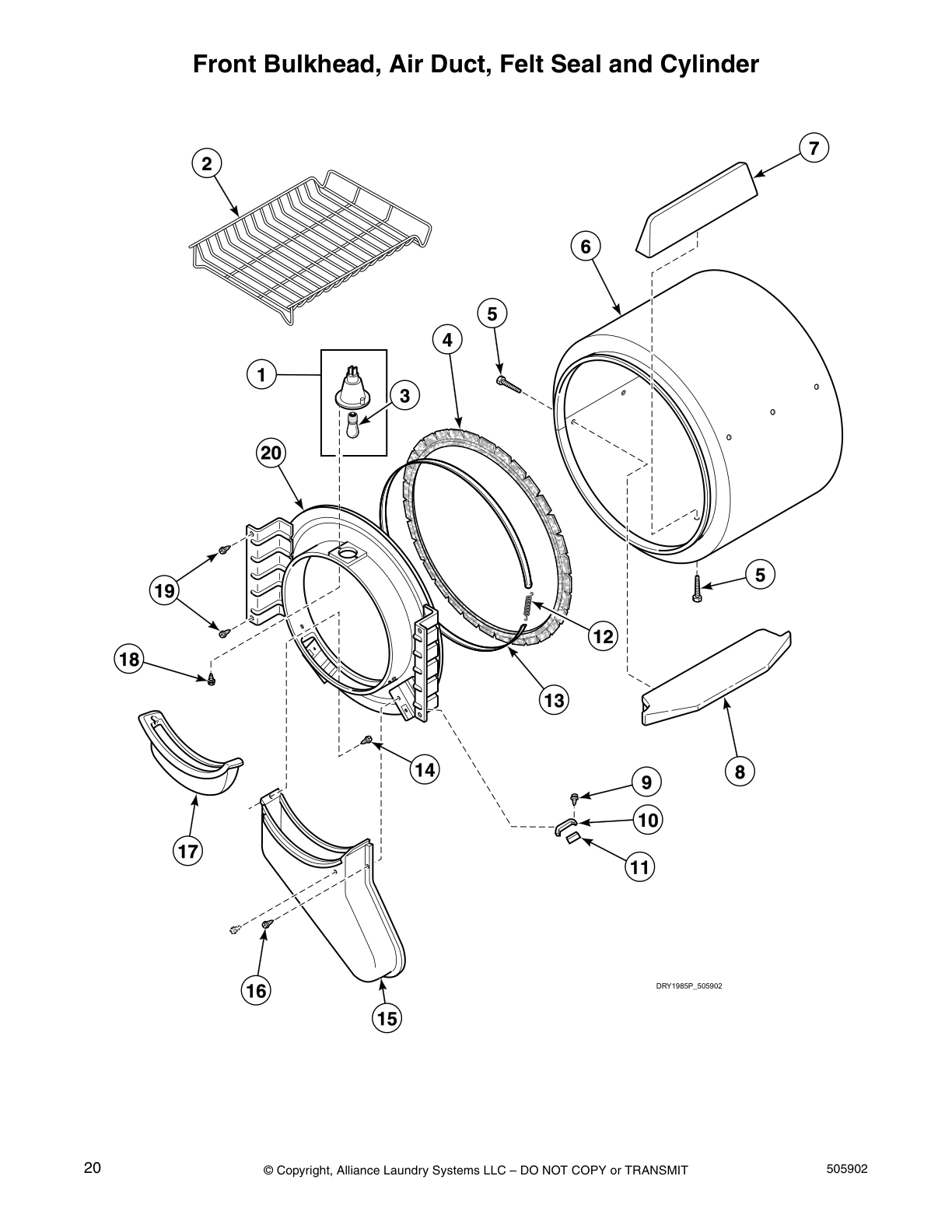

Front Bulkhead, Air Duct, Felt Seal and Cylinder

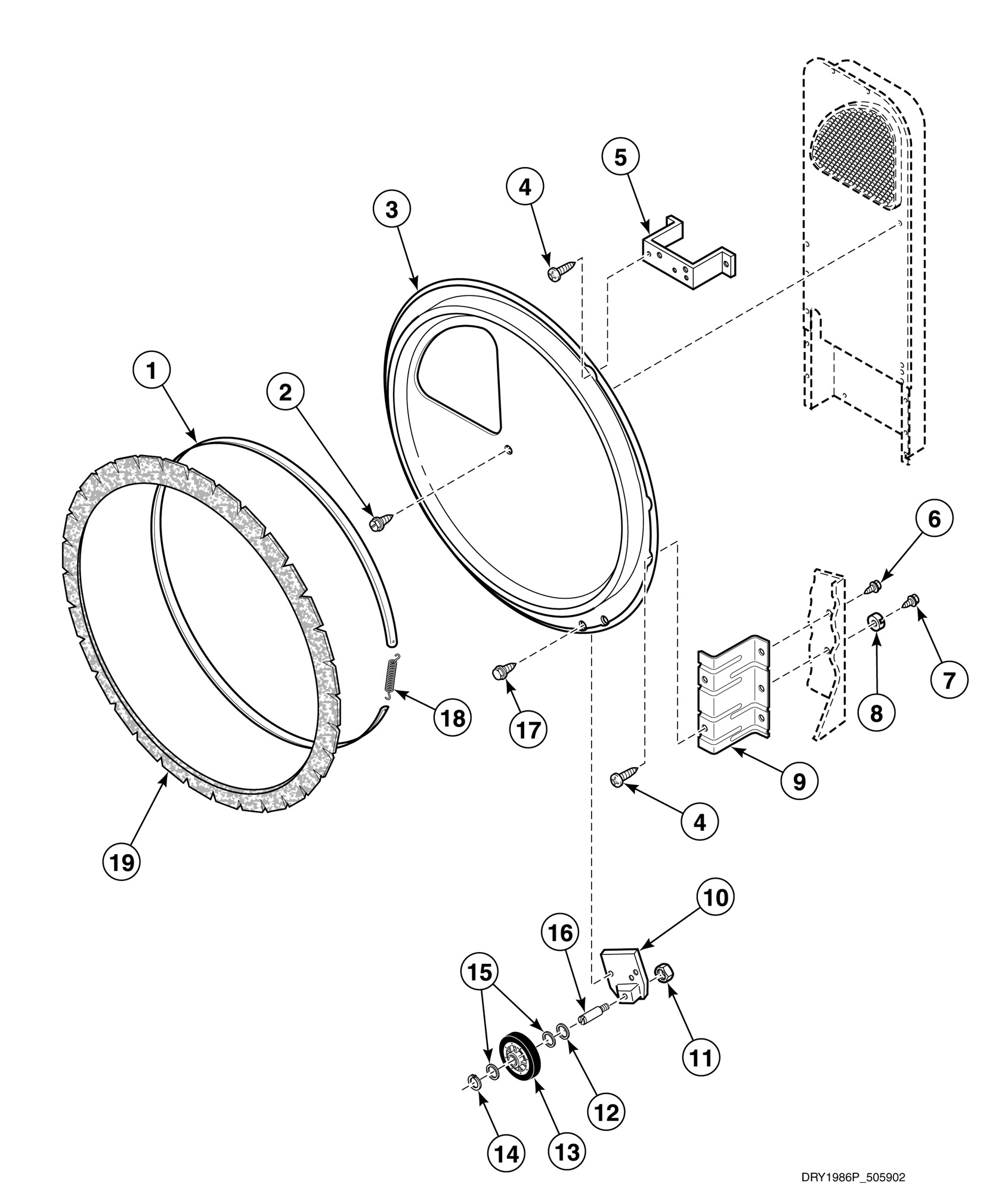

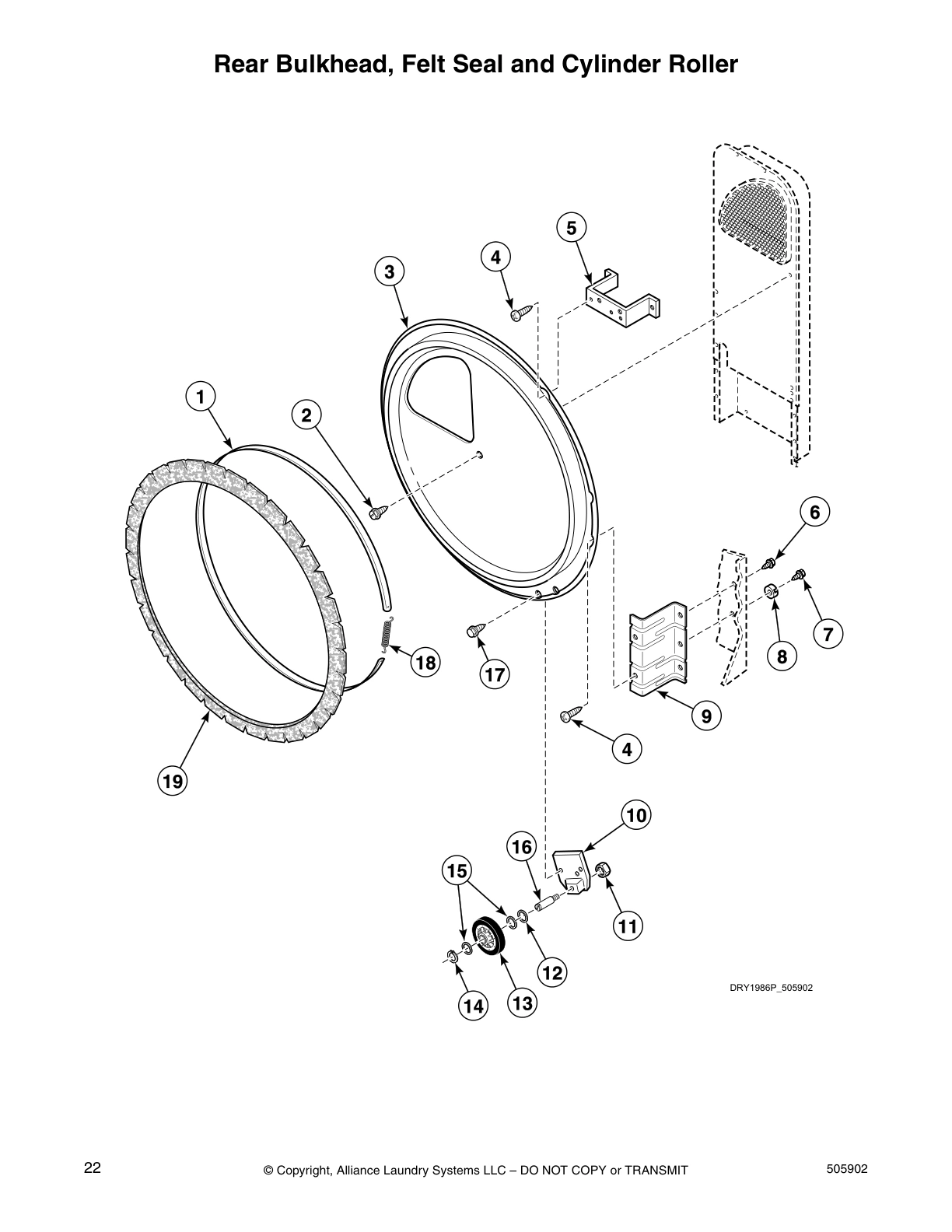

Rear Bulkhead, Felt Seal and Cylinder Roller

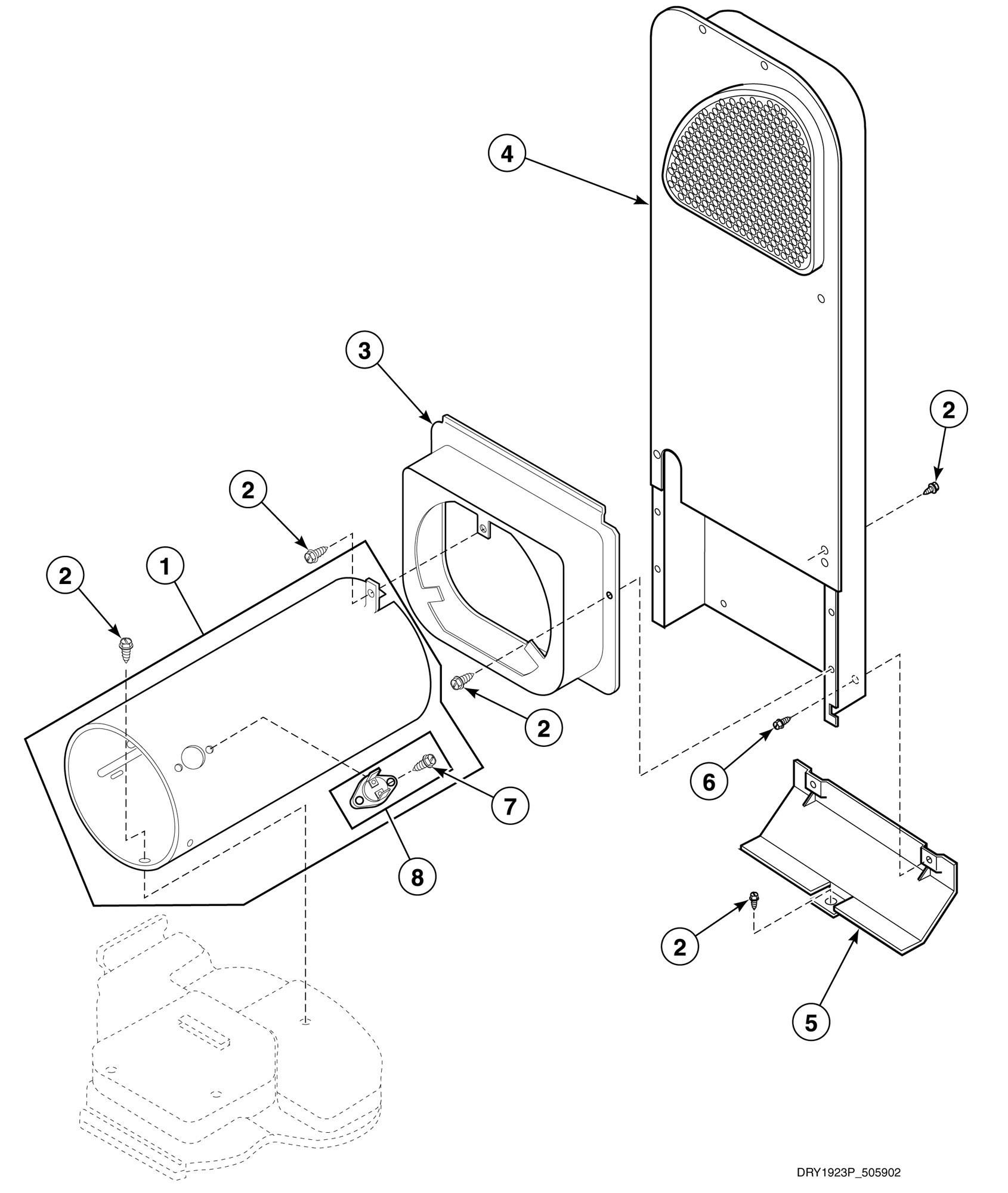

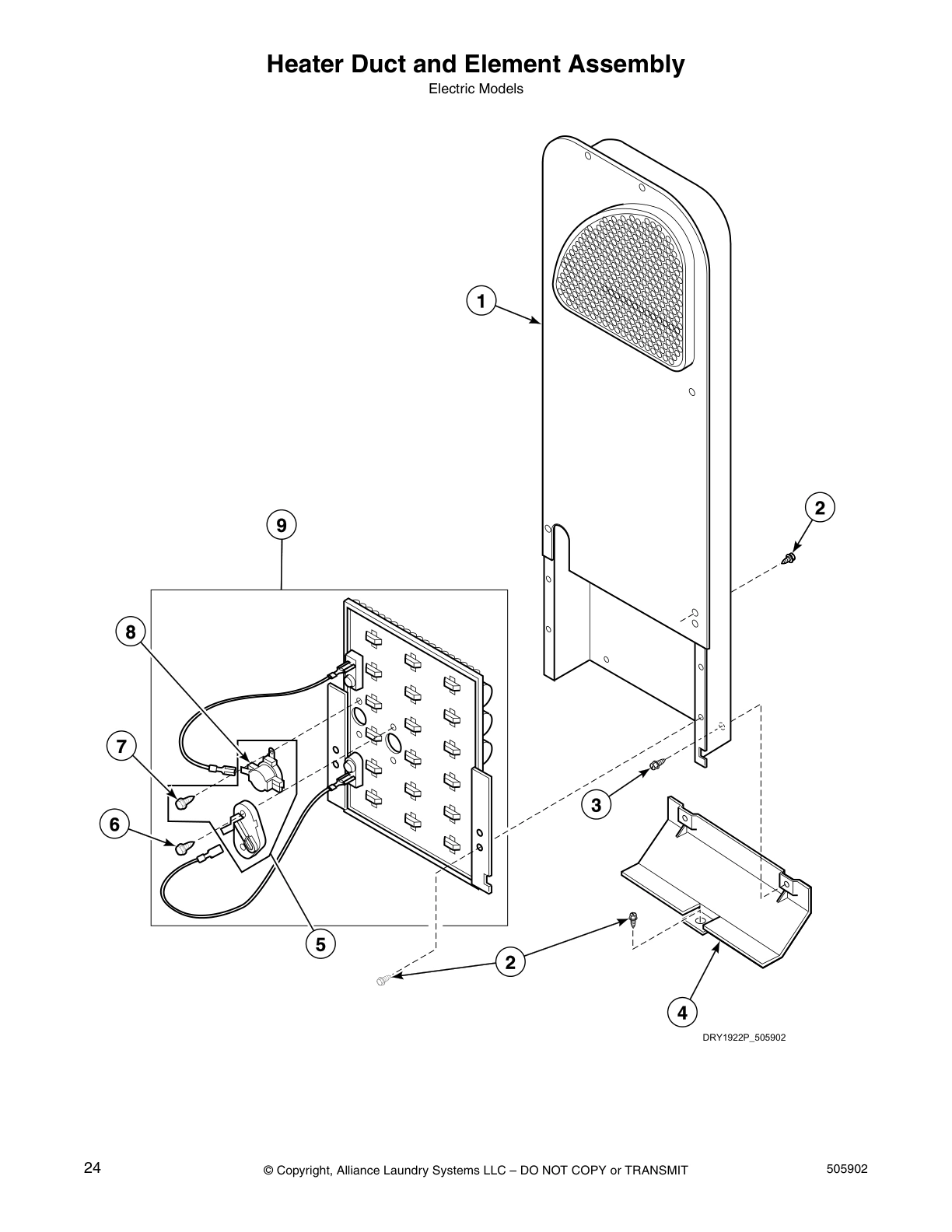

Heater Duct and Element Assembly

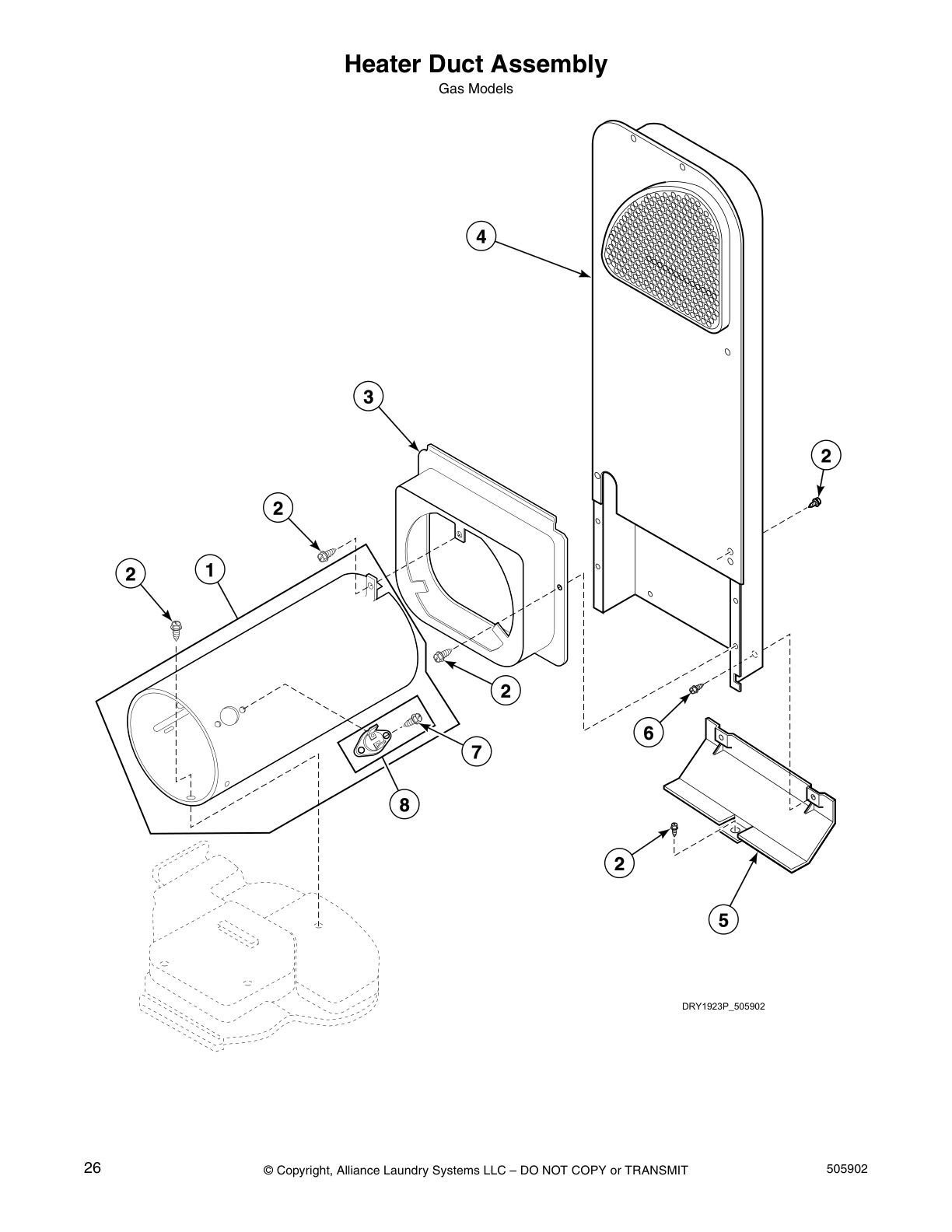

Heater Duct Assembly

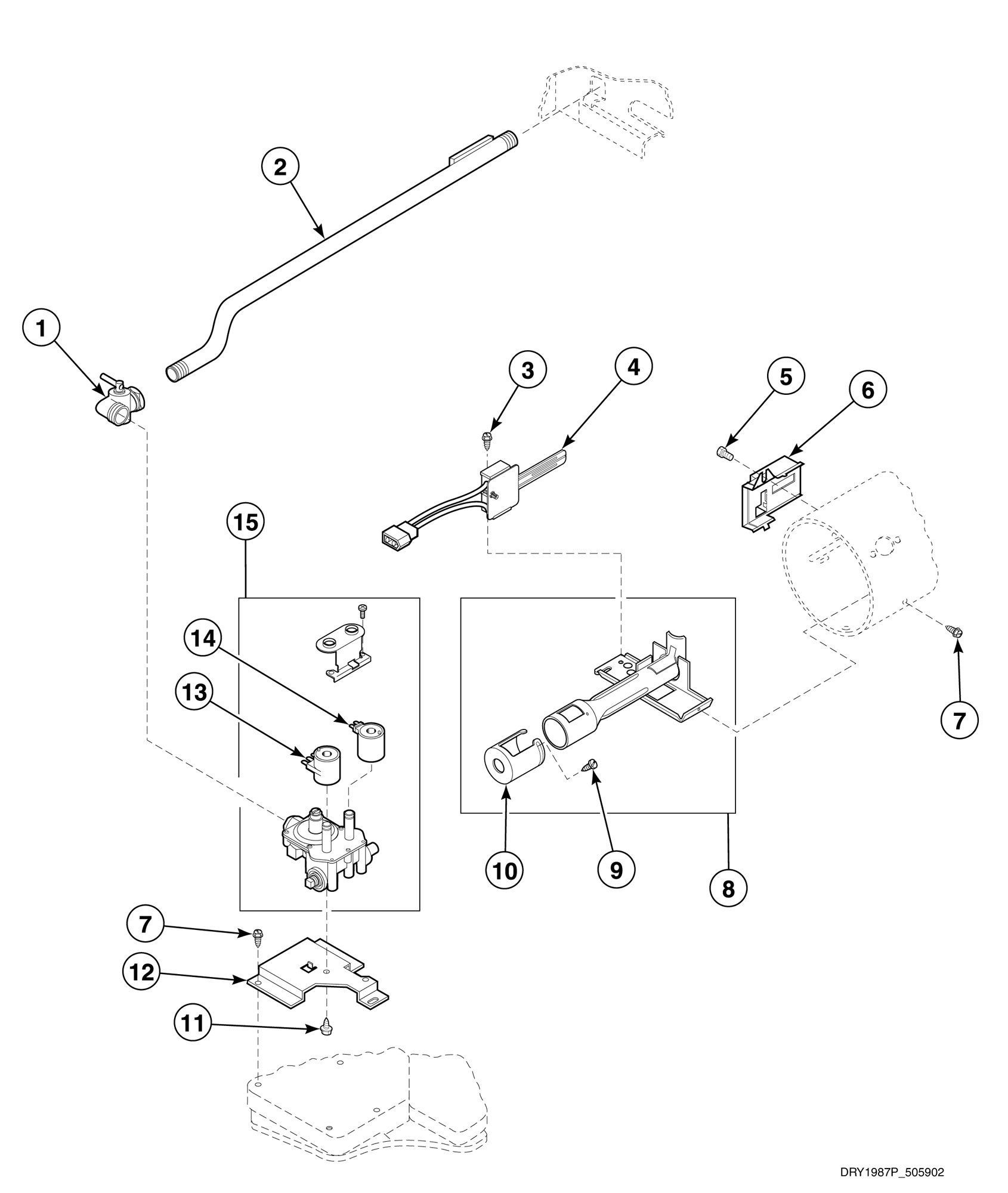

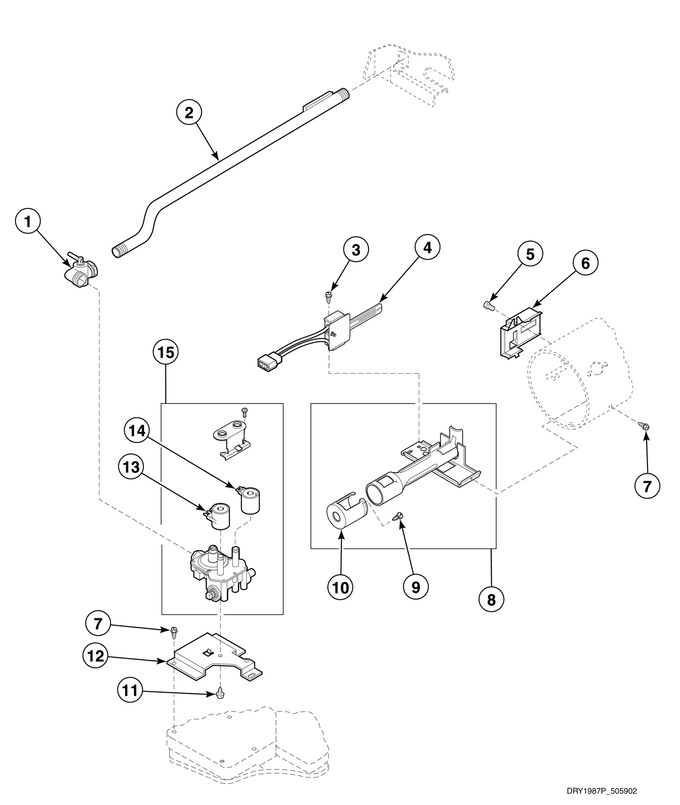

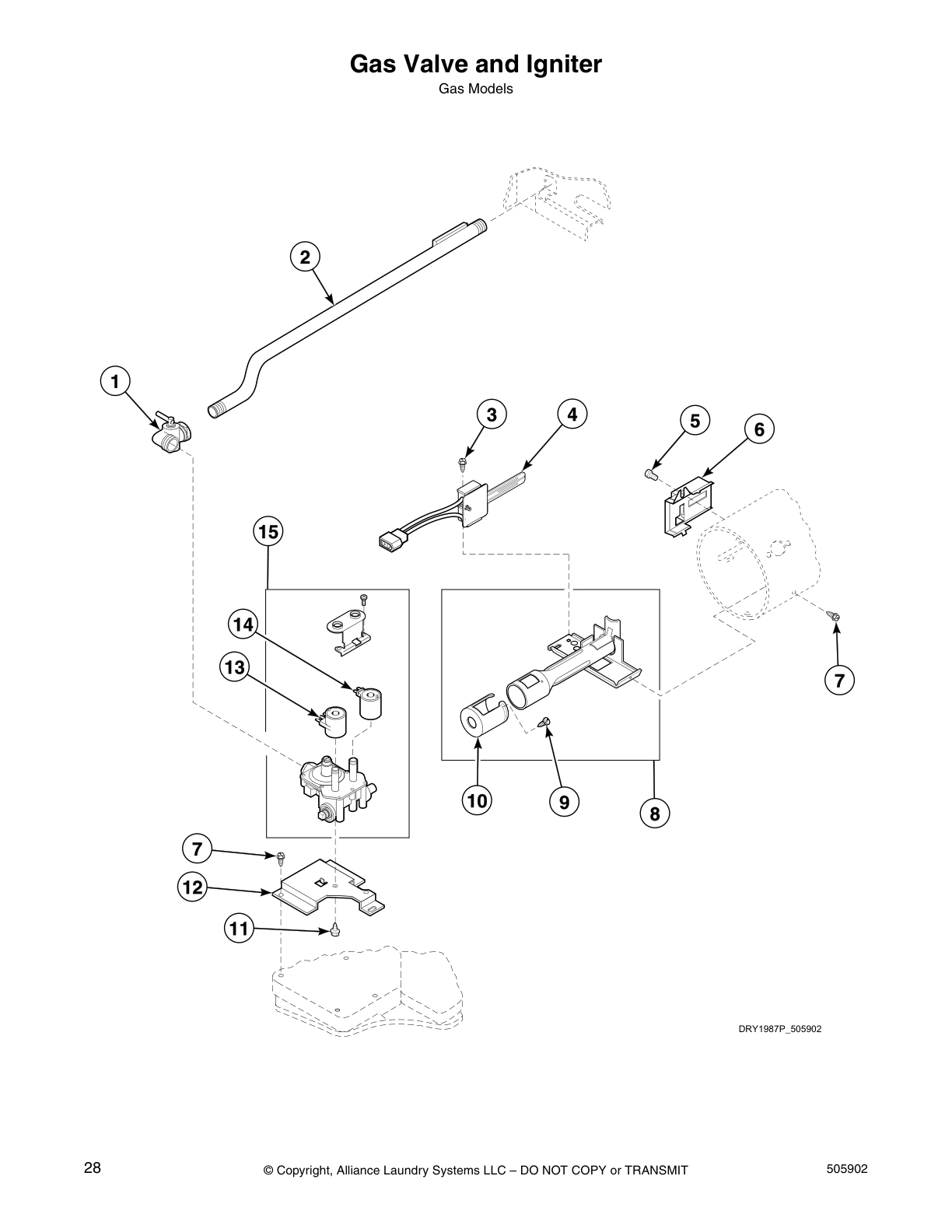

Gas Valve and Igniter

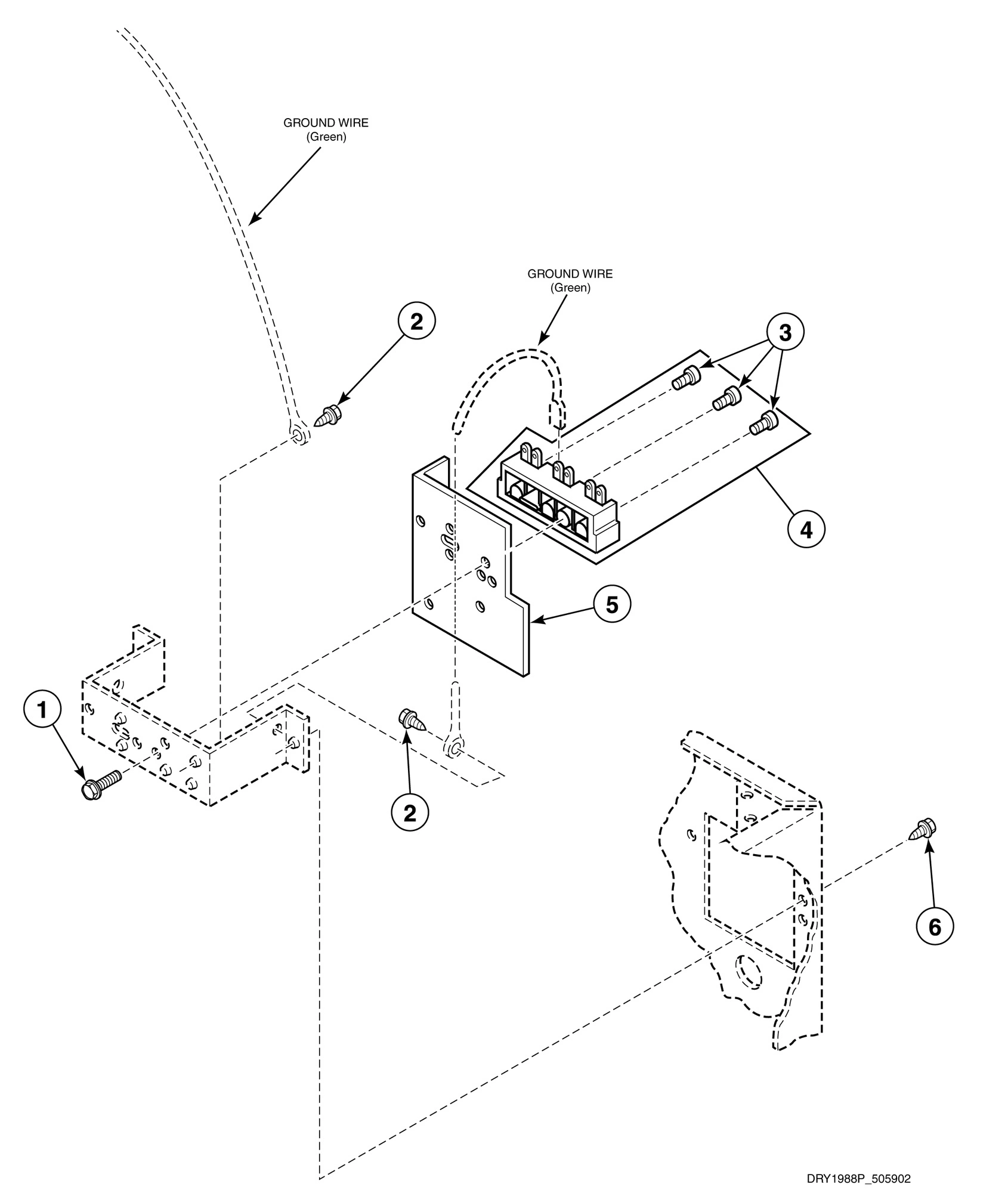

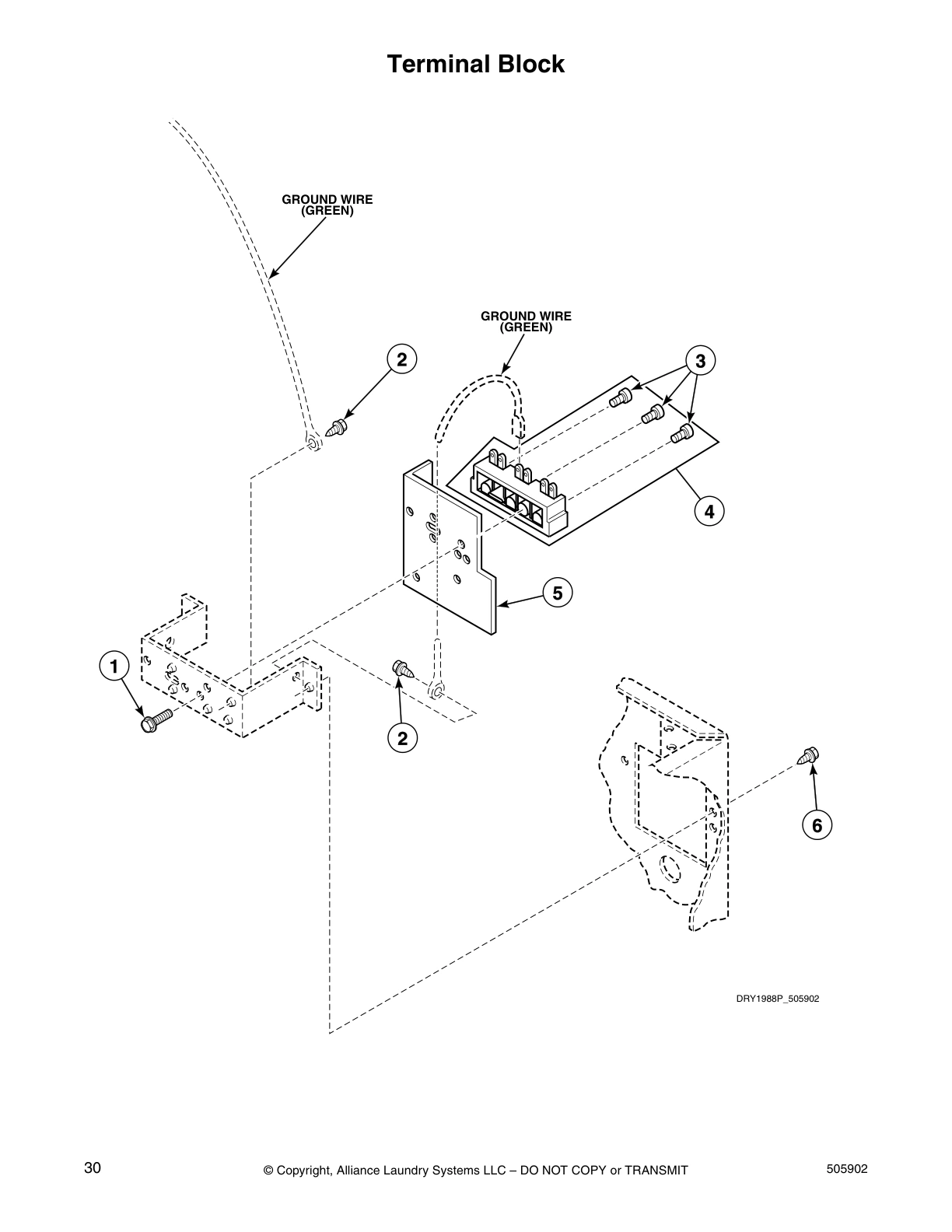

Terminal Block

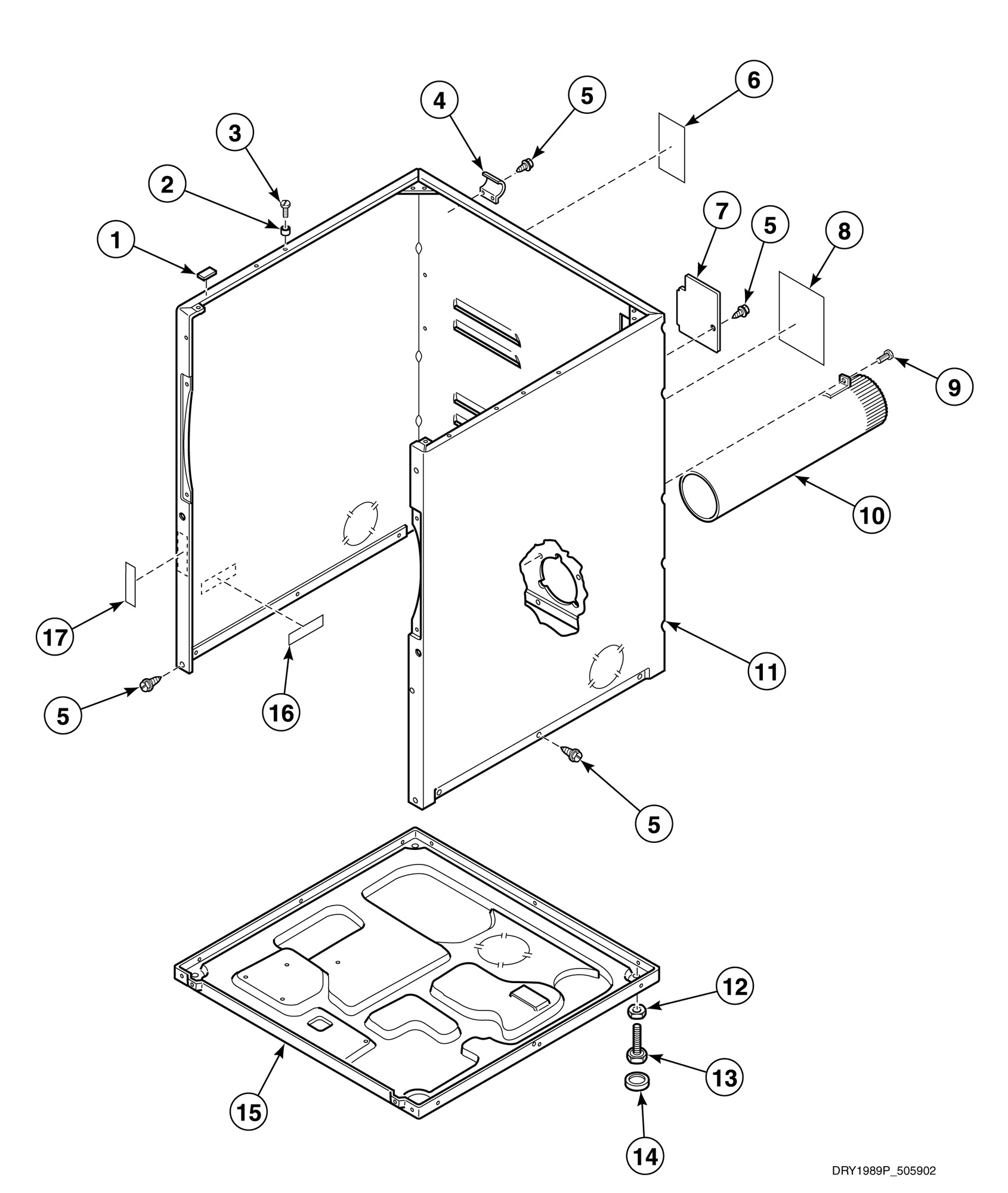

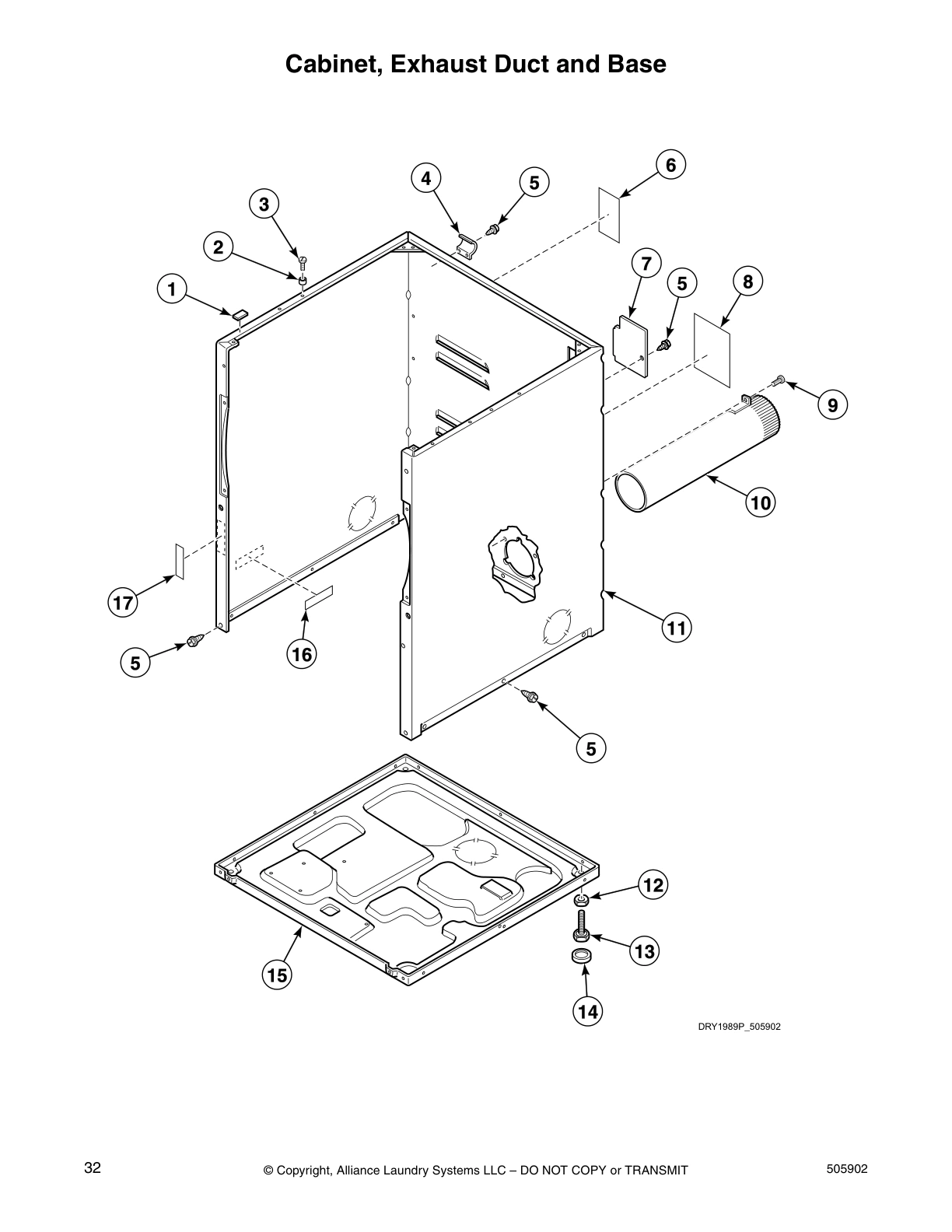

Cabinet, Exhaust Duct and Base

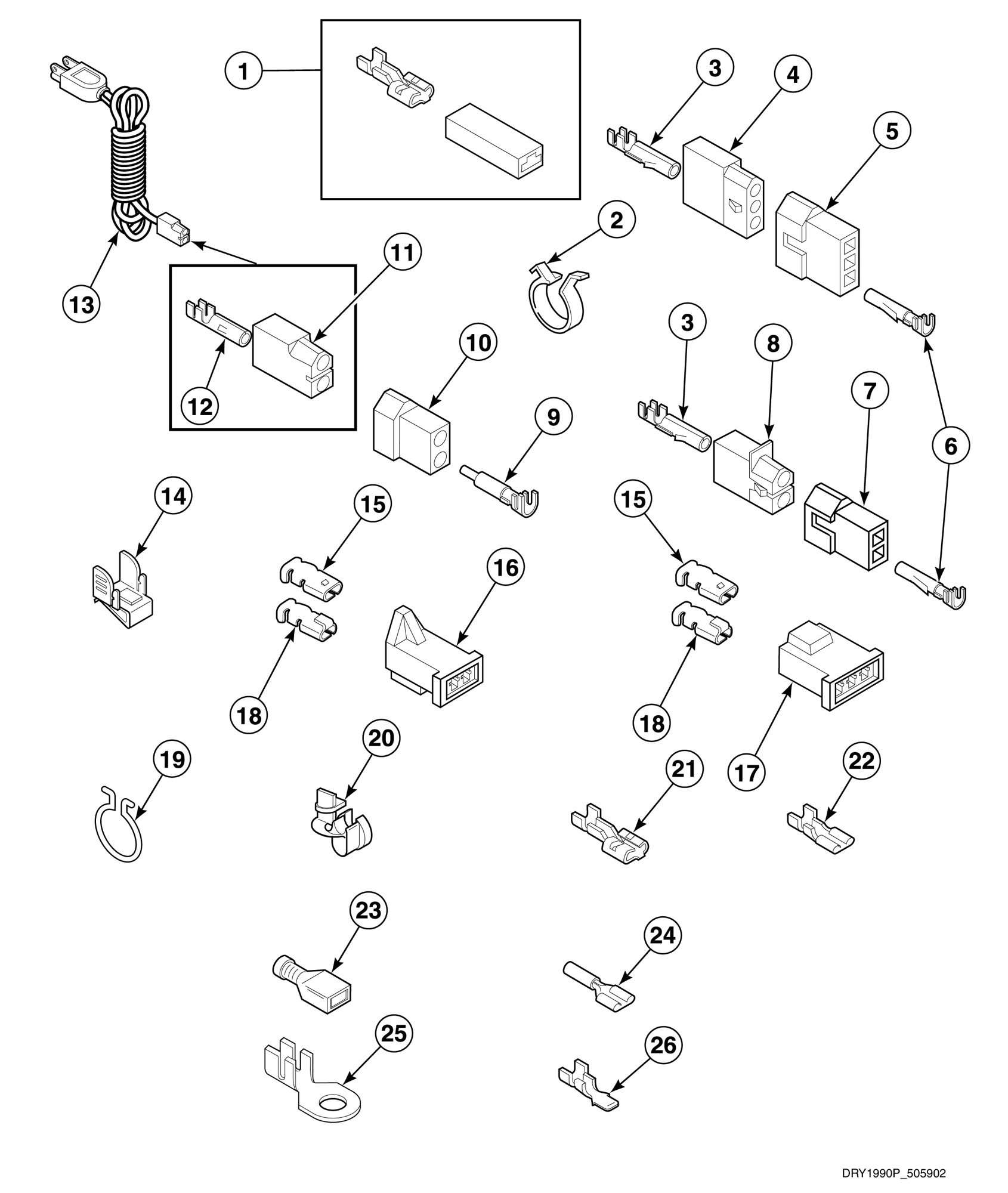

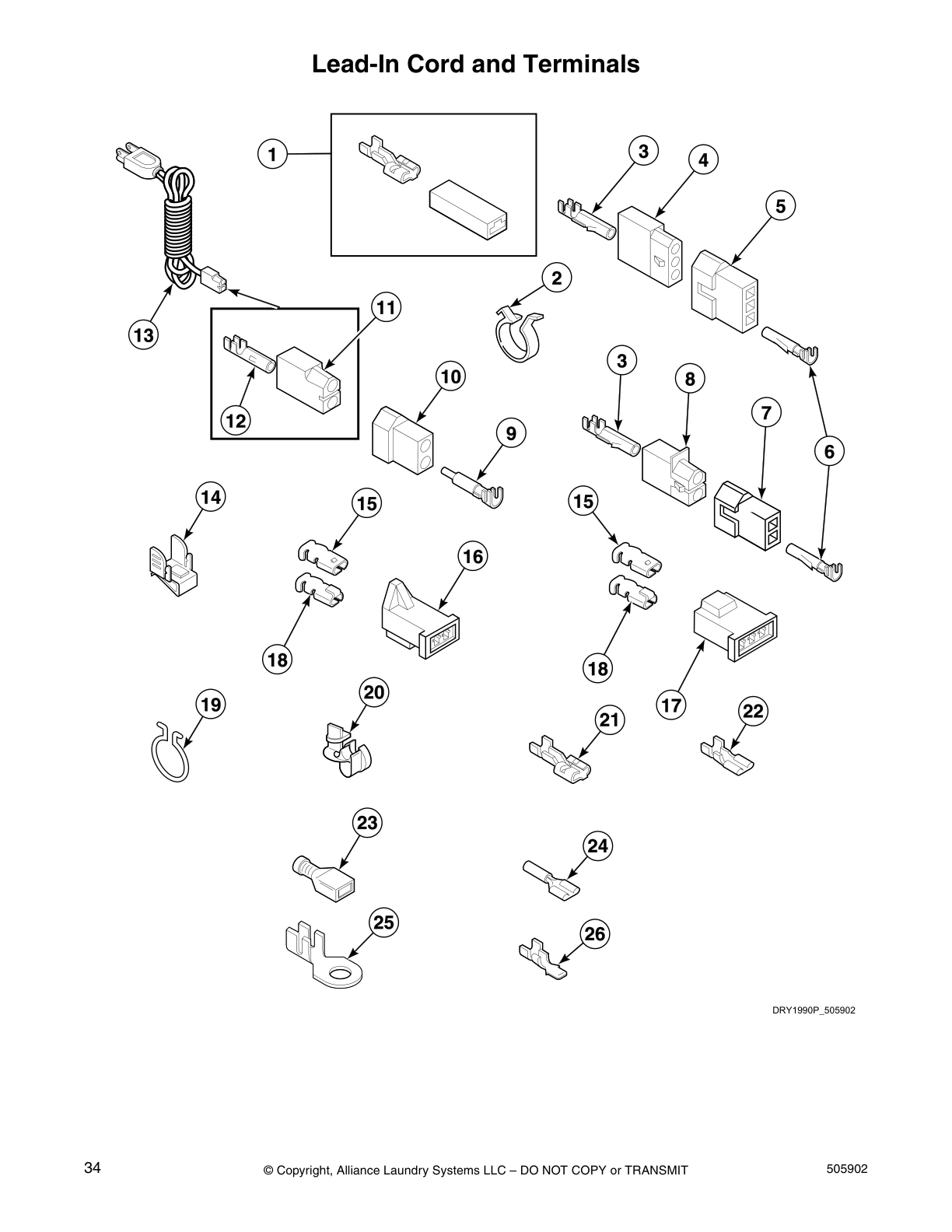

Lead-In Cord and Terminals
Lead-in Cord And Terminals
Rear Bulkhead, Felt Seal And Cylinder Roller
Gas Valve And Igniter
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Rear Bulkhead, Felt Seal And Cylinder Roller
Loading Door, Front Panel And Seals
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Cabinet, Exhaust Duct And Base
Terminal Block
Rear Bulkhead, Felt Seal And Cylinder Roller
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Rear Bulkhead, Felt Seal And Cylinder Roller
Lead-in Cord And Terminals
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Graphic Panel, Control Hood And Controls (drawing 4 Of 5)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Lead-in Cord And Terminals
Graphic Panel, Control Hood And Controls (drawing 4 Of 5)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Heater Duct Assembly
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Graphic Panel, Control Hood And Controls (drawing 4 Of 5)
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Motor, Exhaust Fan And Belt
Heater Duct Assembly
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Motor, Exhaust Fan And Belt
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Loading Door, Front Panel And Seals
Loading Door, Front Panel And Seals
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Graphic Panel, Control Hood And Controls (drawing 4 Of 5)
Terminal Block
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Heater Duct Assembly
Gas Valve And Igniter
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet Top And Control Hood Rear Panel
Cabinet, Exhaust Duct And Base
Lead-in Cord And Terminals
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Gas Valve And Igniter
Motor, Exhaust Fan And Belt
Gas Valve And Igniter
Loading Door, Front Panel And Seals
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Gas Valve And Igniter
Terminal Block
Loading Door, Front Panel And Seals
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Gas Valve And Igniter
Terminal Block
Cabinet Top And Control Hood Rear Panel
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Rear Bulkhead, Felt Seal And Cylinder Roller
Motor, Exhaust Fan And Belt
Loading Door, Front Panel And Seals
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Graphic Panel, Control Hood And Controls (drawing 4 Of 5)
Front Bulkhead, Air Duct, Felt Seal And Cylinder
Cabinet Top And Control Hood Rear Panel
Motor, Exhaust Fan And Belt
Cabinet, Exhaust Duct And Base
Motor, Exhaust Fan And Belt
Common parts from model Speed Queen AGM459 Dryer
3
Screw SPQ 31752 Contact Us For Availability
4
ASSY SEAL SPQ 56088P Contact Us For Availability
14
Idler Spring SPQ 510060 Contact Us For Availability
14
FOOT- RUBB SPQ WPY314137 Contact Us For Availability
18
Spring SPQ 52310 Contact Us For Availability
21
Speed Clip SPQ 61925 Contact Us For Availability
25
SPQ 61401 SPQ 61401 Contact Us For Availability
26
SPQ 61372 SPQ 61372 Contact Us For Availability
26
THERMOSTAT SPQ WPY61372 Contact Us For Availability
× ![]()
