Model Speed Queen AFN50RSP115FW01 Washer – Common Parts & Diagrams
Control Cabinet, Top and Controls (Drawing 1 of 3)
Control Cabinet, Top and Controls (Drawing 3 of 3)

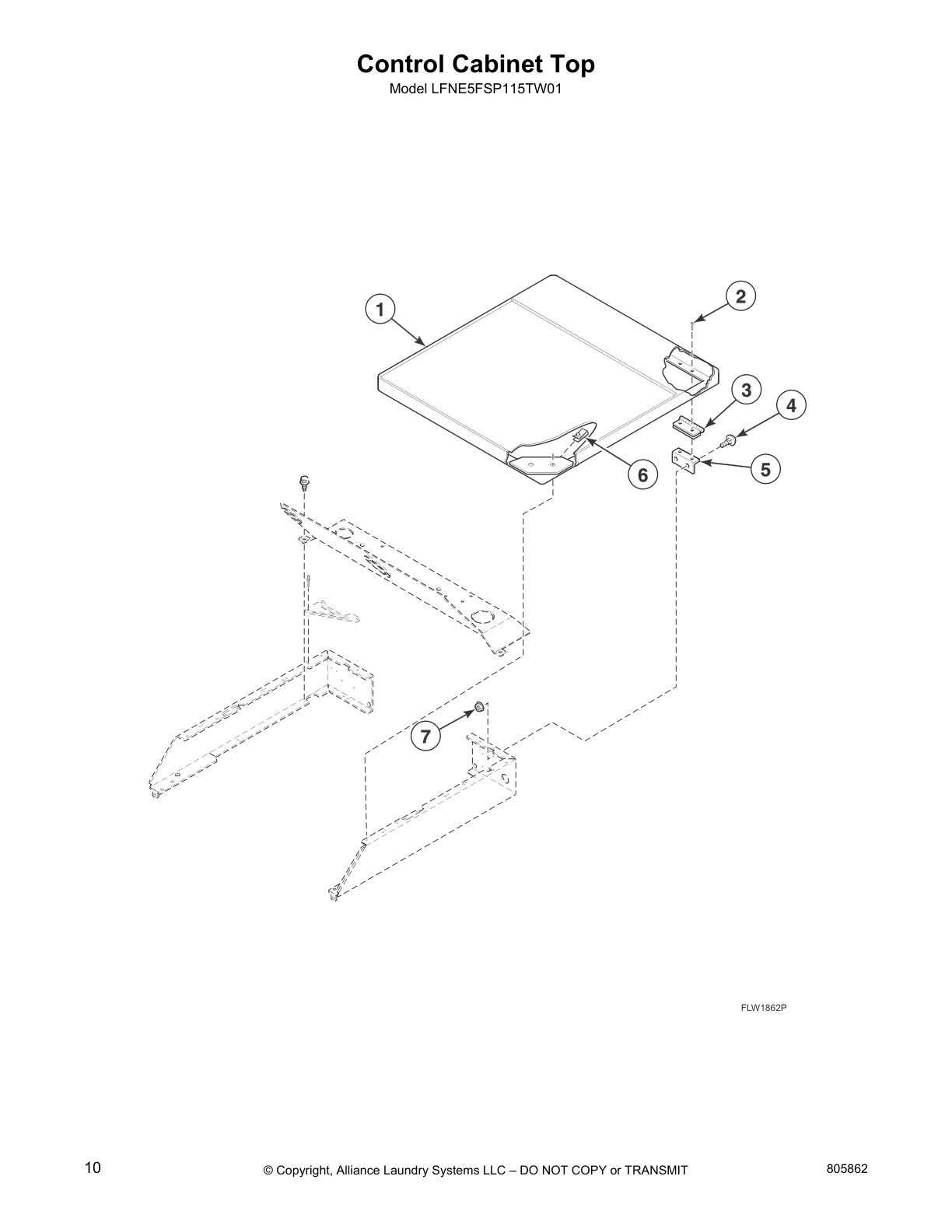

Control Cabinet Top

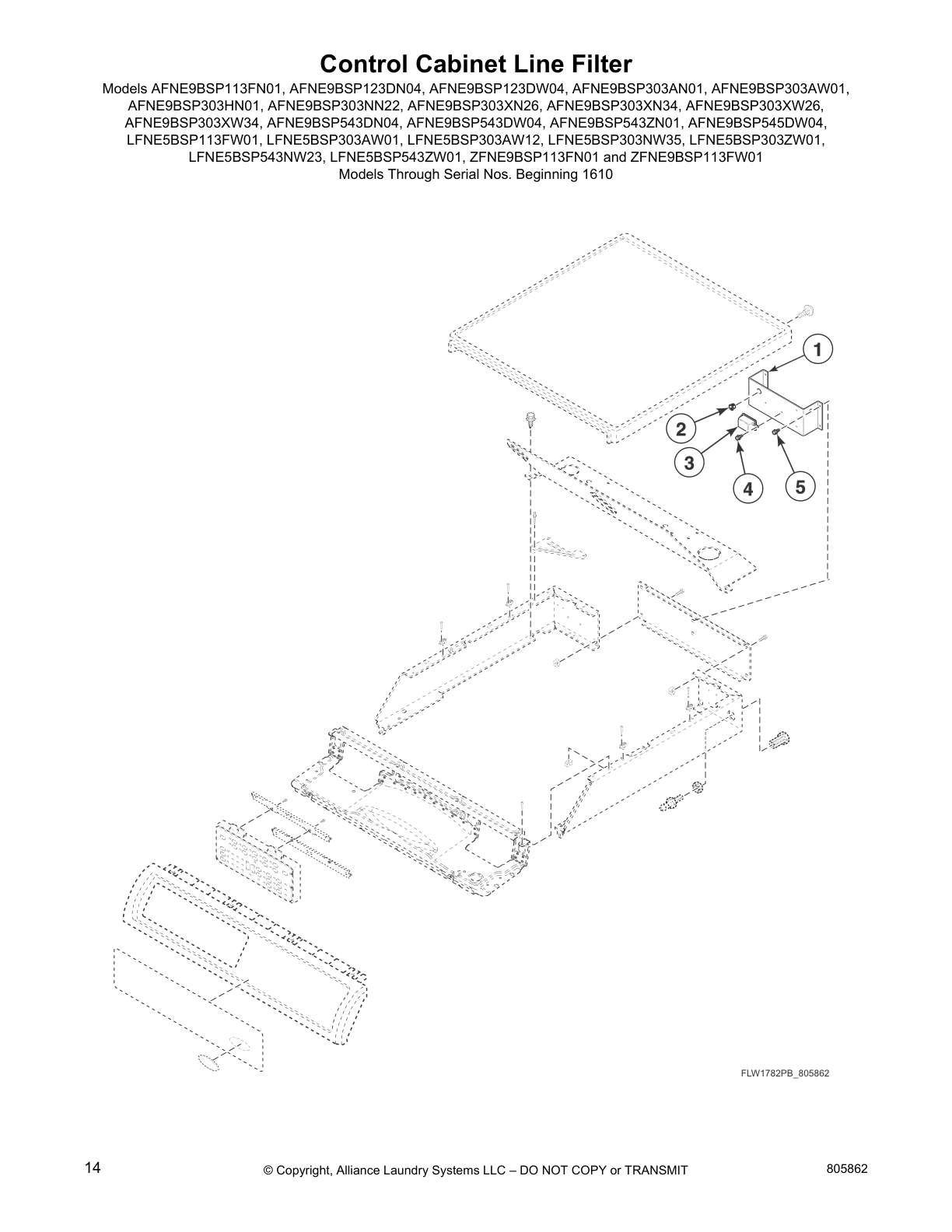

Control Cabinet Line Filter

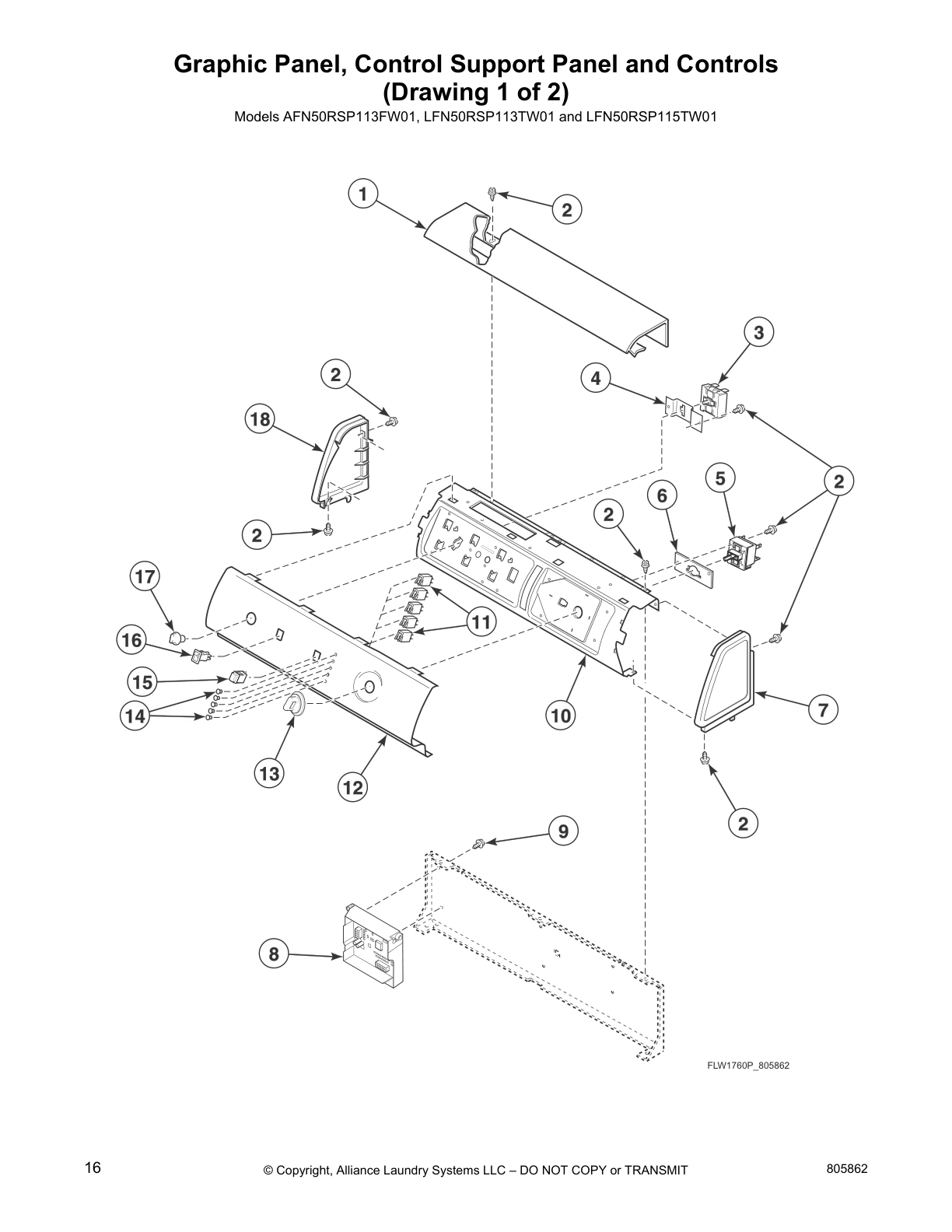

Graphic Panel, Control Support Panel and Controls
(Drawing 1 of 2)
Graphic Panel, Control Support Panel and Controls

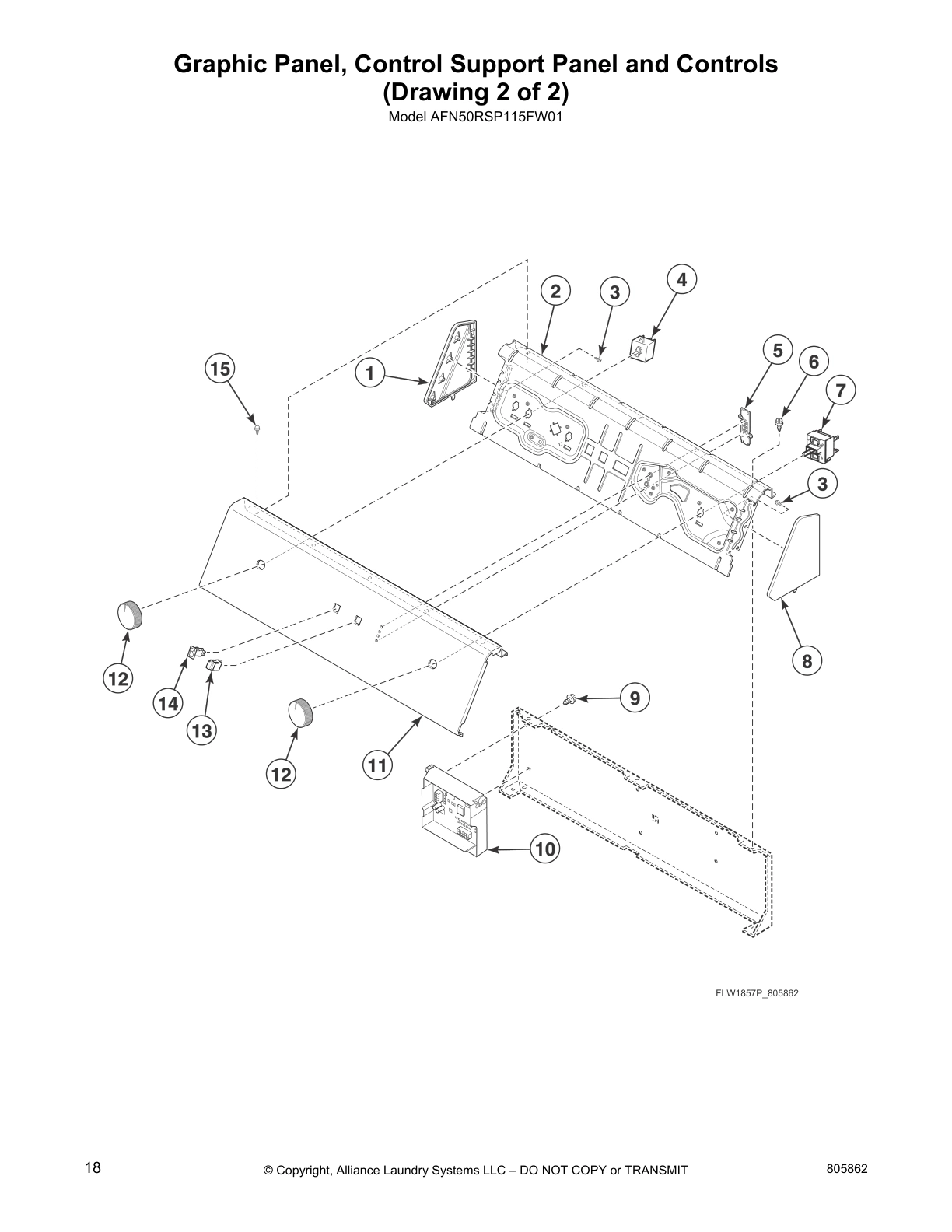

(Drawing 2 of 2)

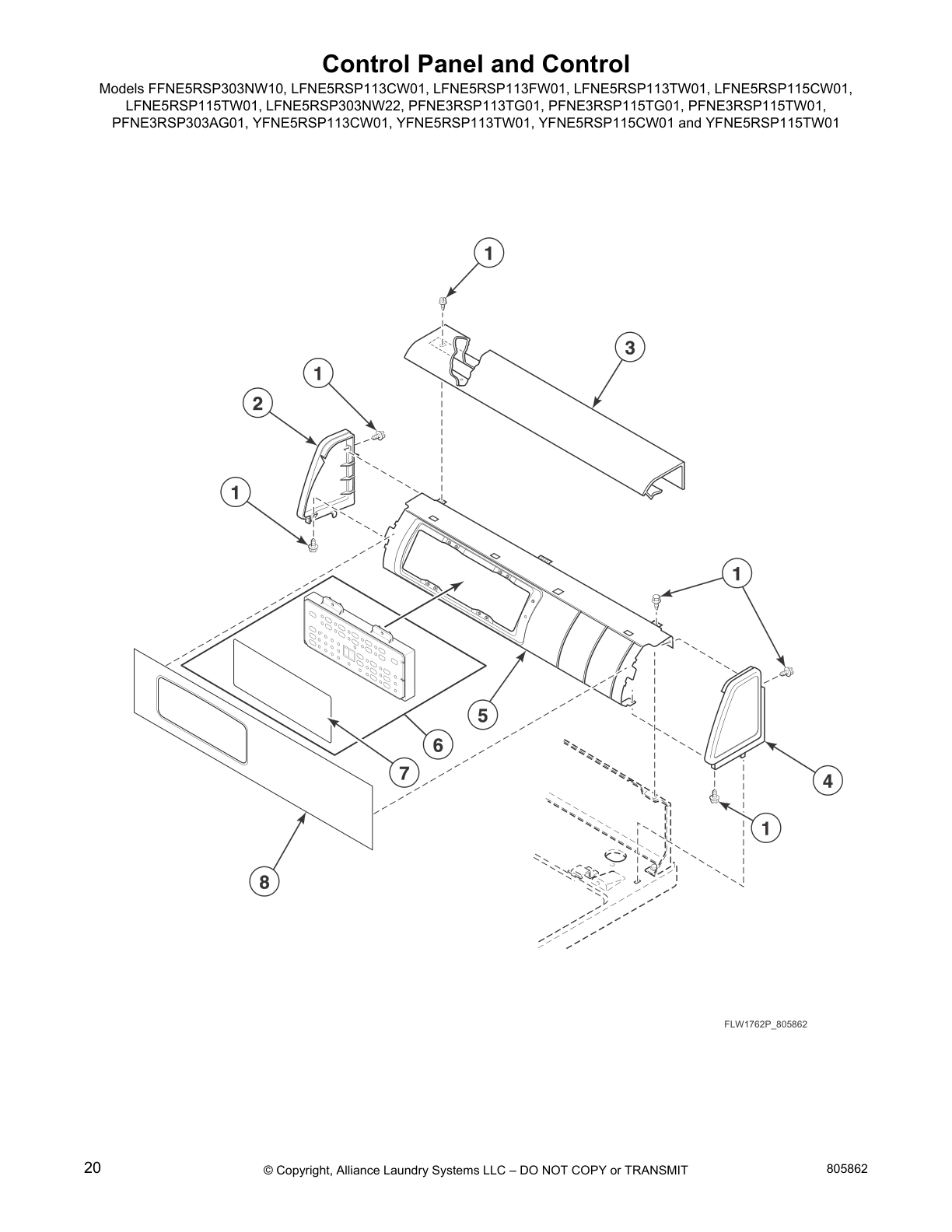

Control Panel and Control

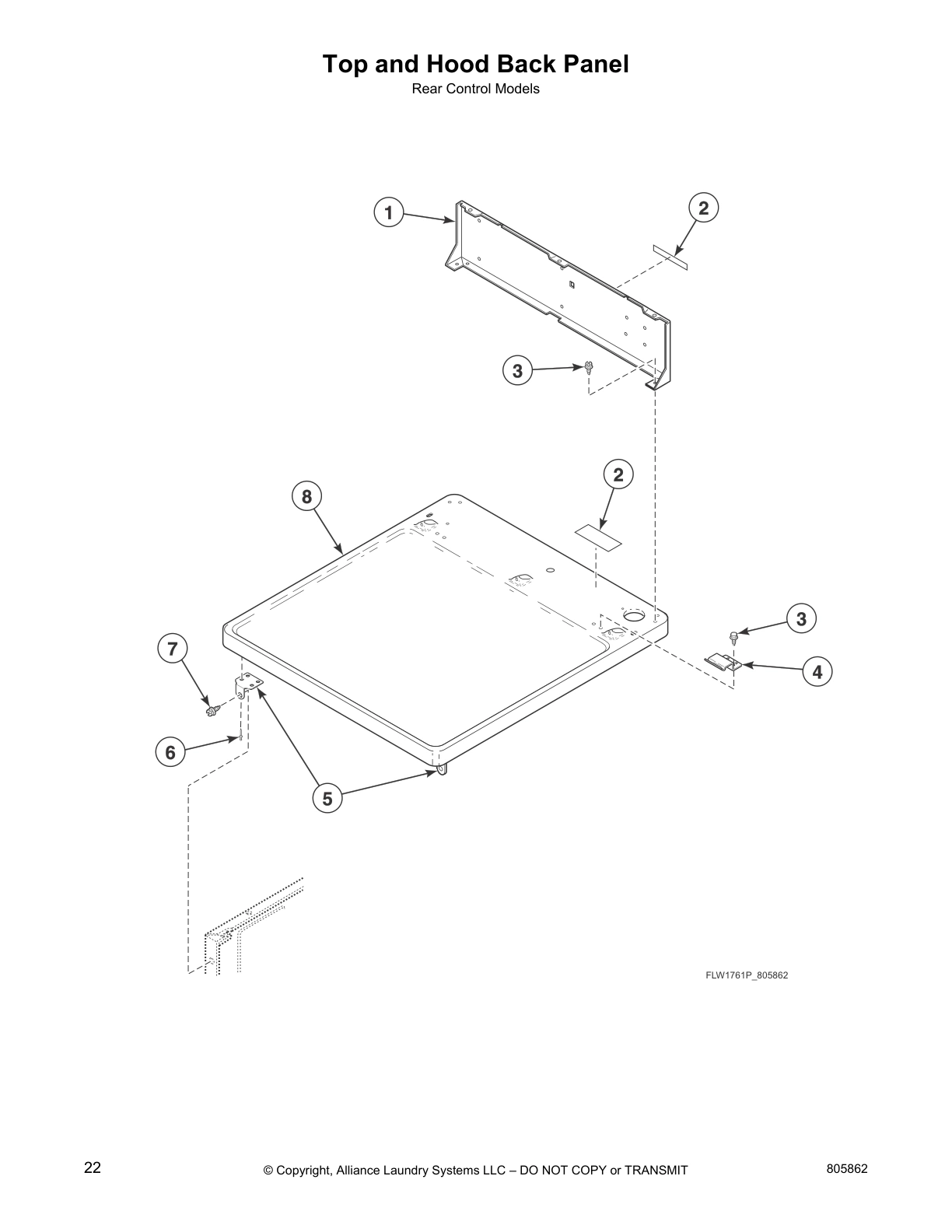

Top and Hood Back Panel

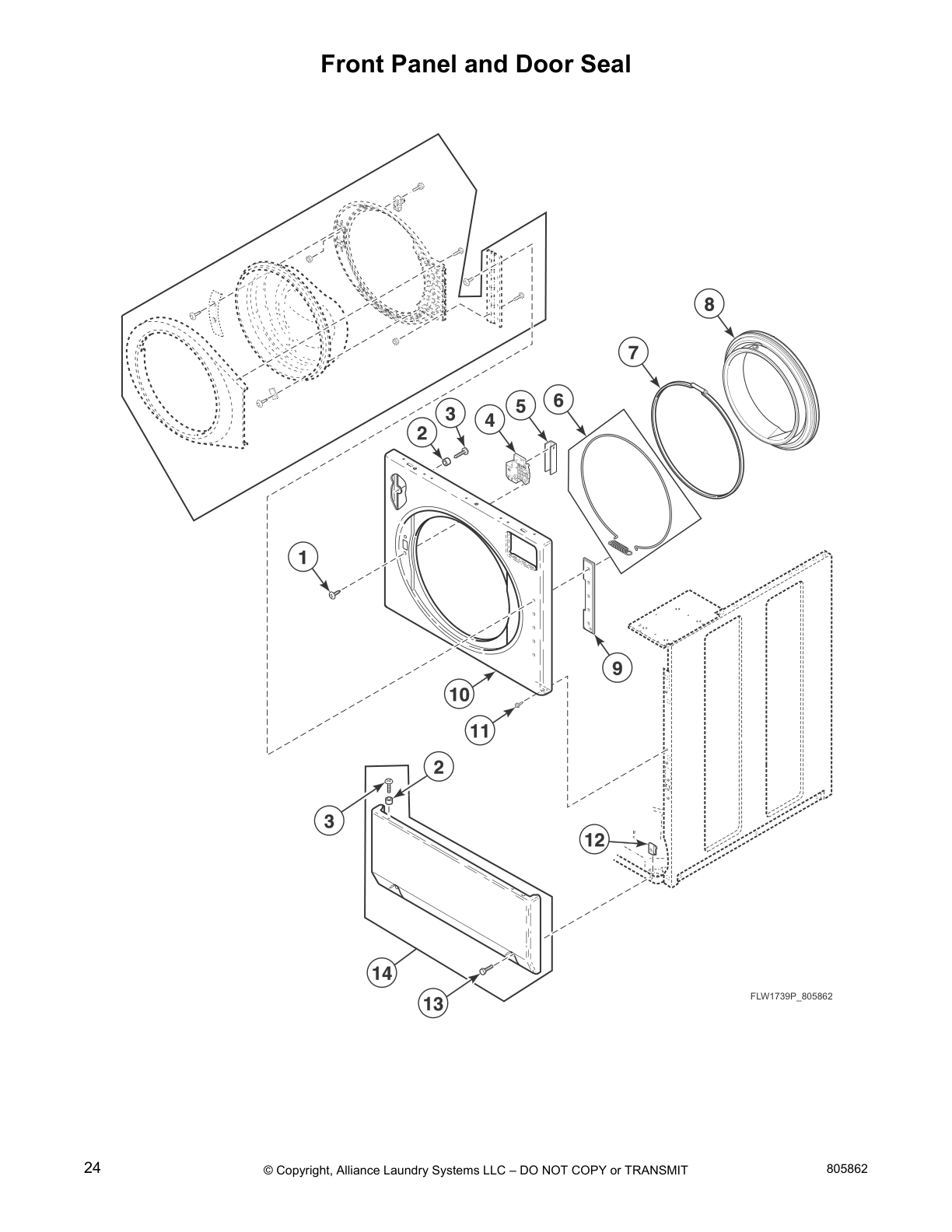

Front Panel and Door Seal

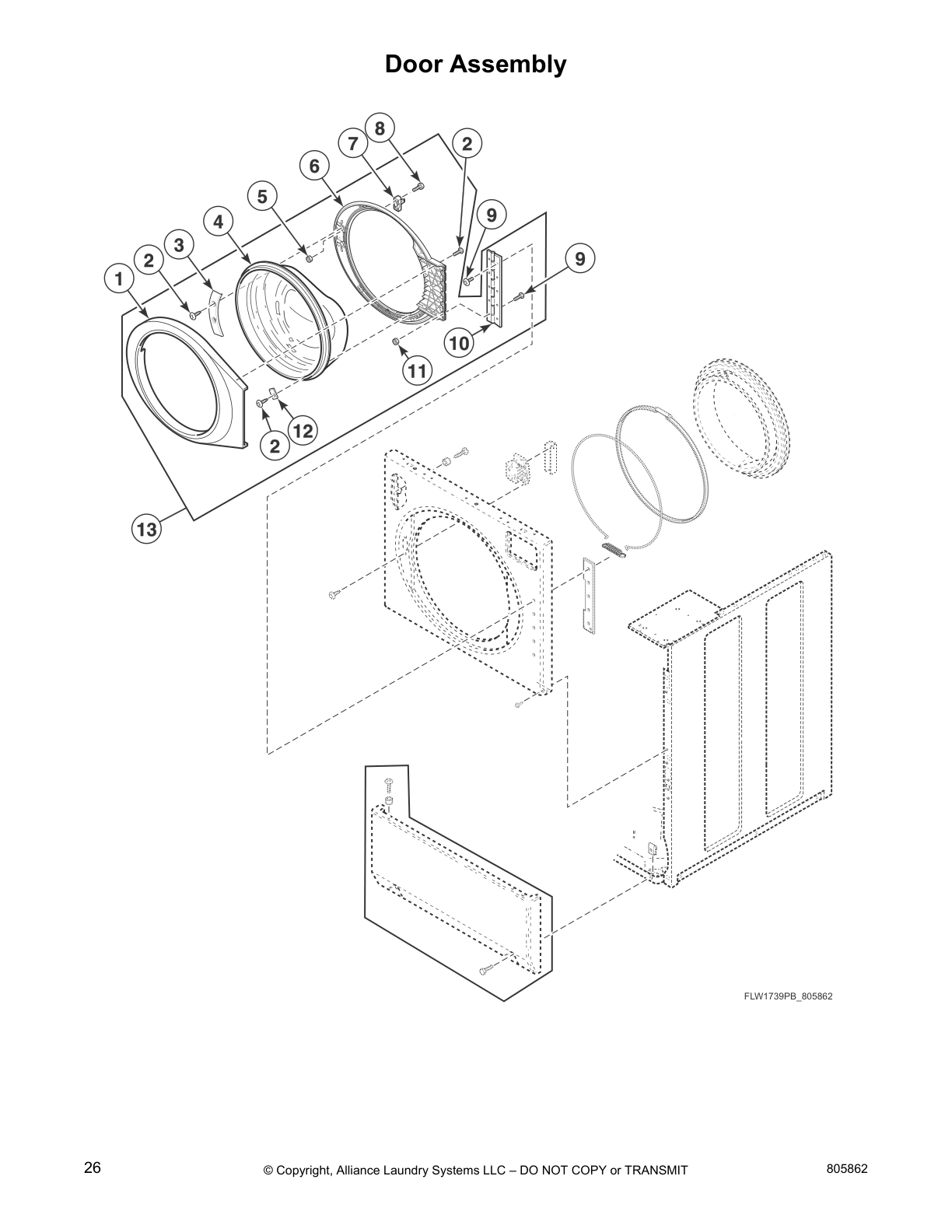

Door Assembly

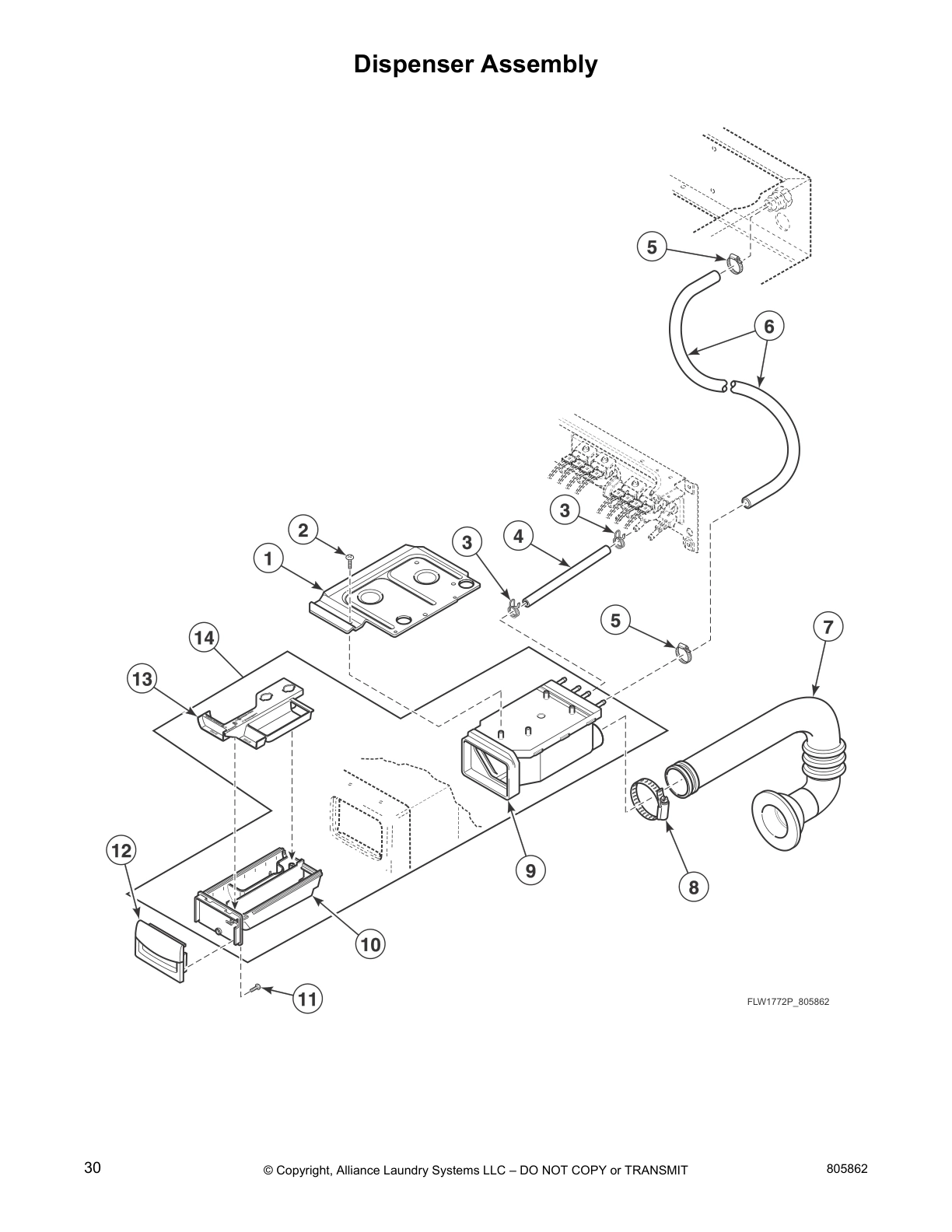

Dispenser Assembly

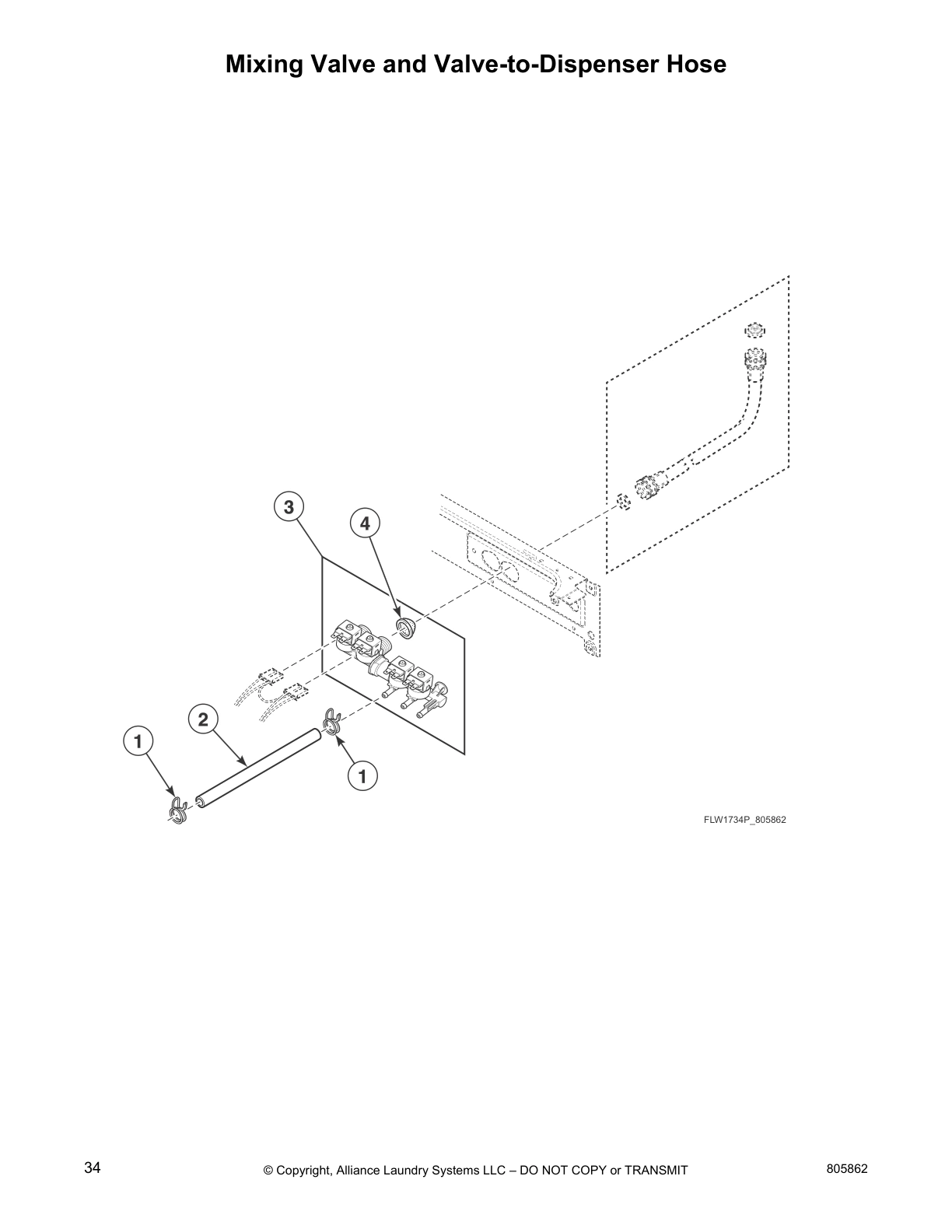

Mixing Valve and Valve-to-Dispenser Hose

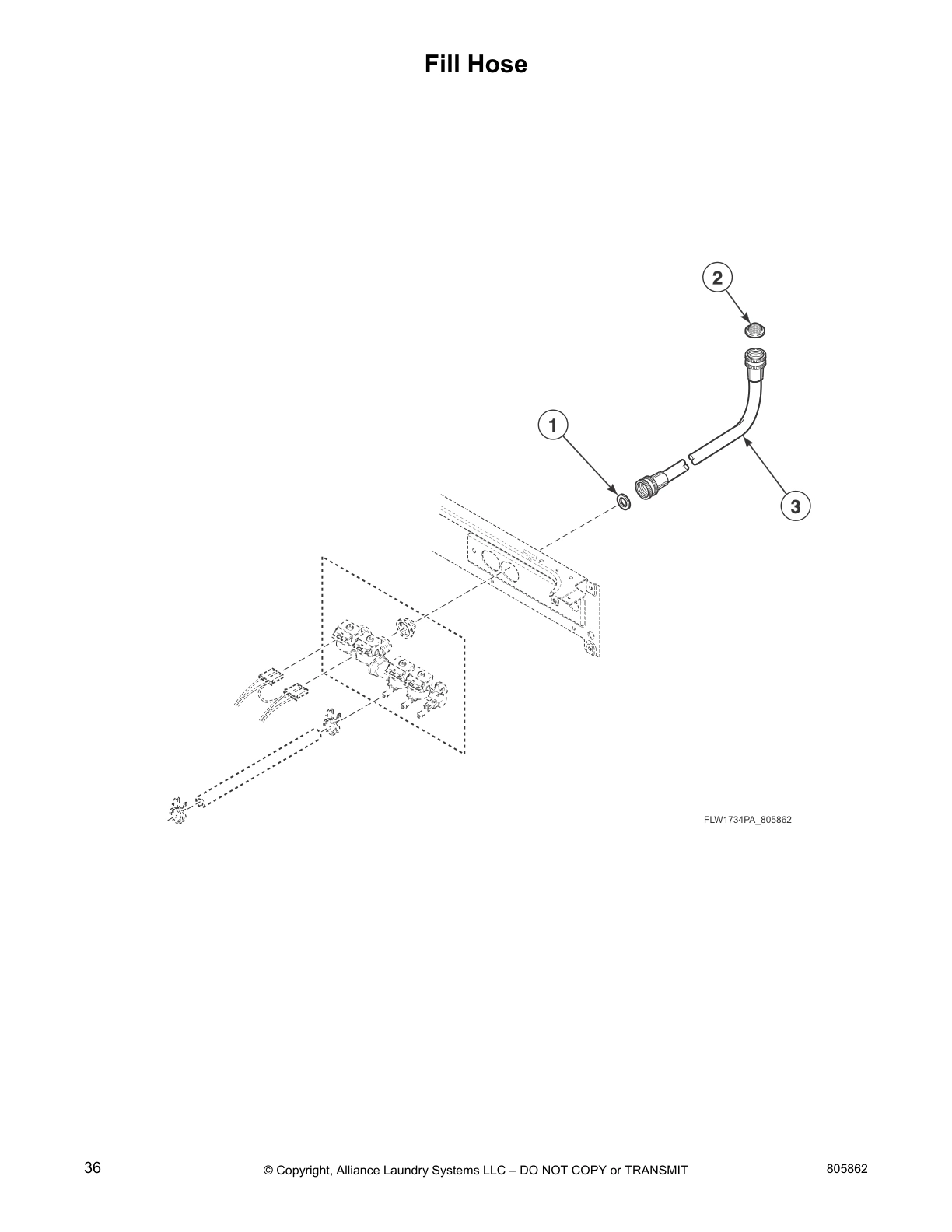

Fill Hose

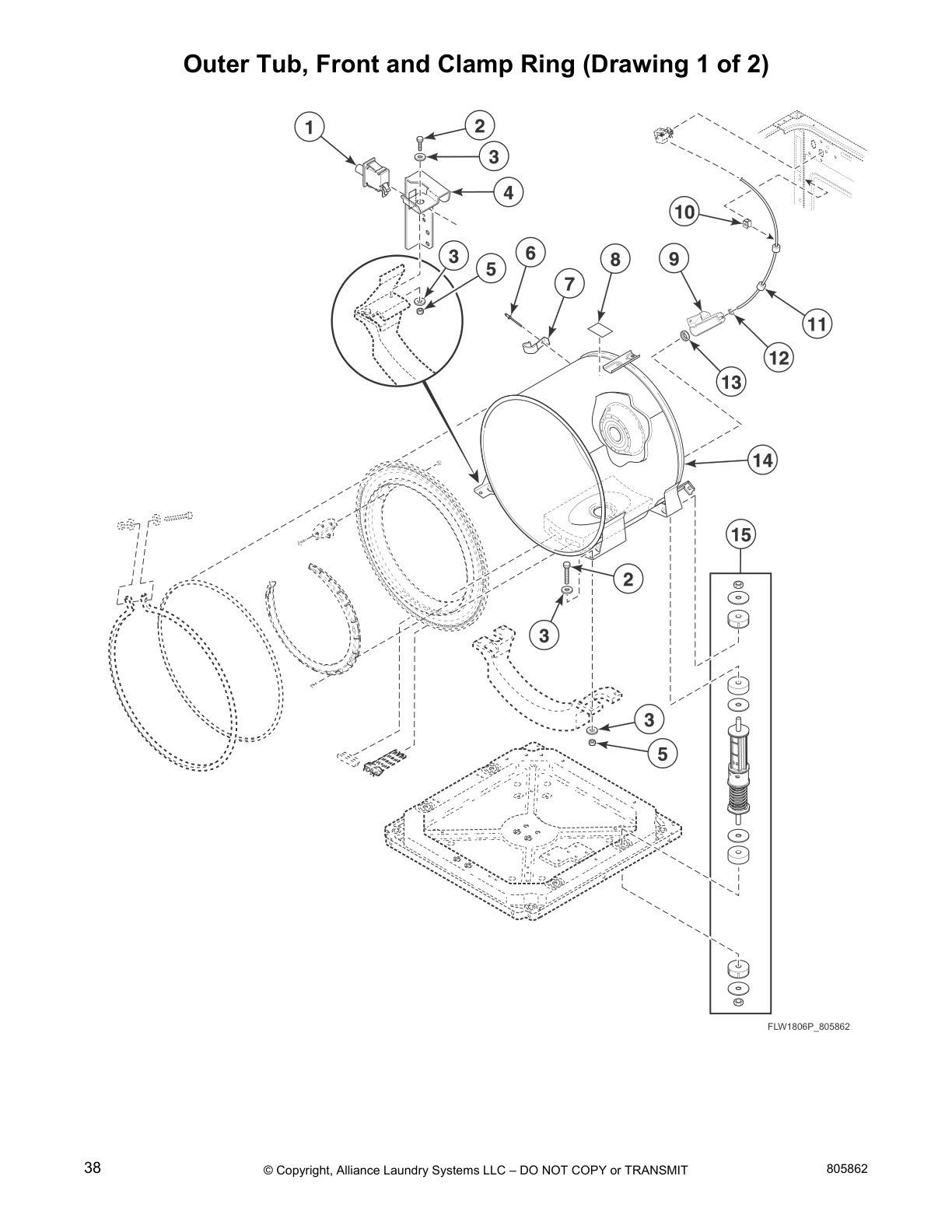

Outer Tub, Front and Clamp Ring (Drawing 1 of 2)

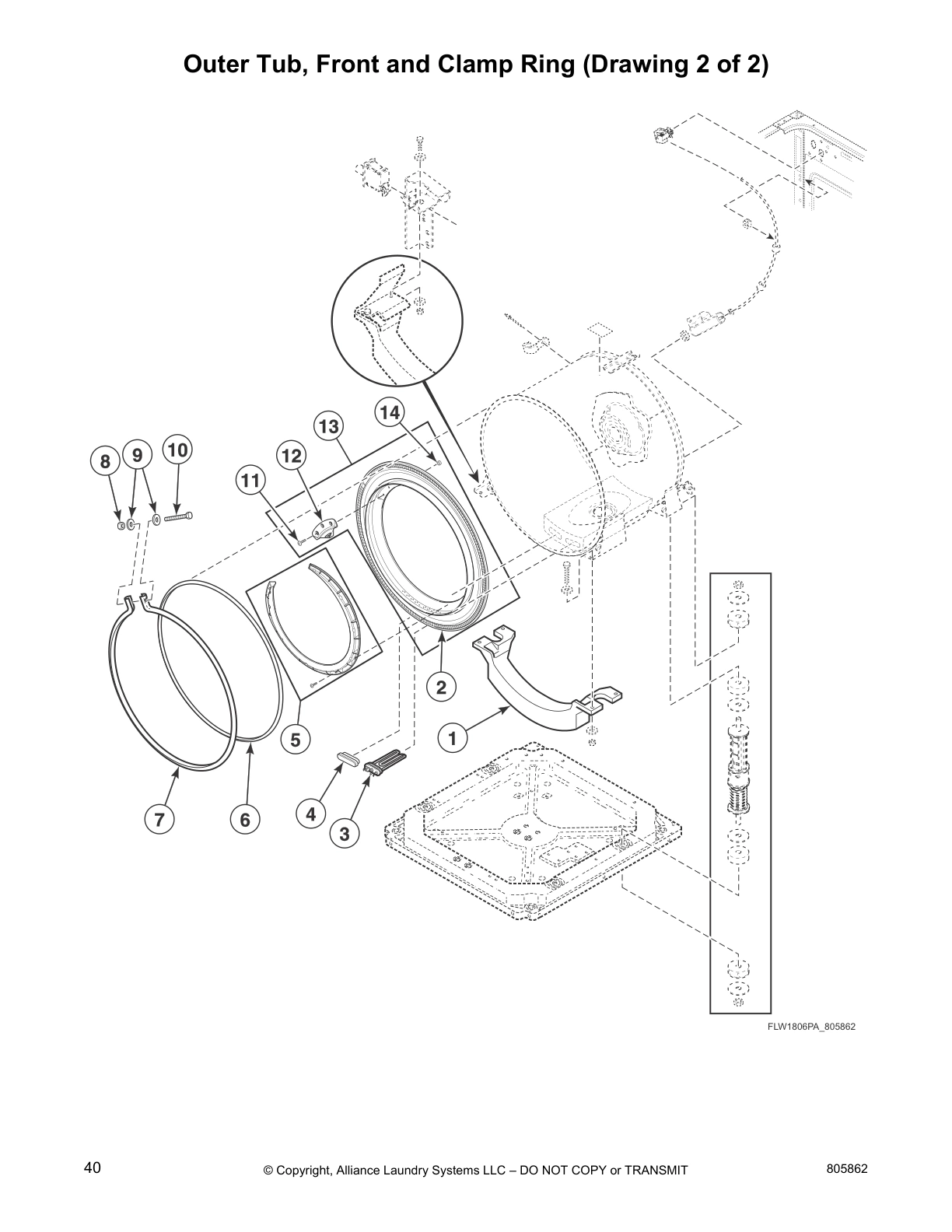

Outer Tub, Front and Clamp Ring (Drawing 2 of 2)
Inner Basket, Trunnion, Bearing Housing and Pulley
Motor and Belt

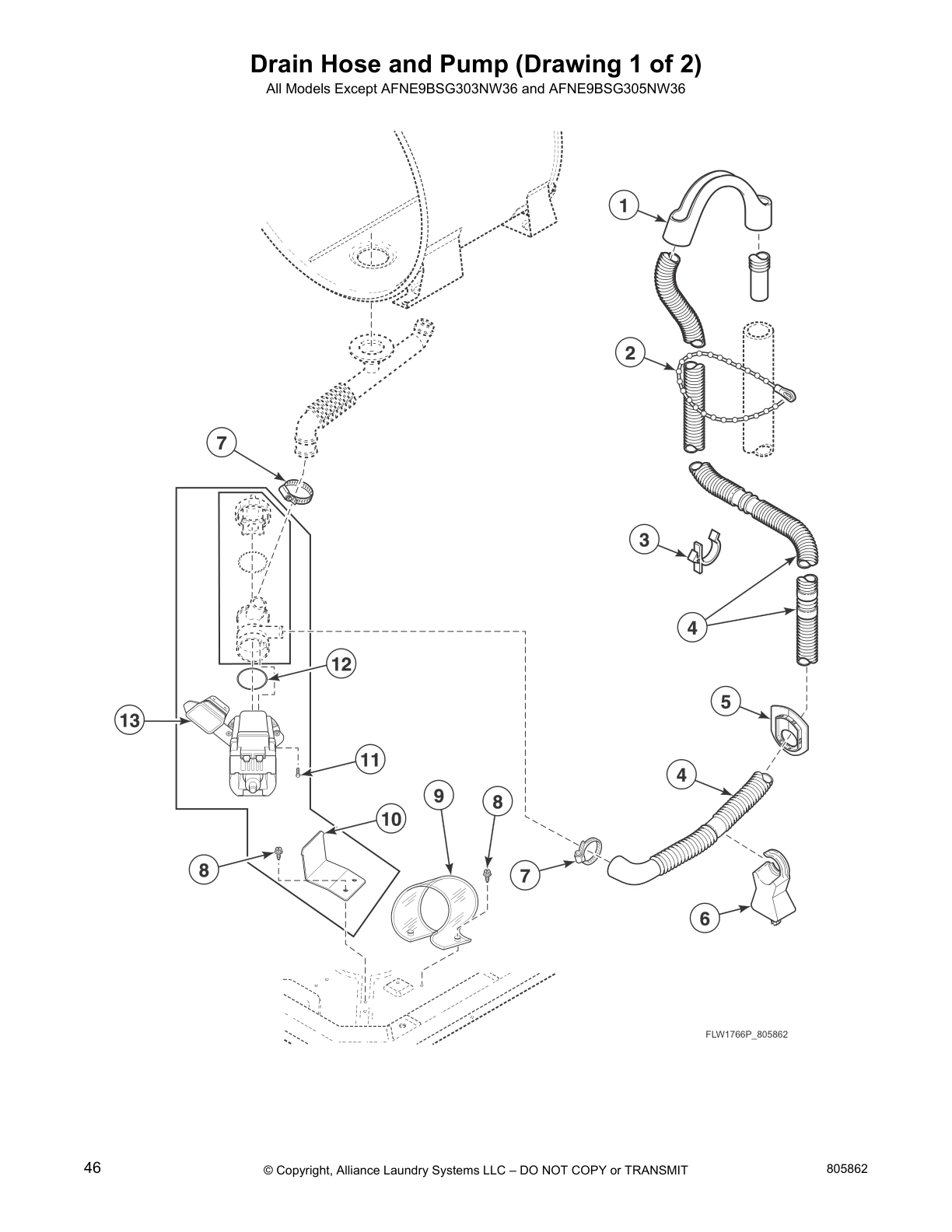

Drain Hose and Pump (Drawing 1 of 2)

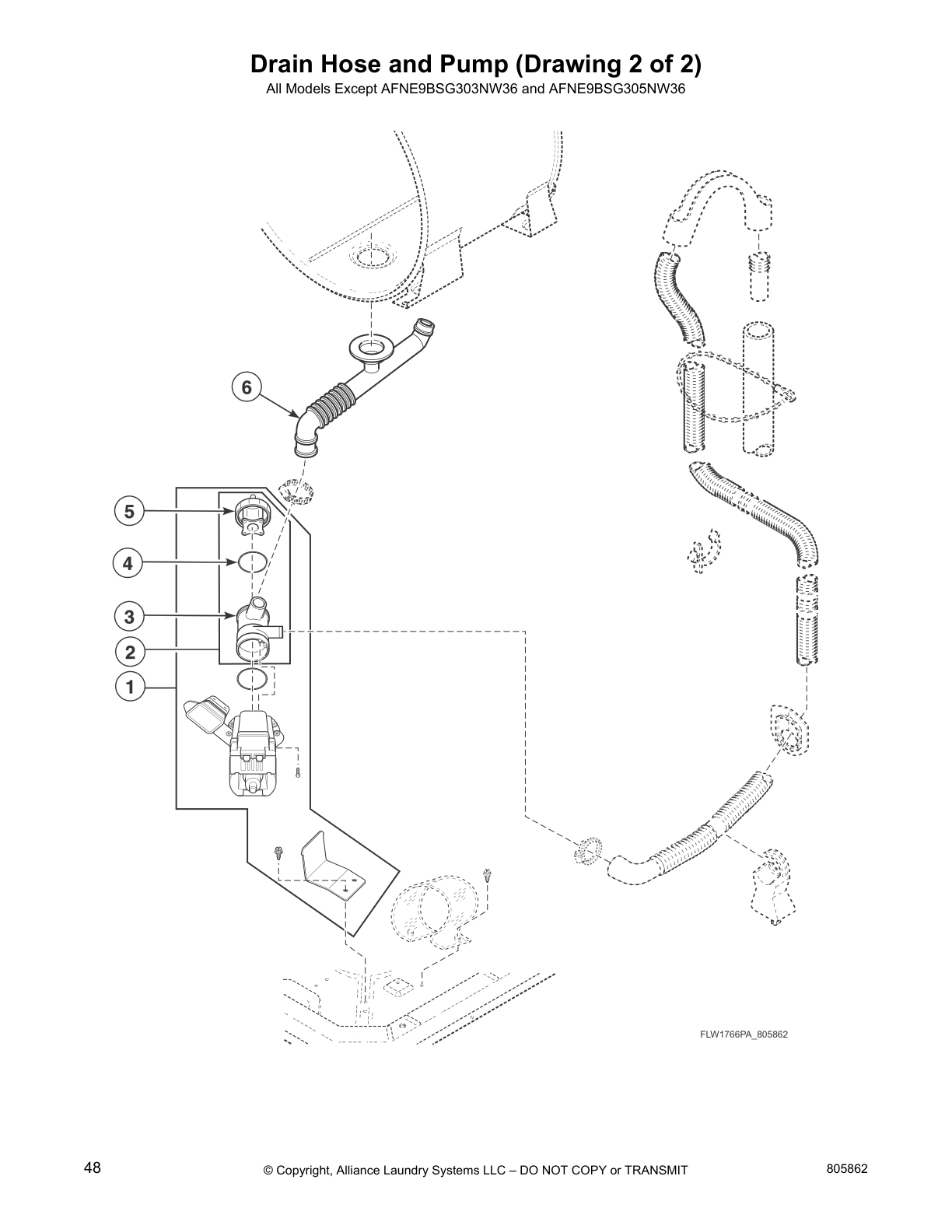

Drain Hose and Pump (Drawing 2 of 2)

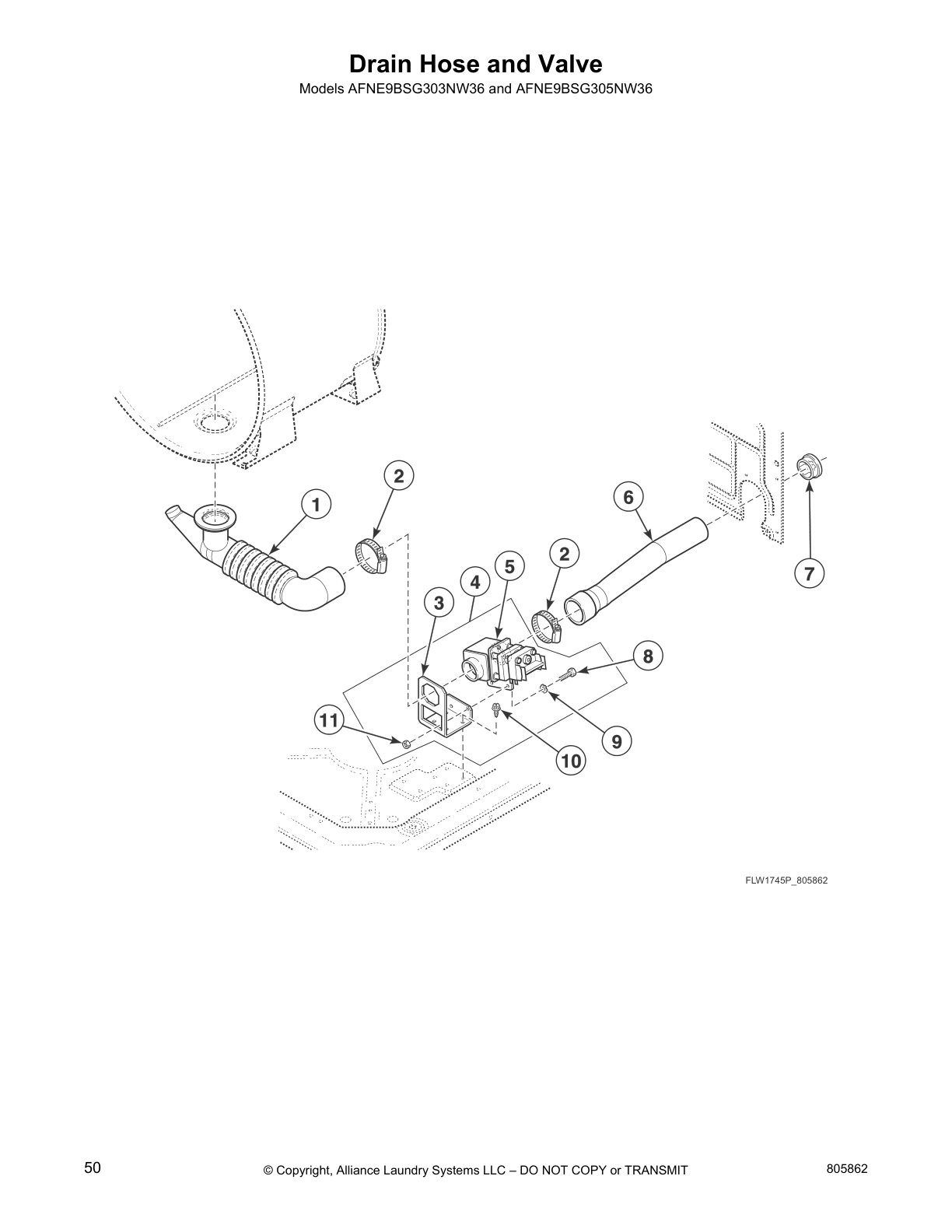

Drain Hose and Valve

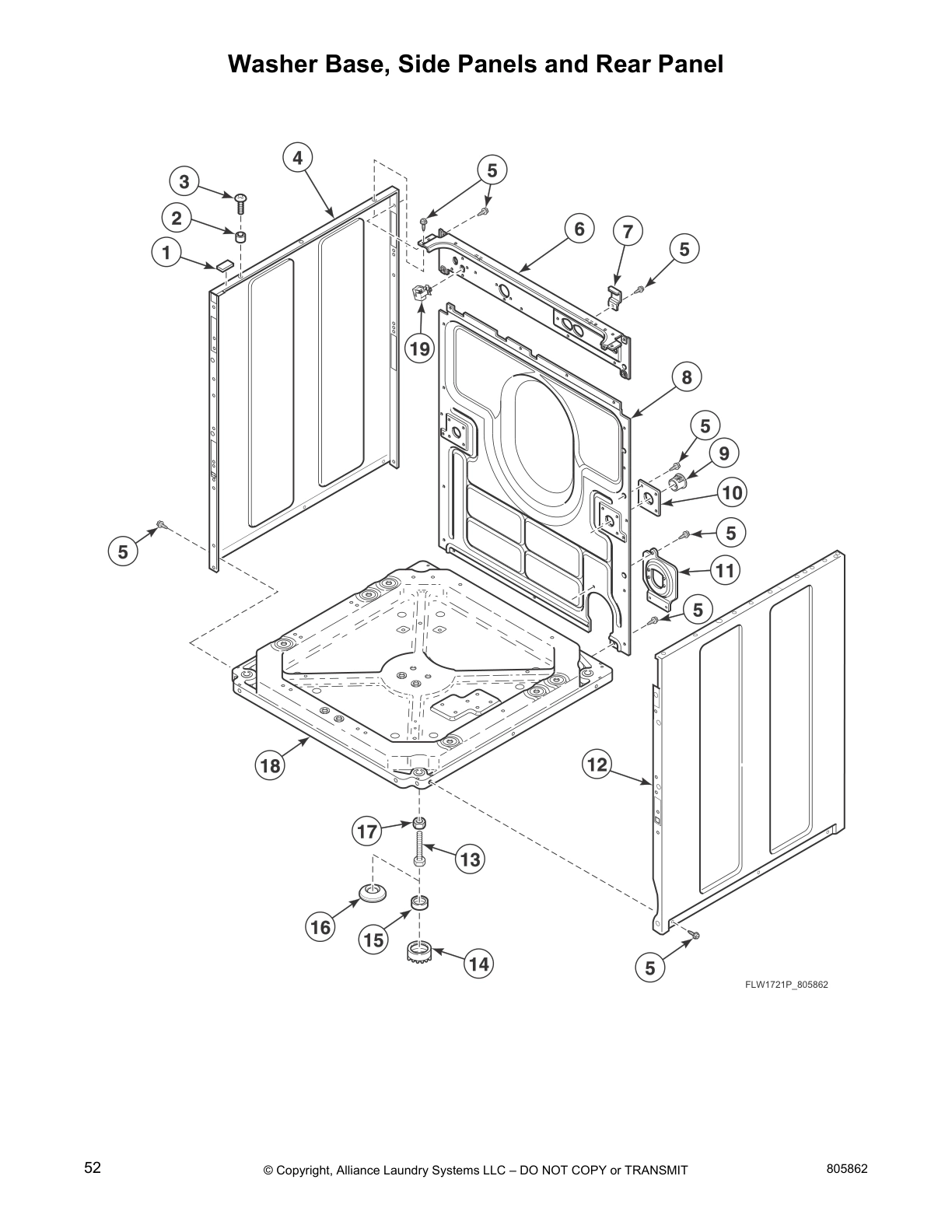

Washer Base, Side Panels and Rear Panel

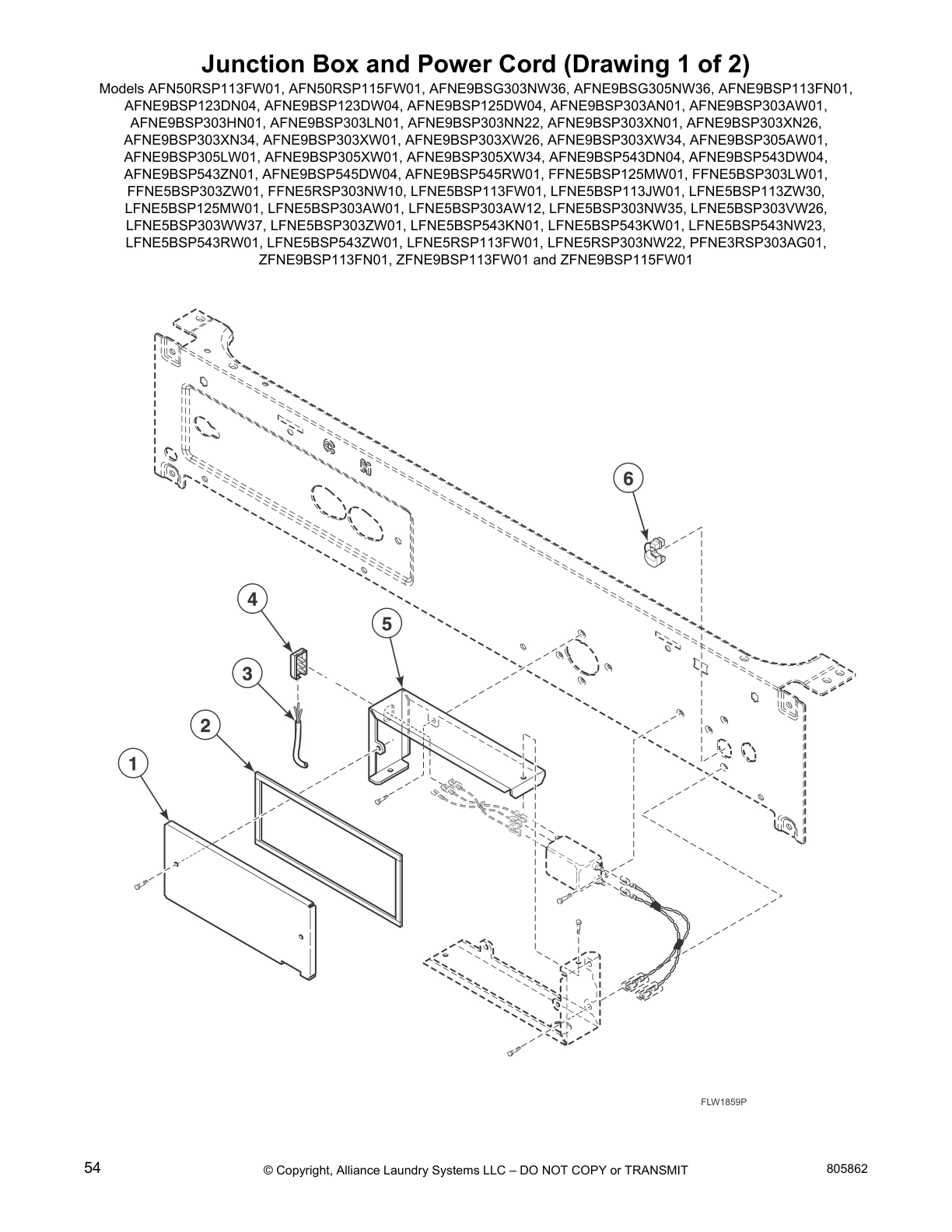

Junction Box and Power Cord (Drawing 1 of 2)

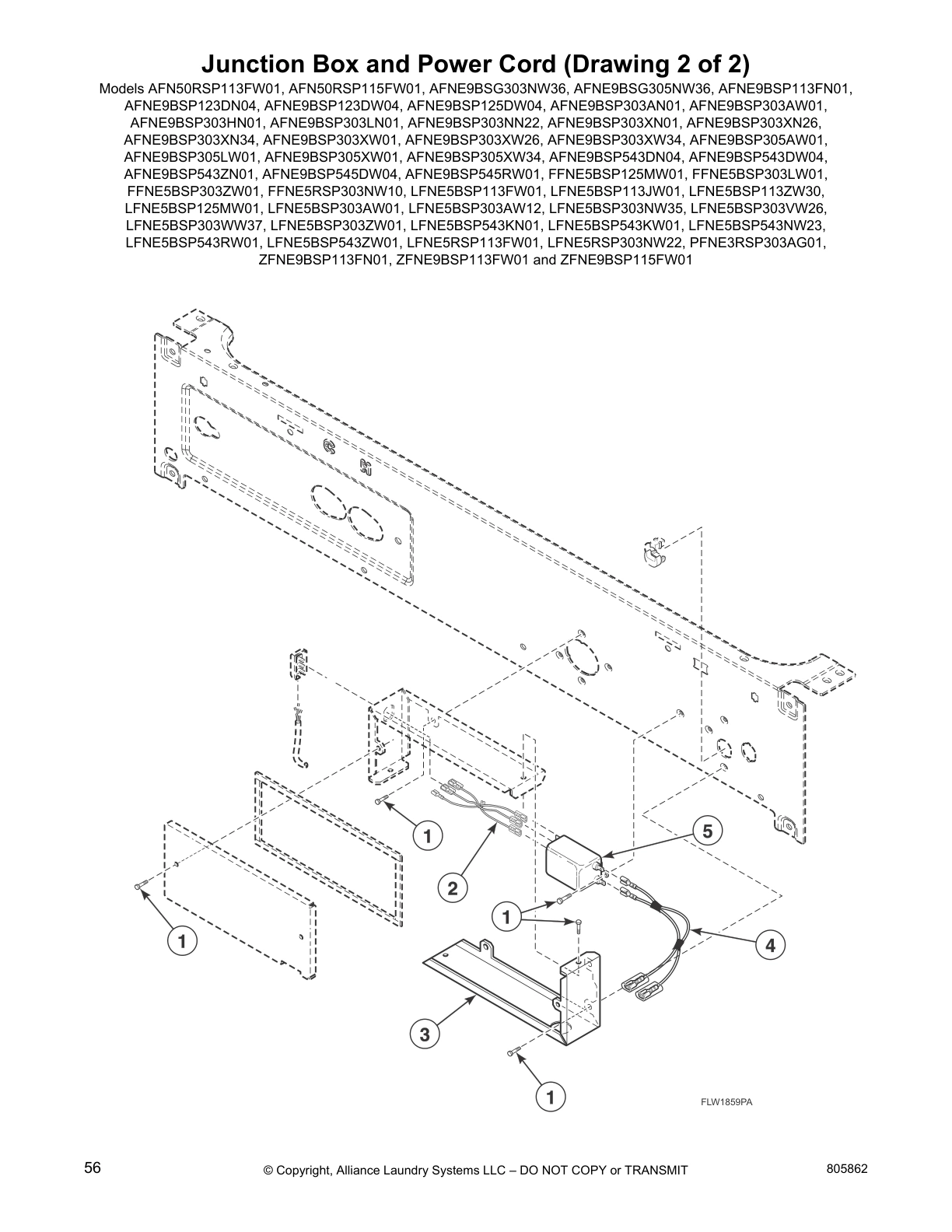

Junction Box and Power Cord (Drawing 2 of 2)

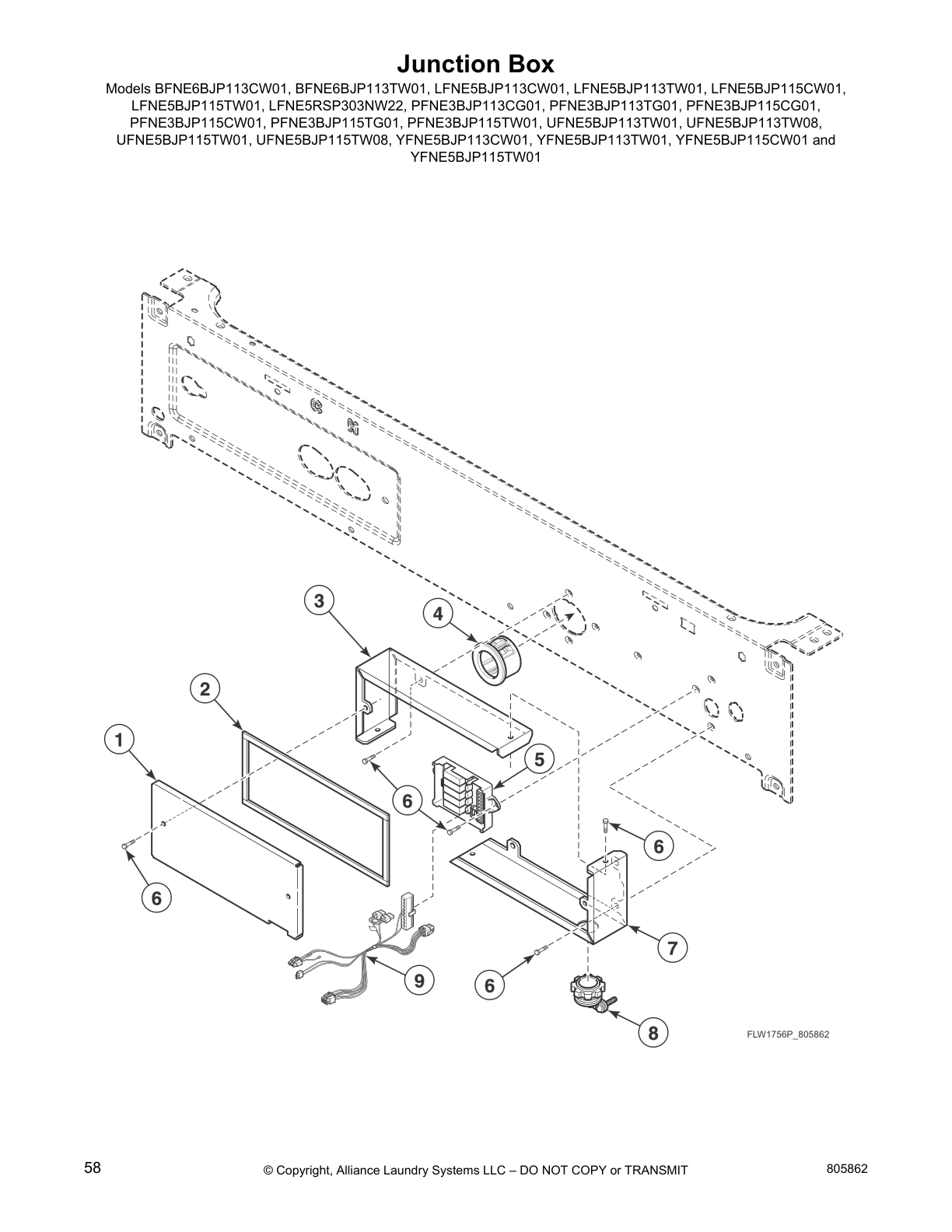

Junction Box
Special Tools

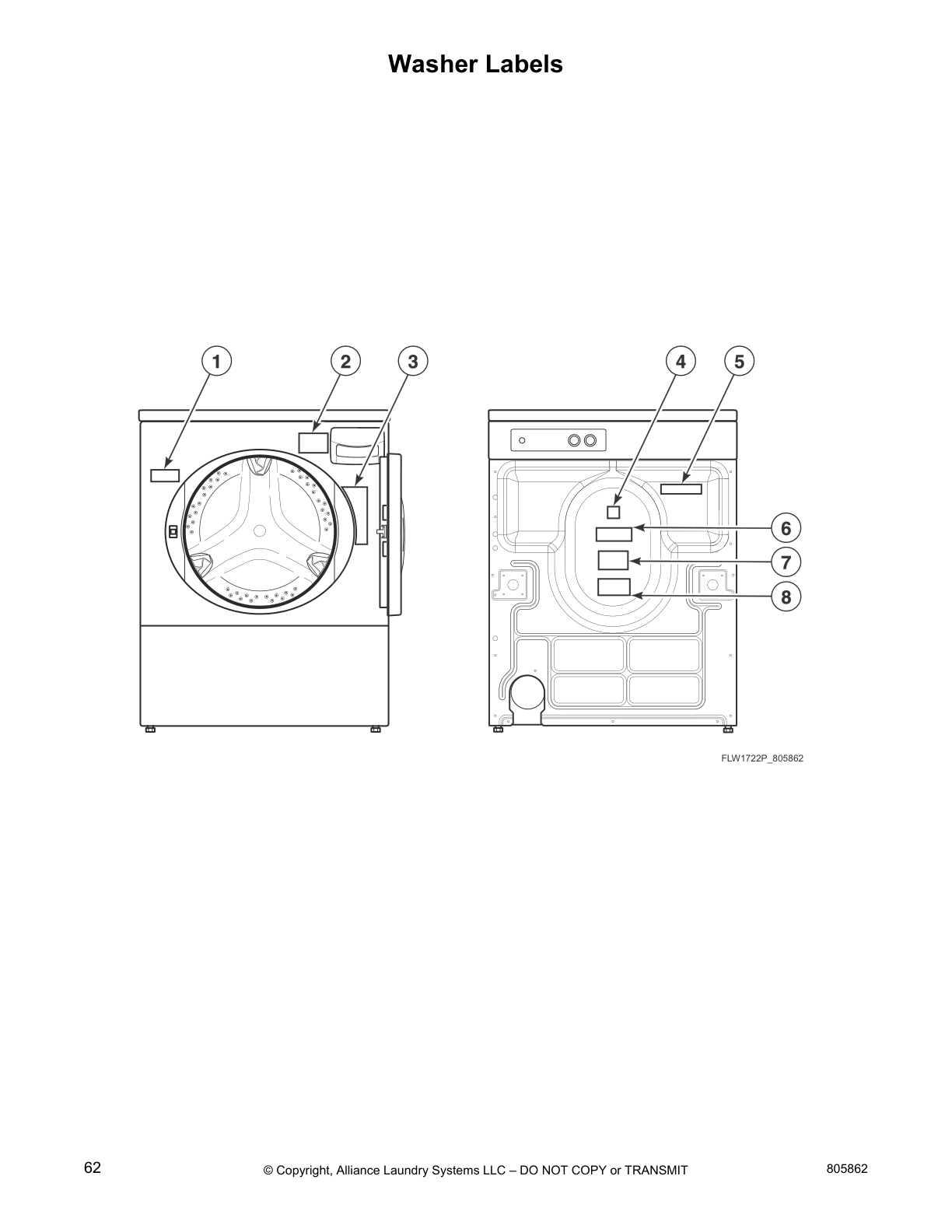

Washer Labels
Shipping Materials

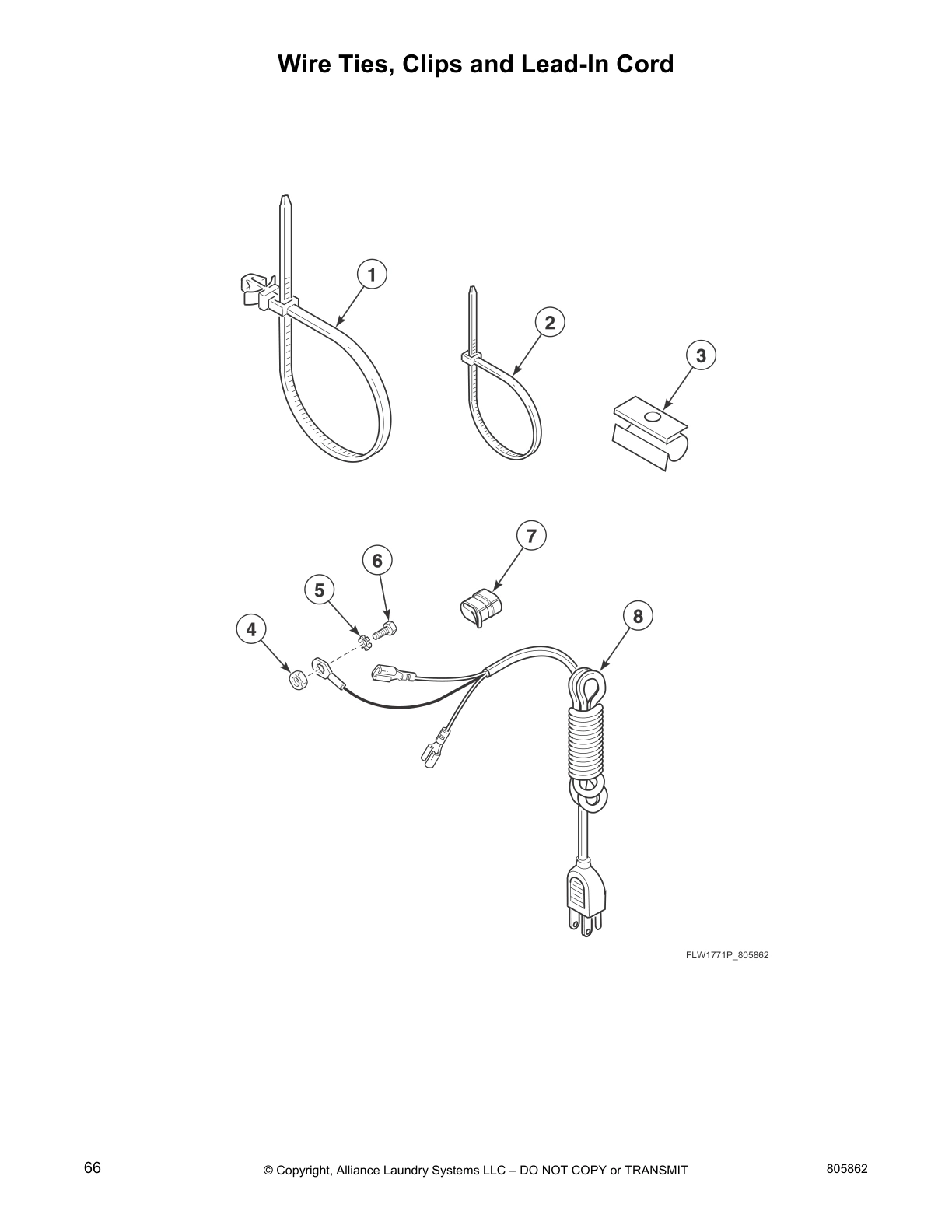

Wire Ties, Clips and Lead-In Cord
Wire Harnesses and Wires
Common parts from model Speed Queen AFN50RSP115FW01 Washer
2
Pump Housing Assembly SPQ 802434P Contact Us For Availability
3
Pump Housing SPQ 802428 Contact Us For Availability
× ![]()
