Model Maytag AER6603SFB0 RANGE/OVEN, ELECTRIC, FREESTANDING – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

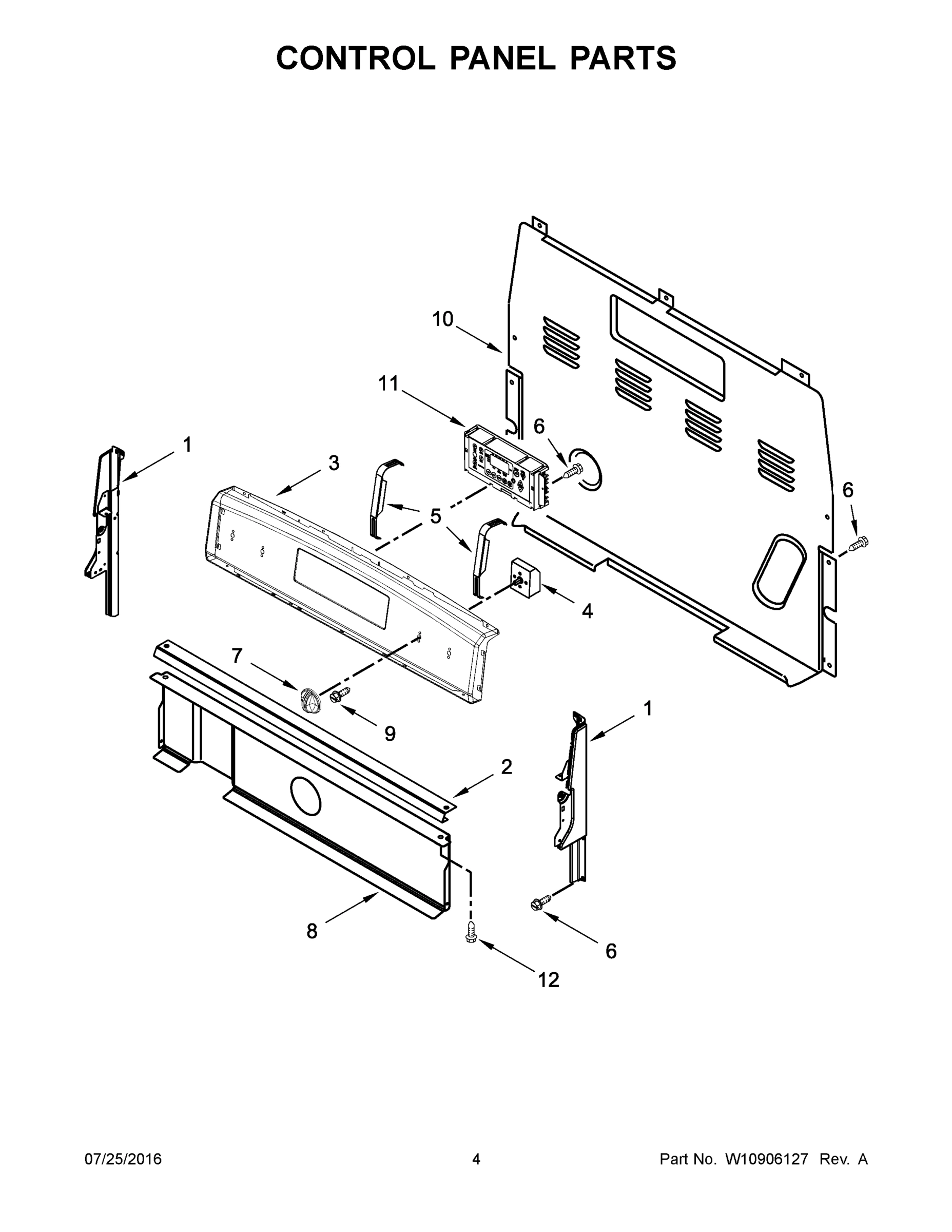

03 - CONTROL PANEL PARTS

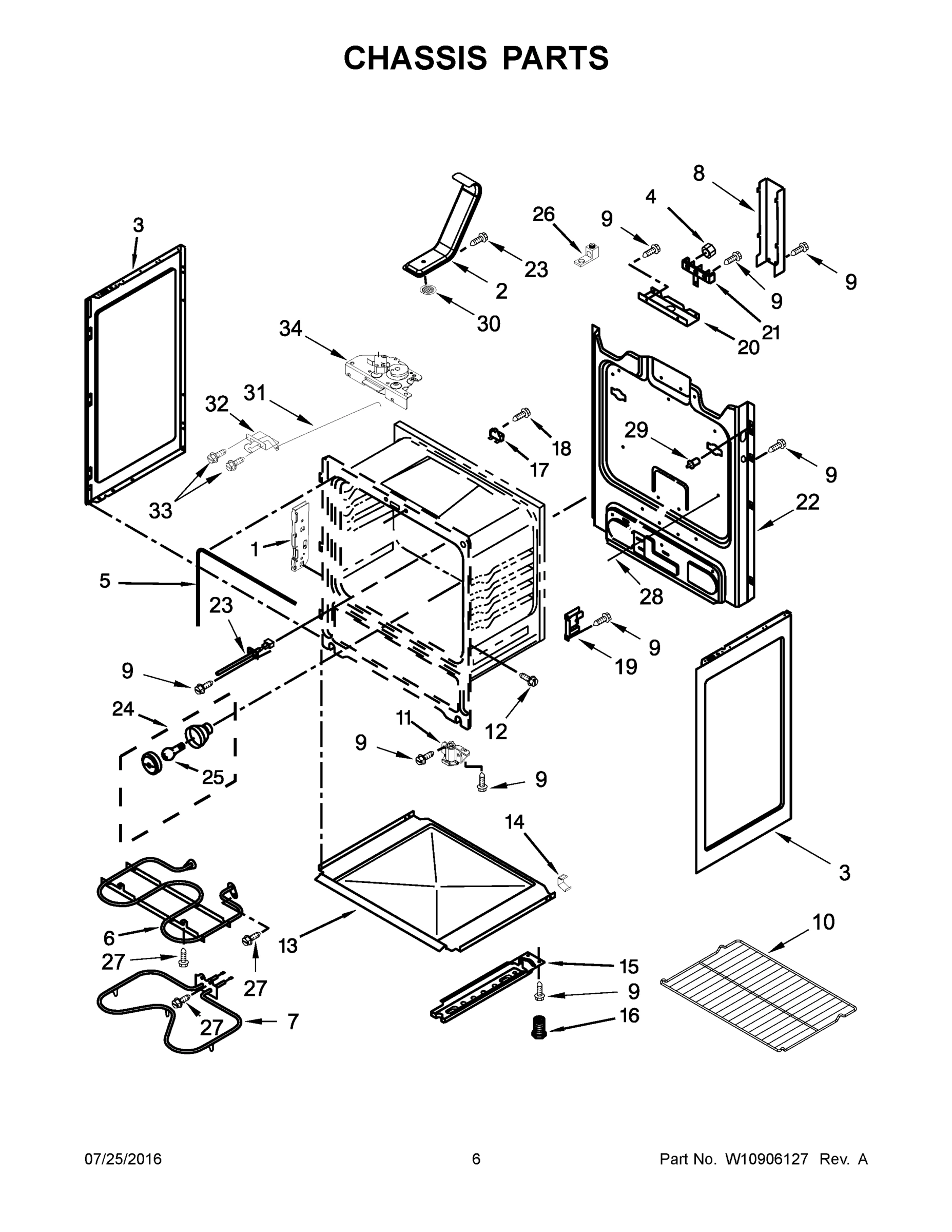

04 - CHASSIS PARTS

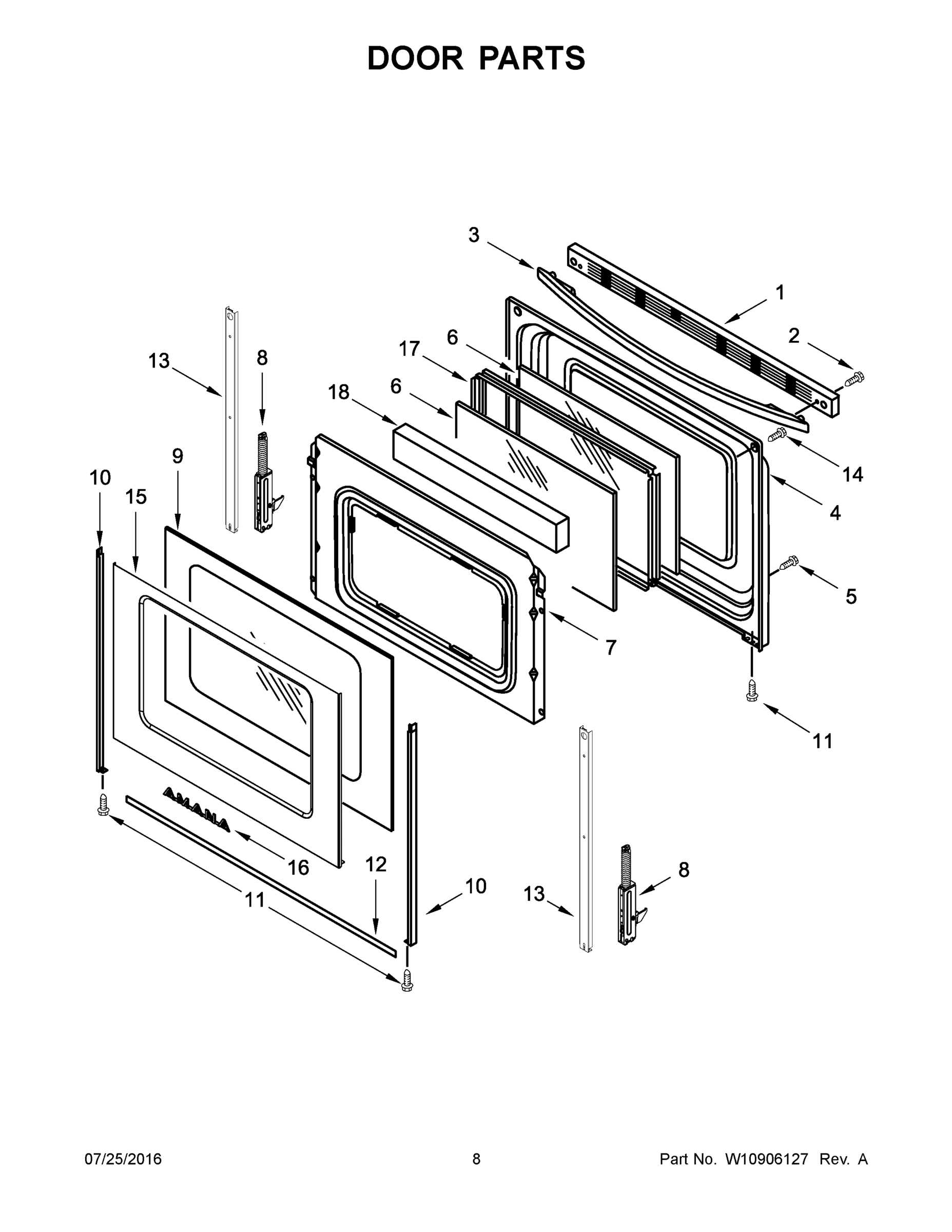

05 - DOOR PARTS

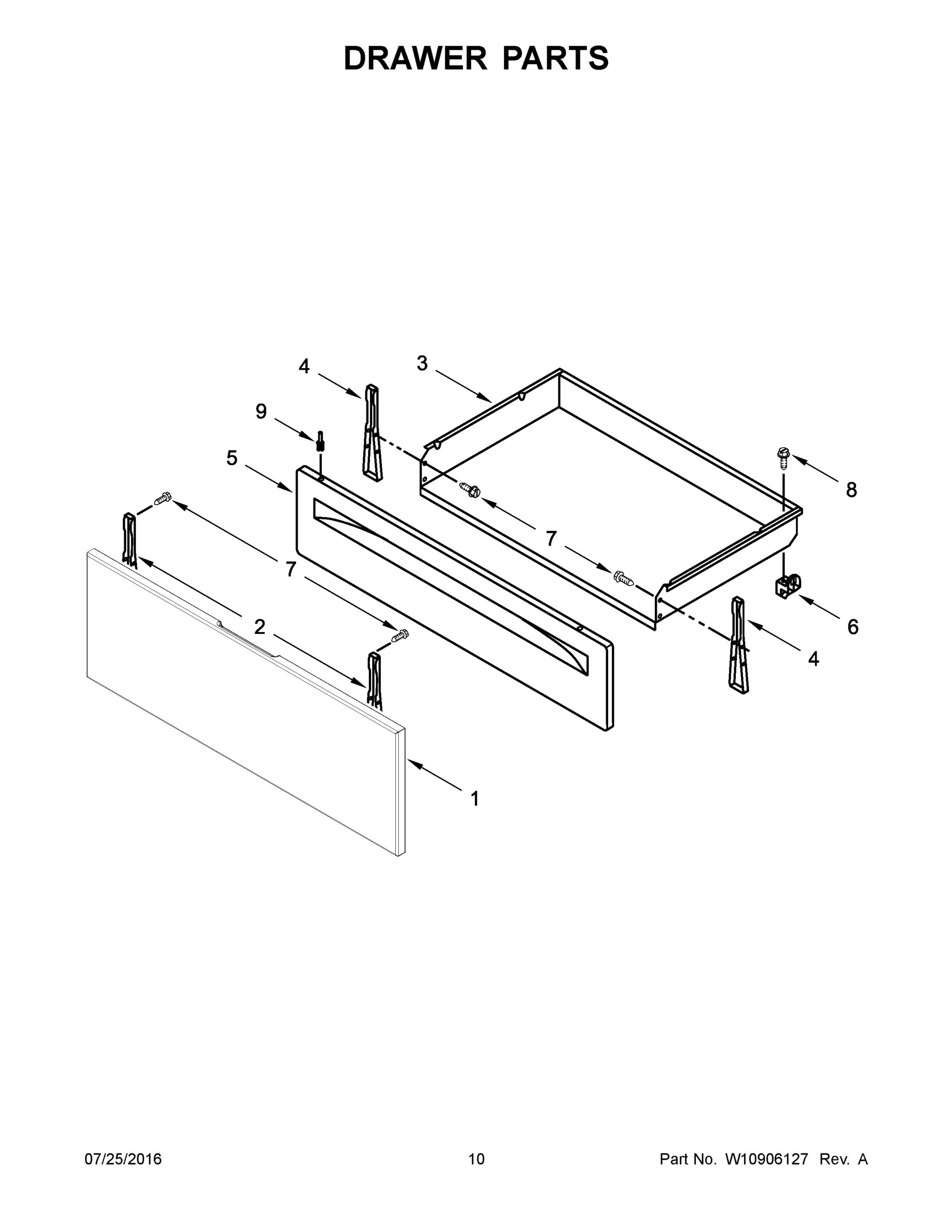

06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag AER6603SFB0 RANGE/OVEN, ELECTRIC, FREESTANDING
1
MAY W10403811 MAY W10403811 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
1
MAY W10289077 MAY W10289077 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
1
PANEL, DRAWER FRONT (STAINLESS) MAY W10330070 Contact Us For Availability
1A
GUIDE, USE AND CARE MAY W10866293 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
1A
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1B
MAY 9762761 MAY 9762761 Contact Us For Availability
1B
ENDCAP (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
1C
MAY W10842026 MAY W10842026 Contact Us For Availability
1C
ENDCAP (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
2
MAY W10225448 MAY W10225448 Contact Us For Availability
2
MAY W10525121 MAY W10525121 Contact Us For Availability
2
MAY W10134285 MAY W10134285 Contact Us For Availability
2
SCREW (BLACK AND WHITE MODELS) MAY W10168559 Contact Us For Availability
2
BRACKET, MOUNTING DRAWER (STAINLESS MODEL) MAY W10462910 Contact Us For Availability
2A
SCREW (STAINLESS MODEL) MAY W10163951 Contact Us For Availability
3
MAY W10691223 MAY W10691223 Contact Us For Availability
3
MAY W10833195 MAY W10833195 Contact Us For Availability
3
MAY W10162245 MAY W10162245 Contact Us For Availability
3
MAY W10323589 MAY W10323589 Contact Us For Availability
3
MAY W10688022 MAY W10688022 Contact Us For Availability
3A
MAY W10833194 MAY W10833194 Contact Us For Availability
3A
MAY W10575396 MAY W10575396 Contact Us For Availability
3A
MAY W10323588 MAY W10323588 Contact Us For Availability
3B
MAY W10833196 MAY W10833196 Contact Us For Availability
3B
MAY W10144883 MAY W10144883 Contact Us For Availability
4
MAY W10853125 MAY W10853125 Contact Us For Availability
4
SWITCH, INFINITE (DUAL) (LEFT FRONT) MAY W10434452 Contact Us For Availability
4
MAY 3400029 MAY 3400029 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
4
BRACKET, MOUNTING DRAWER (BLACK AND WHITE MOD MAY W10462912 Contact Us For Availability
4A
MAY W10853443 MAY W10853443 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT REAR AND RIGHT FRONT) MAY 3148951 Contact Us For Availability
4B
SWITCH, INFINITE (GREEN) (RIGHT REAR) MAY 3148953 Contact Us For Availability
5
ELEMENT (3000W/1400W DUAL) (LEFT FRONT) MAY W10275048 Contact Us For Availability
5
MAY W10695491 MAY W10695491 Contact Us For Availability
5
MAY W10658354 MAY W10658354 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
5
MAY 8053341 MAY 8053341 Contact Us For Availability
5A
ELEMENT (1200W) (LEFT REAR AND RIGHT FRONT) MAY 8273994 Contact Us For Availability
5A
MAY 8053339 MAY 8053339 Contact Us For Availability
5B
ELEMENT (1800W) (RIGHT REAR) MAY 8273993 Contact Us For Availability
6
MAY 9757340 MAY 9757340 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
6
MAY W10674708 MAY W10674708 Contact Us For Availability
6A
MAY W10674705 MAY W10674705 Contact Us For Availability
7
MAY 3196169 MAY 3196169 Contact Us For Availability
7
MAY W10607641 MAY W10607641 Contact Us For Availability
7
KNOBS (BLACK) MAY W10844801 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
MAY 9761357 MAY 9761357 Contact Us For Availability
7A
MAY W10607642 MAY W10607642 Contact Us For Availability
7A
KNOBS (WHITE) MAY W10844800 Contact Us For Availability
7B
MAY W10844802 MAY W10844802 Contact Us For Availability
8
MAY W10306542 MAY W10306542 Contact Us For Availability
8
MAY 3196178 MAY 3196178 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY W10326122 MAY W10326122 Contact Us For Availability
8
MAY W10299224 MAY W10299224 Contact Us For Availability
8A
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
9
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
9
MAY 3400882 MAY 3400882 Contact Us For Availability
9
MAY W10886896 MAY W10886896 Contact Us For Availability
9
MAY 3196813 MAY 3196813 Contact Us For Availability
9A
MAY W10851723 MAY W10851723 Contact Us For Availability
9A
MAY 3196814 MAY 3196814 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
MAY W10268578 MAY W10268578 Contact Us For Availability
10
TRIM, SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
10A
TRIM, SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
10B
TRIM, SIDE (WHITE (LEFT)) MAY 8523172 Contact Us For Availability
10C
TRIM, SIDE (WHITE (RIGHT)) MAY 8523166 Contact Us For Availability
11
MAY W10837803 MAY W10837803 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
MAY W10327235 MAY W10327235 Contact Us For Availability
11A
CONTROL, LCC180 (WHITE) MAY W10837802 Contact Us For Availability
12
MAY 3196165 MAY 3196165 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
TRIM, LOWER (BLACK) MAY 8523177 Contact Us For Availability
12A
TRIM, LOWER (WHITE) MAY 8523175 Contact Us For Availability
13
MAY 8054068 MAY 8054068 Contact Us For Availability
13
MAY W10544179 MAY W10544179 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
MAY W10200660 MAY W10200660 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
MAY W10890951 MAY W10890951 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10846751 MAY W10846751 Contact Us For Availability
16A
MAY W10849465 MAY W10849465 Contact Us For Availability
16B
MAY W10846752 MAY W10846752 Contact Us For Availability
17
MAY 3196548 MAY 3196548 Contact Us For Availability
17
MAY W10316950 MAY W10316950 Contact Us For Availability
18
MAY 3196172 MAY 3196172 Contact Us For Availability
18
MAY W10278991 MAY W10278991 Contact Us For Availability
19
MAY W10404688 MAY W10404688 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10245259 MAY W10245259 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY W10181986 MAY W10181986 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
27
MAY 3196154 MAY 3196154 Contact Us For Availability
28
MAY W10627802 MAY W10627802 Contact Us For Availability
29
MAY 9757239 MAY 9757239 Contact Us For Availability
30
MAY 9761301 MAY 9761301 Contact Us For Availability
31
MAY W10078380 MAY W10078380 Contact Us For Availability
32
MAY 9761013 MAY 9761013 Contact Us For Availability
33
MAY 3196560 MAY 3196560 Contact Us For Availability
34
MAY W10107820 MAY W10107820 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10842603 MAY W10842603 Contact Us For Availability
NI
MAY W10848522 MAY W10848522 Contact Us For Availability
NI
MAY W10848523 MAY W10848523 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10333344 MAY W10333344 Contact Us For Availability
NI
MAY W10774939 MAY W10774939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. PRIMER (WHIT MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, BROILER PAN AND GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. UNIVERSAL SILVER) MAY 8212473 Contact Us For Availability
× ![]()
