Model Maytag ADB1600AWD4 DISHWASHER – Common Parts & Diagrams
01 - DOOR AND PANEL PARTS
02 - CONTROL PANEL AND LATCH PARTS

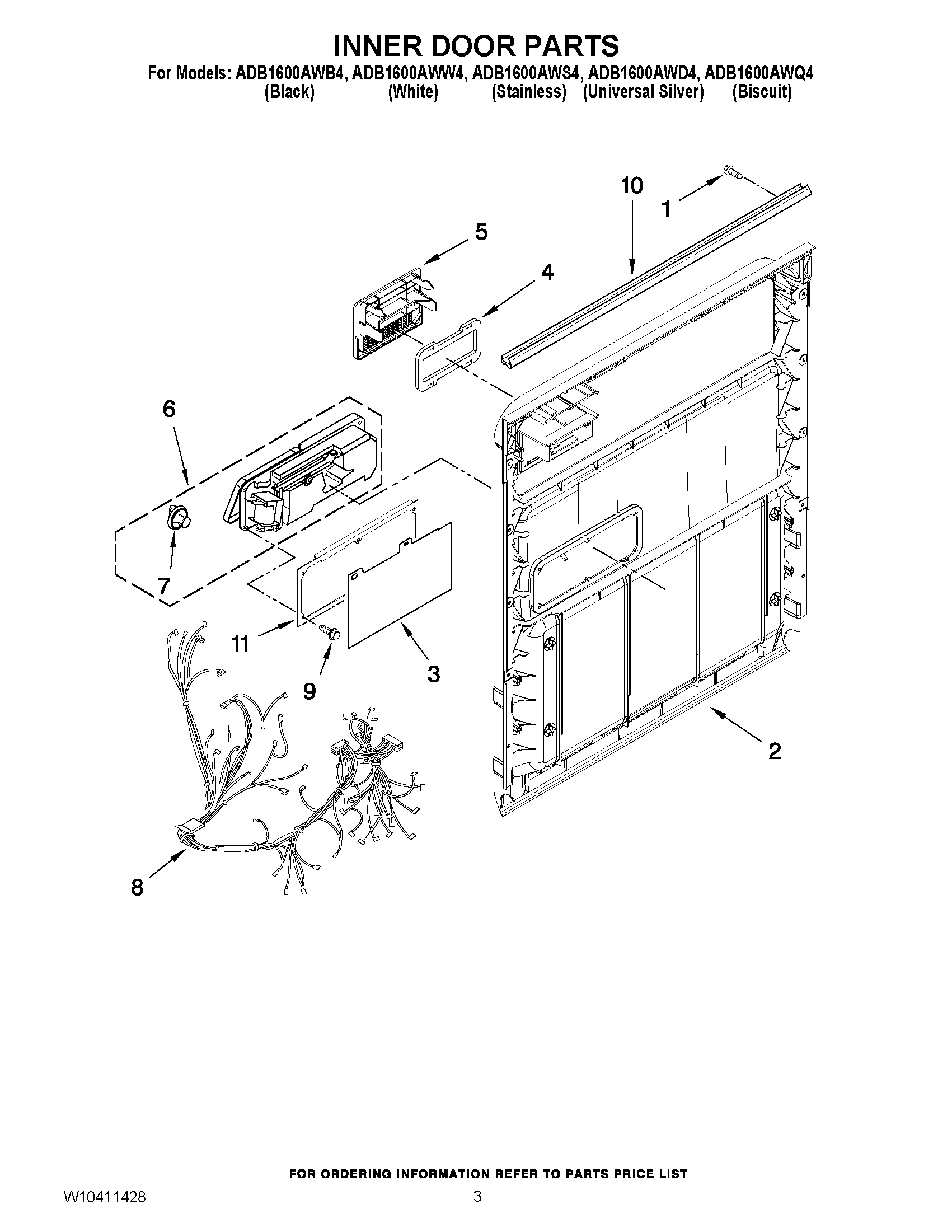

03 - INNER DOOR PARTS

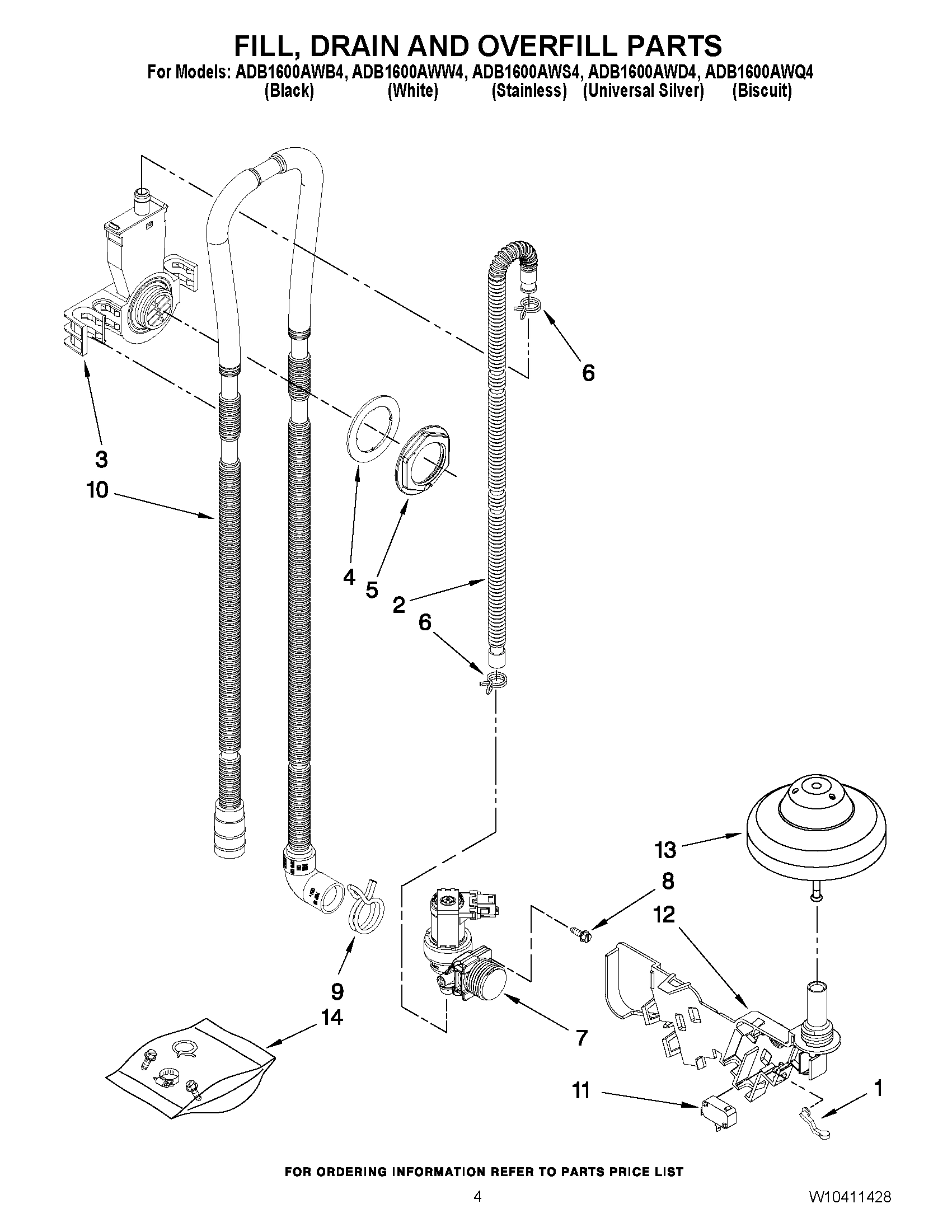

04 - FILL, DRAIN AND OVERFILL PARTS

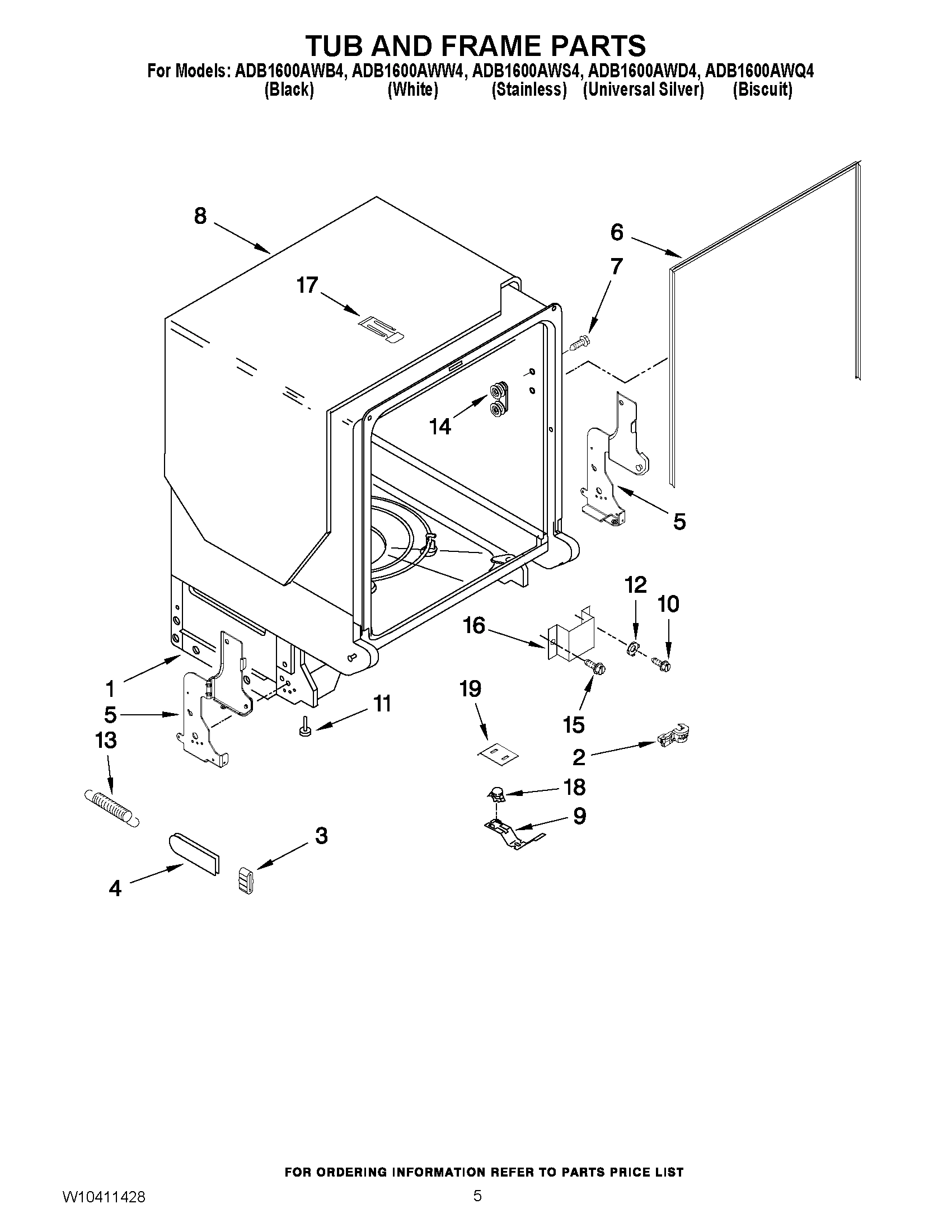

05 - TUB AND FRAME PARTS

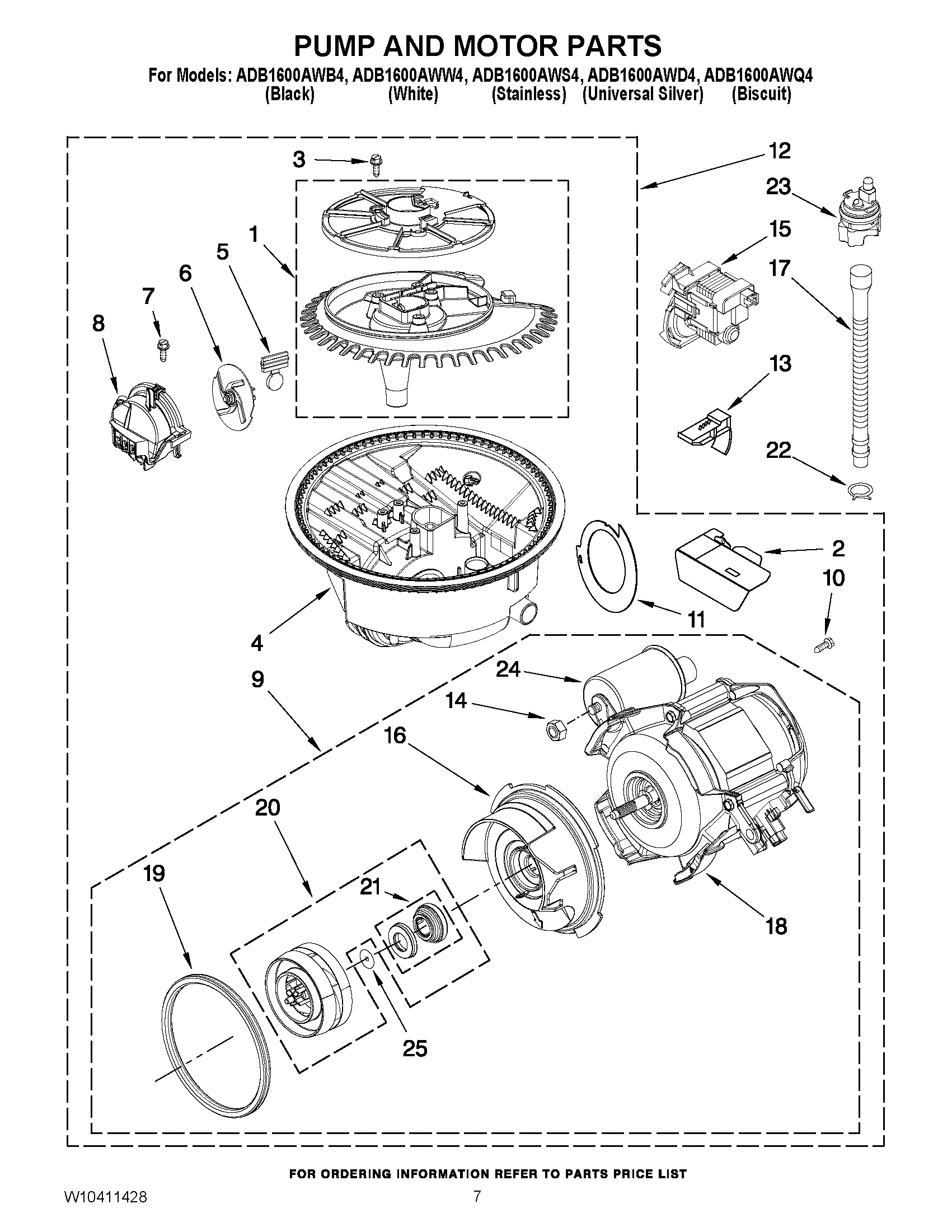

06 - PUMP AND MOTOR PARTS

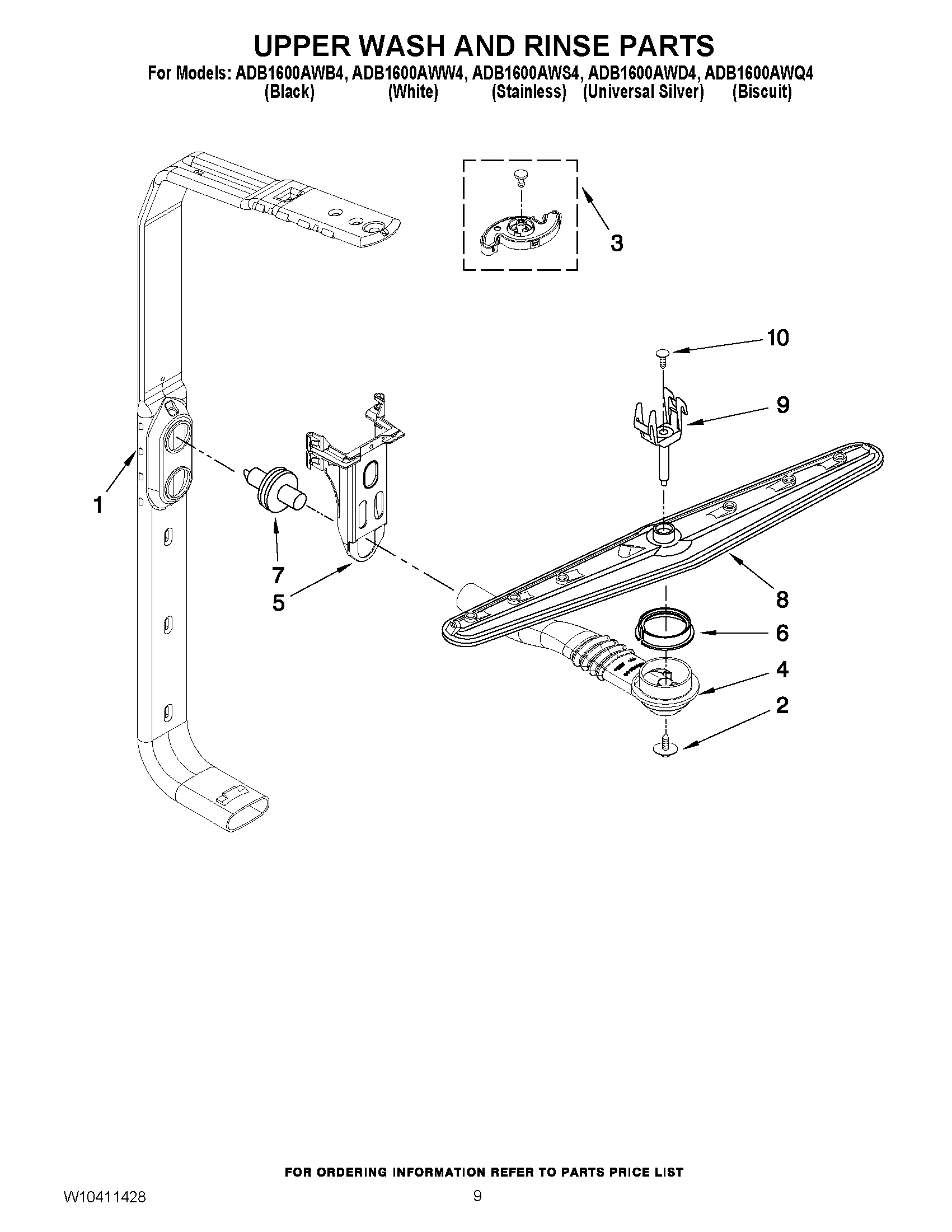

07 - UPPER WASH AND RINSE PARTS

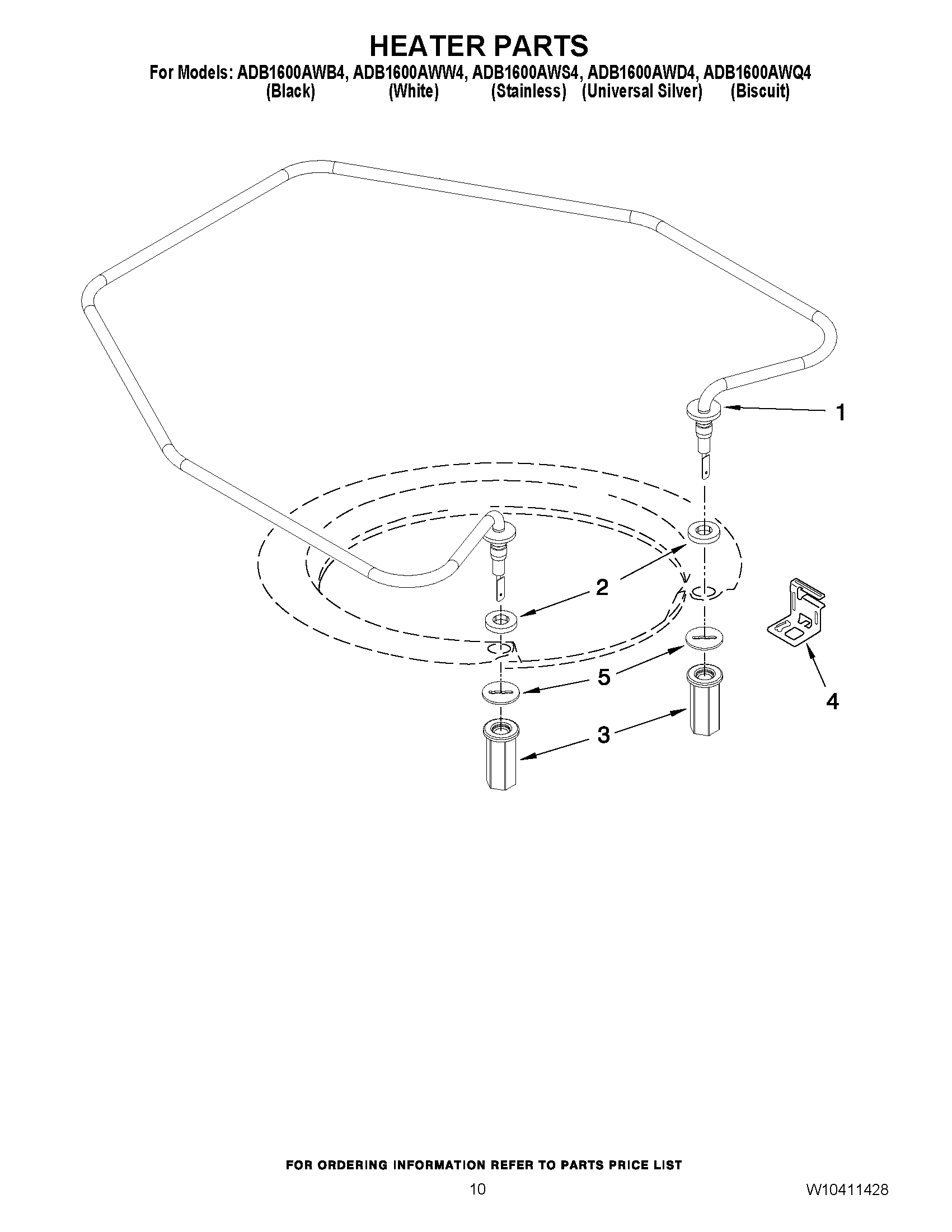

08 - HEATER PARTS

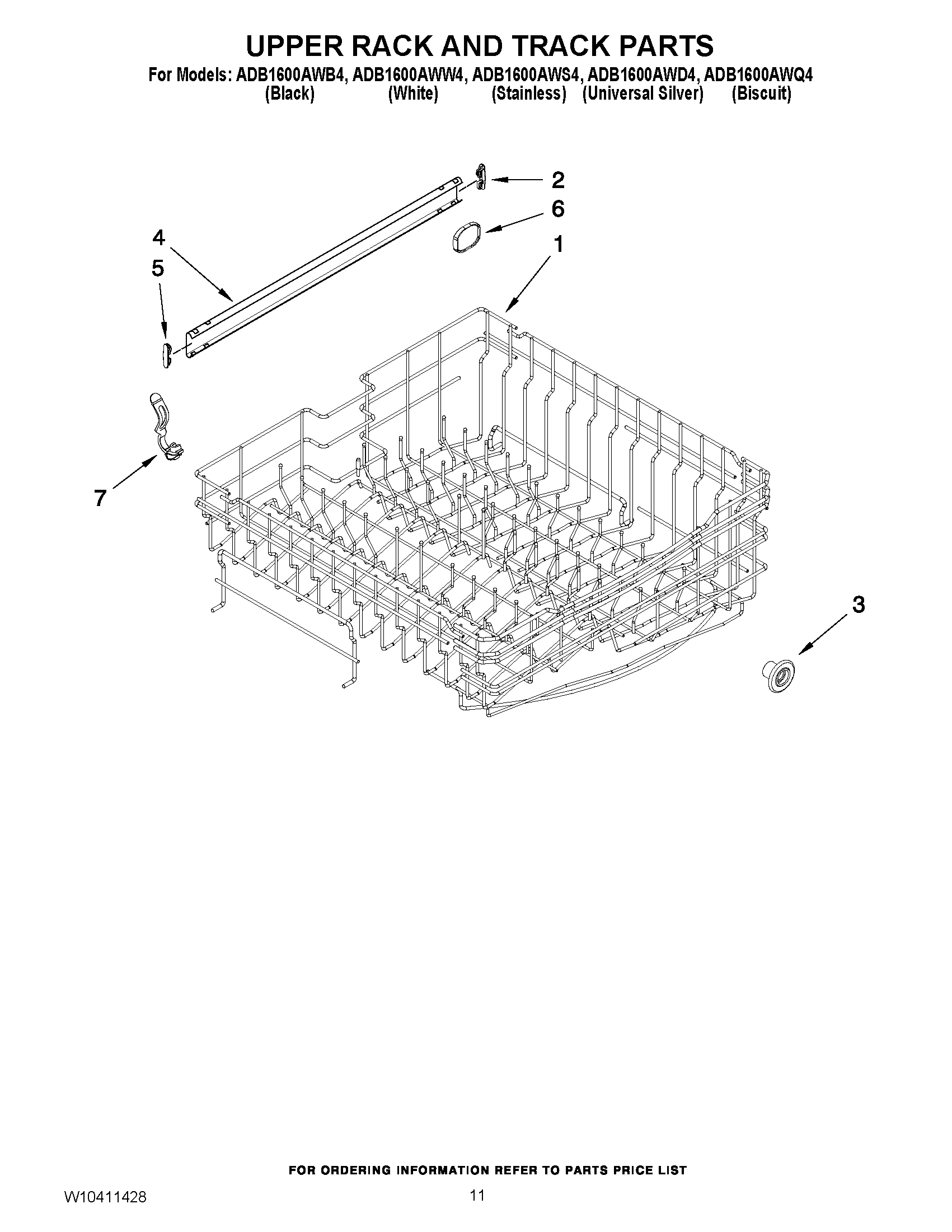

09 - UPPER RACK AND TRACK PARTS

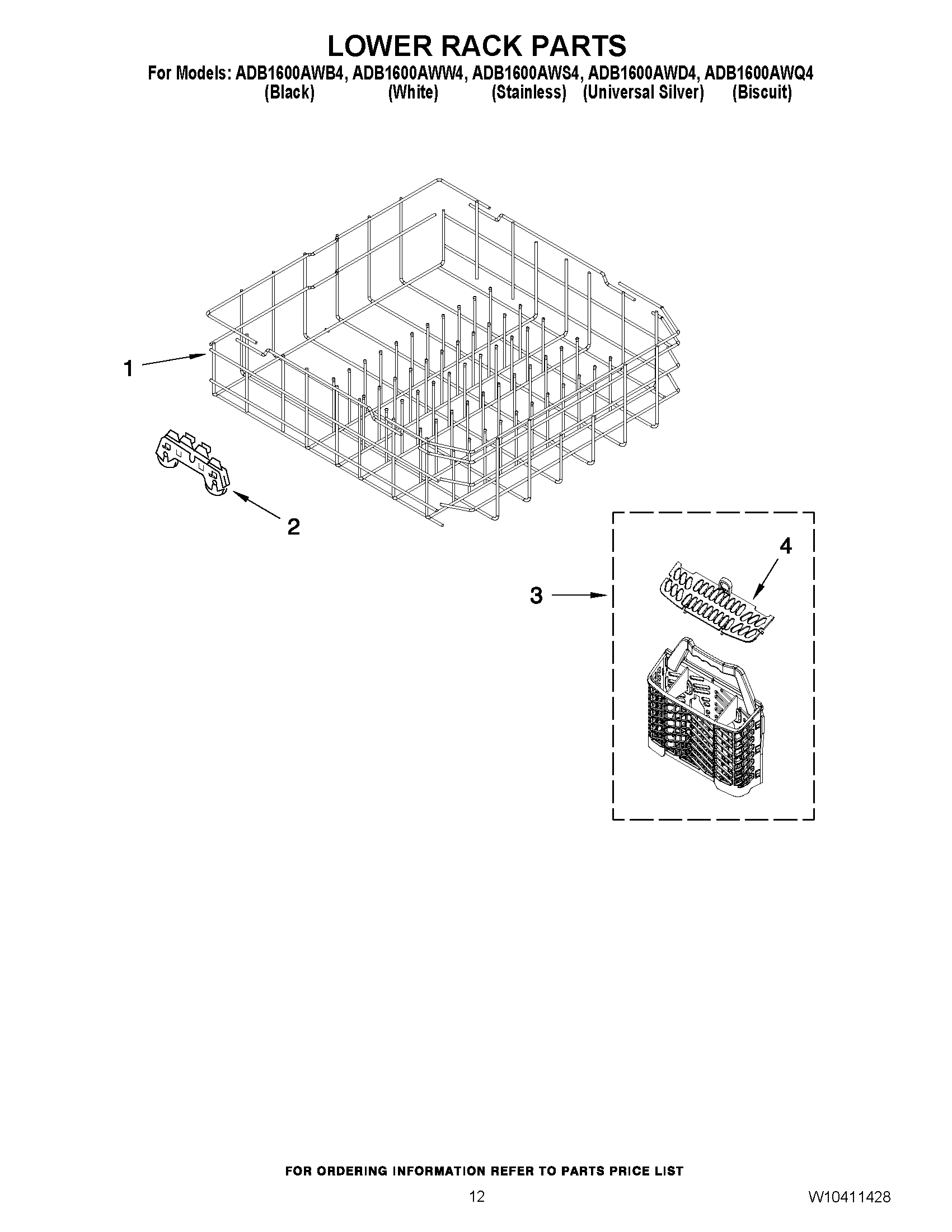

10 - LOWER RACK PARTS

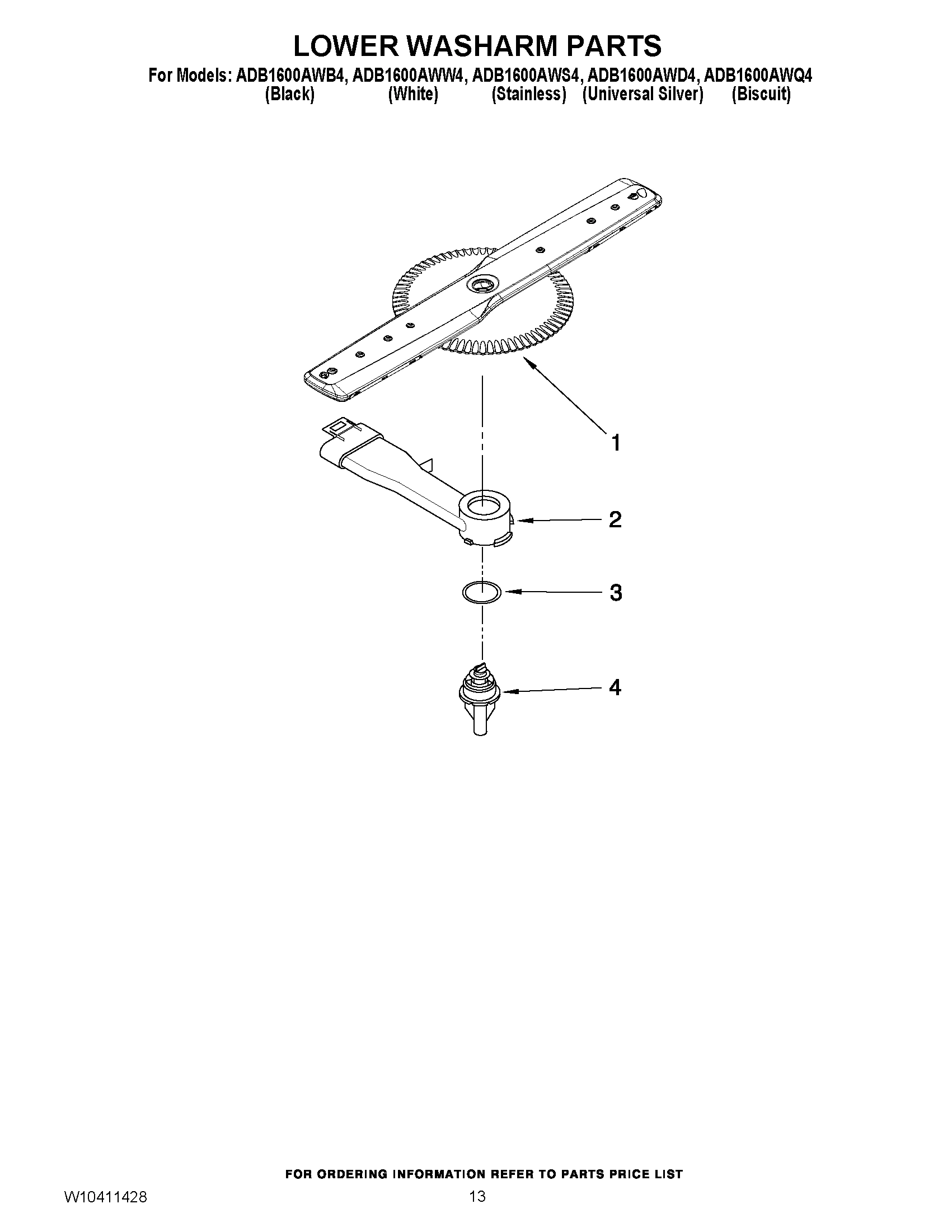

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1600AWD4 DISHWASHER
1
TECH SHEET MAY W10142800 Contact Us For Availability
1
MAY W10261418 MAY W10261418 Contact Us For Availability
1
MAY W10261419 MAY W10261419 Contact Us For Availability
1
MAY W10349750 MAY W10349750 Contact Us For Availability
1
MAY W10398609 MAY W10398609 Contact Us For Availability
1
MAY W10261423 MAY W10261423 Contact Us For Availability
1
MAY W10261426 MAY W10261426 Contact Us For Availability
1
MAY W10290102 MAY W10290102 Contact Us For Availability
1
LEVER, OVERFLOW SWITCH MAY 8268892 Contact Us For Availability
1
TUB ASSEMBLY (INCLUDES HEATER ASSEMBLY) MAY W10350148 Contact Us For Availability
1
MAY 8534952 MAY 8534952 Contact Us For Availability
1
FEED TUBE SILVERWARE ZONE (ALSO INCLUDES ITEM MAY 8579224 Contact Us For Availability
1
MAY W10134009 MAY W10134009 Contact Us For Availability
1
MAY W10164198 MAY W10164198 Contact Us For Availability
1
LOWER RACK ASSEMBLY MAY 8539225 Contact Us For Availability
1
MAY 8268333 MAY 8268333 Contact Us For Availability
2
MAY W10143373 MAY W10143373 Contact Us For Availability
2
MAY W10143374 MAY W10143374 Contact Us For Availability
2
MAY 8546546 MAY 8546546 Contact Us For Availability
2
INNER DOOR MASTIC ASSEMBLY MAY W10254546 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY 8573061 MAY 8573061 Contact Us For Availability
2
MAY 8283527 MAY 8283527 Contact Us For Availability
2
MAY W10349488 MAY W10349488 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
2
CAP, INTERNAL REAR FEED MAY 8268317 Contact Us For Availability
3
MAY 8268983 MAY 8268983 Contact Us For Availability
3
CONTROL ELECTRONIC MAY W10285180 Contact Us For Availability
3
SHIELD, DISPENSER MAY 8531865 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
SLEEVE, FRICTION MAY 8268961 Contact Us For Availability
3
MAY W10348405 MAY W10348405 Contact Us For Availability
3
MAY 8557720 MAY 8557720 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
WHEEL MAY 8575281 Contact Us For Availability
3
MAY W10129577 MAY W10129577 Contact Us For Availability
3
MAY 8268340 MAY 8268340 Contact Us For Availability
4
MAY W10274895 MAY W10274895 Contact Us For Availability
4
MAY W10274896 MAY W10274896 Contact Us For Availability
4
MAY W10274898 MAY W10274898 Contact Us For Availability
4
MAY W10274902 MAY W10274902 Contact Us For Availability
4
MAY 8269209 MAY 8269209 Contact Us For Availability
4
MAY W10254545 MAY W10254545 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY 8268990 MAY 8268990 Contact Us For Availability
4
MAY 8572618 MAY 8572618 Contact Us For Availability
4
MAY W10258149 MAY W10258149 Contact Us For Availability
4
BRACKET, HEATER MAY 8269262 Contact Us For Availability
4
TRACK, RACK MAY 3385089 Contact Us For Availability
4
MAY W10129580 MAY W10129580 Contact Us For Availability
4
SUPPORT, LOWER SPRAYARM MAY 8268342 Contact Us For Availability
5
MAY W10237241 MAY W10237241 Contact Us For Availability
5
MAY W10237242 MAY W10237242 Contact Us For Availability
5
MAY W10237243 MAY W10237243 Contact Us For Availability
5
MAY 8269333 MAY 8269333 Contact Us For Availability
5
MAY W10254548 MAY W10254548 Contact Us For Availability
5
MAY 8531326 MAY 8531326 Contact Us For Availability
5
HINGE BRACKET (LEFT) MAY W10185368 Contact Us For Availability
5
HINGE BRACKET (RIGHT) MAY W10185369 Contact Us For Availability
5
MAY 8268375 MAY 8268375 Contact Us For Availability
5
HANGER MAY 3385160 Contact Us For Availability
5
SHIELD, HTR NUT MAY W10343251 Contact Us For Availability
5
STOP, TRACK REMOVABLE MAY 8565925 Contact Us For Availability
6
MAY 489470 MAY 489470 Contact Us For Availability
6
MAY 661663 MAY 661663 Contact Us For Availability
6
MAY W10195411 MAY W10195411 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
SEAL, CABINET MAY W10284090 Contact Us For Availability
6
MAY W10083957 MAY W10083957 Contact Us For Availability
6
MAY 8268433 MAY 8268433 Contact Us For Availability
6
SPACER, RACK MOUNTING MAY W10306228 Contact Us For Availability
7
MAY 3400412 MAY 3400412 Contact Us For Availability
7
MAY 8533380 MAY 8533380 Contact Us For Availability
7
MAY W10195047 MAY W10195047 Contact Us For Availability
7
SCREW MAY 8533836 Contact Us For Availability
7
MAY 9741232 MAY 9741232 Contact Us For Availability
7
NOZZLE-FEED MAY 8562095 Contact Us For Availability
7
MAY W10286810 MAY W10286810 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
FASTENER MAY W10331789 Contact Us For Availability
8
MAY 8269323 MAY 8269323 Contact Us For Availability
8
MAY 8269324 MAY 8269324 Contact Us For Availability
8
MAY 8269326 MAY 8269326 Contact Us For Availability
8
MAY W10328603 MAY W10328603 Contact Us For Availability
8
MAY 8573240 MAY 8573240 Contact Us For Availability
8
MAY 8531857 MAY 8531857 Contact Us For Availability
8
SPRAY ARM MAY 8269024 Contact Us For Availability
9
COVER, CONTROL MAY W10158350 Contact Us For Availability
9
MAY W10177098 MAY W10177098 Contact Us For Availability
9
MAY 3378595 MAY 3378595 Contact Us For Availability
9
MAY W10231538 MAY W10231538 Contact Us For Availability
9
MAY 3385159 MAY 3385159 Contact Us For Availability
10
MAY 8269296 MAY 8269296 Contact Us For Availability
10
MAY W10137608 MAY W10137608 Contact Us For Availability
10
MAY 3400014 MAY 3400014 Contact Us For Availability
10
MAY 3400217 MAY 3400217 Contact Us For Availability
10
RETAINER, PUSH MAY 3400919 Contact Us For Availability
11
BRACKET, DISPENSER MAY W10341423 Contact Us For Availability
11
SWITCH, OVERFILL MAY W10102495 Contact Us For Availability
11
MAY 8524584 MAY 8524584 Contact Us For Availability
11
MAY W10084567 MAY W10084567 Contact Us For Availability
12
STANDPIPE, OVERFILL (ALSO INCLUDES ITEM 13) MAY W10175383 Contact Us For Availability
12
WASHER, PRONGED MAY 3378128 Contact Us For Availability
12
MAY W10237168 MAY W10237168 Contact Us For Availability
13
MAY 8268913 MAY 8268913 Contact Us For Availability
13
MAY 8524473 MAY 8524473 Contact Us For Availability
13
MAY W10300599 MAY W10300599 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (INCL. 2 SCREWS, 2 HO MAY W10292152 Contact Us For Availability
14
WHEEL & MOUNT ASSEMBLY (ALSO ORDER ITEM 6) MAY 8270016 Contact Us For Availability
14
MAY 8533949 MAY 8533949 Contact Us For Availability
15
MAY 3400892 MAY 3400892 Contact Us For Availability
15
MAY 8558995 MAY 8558995 Contact Us For Availability
16
MAY 8268991 MAY 8268991 Contact Us For Availability
16
VOLUTE, BACK (ALSO ORDER ITEMS 21 & 25) MAY W10142656 Contact Us For Availability
17
STRIKE, LATCH MAY 8580309 Contact Us For Availability
17
MAY 8269144 MAY 8269144 Contact Us For Availability
18
MAY 661566 MAY 661566 Contact Us For Availability
18
MAY W10226459 MAY W10226459 Contact Us For Availability
19
SHIELD, THERMOSTAT MAY W10339699 Contact Us For Availability
19
MAY 8268401 MAY 8268401 Contact Us For Availability
20
IMPELLER KIT (ALSO ORDER ITEM 25) MAY 8531017 Contact Us For Availability
21
FACE SEAL ASSEMBLY (ALSO ORDER ITEM 25) MAY 8268403 Contact Us For Availability
22
MAY 356138 MAY 356138 Contact Us For Availability
23
MAY W10134017 MAY W10134017 Contact Us For Availability
24
MAY W10334457 MAY W10334457 Contact Us For Availability
25
MAY 8531018 MAY 8531018 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
MAY 4396603 MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
MAY 6-919539 MAY 6-919539 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171555 MAY 8171555 Contact Us For Availability
NI
MAY 8171556 MAY 8171556 Contact Us For Availability
NI
MAY 8171557 MAY 8171557 Contact Us For Availability
NI
MAY 8171558 MAY 8171558 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
× ![]()
