Model ACD2234HRW – Common Parts & Diagrams

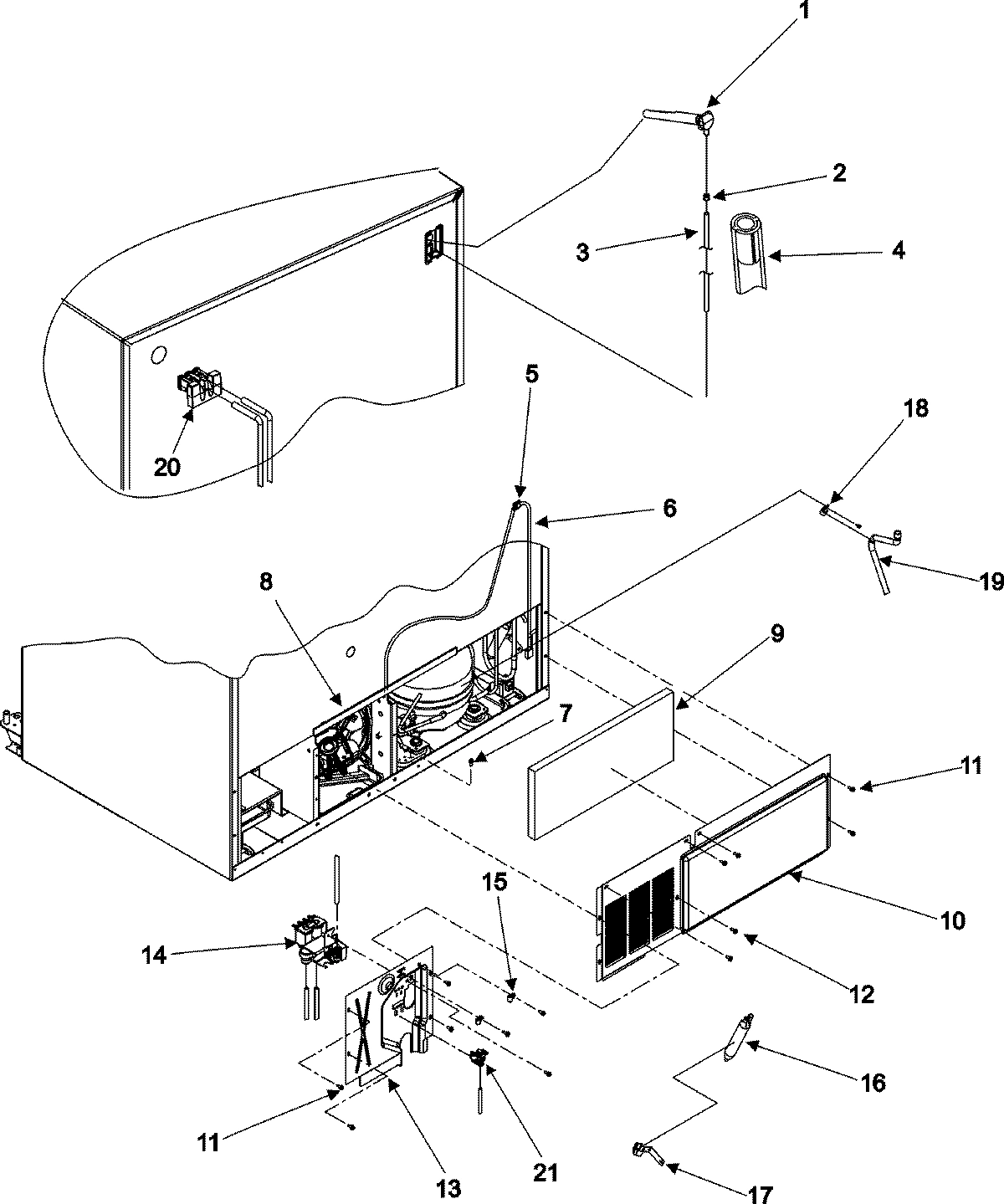

01 - CABINET BACK

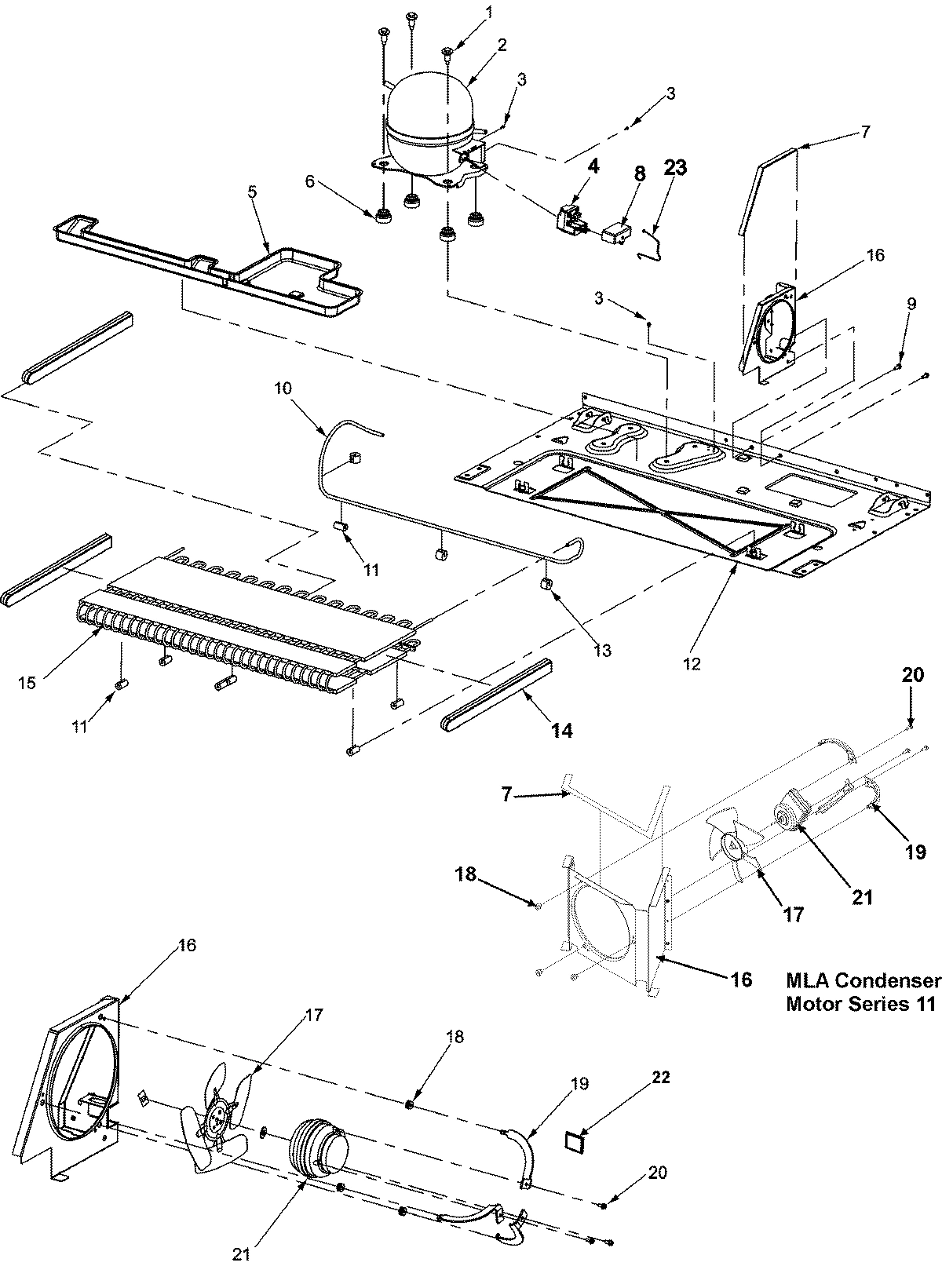

02 - COMPRESSOR

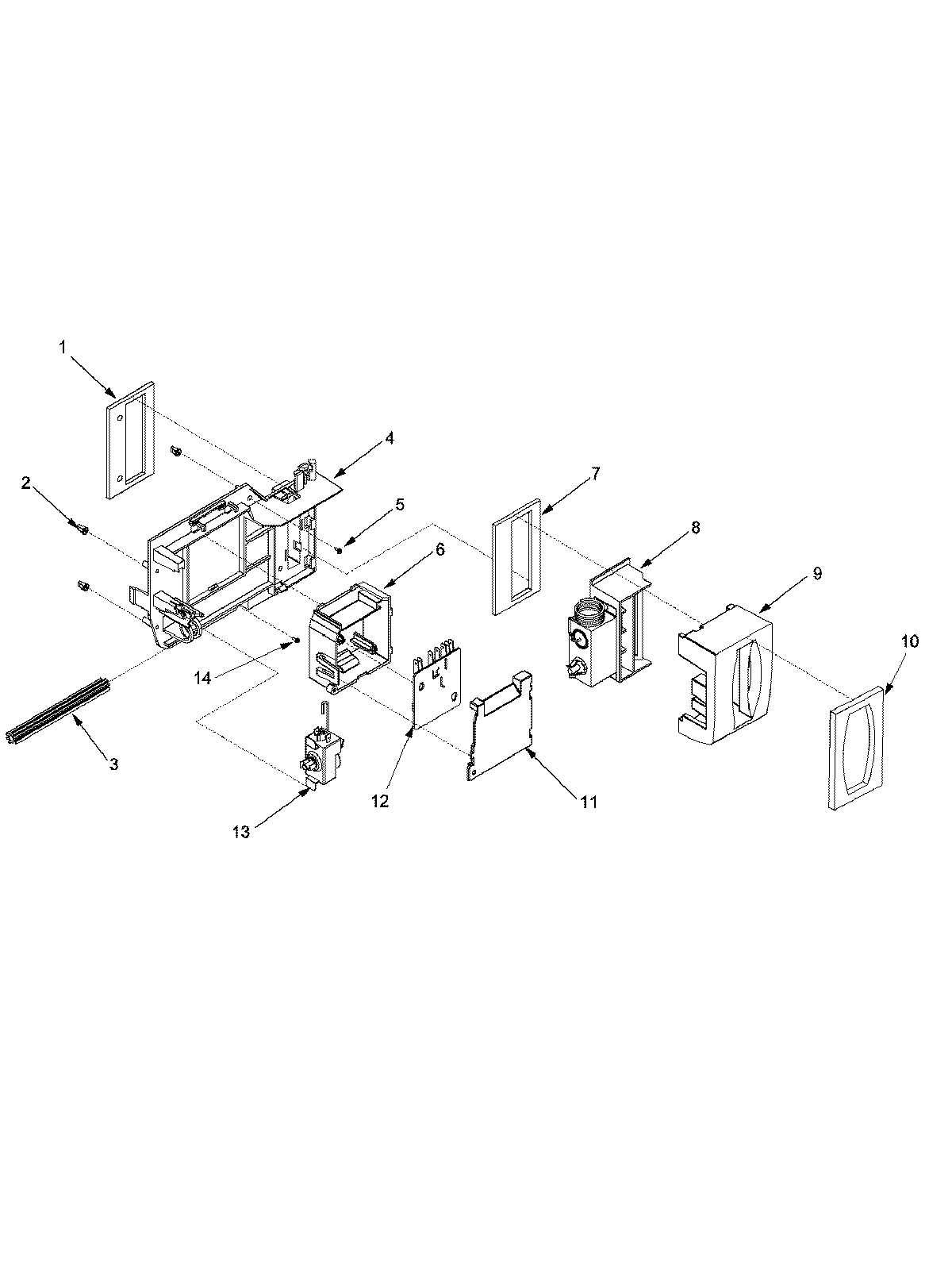

03 - CONTROLS

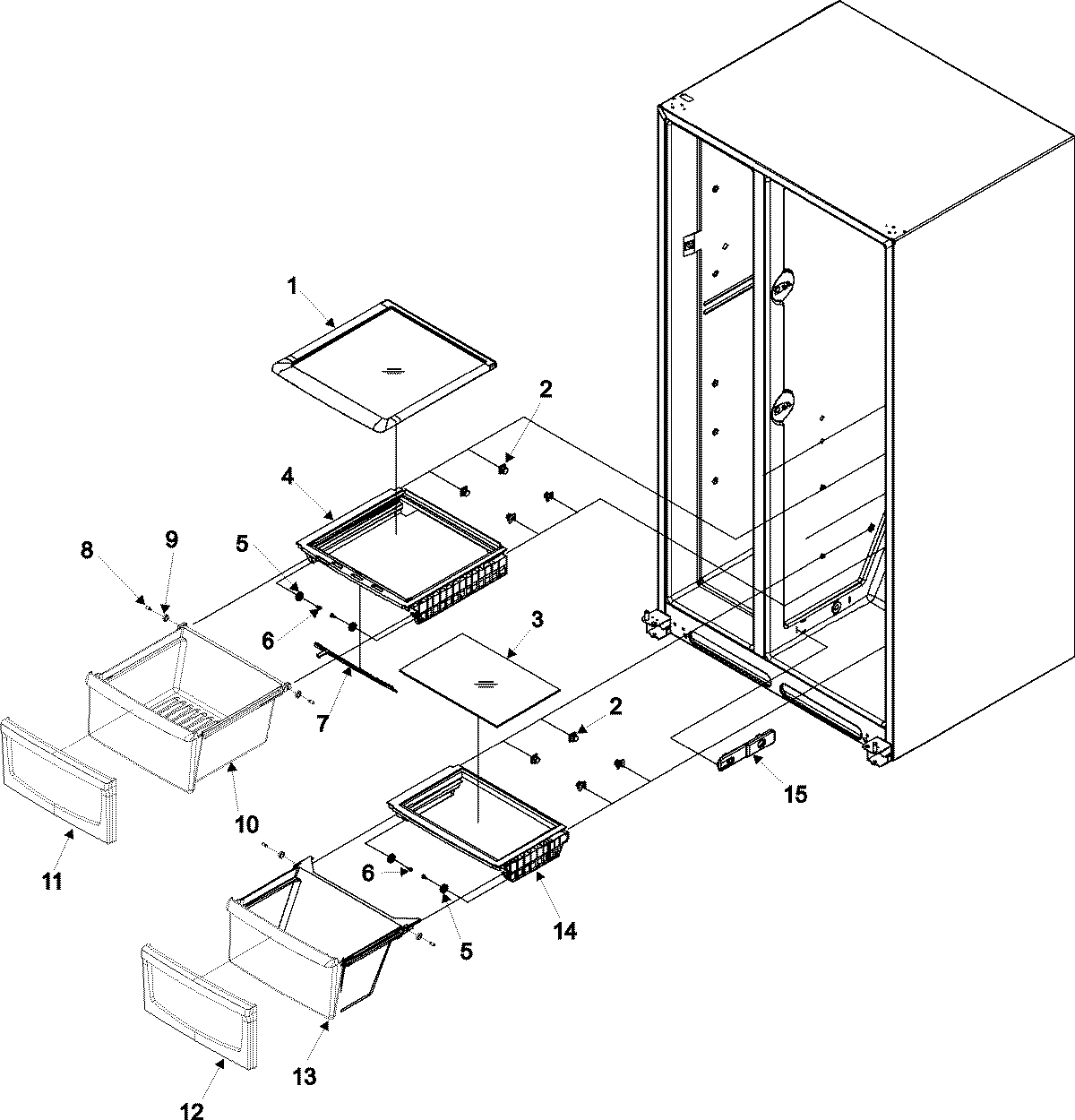

04 - CRISPER ASSY

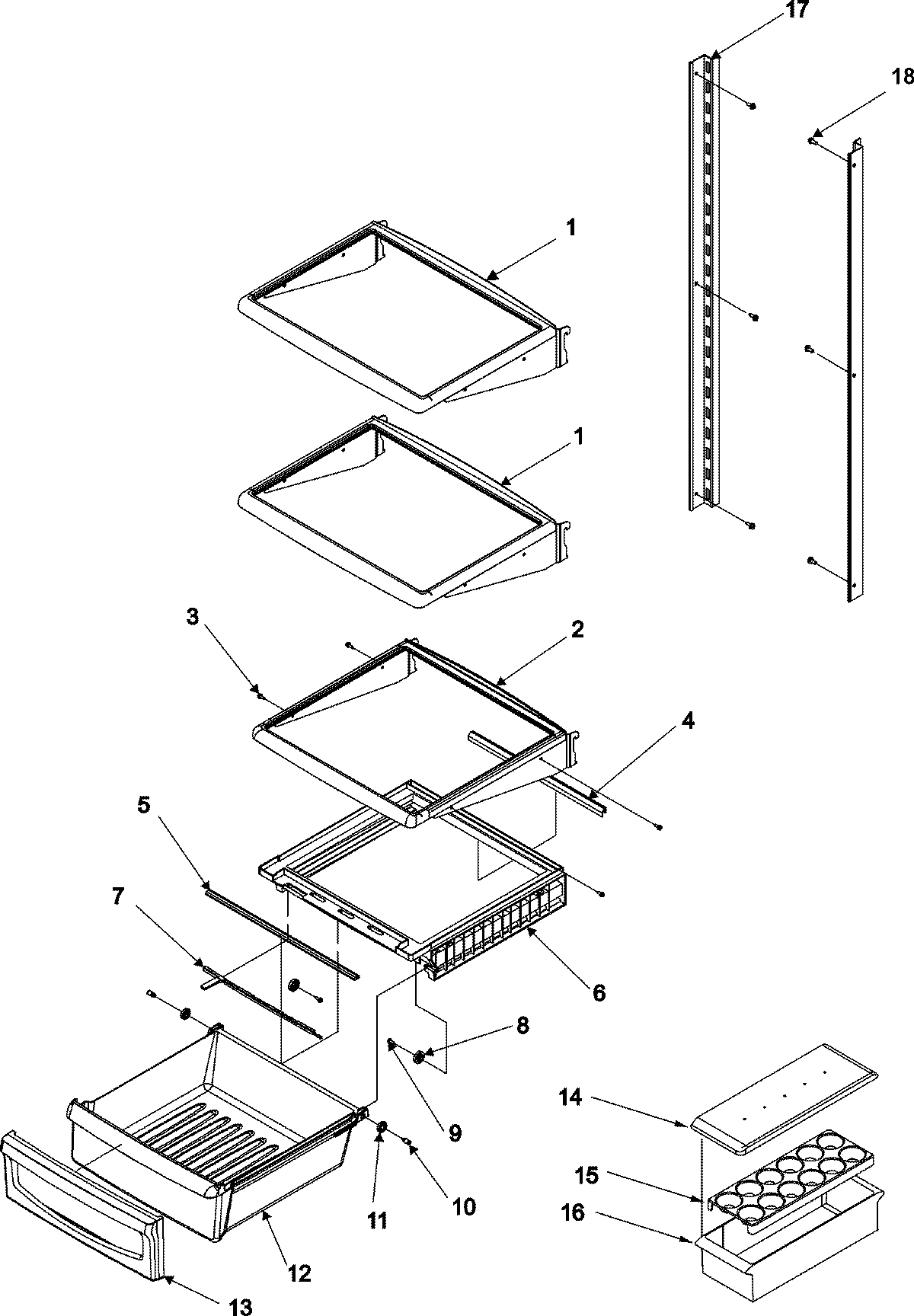

05 - DELI AND REF SHELF

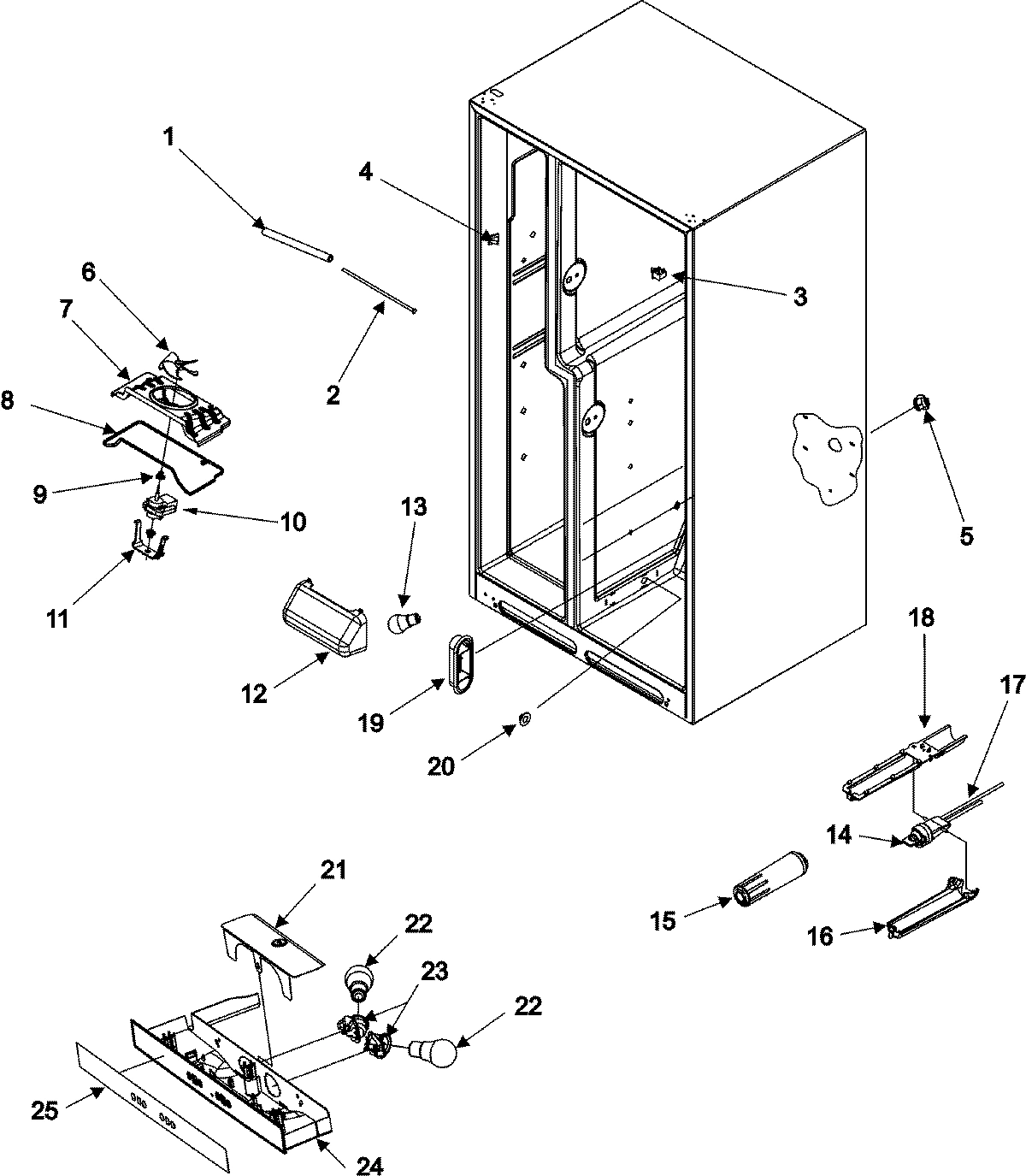

06 - EVAP FAN ASSY AND LIGHTS
07 - EVAPORATOR ASSY AND ROLLERS

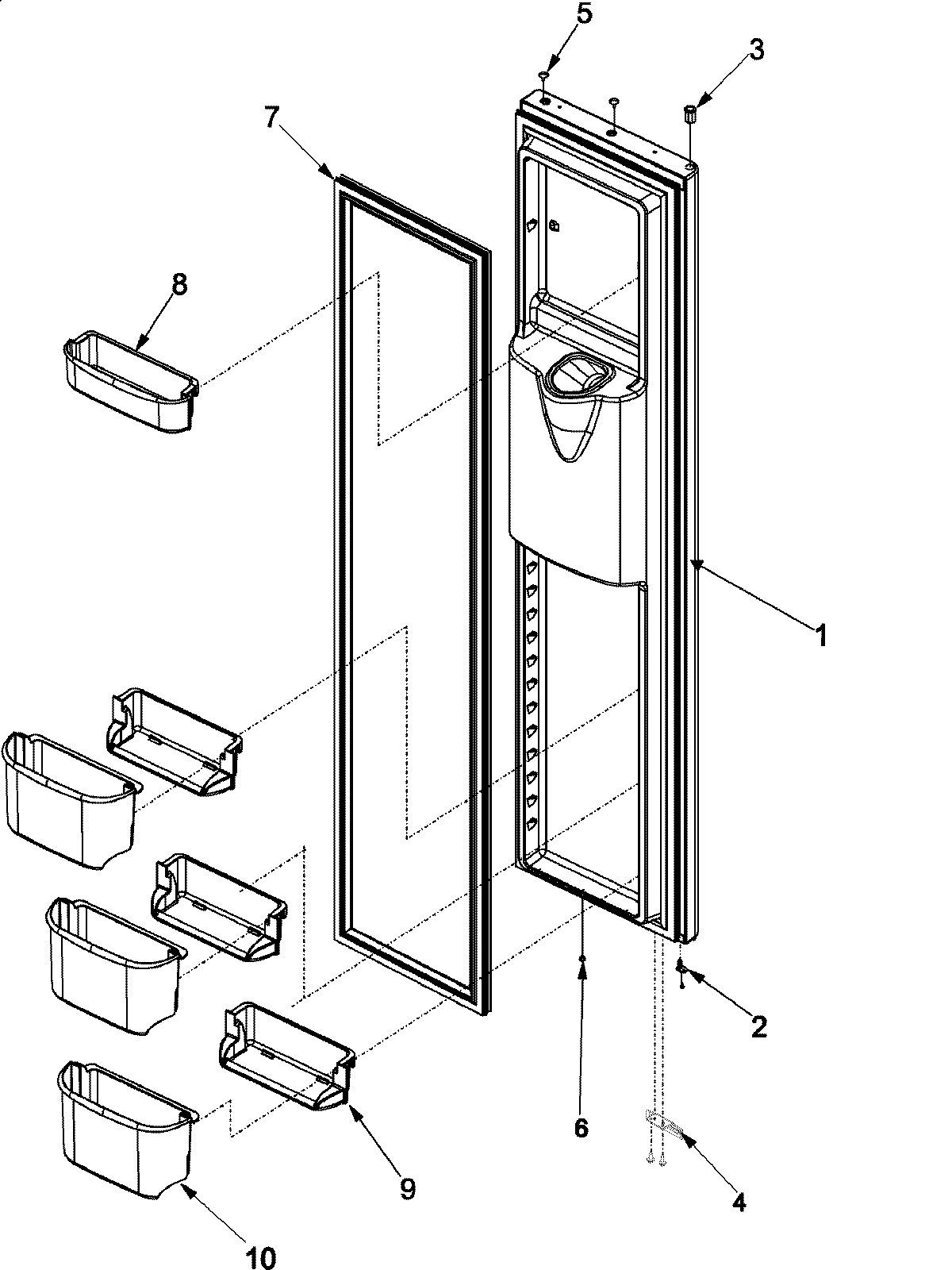

08 - FREEZER DOOR

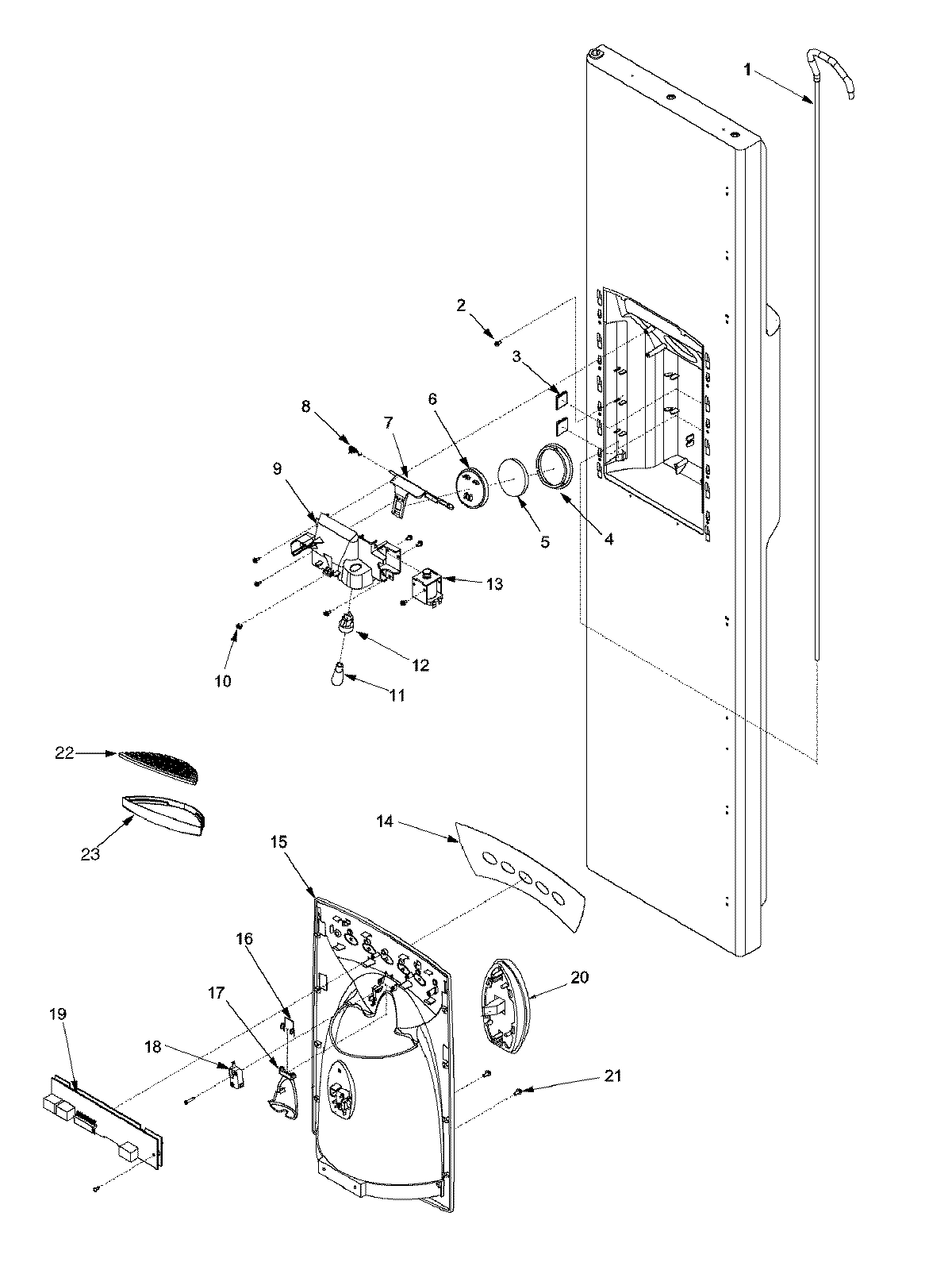

09 - FZ DOOR AND FACADE

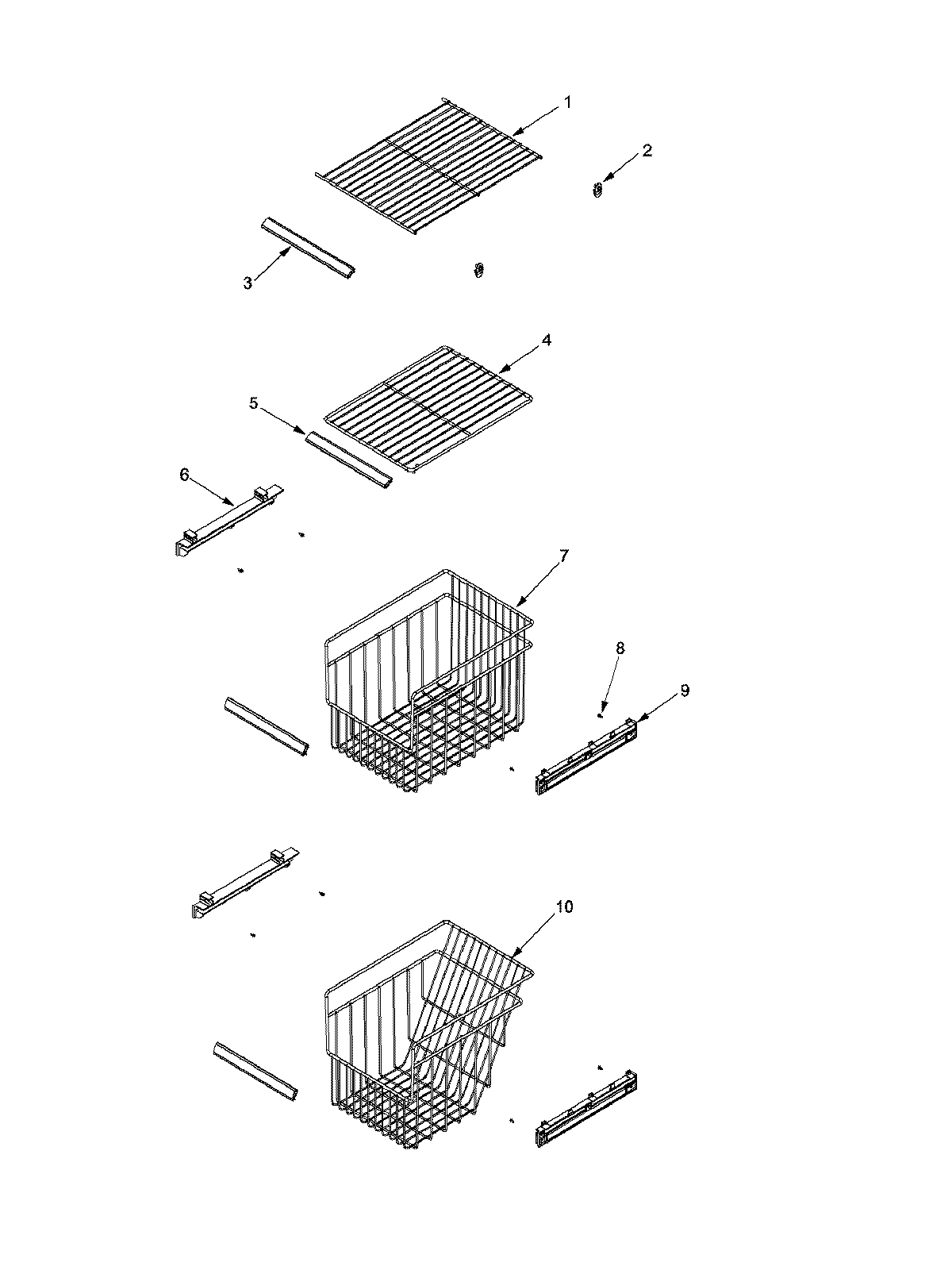

10 - FZ SHELF

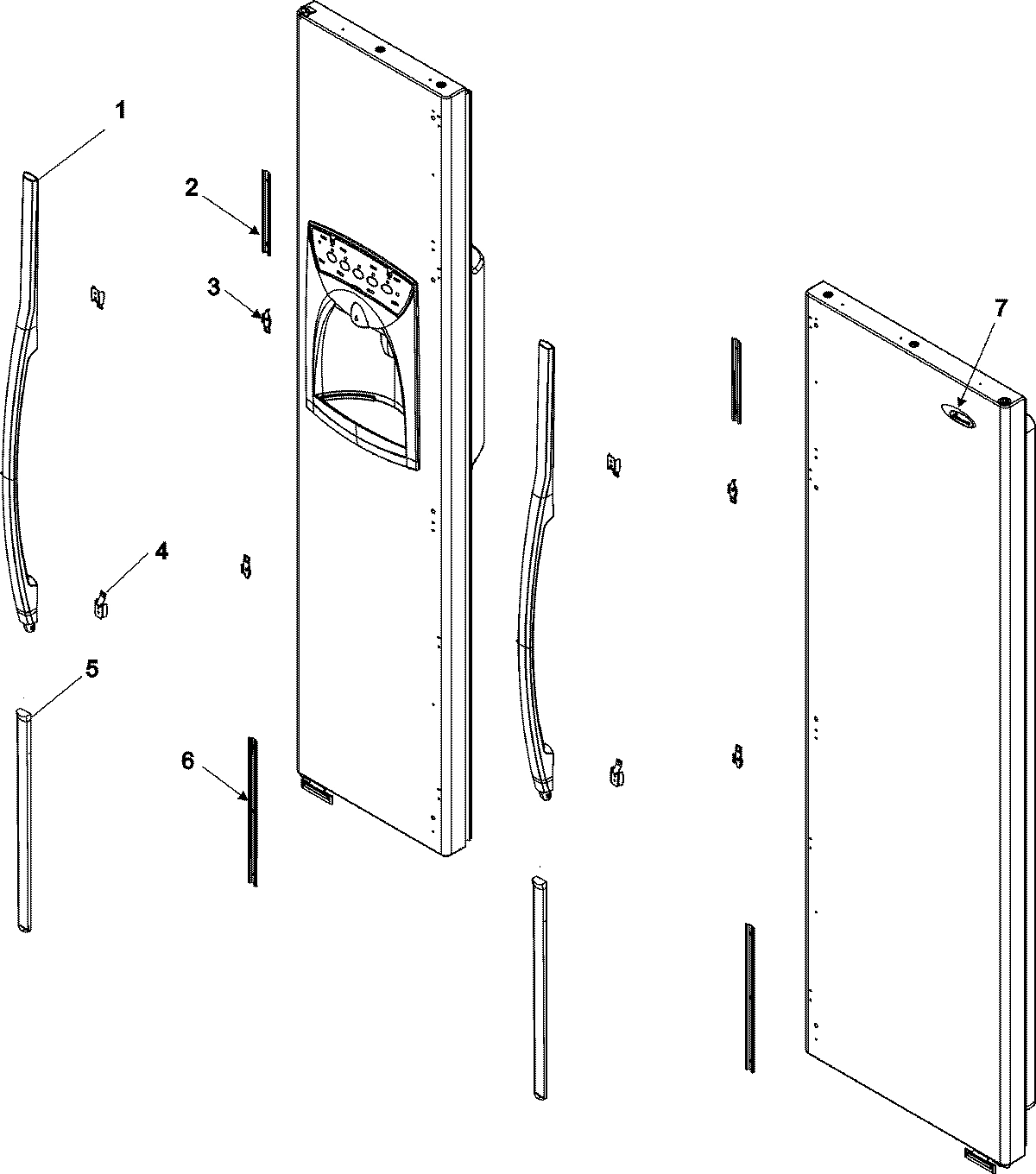

11 - HANDLES AND TRIM

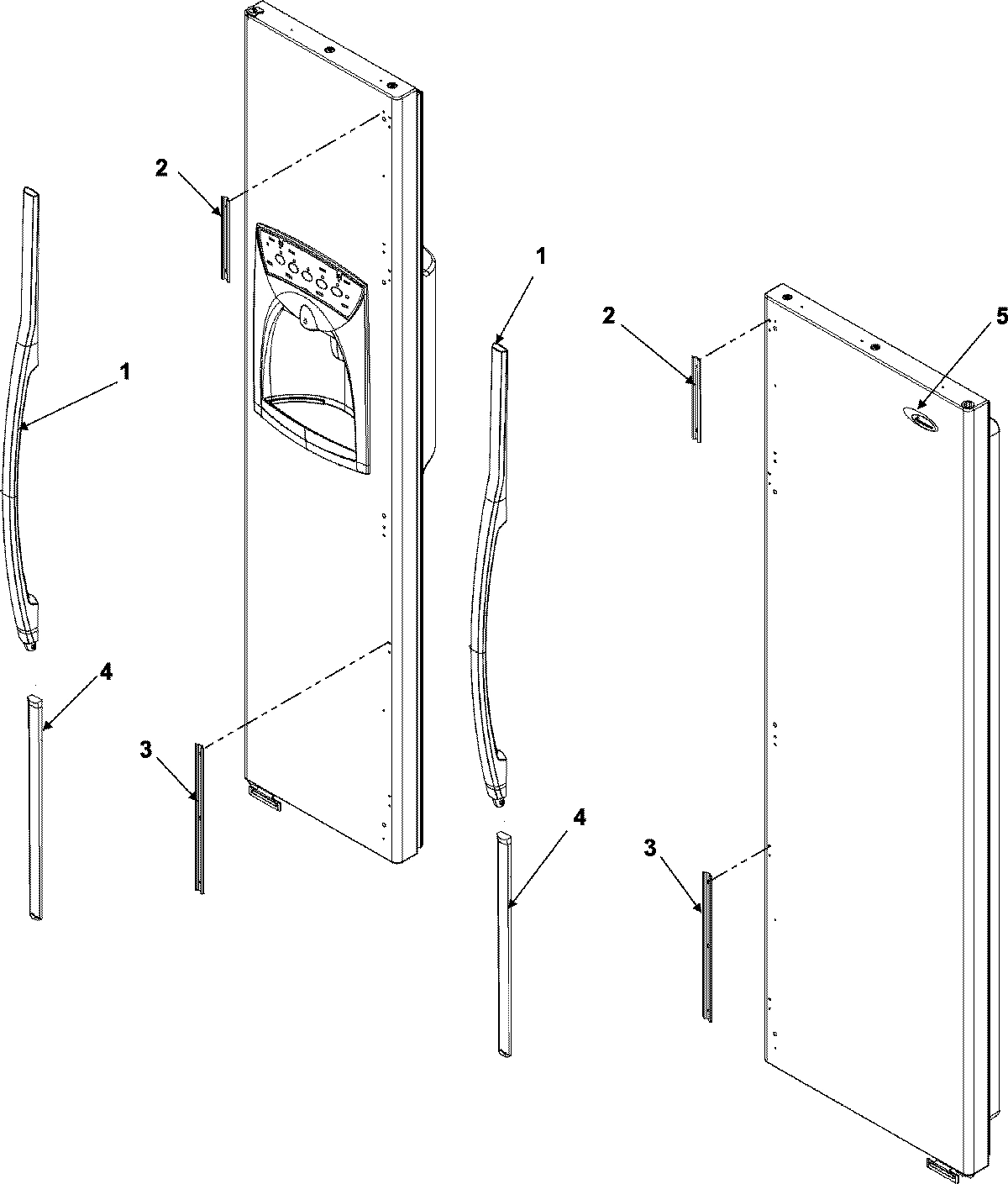

12 - HANDLES AND TRIM (SERIES 13)
13 - HINGES
14 - ICE BUCKET ASSY
15 - ICE MAKER

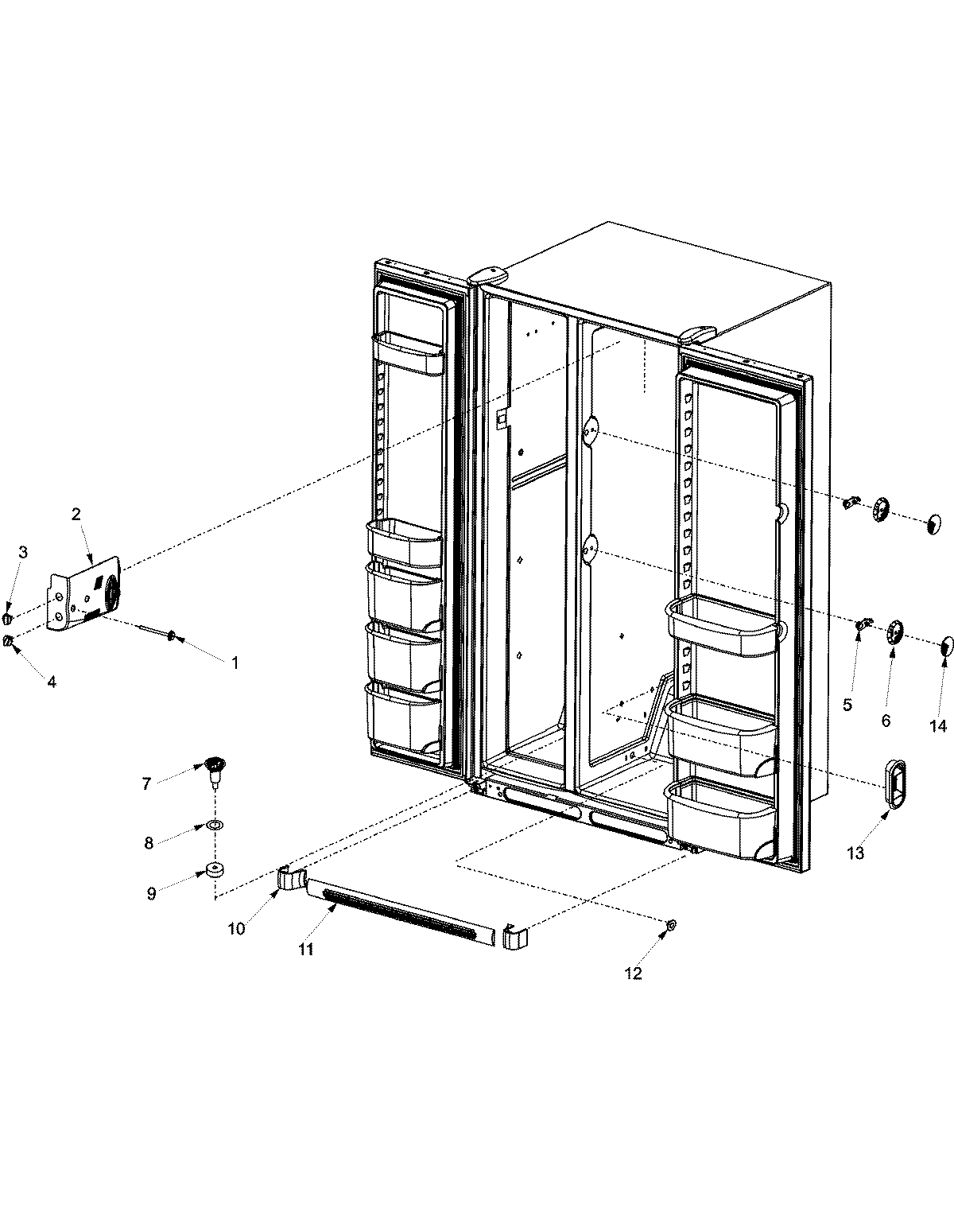

16 - LIGHT COVERS AND TOE GRILLE

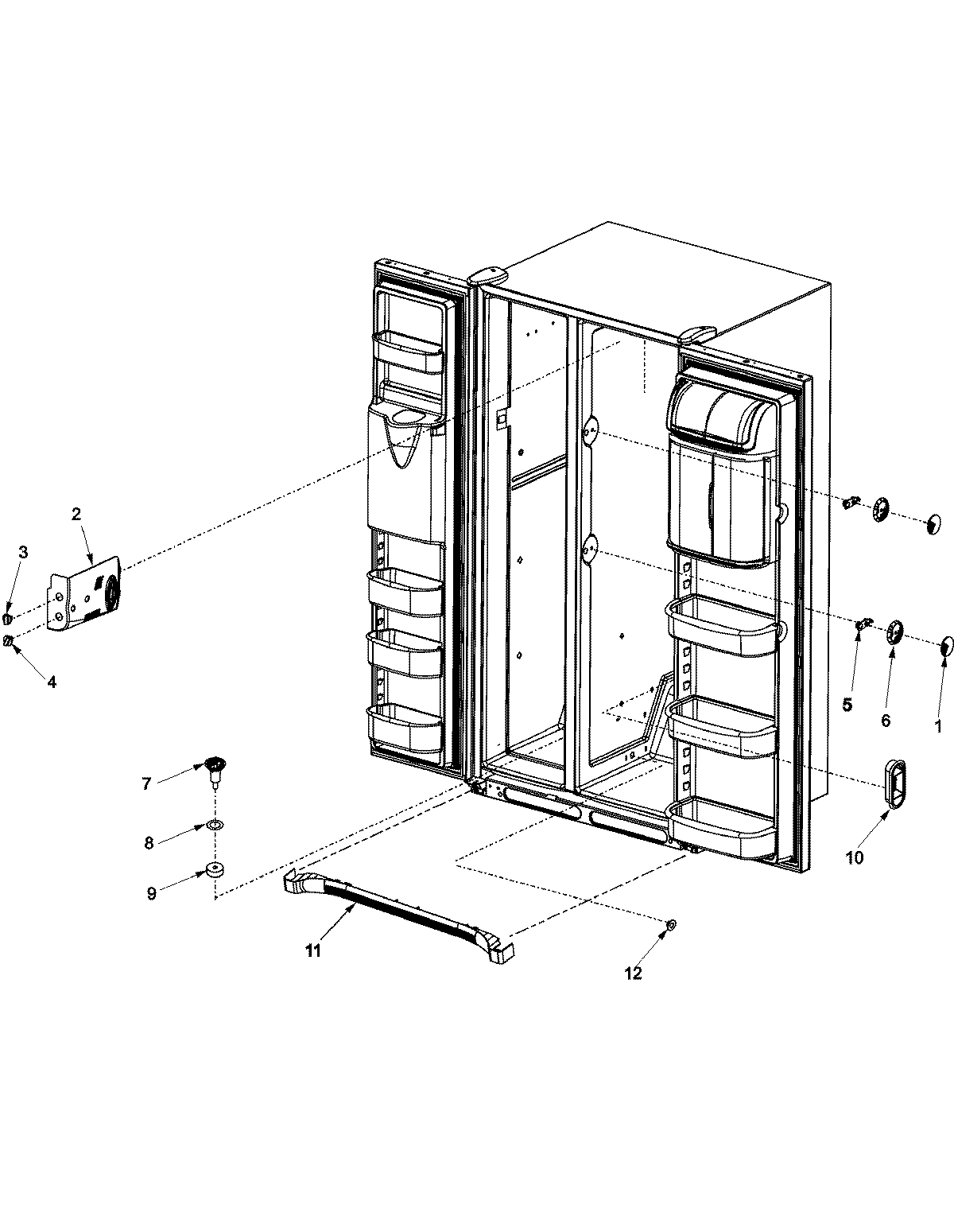

17 - LIGHT COVERS AND TOE GRILLE (SERIES 13)

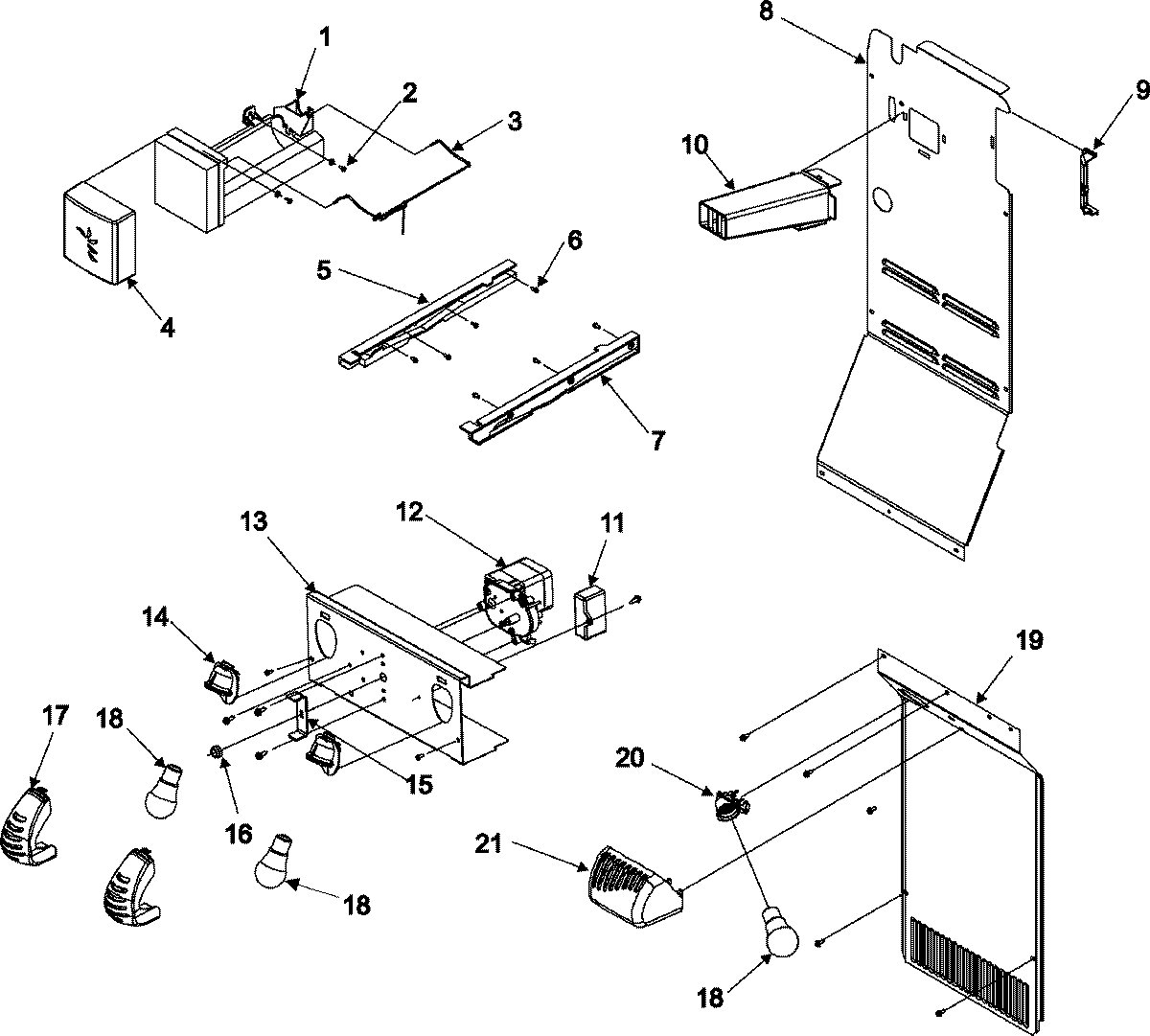

18 - LIGHTS AND ICE MAKER

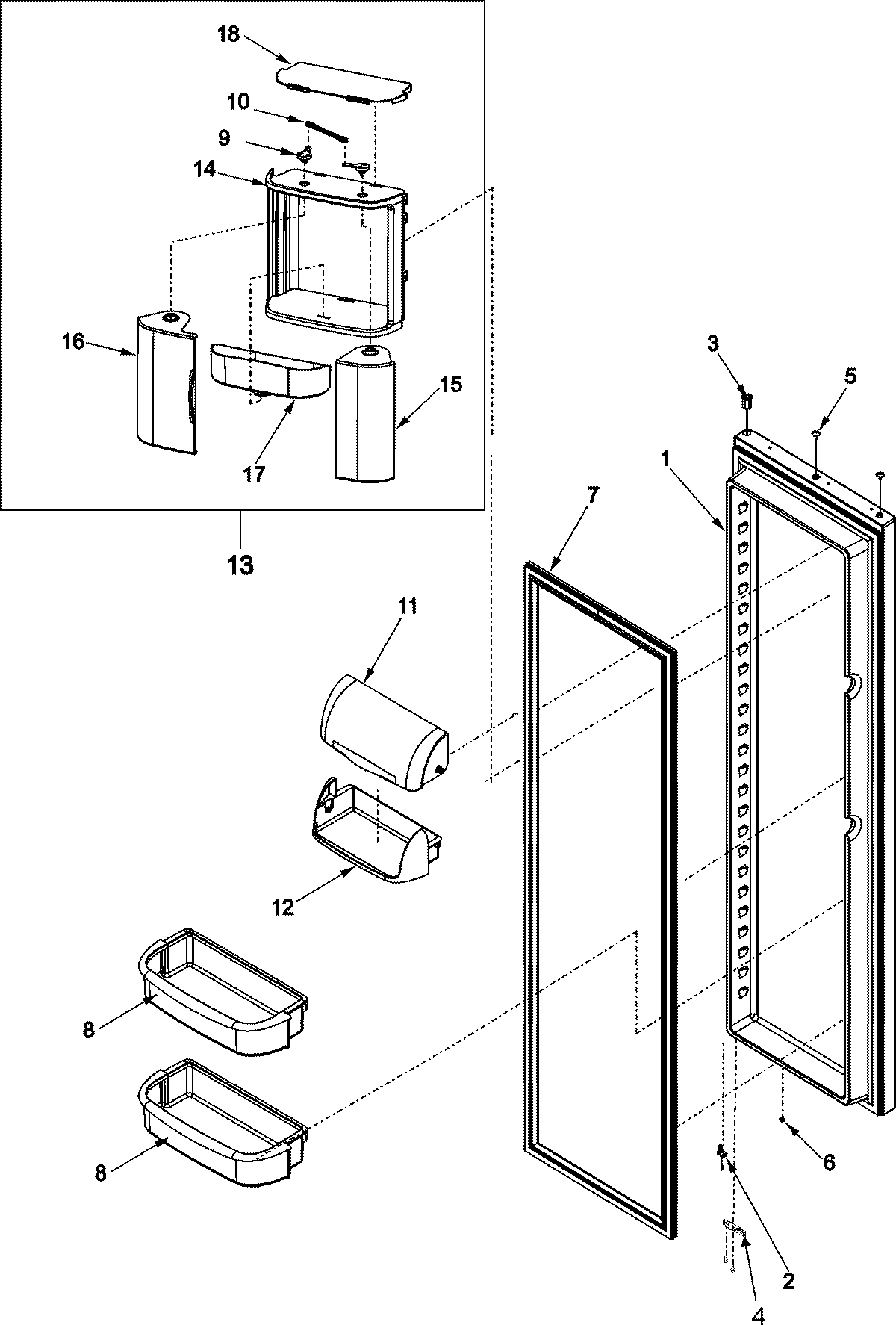

19 - REFRIGERATOR DOOR
20 - SUPPLEMENTAL INFORMATION

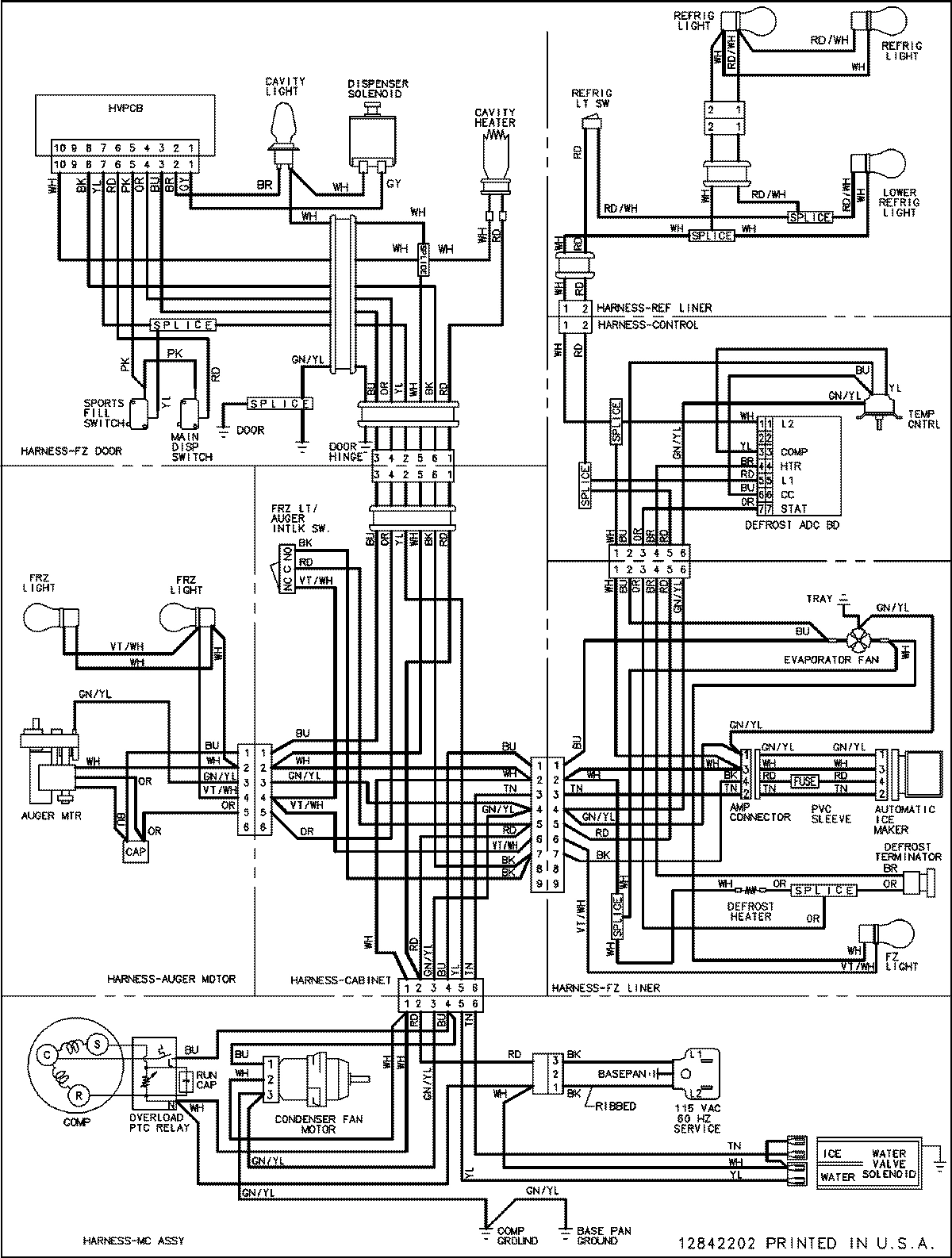

21 - WIRING INFORMATION

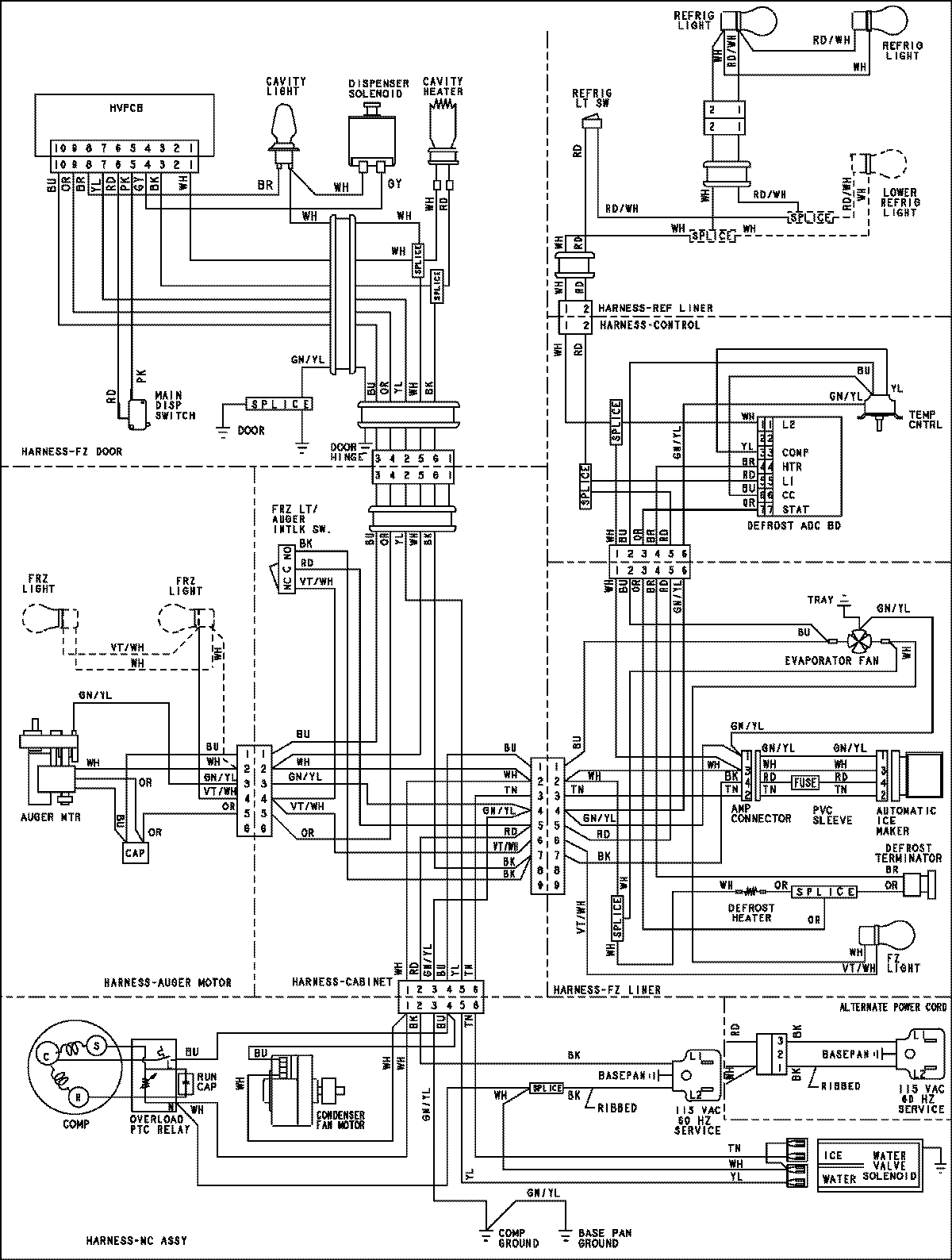

22 - WIRING INFORMATION (SERIES 13)
