GE 911.92502992 Range (Kenmore 91192502992) Parts List

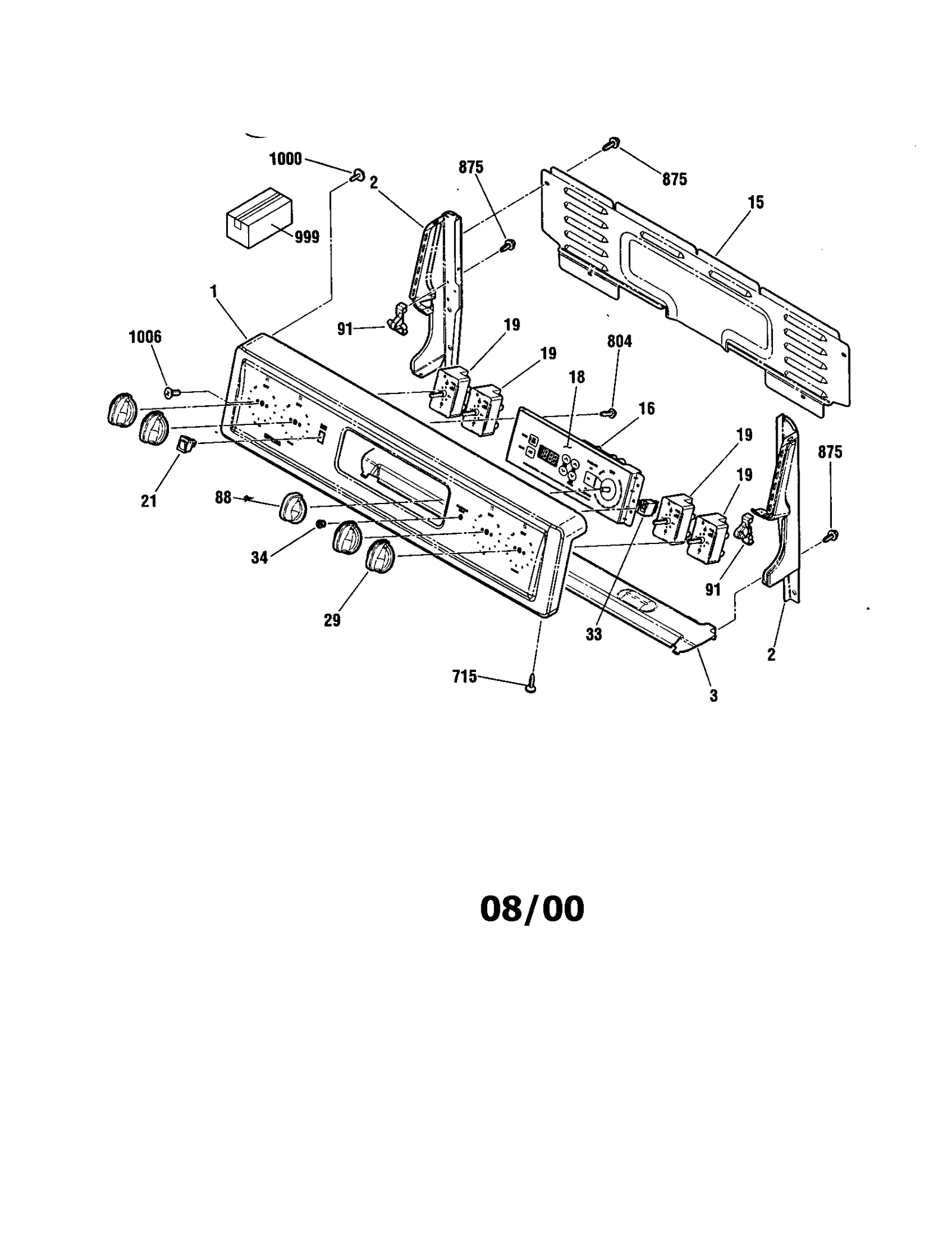

1

Range Control Panel GEN WB36T10238 Contact Us For Availability

View on Model

1A

Control Panel GEN WB36T10239 Contact Us For Availability

View on Model

2

End Cap Rt/w GEN WB36T10232 Contact Us For Availability

View on Model

2A

End Cap Lt/w GEN WB36T10233 Contact Us For Availability

View on Model

2B

End Cap Rt/a GEN WB36T10235 Contact Us For Availability

View on Model

2C

End Cap Lt/a GEN WB36T10236 Contact Us For Availability

View on Model

3

Heat Shield GEN WB02T10022 Contact Us For Availability

View on Model

15

Control Cover GEN WB34T10020 Contact Us For Availability

View on Model

16

Range Oven Control Board GEN WB27T10231 Contact Us For Availability

View on Model

18

Clock Plate GEN WB27T10114 Contact Us For Availability

View on Model

18A

Range Oven Control Overlay GEN WB27T10116 Contact Us For Availability

View on Model

19

WB24T10029 GE Oven Infinite Burner Switch In Stock GEN WB24T10029 $33.34

View on Model

19A

WB24T10025 GE Range Infinite Switch In Stock GEN WB24T10025 $31.06

View on Model

21

WB24T10043 GE Range Rocker Switch Backorder GEN WB24T10043 $19.80

View on Model

21A

Range Oven Light Rocker Switch GEN WB24T10044 Contact Us For Availability

View on Model

29

Range Control Knob GEN WB03T10022 Contact Us For Availability

View on Model

29A

Range Surface Burner Knob GEN WB03T10023 Contact Us For Availability

View on Model

33

WB27T10626 GE Oven Indicator Light Pilot In Stock GEN WB27T10626 $5.22

View on Model

34

Jewel GEN WB25X5054 Contact Us For Availability

View on Model

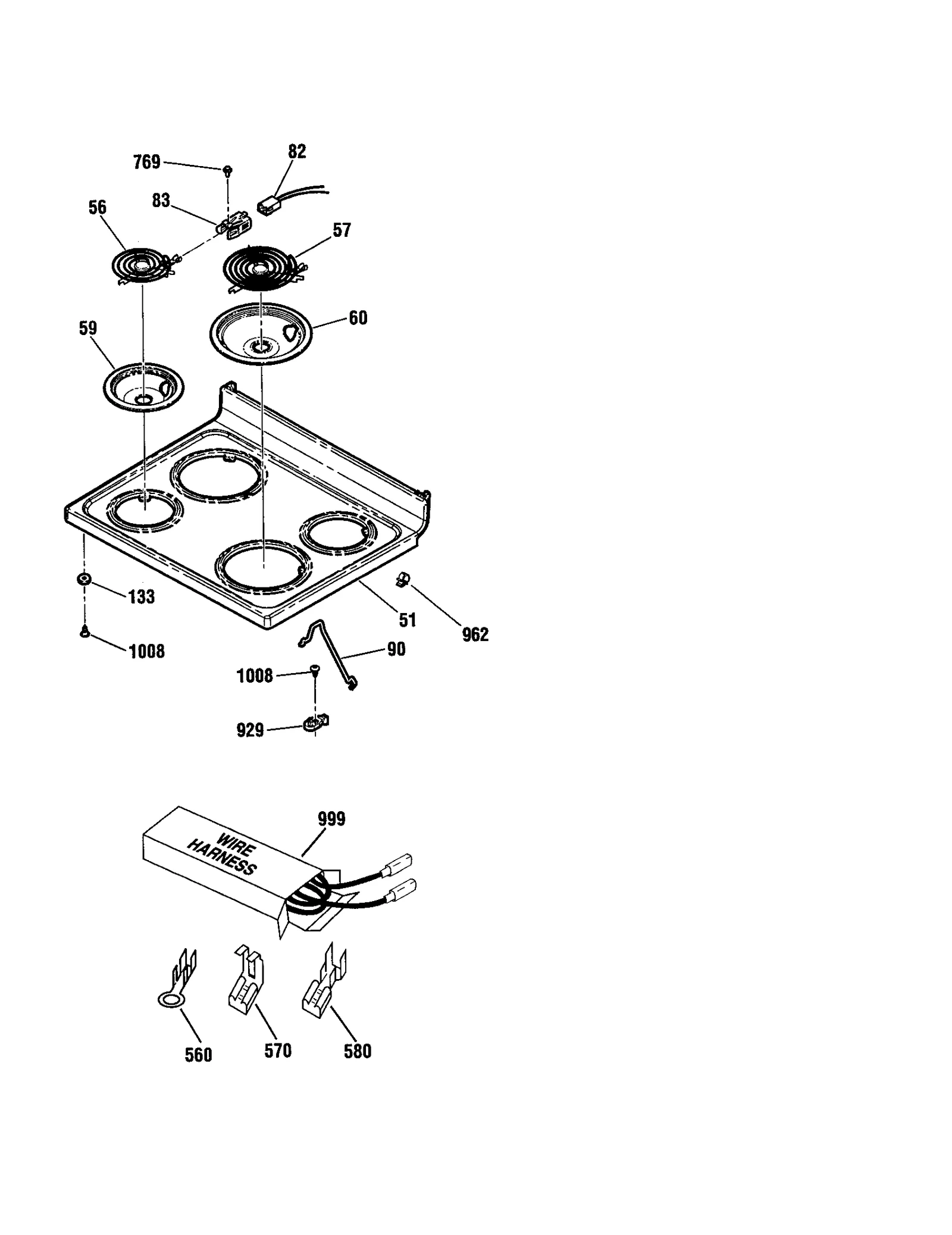

51

Range Main Top (White) GEN WB62T10008 Contact Us For Availability

View on Model

59

WB31T10010 GE Oven 6" Chrome Burner Drip Bowl In Stock GEN WB31T10010 $8.11

View on Model

60

WB31T10011 GE Oven 8" Chrome Drip Bowl Burner In Stock GEN WB31T10011 $10.39

View on Model

88

Range Surface Burner Knob GEN WB03T10060 Contact Us For Availability

View on Model

88A

Knob Cntl To GEN WB03T10061 Contact Us For Availability

View on Model

90

WB02T10025 GE Range Support Bracket In Stock GEN WB02T10025 $6.79

View on Model

91

Main Top Hinge GEN WB10T10002 Contact Us For Availability

View on Model

92

Range Ground Strap GEN WB02T10067 Contact Us For Availability

View on Model

111

WB04T10086 GE Oven Door Gasket In Stock GEN WB04T10086 $40.06

View on Model

131

Range Oven Door Window Seal GEN WB04T10003 Contact Us For Availability

View on Model

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $5.56

View on Model

133

WB01T10026 GE Oven Door Pad Backorder GEN WB01T10026 $5.56

View on Model

133

WB02X29562 GE Range Top Bumper Backorder GEN WB02X29562 $5.58

View on Model

134

Range Oven Door Vent (White) GEN WB07T10099 Contact Us For Availability

View on Model

219

Cover Receptacle GEN WB34T10011 Contact Us For Availability

View on Model

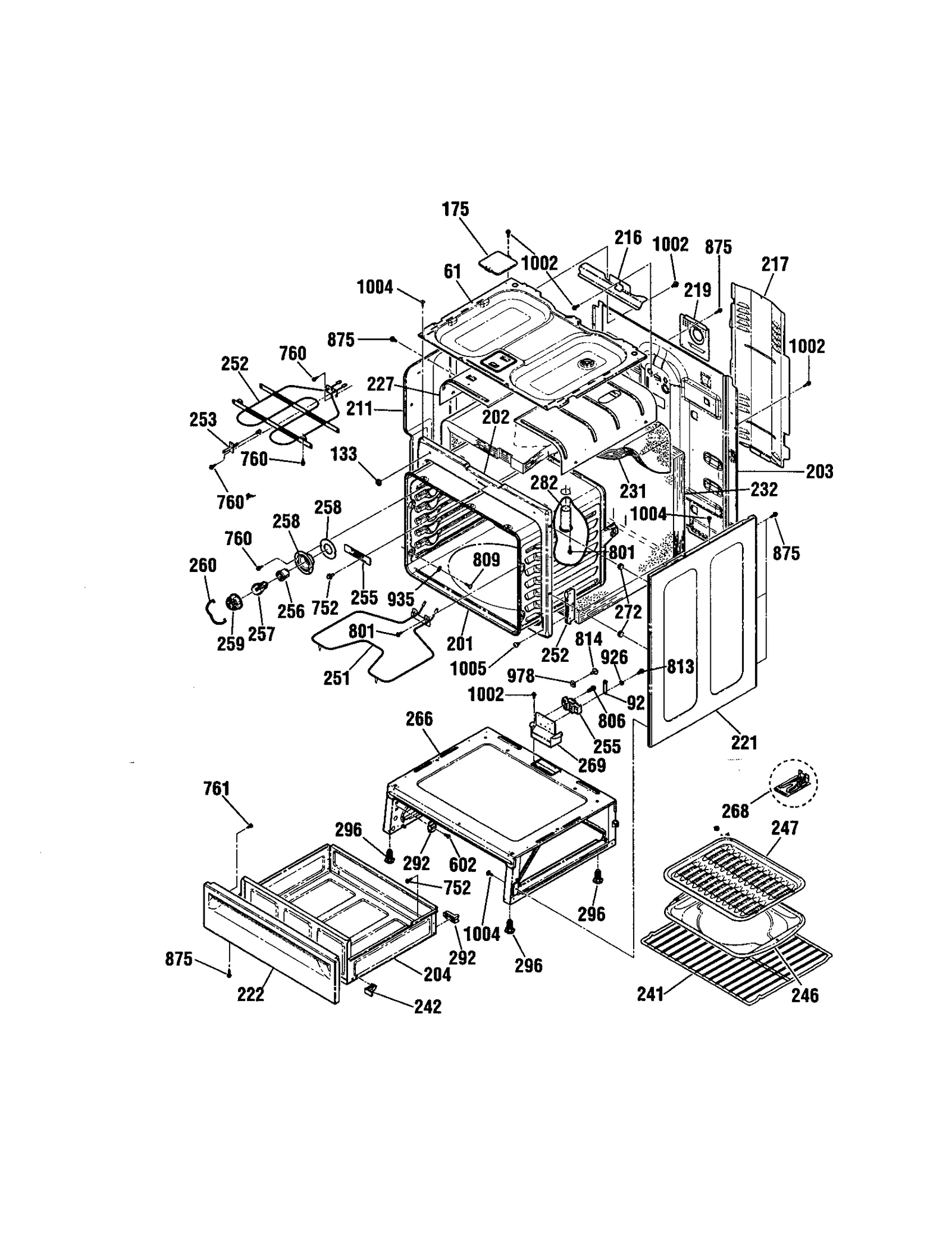

221

Body Side/wh GEN WB63T10048 Contact Us For Availability

View on Model

221A

Body Side Al GEN WB63T10050 Contact Us For Availability

View on Model

222

Drawer Panel GEN WB56T10024 Contact Us For Availability

View on Model

222A

Panel GEN WB56T10015 Contact Us For Availability

View on Model

227

Insulation GEN WB02T10029 Contact Us For Availability

View on Model

231

Oven Insulation GEN WB35T10012 Contact Us For Availability

View on Model

232

WB35T10113 GE Range Insulation Assembly Backorder GEN WB35T10113 $32.08

View on Model

241

WB48T10011 GE Range Shelf Rack In Stock GEN WB48T10011 $47.98

View on Model

242

WB48T10068 GE Oven Wedge Drawer Backorder GEN WB48T10068 $18.10

View on Model

247

WB48X10056 GE Broil Pan Set, Large Porcelain In Stock GEN WB48X10056 $18.60

View on Model

251

WB44T10010 GE Range Bake Element In Stock GEN WB44T10010 $63.48

View on Model

252

WB44T10009 GE Range Broil Element In Stock GEN WB44T10009 $72.44

View on Model

252A

Range Oven Door Hinge Receiver GEN WB10T10005 Contact Us For Availability

View on Model

253

WB23X5340 GE Oven Heat Sensor Probe Assembly In Stock GEN WB23X5340 $98.94

View on Model

255

Range Terminal Block GEN WB17T10003 Contact Us For Availability

View on Model

256

WB08T10026 GE Range Push-In Receptacle In Stock GEN WB08T10026 $5.78

View on Model

257

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

View on Model

258

WB02T10027 GE Range Gasket Backorder GEN WB02T10027 $5.56

View on Model

258A

WB02T10037 GE Oven Light Cup Backorder GEN WB02T10037 $5.56

View on Model

259

WB36X192 GE Oven Light Cover In Stock GEN WB36X192 $10.65

View on Model

260

Bail GEN WB02X7694 Contact Us For Availability

View on Model

266

Base Rivet A GEN WB39T10001 Contact Us For Availability

View on Model

268

WB02T10415 GE Oven Anti-Tip Bracket Assembly Backorder GEN WB02T10415 $28.49

View on Model

269

Terminal Box GEN WB17T10002 Contact Us For Availability

View on Model

272

WB02T10034 GE Oven Body Side Support Backorder GEN WB02T10034 $5.56

View on Model

281

Range Oven Door Hinge GEN WB10T10006 Contact Us For Availability

View on Model

282

WB38X33649 GE Vent Tube Backorder GEN WB38X33649 $15.24

View on Model

292

WB48T10013 GE Oven Drawer Support In Stock GEN WB48T10013 $5.56

View on Model

292A

Drawer Support GEN WB02T10031 Contact Us For Availability

View on Model

296

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $9.68

View on Model

602

Screw-12-pk GEN WH02X0941 Contact Us For Availability

View on Model

696

Range Screw GEN WB01T10013 Contact Us For Availability

View on Model

715

WD2X433 GE Dishwasher Trim Screw Backorder GEN WD2X433 $5.20

View on Model

715A

WD2X434 GE Dishwasher Trim Screw Backorder GEN WD2X434 $4.58

View on Model

752

WB1K5200 GE Oven Screw 340531 Backorder GEN WB1K5200 $5.56

View on Model

760

WB1X536 GE Oven Screw Backorder GEN WB1X536 $6.79

View on Model

761

WB1K5062 GE Oven Screw Backorder GEN WB1K5062 $5.56

View on Model

801

WB1M1 GE Oven Screw Backorder GEN WB1M1 $5.34

View on Model

804

WB1X681 GE Oven Screw Backorder GEN WB1X681 $5.56

View on Model

806

WH2X1186 GE Screw Backorder GEN WH2X1186 $5.56

View on Model

809

WB1X1137 GE Oven Screw Backorder GEN WB1X1137 $5.56

View on Model

813

WB1X1261 GE Oven Screw Backorder GEN WB1X1261 $5.56

View on Model

814

Screw GEN WB01X5967 Contact Us For Availability

View on Model

875

WH2X930 GE Screw Backorder GEN WH2X930 $5.56

View on Model

919

Spacer GEN WB02T10035 Contact Us For Availability

View on Model

926

GROUND WASHER GEN WB01X1260 Contact Us For Availability

View on Model

929

WB02T10026 GE Oven Strike Maintop Backorder GEN WB02T10026 $5.56

View on Model

935

WB1K5174 GE Oven Washer Backorder GEN WB1K5174 $5.56

View on Model

978

Nut 10-32 GEN WB01X5968 Contact Us For Availability

View on Model

999

Technical Instruction GEN 31-13657 Contact Us For Availability

View on Model

999A

Range Wire Harness GEN WB18T10052 Contact Us For Availability

View on Model

999A

Sear GEN SR10412 Contact Us For Availability

View on Model

999B

Owner's Manual GEN SR10439 Contact Us For Availability

View on Model

999C

Parts List GEN 31-13817 Contact Us For Availability

View on Model

999D

Installation Instructions GEN 31-10301 Contact Us For Availability

View on Model

999E

Installation Instructions GEN 31-10415 Contact Us For Availability

View on Model

1000

WB01T10016 GE Oven Screw 8-18 AB Hex Backorder GEN WB01T10016 $5.20

View on Model

1002

WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS Backorder GEN WB01T10017 $5.56

View on Model

1003

Scr 10-16 Pl GEN WB01T10018 Contact Us For Availability

View on Model

1004

Screw, #8-18 GEN WB01T10019 Contact Us For Availability

View on Model

1004A

WB01T10037 GE Screw 8-18 7/16" Backorder GEN WB01T10037 $5.56

View on Model

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $5.56

View on Model

1006

WB01X23501 GE Oven Screw 8-32 Tapping Flat He Backorder GEN WB01X23501 $5.56

View on Model
