Model GE 911.45468095 Electric Range (Kenmore 91145468095) – Common Parts & Diagrams
CONTROL PANEL
DOOR

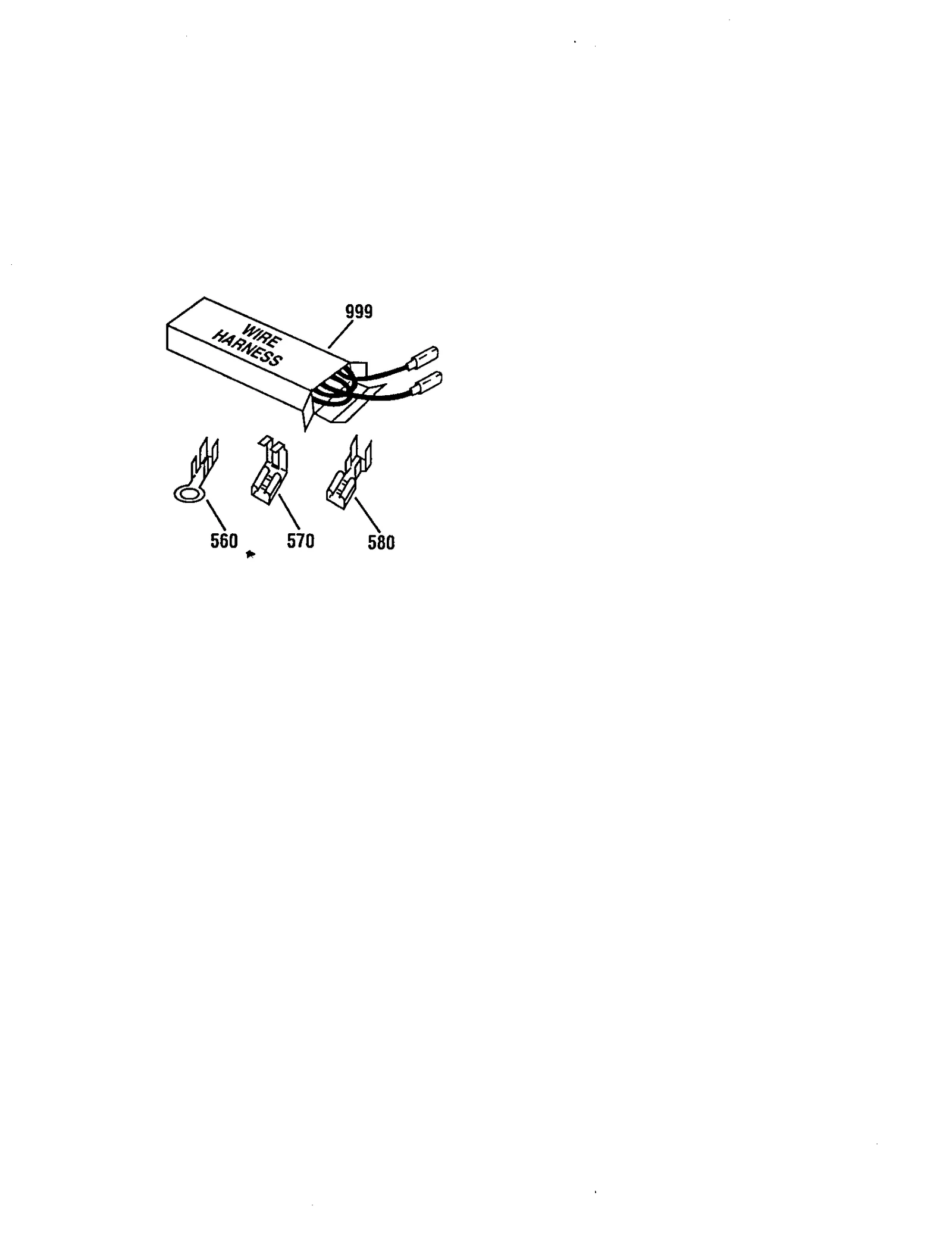

WIRE HARNESSES AND WIRE COMPONENTS

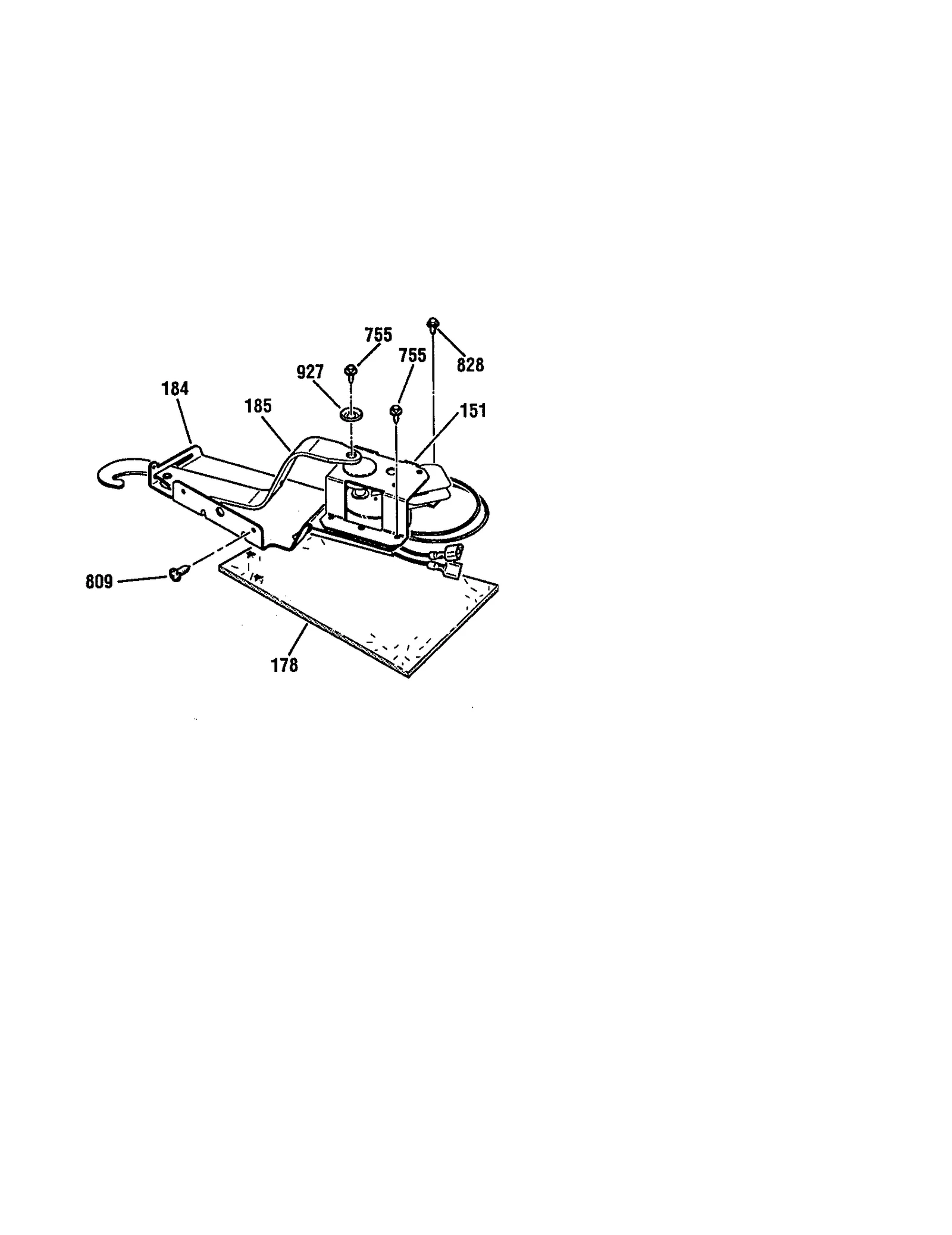

DOOK LOCK

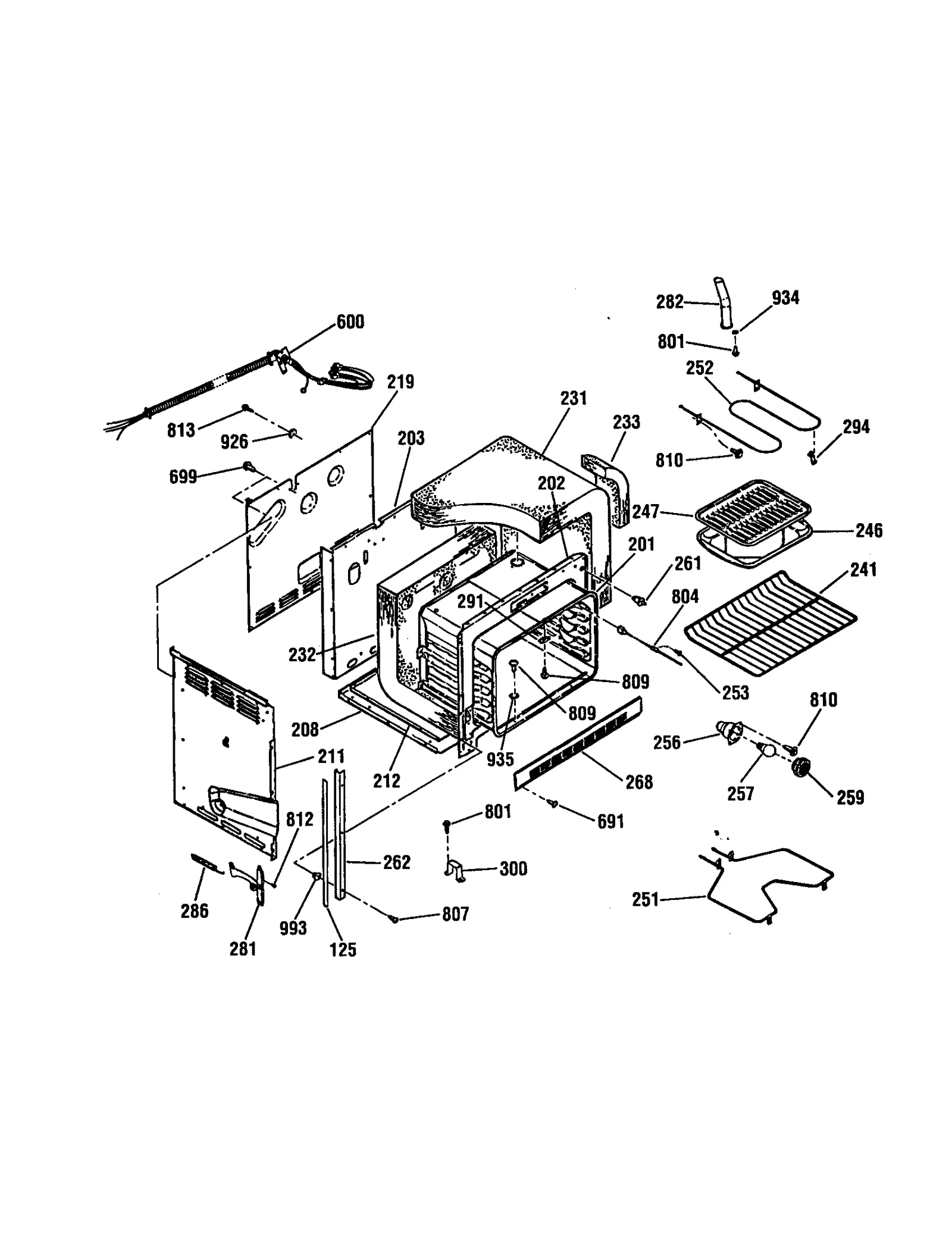

BODY

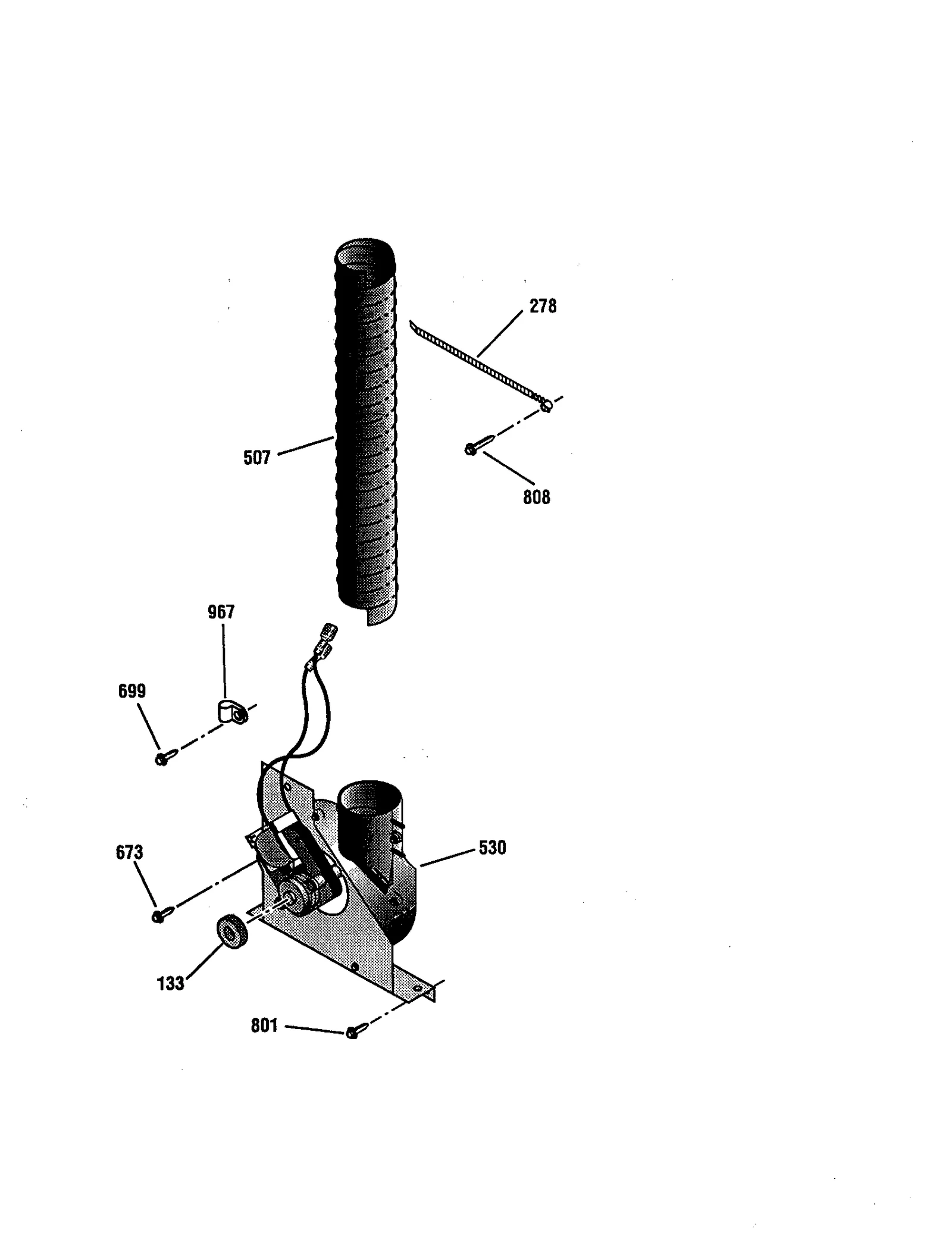

BLOWER

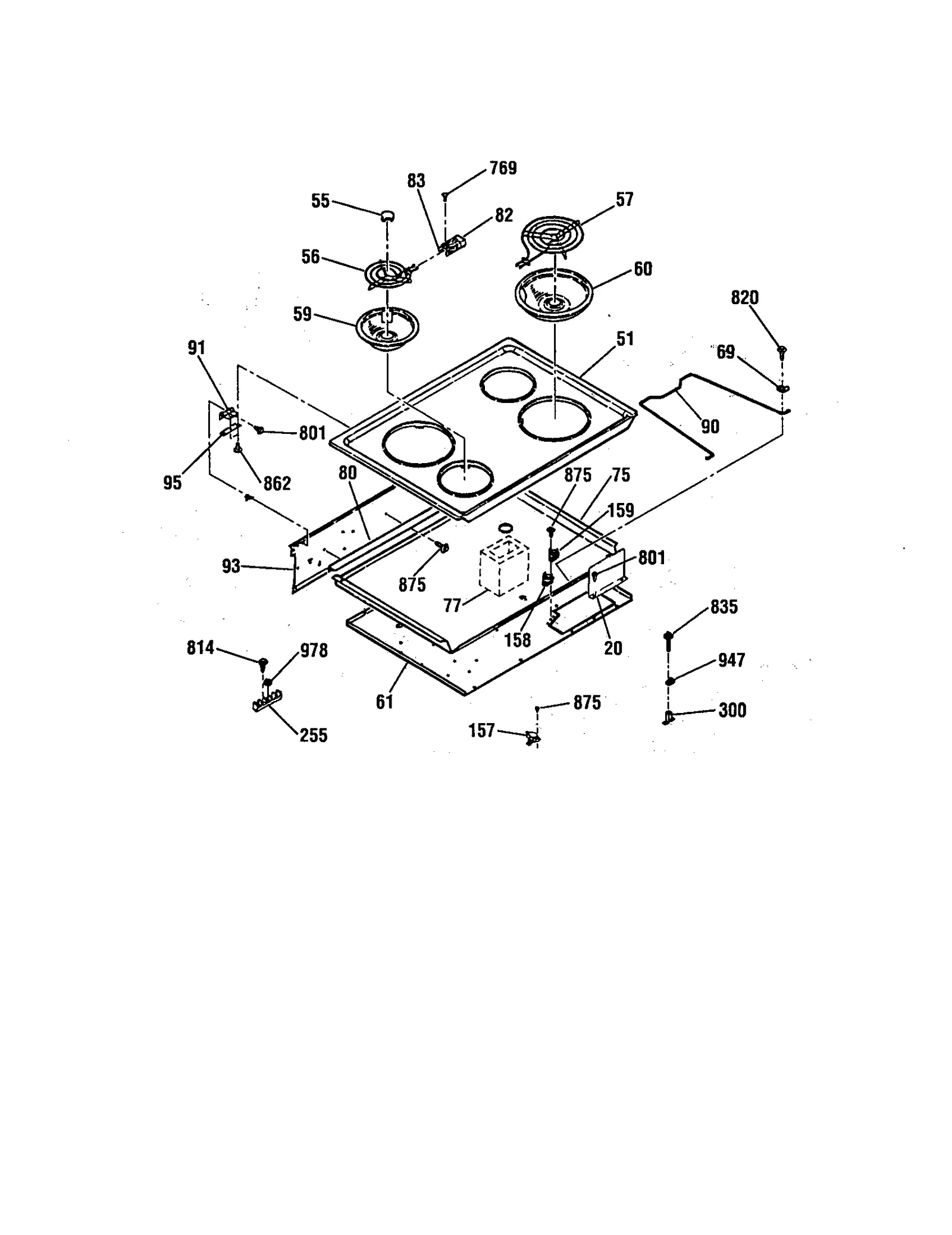

MAINTOP
Common parts from model GE 911.45468095 Electric Range (Kenmore 91145468095)
2
End Cap GEN WB36K5402 Contact Us For Availability
18
Range Oven Control Overlay (Black) GEN WB27T10193 Contact Us For Availability
20
Bracket GEN WB02K5239 Contact Us For Availability
51
Main Top Wh GEN WB62K5051 Contact Us For Availability
51A
Main Top Ad GEN WB62K5052 Contact Us For Availability
55
Medallion GEN WB32K5049 Contact Us For Availability
56
Range Coil Surface Element, 6-in GEN WB30K5034 Contact Us For Availability
57
Range Coil Surface Element, 8-in GEN WB30K5035 Contact Us For Availability
61
Burner Box GEN WB64K5042 Contact Us For Availability
71
Insulation GEN WB02X9888 Contact Us For Availability
72
Insulation Control Cover GEN WB06X0006 Contact Us For Availability
75
Burner Box GEN WB63T10026 Contact Us For Availability
77
Vent Seal GEN WB02X9895 Contact Us For Availability
80
Shield GEN WB02X9570 Contact Us For Availability
83
Range Surface Element Receptacle Support GEN WB01T10014 Contact Us For Availability
90
Mt Supp Rod GEN WB02M0084 Contact Us For Availability
91
Cooktop Hinge GEN WB14X0136 Contact Us For Availability
93
Wire Cover GEN WB02X9569 Contact Us For Availability
95
Hinge Bracket GEN WB02X9568 Contact Us For Availability
102
Oven Drive Insulation GEN WB35K5026 Contact Us For Availability
112
Door Liner GEN WB55T10018 Contact Us For Availability
113
Retainer GEN WB56X1910 Contact Us For Availability
114
Glass Retainer GEN WB02M0001 Contact Us For Availability
116
Plate GEN WB02X9178 Contact Us For Availability
121
Range Oven Door Outer Panel (Black) GEN WB57T10110 Contact Us For Availability
122
Range Oven Door Middle Glass GEN WB57K5102 Contact Us For Availability
123
Range Oven Door Middle Glass GEN WB56X1907 Contact Us For Availability
125
Sd Trim Insu GEN WB35K5099 Contact Us For Availability
126
Button Plug GEN WB02X1125 Contact Us For Availability
133
Felt Washer GEN WB01X1159 Contact Us For Availability
136
Oven Door Handle GEN WB15T10032 Contact Us For Availability
140
Oven Door Frame GEN WB55K5054 Contact Us For Availability
147
Door Handle Spacer, Black GEN WB02K5312 Contact Us For Availability
158
Range Control Panel Cooling Fan Thermal Switc GEN WB24K5086 Contact Us For Availability
159
Fan Limit Switch GEN WB24M0015 Contact Us For Availability
178
Lock Motor Insert GEN WB35M0023 Contact Us For Availability
201
Oven Body GEN WB63T10002 Contact Us For Availability
202
Frame GEN WB63T10029 Contact Us For Availability
203
Main Bk Asm GEN WB63K5142 Contact Us For Availability
208
Main GEN WB63K5139 Contact Us For Availability
211
Ins Ret Sd L GEN WB02K5195 Contact Us For Availability
211A
Ins Ret Sd R GEN WB02K5196 Contact Us For Availability
212
Insul Ret Lo GEN WB02K5122 Contact Us For Availability
219
Wire Cover GEN WB34K5134 Contact Us For Availability
231
Top&sd Insul GEN WB35M0022 Contact Us For Availability
232
Oven Insulation GEN WB35K5113 Contact Us For Availability
233
Insulation GEN WB02X9718 Contact Us For Availability
241
Oven Rack GEN WB48X0208 Contact Us For Availability
255
Junction Blk GEN WB17X0215 Contact Us For Availability
257
"F" LAMP F25T12/CW/33 (BUY LOCAL) GEN N/P Contact Us For Availability
262
Sd Trim Lt GEN WB07K5292 Contact Us For Availability
262A
Sd Trim Rt GEN WB07K5291 Contact Us For Availability
268
Side Trim GEN WB07K8293 Contact Us For Availability
278
Hose Clamp GEN WB02K5102 Contact Us For Availability
281
Range Oven Door Hinge, Left GEN WB10K5018 Contact Us For Availability
281A
Hinge Assembly GEN WB10K5017 Contact Us For Availability
282
Vent Tube GEN WB38X0124 Contact Us For Availability
286
Oven Drive Spring GEN WB09M0001 Contact Us For Availability
291
COVER GEN WB02X9152 Contact Us For Availability
300
Bridge Spacer GEN WB02M0086 Contact Us For Availability
300
Spacer GEN WB02X9896 Contact Us For Availability
507
Flex Hose GEN WB26M0017 Contact Us For Availability
530
Range Blower GEN WB26K5070 Contact Us For Availability
560
Eyelet Terminal GEN WB18M0001 Contact Us For Availability
570
250 Flag GEN STD374251 Contact Us For Availability
580
187 Push On GEN STD374180 Contact Us For Availability
580A
250 Push On GEN STD374250 Contact Us For Availability
600
Conduit Wiring Harness GEN WB18K5368 Contact Us For Availability
673
SCREW TORQUE LIMITING GEN WB01T10003 Contact Us For Availability
802
SCREW GEN WB01K5123 Contact Us For Availability
812
Screw Black GEN WB01K5160 Contact Us For Availability
835
Screw-10-32 GEN WB01X1123 Contact Us For Availability
862
SCREW GEN WB01X1178 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
934
Washer GEN WB01K5054 Contact Us For Availability
947
Cable Clip GEN WB01K5043 Contact Us For Availability
967
Clip GEN WB02X9894 Contact Us For Availability
987
Speed Nut GEN WB01X1311 Contact Us For Availability
993
Spacer GEN WB02X9575 Contact Us For Availability
999
Installation Instructions GEN SR10183 Contact Us For Availability
999
Wire Harness GEN WB18T10128 Contact Us For Availability
999A
MANUAL MINI & WD ASM GEN 31-13757 Contact Us For Availability
999A
Main Top Wire GEN WB18T10136 Contact Us For Availability
999B
Owner's Manual GEN SR10446 Contact Us For Availability
999B
Wire Harness GEN WB18T10129 Contact Us For Availability
999C
Parts List GEN 31-13773 Contact Us For Availability
999C
WIRE HARNESS ERC GEN WB18T10133 Contact Us For Availability
× ![]()
