Model Whirlpool 8ED27DQXAN00 REFRIGERATOR – Common Parts & Diagrams

WPL  1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
WPL  LIT2167328
WPL LIT2167328 WPL LIT2167328 Contact Us For Availability
View on Model
WPL  LIT2170152
WPL LIT2170152 WPL LIT2170152 Contact Us For Availability
View on Model
WPL  LIT628370
WPL LIT628370 WPL LIT628370 Contact Us For Availability
View on Model
1

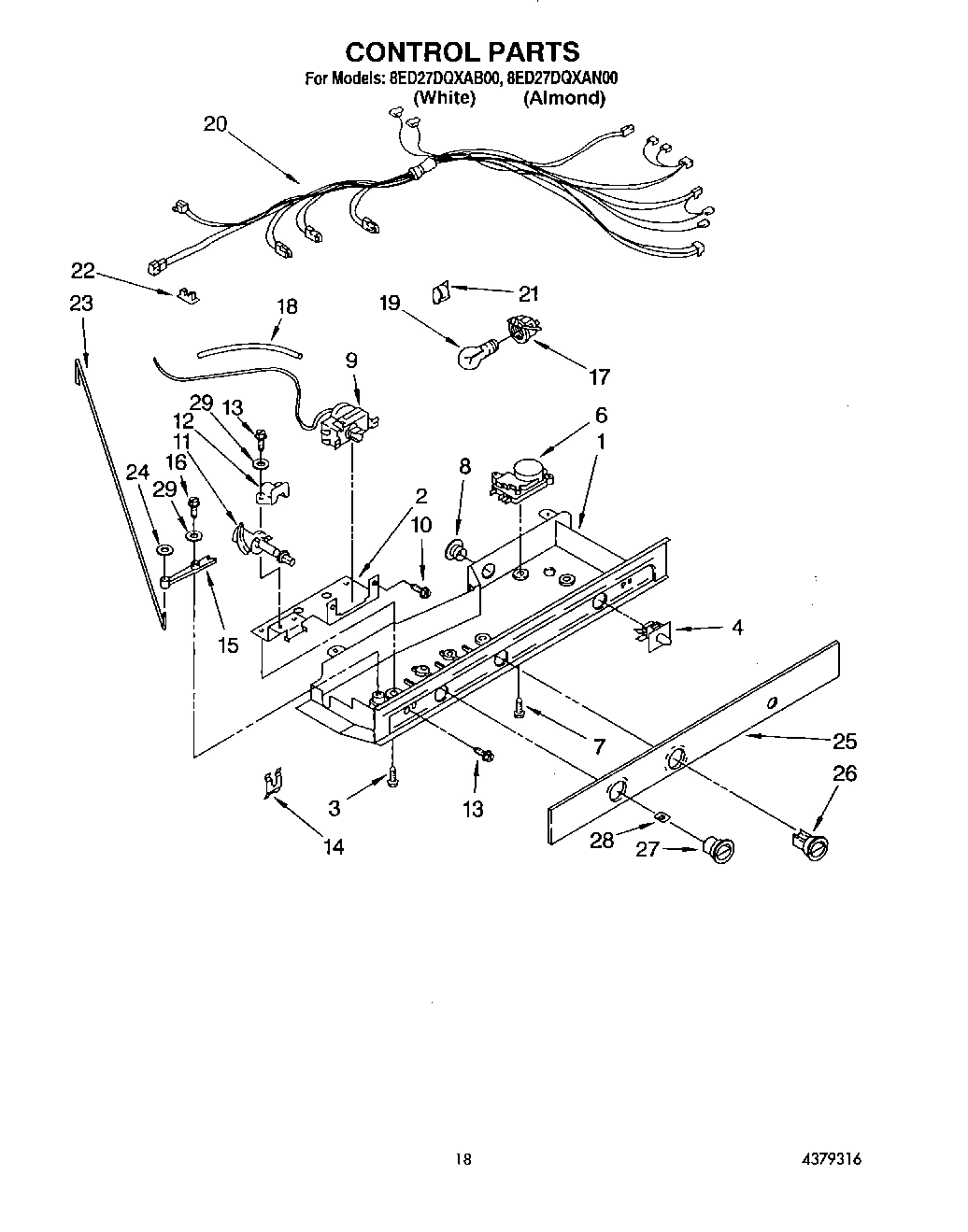

Control Box
Control Box WPL 2169147 Contact Us For Availability
View on Model
1

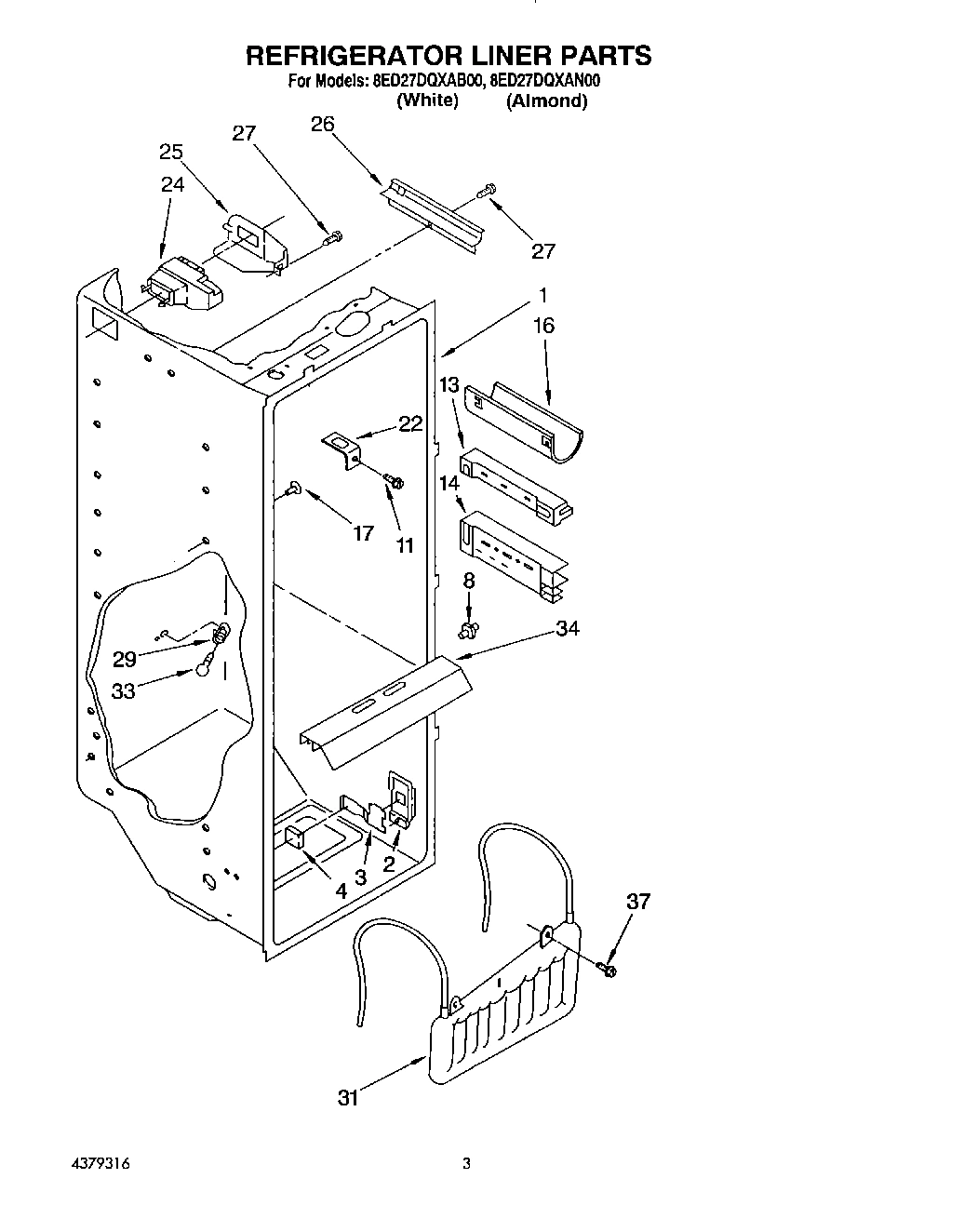

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI18367A2 Contact Us For Availability
View on Model
1

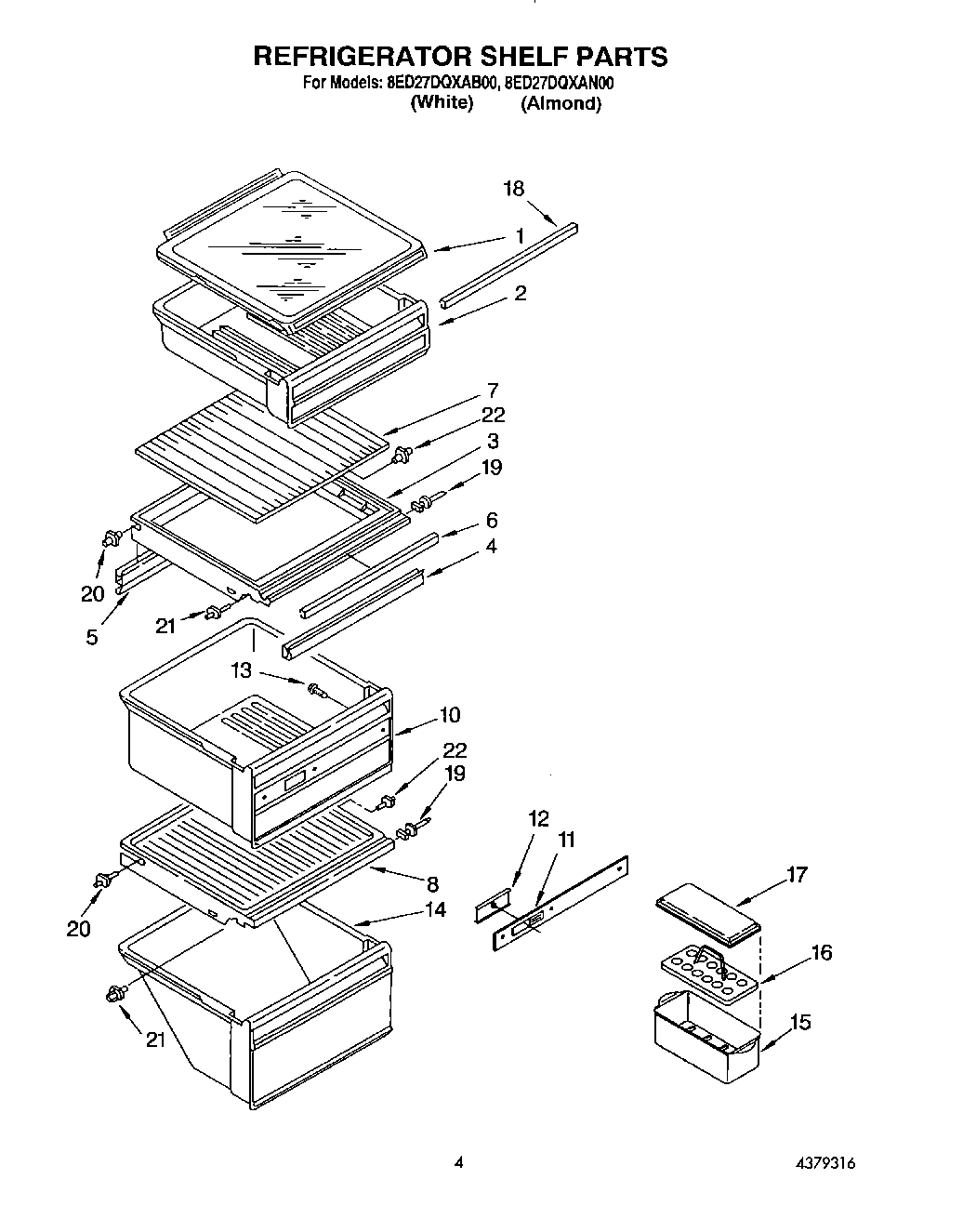

Shelf Assembly, Glass Sliding (3)
Shelf Assembly, Glass Sliding (3) WPL 2162991 Contact Us For Availability
View on Model
2

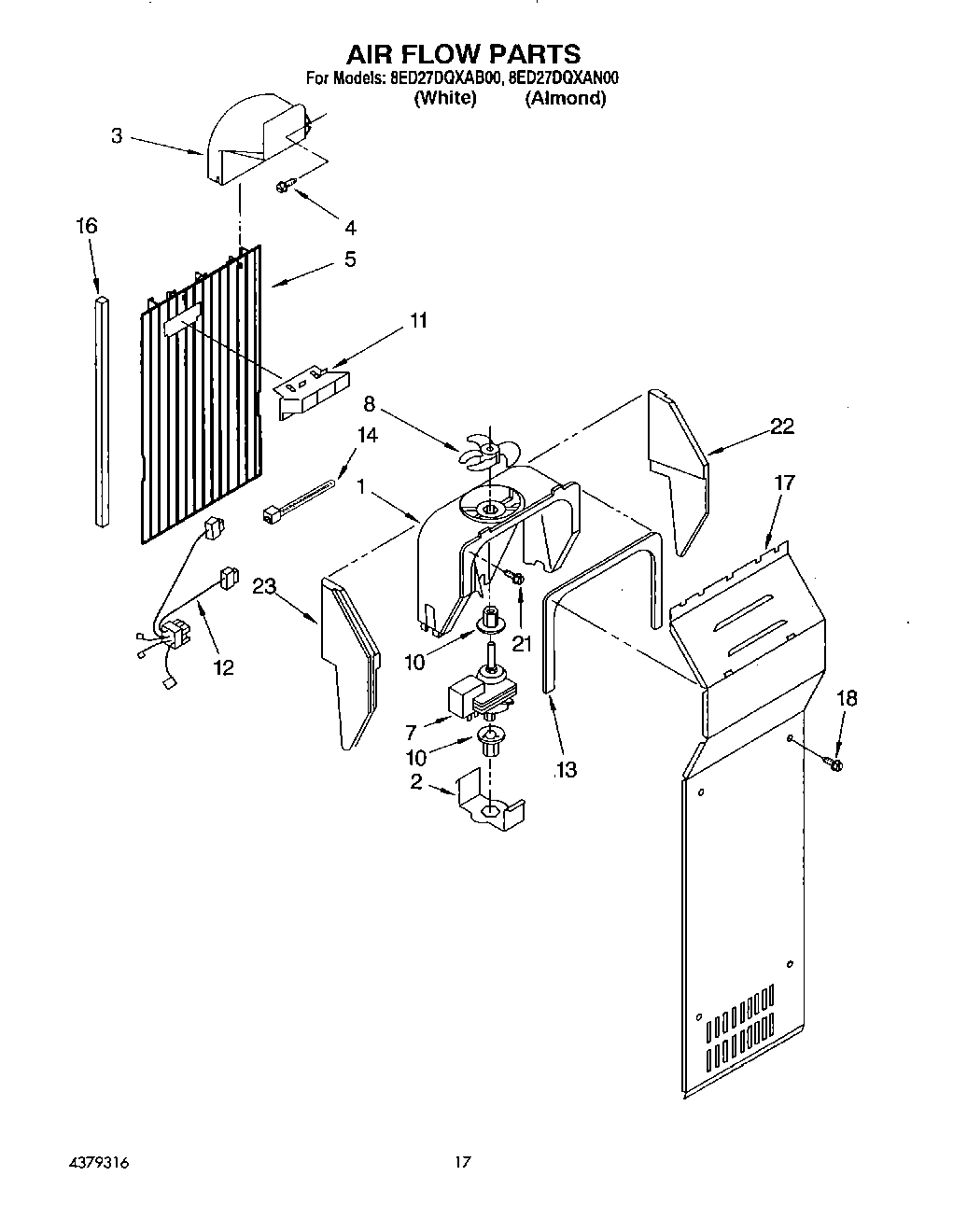

Fan, Blade
Fan, Blade WPL 1108179 Contact Us For Availability
View on Model
2
Mounting Bracket
Mounting Bracket WPL 1110629 Contact Us For Availability
View on Model
2
Handle, Center (White)
Handle, Center (White) WPL 1124713 Contact Us For Availability
View on Model
2
Handle, Center (Almond)
Handle, Center (Almond) WPL 943079 Contact Us For Availability
View on Model
2
Escutcheon, Meat Pan Control
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
View on Model
2
Front Roller (2)
Front Roller (2) WPL 2152011 Contact Us For Availability
View on Model
2
Snack Bin
Snack Bin WPL 2170578 Contact Us For Availability
View on Model
3
End Cap (2)
End Cap (2) WPL 1119359 Contact Us For Availability
View on Model
3
Screw (2)
Screw (2) WPL 489397 Contact Us For Availability
View on Model
3
Slide, Meat Pan Control
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
View on Model
3

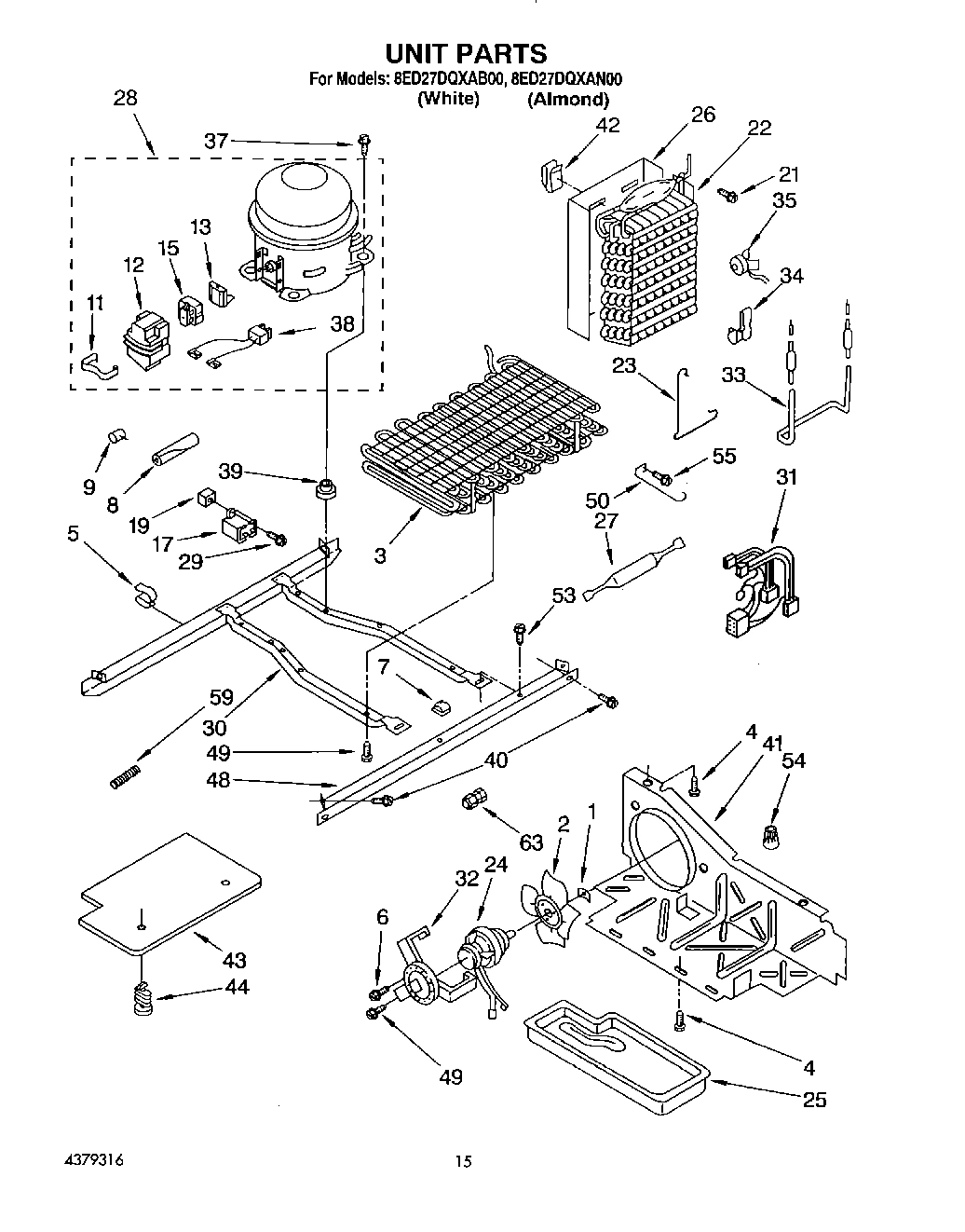

Condenser Assembly
Condenser Assembly WPL 2164504 Contact Us For Availability
View on Model
3
Screw
Screw WPL 489393 Contact Us For Availability
View on Model
3
Air Scoop
Air Scoop WPL 2161231 Contact Us For Availability
View on Model
4
Pad, Foam
Pad, Foam WPL 992358 Contact Us For Availability
View on Model
4
Gasket, Crisper (Front)
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
View on Model
4

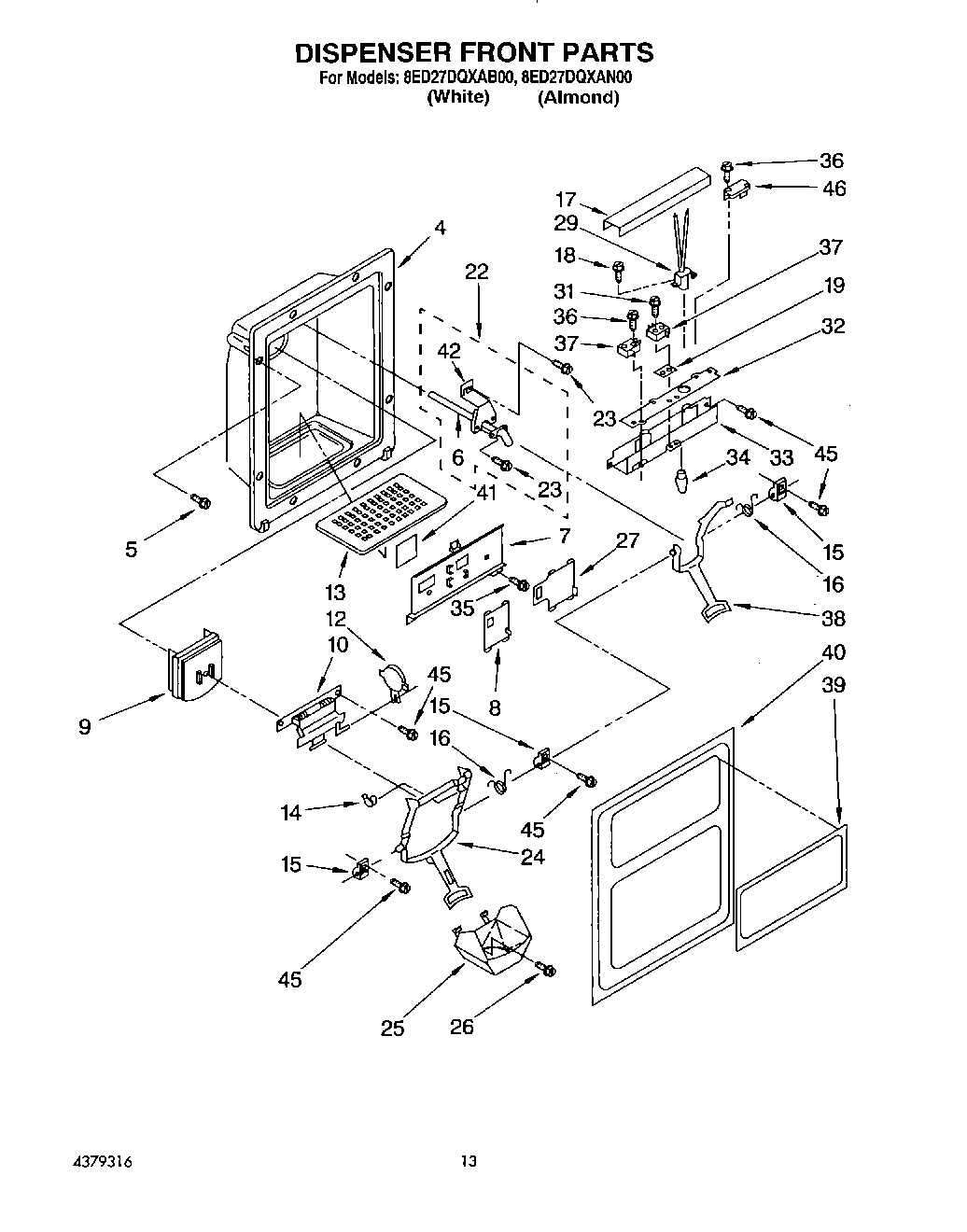

Housing, Dispenser (Not a Serviceable Part)
Housing, Dispenser (Not a Serviceable Part) WPL ARI18369A5 Contact Us For Availability
View on Model
5
Shim, End Cap (2)
Shim, End Cap (2) WPL 935075 Contact Us For Availability
View on Model
5
Clip, Wire
Clip, Wire WPL 2155658 Contact Us For Availability
View on Model
5
Screw,
Screw, WPL 488454 Contact Us For Availability
View on Model
5
Gasket, Crisper (Rear)
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
View on Model
5

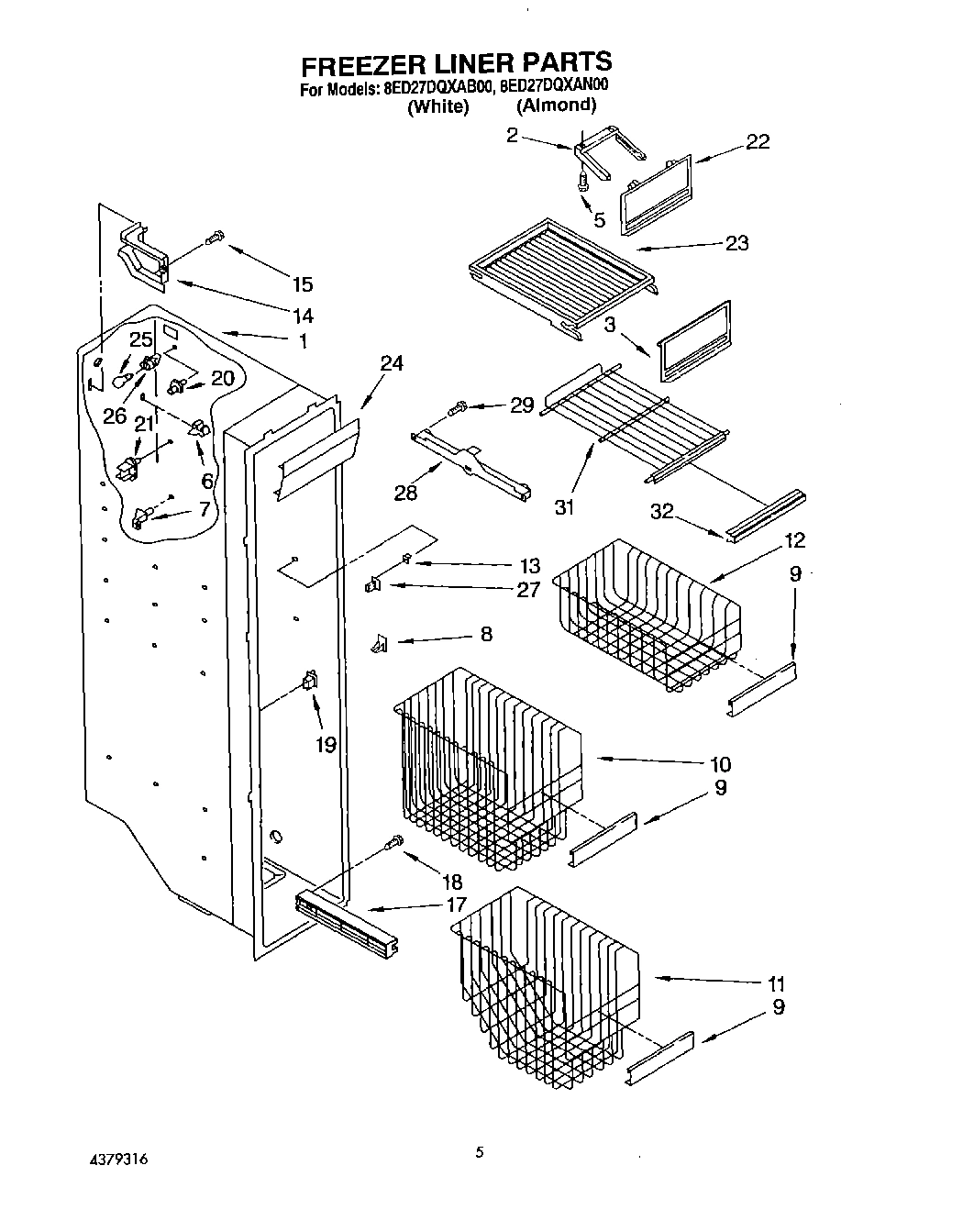

Air Duct Freezer
Air Duct Freezer WPL 2155575 Contact Us For Availability
View on Model
6
Divider, Shelf
Divider, Shelf WPL 1123293 Contact Us For Availability
View on Model
6
Defrost Timer
Defrost Timer WPL 2162046 Contact Us For Availability
View on Model
6
Trim, Crisper Cover
Trim, Crisper Cover WPL 2162845 Contact Us For Availability
View on Model
6
Tube, Water (See Item No.22)
Tube, Water (See Item No.22) WPL ARI18370A2 Contact Us For Availability
View on Model
7
Shelf Bin (4)
Shelf Bin (4) WPL 2170537 Contact Us For Availability
View on Model
7
Clip, Tube (3)
Clip, Tube (3) WPL 934011 Contact Us For Availability
View on Model
7
Glass, Crisper Cover
Glass, Crisper Cover WPL 2162983 Contact Us For Availability
View on Model
7
Frame, Slides (White)
Frame, Slides (White) WPL 2152717 Contact Us For Availability
View on Model
7
Frame, Slides (Almond)
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
View on Model
8
Slide, Cube/Crush Switch (White)
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
View on Model
8
Slide, Cube/Crush Switch (Almond)
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
View on Model
9

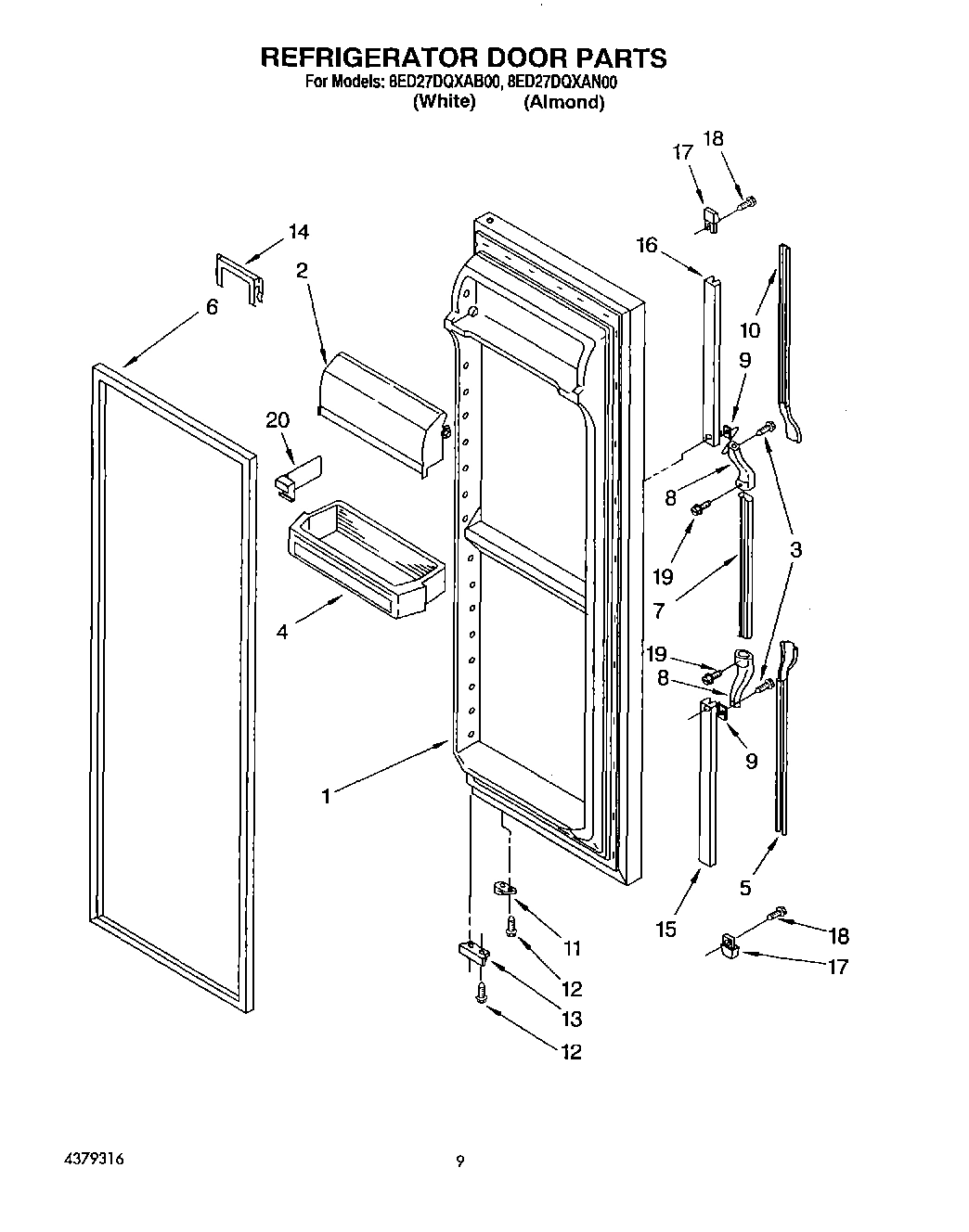

Trim, Door Shelf
Trim, Door Shelf WPL 2162844 Contact Us For Availability
View on Model
9
Shim
Shim WPL 836196 Contact Us For Availability
View on Model
10
Pan, Crisper
Pan, Crisper WPL 2162860 Contact Us For Availability
View on Model
10

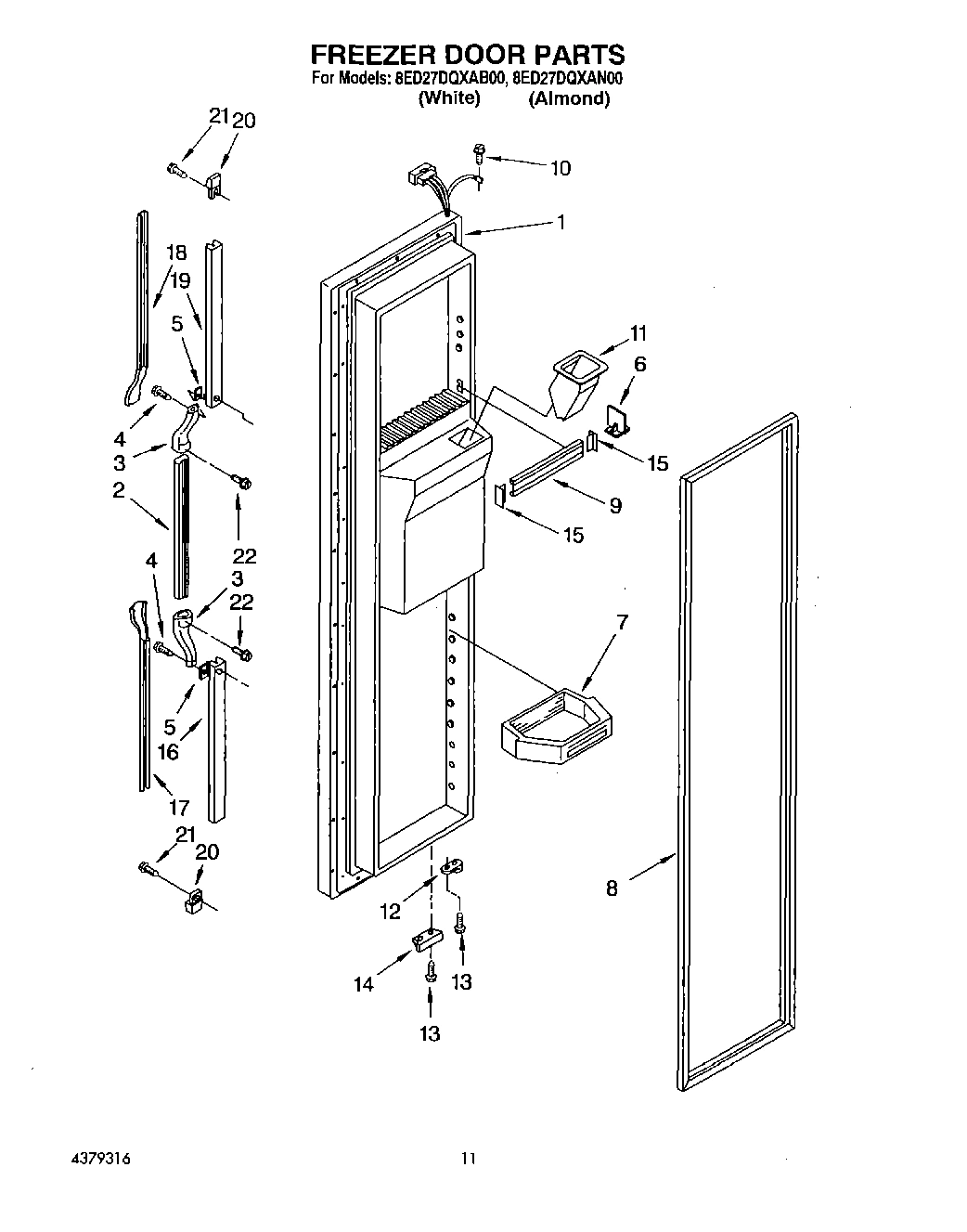

Door Mechanism Assembly (Includes Item 9)
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
View on Model
10
Grommet, Fan (2)
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
View on Model
11

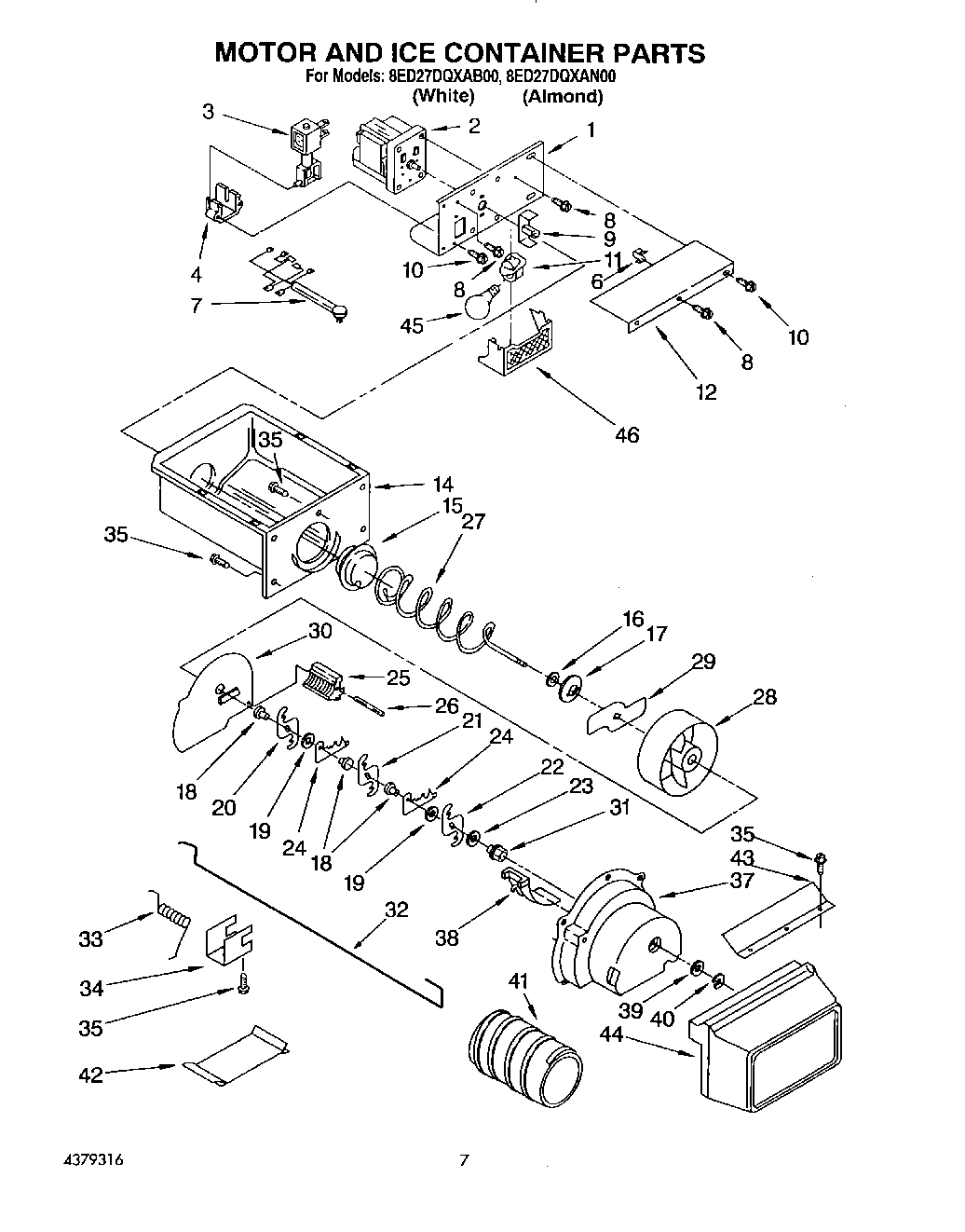

Chute, Ice
Chute, Ice WPL 2156145 Contact Us For Availability
View on Model
11
Cam Assembly
Cam Assembly WPL 2161250 Contact Us For Availability
View on Model
11
Strap (Service)
Strap (Service) WPL 938384 Contact Us For Availability
View on Model
11
Strap (Production)
Strap (Production) WPL 943322 Contact Us For Availability
View on Model
11
Front, Crisper Pan
Front, Crisper Pan WPL 2162854 Contact Us For Availability
View on Model
12
Cover (Production)
Cover (Production) WPL 1105055 Contact Us For Availability
View on Model
12
Cover (Service)
Cover (Service) WPL 1108115 Contact Us For Availability
View on Model
12
Slide, Humidity Control
Slide, Humidity Control WPL 2162849 Contact Us For Availability
View on Model
12
Harness, Fan Evaporrator, And Heater, Bi-Meta
Harness, Fan Evaporrator, And Heater, Bi-Meta WPL 2161327 Contact Us For Availability
View on Model
13
Track, Shelf (Right Side (3))
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
View on Model
13
Track, Shelf (Left Side (3))
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
View on Model
13
Shim, Hinge Top
Shim, Hinge Top WPL 1123515 Contact Us For Availability
View on Model
13
Screw (3)
Screw (3) WPL 489268 Contact Us For Availability
View on Model
13
Grille, Overflow (White)
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
View on Model
13
Grille, Overflow (Almond)
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
View on Model
13

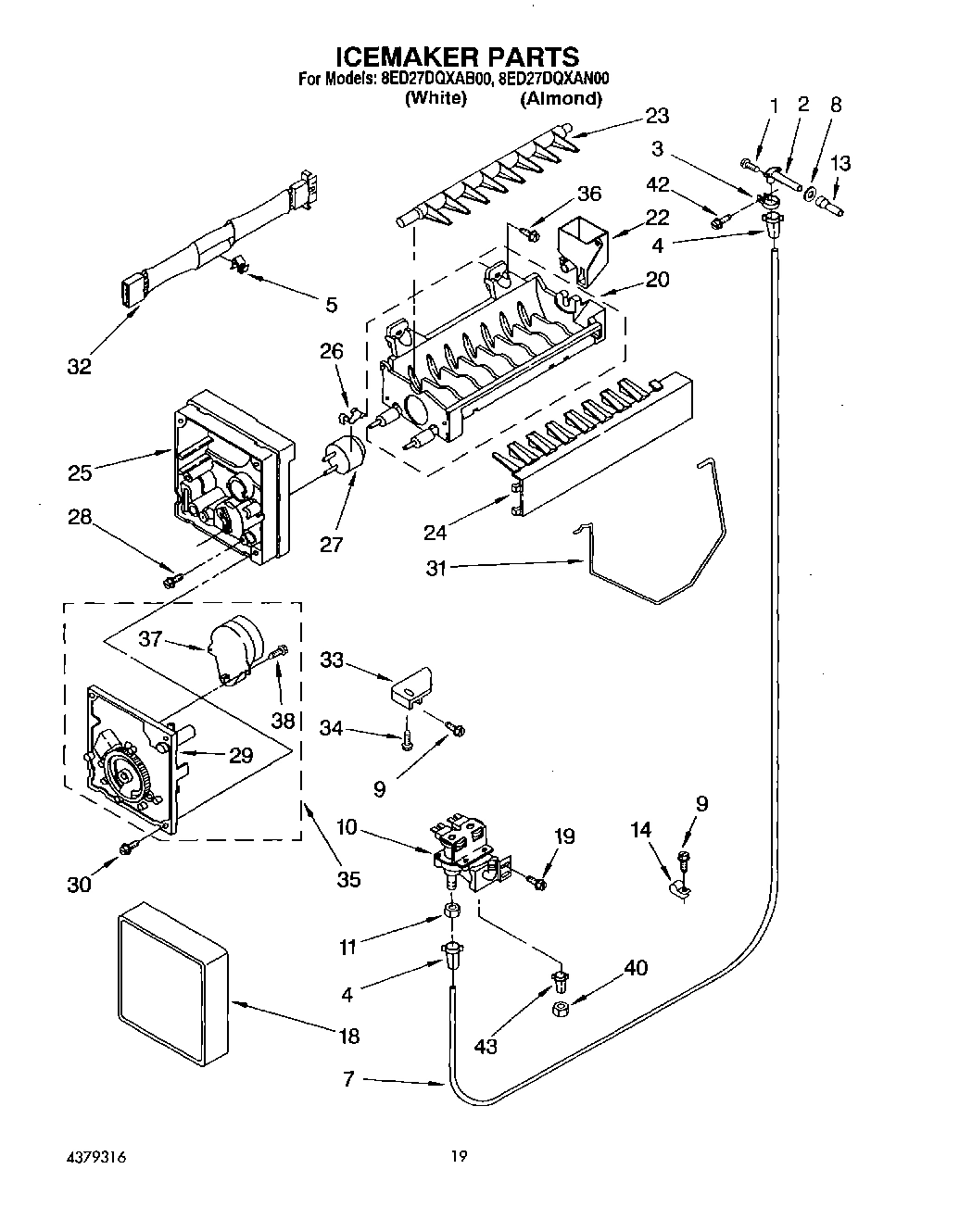

Tube, Water Inlet
Tube, Water Inlet WPL 2155247 Contact Us For Availability
View on Model
14
Track, Shelf (Right Side)
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
View on Model
14
Bracket, Door Stop
Bracket, Door Stop WPL 2155331 Contact Us For Availability
View on Model
14
Retainer, Damper
Retainer, Damper WPL 938439 Contact Us For Availability
View on Model
14
Screw
Screw WPL 489284 Contact Us For Availability
View on Model
14
Meat Pan
Meat Pan WPL 2162932 Contact Us For Availability
View on Model
14
Clip, Bearing (2)
Clip, Bearing (2) WPL 987917 Contact Us For Availability
View on Model
15
Pivot Arm
Pivot Arm WPL 1110559 Contact Us For Availability
View on Model
15
Relay (See Overload)
Relay (See Overload) WPL ARI18371A8 Contact Us For Availability
View on Model
15
Bearing, Lever (3)
Bearing, Lever (3) WPL 983697 Contact Us For Availability
View on Model
16
Spring, Lever (2)
Spring, Lever (2) WPL 983696 Contact Us For Availability
View on Model
16
Retainer, Insert
Retainer, Insert WPL 1119360 Contact Us For Availability
View on Model
16
Wine Rack
Wine Rack WPL 1124828 Contact Us For Availability
View on Model
16
Hinge Bottom (R.H.)
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
View on Model
17
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
View on Model
17
Insert, Handle (White)
Insert, Handle (White) WPL 1119373 Contact Us For Availability
View on Model
17
Running Capacitor (Service)
Running Capacitor (Service) WPL 2154565 Contact Us For Availability
View on Model
17
Cover
Cover WPL 2164374 Contact Us For Availability
View on Model
17
Shield, Wiring
Shield, Wiring WPL 2147165 Contact Us For Availability
View on Model
17
Cover, Evaporator
Cover, Evaporator WPL 2155612 Contact Us For Availability
View on Model
18
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 1118375 Contact Us For Availability
View on Model
18
Insert, Handle (White)
Insert, Handle (White) WPL 1119361 Contact Us For Availability
View on Model
18
Trim
Trim WPL 2162989 Contact Us For Availability
View on Model
18
Cover
Cover WPL 628355 Contact Us For Availability
View on Model
19
Spacer, Switch
Spacer, Switch WPL 625834 Contact Us For Availability
View on Model
19
Retainer, Insert
Retainer, Insert WPL 1119372 Contact Us For Availability
View on Model
19
Screw Grommet
Screw Grommet WPL 509812 Contact Us For Availability
View on Model
19
Hinge Bottom (L.H.)
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
View on Model
20
Shelf Stud
Shelf Stud WPL 1115290 Contact Us For Availability
View on Model
20
End Cap (2)
End Cap (2) WPL 2156220 Contact Us For Availability
View on Model
20
Control Box Harness
Control Box Harness WPL 2149186 Contact Us For Availability
View on Model
20
Spacer, Hinge
Spacer, Hinge WPL 1129868 Contact Us For Availability
View on Model
21
Screw
Screw WPL 489075 Contact Us For Availability
View on Model
21
Filler, Wrapper (White)
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
View on Model
21
Filler, Wrapper (Almond)
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
View on Model
22
Screw
Screw WPL 489022 Contact Us For Availability
View on Model
22
CLIP, WIRING
CLIP, WIRING WPL 1115375 Contact Us For Availability
View on Model
22
Evaporator
Evaporator WPL 2164519 Contact Us For Availability
View on Model
22
Grille (White)
Grille (White) WPL 2155486 Contact Us For Availability
View on Model
22
Grille (Almond)
Grille (Almond) WPL 2155487 Contact Us For Availability
View on Model
23
Clamp
Clamp WPL 2161324 Contact Us For Availability
View on Model
23
Connecting Rod
Connecting Rod WPL 1123960 Contact Us For Availability
View on Model
24
Fastener, Push-On
Fastener, Push-On WPL 489285 Contact Us For Availability
View on Model
24
Lever Assembly, Ice Dispenser (White)
Lever Assembly, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
View on Model
24
Lever Assembly, Ice Dispenser (Almond)
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
View on Model
25
Guide, Ice (White)
Guide, Ice (White) WPL 1124730 Contact Us For Availability
View on Model
25
Escutcheon, Control Box
Escutcheon, Control Box WPL 2161213 Contact Us For Availability
View on Model
25
Tray, Evaporator
Tray, Evaporator WPL 1110674 Contact Us For Availability
View on Model
25
Guide, Ice (Almond)
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
View on Model
26
Heat Shield
Heat Shield WPL 2149294 Contact Us For Availability
View on Model
26
Screw
Screw WPL 488892 Contact Us For Availability
View on Model
27
Knob, Air Control
Knob, Air Control WPL 1116853 Contact Us For Availability
View on Model
27
Slide, Light Switch (White)
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
View on Model
27
Slide, Light Switch (Almond)
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
View on Model
27
Cement Alumilastic)
Cement Alumilastic) WPL 542369 Contact Us For Availability
View on Model
28
Knob, Retainer
Knob, Retainer WPL 837444 Contact Us For Availability
View on Model
28
Compressor (Includes Item 11, 12, 13, 15, 17,
Compressor (Includes Item 11, 12, 13, 15, 17, WPL 2154562 Contact Us For Availability
View on Model
29
Lamp Holder
Lamp Holder WPL 2147131 Contact Us For Availability
View on Model
31
Unit, Harness
Unit, Harness WPL 2167064 Contact Us For Availability
View on Model
31
Tap Plate (2)
Tap Plate (2) WPL 2147310 Contact Us For Availability
View on Model
31
Screw
Screw WPL 488361 Contact Us For Availability
View on Model
32
Fan, Motor Bracket
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
View on Model
32
Insulator, Control Bracket
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
View on Model
33
Heater, Defrost
Heater, Defrost WPL 2161323 Contact Us For Availability
View on Model
33
Bracket, Control
Bracket, Control WPL 2147163 Contact Us For Availability
View on Model
34
Light Lens
Light Lens WPL 1115330 Contact Us For Availability
View on Model
34
Clip
Clip WPL 2161330 Contact Us For Availability
View on Model
34
Screw,
Screw, WPL 489365 Contact Us For Availability
View on Model
36
Screw,
Screw, WPL 489155 Contact Us For Availability
View on Model
37
Screw (2)
Screw (2) WPL 488280 Contact Us For Availability
View on Model
37
Screw
Screw WPL 489387 Contact Us For Availability
View on Model
38
Lever Assembly, Water Dispenser (White)
Lever Assembly, Water Dispenser (White) WPL 2159197 Contact Us For Availability
View on Model
38
Lever Assembly, Water Dispenser (Almond)
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
View on Model
39
Grommet (4)
Grommet (4) WPL 2162067 Contact Us For Availability
View on Model
39
Plaque, Front Cover (White)
Plaque, Front Cover (White) WPL 2162923 Contact Us For Availability
View on Model
39
Plaque, Front Cover (Almond)
Plaque, Front Cover (Almond) WPL 2162924 Contact Us For Availability
View on Model
40
Cord, Service
Cord, Service WPL 937360 Contact Us For Availability
View on Model
40
Front Cover, Housing (Includes Item 39) (Whit
Front Cover, Housing (Includes Item 39) (Whit WPL 2162926 Contact Us For Availability
View on Model
40
Front Cover, Housing (Includes Item 39) (Almo
Front Cover, Housing (Includes Item 39) (Almo WPL 2162928 Contact Us For Availability
View on Model
40
Nut, Compression
Nut, Compression WPL 1129179 Contact Us For Availability
View on Model
41
WPL  2147172
WPL 2147172 WPL 2147172 Contact Us For Availability
View on Model
42
Clip, Heat Shield
Clip, Heat Shield WPL 2155547 Contact Us For Availability
View on Model
42
WPL  987049
WPL 987049 WPL 987049 Contact Us For Availability
View on Model
43
Unit Cover, Bottom
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
View on Model
43
Insert
Insert WPL 1129177 Contact Us For Availability
View on Model
48

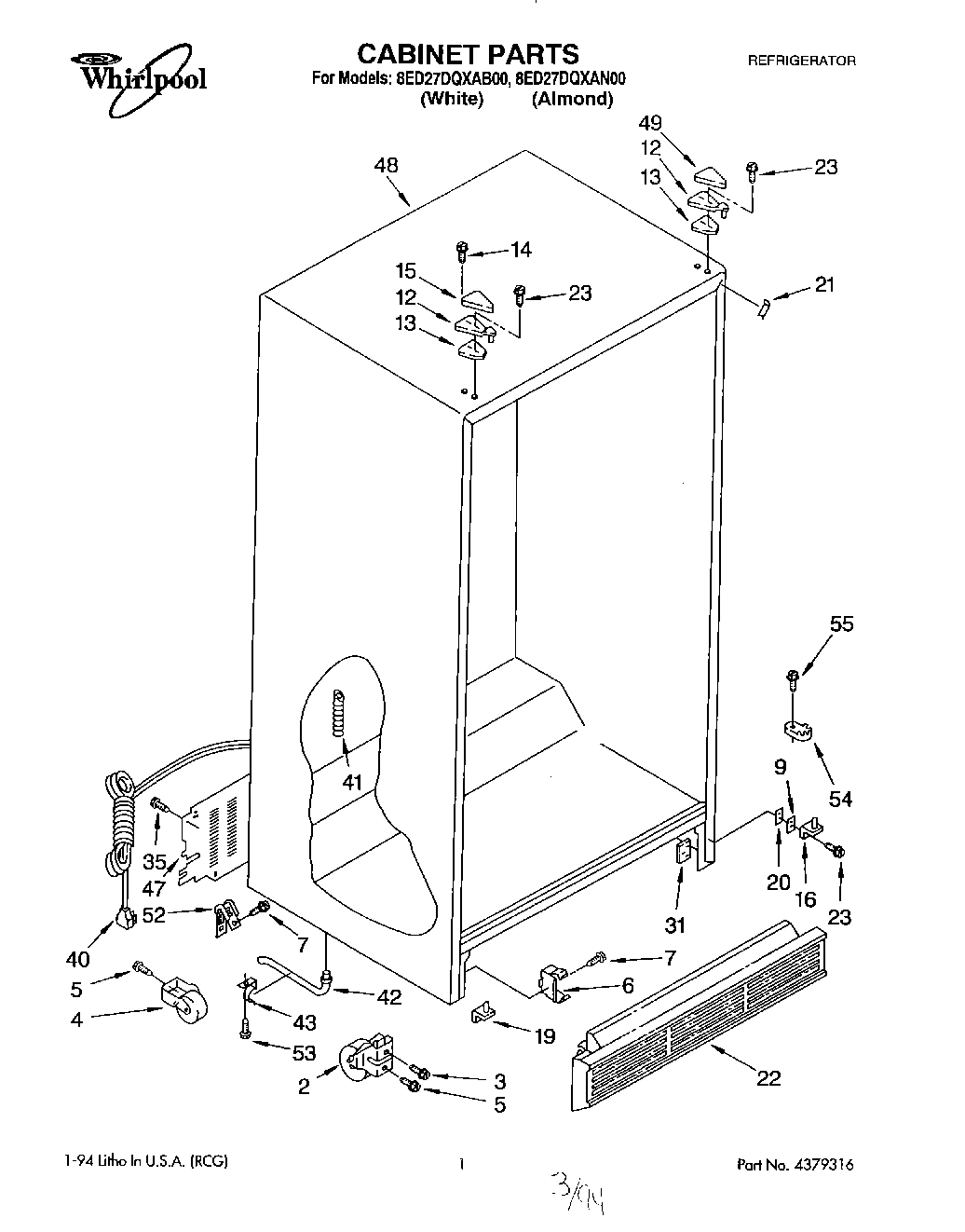

Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI18366A4 Contact Us For Availability
View on Model
49
Screw
Screw WPL 488624 Contact Us For Availability
View on Model
50
Guard, Fan
Guard, Fan WPL 1110663 Contact Us For Availability
View on Model
54
Wire Connector
Wire Connector WPL 227991 Contact Us For Availability
View on Model
59
Spring-Tube
Spring-Tube WPL 983659 Contact Us For Availability
View on Model
63
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
63
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
100
WPL  876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
100
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
100
Leveler, Enamel (13 Oz. Spray Can)
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
View on Model
100
Transformer (115-230 Volt)
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
View on Model
100
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
100
WPL  799340
WPL 799340 WPL 799340 Contact Us For Availability
View on Model
100
WPL  799833
WPL 799833 WPL 799833 Contact Us For Availability
View on Model
100
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
