Model Whirlpool 8ED22PWXDN00 REFRIGERATOR – Common Parts & Diagrams
08 - DISPENSER FRONT
10 - AIR FLOW

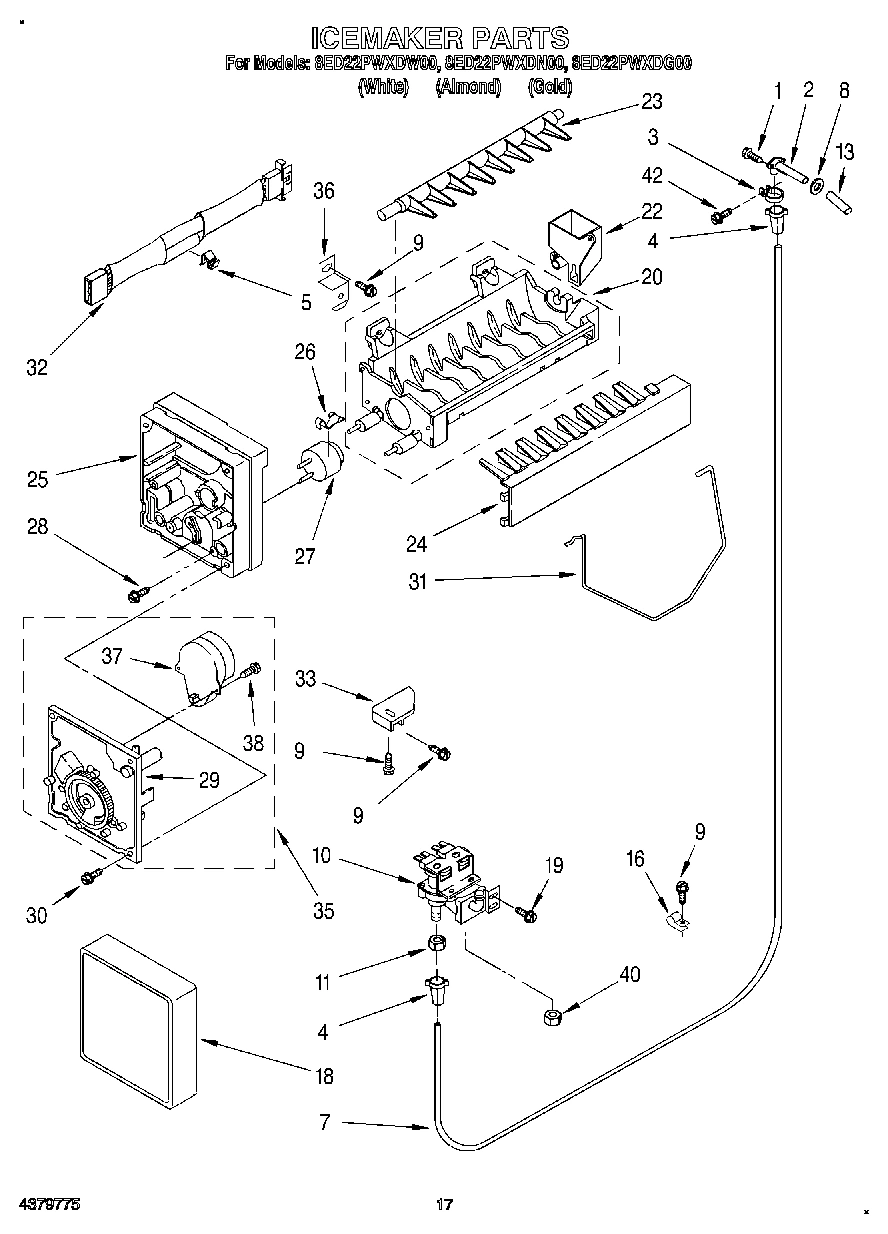

12 - ICEMAKER, LIT/OPTIONAL

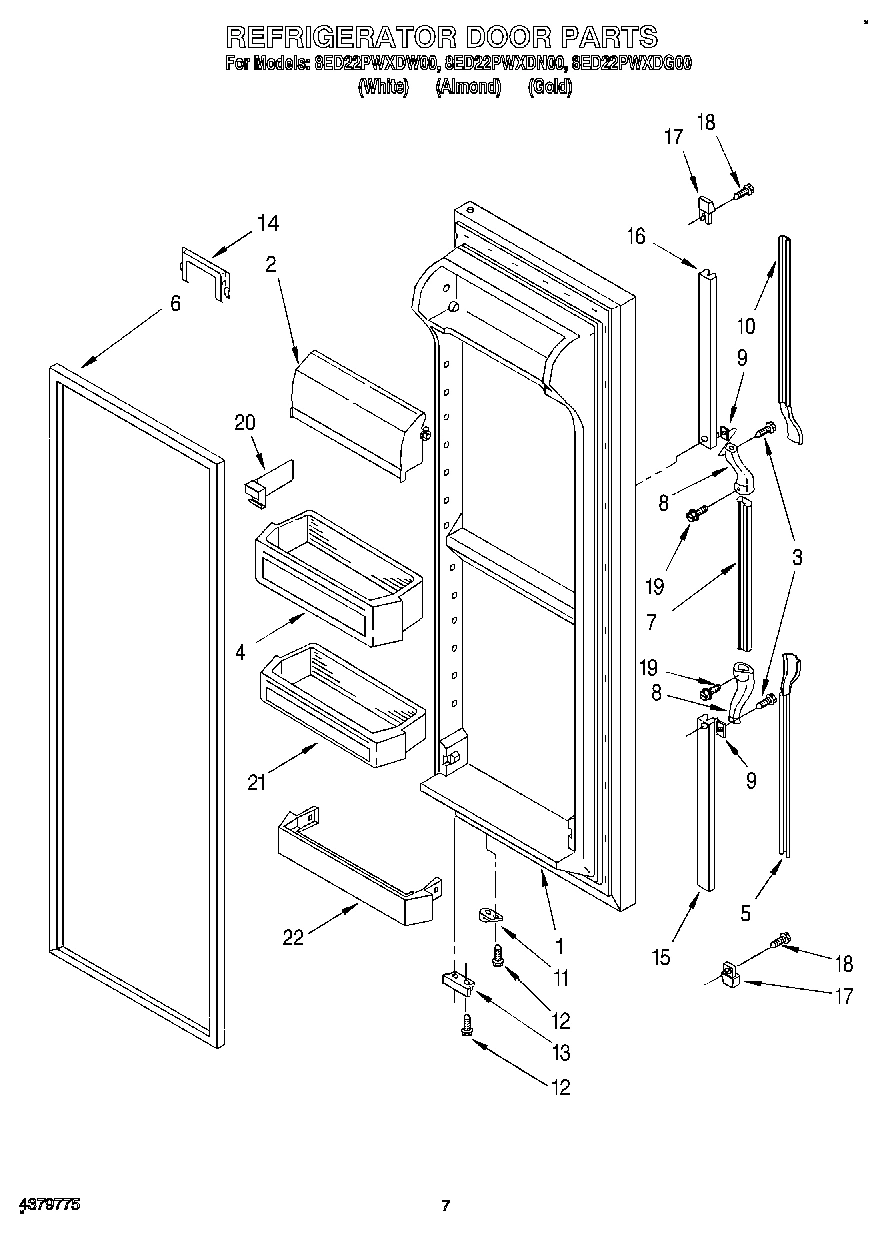

06 - REFRIGERATOR DOOR

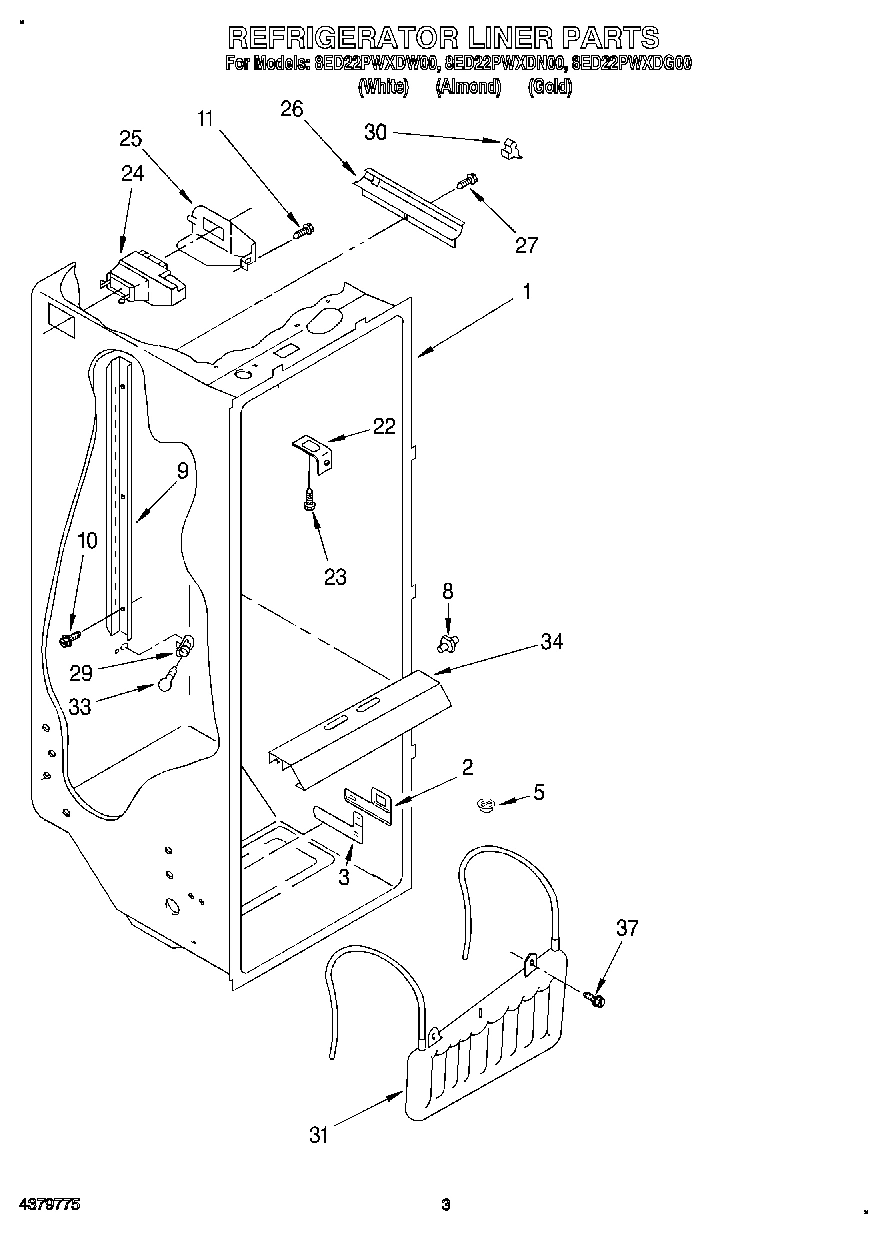

02 - REFRIGERATOR LINER

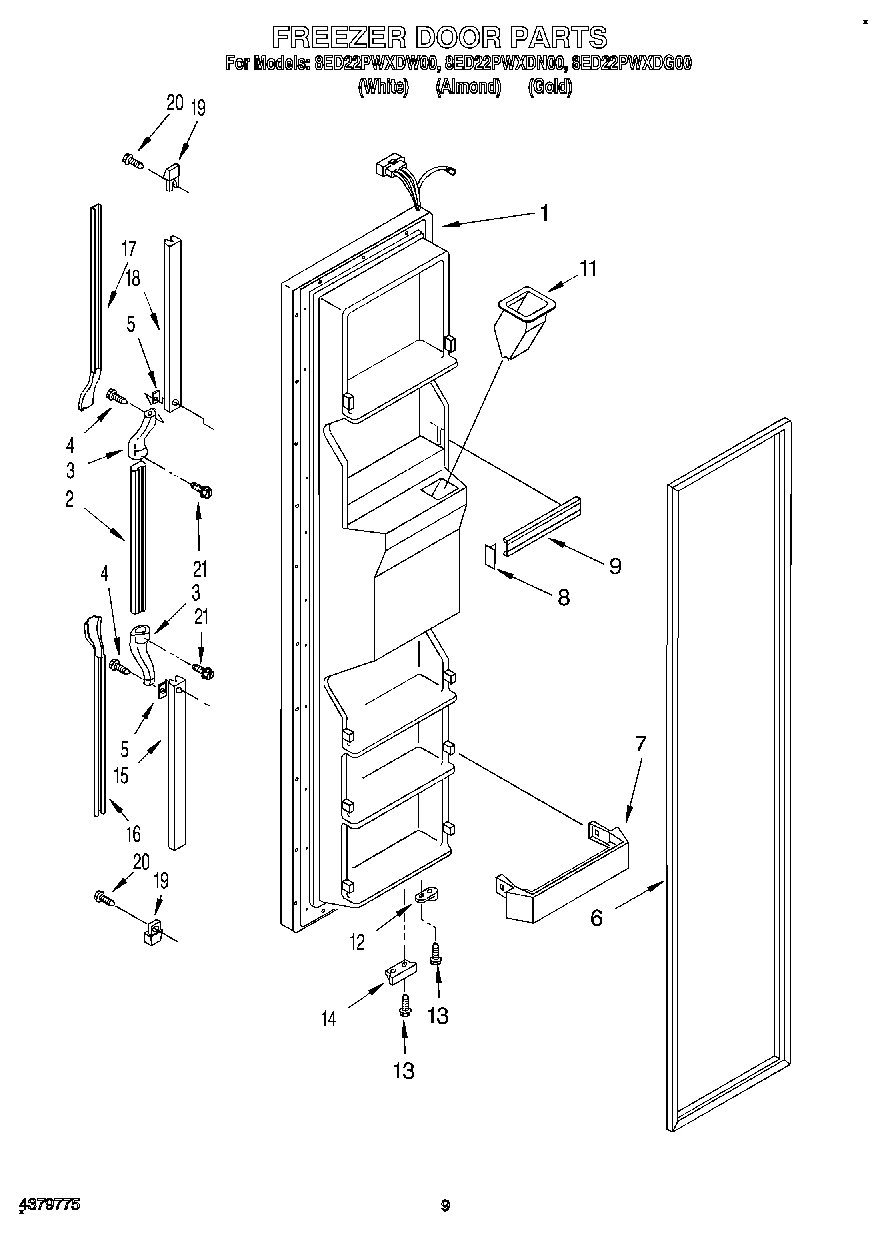

07 - FREEZER DOOR

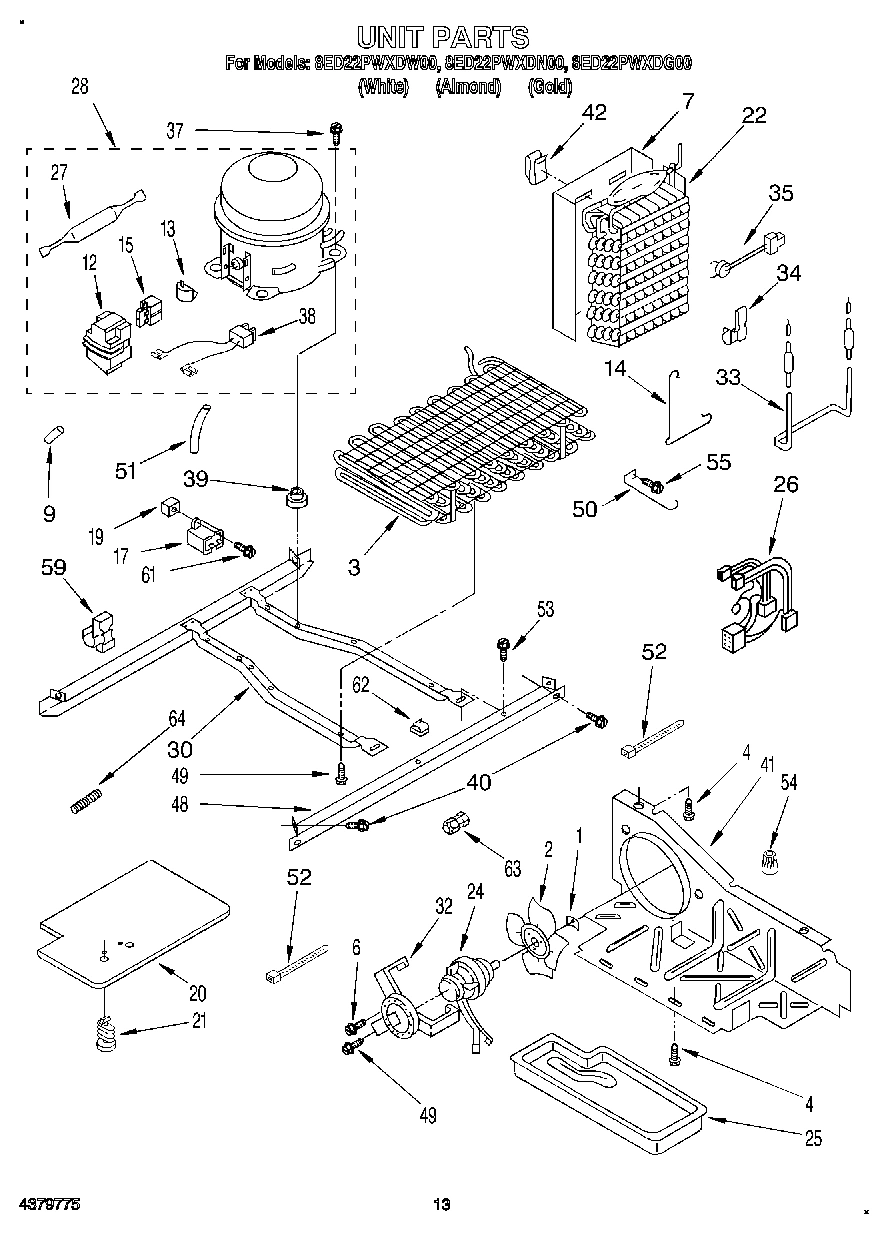

09 - UNIT

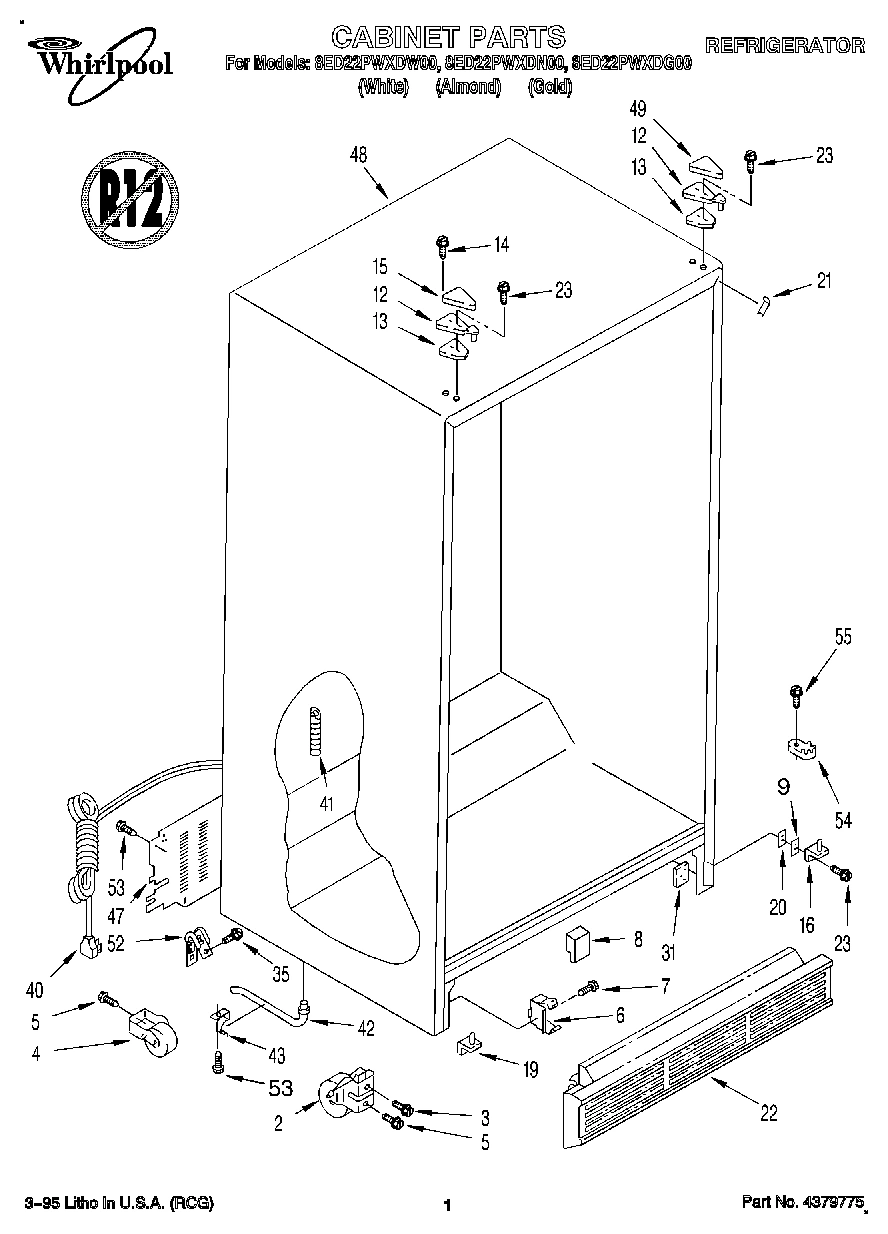

01 - CABINET

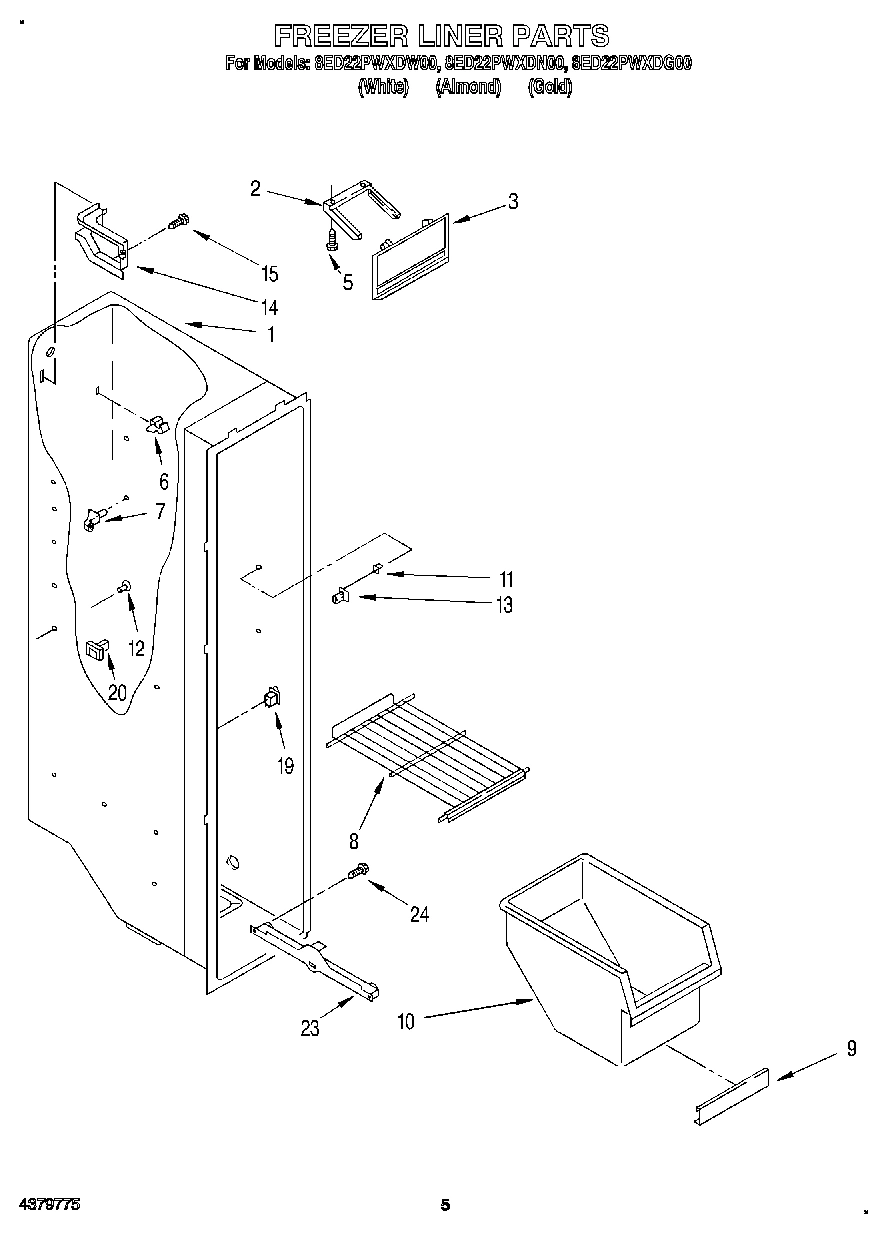

04 - FREEZER LINER

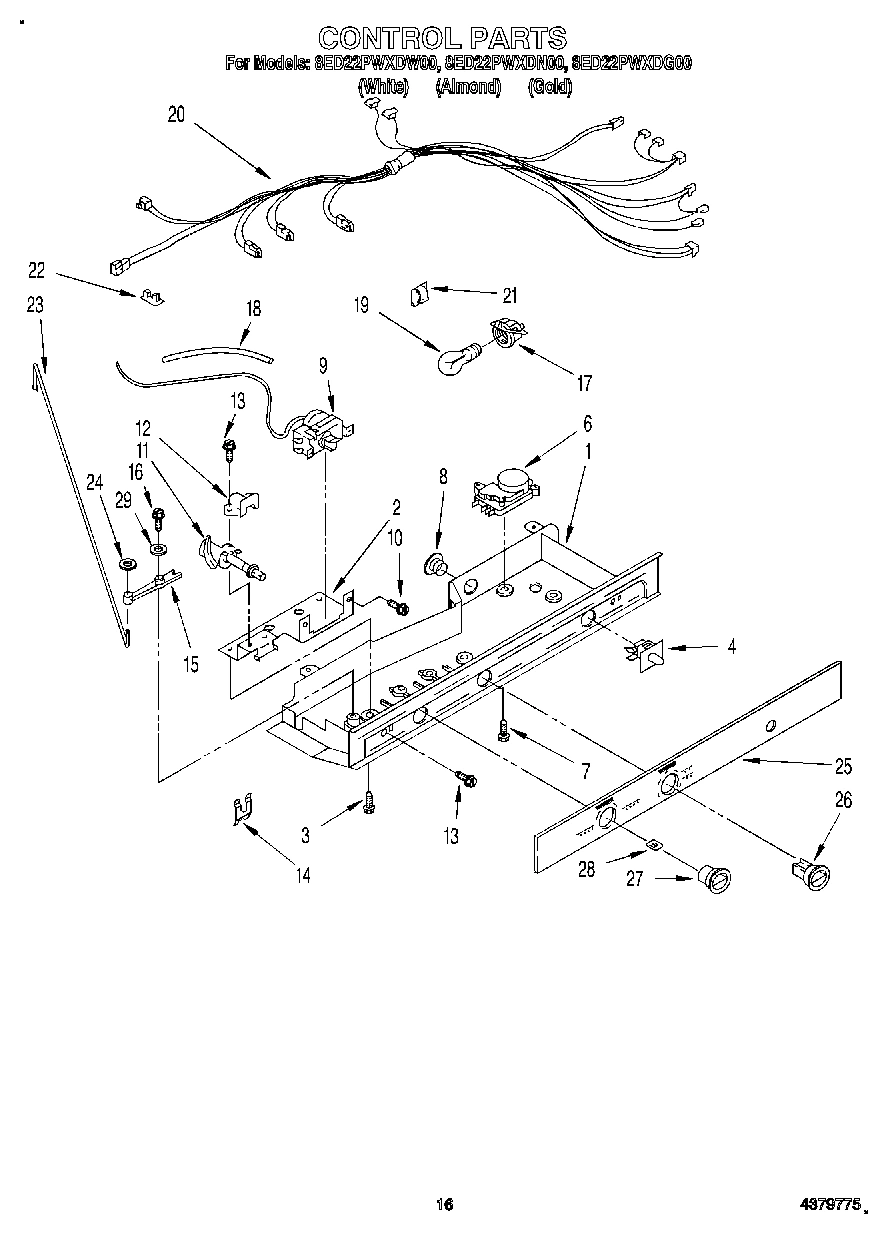

11 - CONTROL

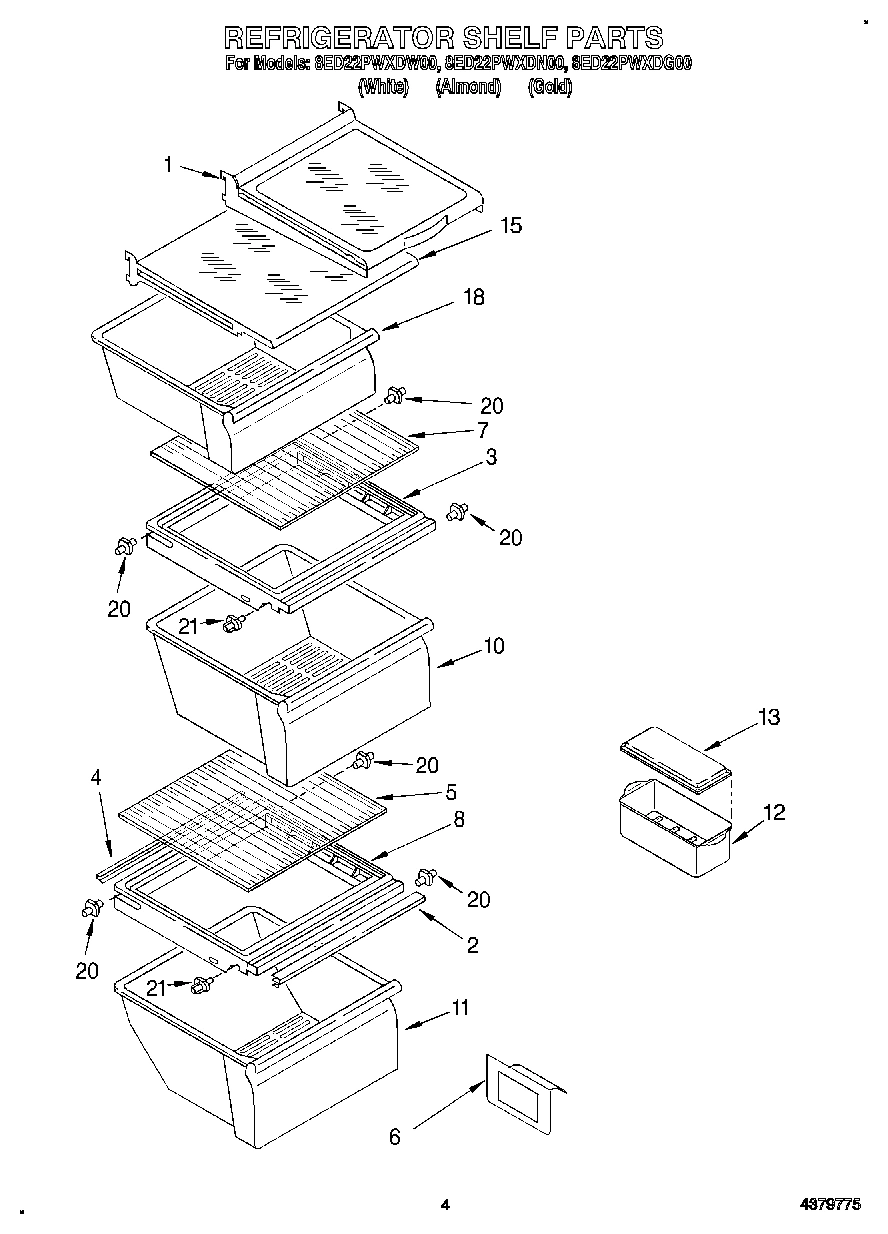

03 - REFRIGERATOR SHELF

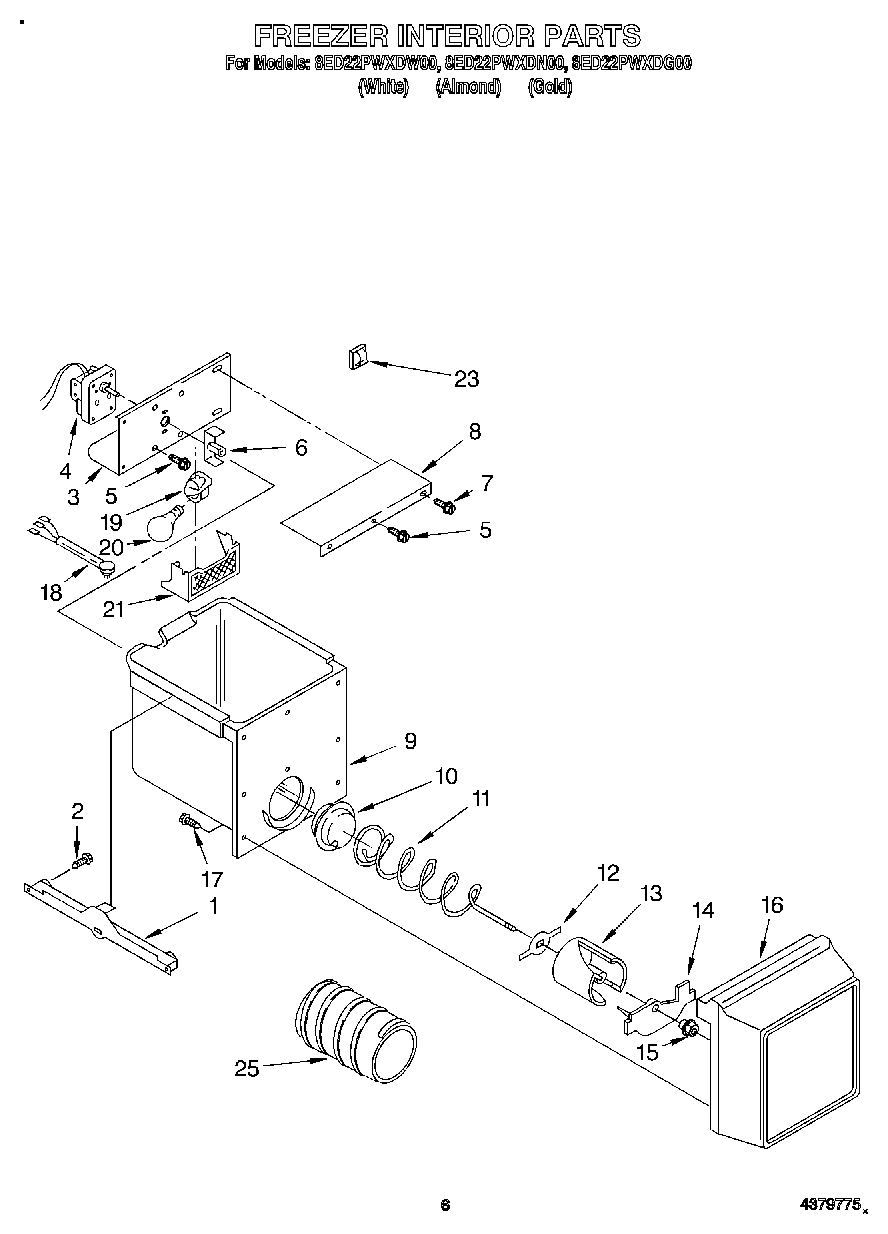

05 - FREEZER INTERIOR
Common parts from model Whirlpool 8ED22PWXDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2171082 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2171083 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Gold) WPL 2171085 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143458A Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2170493 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2171099 Contact Us For Availability
1
Freezer Door (Includes No.6 And Dispenser Fro WPL 2171100 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI143459A Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Black) WPL 1118417 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Gasket, Front WPL 2174442 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Gasket, Rear WPL 2174483 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
7
Trivet, Door Shelf (4) WPL 2156017 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Shelf (2) WPL 2174265 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2171995 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Trim, Basket WPL 2171775 Contact Us For Availability
10
Freezer Basket WPL 2171699 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
support stud (8) WPL 946355 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
13
Grille, Overflow (Chrome) WPL 983900 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Stud-Front (3) R.S. WPL 946356 Contact Us For Availability
13
Cover WPL 2170969 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert WPL 1119360 Contact Us For Availability
15
Relay (See Overload) WPL ARI143461A Contact Us For Availability
15
Hinge Cover (Gold) WPL 2150342 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Insert, Handle (Black) WPL 1118435 Contact Us For Availability
16
Insert, Handle (White) WPL 1119361 Contact Us For Availability
16
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
16
Hinge Bottom (R.H) (Black) WPL 2155320 Contact Us For Availability
16
Hinge Bottom (R.H) (Chrome) WPL 2155321 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
17
Insert, Handle (Black) WPL 1118436 Contact Us For Availability
17
Insert, Handle (White) WPL 1119367 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Retainer, Insert WPL 1119366 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
End Cap (2) WPL 2156220 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H) (Black) WPL 2155322 Contact Us For Availability
19
Hinge Bottom (L.H) (Chrome) WPL 2155323 Contact Us For Availability
20
Screw WPL 489075 Contact Us For Availability
20
Divider, Bin WPL 2152335 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Screw WPL 489022 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Gold) WPL 1110710 Contact Us For Availability
22
Grille (Black) WPL 2155476 Contact Us For Availability
22
woodgrain handle insert WPL 4210445 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4318948 Contact Us For Availability
22
Black Handle Insert WPL 4319080 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Slide, Freezer Bin (Left Side) WPL 2171777 Contact Us For Availability
23
Slide, Freezer Bin (Right Side) WPL 2171778 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Harness, Intermediate WPL 2167064 Contact Us For Availability
27
Stop, Glass (Black) WPL 1119056 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI143457A Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
× ![]()
