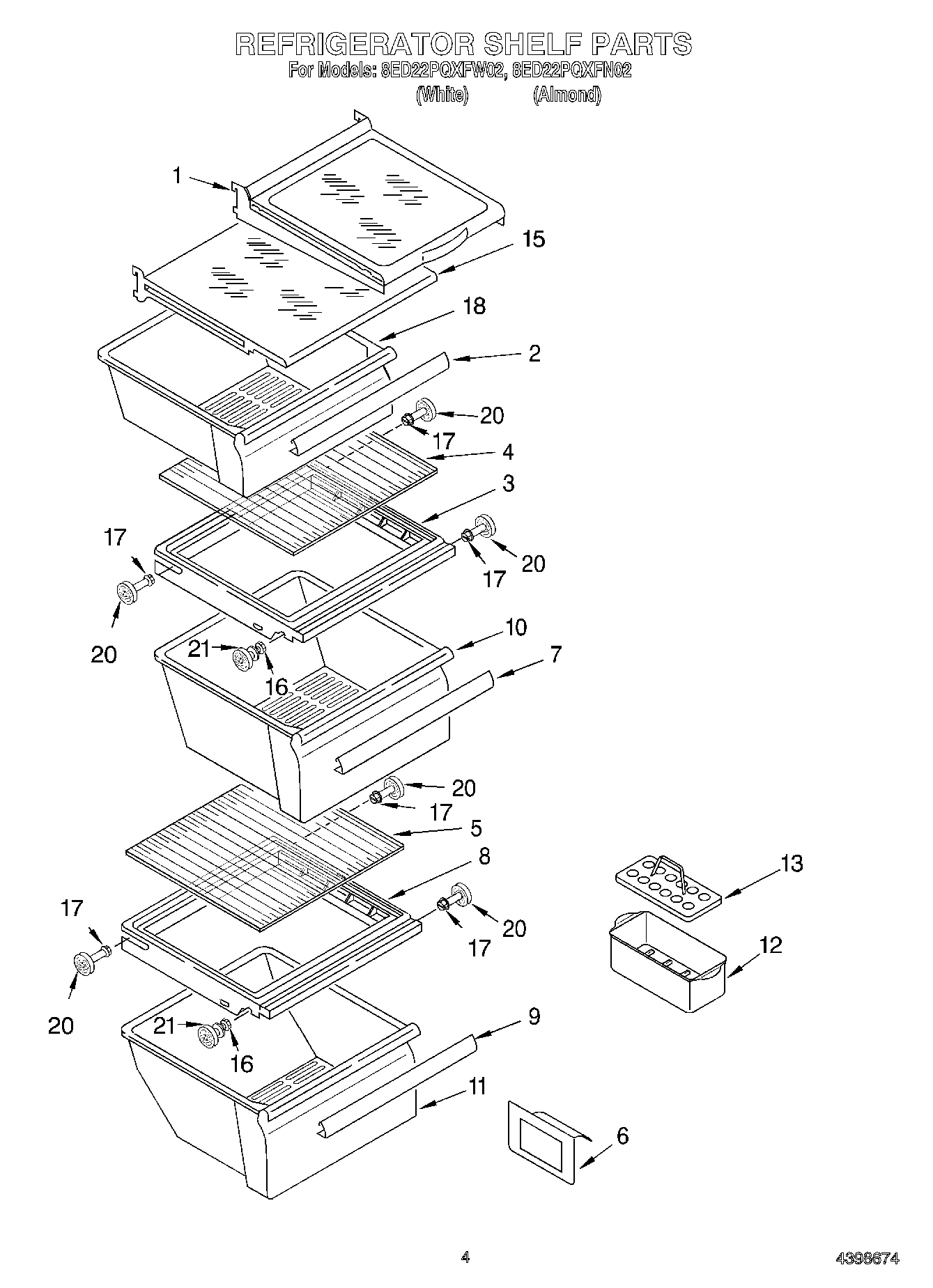

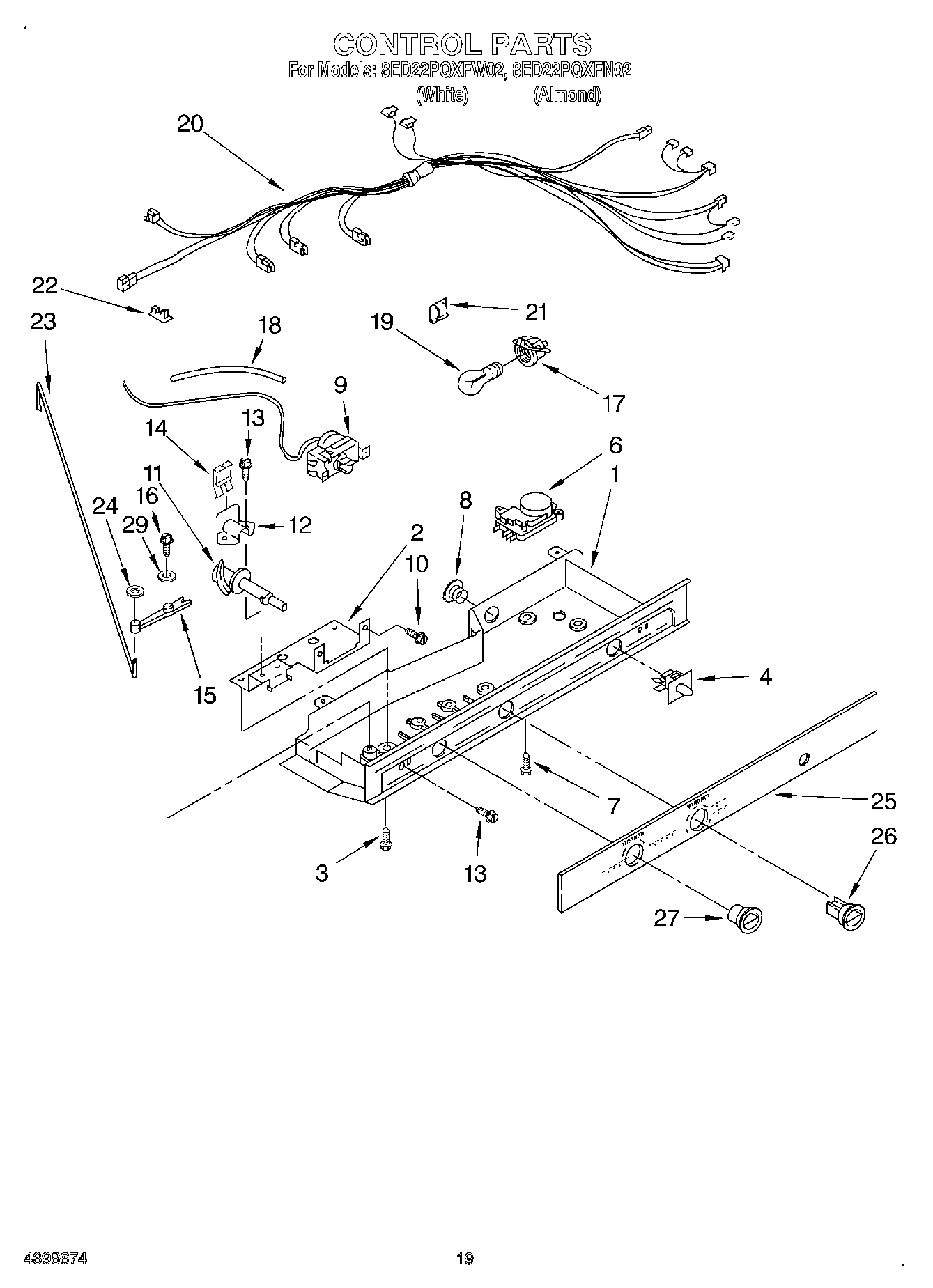

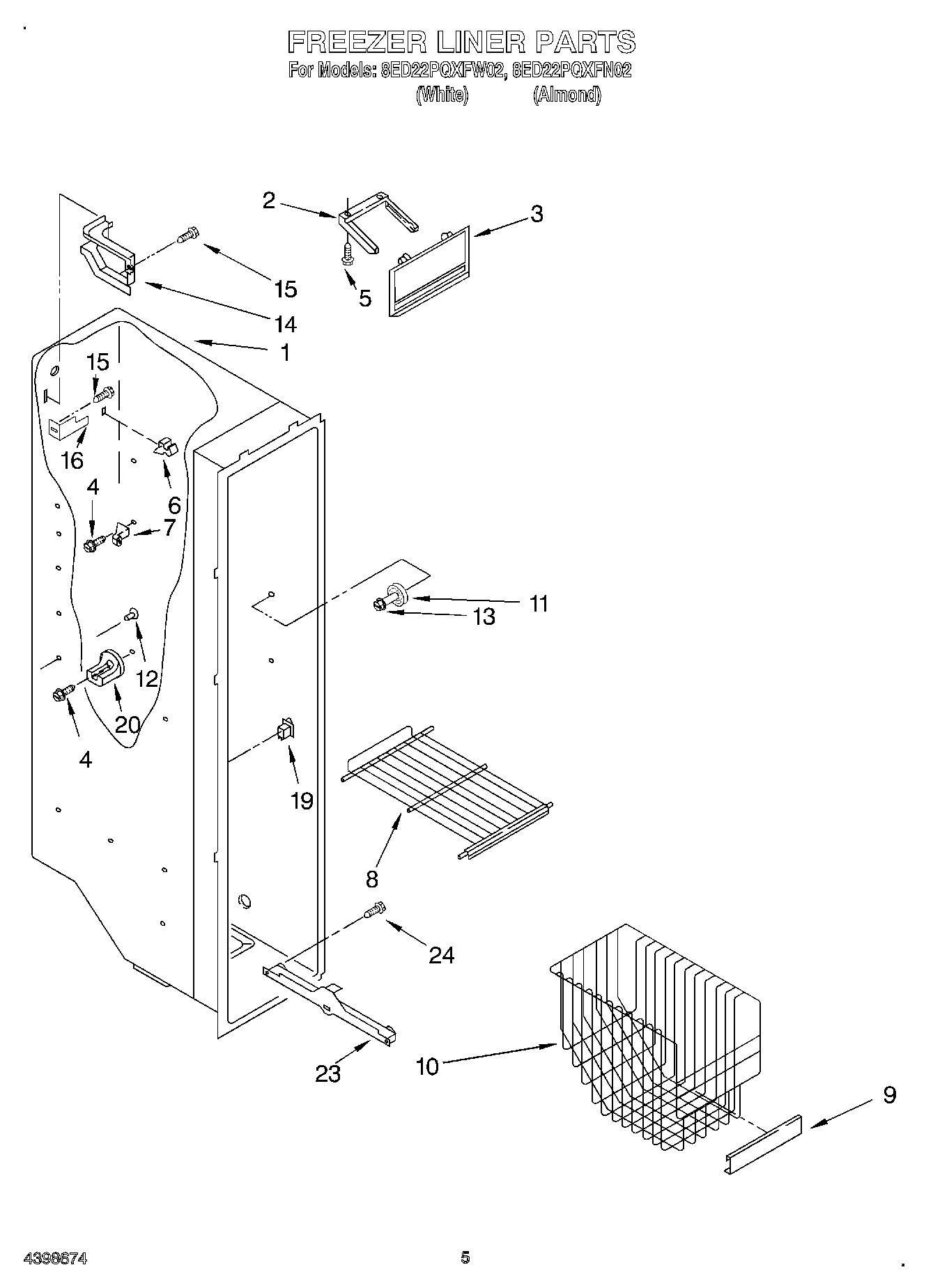

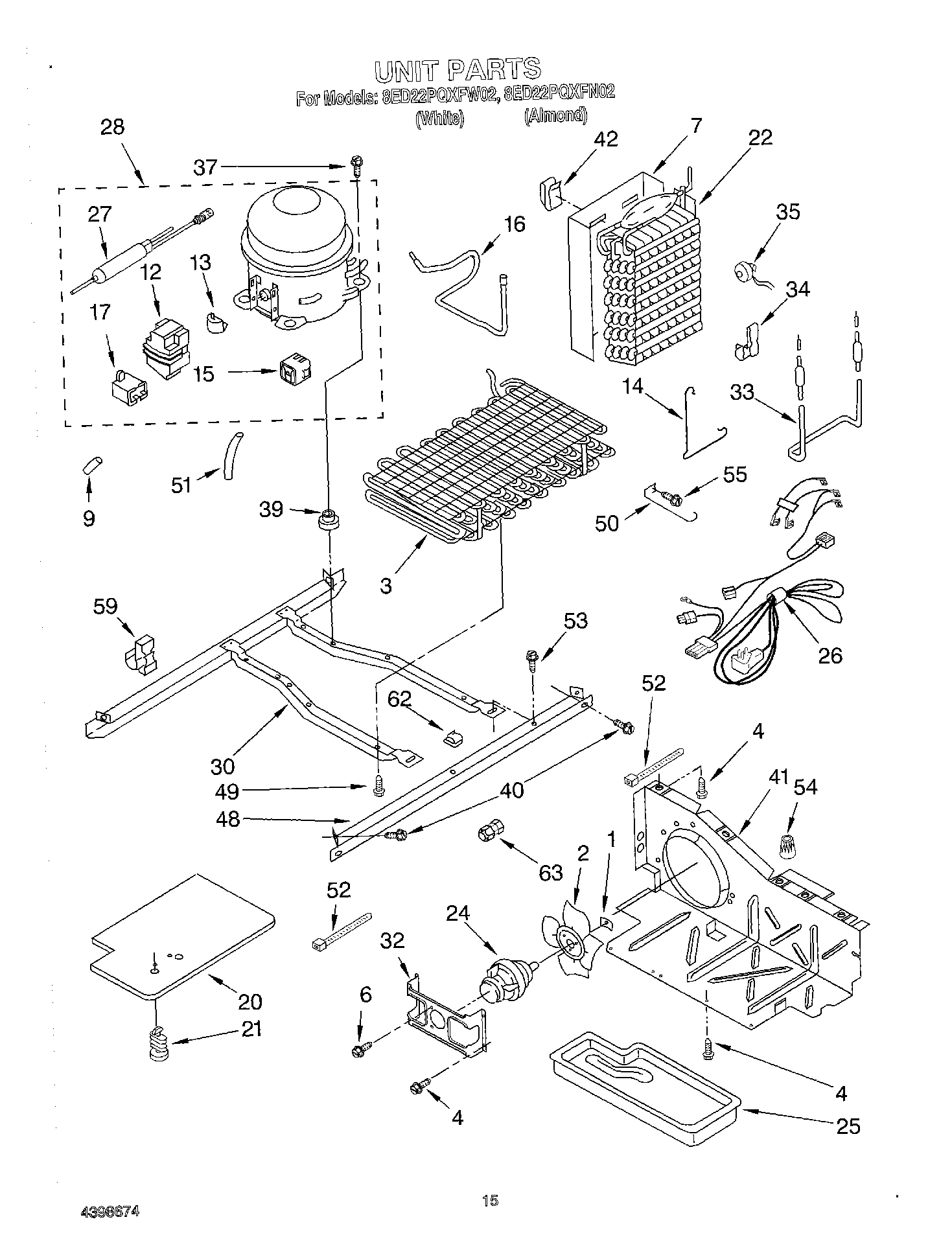

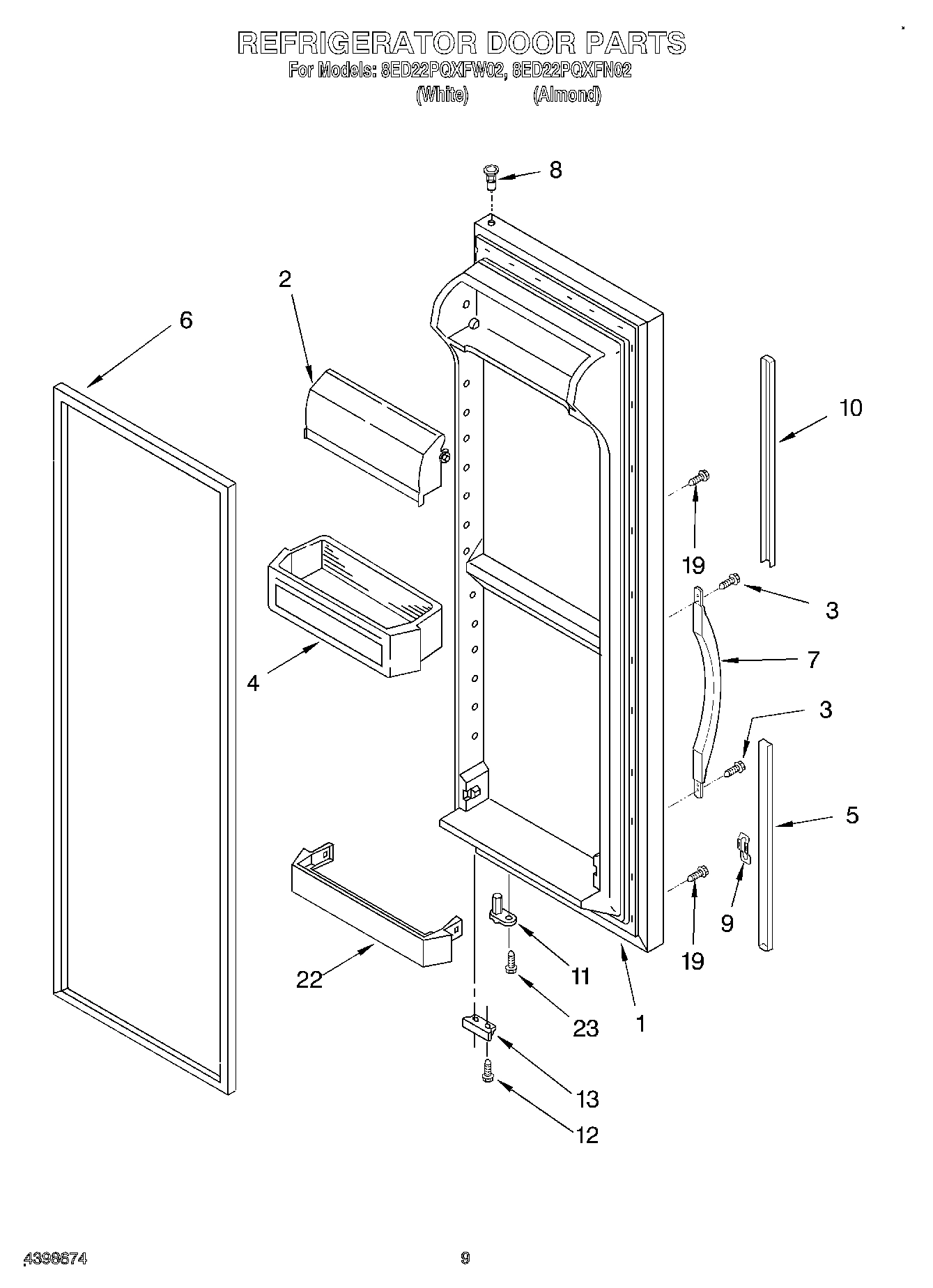

Model Whirlpool 8ED22PQXFN02 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

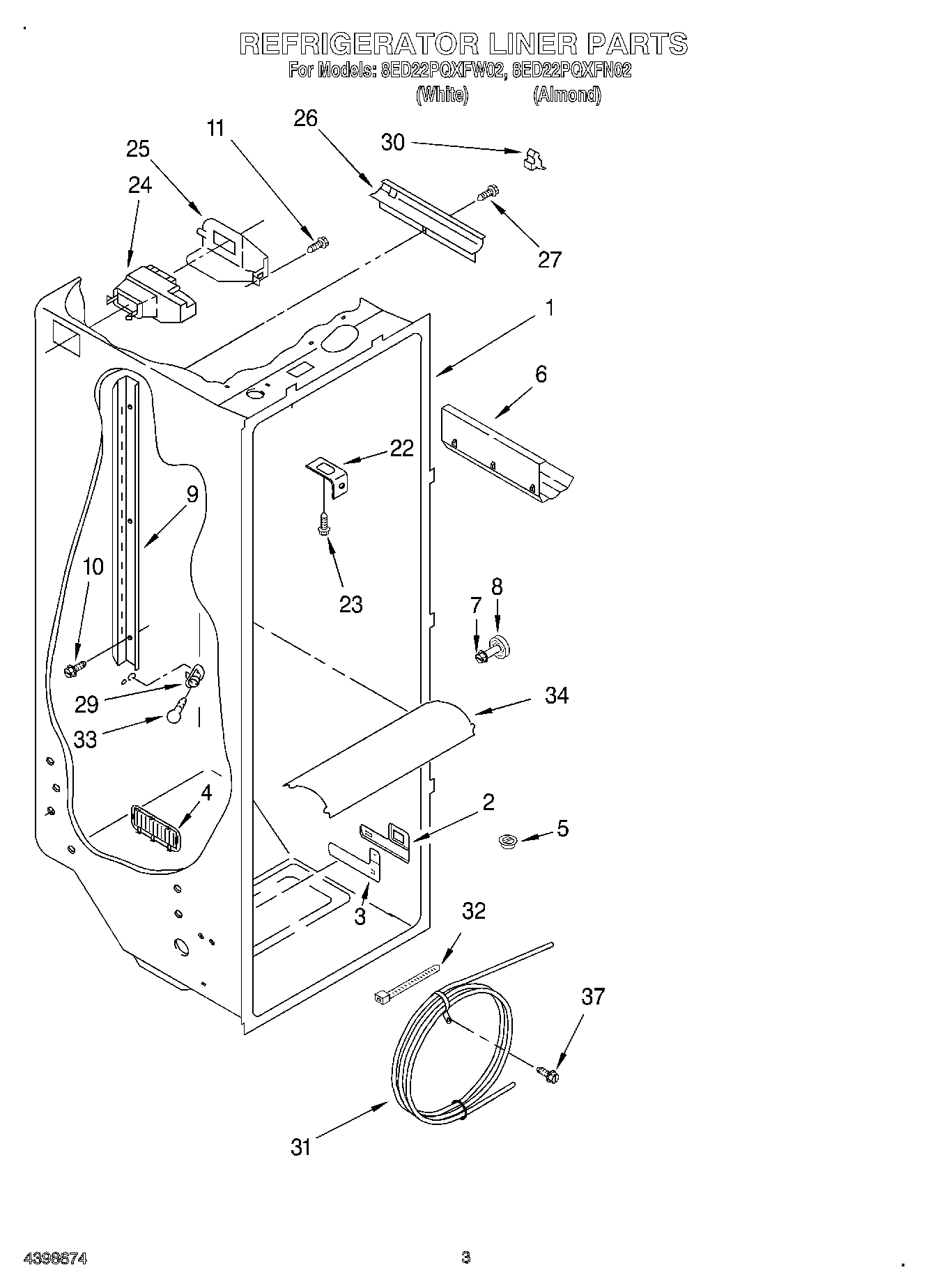

Liner (Not A Serviceable Part) WPL ARI18151A3 Contact Us For Availability

1

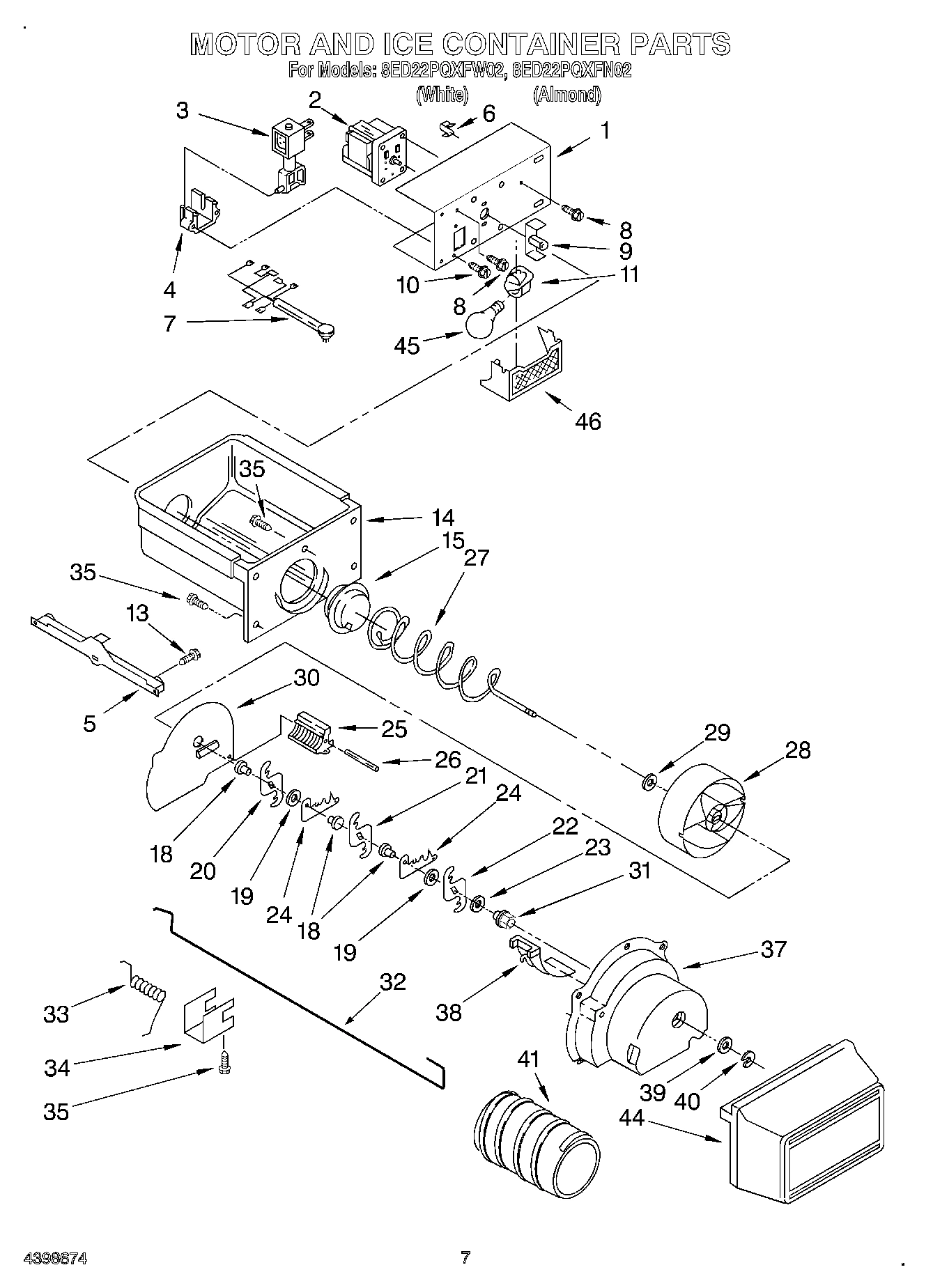

Bracket, Motor WPL 2183728 Contact Us For Availability

1

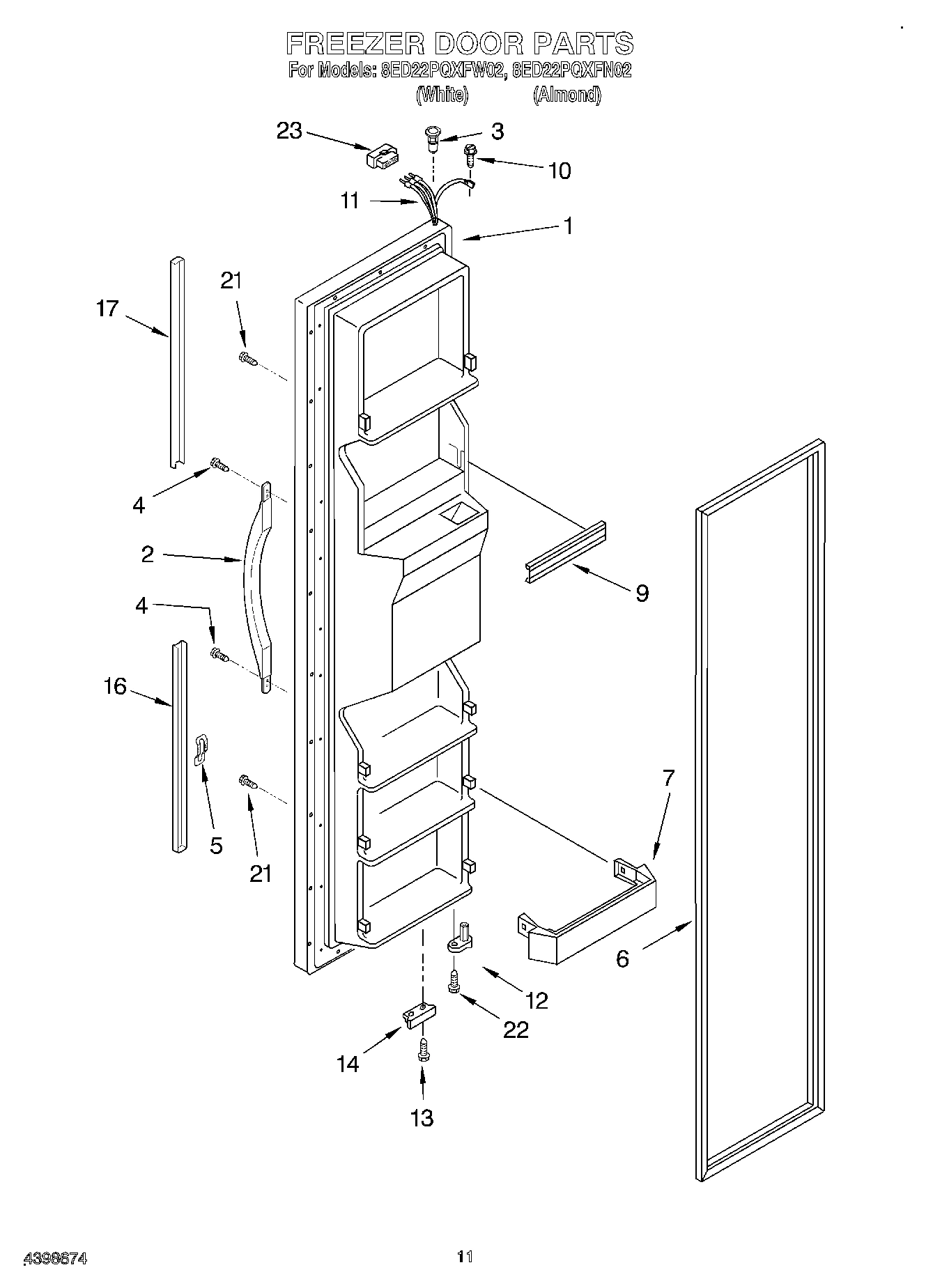

Freezer Door (Includes No.6 And Dispenser Fro WPL 2197989N Contact Us For Availability

1

Freezer Door (Includes No.6 And Dispenser Fro WPL 2197989W Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2186936 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2211657 Contact Us For Availability

1

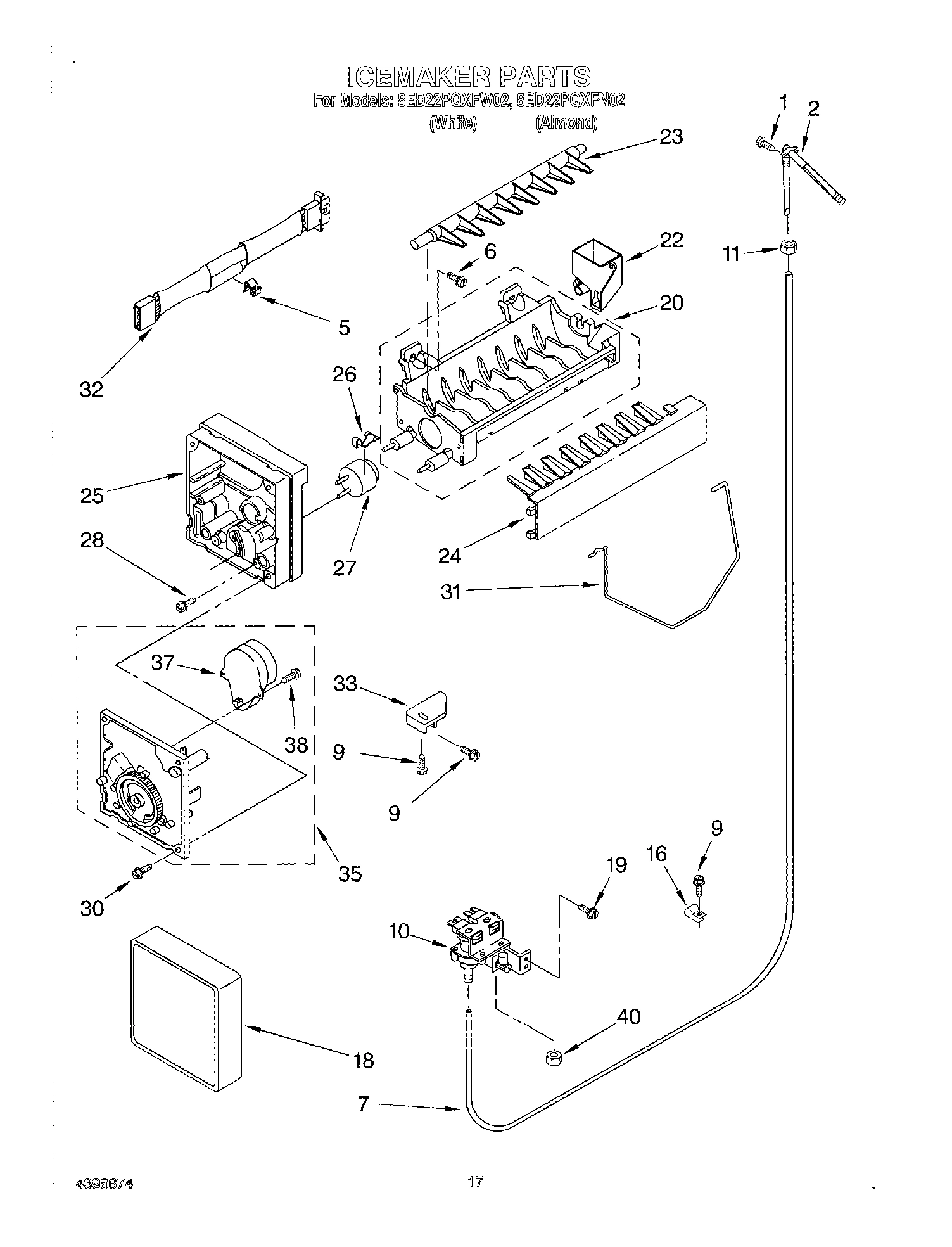

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Slide, Ice Door WPL 1115380 Contact Us For Availability

2

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $42.79

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

4

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

5

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

6

2159073 Whirlpool Refrigerator Door Gasket Backorder WPL 2159073 $87.71

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability

7

Trivet, Door Shelf (4) WPL 2194286 Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $107.97

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Shelf (2) WPL 2174265 Contact Us For Availability

8

Cabinet (Not A Serviceable Part) WPL ARI18149A9 Contact Us For Availability

9

2195904K Whirlpool Refrigerator Basket Trim Backorder WPL 2195904K $28.80

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

10

Freezer Basket WPL 2181762 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Wire Harness WPL 2198271 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

Grommet (8) WPL 2176134 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Shim, Hinge Top WPL 2196048 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $74.70

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

15

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $10.38

15

Pivot Arm WPL 1110559 Contact Us For Availability

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability

17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

17

Extension, Top (White) WPL 2194971W Contact Us For Availability

17

Extension, Top (Almond) WPL 2194971N Contact Us For Availability

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

18

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

18

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $87.10

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Stud, Rear WPL 2196207 Contact Us For Availability

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

W10804014 Whirlpool Refrigerator Grille Backorder WPL W10804014 $73.81

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Almond) WPL 2198469N Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Slide, Freezer Bin (Left Side) WPL 2181759 Contact Us For Availability

Slide, Freezer Bin (Right Side) WPL 2181760 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

25

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

27

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $97.41

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

32

W11596045 Whirlpool Refrigerator Control Arm Backorder WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

37

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

37

Screw (2) WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $82.48

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

45

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

47

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

52

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
