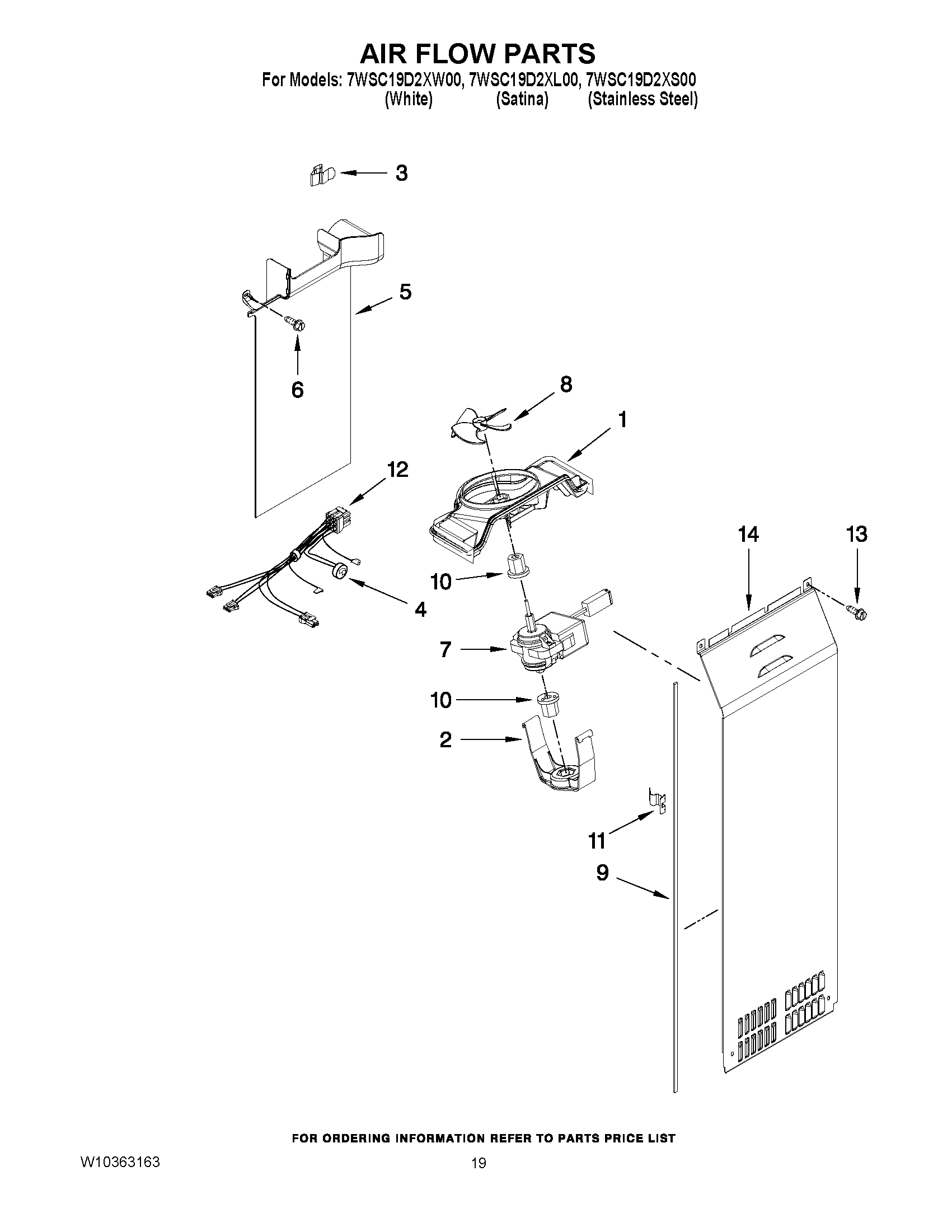

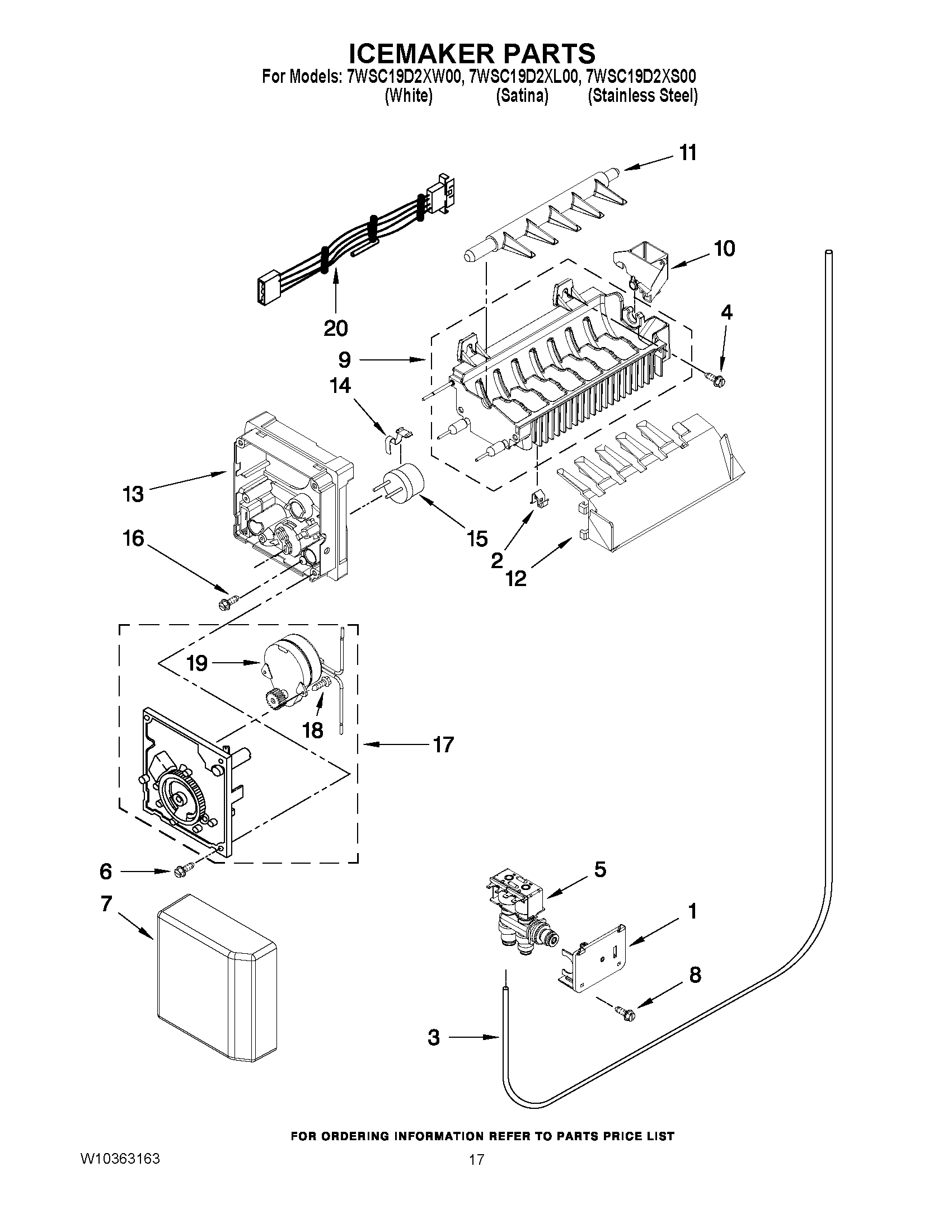

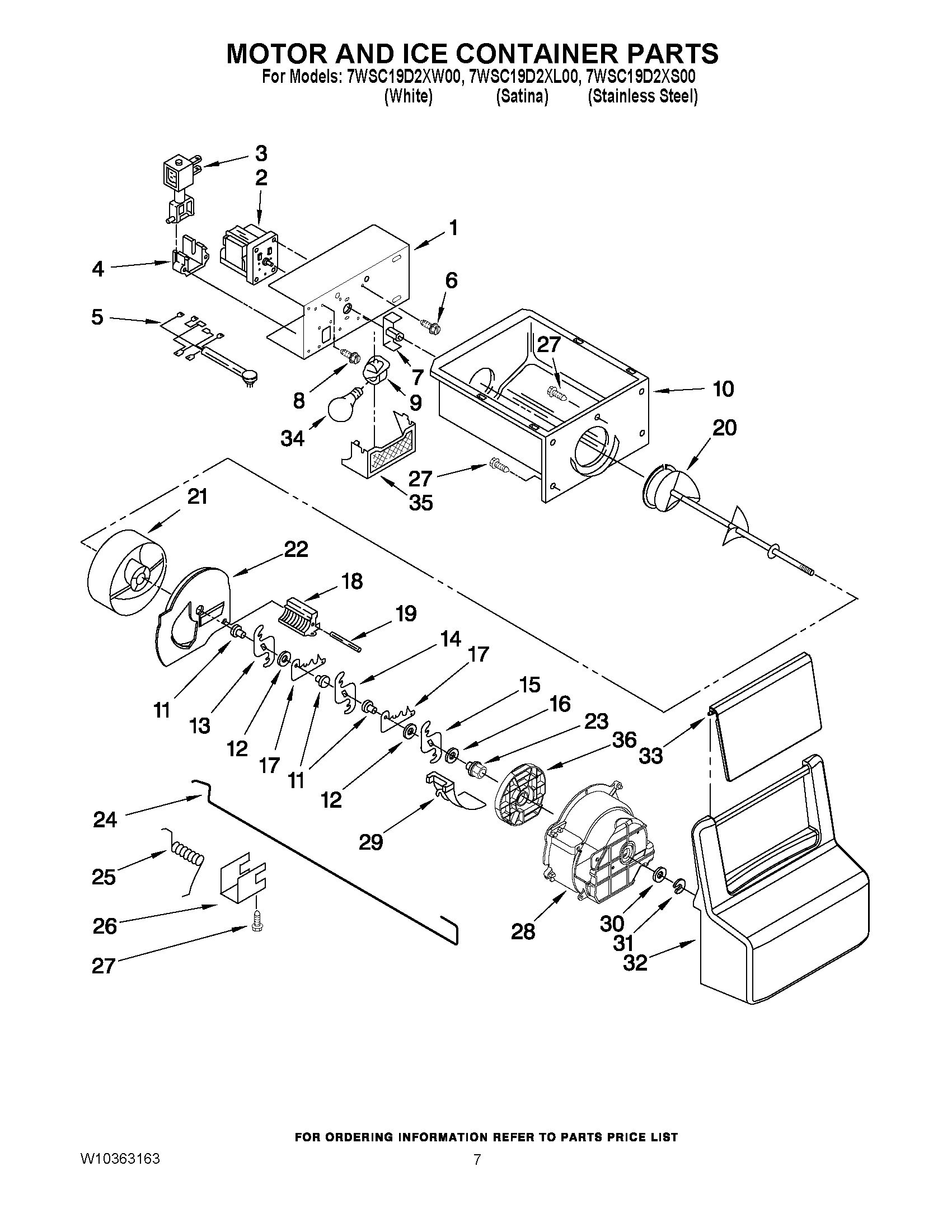

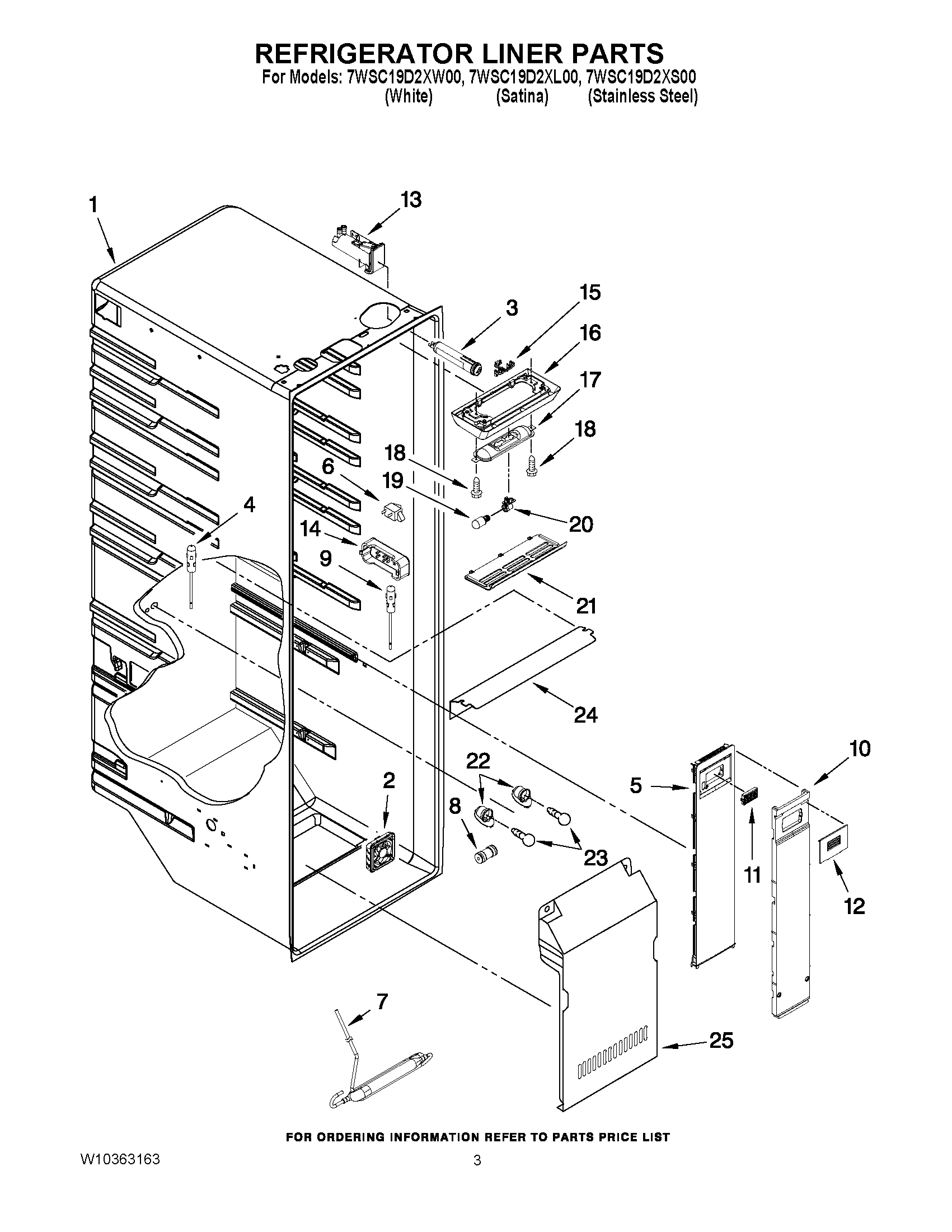

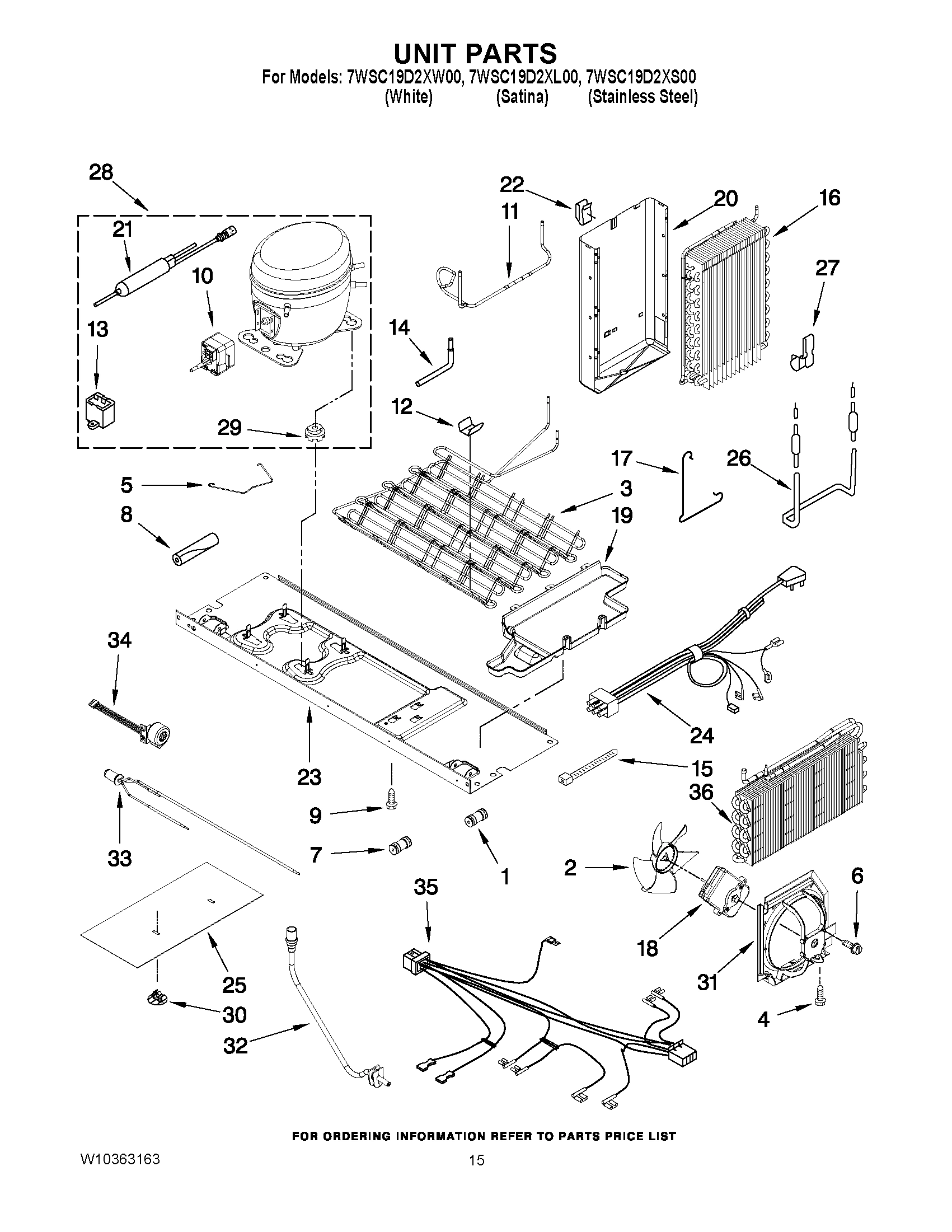

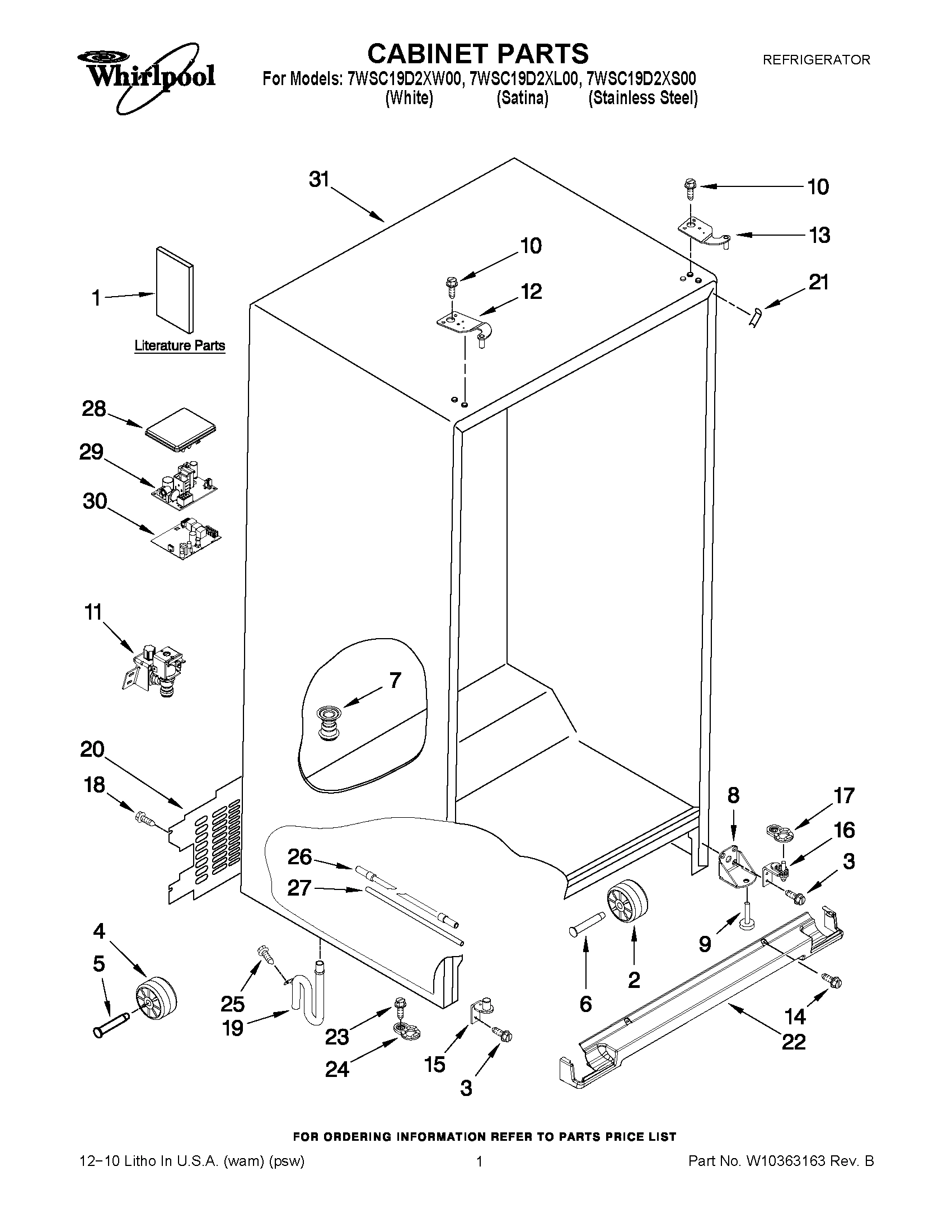

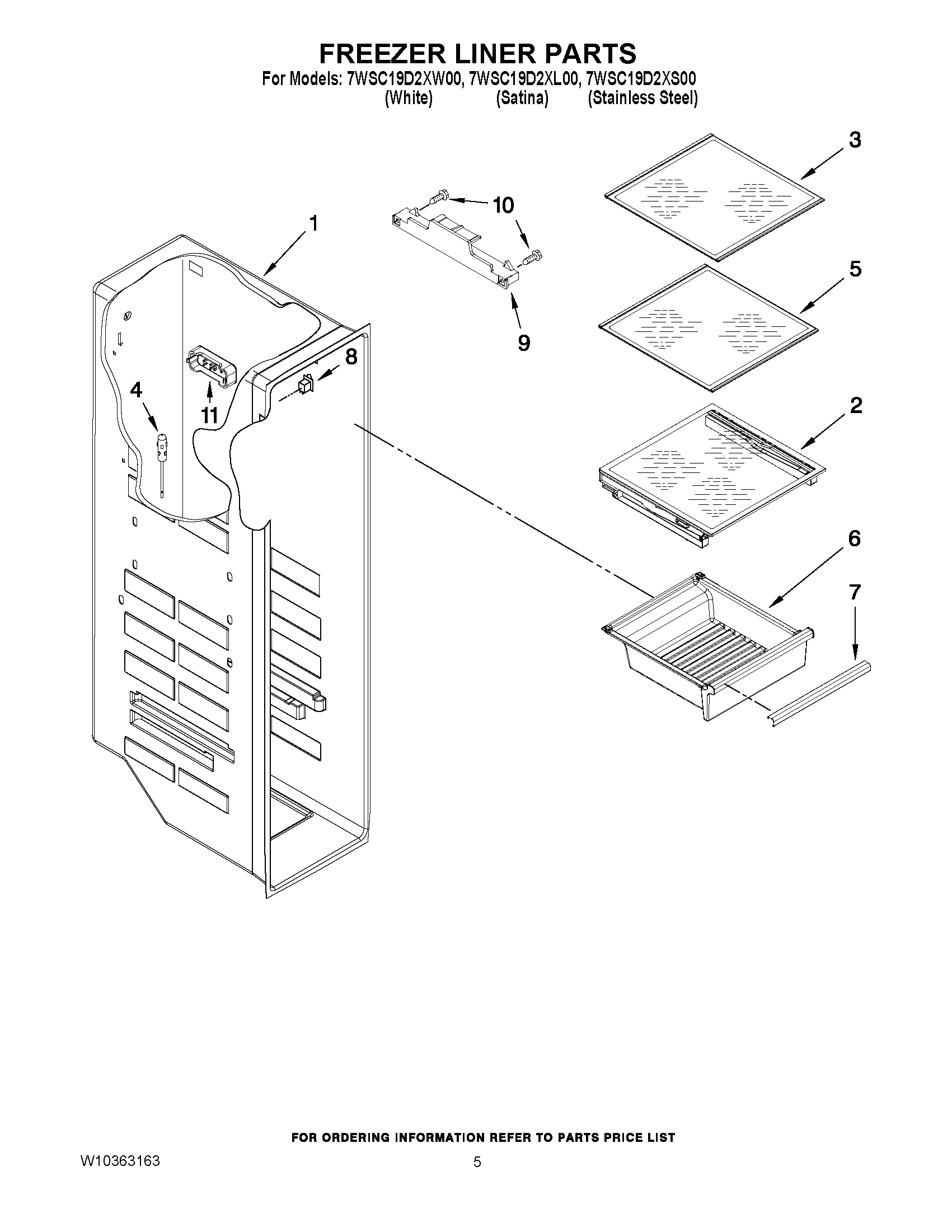

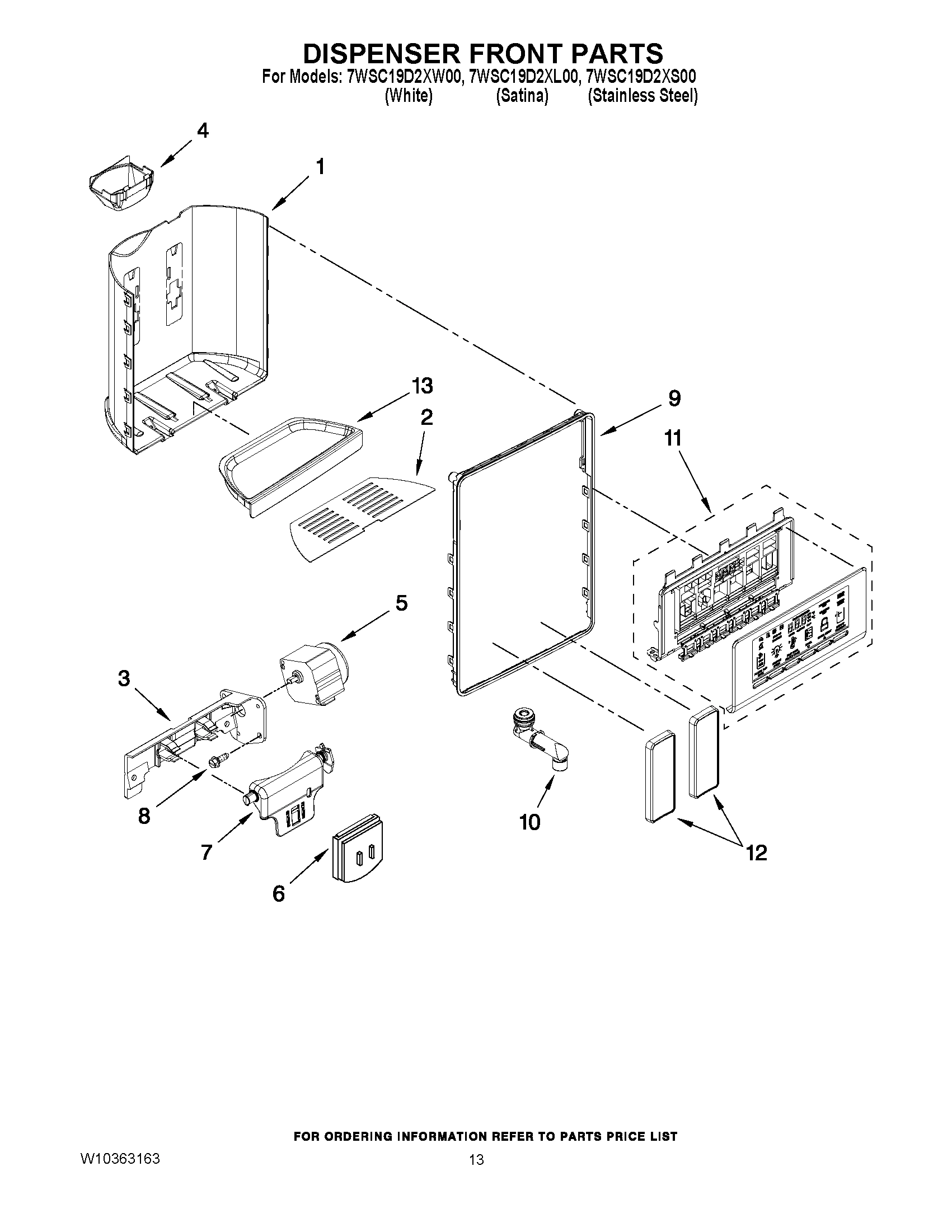

Model Whirlpool 7WSC19D2XS00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $14.24

1

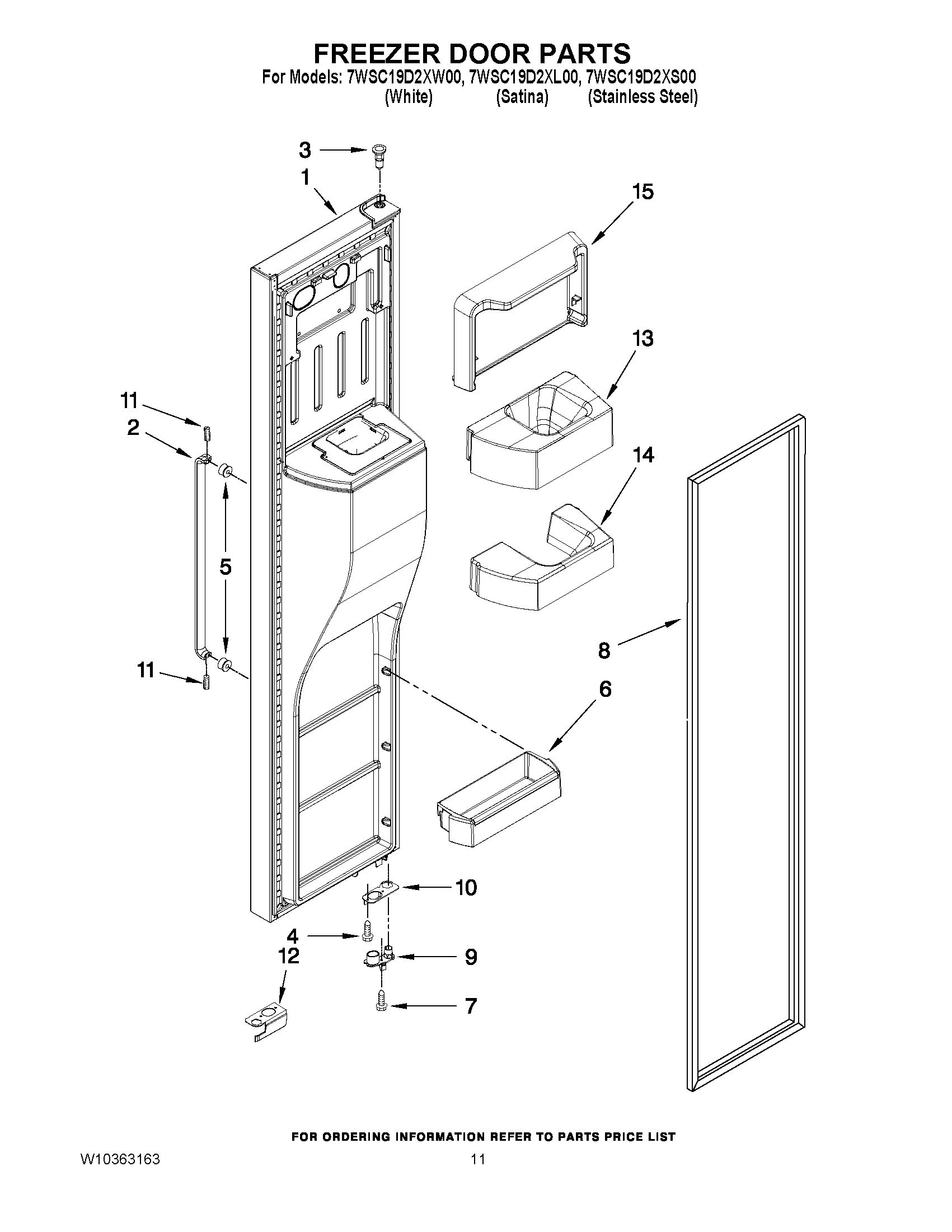

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10313044 Contact Us For Availability

1

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10328212 Contact Us For Availability

1

FREEZER DOOR (INCLUDES ITEM 8 AND DISPENSER F WPL W10328213 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

HANDLE WPL W10277354 Contact Us For Availability

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11708426 Whirlpool Condenser Assembly In Stock WPL W11708426 $103.17

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

4

W10142255 Whirlpool Screw Backorder WPL W10142255 $5.65

4

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $38.59

4

WPW10296804 Whirlpool Refrigerator Screw Backorder WPL WPW10296804 $4.28

5

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

5

W10251474 Whirlpool Refrigerator Air Duct Backorder WPL W10251474 $63.04

5

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $147.81

5

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $145.60

6

W10309878 Whirlpool Control Bin Backorder WPL W10309878 $39.97

6

W11106313 Whirlpool Refrigerator Freezer Bin Backorder WPL W11106313 $71.88

6

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

6

WPW10171469 Whirlpool Refrigerator Screw Backorder WPL WPW10171469 $4.58

6

WPW10256775 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10256775 $47.95

7

W10247979 Whirlpool Refrigerator Fitting Backorder WPL W10247979 $28.64

7

W11236850 Whirlpool Refrigerator Pan Trim Backorder WPL W11236850 $33.42

7

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

7

SCREW WPL W10296816 Contact Us For Availability

7

CONNECTOR WPL 13021601 Contact Us For Availability

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $26.54

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

8

WPW10247885 Whirlpool Door Gasket Backorder WPL WPW10247885 $151.89

8

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $146.87

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

9

W11607100 Whirlpool Refrigerator Thimble Cam In Stock WPL W11607100 $5.73

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $4.70

9

WPW10248011 Whirlpool Refrigerator White Door Backorder WPL WPW10248011 $9.61

9

WPW10248015 Whirlpool Refrigerator Door Cam Backorder WPL WPW10248015 $9.35

9

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $12.46

9

TRIM RING (BLACK) WPL W10276187 Contact Us For Availability

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $25.49

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $51.17

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $41.28

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

11

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

11

WPW10223328 Whirlpool Refrigerator Tube Backorder WPL WPW10223328 $53.03

W10632059 Whirlpool Refrigerator Wire Cover Backorder WPL W10632059 $8.45

W10632060 Whirlpool Refrigerator Wire Cover In Stock WPL W10632060 $8.45

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

W10901051 Whirlpool Refrigerator Door Hinge Backorder WPL W10901051 $27.89

W10901052 Whirlpool Refrigerator Door Hinge Backorder WPL W10901052 $27.89

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

W10276193 Whirlpool Refrigerator Disp Tray Backorder WPL W10276193 $40.55

W10276194 Whirlpool Refrigerator Drip Tray Backorder WPL W10276194 $40.50

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

W11568758 Whirlpool Top Hinge Backorder WPL W11568758 $8.55

W11573587 Whirlpool Refrigerator Door Hinge Backorder WPL W11573587 $8.55

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WPW10238123 Whirlpool Refrigerator Housing In Stock WPL WPW10238123 $151.55

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $29.06

CHUTE ADAPTER WPL W10284556 Contact Us For Availability

W10239739 Whirlpool Refrigerator Evaporator C Backorder WPL W10239739 $120.22

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10283476 Whirlpool Door Chute Backorder WPL W10283476 $46.79

W10858105 Whirlpool Refrigerator Tube Backorder WPL W10858105 $133.00

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

WPW10335220 Whirlpool Refrigerator Cantilever Backorder WPL WPW10335220 $51.26

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $42.57

W10249941 Whirlpool Refrigerator Door Hinge Backorder WPL W10249941 $37.20

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

W10314925 Whirlpool Control Bin Backorder WPL W10314925 $44.84

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $26.85

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W10257216 Whirlpool Refrigerator Wire Cover Backorder WPL W10257216 $12.08

W10789144 Whirlpool Refrigerator Wire Cover In Stock WPL W10789144 $11.11

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $195.78

WASHER, PLAIN WPL W10189660 Contact Us For Availability

17

Clamp WPL 2161324 Contact Us For Availability

18

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

18

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

18

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

19

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

19

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

19

WPW10251469 Whirlpool Refrigerator Evaporator Backorder WPL WPW10251469 $68.91

20

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $4.02

20

HEAT SHIELD WPL W10348669 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

W10280420 Whirlpool Refrigerator Light Lens Backorder WPL W10280420 $42.00

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

22

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

22

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $5.40

22

Clip, Heat Shield WPL 2155547 Contact Us For Availability

23

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $3.71

23

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

23

SUPPORT PLATE, COMPRESSOR WPL W10277704 Contact Us For Availability

24

W10876198 Whirlpool Refrigerator Door Cam In Stock WPL W10876198 $5.09

24

WPW10269099 Whirlpool Refrigerator Light Lens Backorder WPL WPW10269099 $54.81

24

POWER CORD WPL W10300062 Contact Us For Availability

25

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

25

W10859809 Whirlpool Refrigerator Evaporator C Backorder WPL W10859809 $116.57

25

UNIT COVER, BOTTOM WPL W10284726 Contact Us For Availability

26

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

26

WPW10495967 Whirlpool Refrigerator Heater In Stock WPL WPW10495967 $61.32

27

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

28

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

29

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

29

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $4.52

29

WPW10235491-includeCORE Whirlpool WPW10235491 Backorder WPL WPW10235491-includeCORE $204.69

30

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

30

W10296661 Whirlpool Refrigerator Clip Backorder WPL W10296661 $10.49

31

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

31

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $50.80

32

W11409190 Whirlpool Refrigerator Drain Tube In Stock WPL W11409190 $24.06

33

W11590197 Whirlpool Refrigerator Valve In Stock WPL W11590197 $72.24

33

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $31.88

34

WPW10364560 Whirlpool Refrigerator Solenoid In Stock WPL WPW10364560 $102.36

35

W11676780 Whirlpool Refrigerator Wire Harness Backorder WPL W11676780 $28.04

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

36

WPW10643261 Whirlpool Refrigerator Evaporator In Stock WPL WPW10643261 $181.05

100

ICE CONTAINER (COMPLETE) WPL W10294325 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
