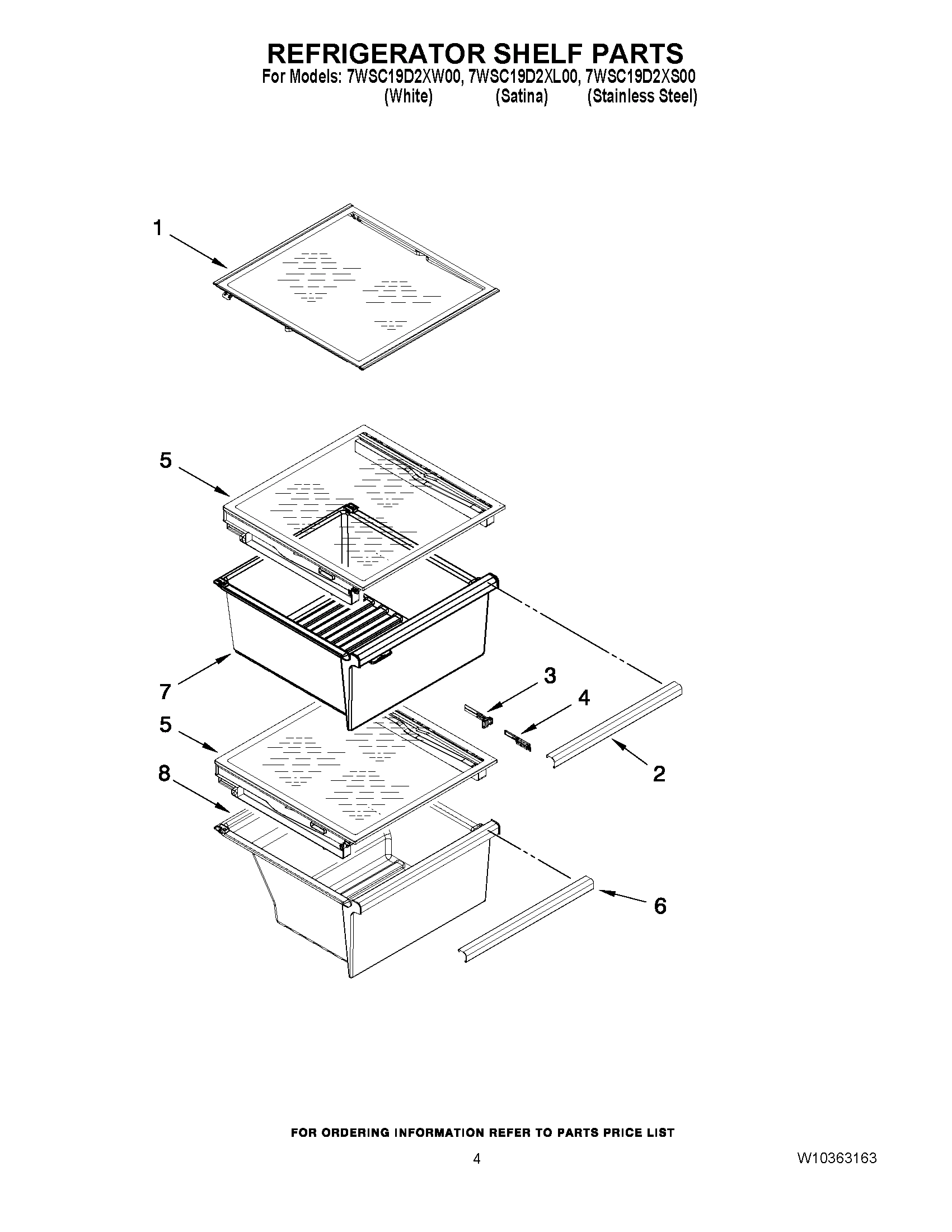

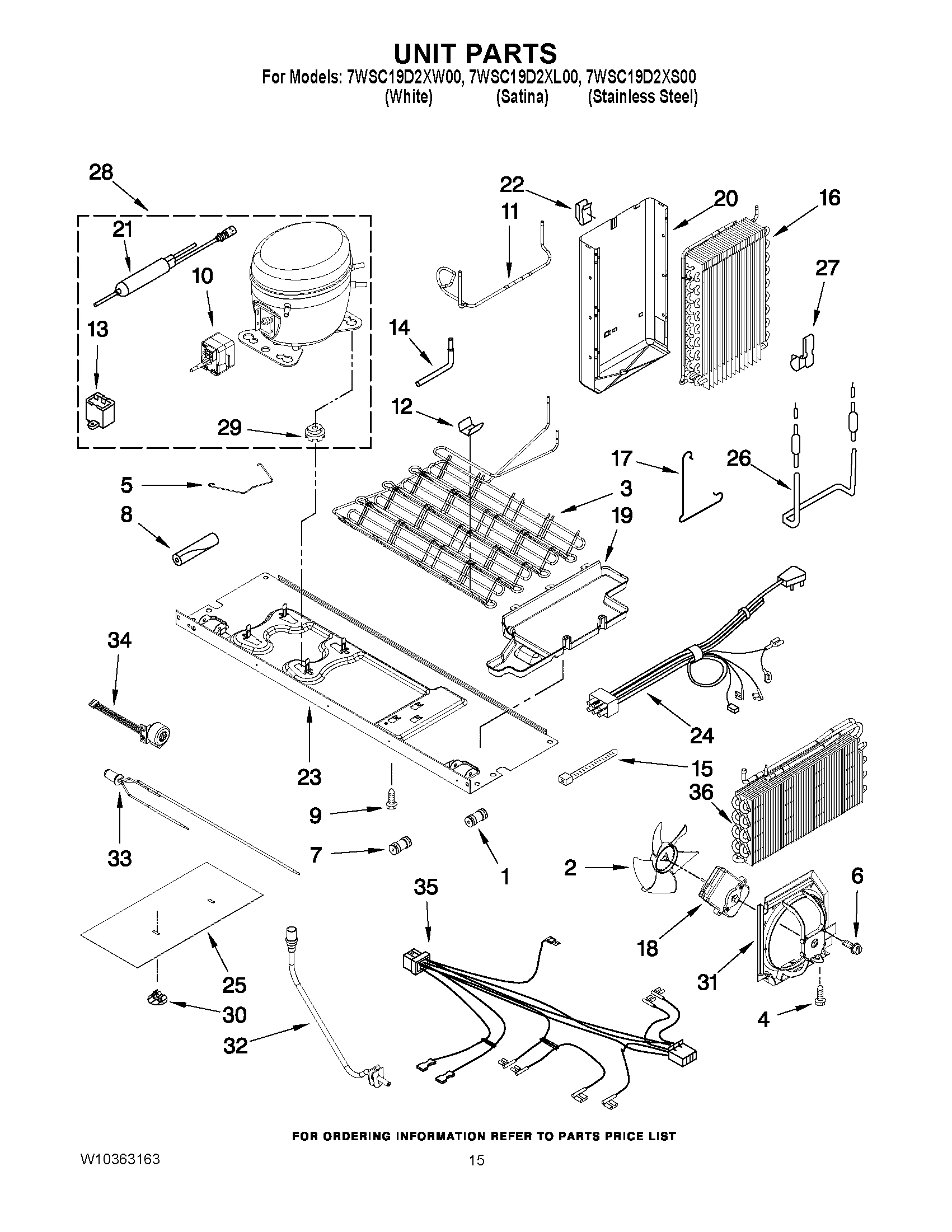

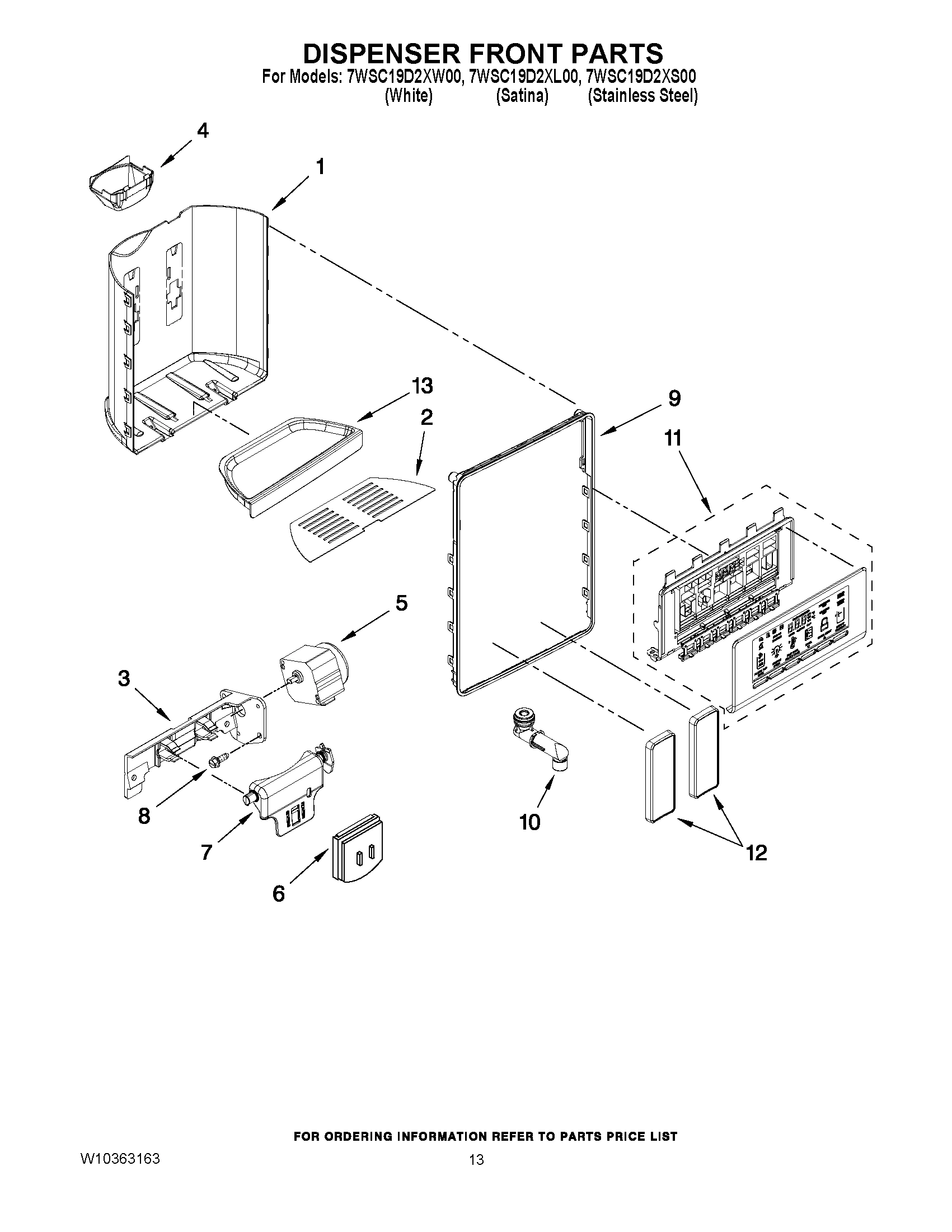

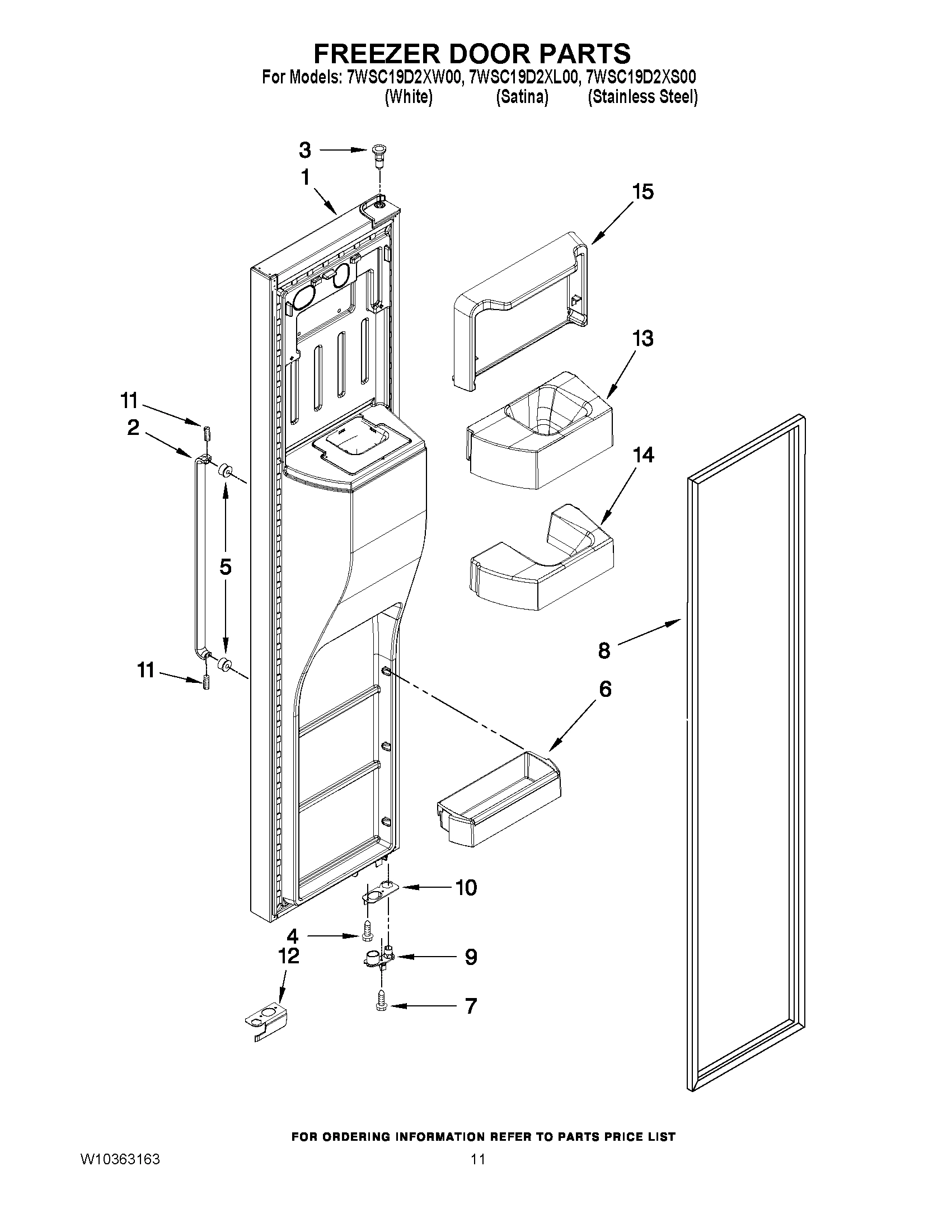

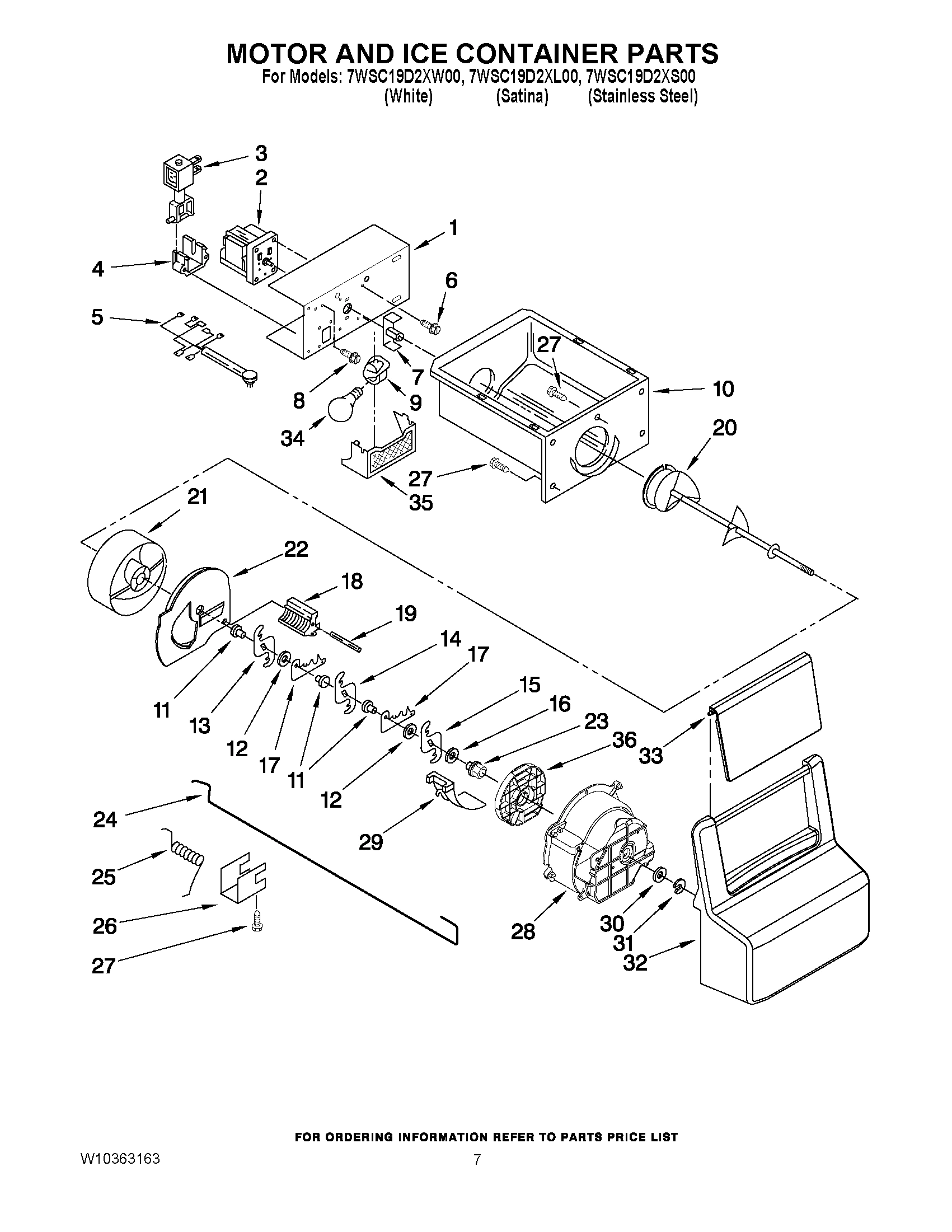

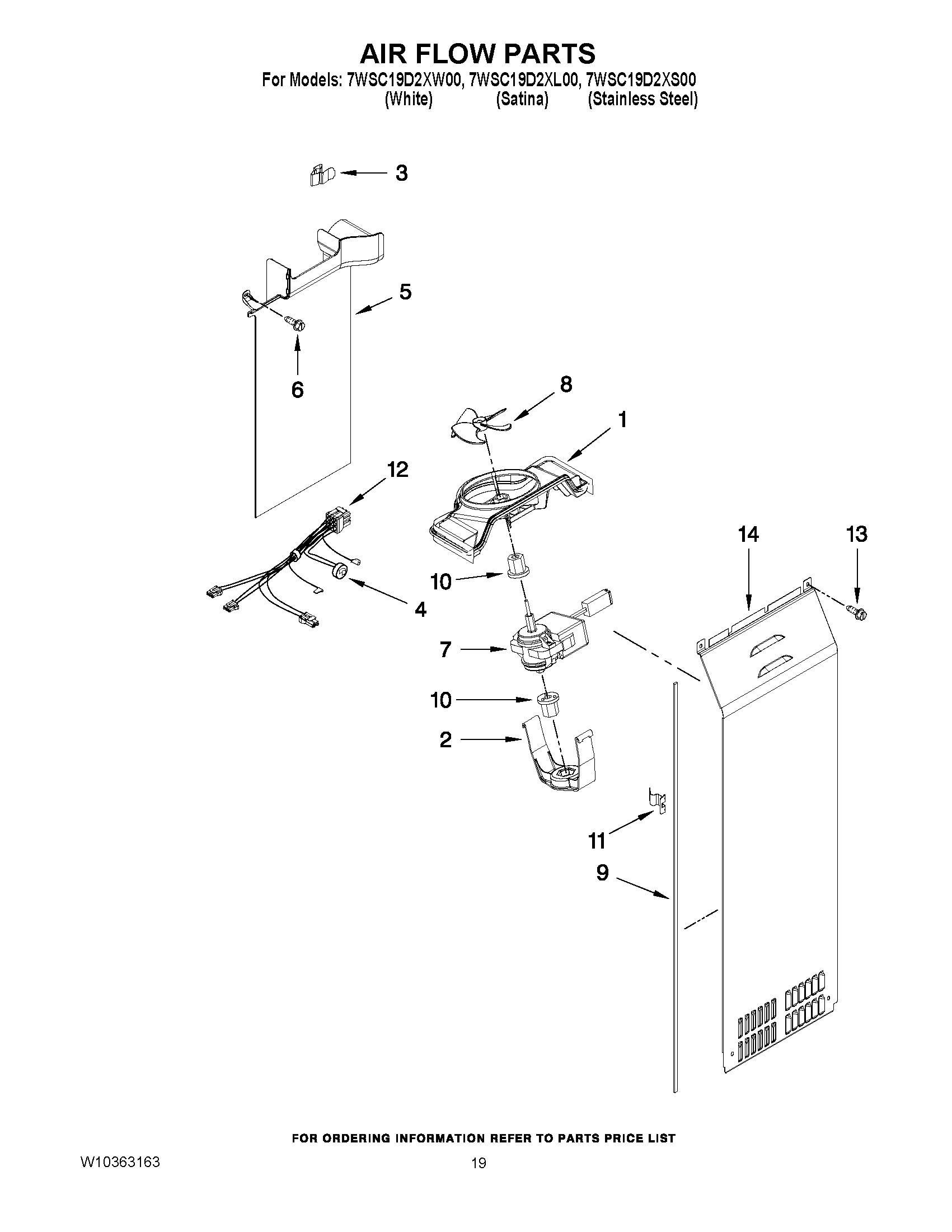

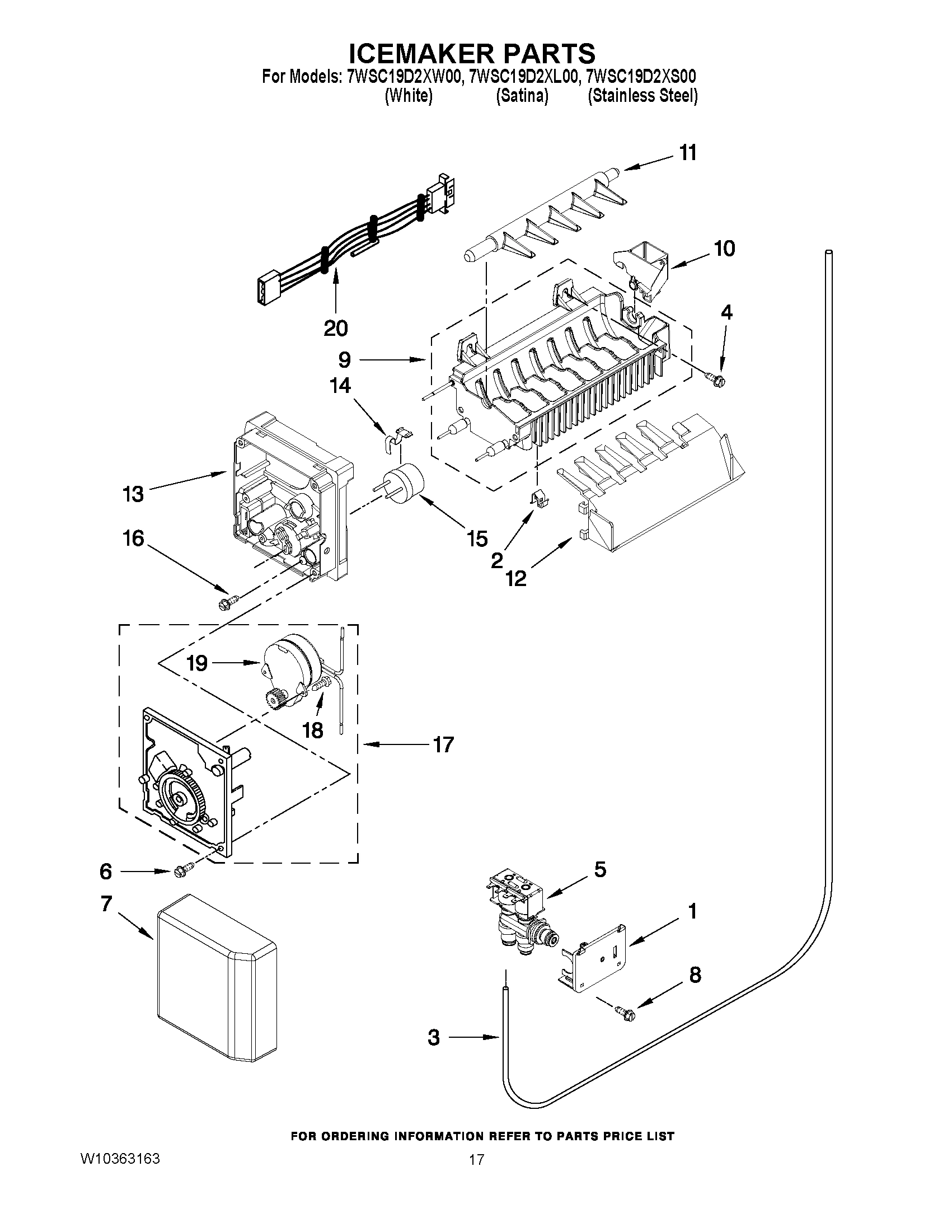

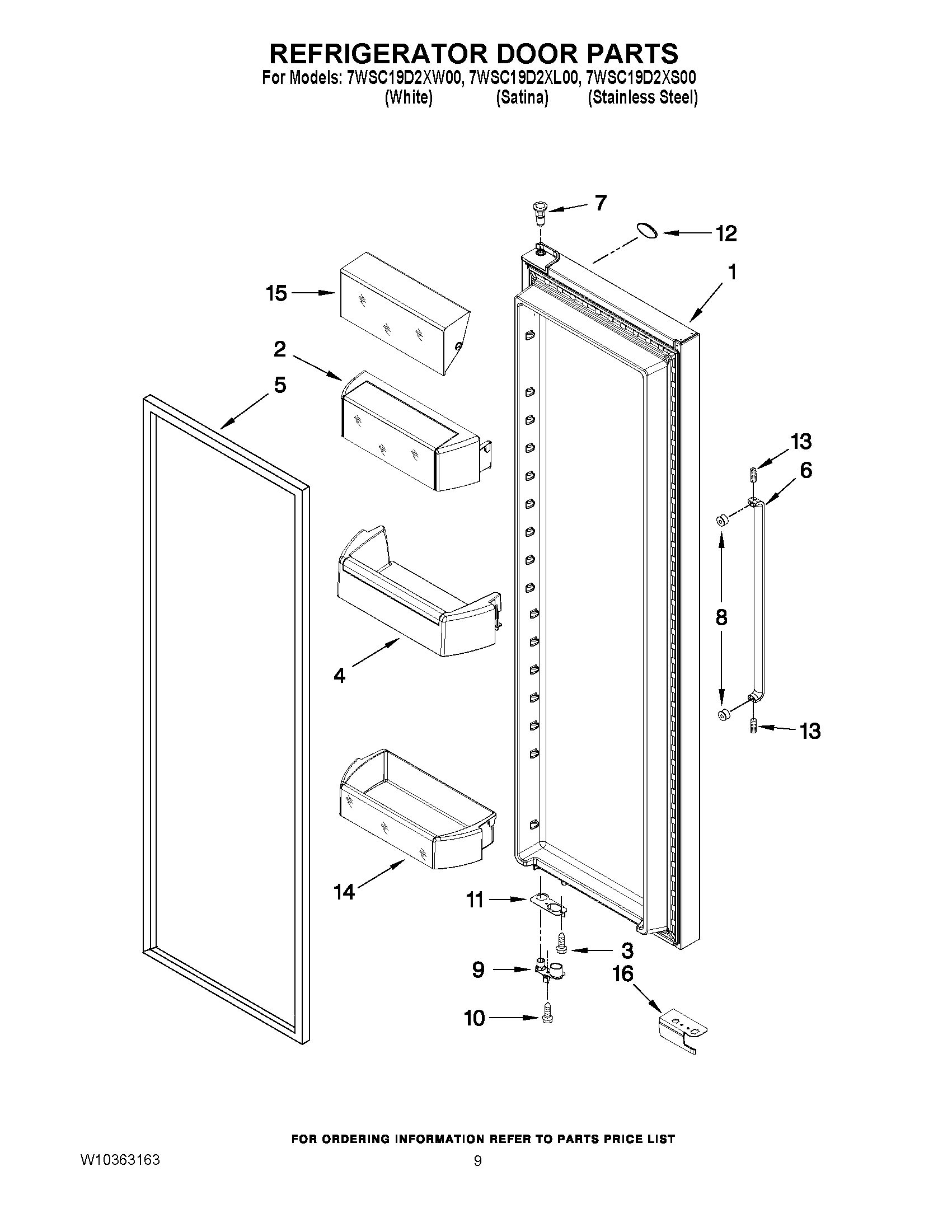

Model Whirlpool 7WSC19D2XL00 REFRIGERATOR – Common Parts &amp; Diagrams

1

W10276181 Whirlpool Bracket Backorder WPL W10276181 $30.25

1

W11178072 Whirlpool Glass Shelf Backorder WPL W11178072 $133.54

1

WPW10271543 Whirlpool Refrigerator Connector In Stock WPL WPW10271543 $13.41

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (WHITE) WPL W10287400 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (SATINA) WPL W10327651 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 5) (STAINLES WPL W10327653 Contact Us For Availability

2

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $68.76

2

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $9.96

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

WPW10309637 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10309637 $64.54

3

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

3

W11708426 Whirlpool Condenser Assembly In Stock WPL W11708426 $103.17

3

W11746089 Whirlpool Slide Backorder WPL W11746089 $11.38

3

SOLENIOD ASSEMBY WPL W10326316 Contact Us For Availability

3

SCREW WPL W10296816 Contact Us For Availability

4

W10316760 Whirlpool Thermistor Kit In Stock WPL W10316760 $32.54

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

WPW10282880 Whirlpool Refrigerator Control Bo Backorder WPL WPW10282880 $30.05

4

WPW10296855 Whirlpool Refrigerator Door Bin In Stock WPL WPW10296855 $46.39

5

W10251474 Whirlpool Refrigerator Air Duct Backorder WPL W10251474 $63.04

5

WPW10205978 Whirlpool Motor In Stock WPL WPW10205978 $35.32

5

WPW10247884 Whirlpool Refrigerator FIP Gasket Backorder WPL WPW10247884 $147.01

5

WPW10249912 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249912 $144.80

5

COVER, ASSY WPL W10290874 Contact Us For Availability

5

WIRE ASSEMBLY, ICE DESPENSER WPL W10253294 Contact Us For Availability

6

W11106313 Whirlpool Refrigerator Freezer Bin Backorder WPL W11106313 $71.06

6

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

6

WPW10256775 Whirlpool Refrigerator Pan Trim Backorder WPL WPW10256775 $47.95

6

HANDLE WPL W10277354 Contact Us For Availability

7

W10247979 Whirlpool Refrigerator Fitting Backorder WPL W10247979 $28.64

7

W11236850 Whirlpool Refrigerator Pan Trim Backorder WPL W11236850 $33.42

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

7

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

7

WPW10296843 Whirlpool Crisper Pan Backorder WPL WPW10296843 $113.62

8

W11266052 Whirlpool Refrigerator Bracket Backorder WPL W11266052 $26.54

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

8

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

8

WPW10247885 Whirlpool Door Gasket In Stock WPL WPW10247885 $151.09

8

WPW10249913 Whirlpool Refrigerator FIP Gasket In Stock WPL WPW10249913 $146.07

8

MEAT PAN (ALSO ORDER 6) WPL W10296845 Contact Us For Availability

9

W10240370 Whirlpool Refrigerator Gasket Backorder WPL W10240370 $14.42

9

W11607100 Whirlpool Refrigerator Thimble Cam In Stock WPL W11607100 $4.90

9

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

9

WPW10248011 Whirlpool Refrigerator White Door In Stock WPL WPW10248011 $8.78

9

WPW10248015 Whirlpool Refrigerator Door Cam In Stock WPL WPW10248015 $9.35

9

WPW10257201 Whirlpool Door Closing Cam In Stock WPL WPW10257201 $8.67

9

TRIM RING (BLACK) WPL W10276187 Contact Us For Availability

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

W10294543 Whirlpool Refrigerator Container Backorder WPL W10294543 $63.97

W11293380 Whirlpool Refrigerator Bracket Backorder WPL W11293380 $25.49

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $51.17

WPW10296804 Whirlpool Refrigerator Screw Backorder WPL WPW10296804 $4.28

WPW10308751 Whirlpool Screw Backorder WPL WPW10308751 $2.91

11

W10189661 Whirlpool Refrigerator Spacer Backorder WPL W10189661 $32.03

11

W11037957 Whirlpool Refrigerator Bracket In Stock WPL W11037957 $29.21

11

WPW10223328 Whirlpool Refrigerator Tube Backorder WPL WPW10223328 $53.03

W10901051 Whirlpool Refrigerator Door Hinge Backorder WPL W10901051 $27.89

W10901052 Whirlpool Refrigerator Door Hinge Backorder WPL W10901052 $27.89

W11032808 Whirlpool Refrigerator Spacer Backorder WPL W11032808 $6.28

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

W10276193 Whirlpool Refrigerator Disp Tray Backorder WPL W10276193 $40.55

W10276194 Whirlpool Refrigerator Drip Tray Backorder WPL W10276194 $40.50

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

W11568758 Whirlpool Top Hinge Backorder WPL W11568758 $8.55

W11573587 Whirlpool Refrigerator Door Hinge Backorder WPL W11573587 $8.55

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WPW10238123 Whirlpool Refrigerator Housing In Stock WPL WPW10238123 $150.75

W10239739 Whirlpool Refrigerator Evaporator C Backorder WPL W10239739 $120.22

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

WPW10335220 Whirlpool Refrigerator Cantilever Backorder WPL WPW10335220 $51.26

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $42.57

W10249941 Whirlpool Refrigerator Door Hinge Backorder WPL W10249941 $37.20

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

W11293373 Whirlpool Refrigerator Door Hinge Backorder WPL W11293373 $26.85

WPW10324760 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10324760 $62.66

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

W10257216 Whirlpool Refrigerator Wire Cover Backorder WPL W10257216 $12.08

W10789144 Whirlpool Refrigerator Wire Cover In Stock WPL W10789144 $11.11

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WASHER, PLAIN WPL W10189660 Contact Us For Availability

17

W10181990 Whirlpool Refrigerator Blade Backorder WPL W10181990 $10.08

17

Clamp WPL 2161324 Contact Us For Availability

18

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

18

W10138203 Whirlpool Refrigerator Blade Block Backorder WPL W10138203 $36.93

18

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

19

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

19

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.26

19

WPW10251469 Whirlpool Refrigerator Evaporator Backorder WPL WPW10251469 $68.91

20

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.64

20

HEAT SHIELD WPL W10348669 Contact Us For Availability

20

AUGER WPL W10294285 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

W10280420 Whirlpool Refrigerator Light Lens Backorder WPL W10280420 $42.00

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

22

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

22

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

23

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

23

SUPPORT PLATE, COMPRESSOR WPL W10277704 Contact Us For Availability

24

W10294287 Whirlpool Refrigerator Control Arm Backorder WPL W10294287 $42.71

24

W10876198 Whirlpool Refrigerator Door Cam Backorder WPL W10876198 $5.09

25

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

25

W10859809 Whirlpool Refrigerator Evaporator C Backorder WPL W10859809 $116.57

25

UNIT COVER, BOTTOM WPL W10284726 Contact Us For Availability

26

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

27

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

28

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $54.70

29

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

29

WPW10235491-includeCORE Whirlpool WPW10235491 Backorder WPL WPW10235491-includeCORE $204.69

30

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

31

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

31

WPW10251467 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10251467 $50.80

32

W11409190 Whirlpool Refrigerator Drain Tube In Stock WPL W11409190 $24.06

32

FRONT COVER, ICE CONTAINER WPL W10276185 Contact Us For Availability

33

W11661892 Whirlpool Refrigerator Ice Door Backorder WPL W11661892 $31.88

34

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

35

W11676780 Whirlpool Refrigerator Wire Harness Backorder WPL W11676780 $28.04

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

36

W10138206 Whirlpool Refrigerator Spacer Backorder WPL W10138206 $71.60

100

ICE CONTAINER (COMPLETE) WPL W10294325 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $28.53

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

WPW10300794 Whirlpool Refrigerator Hardware P Backorder WPL WPW10300794 $58.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
