Model Whirlpool 7MWGD9400TU1 27`` GAS DRYER – Common Parts &amp; Diagrams

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $42.09

PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability

Kit, Hold Down WPL 8529894 Contact Us For Availability

ACCESSORY PARTS WPL ARI143033A Contact Us For Availability

Following Parts Not Illustrated WPL ARI143031A Contact Us For Availability

1

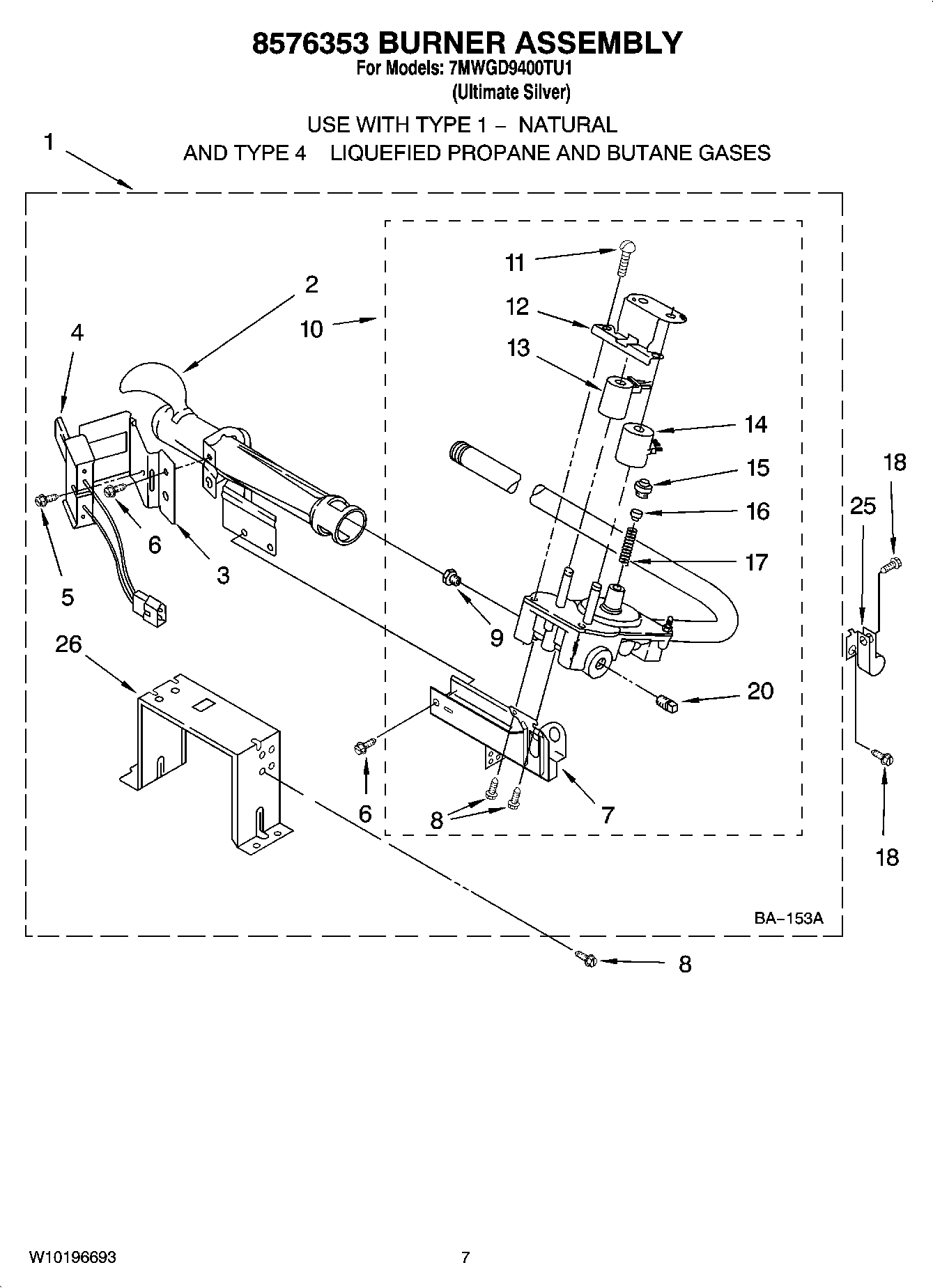

280119 Whirlpool Gas Burner In Stock WPL 280119 $214.30

1

WPW10085230 Whirlpool Label Assembly Backorder WPL WPW10085230 $9.13

1

Guide, Quick Start WPL W10140905 Contact Us For Availability

1

Use & Care Guide WPL W10140906 Contact Us For Availability

1

Tech Sheet WPL W10177461 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

2

WPW10310366 Whirlpool Hinge In Stock WPL WPW10310366 $84.03

2

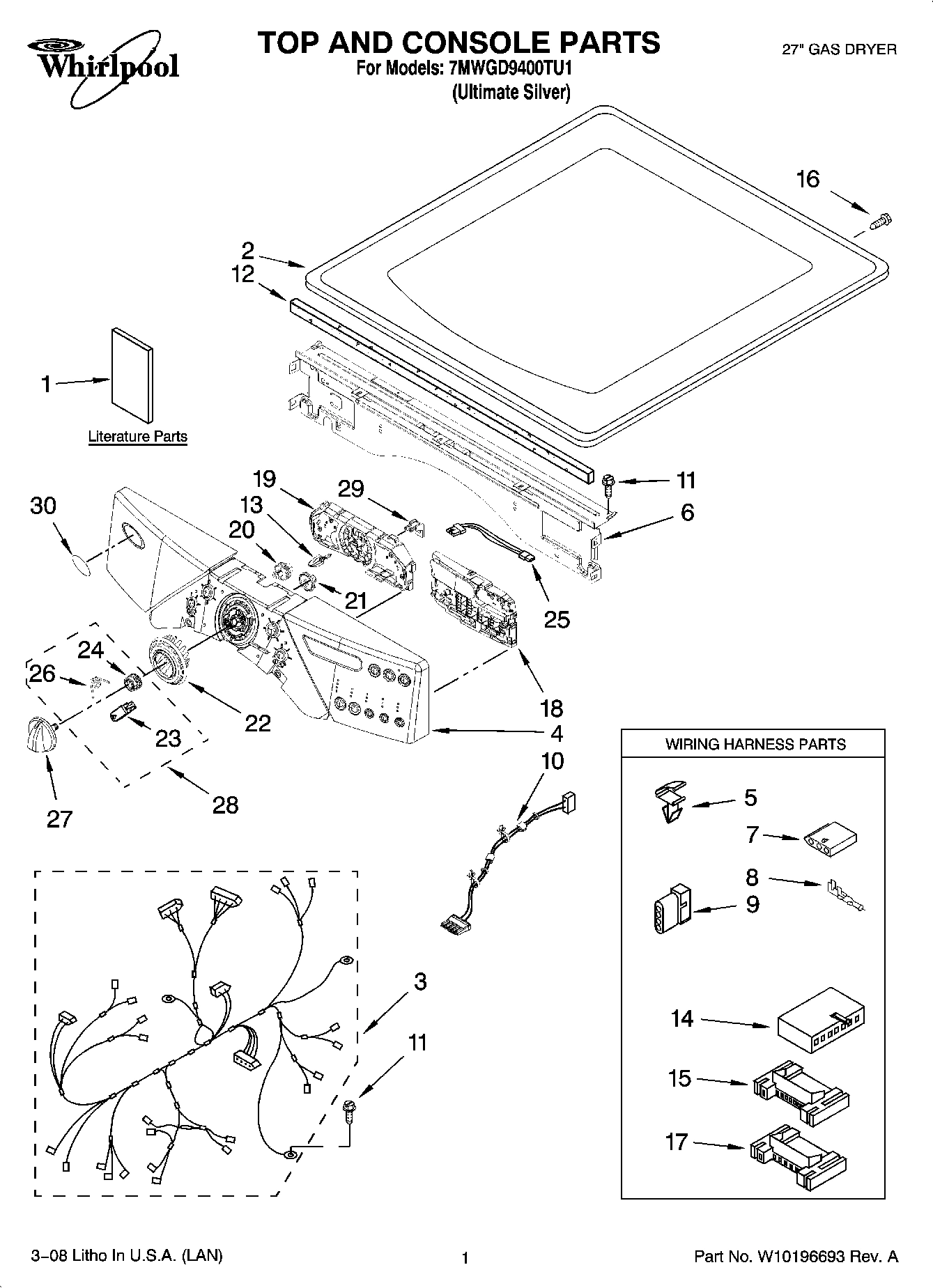

TOP WPL W10114785 Contact Us For Availability

3

W10111011 Whirlpool Wire Harness Backorder WPL W10111011 $192.76

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

WPW10159996 Whirlpool Screw Backorder WPL WPW10159996 $2.51

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Includes Illus: 20,21,22,27,2 WPL W10116697 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $37.41

6

Bracket, Console (Includes No.12) WPL W10006840 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

Handle-Ring WPL 8579502 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $12.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

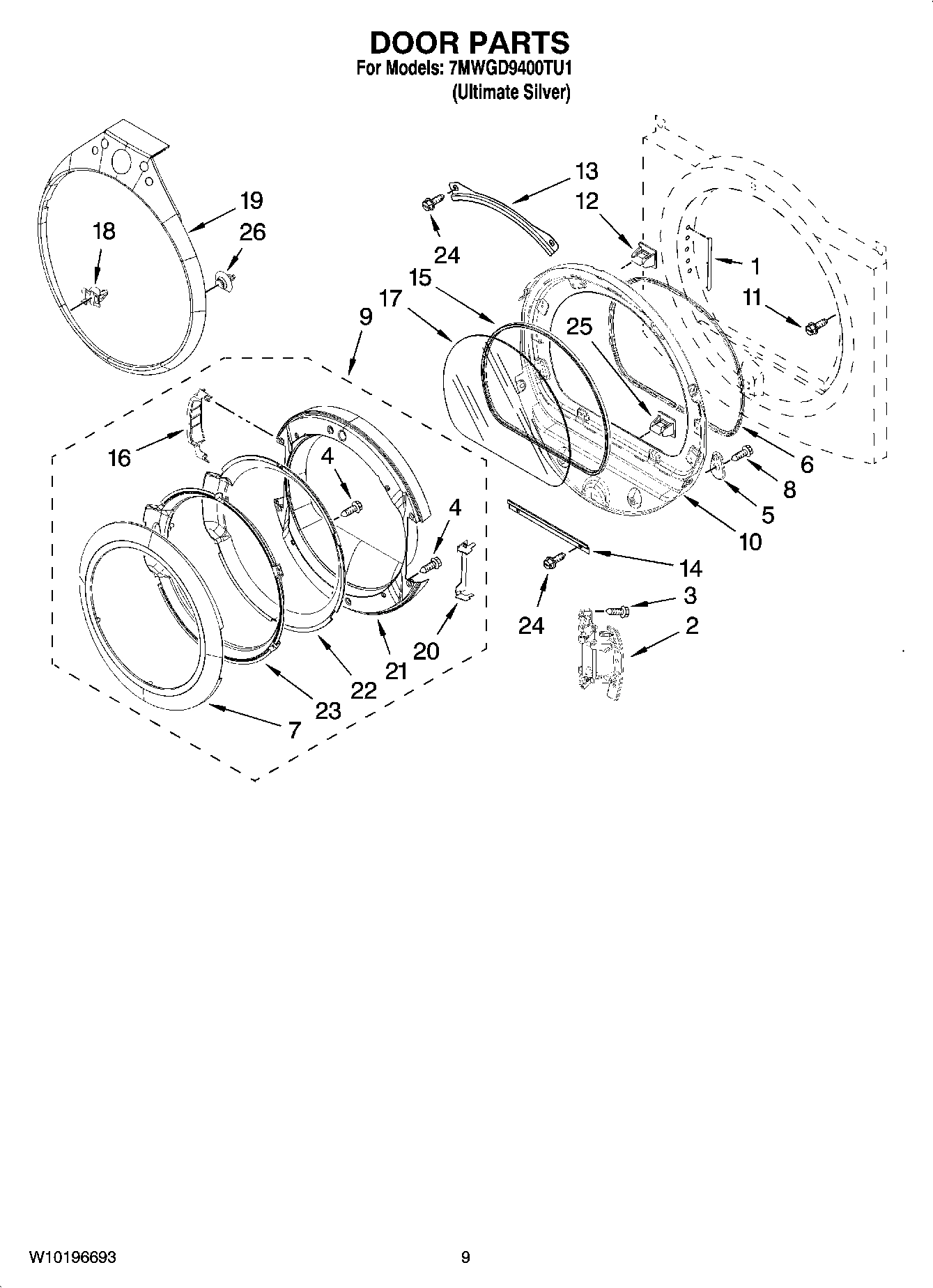

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

9

ORIFICE, BURNER (TYPE 4) (BUTANE) WPL 15422 Contact Us For Availability

10

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $168.63

10

Power Cable, User-Interface WPL W10111020 Contact Us For Availability

10

Door Assembly (Inner) (Includes Illus. 12 & 2 WPL 8578229 Contact Us For Availability

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

WP355515 Whirlpool Screw Backorder WPL WP355515 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

12

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

12

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $32.08

13

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.50

13

W10012480 Whirlpool WP Dishwasher Encoder Ada Backorder WPL W10012480 $9.96

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

3936150 Whirlpool Connector Backorder WPL 3936150 $28.80

14

W10822054 Whirlpool Retainer Backorder WPL W10822054 $6.19

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

8579662 Whirlpool Seal Backorder WPL 8579662 $40.35

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

COVER HINGE (STATIONARY (RH)) WPL W10181197 Contact Us For Availability

(Following Parts Not Included) WPL ARI143032A Contact Us For Availability

Cover-Hinge, Stationary (LH) WPL W10180119 Contact Us For Availability

Screw, 8-18 x 1/2 WPL 8281225 Contact Us For Availability

17

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $92.47

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $4.78

18

User Interface (Right) WPL W10031430 Contact Us For Availability

19

Tear-drop Trim & Clip Assembly WPL W10181529 Contact Us For Availability

19

User Interface (Center) (Includes: Illus. 13) WPL W10121375 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

Door Shield WPL W10180120 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

22

Door Mask WPL W10180117 Contact Us For Availability

23

Door Screen WPL 8578155 Contact Us For Availability

23

Rast, Wheel Assy. (Service Only With Item. 28 WPL W10012810 Contact Us For Availability

24

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $2.51

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $32.46

24

Detent Wheel (Service Only With Illus. 28) WPL W10012460 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

25

Harness, Communication WPL W10095960 Contact Us For Availability

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $2.51

Clip-S Type WPL 62825 Contact Us For Availability

Clip-Trim (6) WPL W10059060 Contact Us For Availability

Bracket, Support WPL 3389889 Contact Us For Availability

Knob, Spring (Service Only With Item 28) WPL W10012820 Contact Us For Availability

27

Knob, Control (Includes: Item 21) WPL W10116704 Contact Us For Availability

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

29

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.00

30

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

30

Badge WPL W10117943 Contact Us For Availability

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $7.98

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $28.07

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

38

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

40

Dry Rack Support WPL 8521961 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $69.14

47

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $67.84

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $34.18

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51
