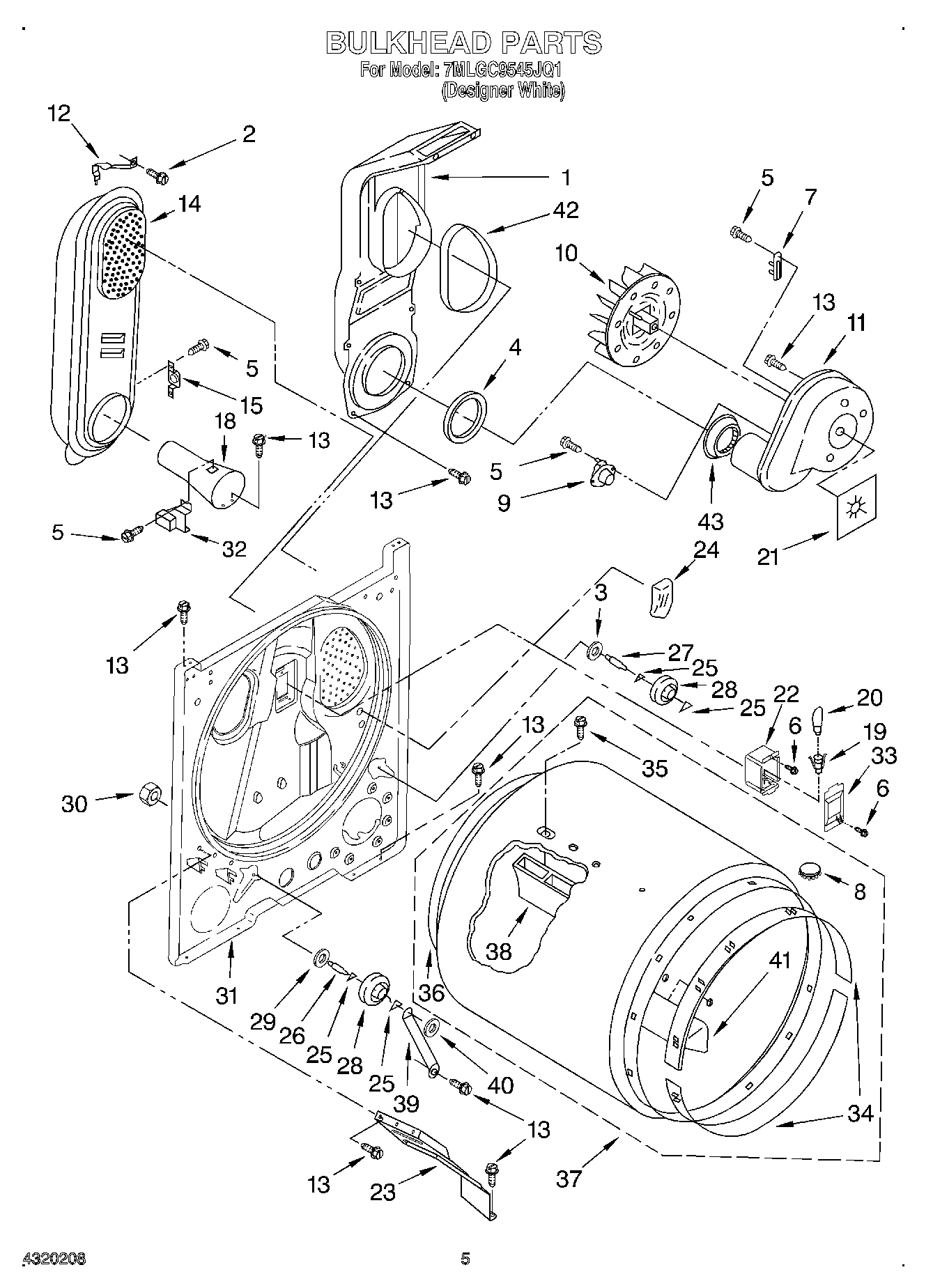

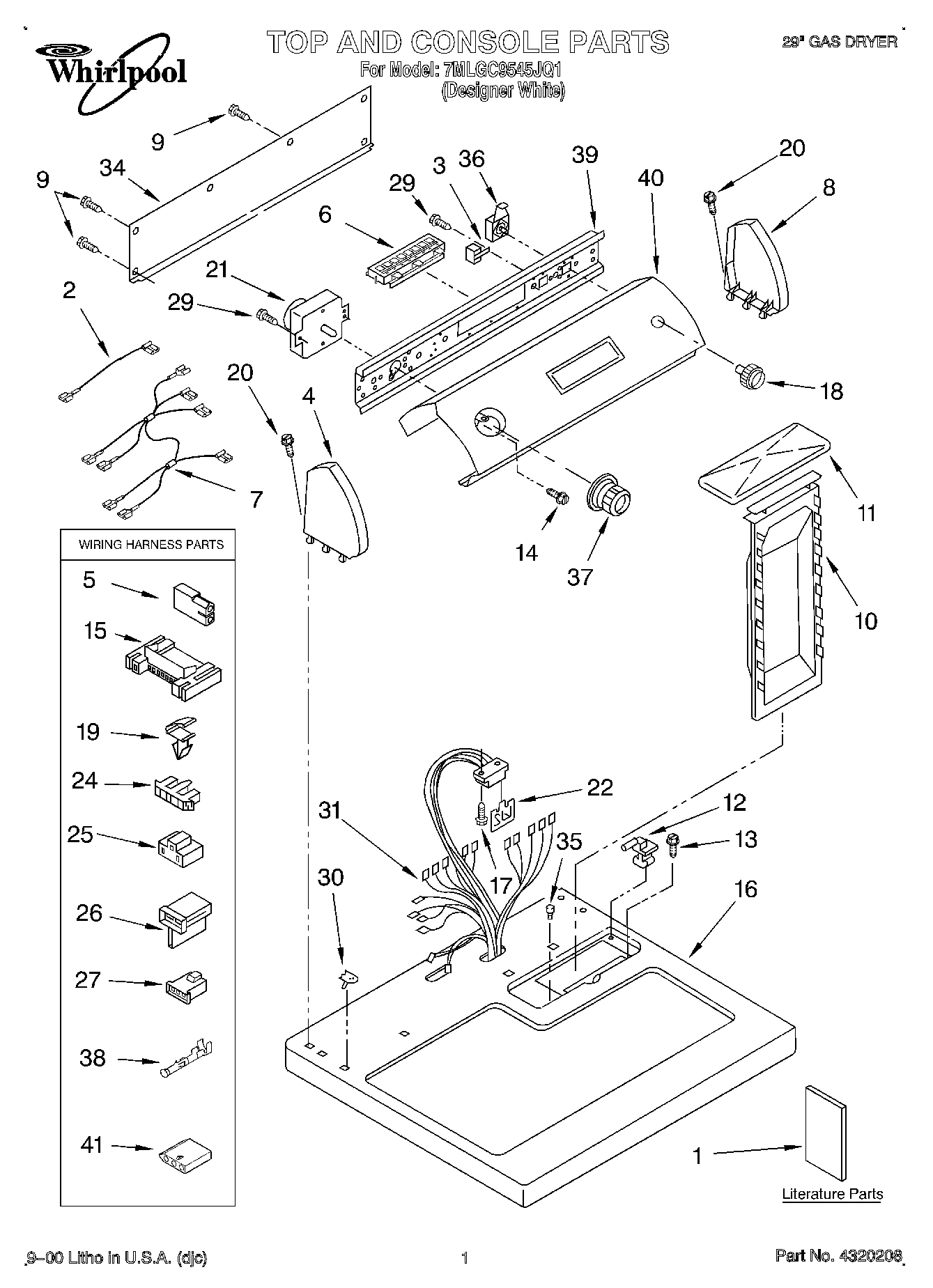

Model Whirlpool 7MLGC9545JQ1 GAS DRYER – Common Parts &amp; Diagrams

1

Burner Assembly 60 Hz. (Type 1, 2 & 3) (White WPL 3402844 Contact Us For Availability

2

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $72.29

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $22.79

4

W11415783 Whirlpool Seal In Stock WPL W11415783 $7.16

5

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $24.80

5

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

6

WP3404162 Whirlpool Clamp In Stock WPL WP3404162 $3.70

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

7

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.67

7

Base, Burner WPL 693986 Contact Us For Availability

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.08

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP8318268 Whirlpool Thermostat In Stock WPL WP8318268 $58.71

9

Orifice, Burner (Type 3) WPL 15419 Contact Us For Availability

9

Orifice, Burner (Type 2) WPL 15775 Contact Us For Availability

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $24.66

WP349639 Whirlpool Lint Filter In Stock WPL WP349639 $19.80

WP694089 Whirlpool Dryer Blower Wheel In Stock WPL WP694089 $17.39

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

Cover, Lint Screen WPL 8283378 Contact Us For Availability

12

694538 Whirlpool Bracket Backorder WPL 694538 $42.00

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $17.78

14

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

15

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

16

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.40

19

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

19

WP98234 Whirlpool Nut In Stock WPL WP98234 $4.78

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

21

Seal, Blower WPL 3394196 Contact Us For Availability

21

Timer Assembly (60 Hz.) WPL 8299762 Contact Us For Availability

21

Pipe, Gas Supply WPL 233273 Contact Us For Availability

22

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.28

22

Elbow Union Assembly WPL 3406052 Contact Us For Availability

23

3393767 Whirlpool Pipe Backorder WPL 3393767 $59.98

23

W11398682 Whirlpool Bracket Backorder WPL W11398682 $20.90

24

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

24

Nut, Compression WPL 233076 Contact Us For Availability

24

Connector, Timer WPL 3397269 Contact Us For Availability

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

341029 Whirlpool Clamp Backorder WPL 341029 $7.58

49572A Whirlpool Dryer Propane Gas Conversion In Stock WPL 49572A $16.78

W10906683 Whirlpool Door Seal In Stock WPL W10906683 $35.43

26

W11252547 Whirlpool Clip Assembly Backorder WPL W11252547 $10.76

28

WP8066056 Whirlpool Door Hinge In Stock WPL WP8066056 $44.19

28

WP8066057 Whirlpool Door Hinge In Stock WPL WP8066057 $32.63

29

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $2.51

30

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

30

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

30

WP695737 Whirlpool Door Backorder WPL WP695737 $108.35

31

W10828905 Whirlpool Bulkhead OS1 Backorder WPL W10828905 $118.41

31

WP3393549 Whirlpool Door Assembly Backorder WPL WP3393549 $83.93

32

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

34

Plug, Front Panel WPL 3394975 Contact Us For Availability

36

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $6.50

36

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $44.84

38

WP692490 Whirlpool Drum Baffle Backorder WPL WP692490 $52.25

38

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

39

W11684613 Whirlpool Bracket Backorder WPL W11684613 $7.96

40

WP348780 Whirlpool Base In Stock WPL WP348780 $38.12

40

WP90296 Whirlpool Clip Backorder WPL WP90296 $2.51

3400500 Whirlpool Screw In Stock WPL 3400500 $9.59

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP3403636 Whirlpool Drum Baffle Backorder WPL WP3403636 $47.56

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

42

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $3.88

42

WP8066184 Whirlpool Dryer Motor Pulley In Stock WPL WP8066184 $22.86

43

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $91.50

43

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $10.76

44

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

55

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

56

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

57

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42
