Model Whirlpool 7MET18GKDN00 REFRIGERATOR – Common Parts & Diagrams

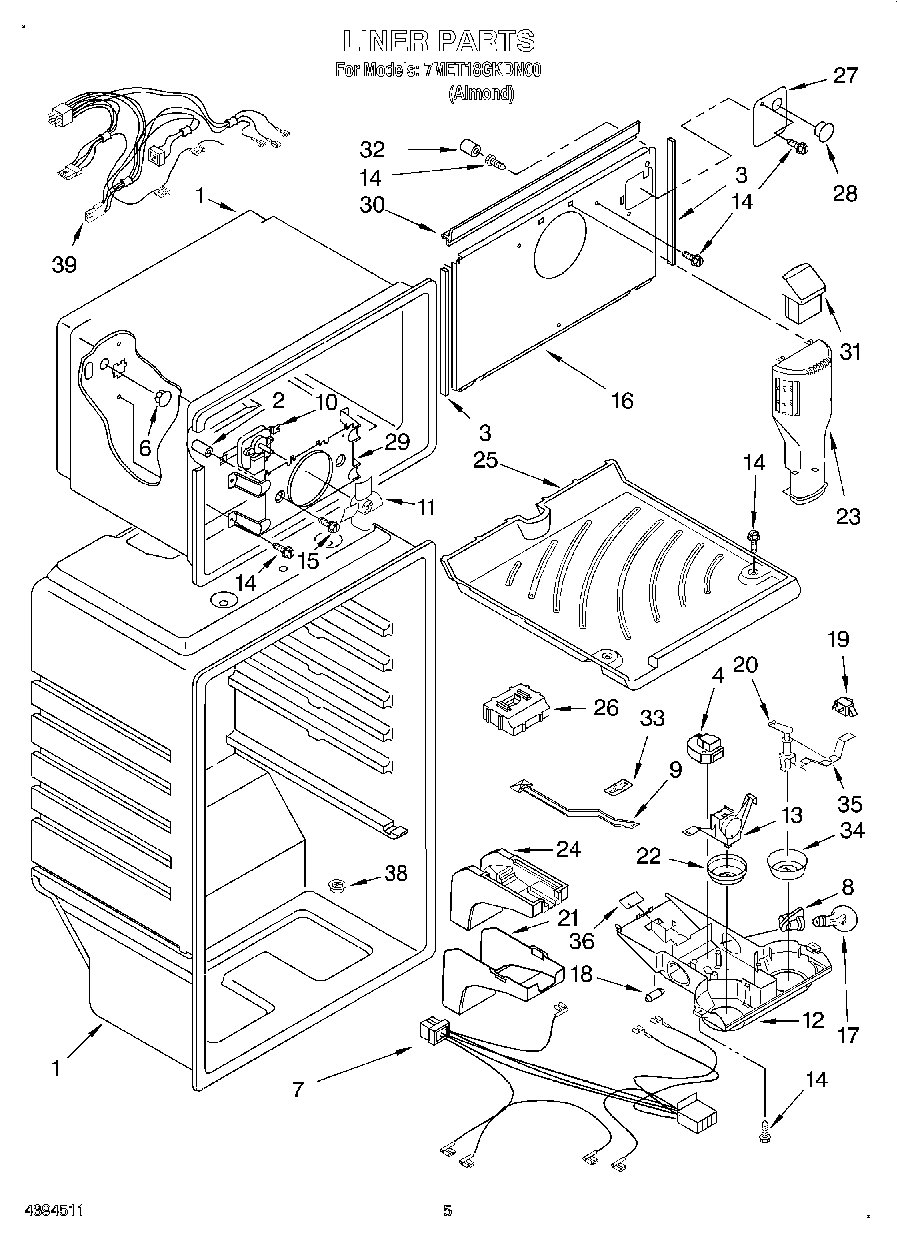

03 - LINER

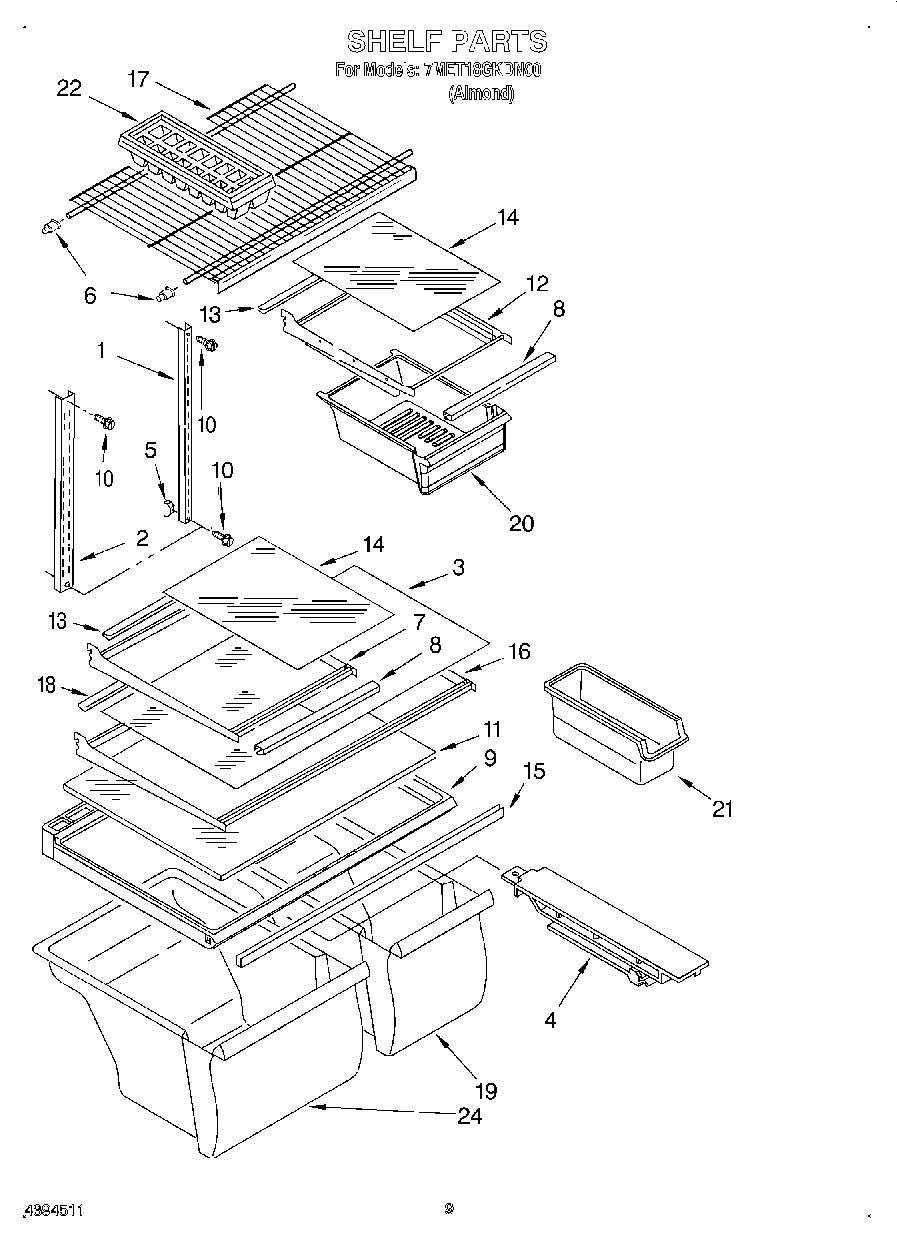

05 - SHELF, LIT/OPTIONAL
01 - CABINET
04 - UNIT
02 - DOOR
Common parts from model Whirlpool 7MET18GKDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI17648A7 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195273 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) WPL 2171030 Contact Us For Availability
3
Condenser WPL 2183849 Contact Us For Availability
4
Screw WPL 489426 Contact Us For Availability
5
Evaporator Assy. WPL 2176337 Contact Us For Availability
5
Handle Center WPL 2148036 Contact Us For Availability
6
Screw WPL 2174650 Contact Us For Availability
6
Screw WPL 489490 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Insert, Crisper Cover WPL 2166149 Contact Us For Availability
11
Trim, Door Shelf WPL 2171038 Contact Us For Availability
12
Cover, Screw WPL 9791770 Contact Us For Availability
13
Nameplate WPL 2166599 Contact Us For Availability
14
Trim-Door Shelf WPL 2171041 Contact Us For Availability
15
Relay (See Overload) WPL ARI17654A9 Contact Us For Availability
15
Plug-Trim WPL 2156001 Contact Us For Availability
16
Screw WPL 489473 Contact Us For Availability
16
Trim, Door Shelf WPL 2171040 Contact Us For Availability
17
Shim, Hinge Center WPL 2163757 Contact Us For Availability
18
Trim, Door WPL 2171039 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Screw WPL 489459 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) WPL 2182491 Contact Us For Availability
20
Hinge, Butt WPL 2179829 Contact Us For Availability
20
Protector WPL 2183803 Contact Us For Availability
20
Hole Plug WPL 1122654 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Nut (Not Serviced) WPL ARI17655A9 Contact Us For Availability
22
Support Block WPL 2176302 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
24
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
24
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
24
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
24
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
24
WPL 978883 WPL 978883 Contact Us For Availability
24
Fitting, Water Tube (Not Serviced) WPL ARI17649A2 Contact Us For Availability
27
Hole Plug (6) WPL 2151653 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Seal, Front (Not Serviced) WPL ARI17650A9 Contact Us For Availability
28
Hole Plug WPL 989196 Contact Us For Availability
30
Seal, Rear (Not Serviced) WPL ARI17651A1 Contact Us For Availability
31
Cover, Water Valve WPL 2166251 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. WPL 2171044 Contact Us For Availability
35
Corner Filler (2) WPL 2166187 Contact Us For Availability
36
Grille WPL 2182430 Contact Us For Availability
36
Bracket, Door Stop WPL 944035 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Shim WPL 1123517 Contact Us For Availability
39
Air Baffle WPL 2195287 Contact Us For Availability
40
Cover, Hinge WPL 2160404 Contact Us For Availability
41
Rail Center (Not Serviced) WPL ARI17652A9 Contact Us For Availability
42
Corner Filler, Grille WPL 2166204 Contact Us For Availability
42
Wire Assy. Unit WPL 2184584 Contact Us For Availability
42
Trim, Door WPL 2184570 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
44
Cover, Unit WPL 2183158 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2184550 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
