Model Whirlpool 7MET18GKDN00 REFRIGERATOR – Common Parts & Diagrams

WPL  1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
1

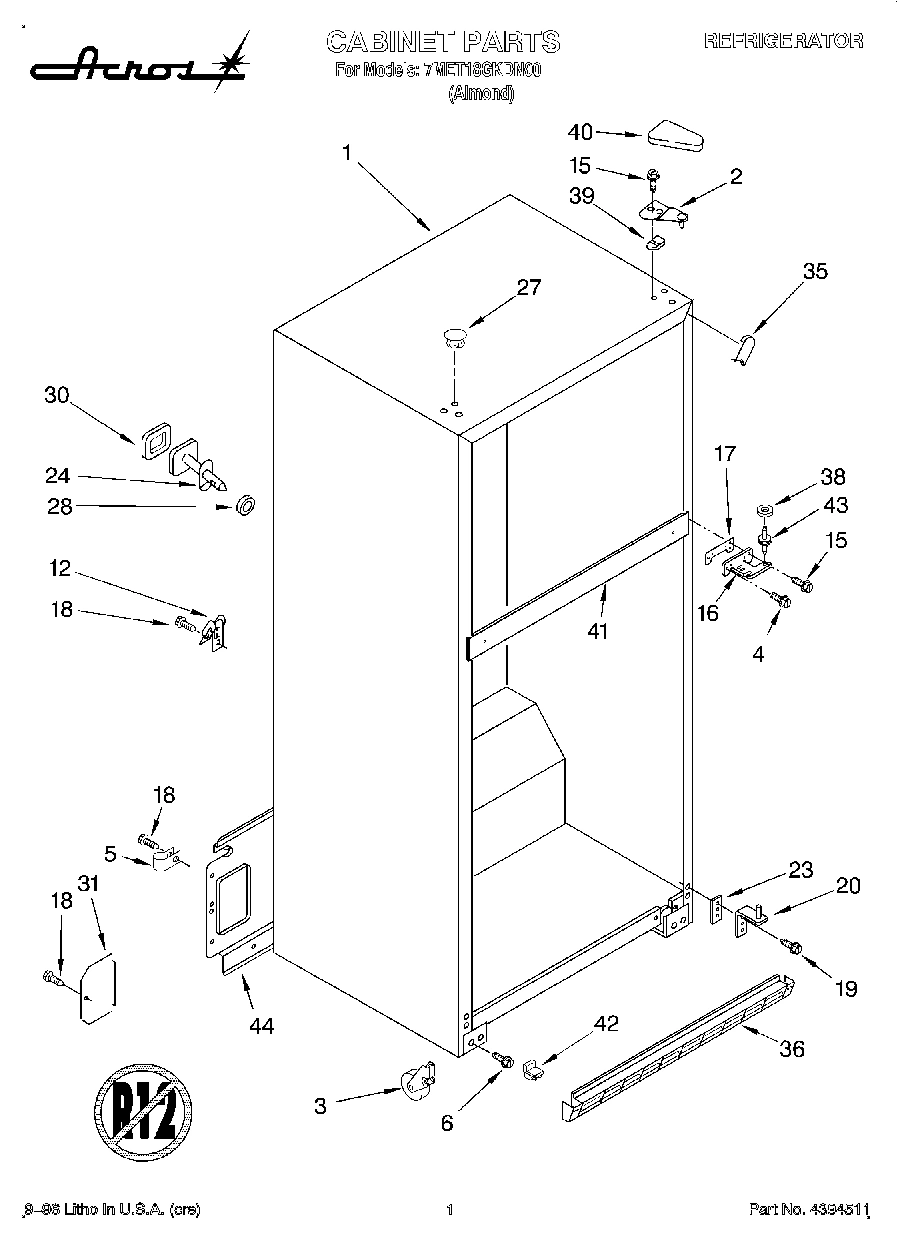

Cabinet (Not A Serviceable Part)
Cabinet (Not A Serviceable Part) WPL ARI17648A7 Contact Us For Availability
View on Model
1
Plate, Unit Mounting
Plate, Unit Mounting WPL 2195273 Contact Us For Availability
View on Model
1

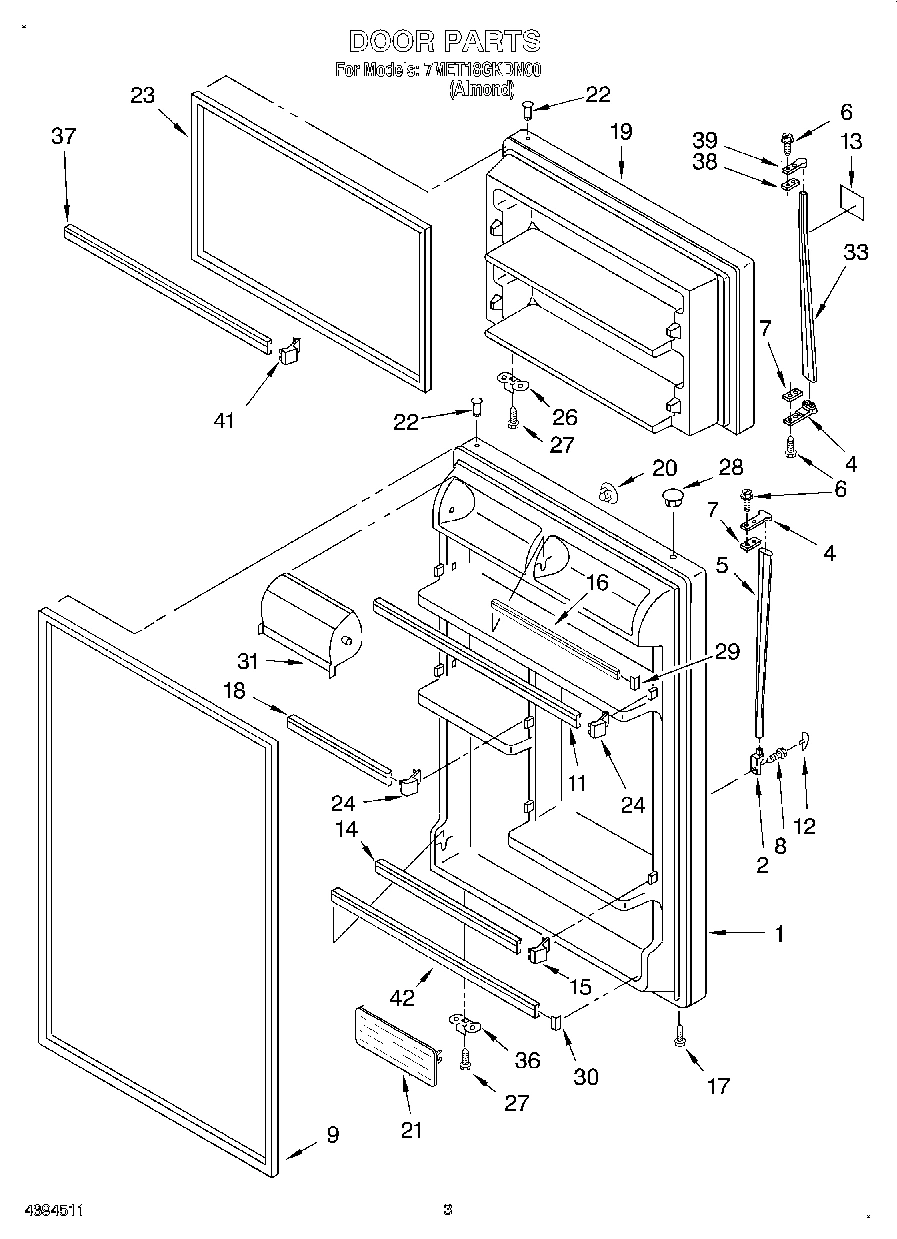

Refrigerator Door (Includes No.9 & No.22)
Refrigerator Door (Includes No.9 & No.22) WPL 2171030 Contact Us For Availability
View on Model
3

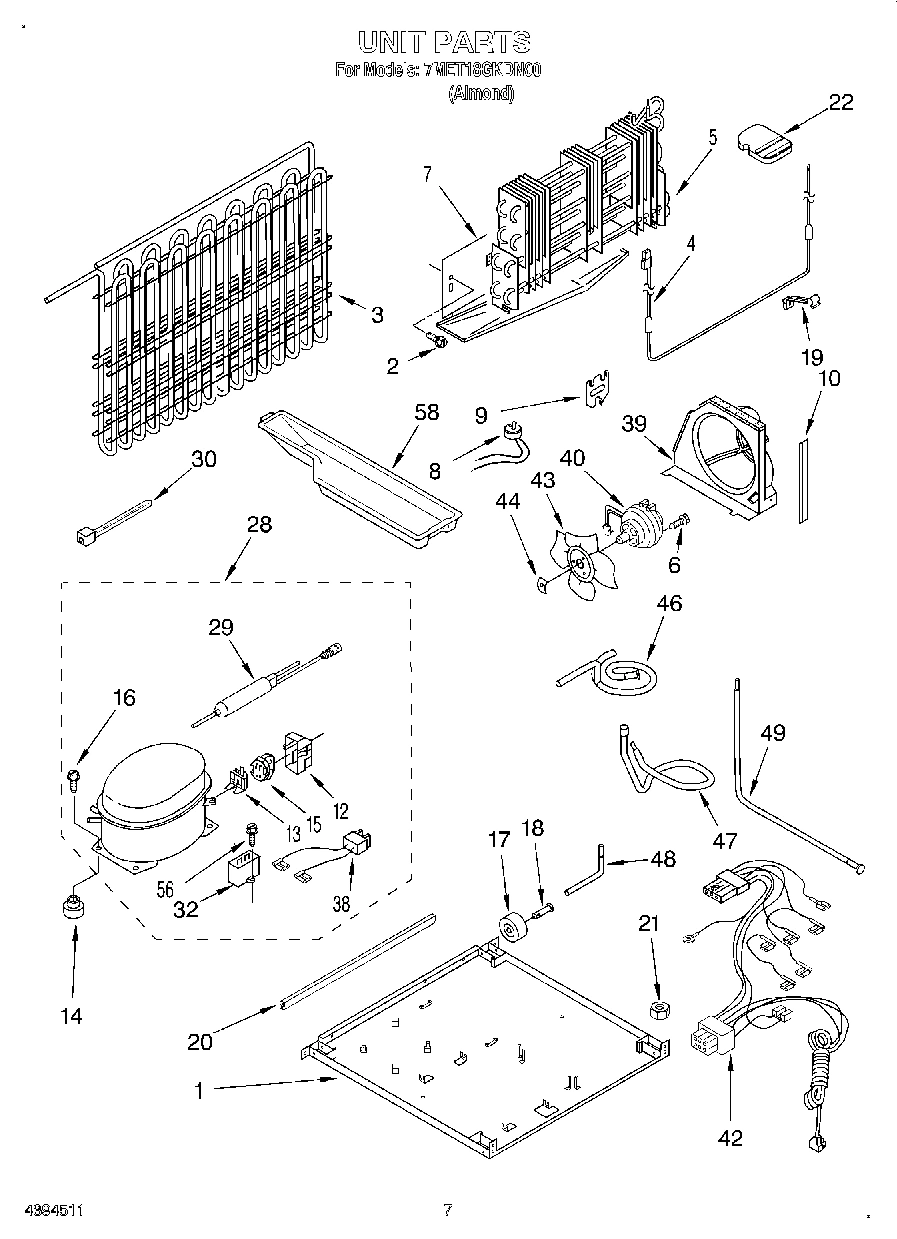

Condenser
Condenser WPL 2183849 Contact Us For Availability
View on Model
4
Screw
Screw WPL 489426 Contact Us For Availability
View on Model
5
Evaporator Assy.
Evaporator Assy. WPL 2176337 Contact Us For Availability
View on Model
5
Handle Center
Handle Center WPL 2148036 Contact Us For Availability
View on Model
6
Screw
Screw WPL 2174650 Contact Us For Availability
View on Model
6
Screw
Screw WPL 489490 Contact Us For Availability
View on Model
7
Spacer
Spacer WPL 943188 Contact Us For Availability
View on Model
7
Drain Pan
Drain Pan WPL 2172619 Contact Us For Availability
View on Model
9
Bracket, Heater
Bracket, Heater WPL 2176301 Contact Us For Availability
View on Model
10
Extension, Air Baffle
Extension, Air Baffle WPL 2163780 Contact Us For Availability
View on Model
11
Insert, Crisper Cover
Insert, Crisper Cover WPL 2166149 Contact Us For Availability
View on Model
11
Trim, Door Shelf
Trim, Door Shelf WPL 2171038 Contact Us For Availability
View on Model
12
Cover, Screw
Cover, Screw WPL 9791770 Contact Us For Availability
View on Model
13
Nameplate
Nameplate WPL 2166599 Contact Us For Availability
View on Model
14
Trim-Door Shelf
Trim-Door Shelf WPL 2171041 Contact Us For Availability
View on Model
15
Relay (See Overload)
Relay (See Overload) WPL ARI17654A9 Contact Us For Availability
View on Model
15
Plug-Trim
Plug-Trim WPL 2156001 Contact Us For Availability
View on Model
16
Screw
Screw WPL 489473 Contact Us For Availability
View on Model
16
Trim, Door Shelf
Trim, Door Shelf WPL 2171040 Contact Us For Availability
View on Model
17
Shim, Hinge Center
Shim, Hinge Center WPL 2163757 Contact Us For Availability
View on Model
18
Trim, Door
Trim, Door WPL 2171039 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
19
Screw
Screw WPL 489459 Contact Us For Availability
View on Model
19
Freezer Door (Includes No.22 & No.23)
Freezer Door (Includes No.22 & No.23) WPL 2182491 Contact Us For Availability
View on Model
20
Hinge, Butt
Hinge, Butt WPL 2179829 Contact Us For Availability
View on Model
20
Protector
Protector WPL 2183803 Contact Us For Availability
View on Model
20
Hole Plug
Hole Plug WPL 1122654 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
21
Nut (Not Serviced)
Nut (Not Serviced) WPL ARI17655A9 Contact Us For Availability
View on Model
22
Support Block
Support Block WPL 2176302 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
23
Shim, Bottom Hinge
Shim, Bottom Hinge WPL 2172745 Contact Us For Availability
View on Model
24
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``)
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
View on Model
24
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
24
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
24
KIT, PORCELAIN REPAIR (WHITE)
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
View on Model
24
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY)
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
View on Model
24
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
24
Fitting, Water Tube (Not Serviced)
Fitting, Water Tube (Not Serviced) WPL ARI17649A2 Contact Us For Availability
View on Model
27
Hole Plug (6)
Hole Plug (6) WPL 2151653 Contact Us For Availability
View on Model
28
Installation Kit
Installation Kit WPL 482801 Contact Us For Availability
View on Model
28
Seal, Front (Not Serviced)
Seal, Front (Not Serviced) WPL ARI17650A9 Contact Us For Availability
View on Model
28
Hole Plug
Hole Plug WPL 989196 Contact Us For Availability
View on Model
30
Seal, Rear (Not Serviced)
Seal, Rear (Not Serviced) WPL ARI17651A1 Contact Us For Availability
View on Model
31
Cover, Water Valve
Cover, Water Valve WPL 2166251 Contact Us For Availability
View on Model
32
Capacitor (Service Only)
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
View on Model
33
Handle, F.C.
Handle, F.C. WPL 2171044 Contact Us For Availability
View on Model
35
Corner Filler (2)
Corner Filler (2) WPL 2166187 Contact Us For Availability
View on Model
36
Grille
Grille WPL 2182430 Contact Us For Availability
View on Model
36
Bracket, Door Stop
Bracket, Door Stop WPL 944035 Contact Us For Availability
View on Model
38
Shim
Shim WPL 943187 Contact Us For Availability
View on Model
39
Shim
Shim WPL 1123517 Contact Us For Availability
View on Model
39
Air Baffle
Air Baffle WPL 2195287 Contact Us For Availability
View on Model
40
Cover, Hinge
Cover, Hinge WPL 2160404 Contact Us For Availability
View on Model
41
Rail Center (Not Serviced)
Rail Center (Not Serviced) WPL ARI17652A9 Contact Us For Availability
View on Model
42
Corner Filler, Grille
Corner Filler, Grille WPL 2166204 Contact Us For Availability
View on Model
42
Wire Assy. Unit
Wire Assy. Unit WPL 2184584 Contact Us For Availability
View on Model
42
Trim, Door
Trim, Door WPL 2184570 Contact Us For Availability
View on Model
43
Blade, Fan
Blade, Fan WPL 2190685 Contact Us For Availability
View on Model
44
Cover, Unit
Cover, Unit WPL 2183158 Contact Us For Availability
View on Model
46
Tube, Discharge
Tube, Discharge WPL 2179722 Contact Us For Availability
View on Model
47
Tube, Suction
Tube, Suction WPL 2184550 Contact Us For Availability
View on Model
49
Tube, Condenser To Heat Loop
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
View on Model
58
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
58
Evap. Tray
Evap. Tray WPL 2163795 Contact Us For Availability
View on Model
58
Start Kit
Start Kit WPL 482278 Contact Us For Availability
View on Model
58
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
