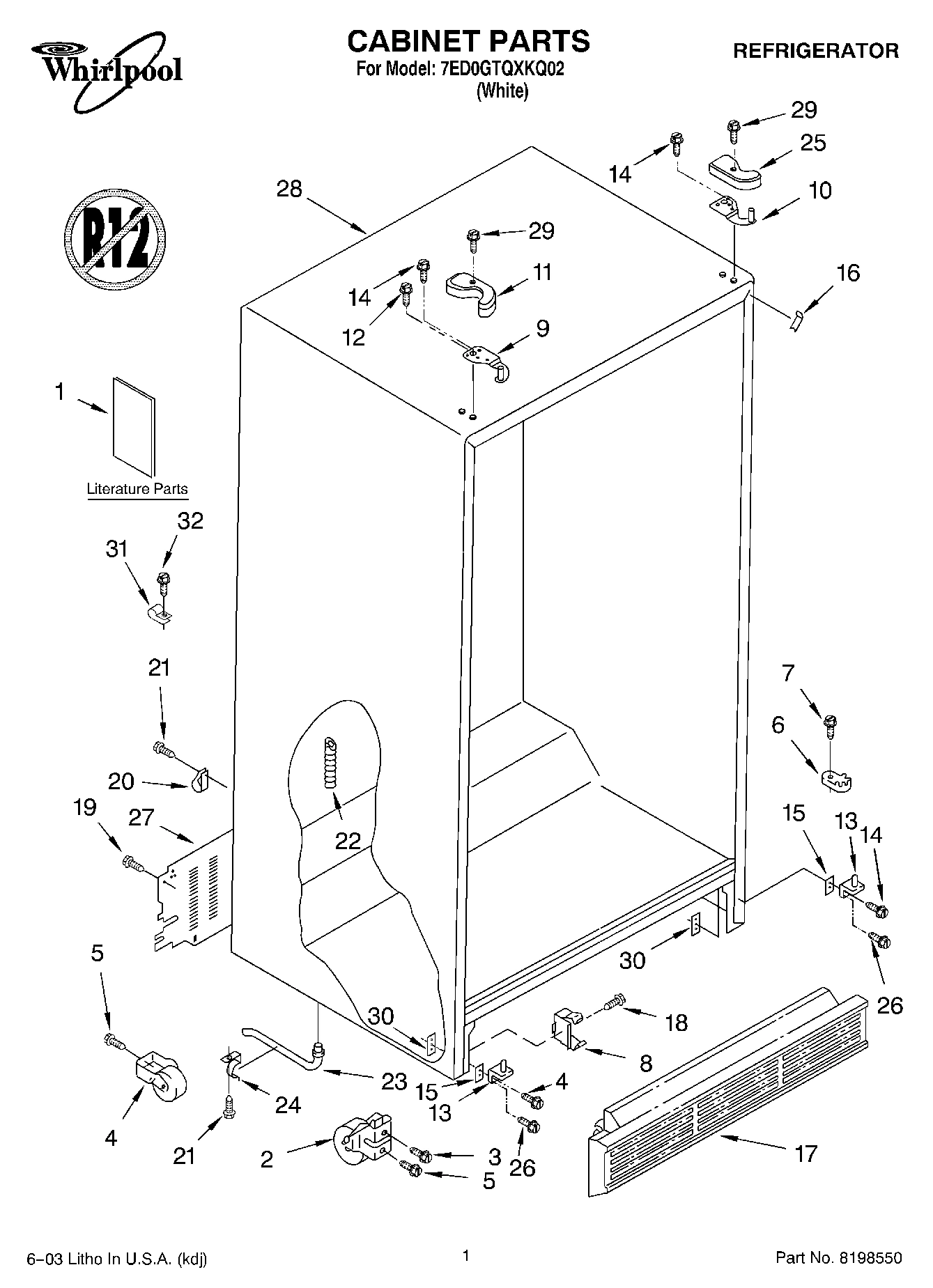

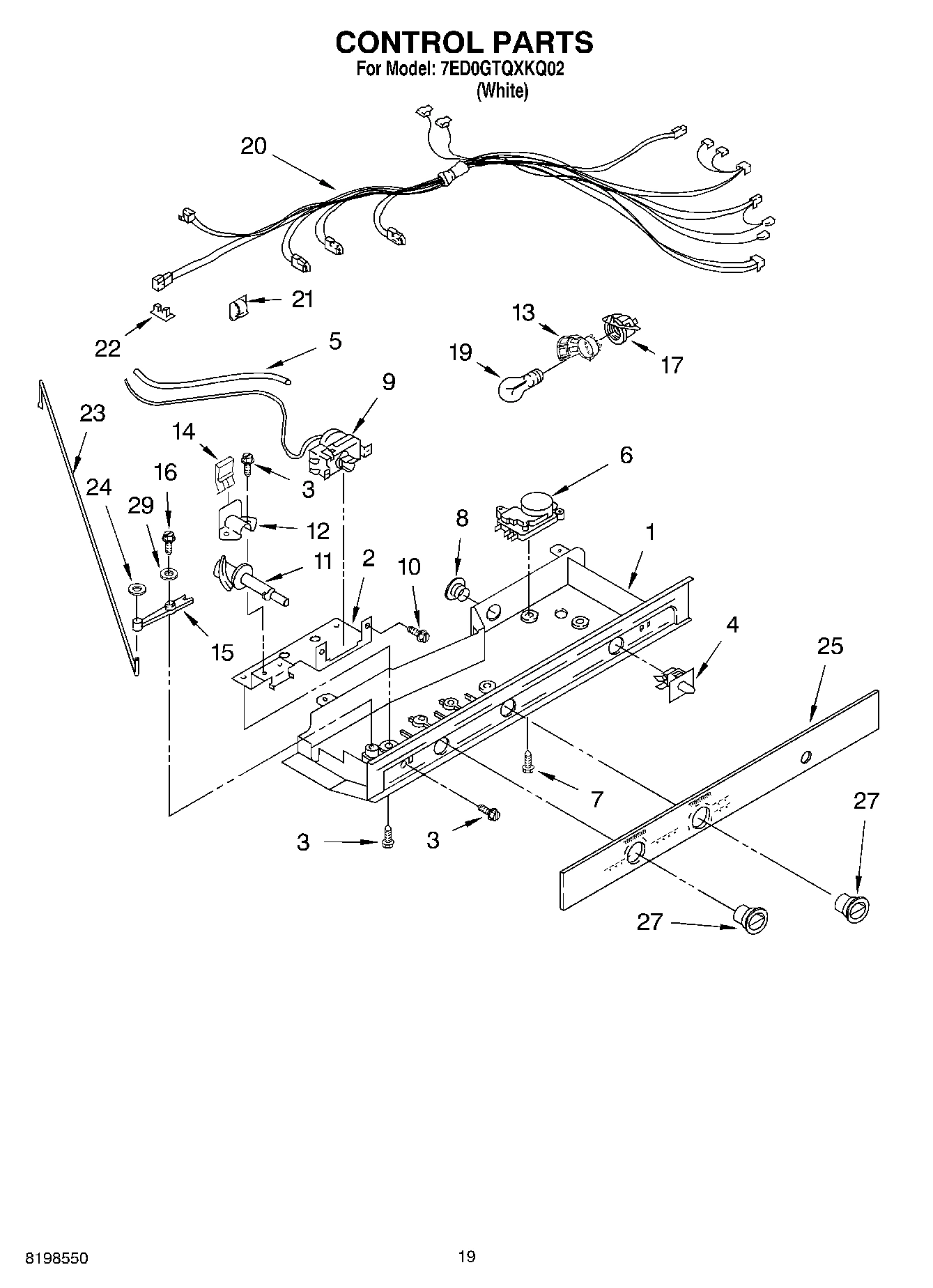

Model Whirlpool 7ED0GTQXKQ02 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

Ice Container Assembly WPL 2209778 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Freezer, Door (White) WPL 2216369W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $44.93

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Handle (White) WPL 2186649W Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Tube (2) WPL 934011 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

7

Trim, Door Shelf WPL 2195919 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

8

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Endcap WPL 2195917 Contact Us For Availability

9

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $45.90

9

Stud, Rear WPL 2196207 Contact Us For Availability

9

Cover, Unit Compartment WPL 2182057 Contact Us For Availability

10

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $92.09

10

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

10

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

12

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $72.20

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

Grommet (4) WPL 2176134 Contact Us For Availability

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2196090 Whirlpool Refrigerator Container Backorder WPL WP2196090 $75.48

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

Spacer, Hinge WPL 2209697 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

16

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

16

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

17

2223313 Whirlpool Clip Backorder WPL 2223313 $7.16

17

2311642 Whirlpool Refrigerator Wire Harness Backorder WPL 2311642 $92.89

17

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $94.79

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

20

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

21

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

21

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

22

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

22

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

22

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Clip, Heater (2) WPL 2161330 Contact Us For Availability

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Trim, Door Shelf WPL 2195934 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

8201633 Whirlpool Wire Harness Backorder WPL 8201633 $78.84

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $2.51

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Cover, Conduit WPL 2150330 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Knob, Air Control WPL 2197871 Contact Us For Availability

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

Glass, Shelf WPL 2177978 Contact Us For Availability

29

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

29

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

29

Retainer WPL 1125594 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

Unit Mounting Frame WPL 2160499 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

Extension, Handle Top (White) WPL 2194971W Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

32

Extension, Handle Bottom (White) WPL 2194969W Contact Us For Availability

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

34

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

Air Baffle WPL 2196201 Contact Us For Availability

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

1105612 Whirlpool Fan Guard Backorder WPL 1105612 $25.31

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI16482A2 Contact Us For Availability

WPL ARI16483A6 WPL ARI16483A6 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62
