Model Whirlpool 6ED22DQXDW01 REFRIGERATOR – Common Parts & Diagrams

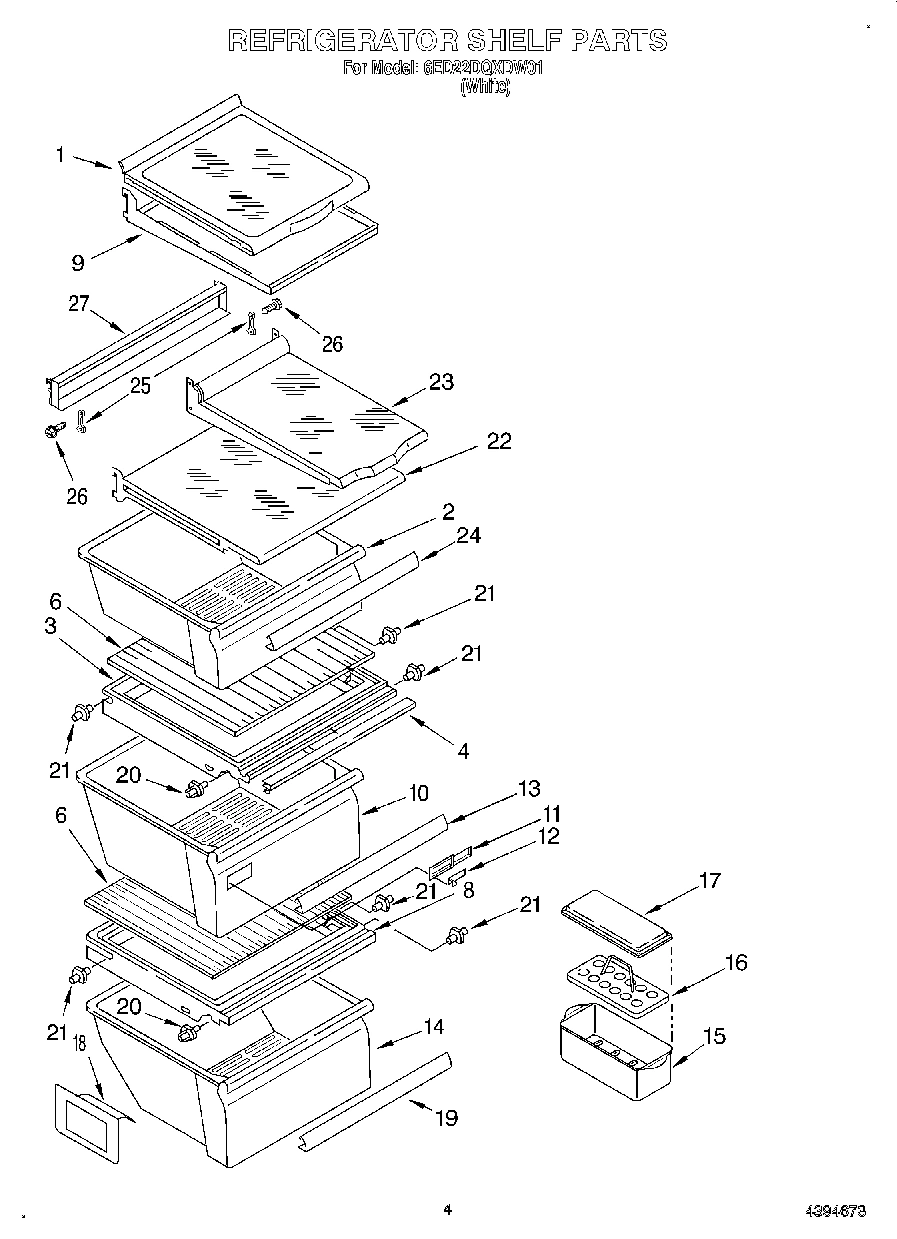

03 - REFRIGERATOR SHELF
05 - AIR FLOW
01 - CABINET
08 - FREEZER DOOR
02 - REFRIGERATOR LINER
04 - FREEZER LINER
11 - ICEMAKER
12 - CONTROL, LIT/OPTIONAL
06 - MOTOR AND ICE CONTAINER
10 - UNIT
07 - REFRIGERATOR DOOR
09 - DISPENSER FRONT
Common parts from model Whirlpool 6ED22DQXDW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) WPL 2194275W Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Motor, Dispenser WPL 2165212 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Guard, Switch WPL 2175226 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
3
Guard, Switch WPL 2175227 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI15784A4 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Extension, Bottom WPL 2194766W Contact Us For Availability
7
Frame, Slides WPL 2152717 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152720 Contact Us For Availability
9
Handle, Center WPL 2194759W Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Extension, Top WPL 2194764W Contact Us For Availability
13
Grille, Overflow WPL 1126120 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Cover, End Cap WPL 2174006 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
24
Lever, Ice Dispenser WPL 2177144 Contact Us For Availability
24
Hole Plug WPL 2166844 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Harness, Intermediate WPL 2195108 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
27
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
27
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
27
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
27
WPL 978883 WPL 978883 Contact Us For Availability
27
Slide, Light Switch WPL 2152726 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
30
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
38
Lever, Water Dispenser WPL 2177149 Contact Us For Availability
39
Plaque, Front Cover WPL 2174331 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) WPL 2174309 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
43
Nut WPL 489476 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
44
Lock Washer WPL 486734 Contact Us For Availability
45
Screw WPL 488362 Contact Us For Availability
48
Spacer WPL 625834 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
