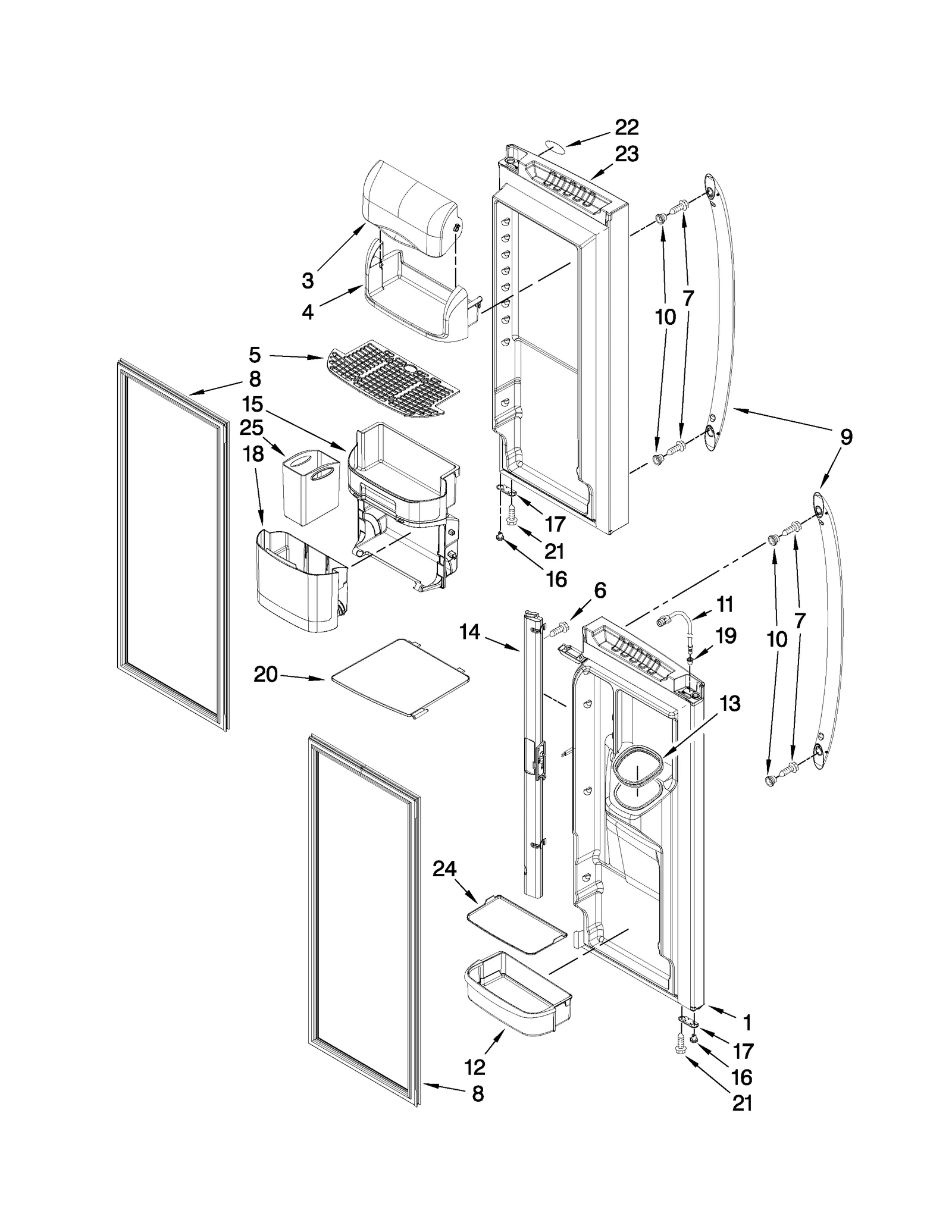

Model Whirlpool 596.78339802 Refrigerator (Kenmore 59678339802) – Common Parts &amp; Diagrams

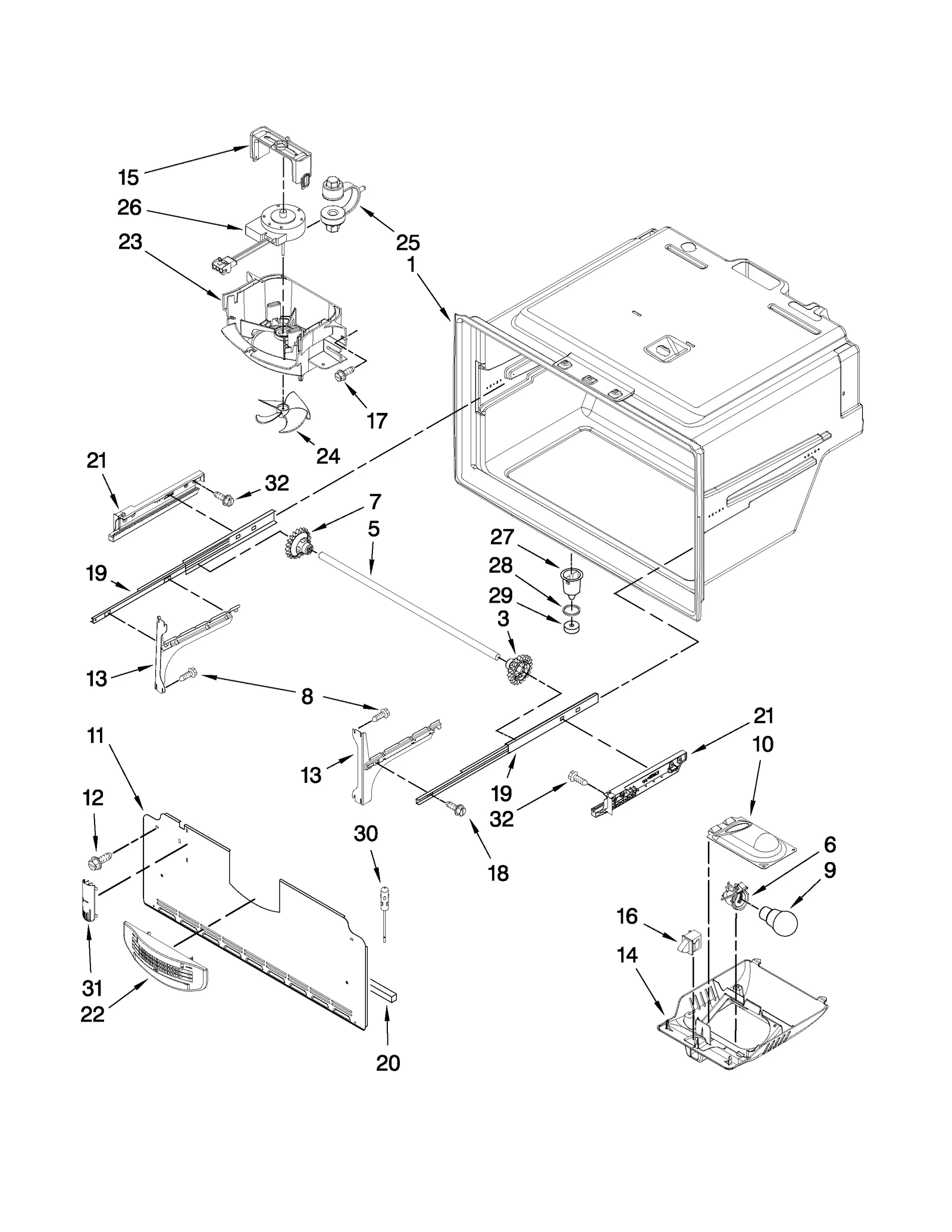

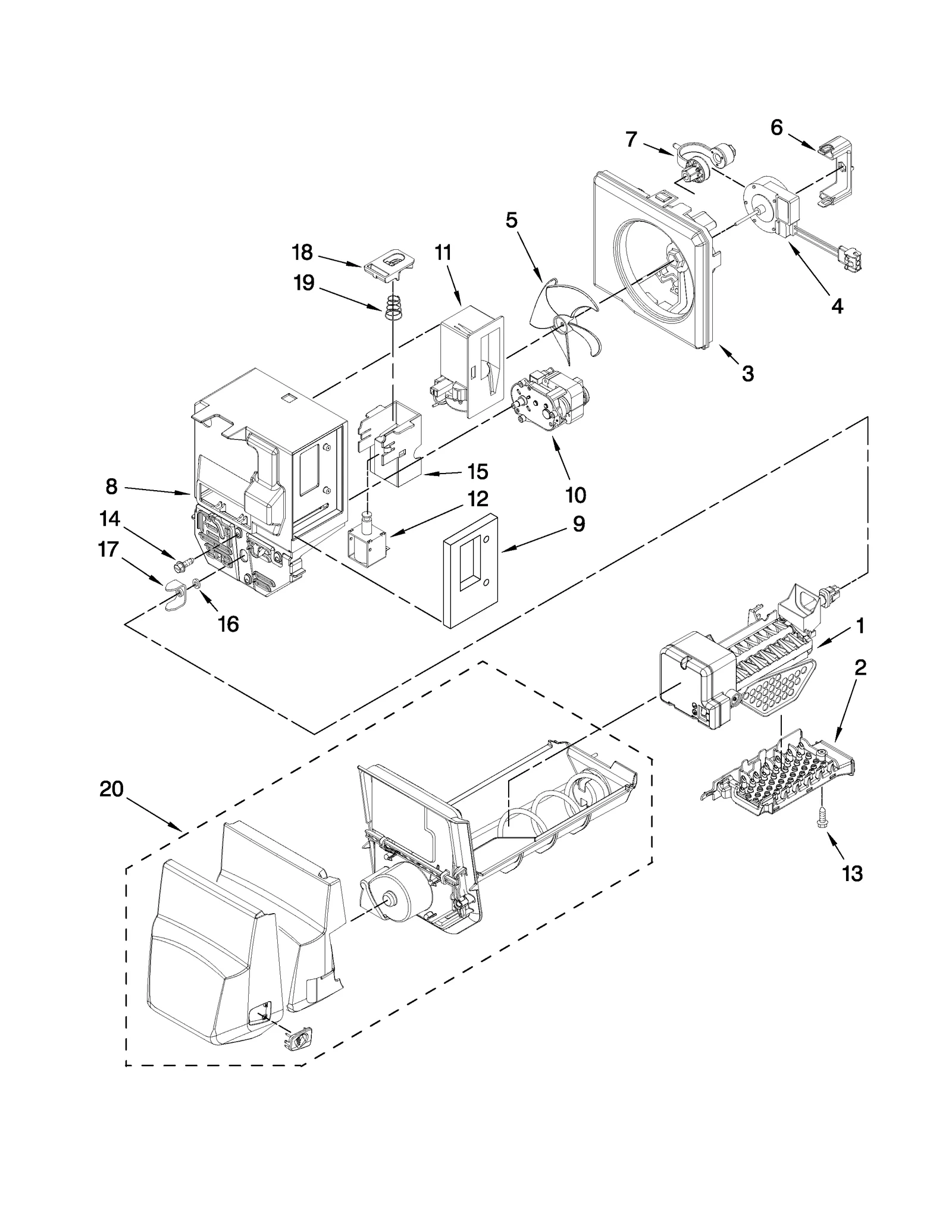

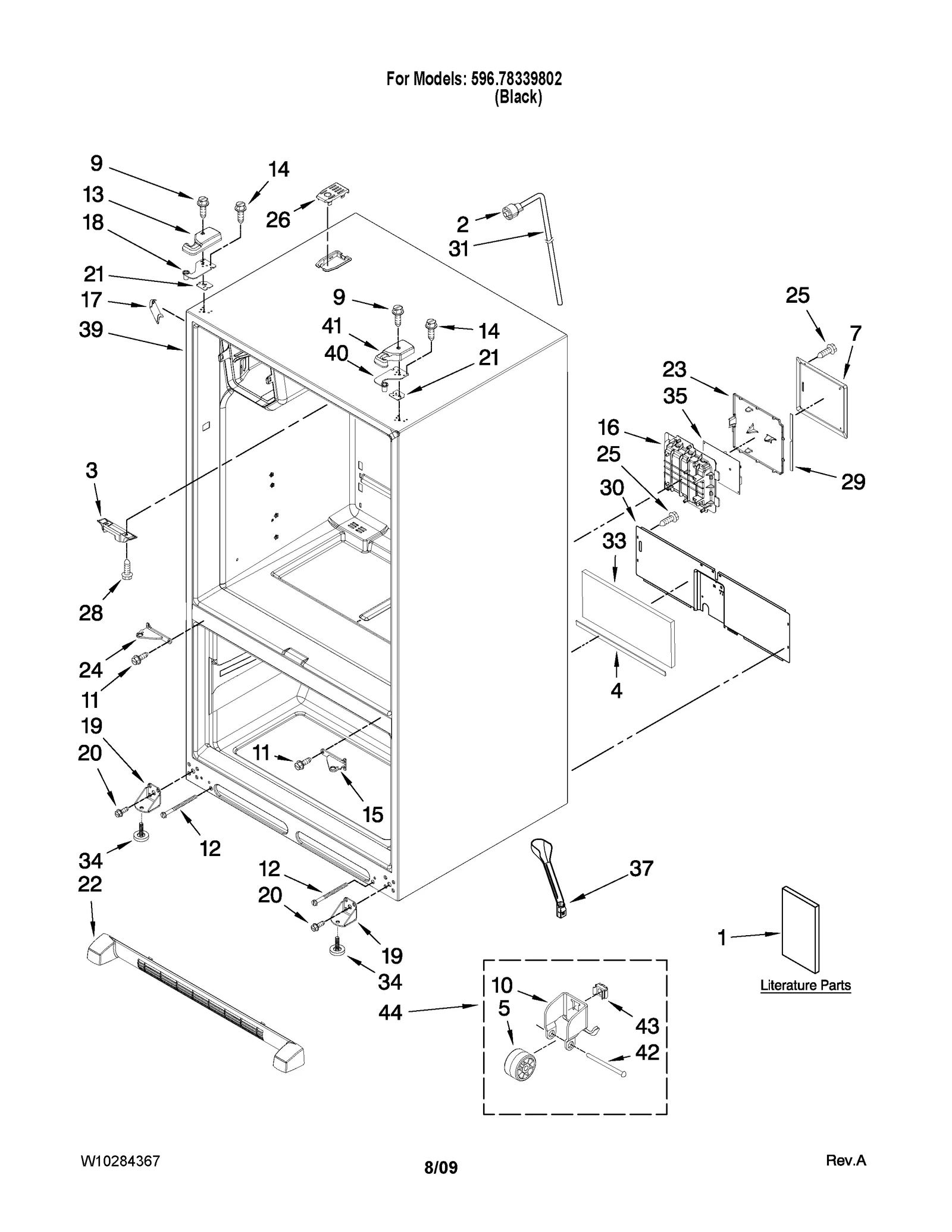

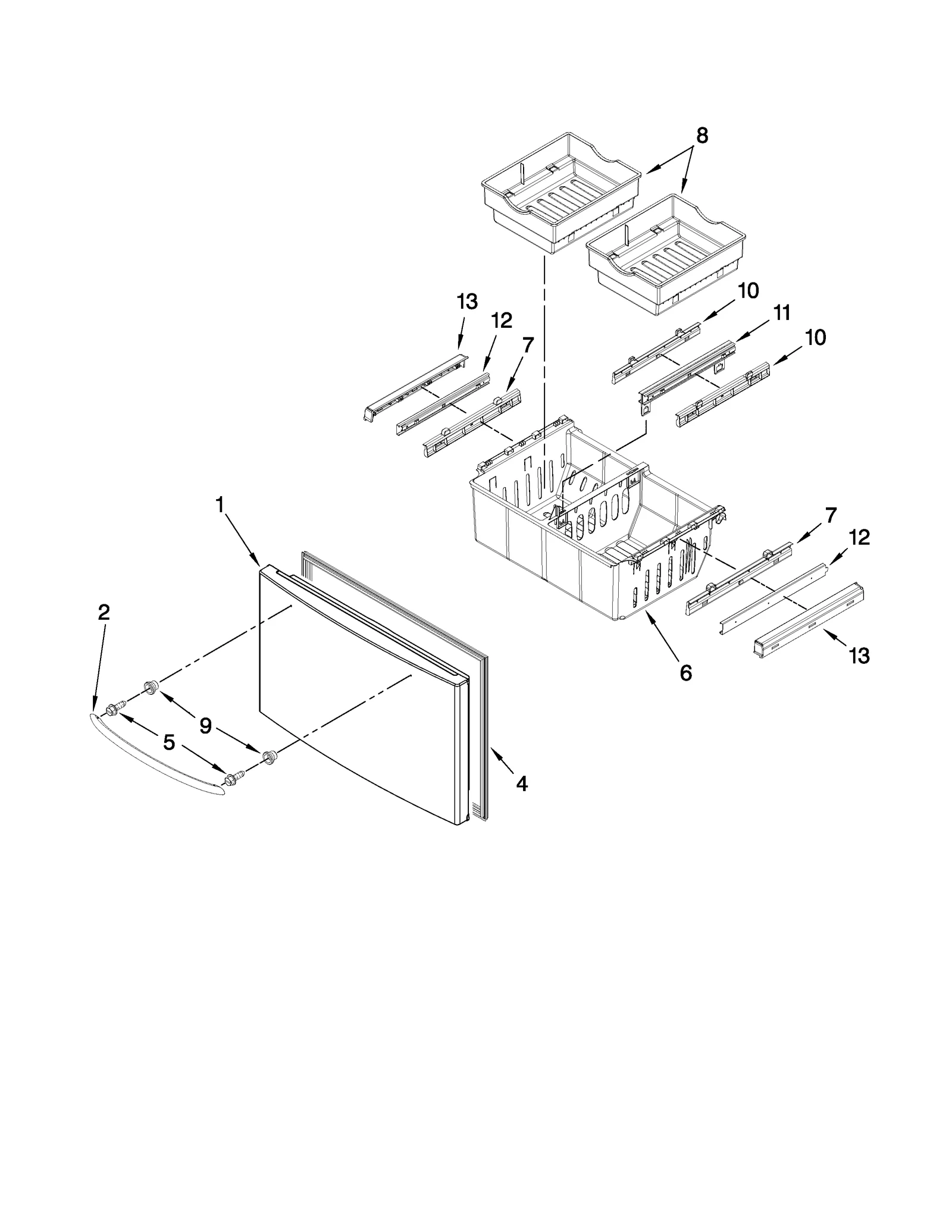

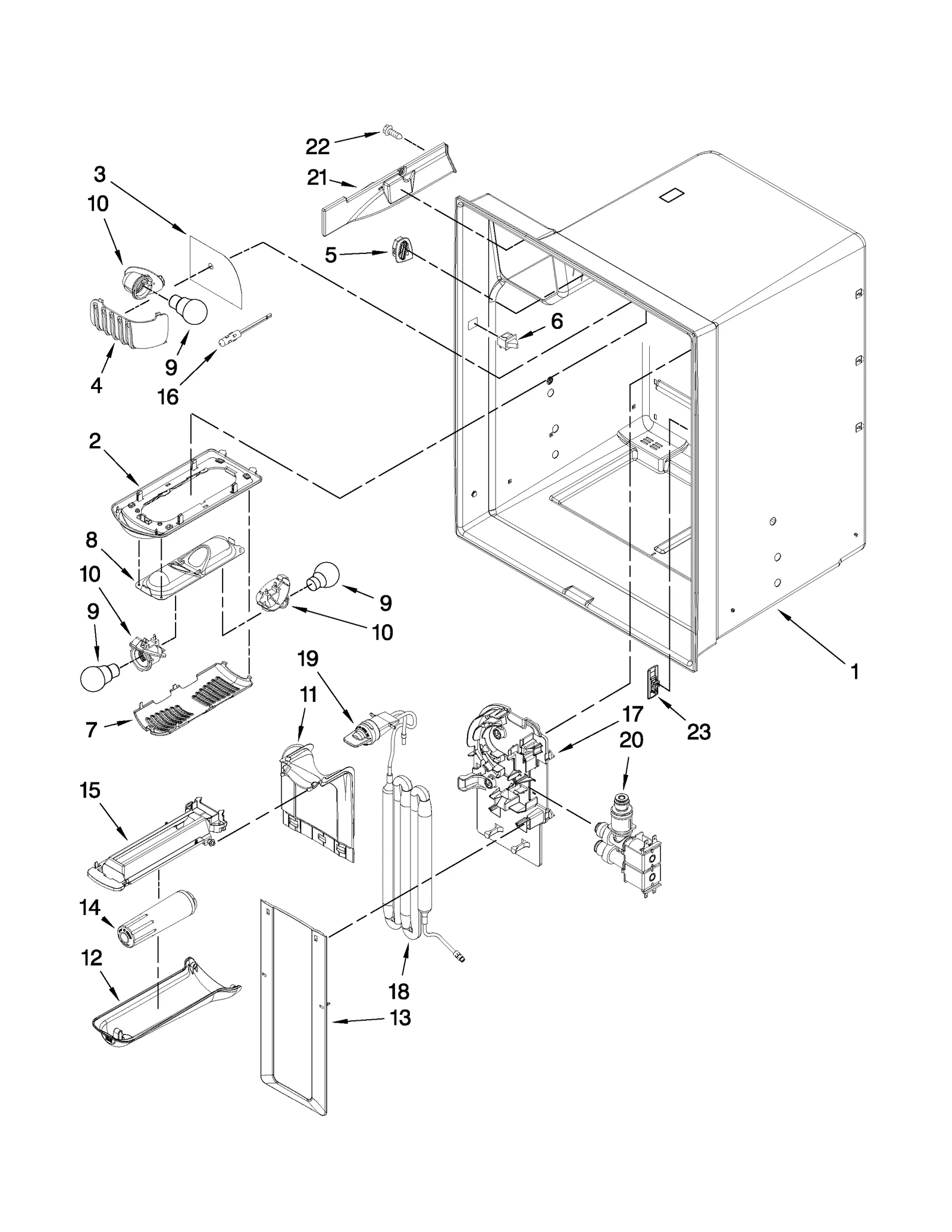

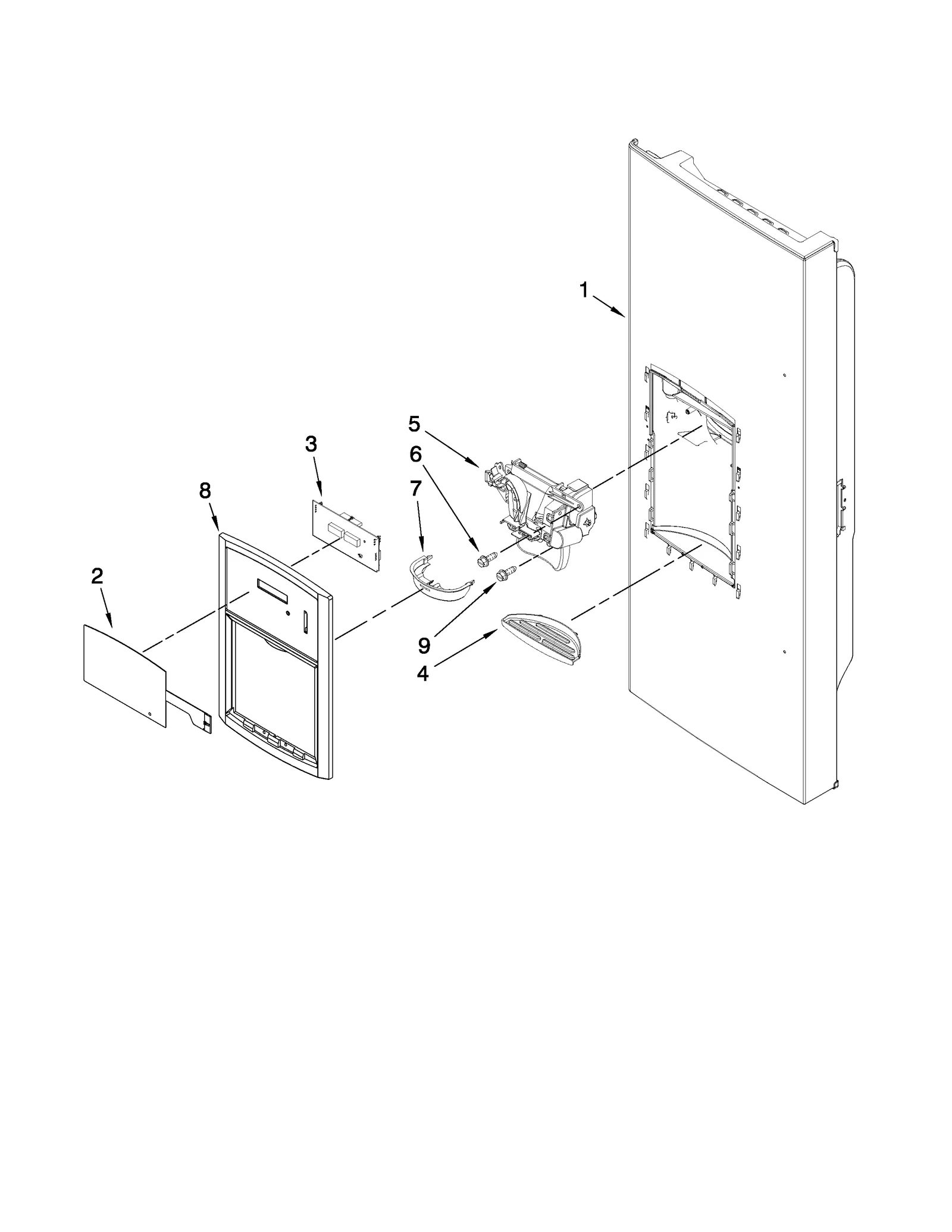

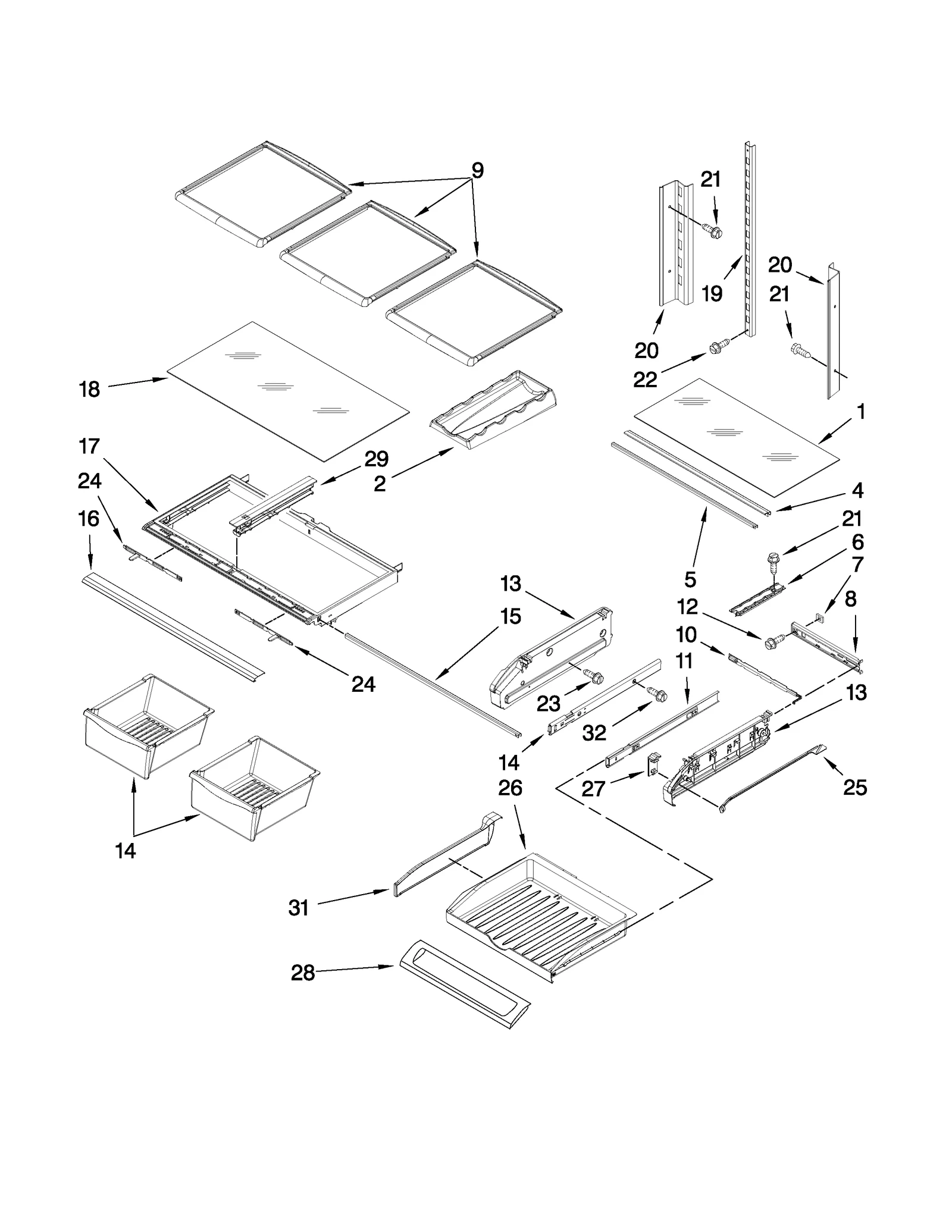

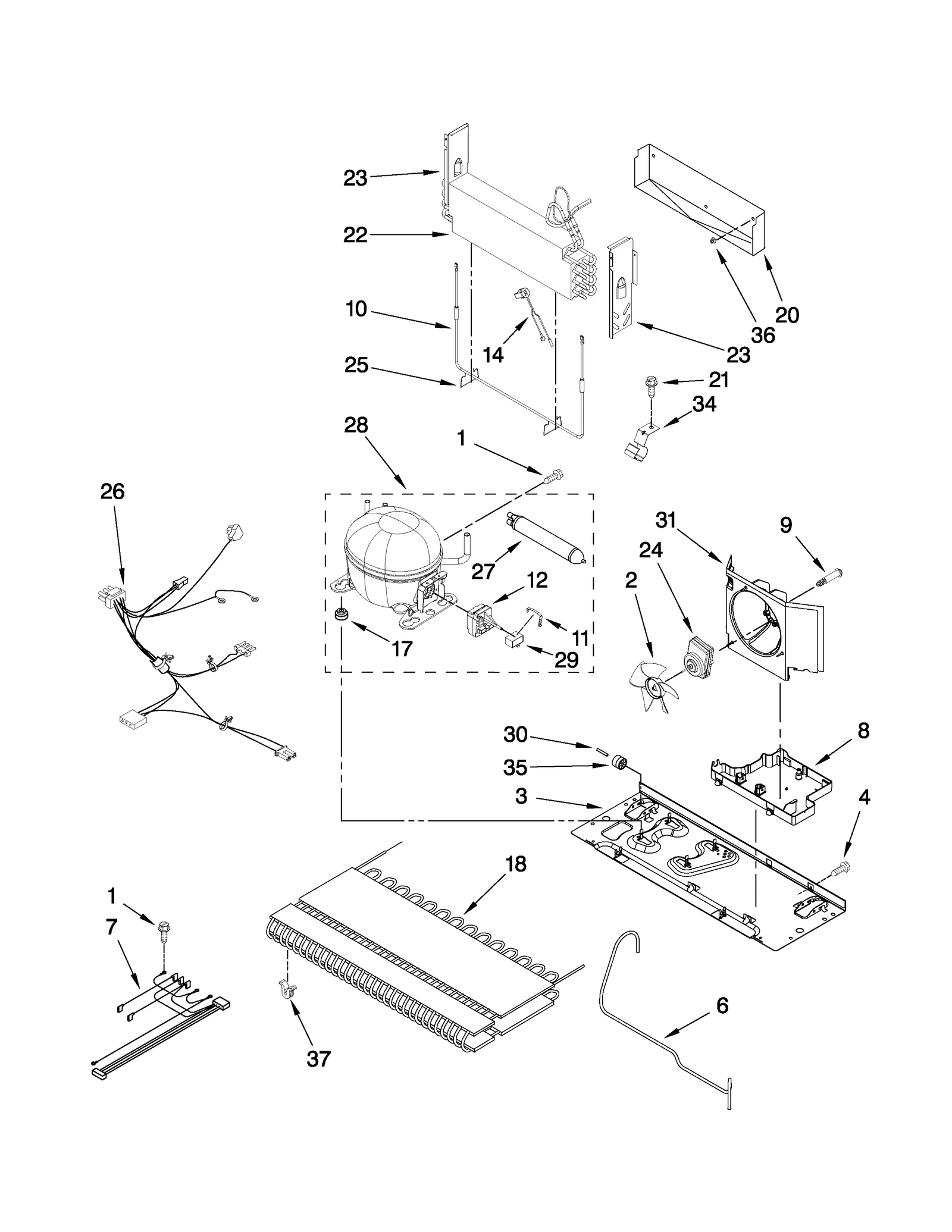

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

WPW10190981 Whirlpool Refrigerator Icemaker In Stock WPL WPW10190981 $128.63

1

Refrigerator Door Assembly (Black) WPL 12978072BQ Contact Us For Availability

1

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

2

W10887844-includeCORE Whirlpool W10887844 Ref Backorder WPL W10887844-includeCORE $239.41

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $39.44

2

WPW10121269 Whirlpool Refrigerator Air Baffle Backorder WPL WPW10121269 $32.06

2

Refrigerator Door Handle WPL W10252587 Contact Us For Availability

2

MODULE, LIGHT WPL 12905803 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10480110 Whirlpool Refrigerator Plate Backorder WPL W10480110 $71.66

3

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $46.54

3

Light Foil WPL 12691605 Contact Us For Availability

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $10.76

4

W10436254 Whirlpool Refrigerator FIP Gasket Backorder WPL W10436254 $141.55

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $51.92

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $120.56

4

Refrigerator Dispenser Drip Tray WPL W10168726 Contact Us For Availability

5

67006901 Whirlpool Refrigerator Screw In Stock WPL 67006901 $2.51

5

W10555984 Whirlpool Refrigerator Grille Backorder WPL W10555984 $14.60

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $42.20

5

WP13005704B Whirlpool Ice Chute Backorder WPL WP13005704B $131.67

5

Refrigerator Bin Strainer WPL W10130187 Contact Us For Availability

6

W10166235 Whirlpool Refrigerator Freezer Bin Backorder WPL W10166235 $118.44

6

W10306059 Whirlpool Refrigerator Tube Backorder WPL W10306059 $53.60

6

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $15.76

6

W11447232 Whirlpool Refrigerator Socket Backorder WPL W11447232 $4.58

6

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $43.57

7

67006295 Whirlpool Refrigerator Target Ring Backorder WPL 67006295 $34.59

7

W10166742 Whirlpool Refrigerator Bracket Backorder WPL W10166742 $34.33

7

W10850438 Whirlpool Refrigerator Evaporator M In Stock WPL W10850438 $170.06

7

Cover- Ref WPL 12905902 Contact Us For Availability

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $48.20

8

W10166236 Whirlpool Refrigerator Freezer Bin Backorder WPL W10166236 $99.21

8

W11378944 Whirlpool Door Gasket In Stock WPL W11378944 $90.68

8

WPW10655367 Whirlpool Refrigerator Drip Pan In Stock WPL WPW10655367 $61.07

8

Refrigerator Dispenser Cover (Black) WPL W10163996 Contact Us For Availability

8A

W10830052 Whirlpool Refrigerator FIP Gasket Backorder WPL W10830052 $131.81

9

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.24

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.00

9

Refrigerator Glass Shelf WPL 13029504 Contact Us For Availability

9

Refrigerator Handle (Black) WPL W10169572 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $33.27

12925404SP Whirlpool Refrigerator Bracket Backorder WPL 12925404SP $22.97

W11702858 Whirlpool Housing Backorder WPL W11702858 $35.92

WPW10166768 Whirlpool Refrigerator Heater Backorder WPL WPW10166768 $66.25

12960101 Whirlpool Refrigerator Cover Backorder WPL 12960101 $79.84

12962106 Whirlpool Refrigerator Waterline Doo Backorder WPL 12962106 $87.50

W10204187 Whirlpool Refrigerator Retainer Backorder WPL W10204187 $5.71

W10308422 Whirlpool Evaporator Cover Backorder WPL W10308422 $32.06

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $66.12

WPW10235357 Whirlpool Refrigerator Glide Asse Backorder WPL WPW10235357 $153.06

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

WP67006331 Whirlpool Refrigerator Water Filte In Stock WPL WP67006331 $55.42

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $42.90

WPW10235367 Whirlpool Refrigerator Glide Backorder WPL WPW10235367 $139.89

WPW10371193 Whirlpool Refrigerator Door Bin Backorder WPL WPW10371193 $47.40

67006329 Whirlpool Refrigerator Lower Water T Backorder WPL 67006329 $92.73

WP67006368 Whirlpool Refrigerator Retainer Backorder WPL WP67006368 $147.30

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $14.38

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $45.16

13A

W10826788 Whirlpool Refrigerator Retainer Backorder WPL W10826788 $35.54

13A

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $62.46

WP67006387 Whirlpool Refrigerator Thermostat In Stock WPL WP67006387 $40.92

WPW10151713 Whirlpool Refrigerator Mullion Ra Backorder WPL WPW10151713 $130.92

Module- Fr WPL 13027902SP Contact Us For Availability

Genuine Kenmore Refrigerator Water Filter WPL 9006 Contact Us For Availability

67006325 Whirlpool Filter Base Bracket In Stock WPL 67006325 $46.70

W10918168 Whirlpool Refrigerator Door Hinge In Stock WPL W10918168 $30.73

W11712696 Whirlpool Clip Backorder WPL W11712696 $6.62

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $47.12

Refrigerator Bin WPL W10177486 Contact Us For Availability

16

W11445850 Whirlpool Door Switch In Stock WPL W11445850 $20.81

16

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $30.96

67006324 Whirlpool Refrigerator Bracket Backorder WPL 67006324 $11.29

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10168729 Whirlpool Refrigerator Pad Backorder WPL WPW10168729 $8.78

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

WP12956202 Whirlpool Refrigerator Reservoir In Stock WPL WP12956202 $146.76

WP3400805 Whirlpool Screw Assembly Backorder WPL WP3400805 $2.51

WPW10346420 Whirlpool Refrigerator Condenser Backorder WPL WPW10346420 $121.98

Refrigerator Bin WPL W10130191 Contact Us For Availability

12906303WD Whirlpool Refrigerator Bracket Backorder WPL 12906303WD $31.18

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $27.07

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $79.37

67006322 Whirlpool Refrigerator Dual Water Va In Stock WPL 67006322 $96.38

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

WPW10292802 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10292802 $73.83

WPW10324089 Whirlpool Refrigerator Ice Bin Backorder WPL WPW10324089 $221.21

Refrigerator Divider WPL W10159645 Contact Us For Availability

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $37.73

W10165861 Whirlpool Refrigerator Wire Cover Backorder WPL W10165861 $13.69

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $29.17

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $53.25

21A

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $38.16

21A

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $81.16

22

W11176847 Whirlpool Refrigerator Grille Backorder WPL W11176847 $47.84

22

Refrigerator Nameplate WPL 2323099 Contact Us For Availability

W11700329 Whirlpool Evaporator Shroud Backorder WPL W11700329 $21.45

Freezer Door Assembly (Black) WPL 12978070BQ Contact Us For Availability

Refrigerator Support Evaporator WPL 12963102SP Contact Us For Availability

Refrigerator Cover WPL 12987303 Contact Us For Availability

23A

12963002SP Whirlpool Refrigerator Evaporator Backorder WPL 12963002SP $34.09

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $52.14

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $53.00

WP67006337 Whirlpool Refrigerator Fan Blade In Stock WPL WP67006337 $50.36

GRIPPER, BUCKET WPL 12567307SP Contact Us For Availability

25

W10127505 Whirlpool Refrigerator Bin Backorder WPL W10127505 $43.08

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $66.52

25

W11676465 Whirlpool Grommet Backorder WPL W11676465 $5.38

26

12981401B Whirlpool Refrigerator Filtration C Backorder WPL 12981401B $7.78

26

W11666013 Whirlpool Wire Harness Backorder WPL W11666013 $41.72

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $30.82

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

W10827914 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827914 $104.16

W10854958 Whirlpool Refrigerator Screw In Stock WPL W10854958 $2.71

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $25.41

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $26.86

30

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $30.95

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

33

Refrigerator Sound Dampening Pad WPL 12820505 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

36

CLIP EVAPORATOR WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

40

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.07

44

Refrigerator Roller WPL 12580304 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.25

285006 Whirlpool Spray In Stock WPL 285006 $44.38

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.41

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.33

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $29.17

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.92

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $106.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $35.96

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $37.79

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $39.53

W11256689 Whirlpool Refrigerator Wire Harness Backorder WPL W11256689 $84.98

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $43.61

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $64.36

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.56

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.82

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Foam Slab WPL 876029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Pnt-blk-qrt WPL 799340 Contact Us For Availability

Cleaner WPL 20000008 Contact Us For Availability

Refrigerator Service Valve WPL 978028 Contact Us For Availability
