Model Whirlpool 596.69284000 Refrigerator (Kenmore 59669284000) – Common Parts &amp; Diagrams

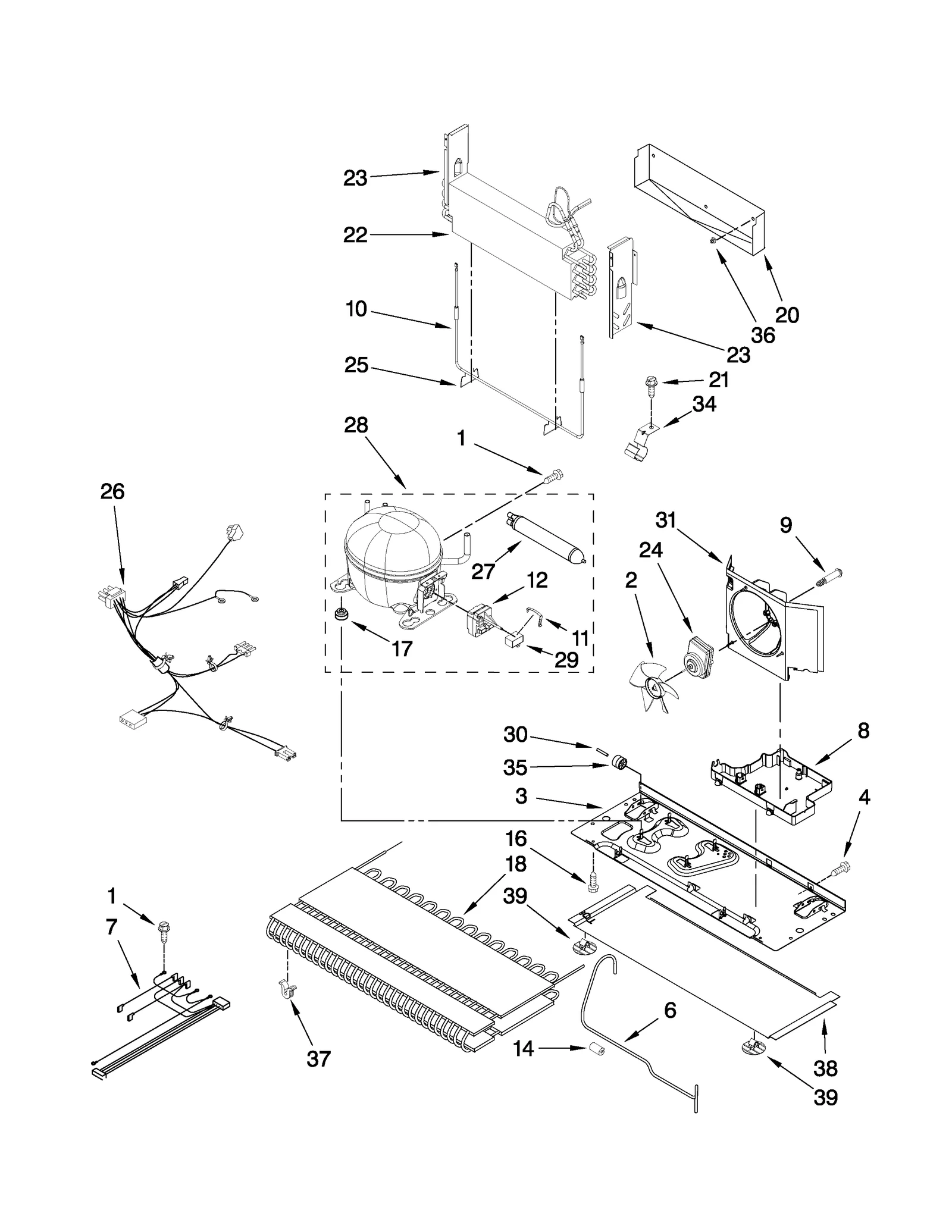

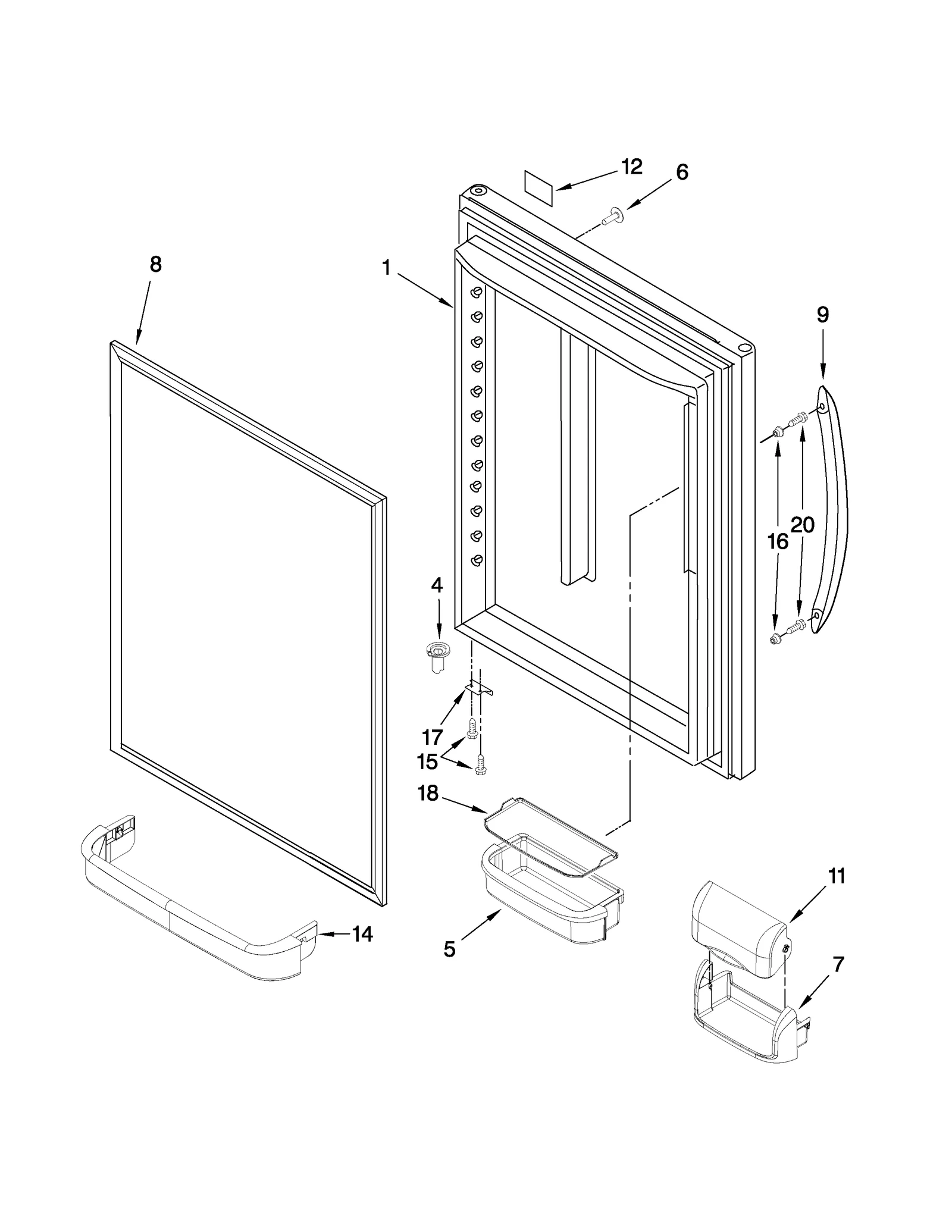

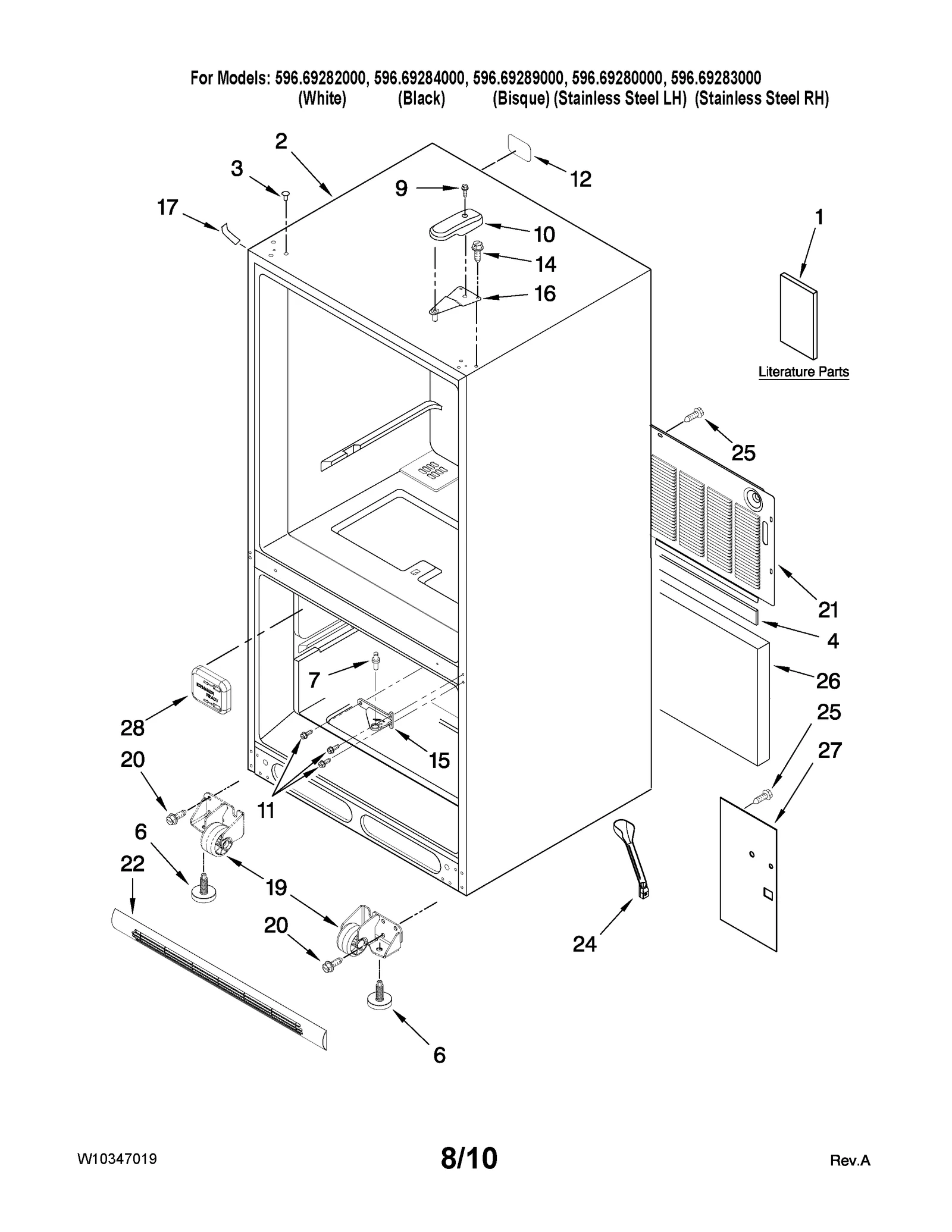

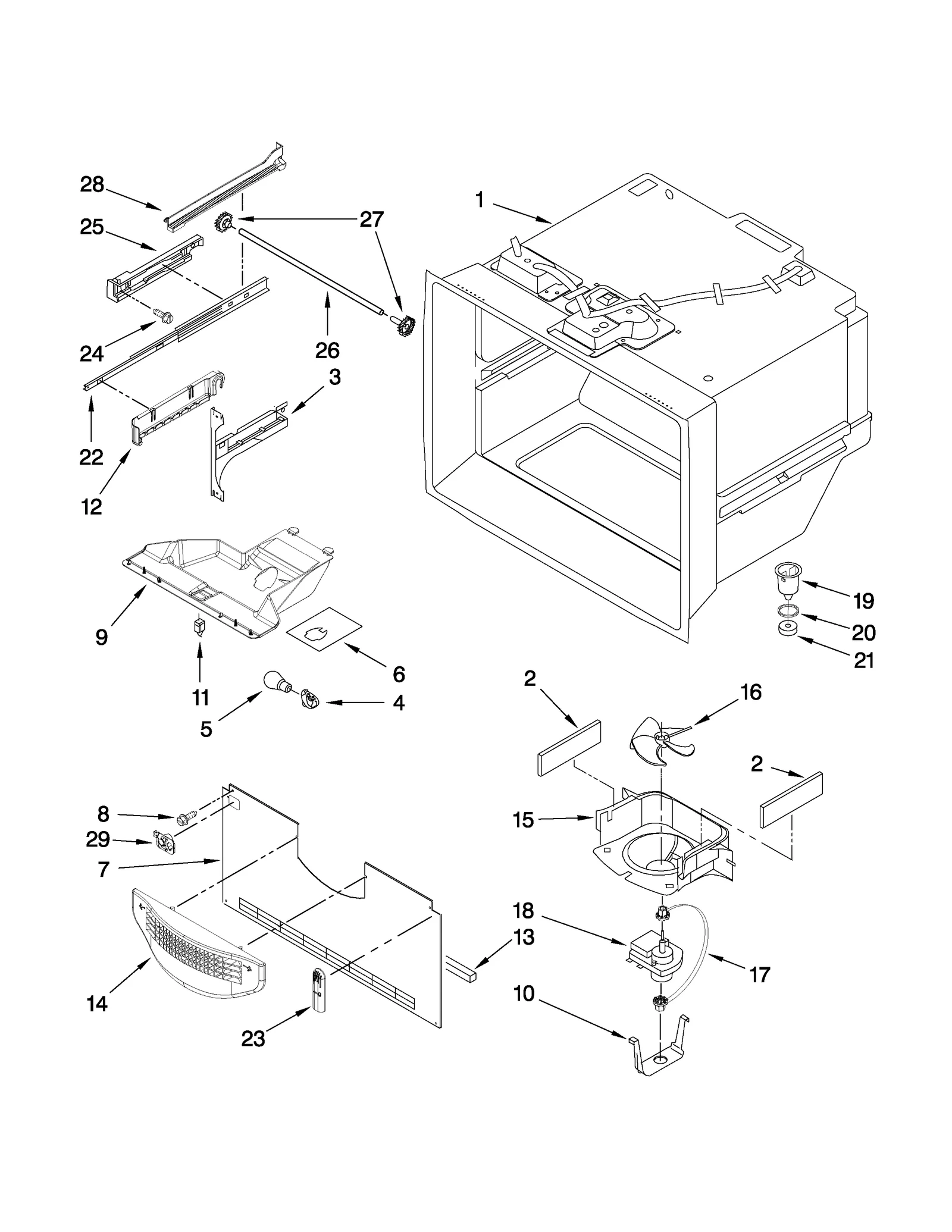

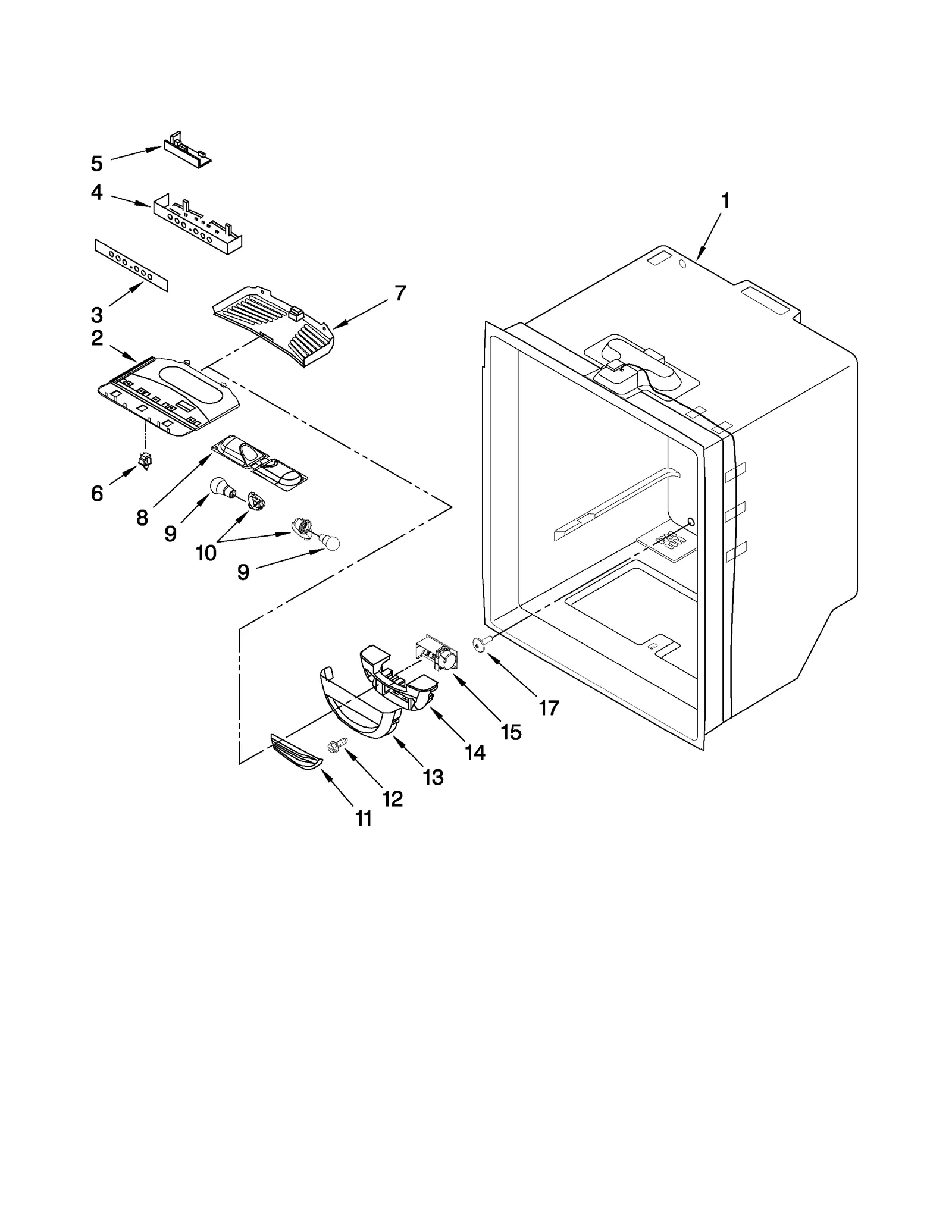

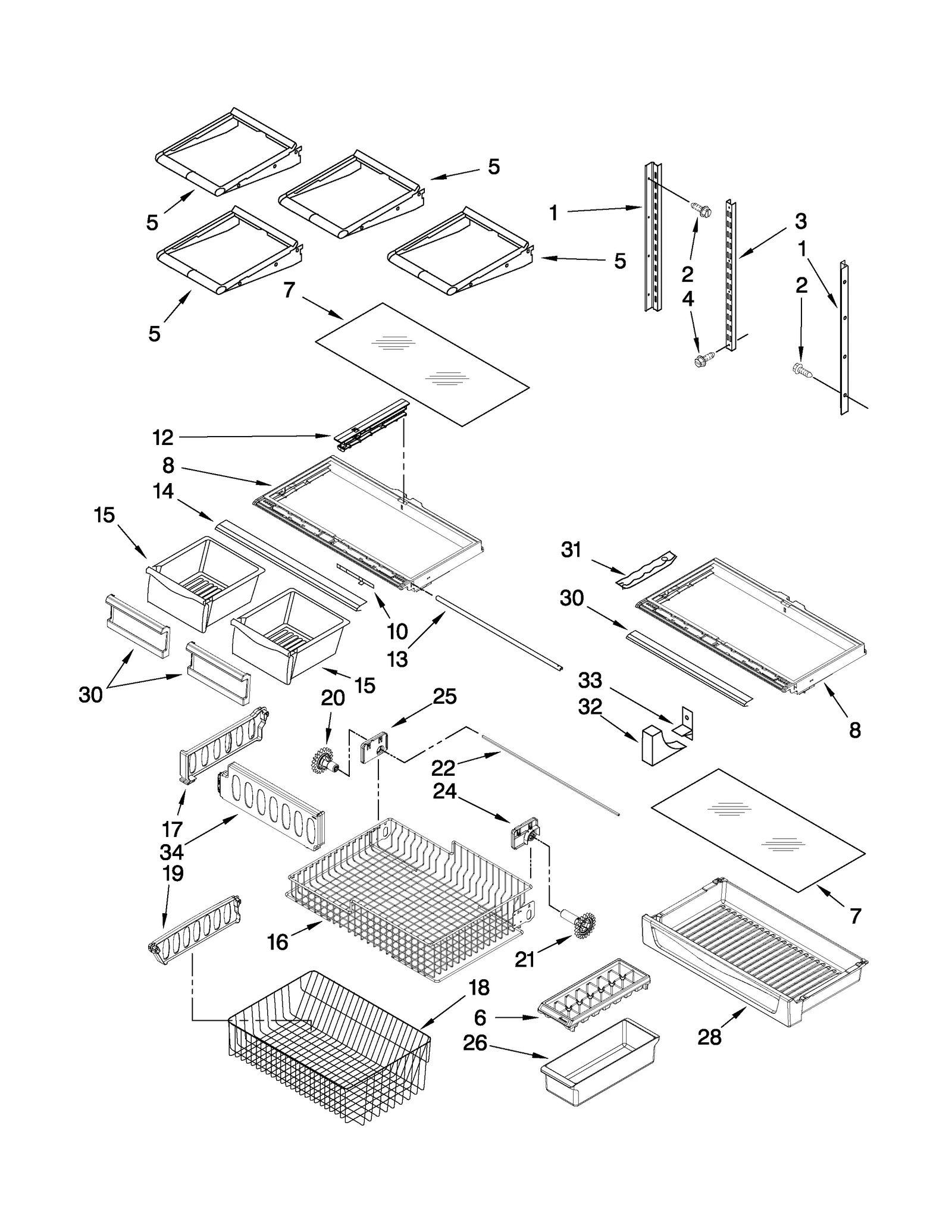

1

W10251969 Whirlpool Refrigerator Ladder Backorder WPL W10251969 $11.70

1

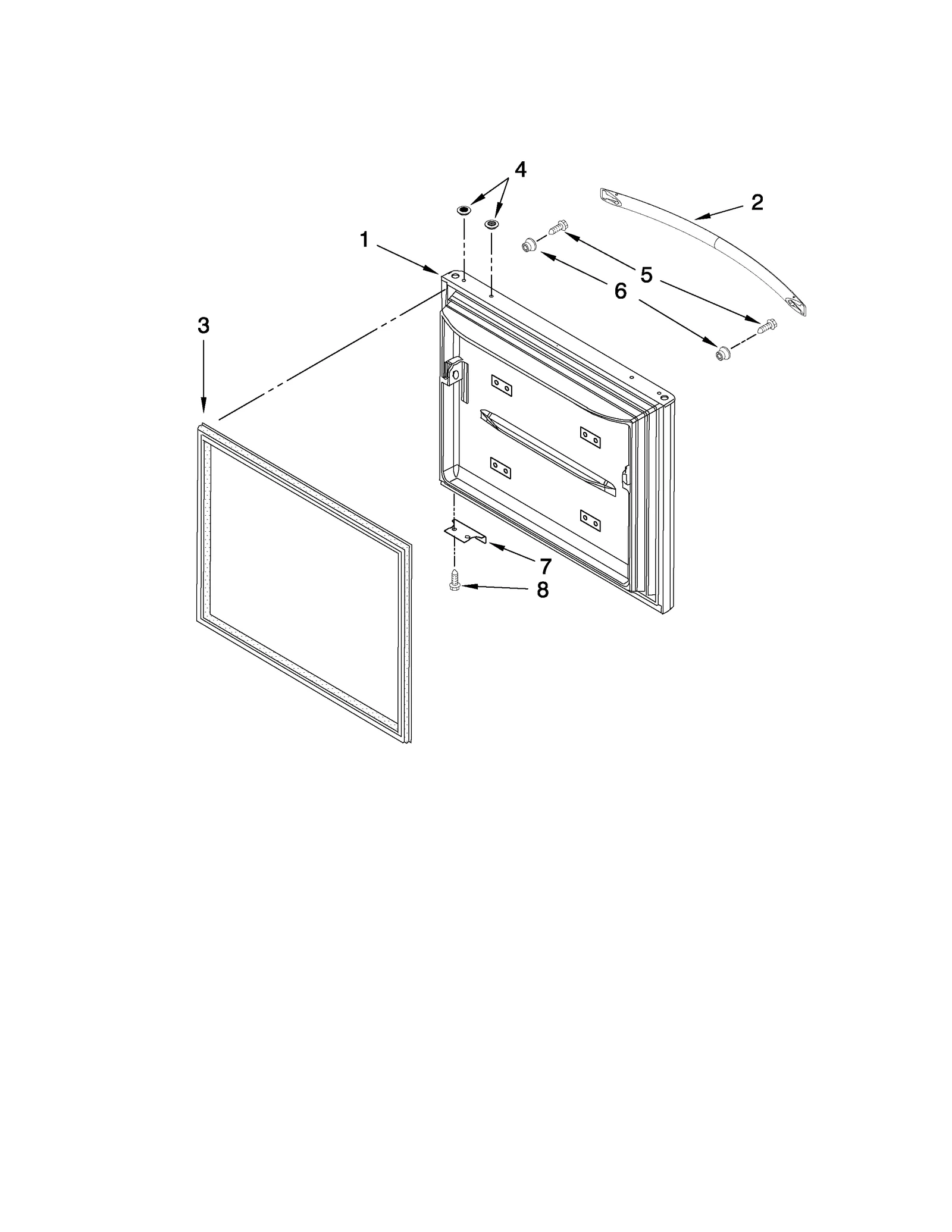

Freezer Door Assembly (White) WPL 13092230W Contact Us For Availability

1

Refrigerator Owner's Manual WPL W10312764 Contact Us For Availability

1A

Freezer Door Assembly (Black) WPL 13092230B Contact Us For Availability

1A

Refrigerator Energy Guide WPL W10312753 Contact Us For Availability

1B

13092230QQ Whirlpool FIP Door Bracket Backorder WPL 13092230QQ $458.96

1B

Refrigerator Technical Sheet WPL W10308623 Contact Us For Availability

1C

13109217SQ Whirlpool Refrigerator Foam In Pla Backorder WPL 13109217SQ $497.41

2

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.55

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $40.08

2

WPW10642944 Whirlpool Refrigerator Handle Backorder WPL WPW10642944 $109.61

2

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

2A

Refrigerator Handle WPL W10169571N Contact Us For Availability

2B

Refrigerator Handle WPL W10169572N Contact Us For Availability

2C

WPW10642946 Whirlpool Refrigerator Handle Backorder WPL WPW10642946 $82.95

3

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $11.57

3

W10443315 Whirlpool Door Gasket In Stock WPL W10443315 $92.68

3

WP67001130 Whirlpool Refrigerator White Butto Backorder WPL WP67001130 $3.76

3A

WPW10436250 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10436250 $127.74

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.81

4

W10215666 Whirlpool Refrigerator Screw Backorder WPL W10215666 $5.75

5

W11402521 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402521 $133.70

5

Refrigerator Screw WPL W10290759 Contact Us For Availability

6

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.94

6

WP67006113 Whirlpool Stud Bolt In Stock WPL WP67006113 $5.08

6

WP841180A Whirlpool Microwave Glass Turntable In Stock WPL WP841180A $22.32

6

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.94

6A

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.76

6A

WP12246610 Whirlpool Refrigerator Handle Plug In Stock WPL WP12246610 $3.76

7

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $31.34

7

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $117.94

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.76

7

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $130.65

7

WPW10290745 Whirlpool Refrigerator Wire Harne In Stock WPL WPW10290745 $91.67

7A

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $38.04

7B

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.15

8

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.55

8

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $78.30

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.10

9

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.76

9

WPW10277025 Whirlpool Refrigerator Housing In Stock WPL WPW10277025 $59.16

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.94

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $72.07

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.76

Refrigerator Evaporator Fan Motor Clip WPL 13058002 Contact Us For Availability

10A

Top Cover WPL 12477601C Contact Us For Availability

10B

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $31.40

11

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $9.75

W11685757 Whirlpool Label Backorder WPL W11685757 $2.33

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $39.73

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $44.55

Refrigerator Nameplate WPL W10292348 Contact Us For Availability

12A

W10830979 Whirlpool Refrigerator Nameplate Backorder WPL W10830979 $8.28

12A

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $39.73

12B

Refrigerator Nameplate WPL W10292349 Contact Us For Availability

13

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $47.90

13

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $42.80

12643702 Whirlpool Refrigerator Front Pan Backorder WPL 12643702 $17.56

67001019 Whirlpool Door Shelf Trim In Stock WPL 67001019 $64.93

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.76

W11750607 Whirlpool Insulation Backorder WPL W11750607 $20.70

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.55

15

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $28.46

15

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $86.64

15

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $70.87

15A

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $53.74

16

W10348238 Whirlpool Refrigerator Freezer Bask Backorder WPL W10348238 $122.94

16

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $18.30

16

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.88

17

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.94

17

W10241046 Whirlpool Refrigerator Divider Backorder WPL W10241046 $12.65

17

W11690160 Whirlpool Grommet Backorder WPL W11690160 $2.44

17A

Corner Cover WPL 12587703C Contact Us For Availability

17B

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.94

18

W11024089 Whirlpool Refrigerator Evaporator F In Stock WPL W11024089 $33.04

18

WPW10503183 Whirlpool Refrigerator Basket Backorder WPL WPW10503183 $147.64

18

Refrigerator Mat WPL 12567314SP Contact Us For Availability

19

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $40.66

19

Refrigerator Divider WPL W10205416 Contact Us For Availability

19A

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $40.29

20

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.55

20

WPW10474716 Whirlpool Refrigerator Gear In Stock WPL WPW10474716 $11.05

21

WPW10210979 Whirlpool Refrigerator Back Cover In Stock WPL WPW10210979 $86.17

21

WPW10474715 Whirlpool Refrigerator Gear In Stock WPL WPW10474715 $11.14

22

W10802339 Whirlpool Refrigerator Shaft Backorder WPL W10802339 $42.59

22

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $80.68

22

WPW10534161 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534161 $53.92

22A

Refrigerator Grille (Off-White) WPL W10236197 Contact Us For Availability

22B

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $41.05

23A

Refrigerator Support Evaporator WPL 12225602 Contact Us For Availability

24

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $34.37

24

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $23.97

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $53.87

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $34.37

W11673433 Whirlpool Clip Backorder WPL W11673433 $67.62

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.63

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $14.66

25A

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $14.75

W11715937 Whirlpool Shaft Backorder WPL W11715937 $42.89

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $187.82

Refrigerator Sound Dampening Pad WPL 12820505 Contact Us For Availability

Refrigerator Container WPL 10423131SP Contact Us For Availability

27

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $9.00

27

W11684617 Whirlpool Valve Cover Backorder WPL W11684617 $7.53

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.92

28

W10328327 Whirlpool Refrigerator Snack Pan Backorder WPL W10328327 $86.11

28

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.76

30

W10656986 Whirlpool Refrigerator Shelf Trim Backorder WPL W10656986 $48.43

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $31.45

31

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.55

32

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.76

32A

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.76

33

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $4.61

34

W10311695 Whirlpool Refrigerator Divider Backorder WPL W10311695 $14.60

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $30.75

285006 Whirlpool Spray In Stock WPL 285006 $45.11

350930 Whirlpool White Spray Paint In Stock WPL 350930 $21.76

350942 Whirlpool Spray Paint Backorder WPL 350942 $51.15

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $44.64

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $5.00

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $7.33

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.76

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $36.55

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $38.41

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $40.18

W11762633 Whirlpool Icemaker In Stock WPL W11762633 $164.71

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $44.32

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $65.43

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $24.96

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.30

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Refrigerator Cleaner WPL 2217192 Contact Us For Availability

Paint, Bsq WPL 4392900 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Epoxy WPL 799833 Contact Us For Availability
