Model Whirlpool 4YED27DQDN02 REFRIGERATOR – Common Parts & Diagrams

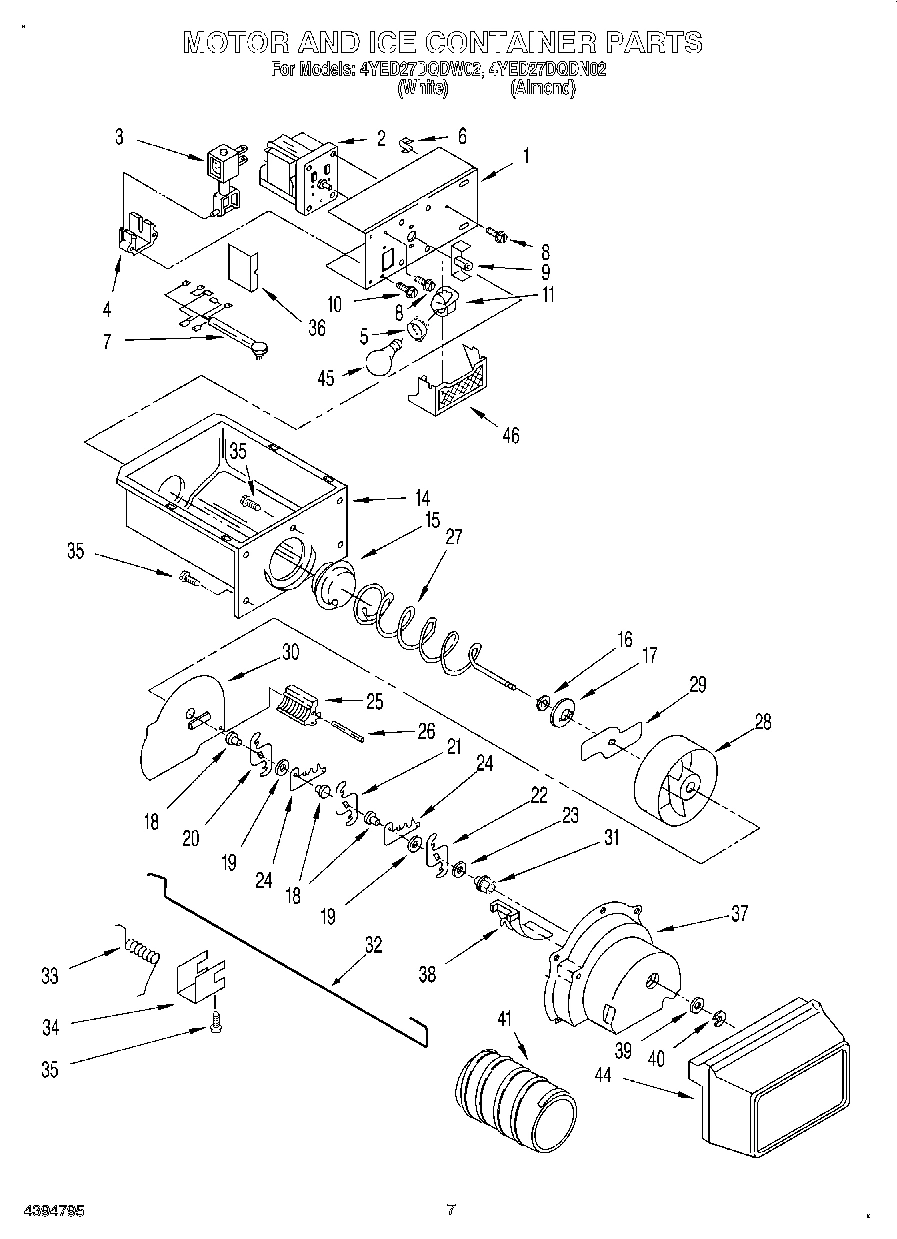

05 - MOTOR AND ICE CONTAINER

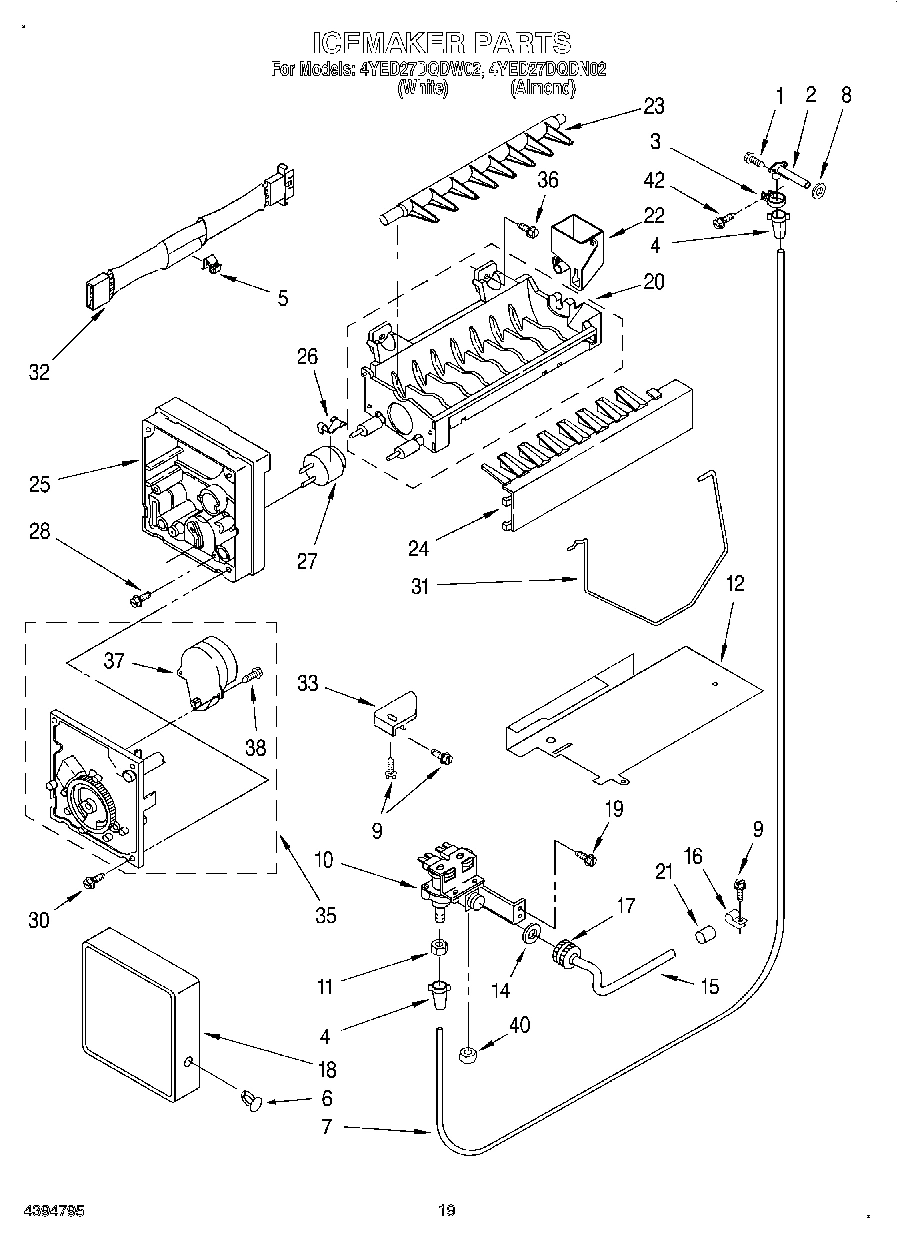

12 - ICEMAKER, LIT/OPTIONAL
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR
01 - CABINET
03 - REFRIGERATOR SHELF
10 - AIR FLOW
08 - DISPENSER FRONT
09 - UNIT
02 - REFRIGERATOR LINER
04 - FREEZER LINER
11 - CONTROL
Common parts from model Whirlpool 4YED27DQDN02 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14860A2 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14861A1 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Guard, Switch WPL 2175226 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2182763 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Guard, Switch WPL 2175227 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI14862A3 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Screw WPL 488362 Contact Us For Availability
6
Louver WPL 2182147 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2176651 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
11
Nut WPL 489476 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Hole Plug WPL 2166844 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Basket, Shallow WPL 2181763 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Lock Washer WPL 486734 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Door, Top Compartment WPL 2194091 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175087 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
30
Washer WPL 486632 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
31
Unit, Harness WPL 2195108 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175024 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2175126 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2175127 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2175128 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
