Model Whirlpool 4YED27DQAW01 REFRIGERATOR – Common Parts & Diagrams

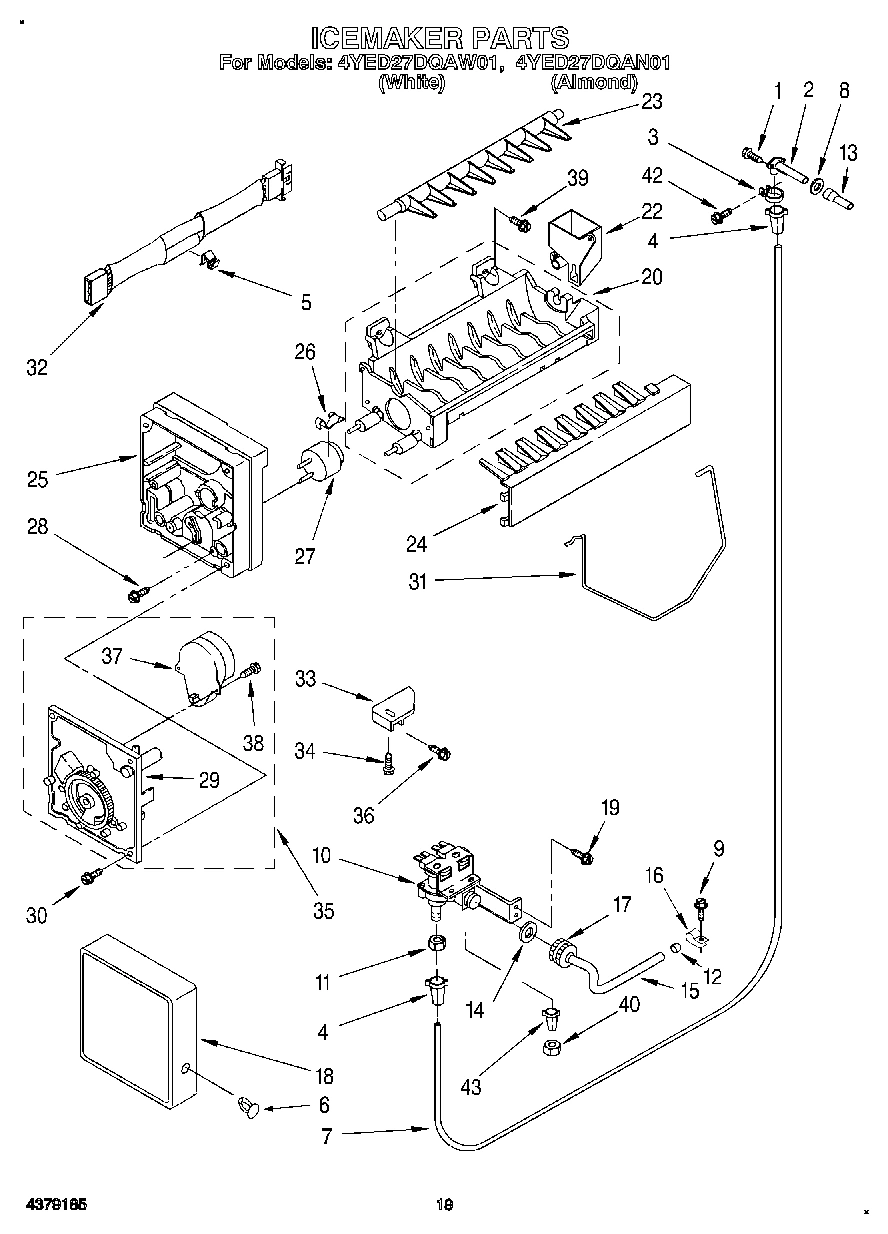

12 - ICEMAKER, LIT/OPTIONAL

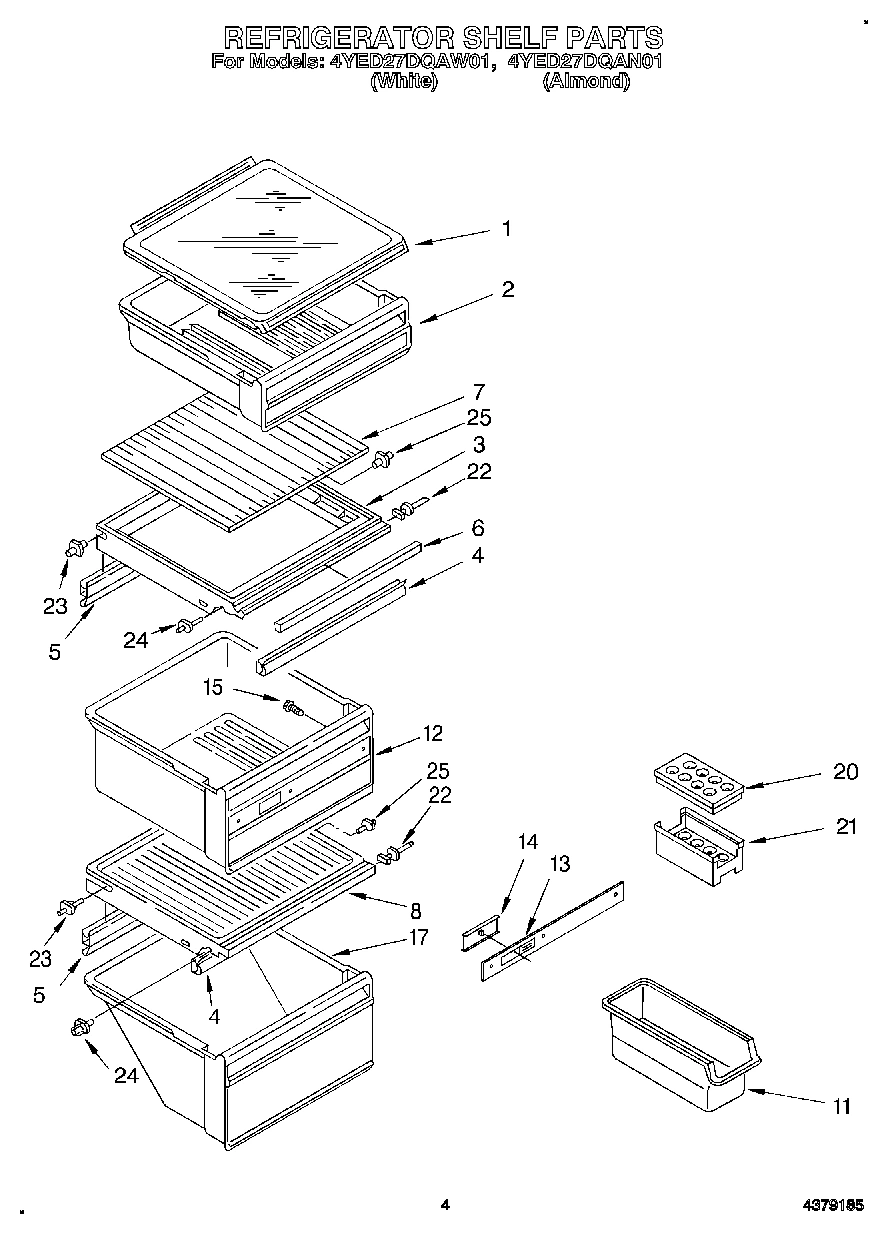

03 - REFRIGERATOR SHELF

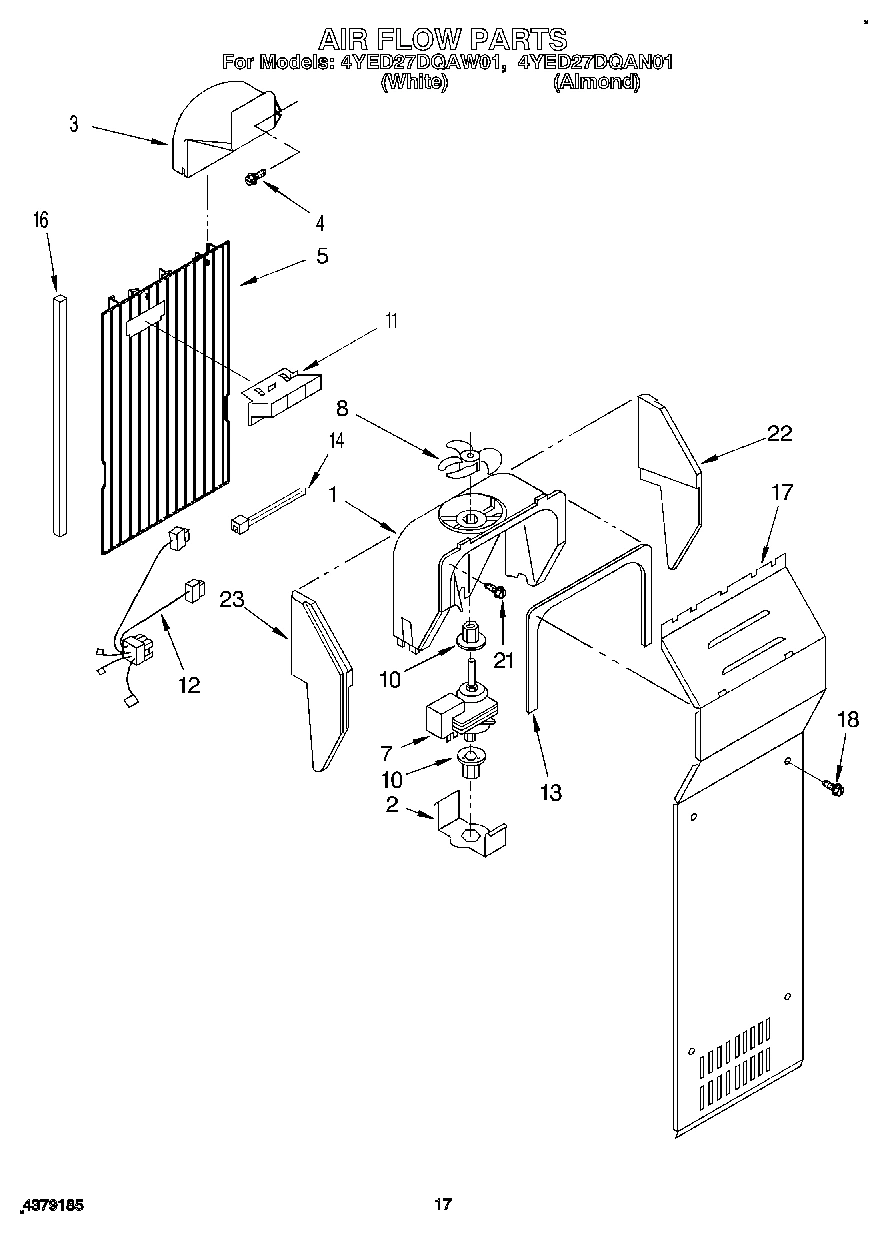

10 - AIR FLOW

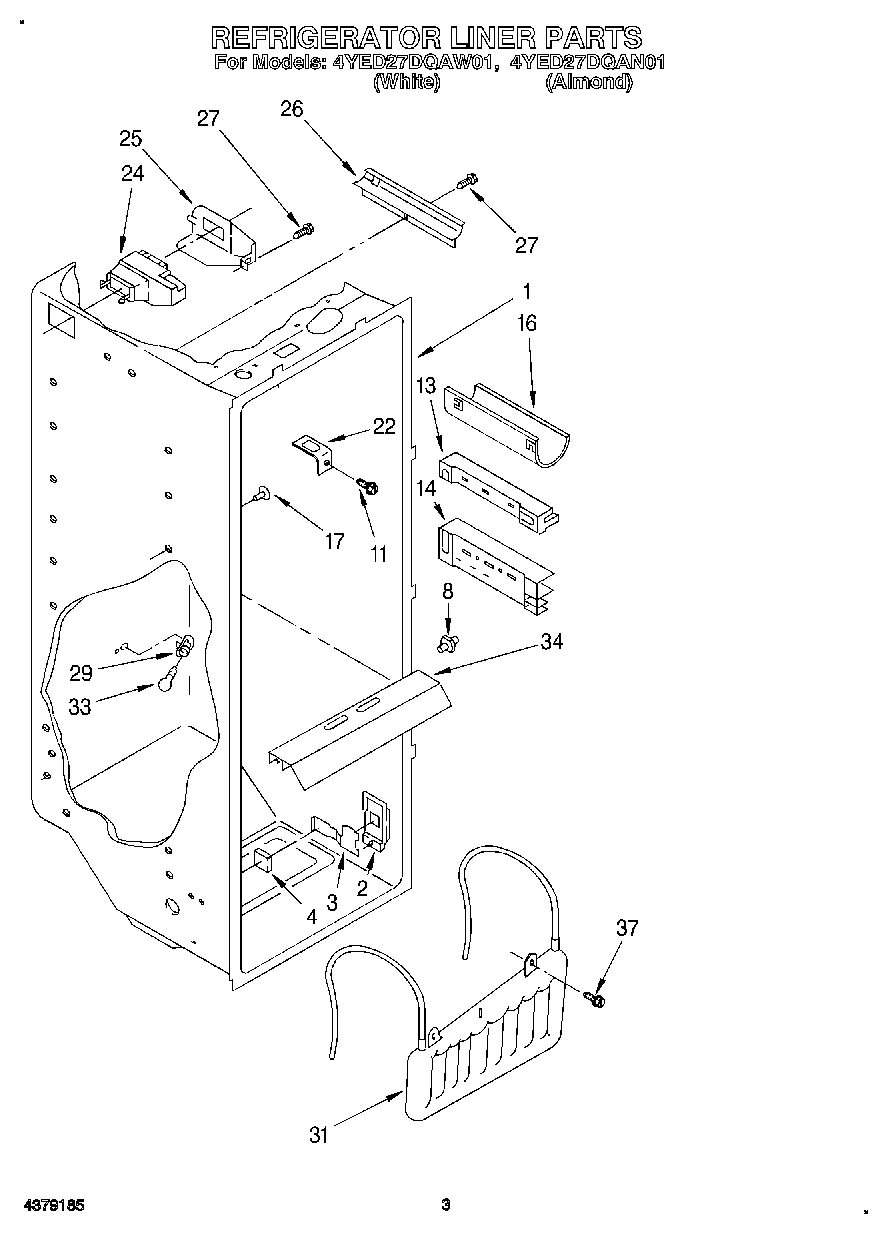

02 - REFRIGERATOR LINER

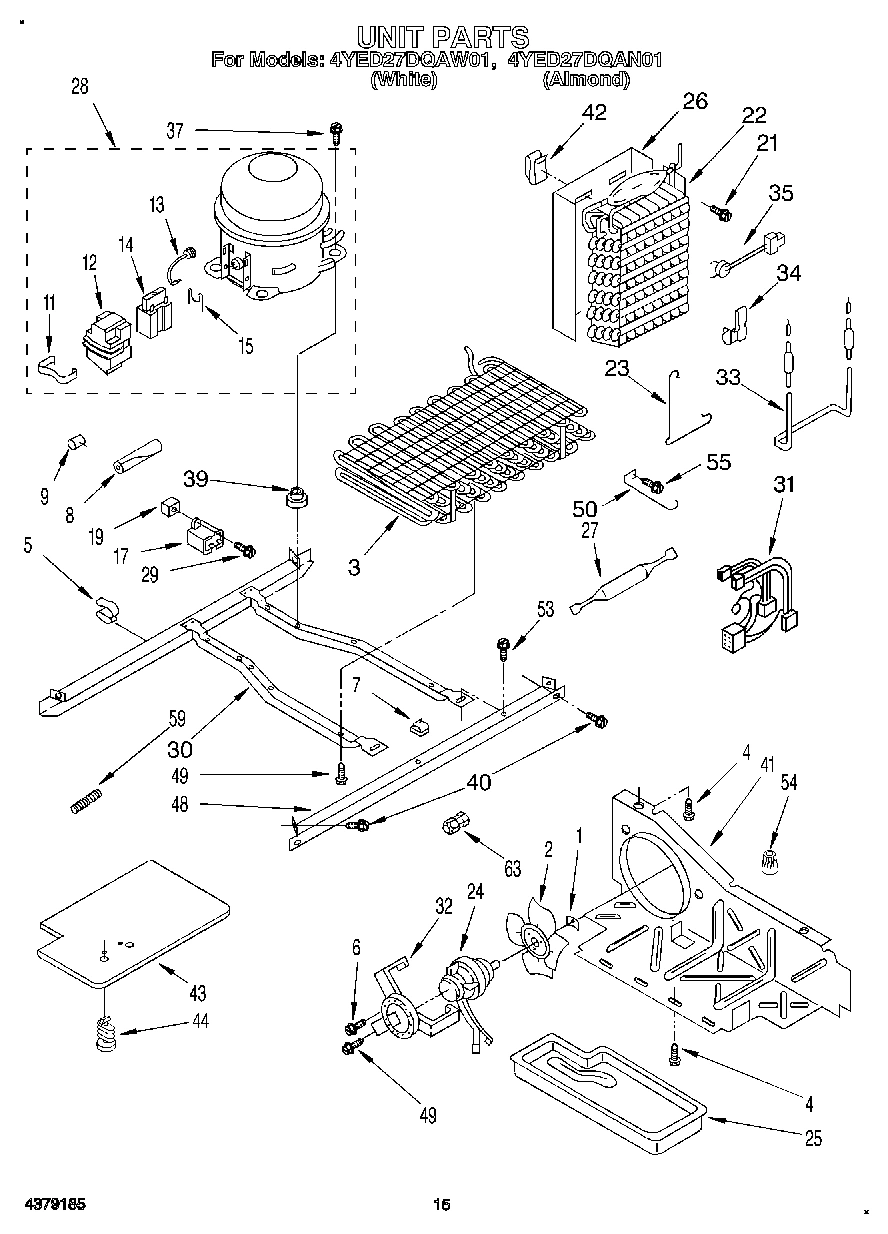

09 - UNIT

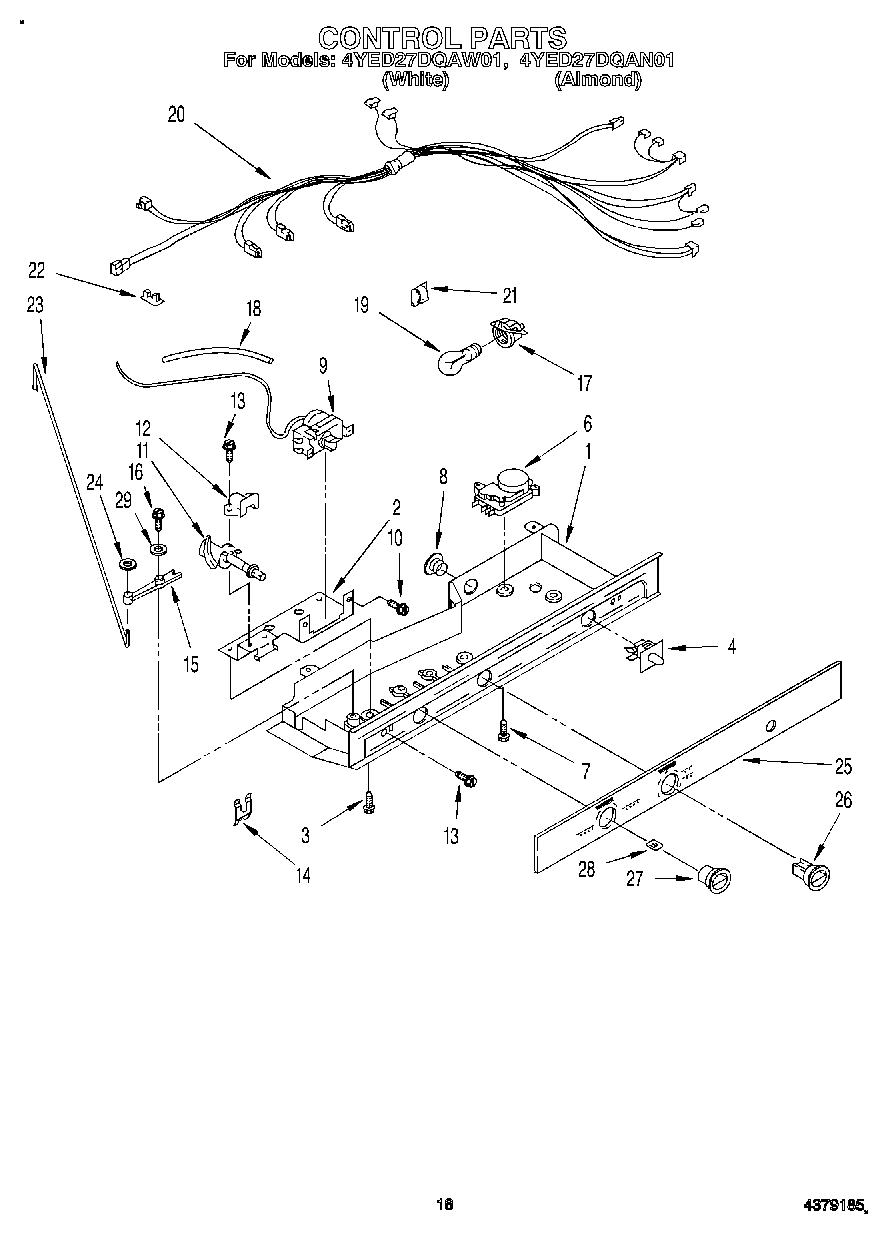

11 - CONTROL

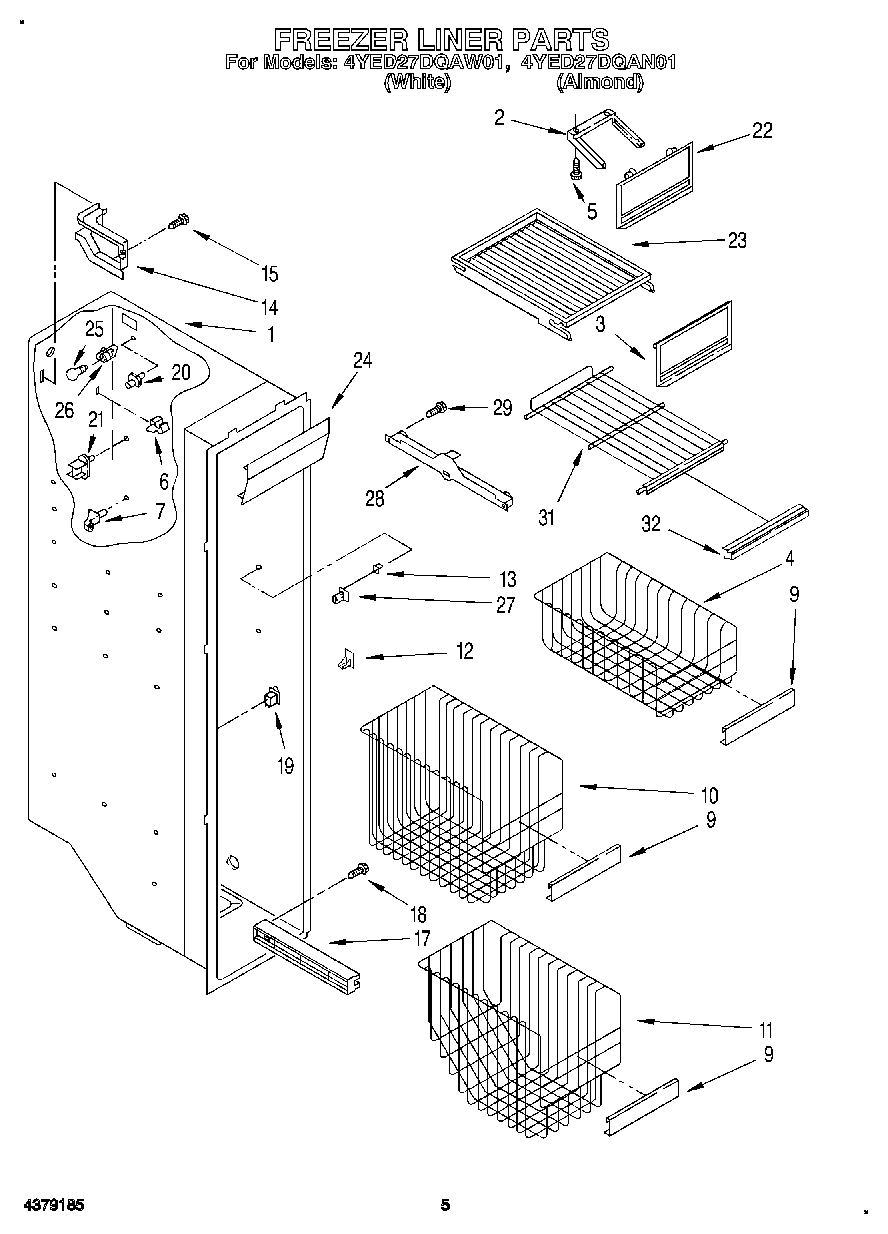

04 - FREEZER LINER

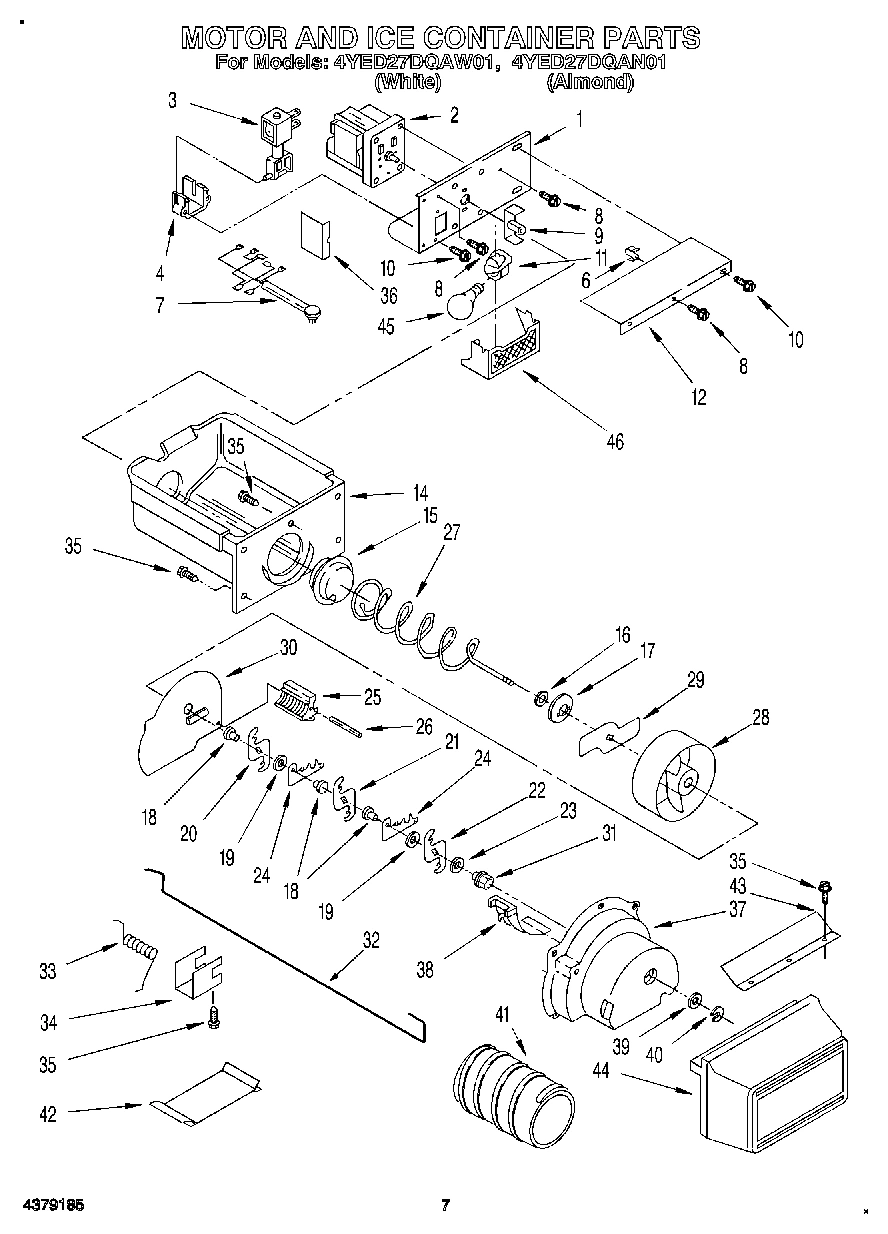

05 - MOTOR AND ICE CONTAINER

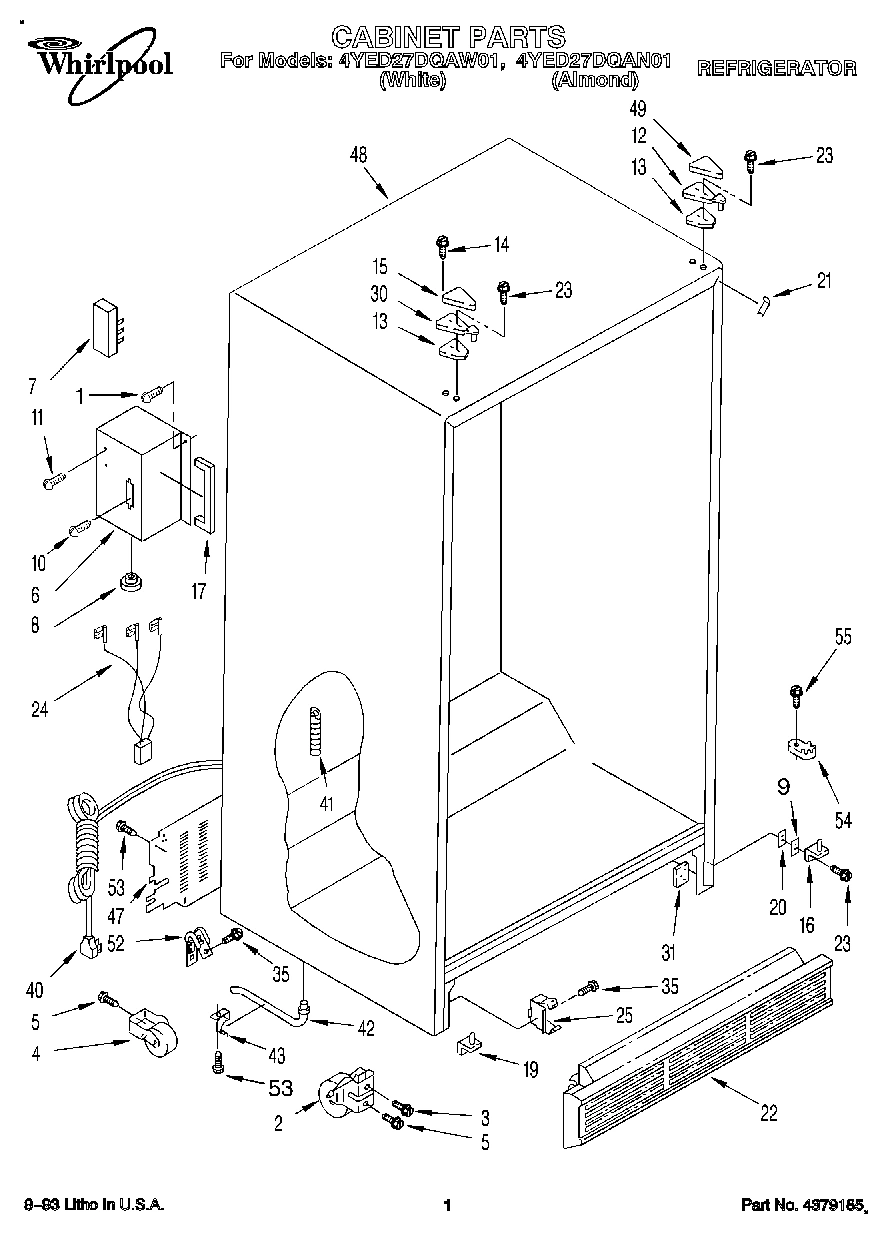

01 - CABINET

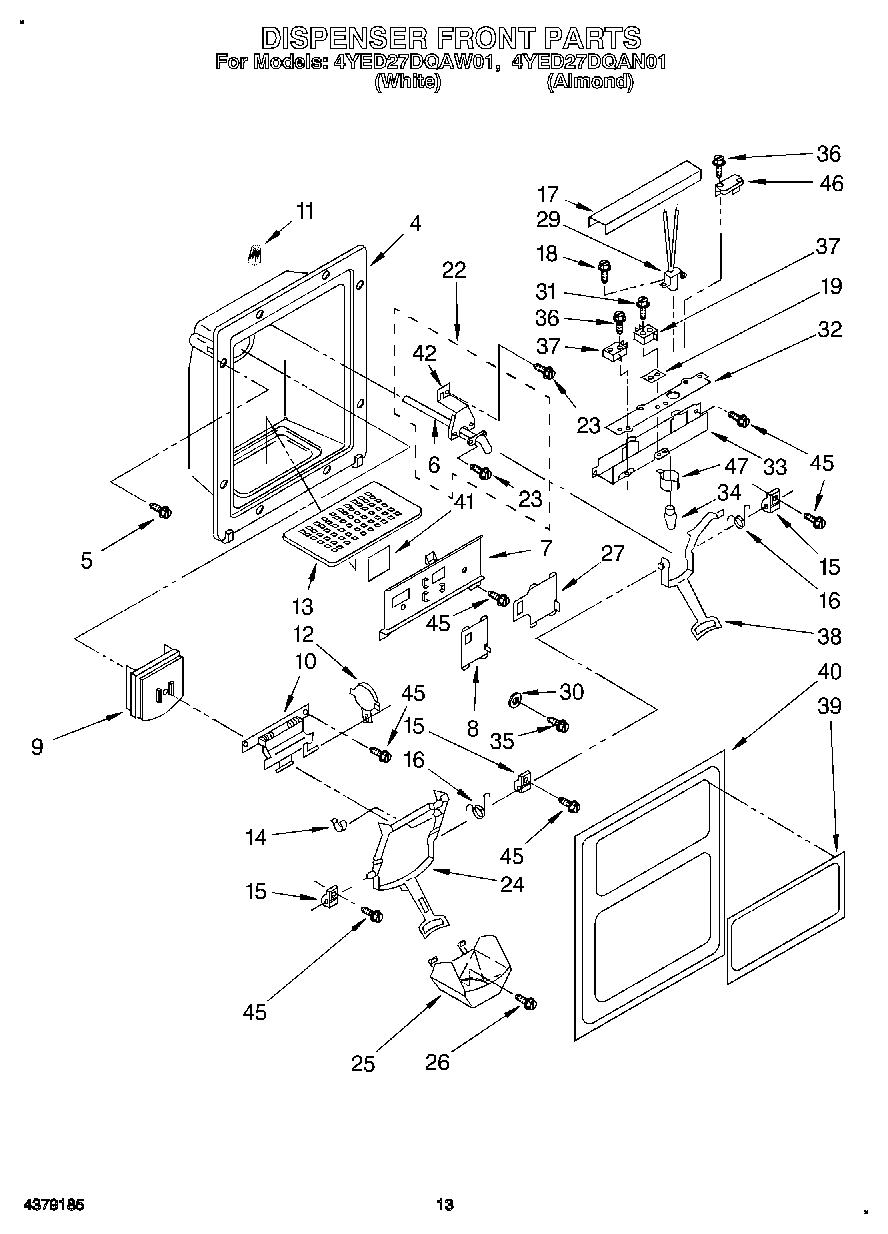

08 - DISPENSER FRONT

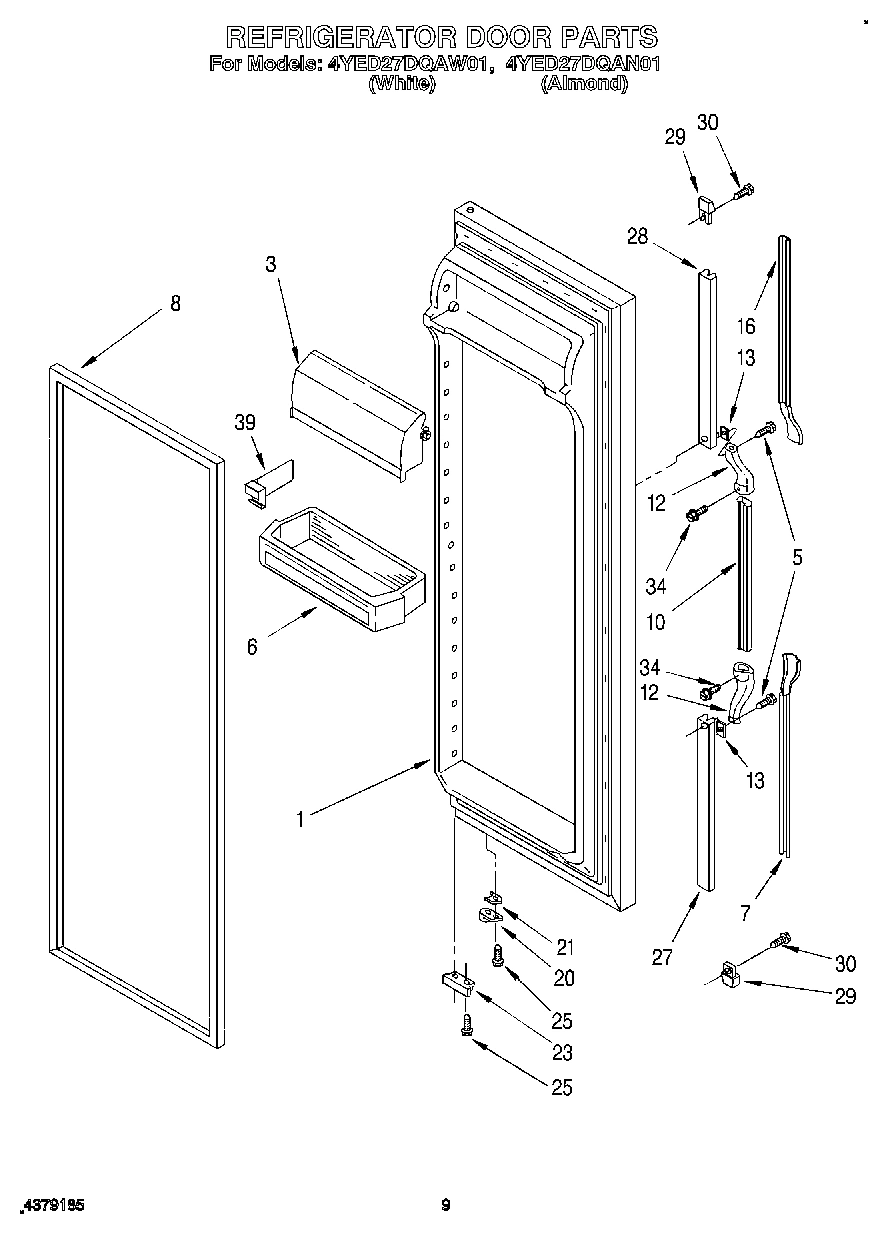

06 - REFRIGERATOR DOOR

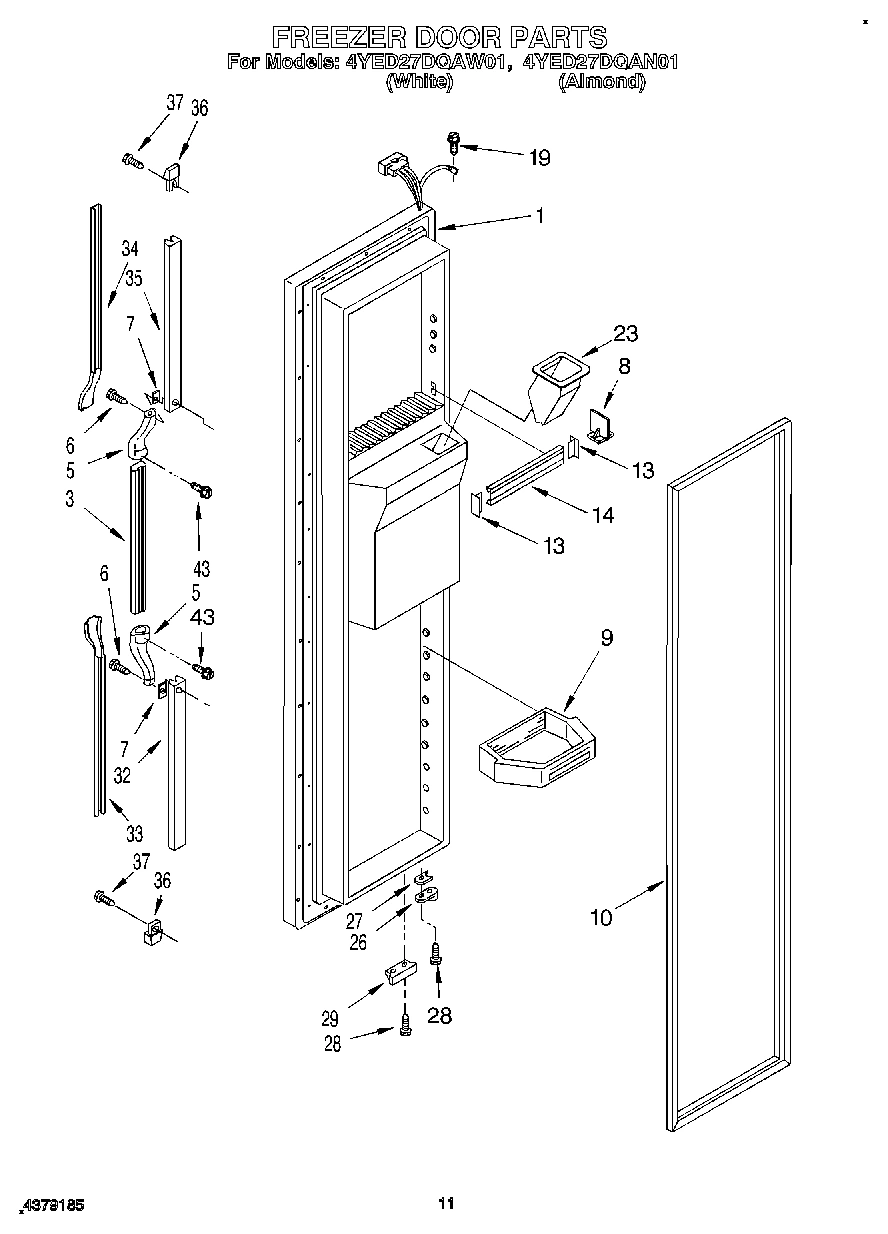

07 - FREEZER DOOR
Common parts from model Whirlpool 4YED27DQAW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14843A1 Contact Us For Availability
1
Bracket, Motor WPL 1118386 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2157690 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2157692 Contact Us For Availability
1
Freezer Door (Includes Item No.10 And Dispens WPL 2167320 Contact Us For Availability
1
Freezer Door (Includes Item No.10 And Dispens WPL 2167321 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Door, Ice Compartment WPL 2167182 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
Handle, Center (White) WPL 1124713 Contact Us For Availability
3
Handle, Center (Almond) WPL 943079 Contact Us For Availability
4
Basket WPL 2155600 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI14844A3 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
End Cap (2) WPL 1119359 Contact Us For Availability
6
Cover, Terminal Block WPL 2158579 Contact Us For Availability
6
Tube, Water (See Item No.22) WPL ARI14845A3 Contact Us For Availability
6
Shelf Bin (2) WPL 2150134 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2149192 Contact Us For Availability
7
Terminal Block WPL 1129346 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
7
Shim, End Cap (2) WPL 935075 Contact Us For Availability
8
Bushing WPL 1129449 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Divider, Shelf WPL 1123293 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Shelf Bin (4) WPL 2150137 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Wire Connector WPL 227991 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Screw WPL 489346 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
12
Cover, Motor WPL 1115339 Contact Us For Availability
12
Hinge Top (R.H.) WPL 1123514 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Overload WPL 2154719 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Track, Shelf (Left Side) WPL 1115265 Contact Us For Availability
14
Relay WPL 2154720 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Trim, Door Shelf WPL 2159192 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Overload Spring WPL 943320 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Hinge Bottom (R.H) WPL 2151629 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Gasket WPL 2167227 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H) WPL 2151630 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Door, Top Compartment WPL 2167178 Contact Us For Availability
22
Grille (White) WPL 1125715 Contact Us For Availability
22
Grille (Almond) WPL 1125717 Contact Us For Availability
23
Shelf Stud WPL 1115290 No Longer Available
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Chute, Ice WPL 2156145 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2167184 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162438 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
29
Bracket, Door Stop WPL 2157611 Contact Us For Availability
30
Hinge, Top (L.H.) WPL 1123510 Contact Us For Availability
30
Washer WPL 489336 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Trim, Shelf WPL 2148844 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
32
Retainer, Insert WPL 1119360 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
33
Insert, Handle (White) WPL 1119361 Contact Us For Availability
33
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
34
Insert, Handle (White) WPL 1119373 Contact Us For Availability
34
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
35
Screw WPL 489360 Contact Us For Availability
35
Retainer, Insert WPL 1119372 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
End Cap (2) WPL 2156220 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw WPL 489075 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2159197 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2159198 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2167171 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2167172 Contact Us For Availability
39
Divider (2) WPL 2152335 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2167175 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2167176 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
Housing Filler WPL 2152700 Contact Us For Availability
42
Bracket, WPL 987049 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
WPL 799344 WPL 799344 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
43
Deflector, Ice Container WPL 1119043 Contact Us For Availability
43
Screw WPL 489022 Contact Us For Availability
44
Front Cover, Ice Container WPL 1124836 Contact Us For Availability
46
Light Lens, Dispenser WPL 983359 Contact Us For Availability
47
Cover, Unit WPL 2167191 Contact Us For Availability
47
WPL 1129333 WPL 1129333 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI14841A9 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
