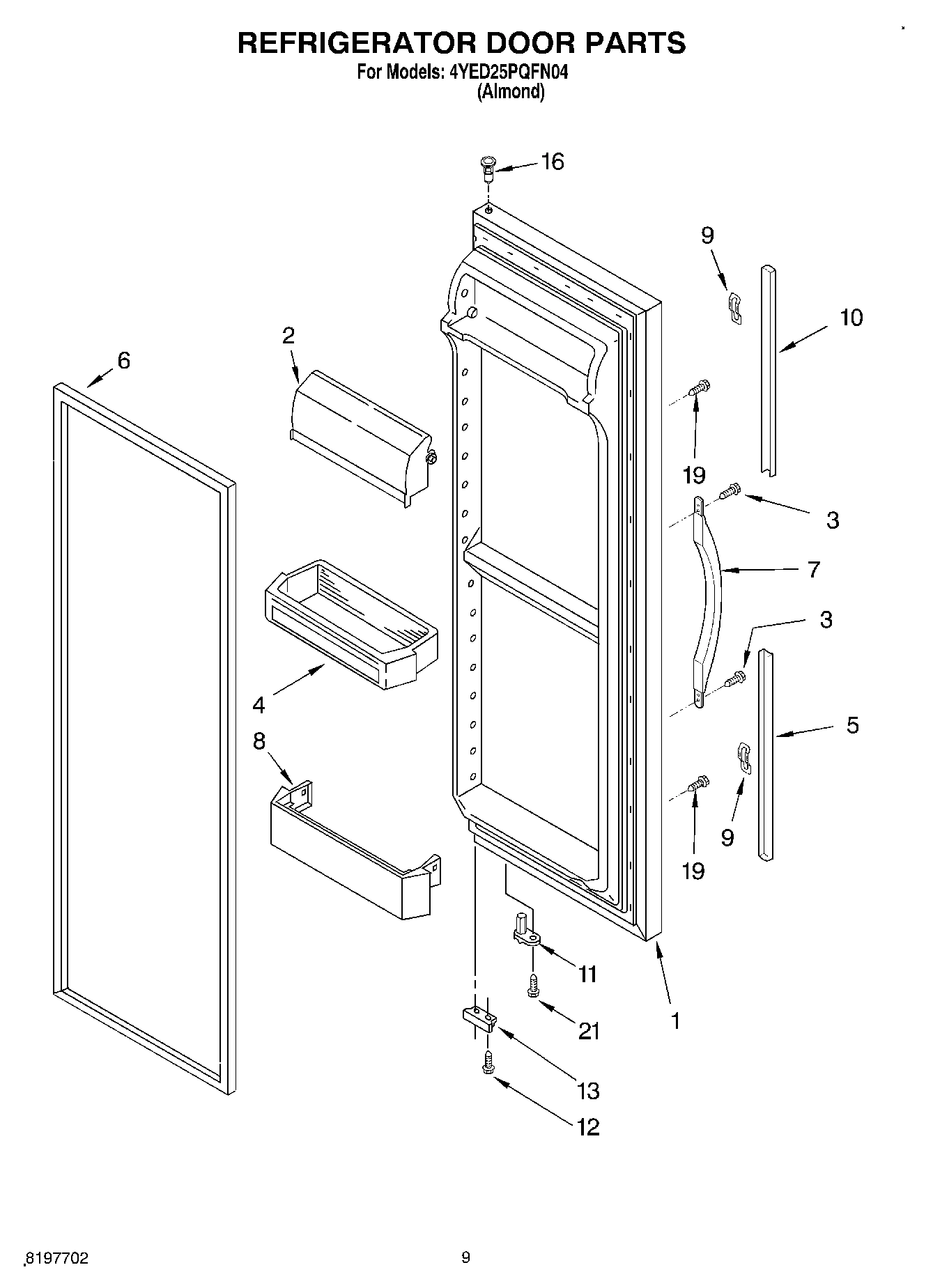

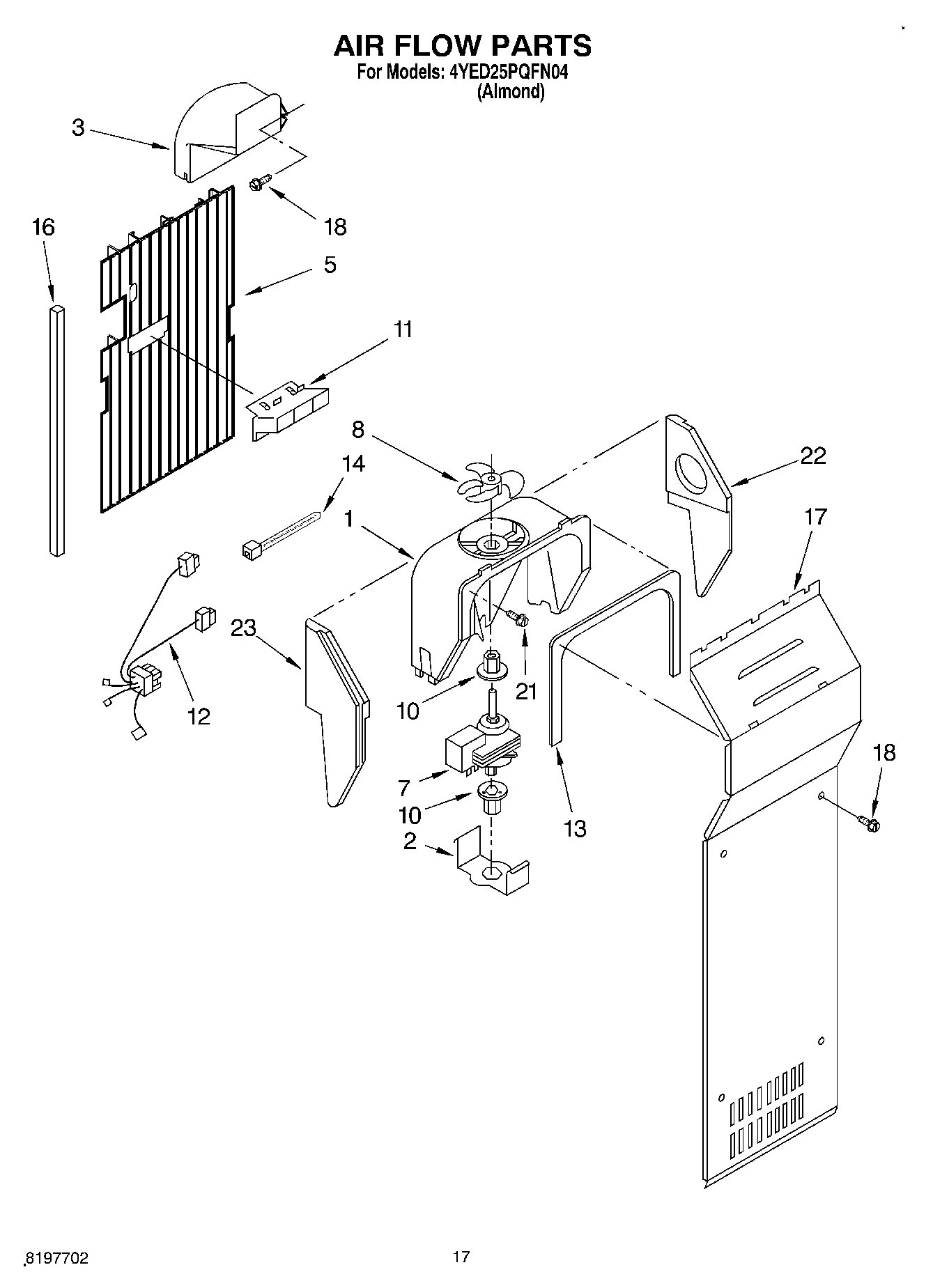

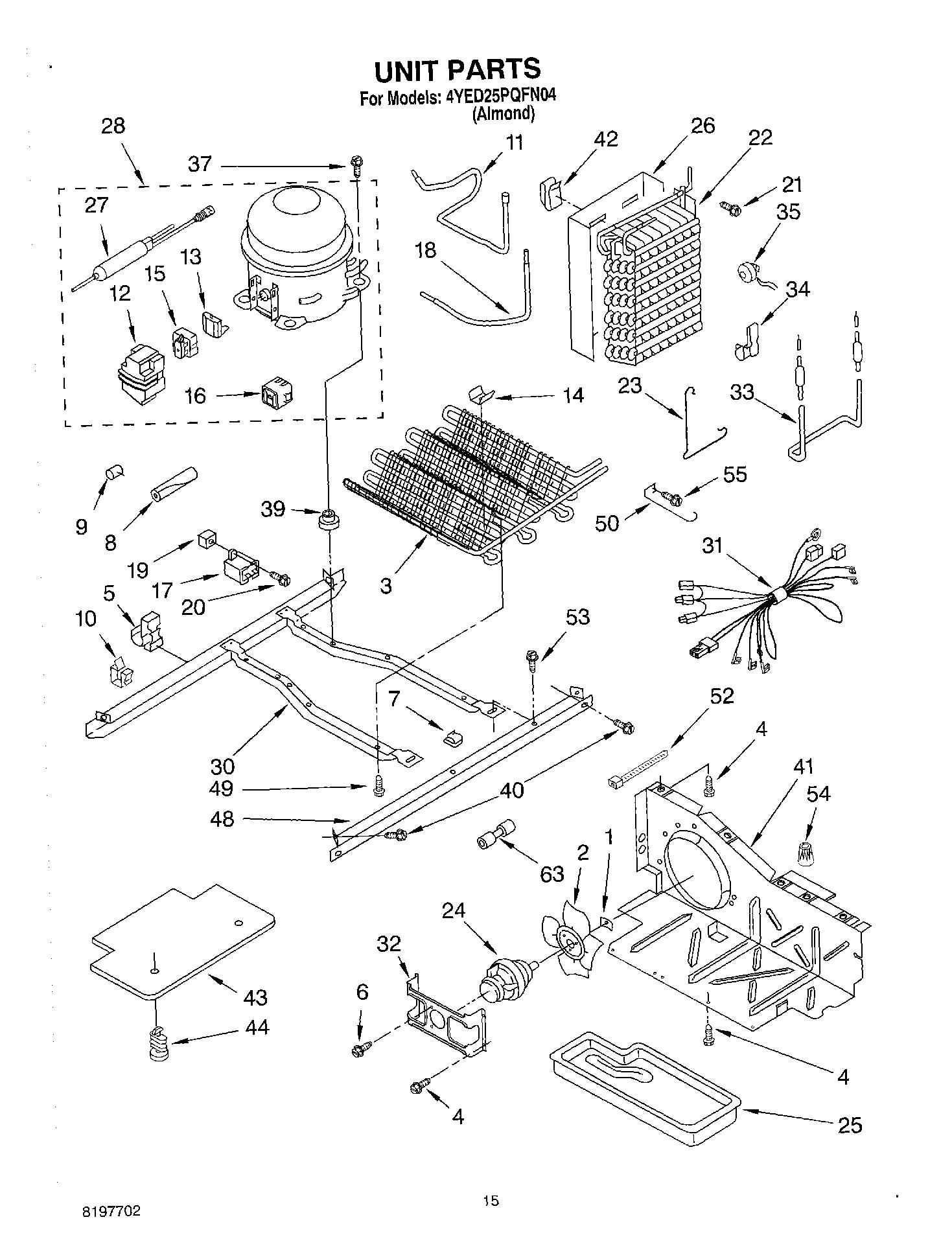

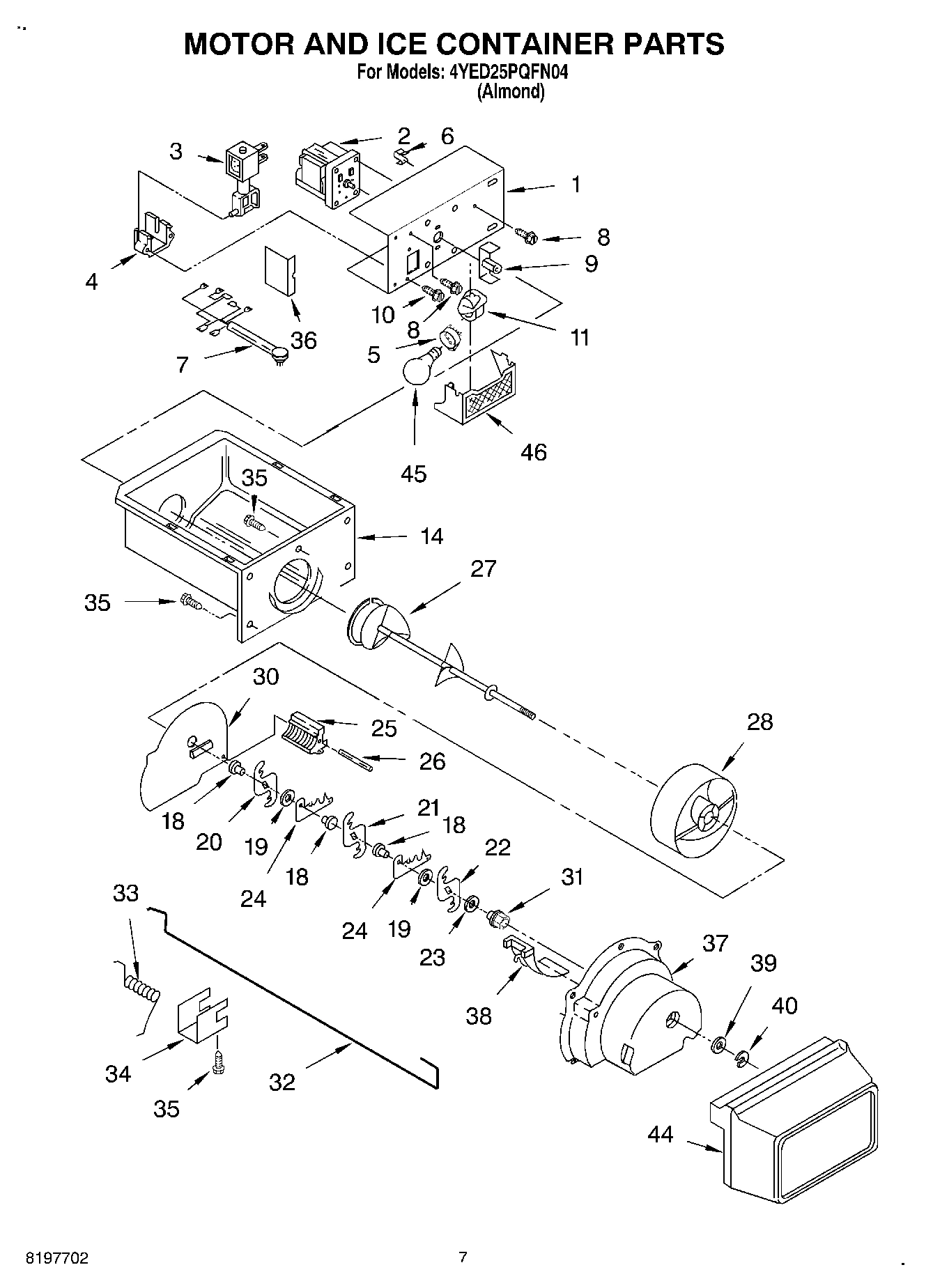

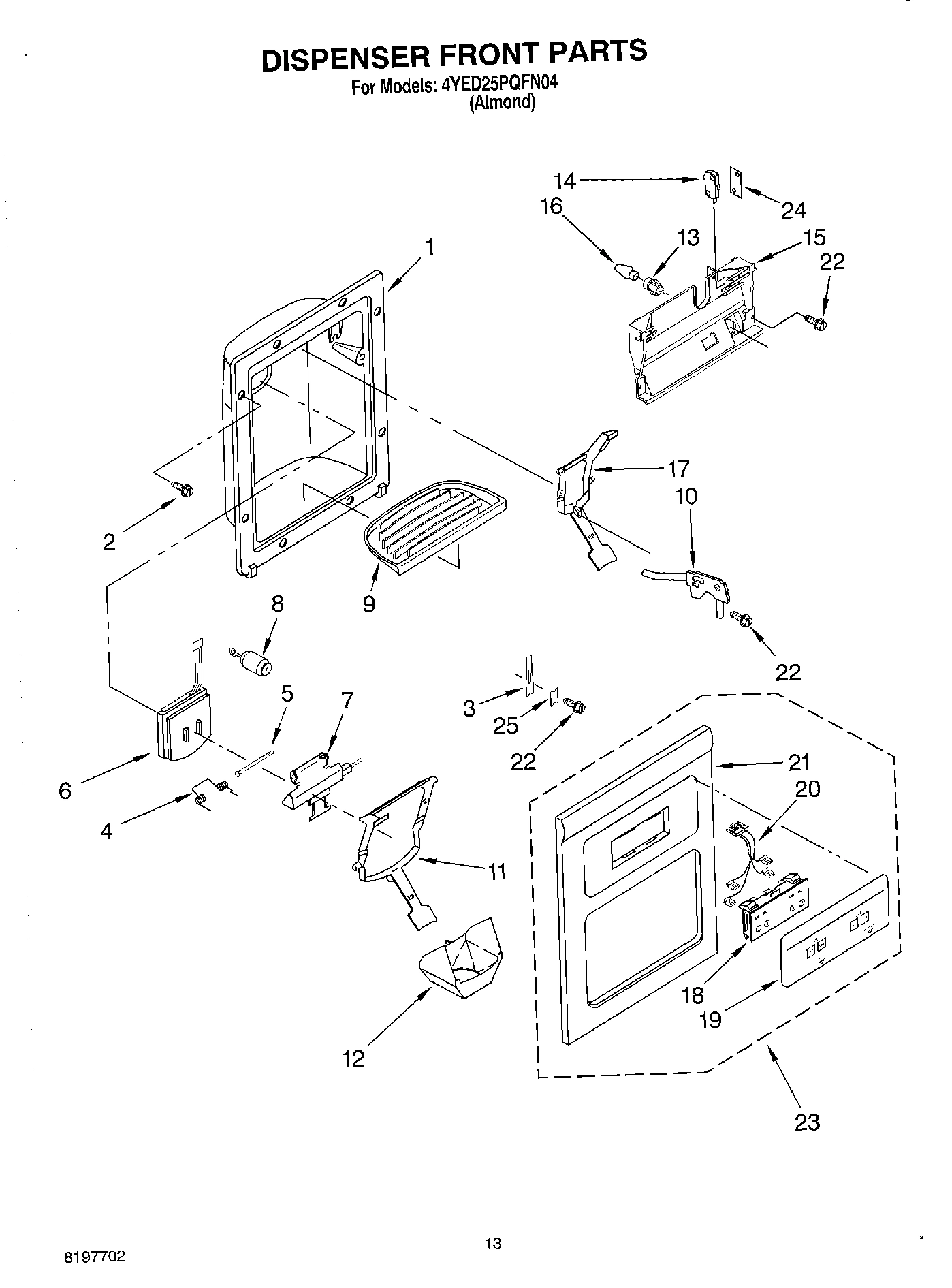

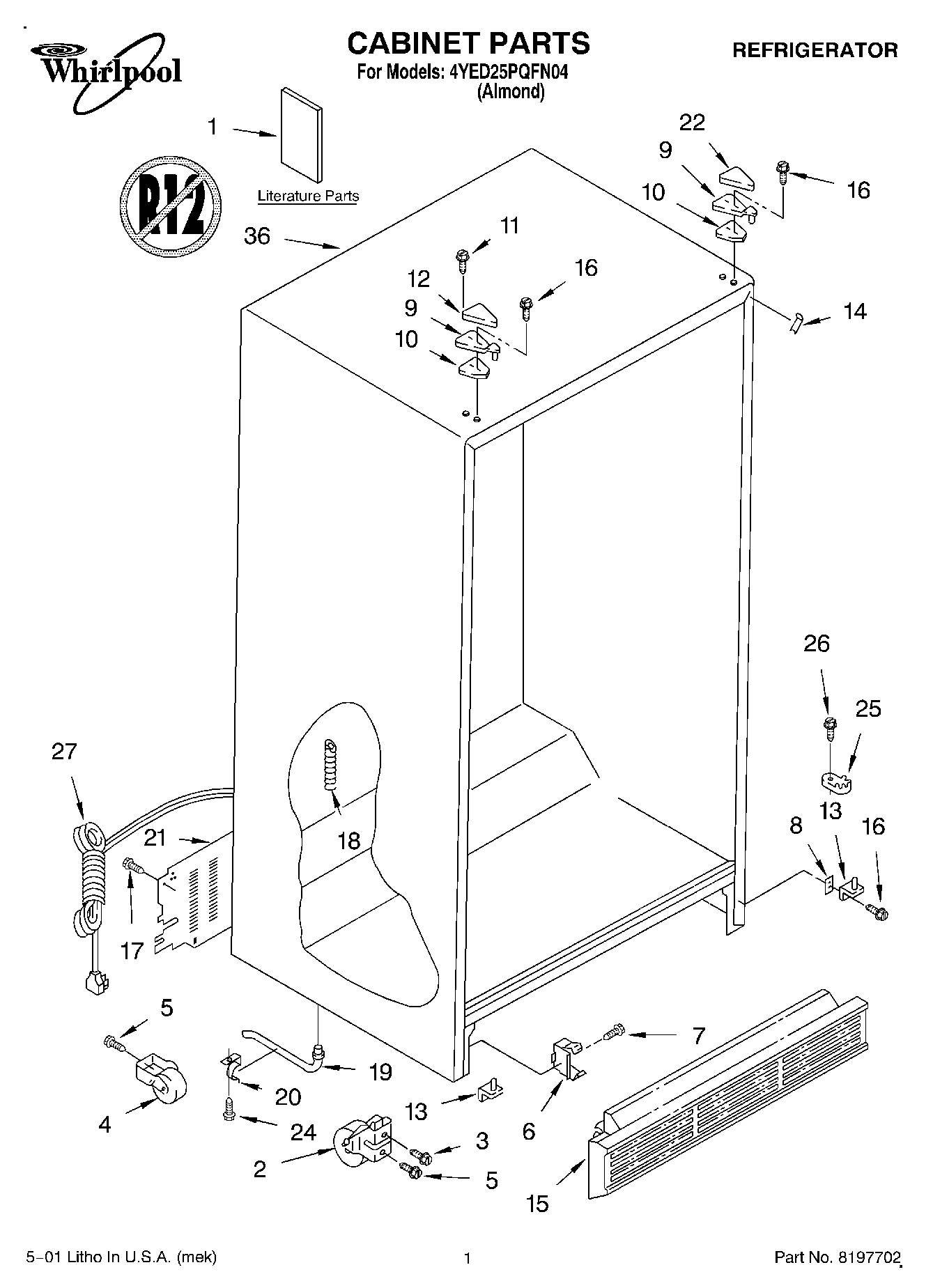

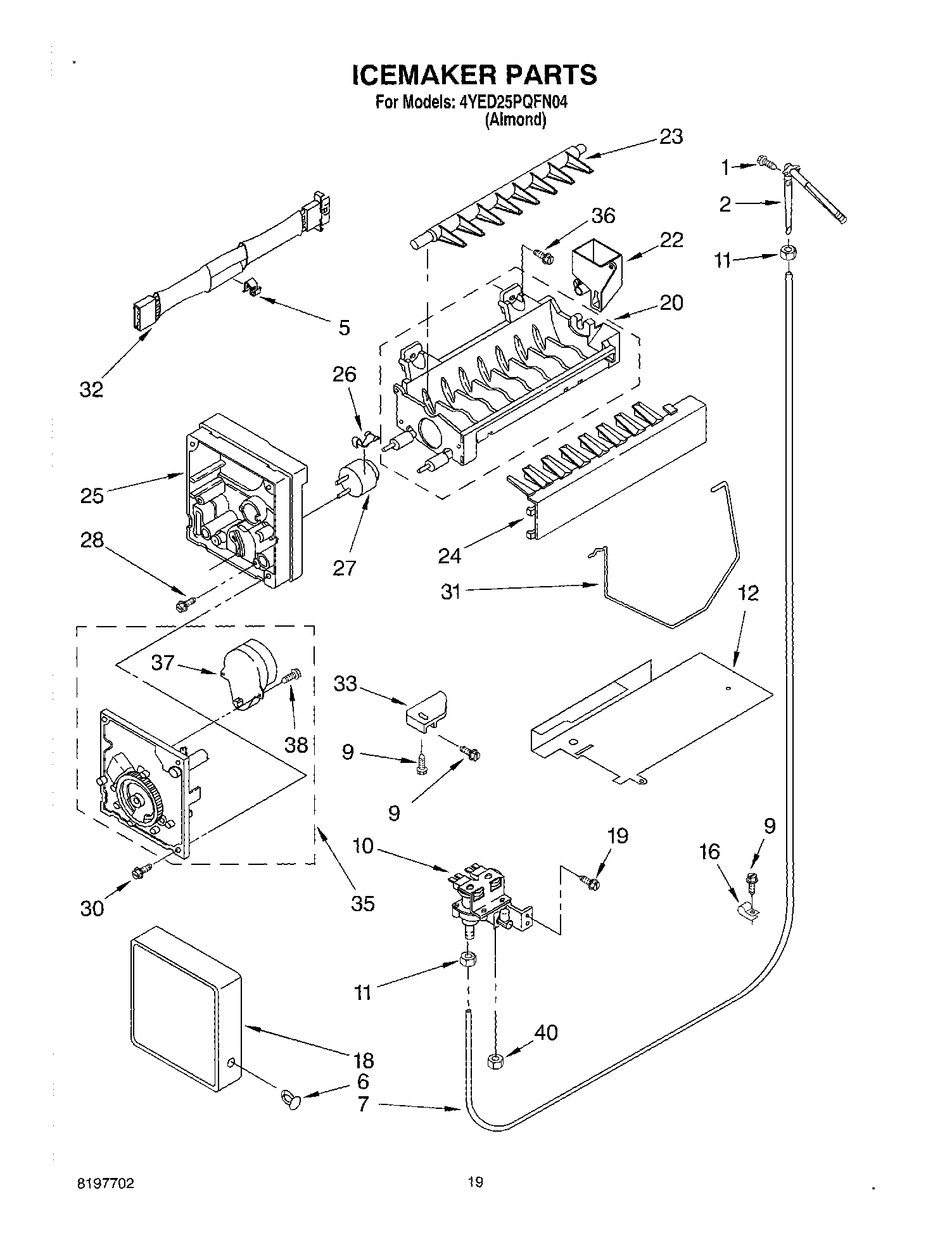

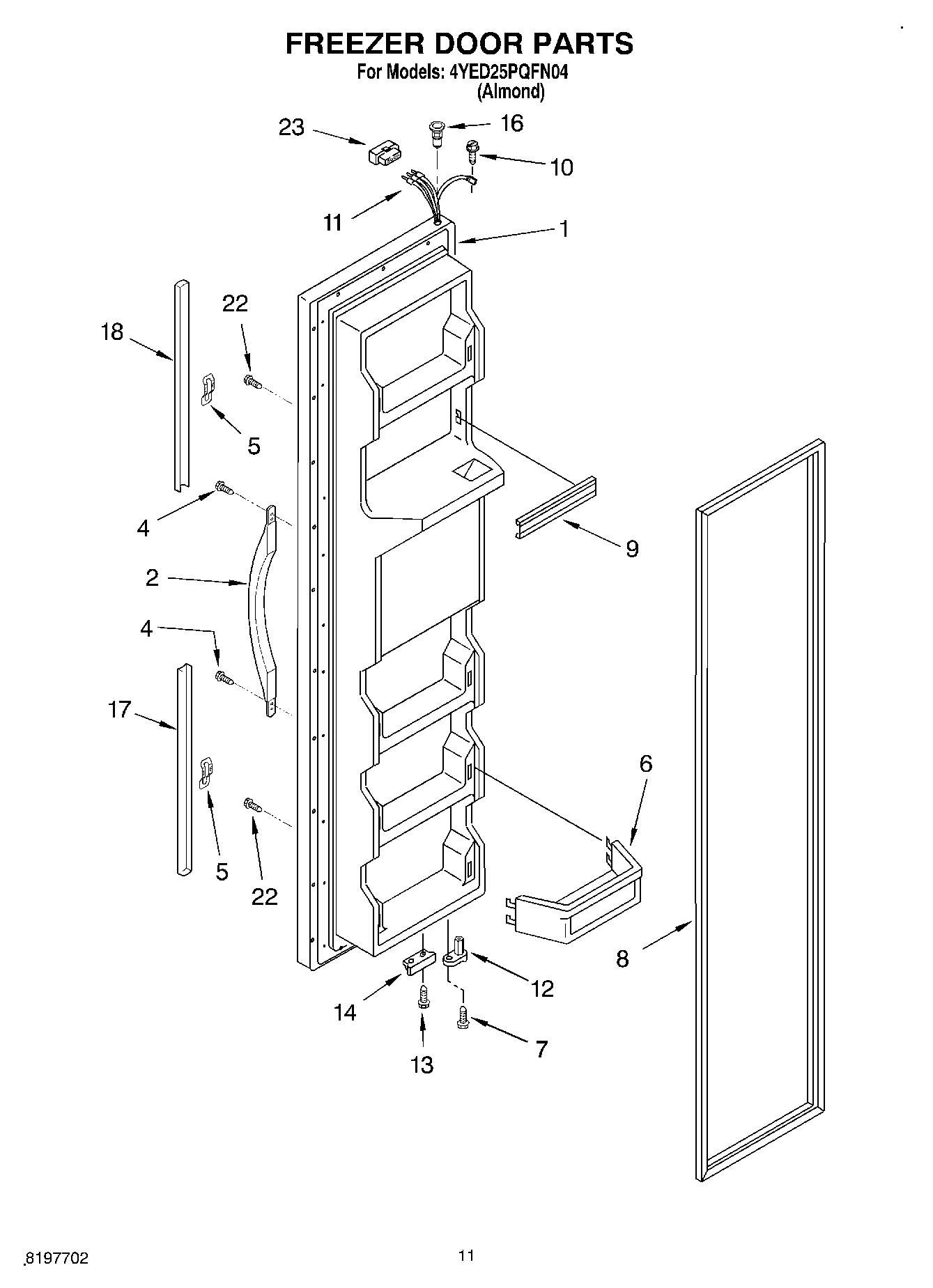

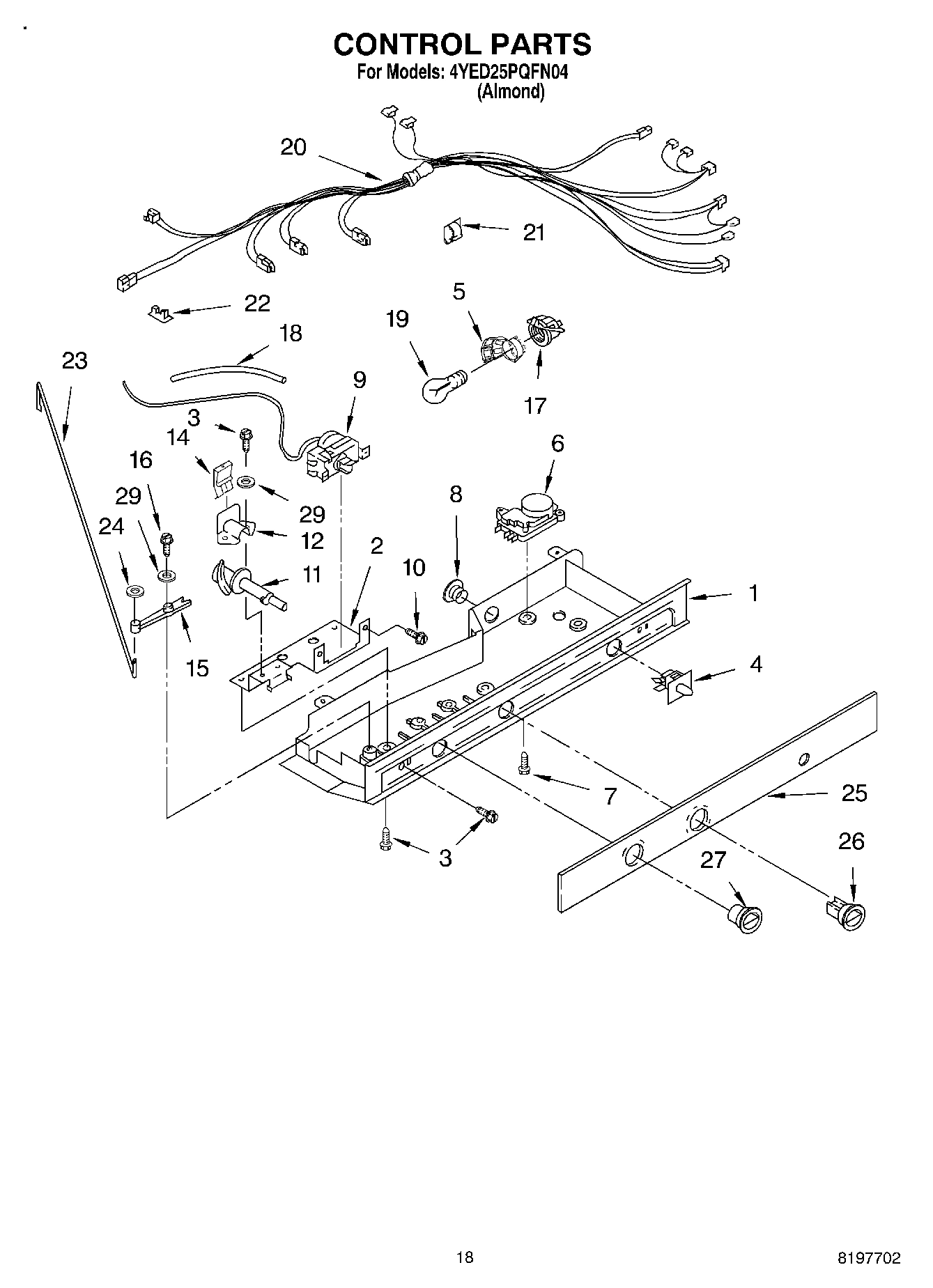

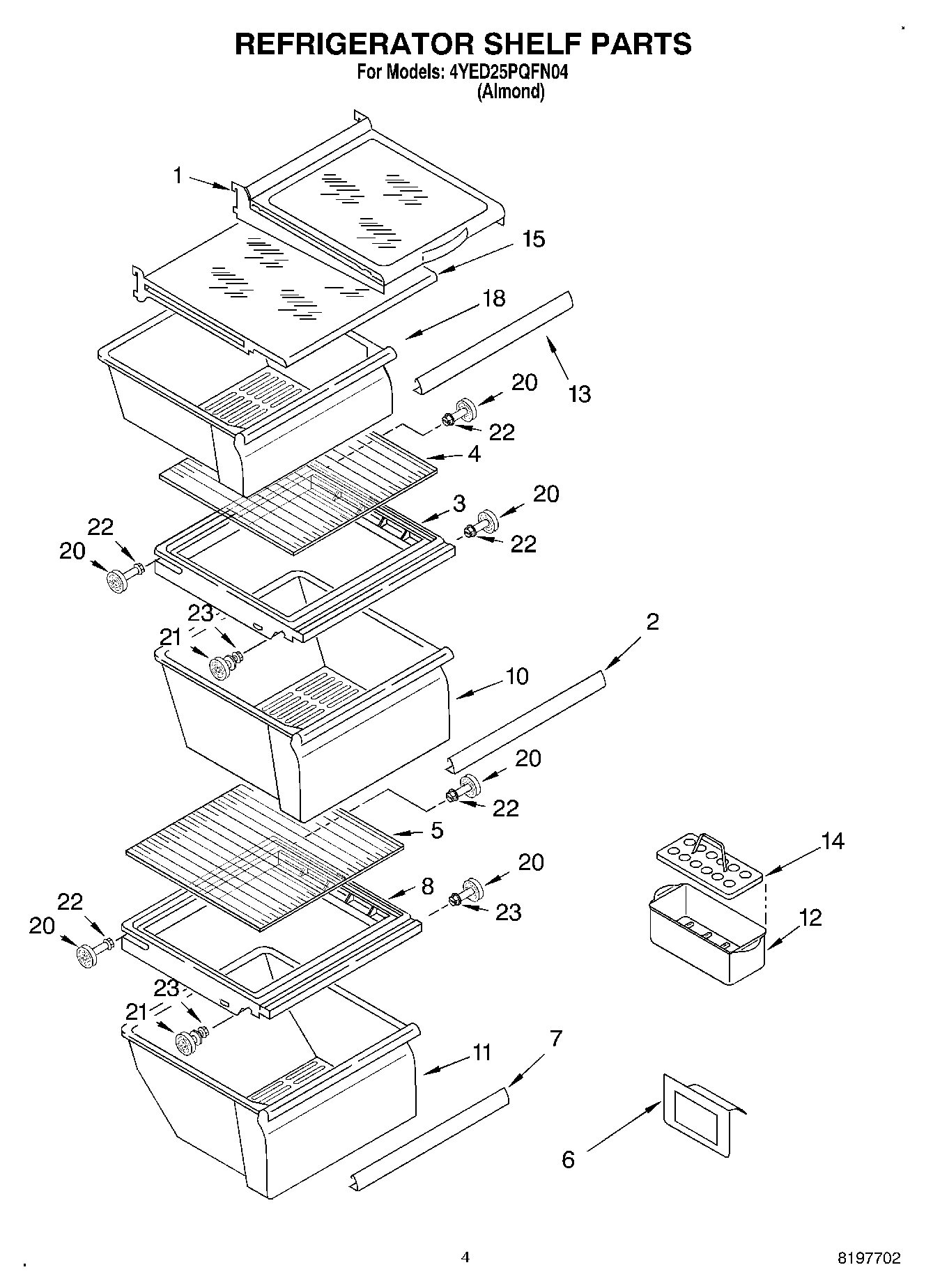

Model Whirlpool 4YED25PQFN04 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Refrigerator Door (Includes Item 6) WPL 2194509N Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI14803A6 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

4

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Extension, Bottom WPL 2194969N Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

Handle, Center WPL 2186649N Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $34.07

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

9

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $33.95

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Grille, Overflow WPL 2183787N Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10169512 Whirlpool Clip Backorder WPL W10169512 $26.21

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Grommet WPL 2176134 Contact Us For Availability

Valve, Solenoid WPL 2187233 Contact Us For Availability

Extension, Top (Almond) WPL 2194973N Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser WPL 2195089N Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $69.97

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

2176790 Whirlpool Refrigerator Overload Backorder WPL 2176790 $43.44

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

Bracket, Door Stop WPL 2195950 Contact Us For Availability

14

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

15

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

15

WP2262184 Whirlpool Refrigerator Start Relay Backorder WPL WP2262184 $41.23

15

Pivot Arm WPL 1110559 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Start-Device, Combination (Start Relay and Ov WPL 2188509 Contact Us For Availability

Bulb, Light WPL 989331 Contact Us For Availability

17

WP2201147 Whirlpool Refrigerator Capacitor Backorder WPL WP2201147 $48.06

17

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

17

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Switch Assembly (Not Available, Order No.23) WPL ARI14804A6 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Screw Grommet WPL 509812 Contact Us For Availability

Plaque, Front Cover (Not Available, Order No. WPL ARI14805A7 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WPW10122523 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122523 $85.43

Wire Assembly WPL 2196198 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Front Cover, Housing (Not Available, Order No WPL ARI14806A7 Contact Us For Availability

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

22

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2197848N Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

8201703 Whirlpool Refrigerator Condenser Moto Backorder WPL 8201703 $132.02

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Heat Shield WPL 2149294 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Knob, Air Control WPL 2197871 Contact Us For Availability

Stud, Rear WPL 2196207 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309997 Whirlpool Refrigerator Compressor In Stock WPL W10309997 $419.58

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

Shelf (2) WPL 2174268 Contact Us For Availability

Harness, Unit WPL 2216447 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WPW10123653 Whirlpool Refrigerator Heater Backorder WPL WPW10123653 $65.27

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Clip WPL 2161330 Contact Us For Availability

35

W10190933 Whirlpool Refrigerator Motor Assemb Backorder WPL W10190933 $191.63

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $219.89

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2200468 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 1110663 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
