Model Whirlpool 4YED25DQAW01 REFRIGERATOR – Common Parts & Diagrams

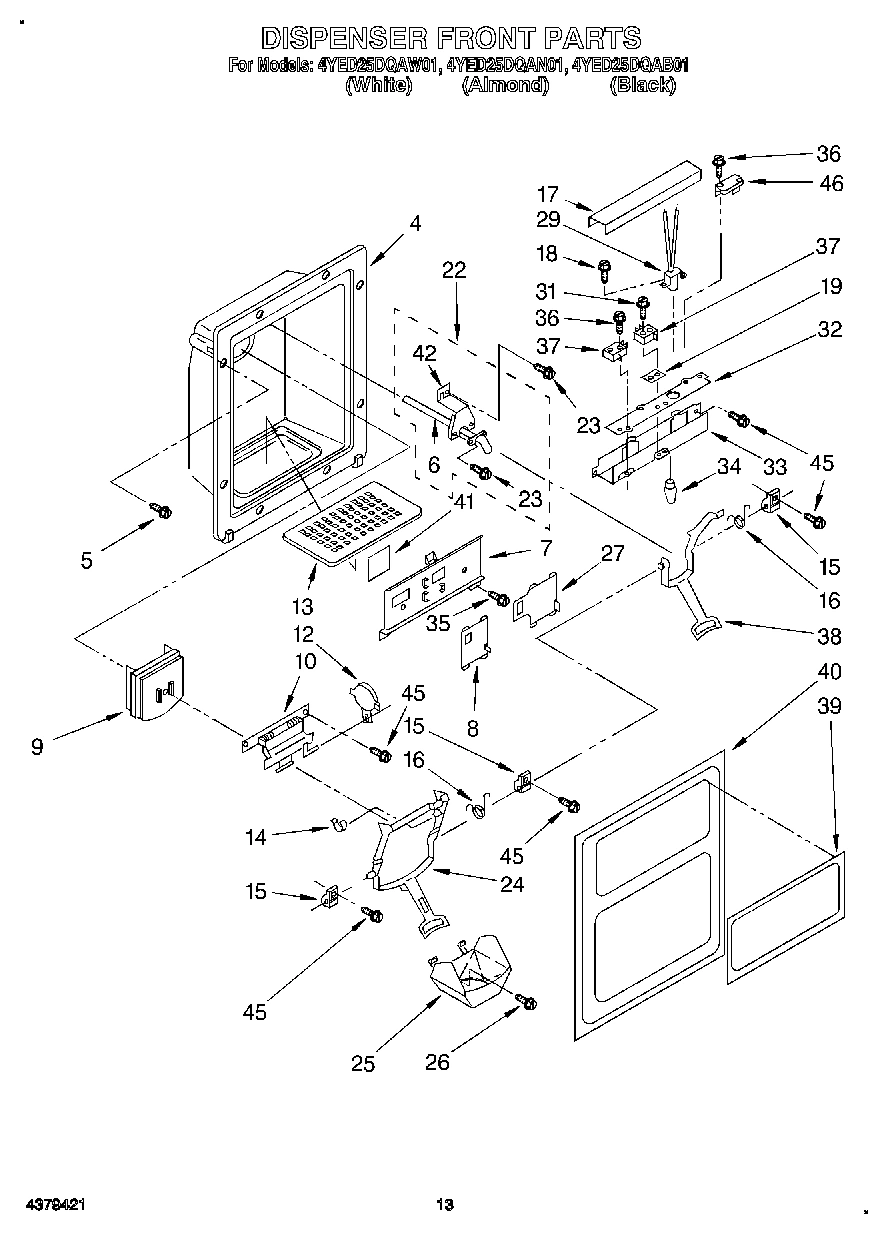

08 - DISPENSER FRONT

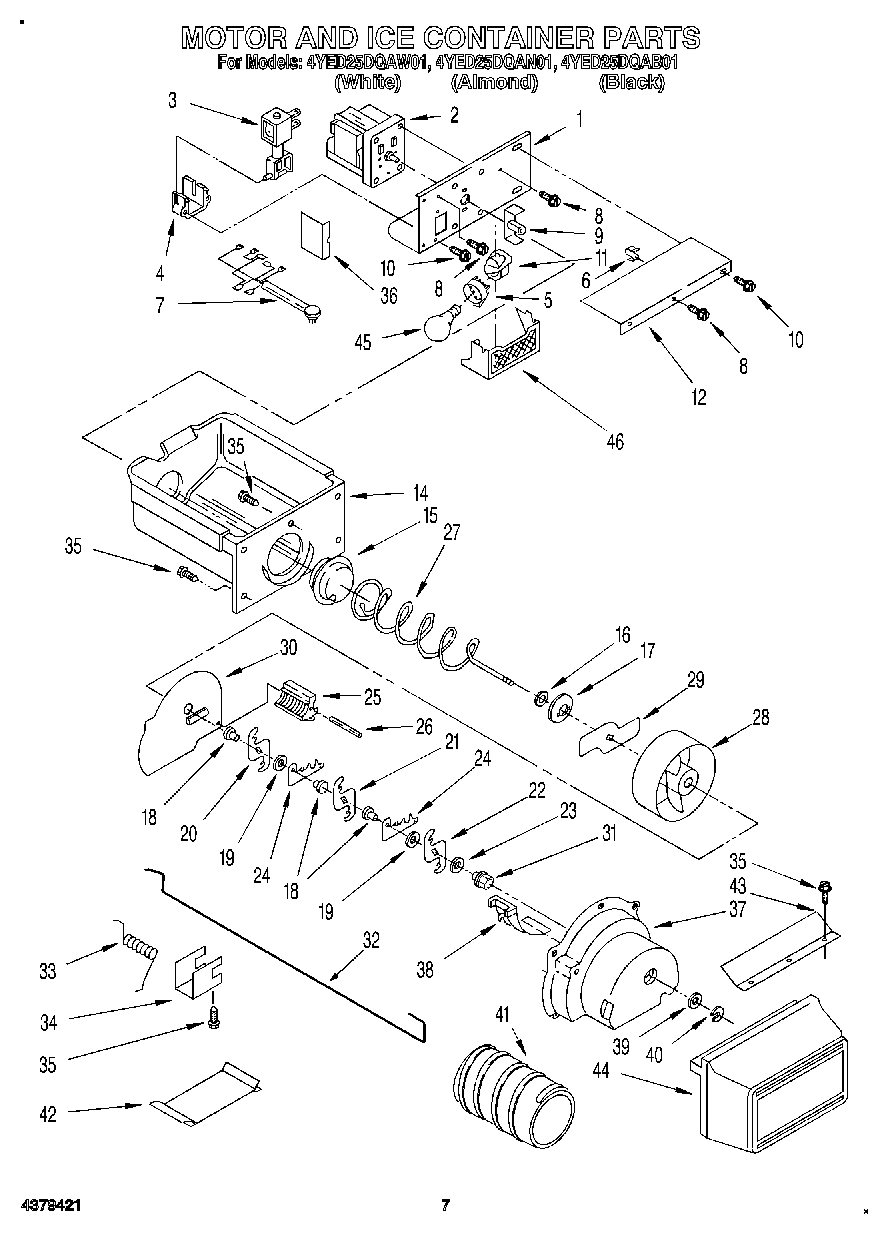

05 - MOTOR AND ICE CONTAINER
12 - ICEMAKER, LIT/OPTIONAL
01 - CABINET
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR
03 - REFRIGERATOR SHELF
10 - AIR FLOW
09 - UNIT
02 - REFRIGERATOR LINER
04 - FREEZER LINER
11 - CONTROL
Common parts from model Whirlpool 4YED25DQAW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2159337 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2159374 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Black) WPL 2159375 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2167424 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2170237 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2170279 Contact Us For Availability
1
Shelf Assembly, Glass Sliding (3) WPL 2162564 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140849A Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI140850A Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2152011 Contact Us For Availability
2
Handle, Center (Black) WPL 1118417 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
2
Snack Bin WPL 2167177 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2158954 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Screw WPL 489393 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
3
Door, Ice Compartment WPL 2167182 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Shelf Bin (2) WPL 1124846 Contact Us For Availability
4
Gasket, Crisper (Front) WPL 1115291 Contact Us For Availability
4
Pad, Foam WPL 992358 Contact Us For Availability
5
Screw, WPL 488454 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Gasket, Crisper (Rear) WPL 1121385 Contact Us For Availability
5
Air Duct Freezer WPL 2155575 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Cover, Terminal Block WPL 2158579 Contact Us For Availability
6
Trivet, Shelf (2) WPL 2167425 Contact Us For Availability
6
Trim, Crisper Cover WPL 2172714 Contact Us For Availability
7
Glass, Crisper Cover WPL 1114687 Contact Us For Availability
7
Terminal Block WPL 1129346 Contact Us For Availability
7
Shelf Bin (2) WPL 1124854 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Bushing WPL 1129449 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Trim, Door Shelf WPL 2159192 Contact Us For Availability
9
Trim, Basket WPL 1124837 Contact Us For Availability
10
Grommet, Fan (2) WPL 2155589 Contact Us For Availability
10
Basket, Tall WPL 2152088 Contact Us For Availability
11
Screw WPL 489346 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Strap WPL 2154721 Contact Us For Availability
11
Basket, Slope WPL 2152090 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
12
Pan, Crisper WPL 2162711 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2158782 Contact Us For Availability
12
Cover WPL 2154722 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
13
Grille, Overflow WPL 983900 Contact Us For Availability
13
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
13
Shim, Hinge Top WPL 1123515 Contact Us For Availability
13
Front, Crisper Pan WPL 2167169 Contact Us For Availability
13
Overload WPL 2154719 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
14
Nameplate (White) WPL 2148544 Contact Us For Availability
14
Nameplate (Black) WPL 2162668 Contact Us For Availability
14
Slide, Humidity Control WPL 2148524 Contact Us For Availability
14
Relay WPL 2154720 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Screw WPL 489268 Contact Us For Availability
15
Overload Spring WPL 943320 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H) (Black) WPL 2155320 Contact Us For Availability
16
Hinge Bottom (R.H) (Chrome) WPL 2155321 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
16
Wine Rack WPL 1124828 Contact Us For Availability
17
Gasket WPL 2167227 Contact Us For Availability
17
Insert, Handle (Black) WPL 1118435 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Insert, Handle (White) WPL 1119373 Contact Us For Availability
17
Meat Pan WPL 2167170 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Capacitor WPL 2154717 Contact Us For Availability
17
Shelf Track (Right Side (4)) WPL 1126354 Contact Us For Availability
17
Shelf Track (Left Side (4)) WPL 1126355 Contact Us For Availability
18
Insert, Handle (Black) WPL 1118437 Contact Us For Availability
18
Insert, Handle (White) WPL 1119361 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Hinge Bottom (L.H) (Black) WPL 2155322 Contact Us For Availability
19
Hinge Bottom (L.H) (Chrome) WPL 2155323 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
20
Egg Container, Top WPL 1107388 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Shelf Bin WPL 1124847 Contact Us For Availability
21
Egg Container, Bottom WPL 1107384 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Door, Top Compartment WPL 2167178 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Shelf Stud WPL 1115290 No Longer Available
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 1115256 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Light Lens WPL 1115389 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2167184 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stud, Front WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
28
Compressor (Includes Items 11, 12, 13, 14, 15 WPL 2162438 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
32
Fan, Motor Bracket WPL 2162062 Contact Us For Availability
32
Trim, Shelf WPL 2148844 Contact Us For Availability
33
Heater, Defrost WPL 2162214 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
34
Light Lens WPL 1115330 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
39
Grommet (4) WPL 2162067 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
WPL 876029 WPL 876029 Contact Us For Availability
43
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
43
Insert WPL 1129177 Contact Us For Availability
43
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
43
Transformer (115-230 Volt) WPL 515393 Contact Us For Availability
43
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
43
WPL 799340 WPL 799340 Contact Us For Availability
43
WPL 799833 WPL 799833 Contact Us For Availability
43
WPL 978883 WPL 978883 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
47
Cover, Unit WPL 2167191 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI140848A Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
