Model Whirlpool 4KSRS22QDA01 REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR SHELF
06 - REFRIGERATOR DOOR

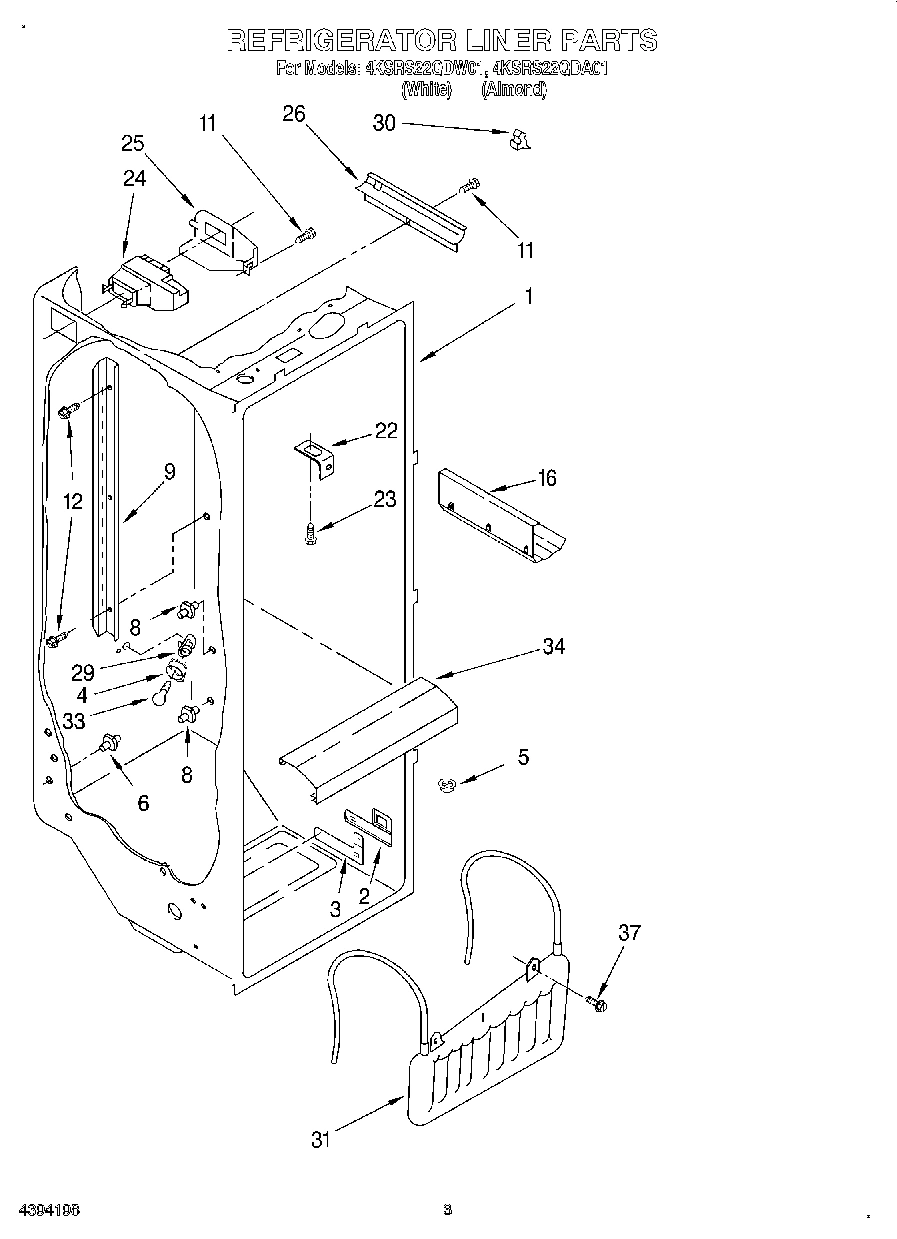

02 - REFRIGERATOR LINER

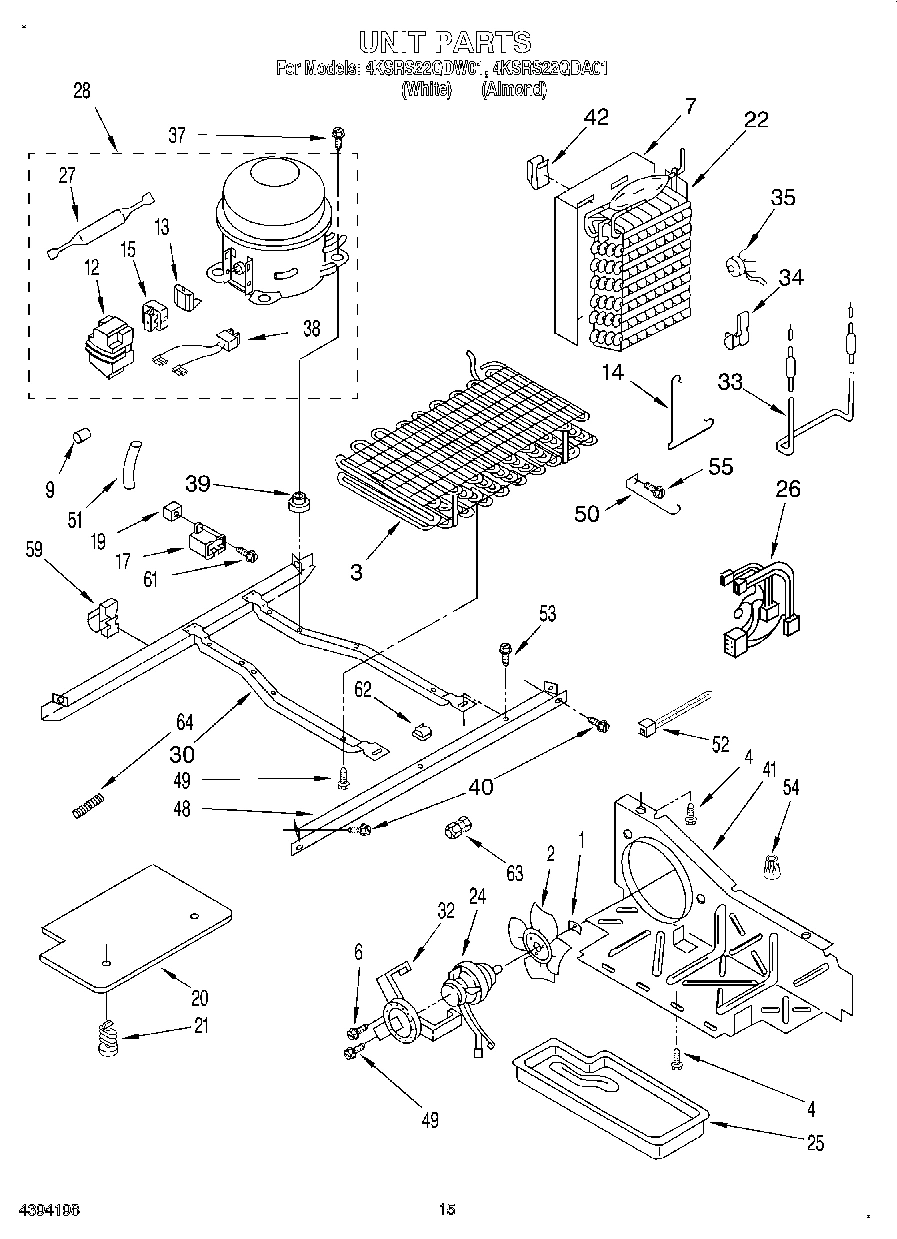

09 - UNIT

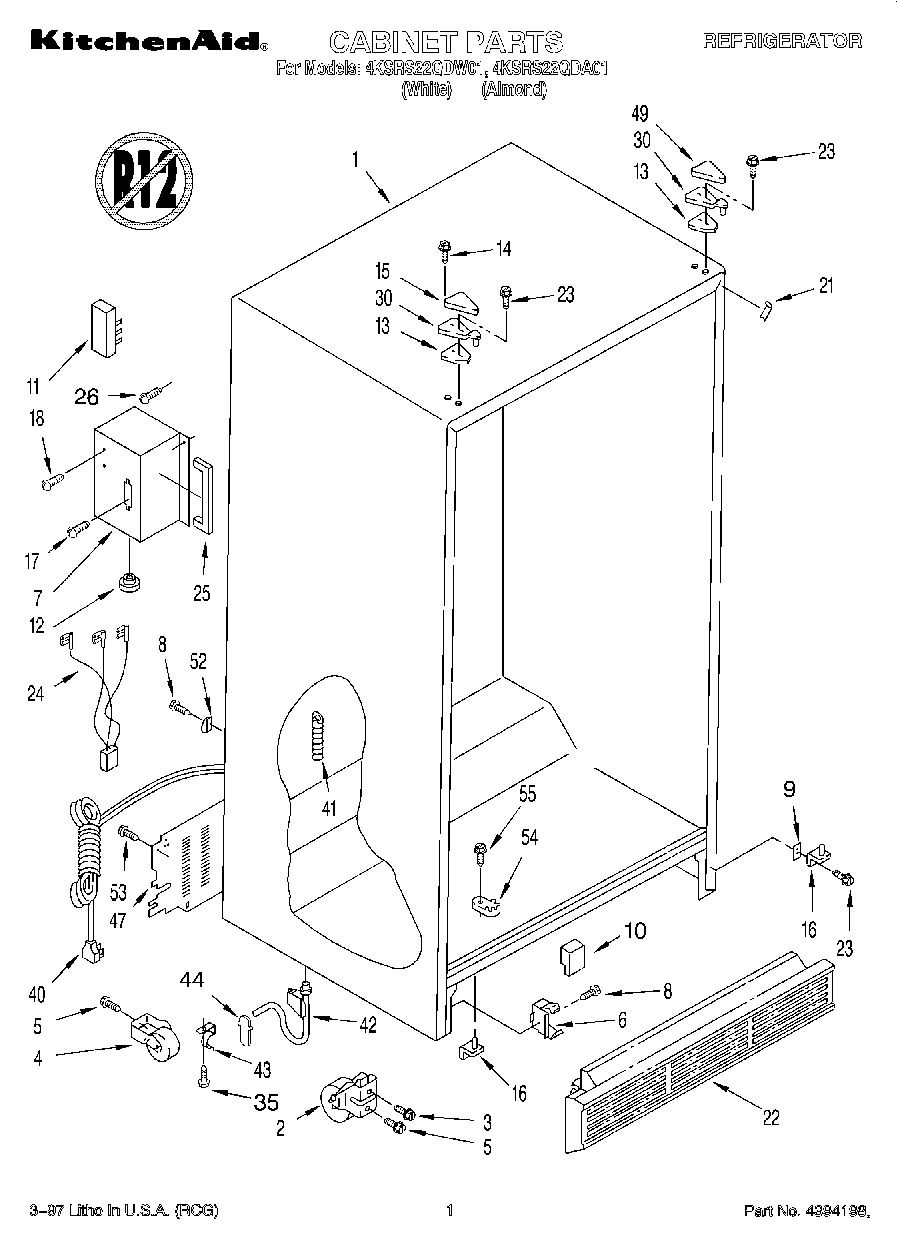

01 - CABINET

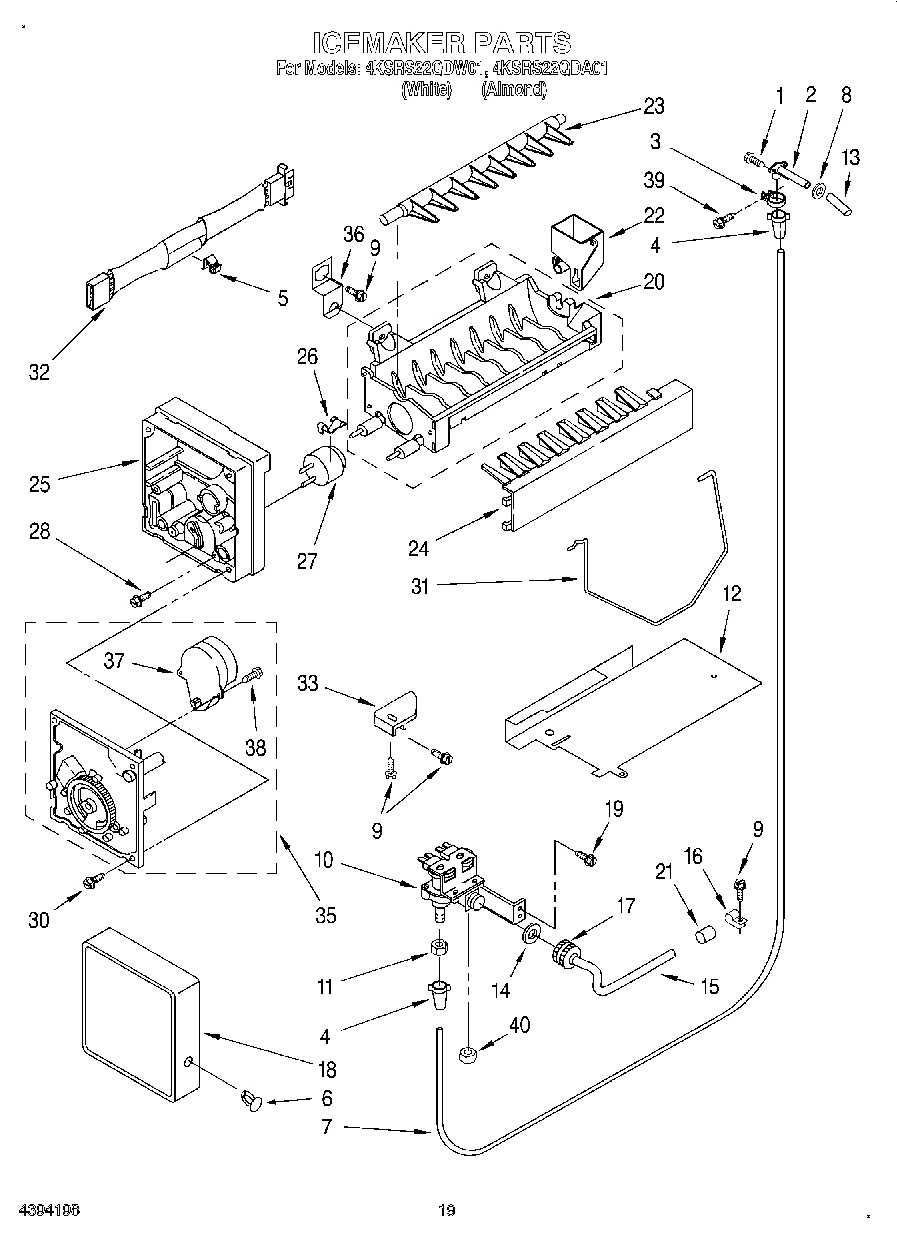

12 - ICEMAKER, LIT/OPTIONAL
11 - AIR FLOW

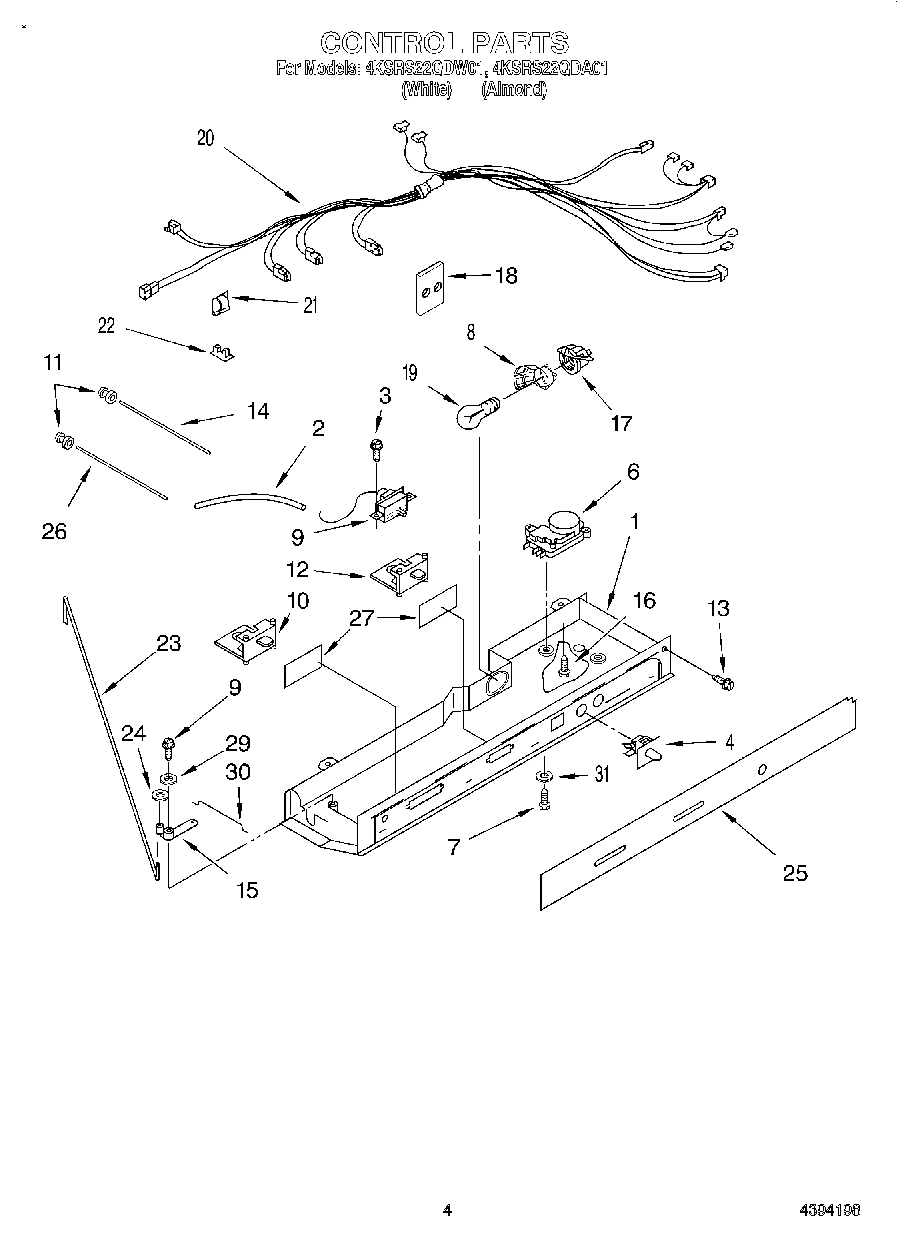

03 - CONTROL

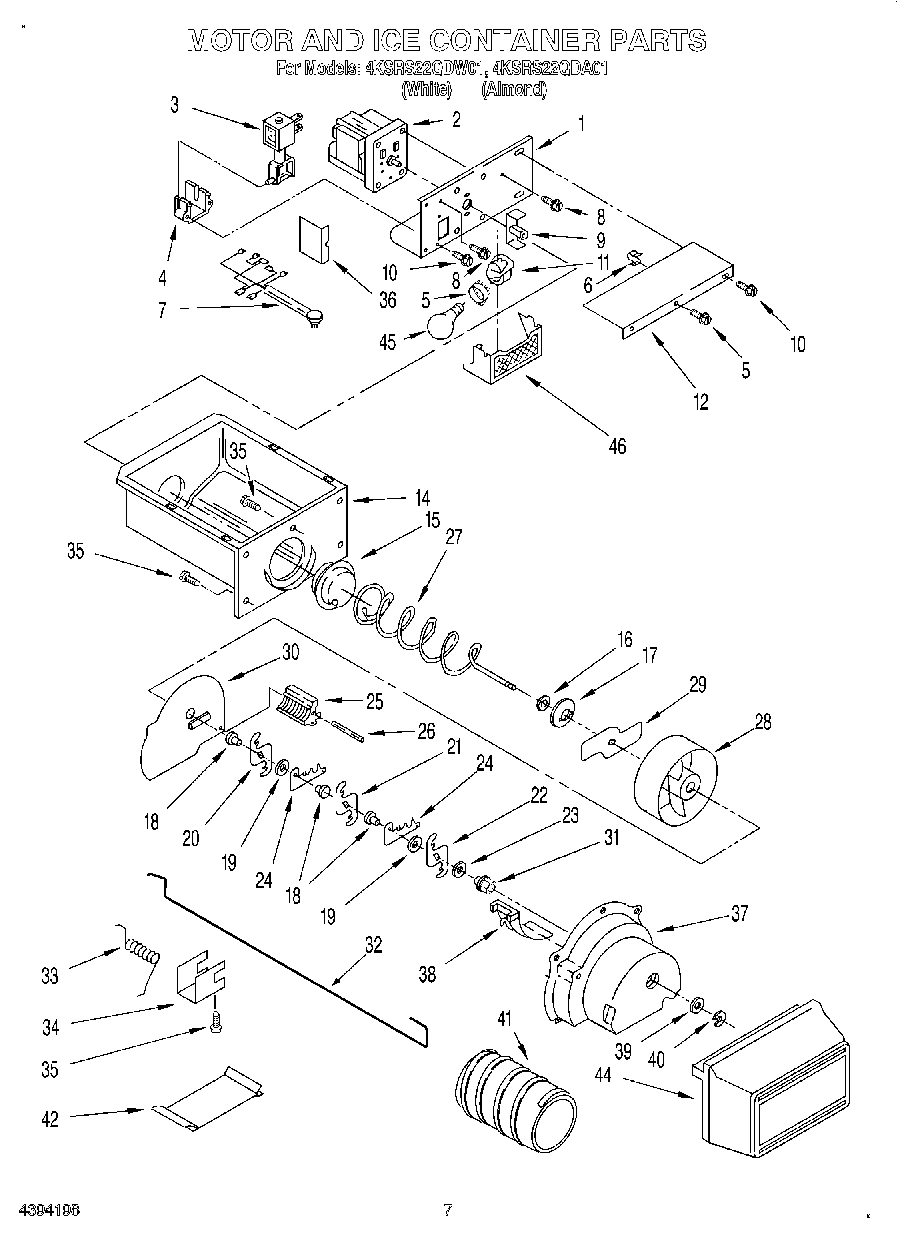

05 - MOTOR AND ICE CONTAINER

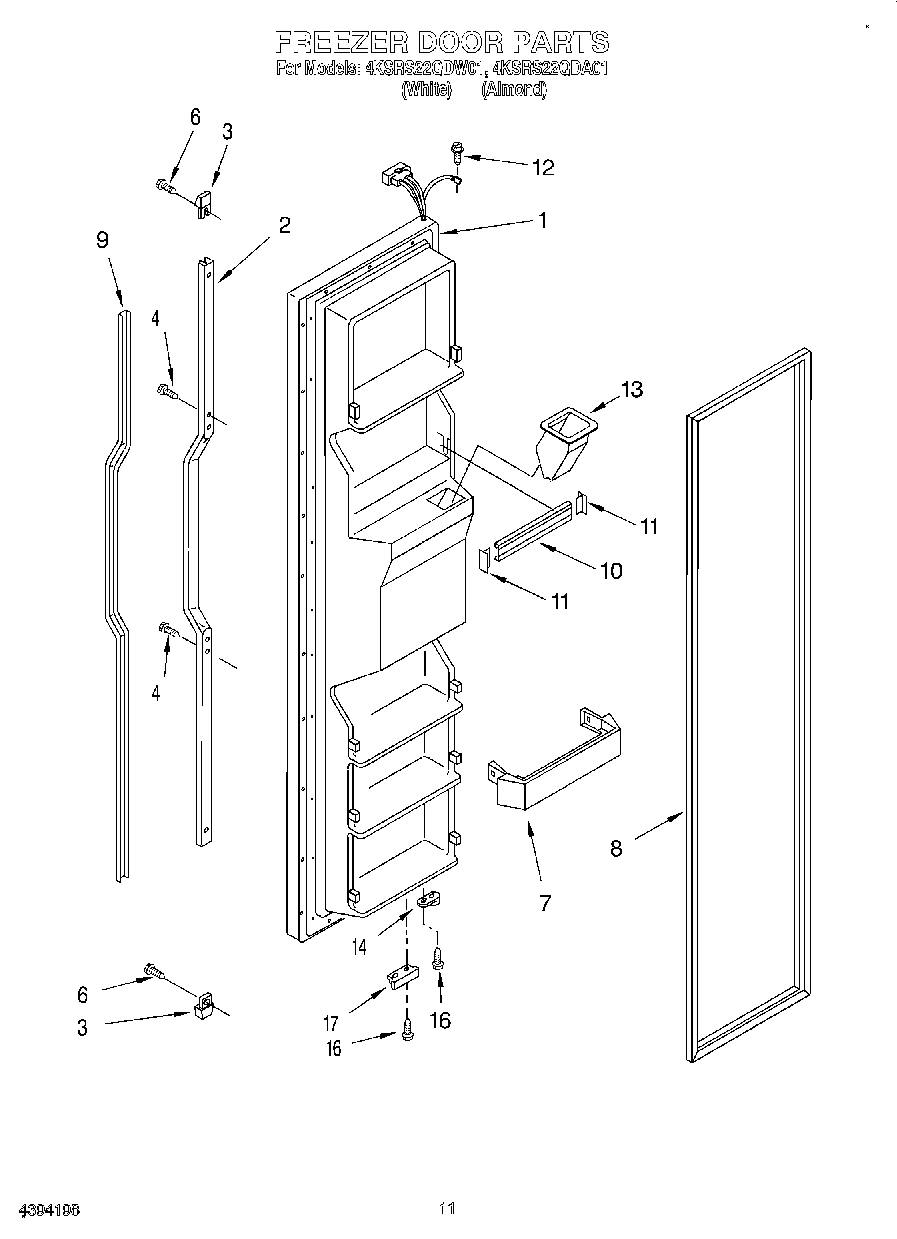

07 - FREEZER DOOR

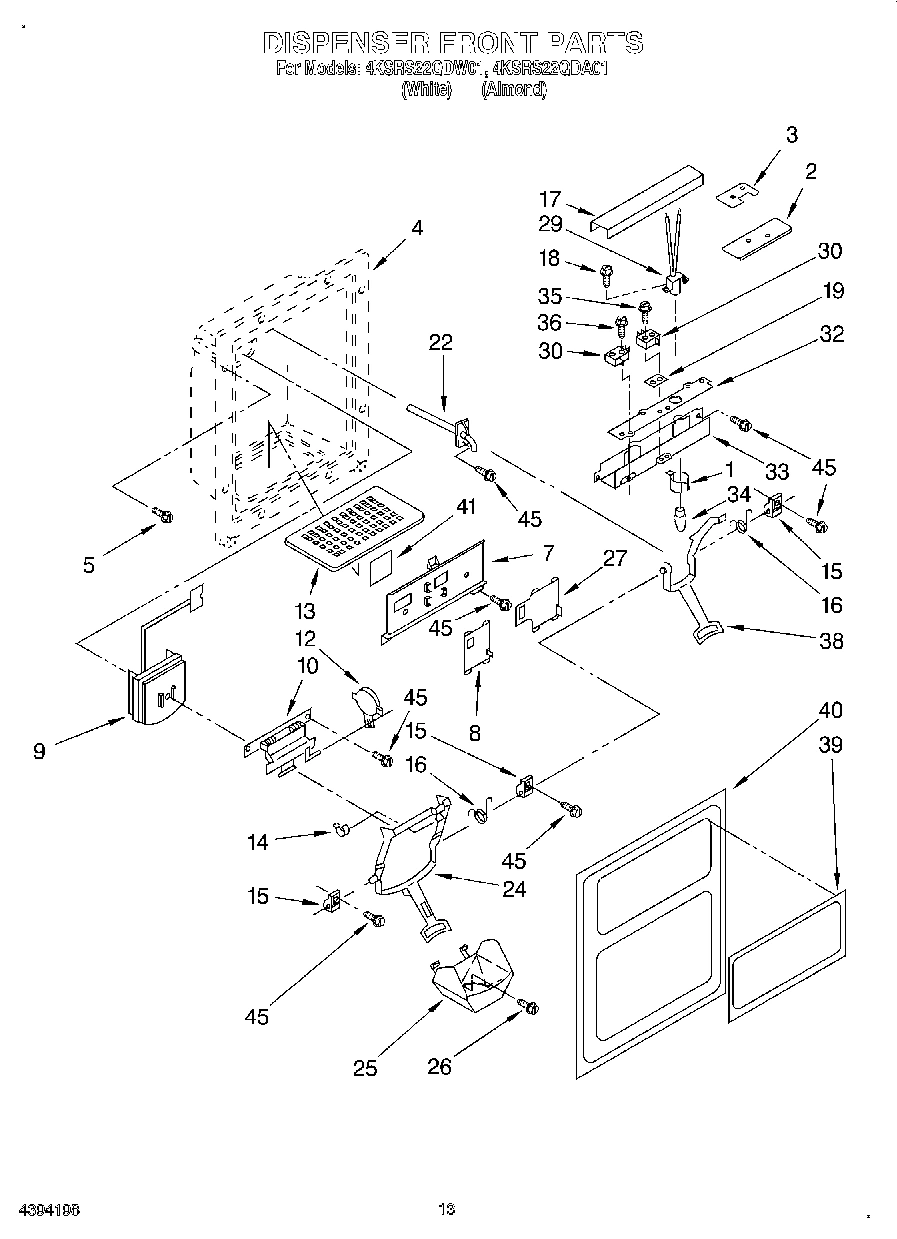

08 - DISPENSER FRONT

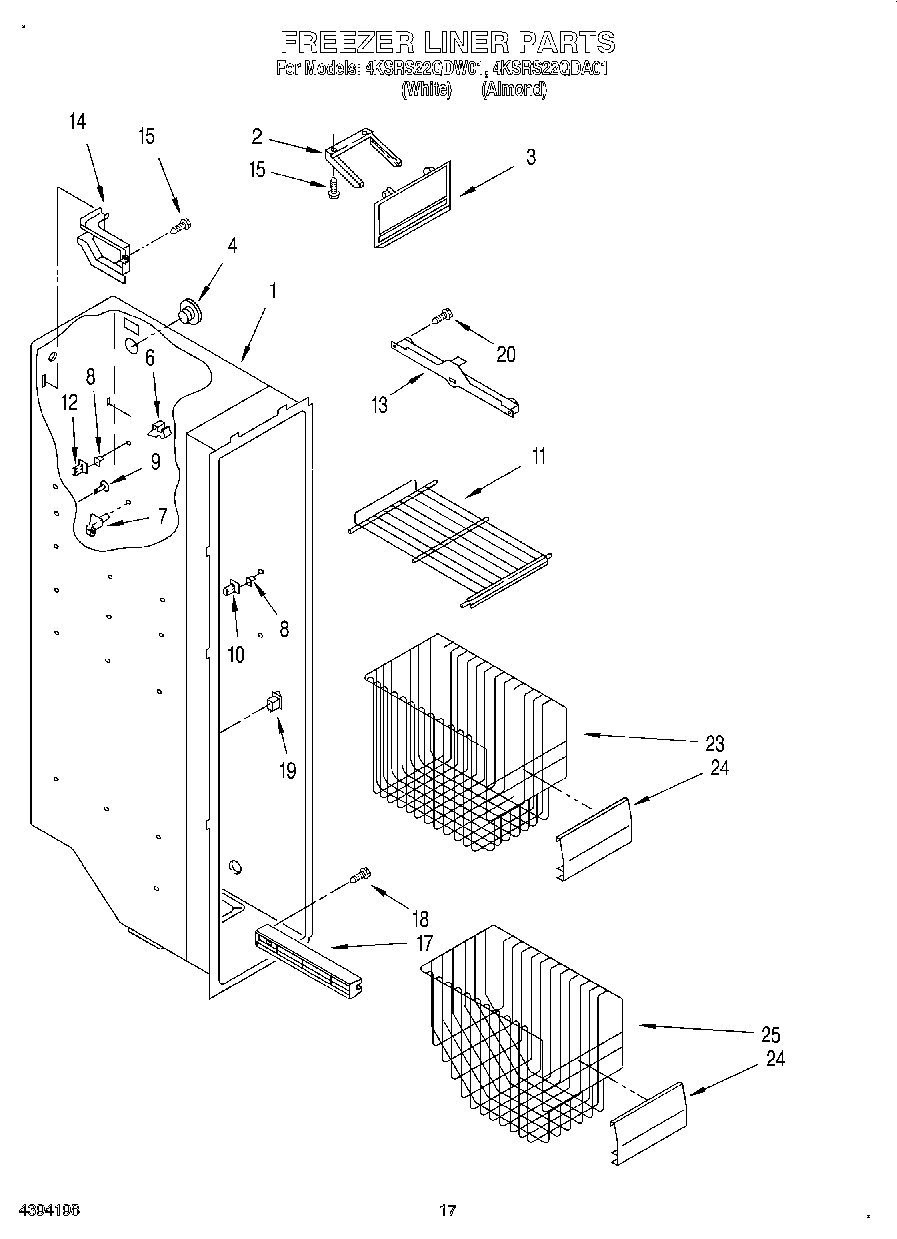

10 - FREEZER LINER
Common parts from model Whirlpool 4KSRS22QDA01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175118 WPL LIT2175118 Contact Us For Availability
WPL LIT2176766 WPL LIT2176766 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Control Box WPL 2181737 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14209A8 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2175121 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2175122 Contact Us For Availability
1
Shroud, Bracket WPL 2166858 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14212A5 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
2
Retainer, Insert WPL 2173827 Contact Us For Availability
2
Guard, Switch WPL 2175226 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
End Cap (2) WPL 2173826 Contact Us For Availability
3
Guard, Switch WPL 2175227 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI14211A8 Contact Us For Availability
5
Thermostat (FC) WPL 2175515 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Screw WPL 489075 Contact Us For Availability
7
Encloser, Terminal Block WPL 2158579 Contact Us For Availability
7
Fan Motor WPL 2154986 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2171071 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Insert, Handle (White) WPL 2173830 Contact Us For Availability
9
Insert, Handle (Almond) WPL 2173831 Contact Us For Availability
10
Insert, Air Baffle WPL 2176796 Contact Us For Availability
10
Valve, Solenoid WPL 2167100 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Bushing WPL 1129449 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2176138 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Chute, Ice WPL 2156146 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Tube, Inlet Valve WPL 627860 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Bracket, Door Stop WPL 2155332 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
18
Screw WPL 489346 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Basket, Upper WPL 2181761 Contact Us For Availability
24
Wiring Assembly WPL 2165297 Contact Us For Availability
24
Fastener, Push-On WPL 489391 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177146 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177147 Contact Us For Availability
24
Front, Basket WPL 2175093 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Gasket WPL 2167227 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175063 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Basket, Lower WPL 2181762 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2175513 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
29
Lamp Holder WPL 2166862 Contact Us For Availability
31
Washer WPL 486632 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Clip, Support WPL 2155021 Contact Us For Availability
36
Screw (6) WPL 488362 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177151 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177152 Contact Us For Availability
39
Insert, Cover (White) WPL 2175027 Contact Us For Availability
39
Insert, Cover (Almond) WPL 2175140 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
WPL 799344 WPL 799344 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
Enam WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (White) WPL 2175138 Contact Us For Availability
40
Cover, Housing (Includes Item 39) (Almond) WPL 2175139 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Housing WPL 2152700 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
47
Cover, Unit WPL 2189567 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
× ![]()
